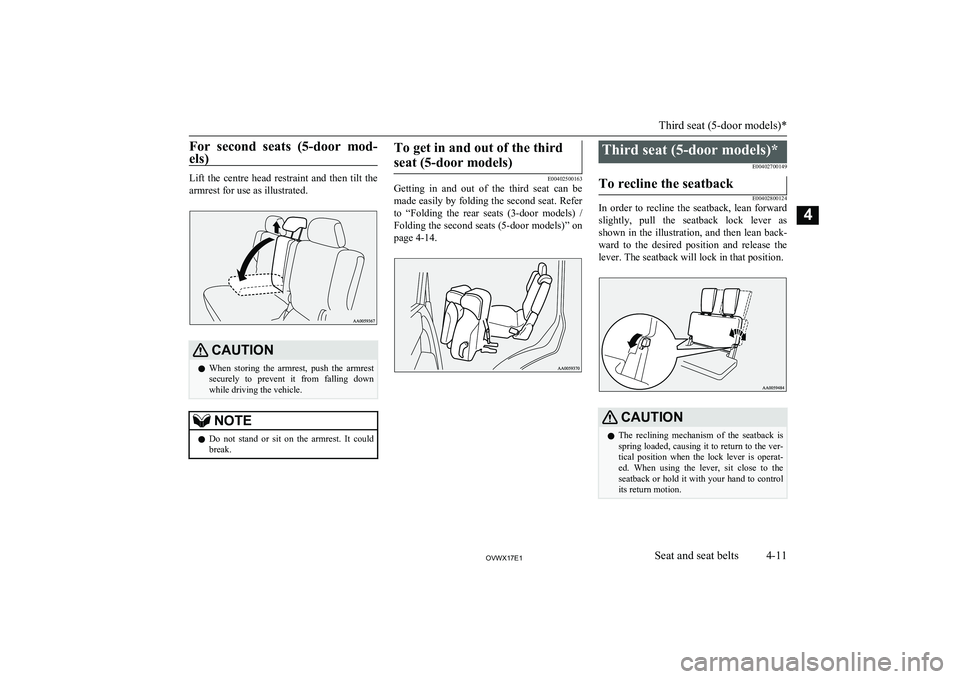

For second seats (5-door mod-els)
Lift the centre head restraint and then tilt the armrest for use as illustrated.
CAUTIONl When storing the armrest, push the armrest
securely to prevent it from falling down while driving the vehicle.NOTEl Do not stand or sit on the armrest. It could
break.To get in and out of the third
seat (5-door models)
E00402500163
Getting in and out of the third seat can be
made easily by folding the second seat. Referto “Folding the rear seats (3-door models) / Folding the second seats (5-door models)” on
page 4-14.
Third seat (5-door models)*
E00402700149To recline the seatback
E00402800124
In order to recline the seatback, lean forwardslightly, pull the seatback lock lever as shown in the illustration, and then lean back-ward to the desired position and release the
lever. The seatback will lock in that position.
CAUTIONl The reclining mechanism of the seatback is
spring loaded, causing it to return to the ver- tical position when the lock lever is operat- ed. When using the lever, sit close to the
seatback or hold it with your hand to control its return motion.
Third seat (5-door models)*
4-11OVWX17E1Seat and seat belts4

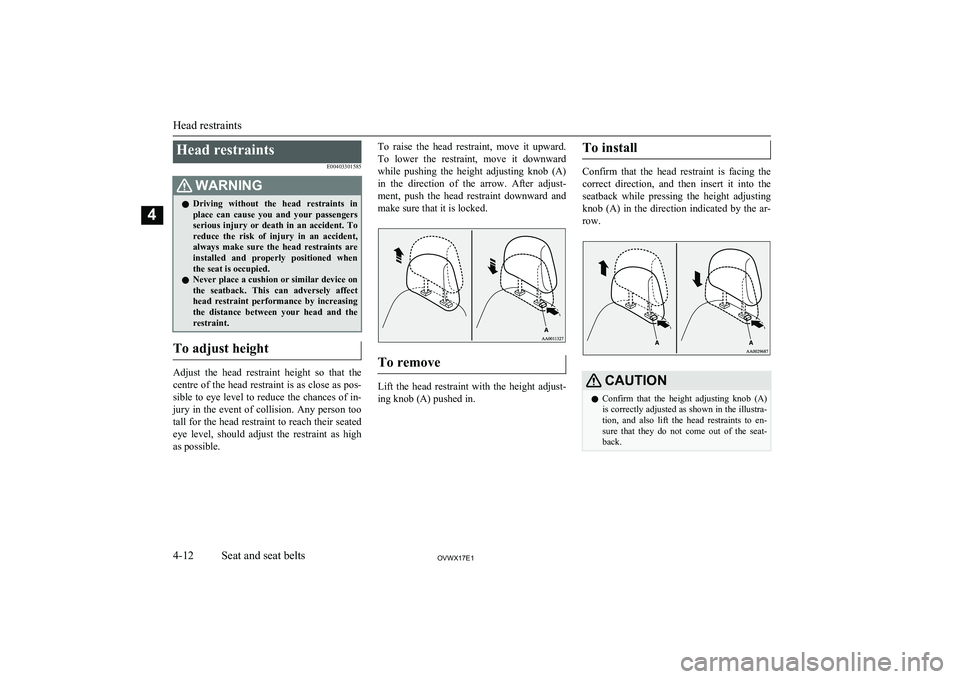

Head restraintsE00403301585WARNINGlDriving without the head restraints in
place can cause you and your passengers serious injury or death in an accident. Toreduce the risk of injury in an accident,
always make sure the head restraints are installed and properly positioned when
the seat is occupied.
l Never place a cushion or similar device on
the seatback. This can adversely affect
head restraint performance by increasing the distance between your head and the
restraint.
To adjust height
Adjust the head restraint height so that the
centre of the head restraint is as close as pos-
sible to eye level to reduce the chances of in-
jury in the event of collision. Any person too tall for the head restraint to reach their seated
eye level, should adjust the restraint as highas possible.
To raise the head restraint, move it upward.
To lower the restraint, move it downward
while pushing the height adjusting knob (A) in the direction of the arrow. After adjust-
ment, push the head restraint downward and make sure that it is locked.
To remove
Lift the head restraint with the height adjust-
ing knob (A) pushed in.
To install
Confirm that the head restraint is facing the
correct direction, and then insert it into the seatback while pressing the height adjusting
knob (A) in the direction indicated by the ar-
row.
CAUTIONl Confirm that the height adjusting knob (A)
is correctly adjusted as shown in the illustra- tion, and also lift the head restraints to en- sure that they do not come out of the seat-back.
Head restraints
4-12OVWX17E1Seat and seat belts4

CAUTIONlThe head restraints for the seats differ in
shape and size. When installing head re- straints, make sure the head restraints are fit- ted in their respective seats.Making a luggage area
E00403400013CAUTIONlDo not stack luggage above the seatback
height.
Secure the luggage firmly.
Serious accidents could result due to unre- strained objects entering the passenger com-
partment during sudden braking.
l When folding, storing or removing the seat,

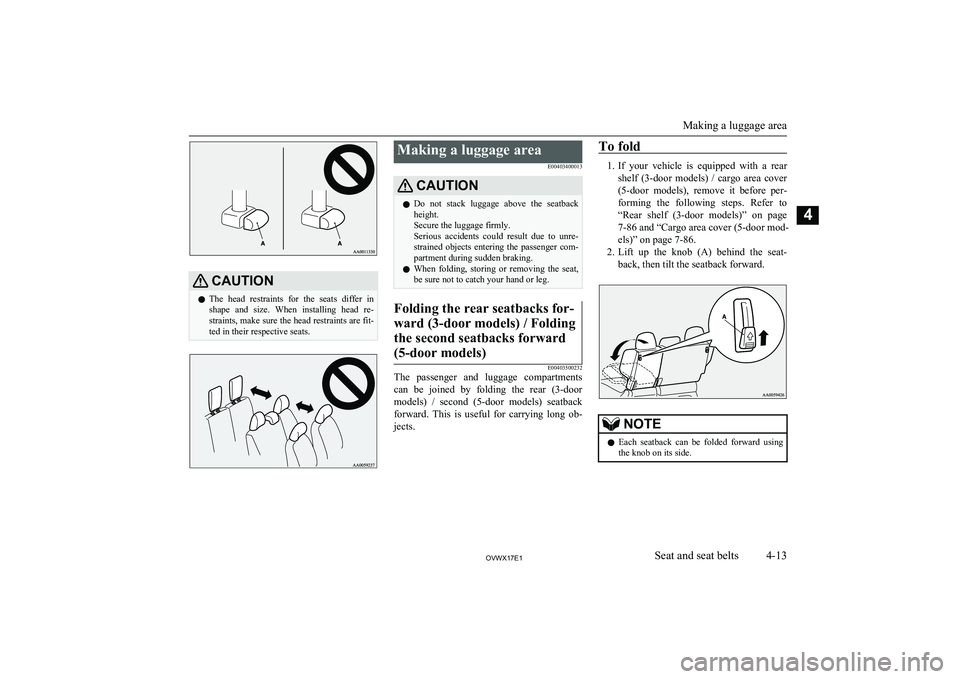

be sure not to catch your hand or leg.Folding the rear seatbacks for-
ward (3-door models) / Folding the second seatbacks forward(5-door models)
E00403500232
The passenger and luggage compartments can be joined by folding the rear (3-door
models) / second (5-door models) seatback forward. This is useful for carrying long ob-
jects.
To fold
1. If your vehicle is equipped with a rear
shelf (3-door models) / cargo area cover
(5-door models), remove it before per- forming the following steps. Refer to“Rear shelf (3-door models)” on page
7-86 and “Cargo area cover (5-door mod-
els)” on page 7-86.
2. Lift up the knob (A) behind the seat-
back, then tilt the seatback forward.
NOTEl Each seatback can be folded forward using
the knob on its side.
Making a luggage area
4-13OVWX17E1Seat and seat belts4

3.Push the seat until you hear a “click”
and the seat locks securely.
To replace
Raise the seatback until it locks securely into
place.
Push lightly on the seatback to confirm that it has actually been secured.

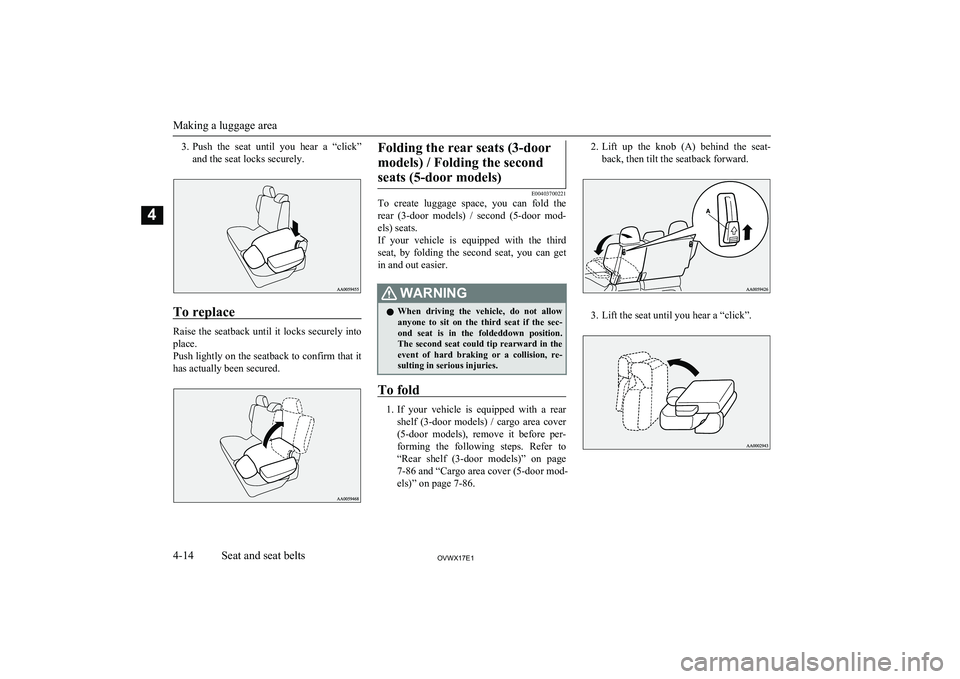

Folding the rear seats (3-door
models) / Folding the secondseats (5-door models)
E00403700221
To create luggage space, you can fold the
rear (3-door models) / second (5-door mod- els) seats.
If your vehicle is equipped with the third
seat, by folding the second seat, you can get
in and out easier.
WARNINGl When driving the vehicle, do not allow
anyone to sit on the third seat if the sec-
ond seat is in the foldeddown position. The second seat could tip rearward in the event of hard braking or a collision, re-
sulting in serious injuries.
To fold
1. If your vehicle is equipped with a rear
shelf (3-door models) / cargo area cover
(5-door models), remove it before per- forming the following steps. Refer to“Rear shelf (3-door models)” on page
7-86 and “Cargo area cover (5-door mod-
els)” on page 7-86.
2. Lift up the knob (A) behind the seat-
back, then tilt the seatback forward.
3. Lift the seat until you hear a “click”.
Making a luggage area
4-14OVWX17E1Seat and seat belts4

To replace

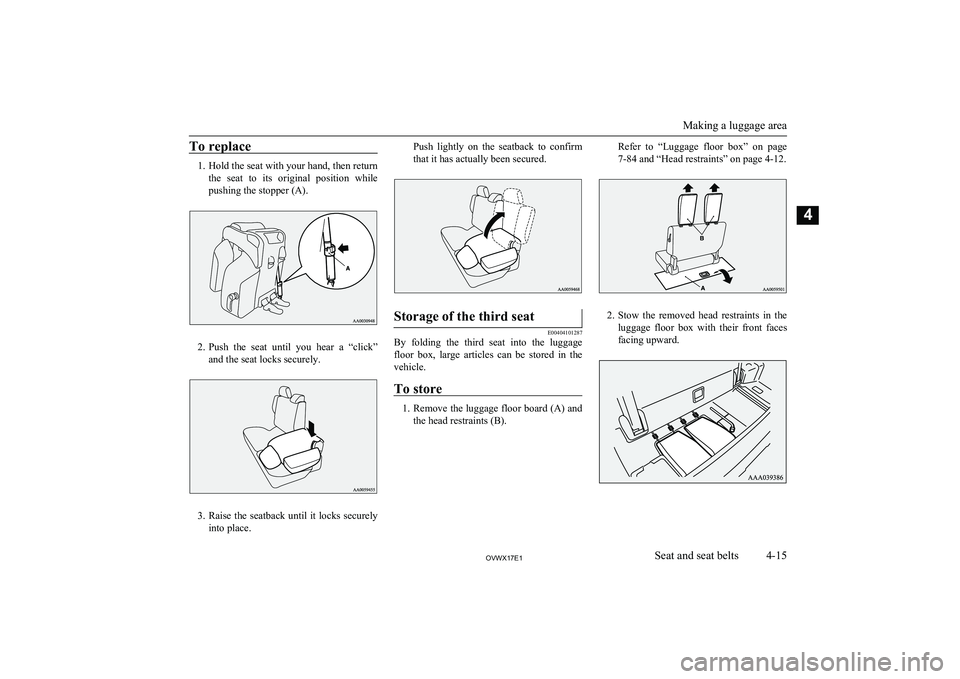

1.Hold the seat with your hand, then return
the seat to its original position while pushing the stopper (A).
2. Push the seat until you hear a “click”
and the seat locks securely.
3. Raise the seatback until it locks securely
into place.
Push lightly on the seatback to confirm
that it has actually been secured.Storage of the third seat
E00404101287
By folding the third seat into the luggage floor box, large articles can be stored in the vehicle.
To store
1. Remove the luggage floor board (A) and
the head restraints (B).
Refer to “Luggage floor box” on page
7-84 and “Head restraints” on page 4-12.
2. Stow the removed head restraints in the
luggage floor box with their front faces
facing upward.
Making a luggage area
4-15OVWX17E1Seat and seat belts4

NOTElStowing the head restraints with their front
faces facing downward would prevent the
third seat from being stowed.

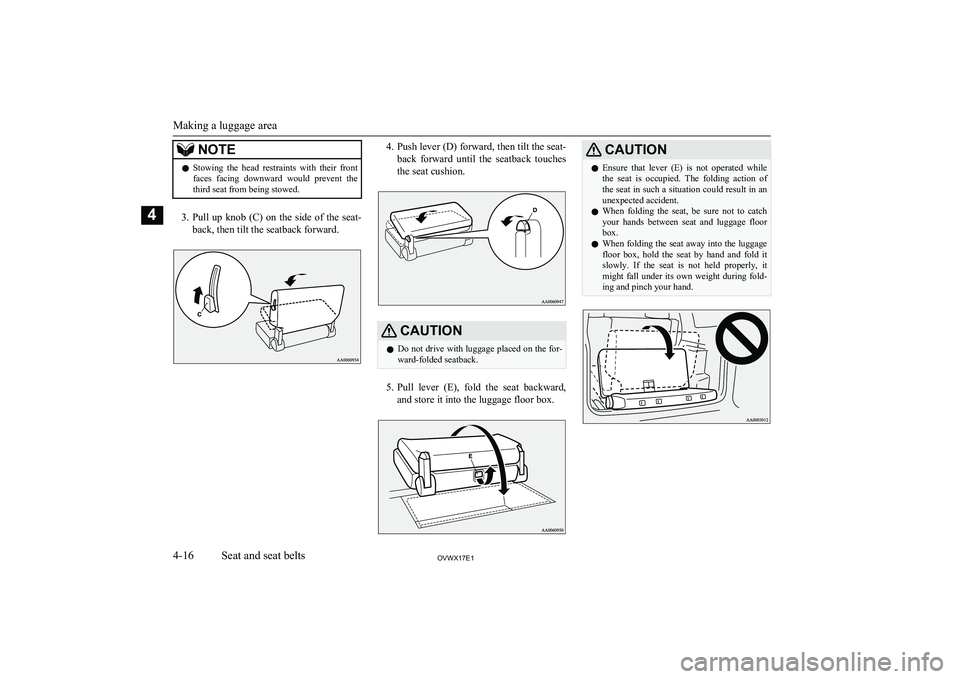

3. Pull up knob (C) on the side of the seat-
back, then tilt the seatback forward.
4. Push lever (D) forward, then tilt the seat-
back forward until the seatback touches
the seat cushion.CAUTIONl Do not drive with luggage placed on the for-
ward-folded seatback.
5. Pull lever (E), fold the seat backward,
and store it into the luggage floor box.
CAUTIONl Ensure that lever (E) is not operated while
the seat is occupied. The folding action of
the seat in such a situation could result in an unexpected accident.
l When folding the seat, be sure not to catch
your hands between seat and luggage floor box.
l When folding the seat away into the luggage
floor box, hold the seat by hand and fold it
slowly. If the seat is not held properly, it might fall under its own weight during fold-
ing and pinch your hand.
Making a luggage area
4-16OVWX17E1Seat and seat belts4

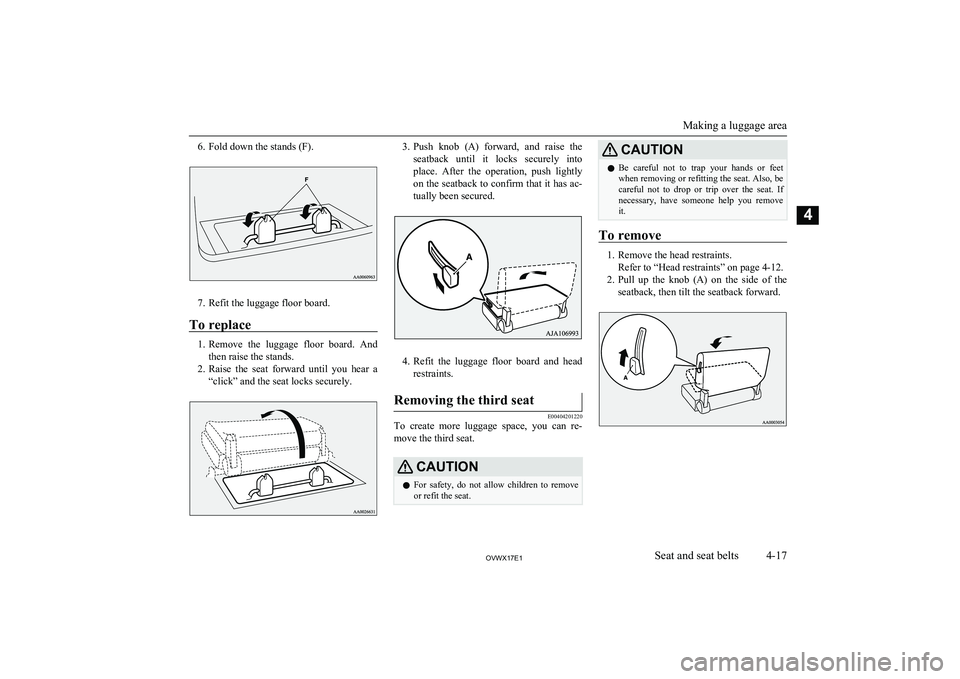

6. Fold down the stands (F).
7. Refit the luggage floor board.
To replace
1. Remove the luggage floor board. And
then raise the stands.
2. Raise the seat forward until you hear a
“click” and the seat locks securely.
3. Push knob (A) forward, and raise the
seatback until it locks securely into
place. After the operation, push lightly on the seatback to confirm that it has ac-
tually been secured.
4. Refit the luggage floor board and head
restraints.
Removing the third seat
E00404201220
To create more luggage space, you can re-
move the third seat.
CAUTIONl For safety, do not allow children to remove
or refit the seat.CAUTIONl Be careful not to trap your hands or feet
when removing or refitting the seat. Also, be careful not to drop or trip over the seat. If
necessary, have someone help you remove
it.
To remove
1. Remove the head restraints.
Refer to “Head restraints” on page 4-12.
2. Pull up the knob (A) on the side of the
seatback, then tilt the seatback forward.
Making a luggage area
4-17OVWX17E1Seat and seat belts4

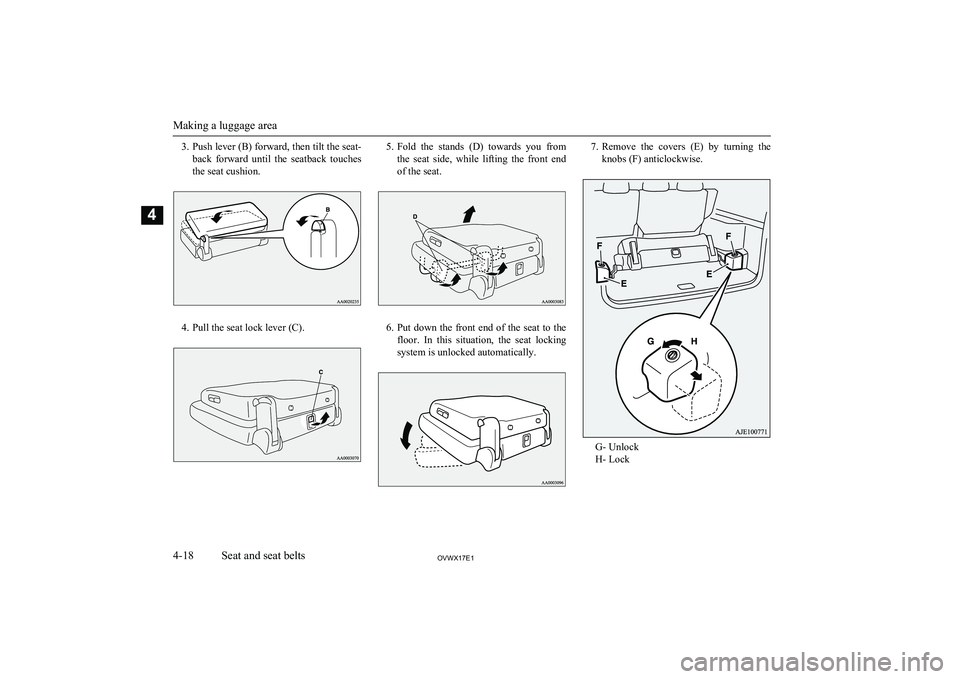

3.Push lever (B) forward, then tilt the seat-
back forward until the seatback touches
the seat cushion.
4. Pull the seat lock lever (C).
5. Fold the stands (D) towards you from
the seat side, while lifting the front end
of the seat.
6. Put down the front end of the seat to the
floor. In this situation, the seat locking system is unlocked automatically.
7. Remove the covers (E) by turning the
knobs (F) anticlockwise.
G- Unlock
H- Lock
Making a luggage area
4-18OVWX17E1Seat and seat belts4

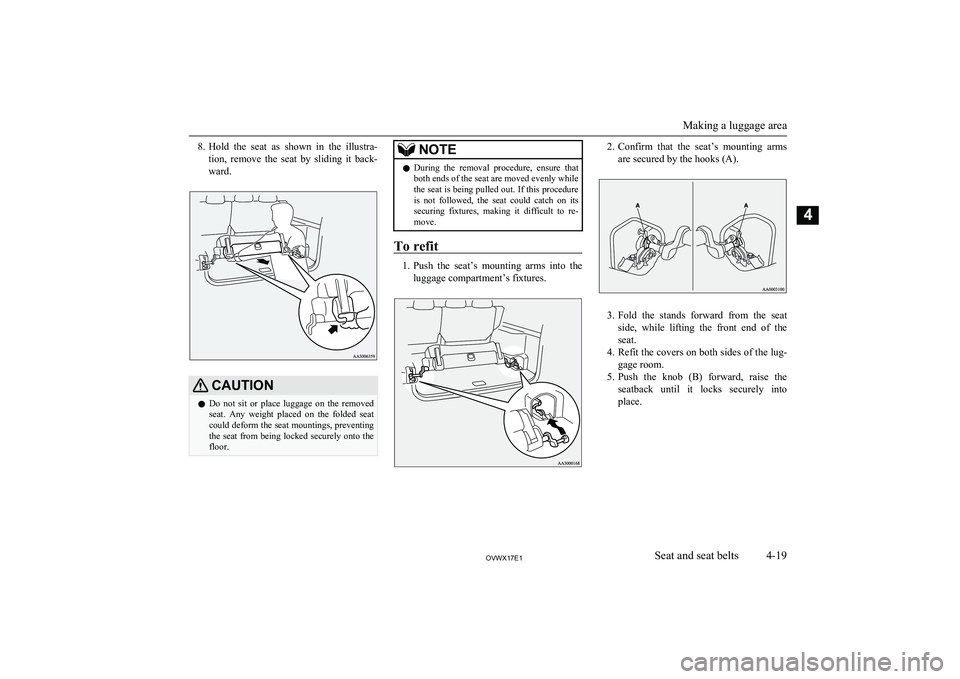

8.Hold the seat as shown in the illustra-
tion, remove the seat by sliding it back- ward.CAUTIONl Do not sit or place luggage on the removed
seat. Any weight placed on the folded seatcould deform the seat mountings, preventing the seat from being locked securely onto the
floor.NOTEl During the removal procedure, ensure that
both ends of the seat are moved evenly while
the seat is being pulled out. If this procedure is not followed, the seat could catch on its securing fixtures, making it difficult to re- move.
To refit
1. Push the seat’s mounting arms into the
luggage compartment’s fixtures.
2. Confirm that the seat’s mounting arms
are secured by the hooks (A).
3. Fold the stands forward from the seat
side, while lifting the front end of the seat.
4. Refit the covers on both sides of the lug-
gage room.
5. Push the knob (B) forward, raise the
seatback until it locks securely into
place.
Making a luggage area
4-19OVWX17E1Seat and seat belts4

After the operation, push the seatback
lightly to confirm that it has actually been secured.
6. Refit the head restraints.

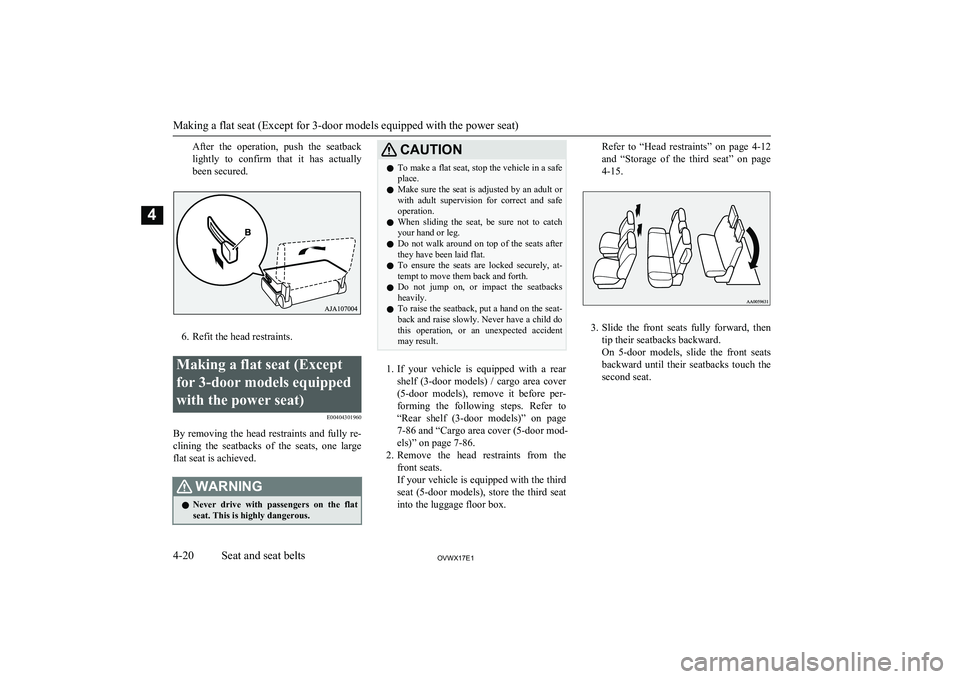

Making a flat seat (Except
for 3-door models equipped
with the power seat) E00404301960
By removing the head restraints and fully re-
clining the seatbacks of the seats, one large flat seat is achieved.
WARNINGl Never drive with passengers on the flat
seat. This is highly dangerous.CAUTIONl To make a flat seat, stop the vehicle in a safe
place.
l Make sure the seat is adjusted by an adult or
with adult supervision for correct and safe
operation.
l When sliding the seat, be sure not to catch
your hand or leg.
l Do not walk around on top of the seats after
they have been laid flat.
l To ensure the seats are locked securely, at-
tempt to move them back and forth.
l Do not jump on, or impact the seatbacks
heavily.
l To raise the seatback, put a hand on the seat-
back and raise slowly. Never have a child do this operation, or an unexpected accident
may result.
1. If your vehicle is equipped with a rear
shelf (3-door models) / cargo area cover
(5-door models), remove it before per- forming the following steps. Refer to“Rear shelf (3-door models)” on page
7-86 and “Cargo area cover (5-door mod-
els)” on page 7-86.
2. Remove the head restraints from the
front seats.
If your vehicle is equipped with the third seat (5-door models), store the third seat into the luggage floor box.
Refer to “Head restraints” on page 4-12
and “Storage of the third seat” on page
4-15.
3. Slide the front seats fully forward, then
tip their seatbacks backward.
On 5-door models, slide the front seats backward until their seatbacks touch the second seat.
Making a flat seat (Except for 3-door models equipped with the power seat)
