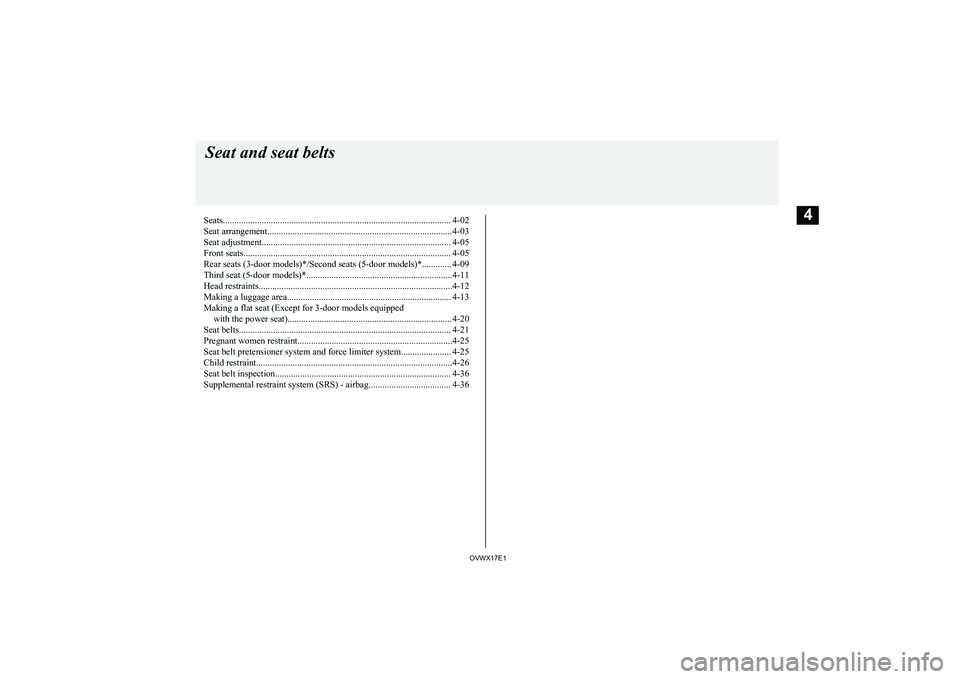

Seats.................................................................................................... 4-02
Seat arrangement................................................................................. 4-03
Seat adjustment................................................................................... 4-05 Front seats........................................................................................... 4-05
Rear seats (3-door models)*/Second seats (5-door models)*............. 4-09
Third seat (5-door models)*................................................................4-11
Head restraints.....................................................................................4-12
Making a luggage area........................................................................ 4-13
Making a flat seat (Except for 3-door models equipped with the power seat)........................................................................ 4-20
Seat belts............................................................................................. 4-21 Pregnant women restraint....................................................................4-25
Seat belt pretensioner system and force limiter system...................... 4-25
Child restraint......................................................................................4-26 Seat belt inspection............................................................................. 4-36Supplemental restraint system (SRS) - airbag.................................... 4-36Seat and seat belts
OVWX17E14

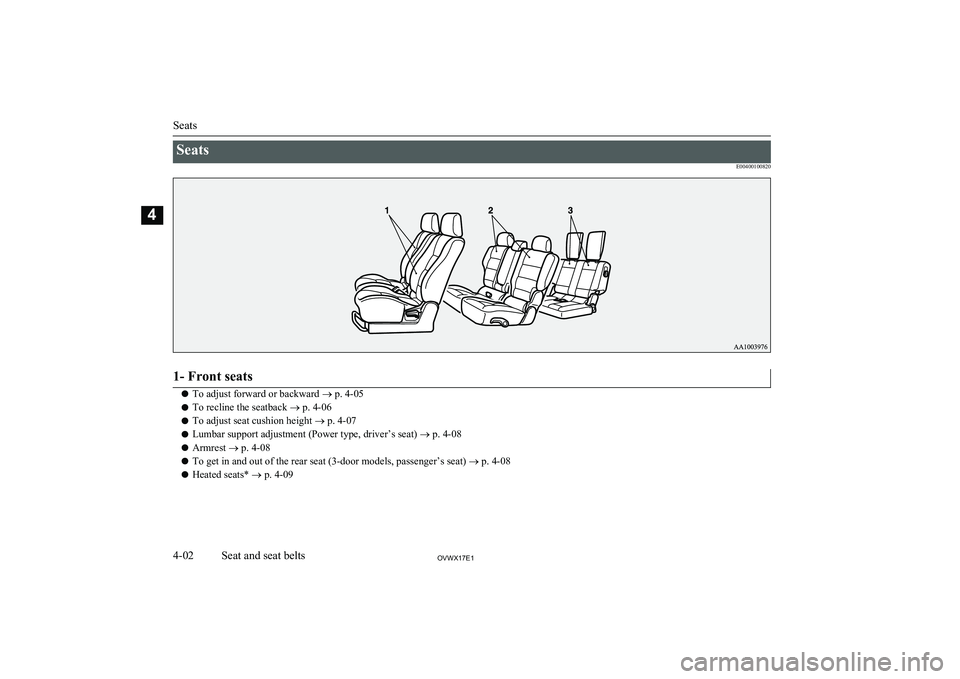

SeatsE004001008201- Front seats
lTo adjust forward or backward
® p. 4-05
l To recline the seatback
® p. 4-06
l To adjust seat cushion height
® p. 4-07
l Lumbar support adjustment (Power type, driver’s seat)
® p. 4-08
l Armrest
® p. 4-08
l To get in and out of the rear seat (3-door models, passenger’s seat)
® p. 4-08
l Heated seats*
® p. 4-09
Seats
4-02OVWX17E1Seat and seat belts4

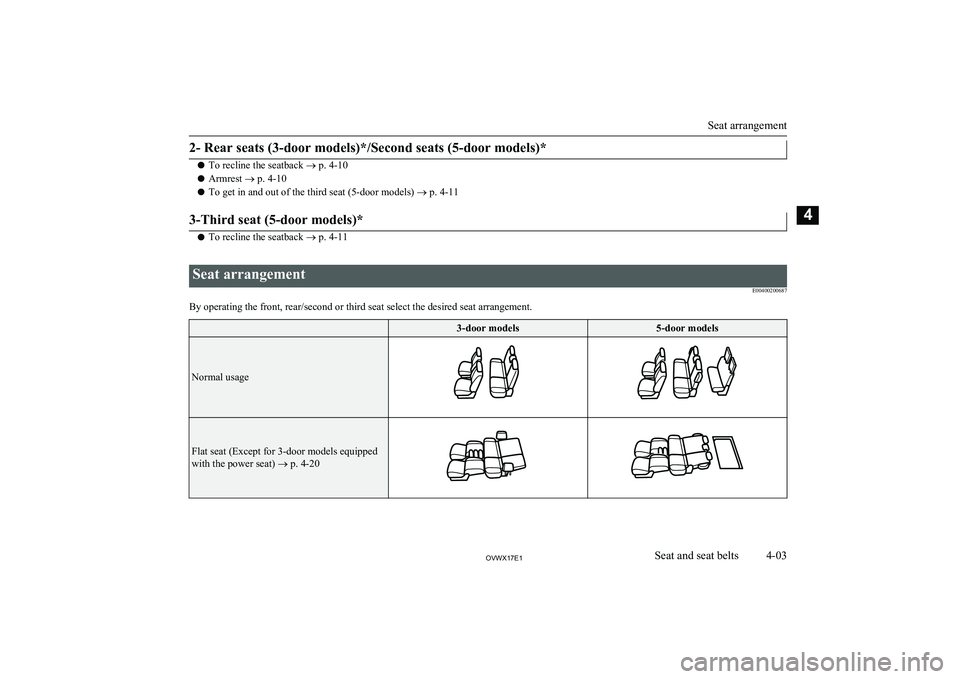

2- Rear seats (3-door models)*/Second seats (5-door models)*
lTo recline the seatback
® p. 4-10
l Armrest
® p. 4-10
l To get in and out of the third seat (5-door models)
® p. 4-11
3-Third seat (5-door models)*
l To recline the seatback
® p. 4-11

Seat arrangement E00400200687
By operating the front, rear/second or third seat select the desired seat arrangement. 3-door models5-door models
Normal usageFlat seat (Except for 3-door models equipped
with the power seat) ® p. 4-20Seat arrangement
4-03OVWX17E1Seat and seat belts4

3-door models5-door models

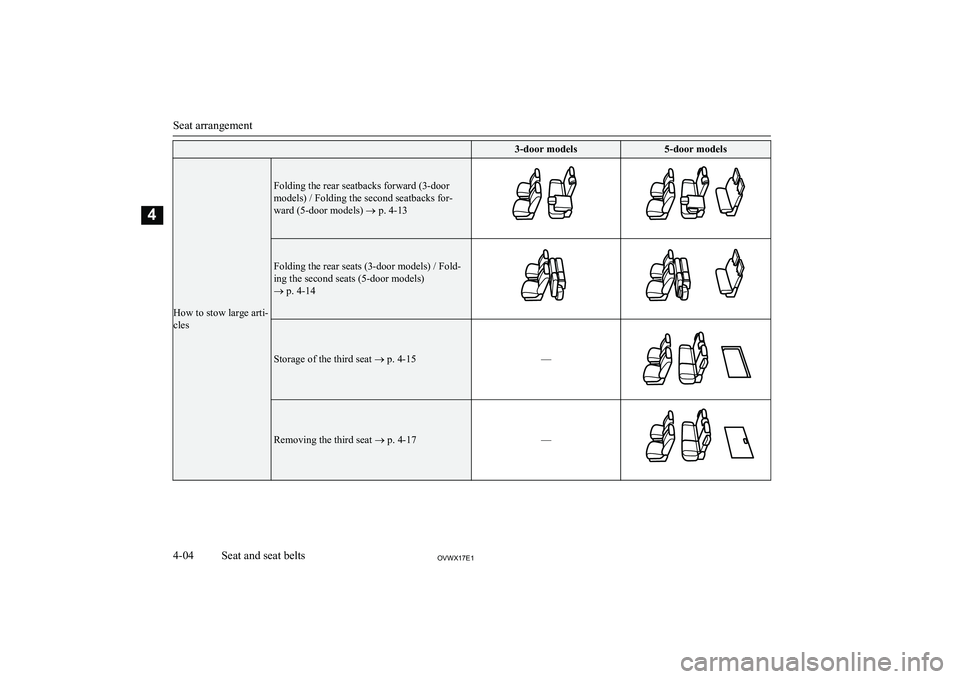

How to stow large arti-
cles
Folding the rear seatbacks forward (3-door
models) / Folding the second seatbacks for-
ward (5-door models) ® p. 4-13Folding the rear seats (3-door models) / Fold-
ing the second seats (5-door models)
® p. 4-14
Storage of the third seat ® p. 4-15—Removing the third seat ® p. 4-17—

Seat arrangement
4-04OVWX17E1Seat and seat belts4

Seat adjustmentE00400301988
Adjust the driver’s seat so that you are com- fortable and that you can reach the pedals,
steering wheel, switches etc. while retaining a clear field of vision.WARNINGl Do not attempt to adjust the seat while
driving. This can cause loss of vehicle con- trol and result in an accident. After ad-
justments are made, ensure the seating is locked in position by attempting to move
the seat forward and rearward without
using the adjusting mechanism.
l Do not allow people or children to ride in
any area of your vehicle that is not equip- ped with seats and seat belts, and make
sure that everyone travelling in your vehi- cle is in a seat and wearing a seat belt, or
in the case of a child is strapped in a child restraint.
l To minimize the risk of personal injury in
the event of a collision or sudden braking,the seatbacks should always be in the al-
most upright position while the vehicle is in motion. The protection provided by theseat belts may be reduced significantly
when the seatback is reclined. There is greater risk that the passenger will slide
under the seat belt, resulting in serious in- jury, when the seatback is reclined.WARNINGl Do not place objects under the seats. This
could prevent the seat from locking se-curely, and it could lead to an accident. It
may also cause damage to the seat or oth-
er parts.CAUTIONl Make sure the seat is adjusted by an adult or
with adult supervision for correct and safe operation.
l Do not place a cushion or the like between
your back and the seatback while driving.The effectiveness of the head restraints will
be reduced in the event of an accident.
l When sliding the seats, be careful not to
catch your hand or foot.Front seats
E00400400100To adjust forward or back-
ward
E00400500055
Manual type
Pull the seat adjusting lever and adjust the seat forward or backward to the desired posi-tion, and release the adjusting lever.
WARNINGl To ensure the seat is locked securely, try
to move the seat forward or backward
without using the adjusting lever.
Seat adjustment
4-05OVWX17E1Seat and seat belts4

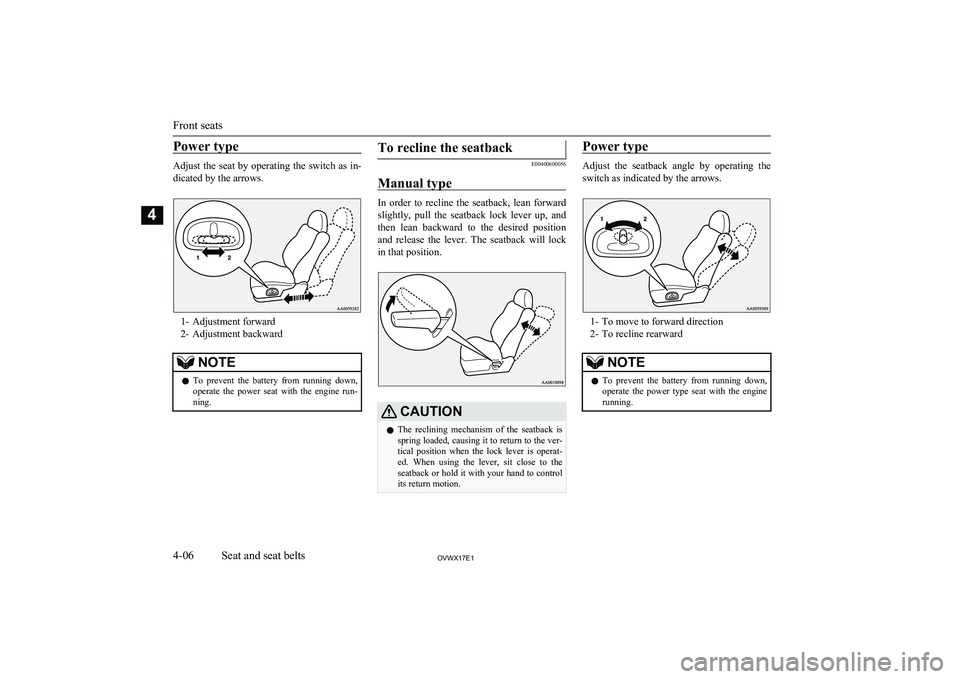

Power type
Adjust the seat by operating the switch as in-
dicated by the arrows.
1- Adjustment forward
2- Adjustment backward
NOTEl To prevent the battery from running down,
operate the power seat with the engine run-ning.To recline the seatback
E00400600056
Manual type
In order to recline the seatback, lean forward slightly, pull the seatback lock lever up, and
then lean backward to the desired position
and release the lever. The seatback will lock in that position.
CAUTIONl The reclining mechanism of the seatback is
spring loaded, causing it to return to the ver- tical position when the lock lever is operat- ed. When using the lever, sit close to the
seatback or hold it with your hand to control its return motion.Power type
Adjust the seatback angle by operating the
switch as indicated by the arrows.
1- To move to forward direction
2- To recline rearward
NOTEl To prevent the battery from running down,
operate the power type seat with the engine
running.
Front seats
4-06OVWX17E1Seat and seat belts4

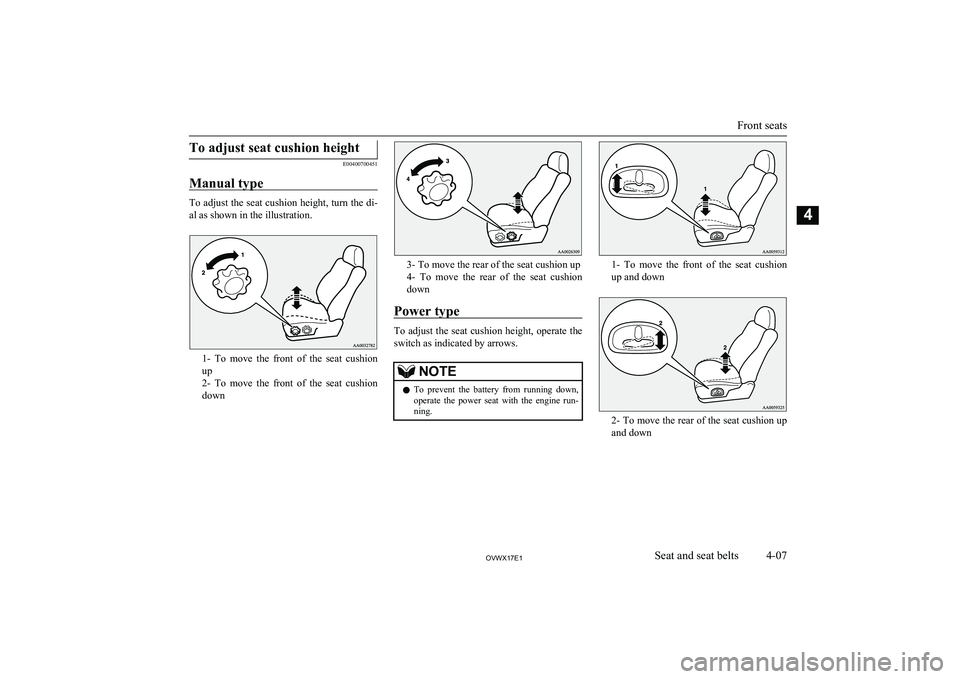

To adjust seat cushion height
E00400700451
Manual type
To adjust the seat cushion height, turn the di- al as shown in the illustration.
1- To move the front of the seat cushion
up
2- To move the front of the seat cushion down
3- To move the rear of the seat cushion up
4- To move the rear of the seat cushion
down
Power type
To adjust the seat cushion height, operate the switch as indicated by arrows.
NOTEl To prevent the battery from running down,
operate the power seat with the engine run-ning.
1- To move the front of the seat cushion
up and down
2- To move the rear of the seat cushion up
and down
Front seats
4-07OVWX17E1Seat and seat belts4

3- To move the whole seat cushion up and
down

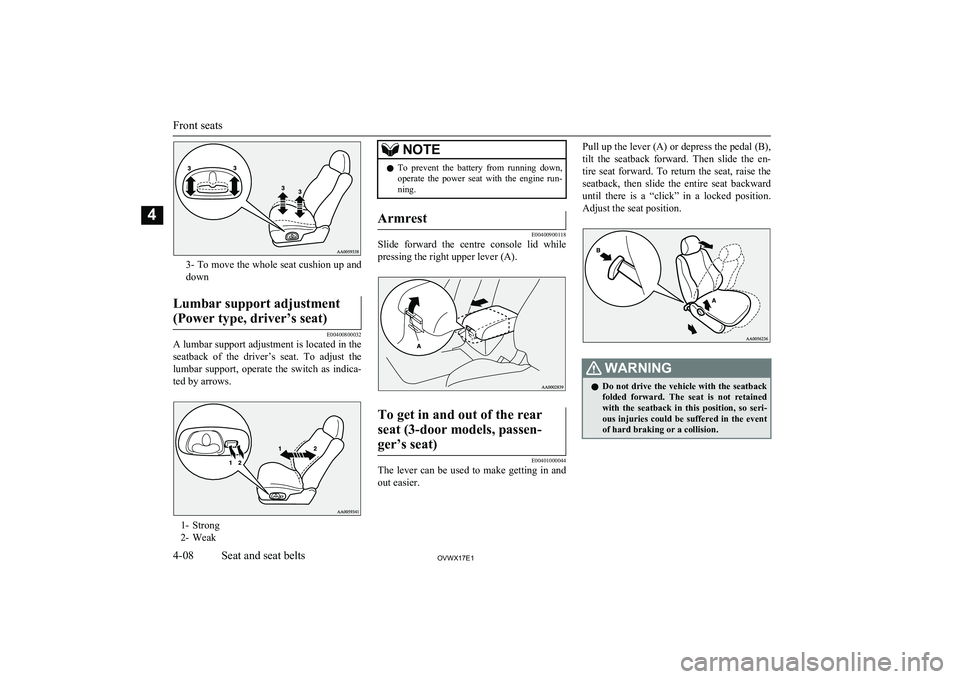

Lumbar support adjustment
(Power type, driver’s seat)
E00400800032
A lumbar support adjustment is located in the seatback of the driver’s seat. To adjust the
lumbar support, operate the switch as indica-
ted by arrows.
1- Strong
2- Weak
NOTEl To prevent the battery from running down,
operate the power seat with the engine run-ning.Armrest
E00400900118
Slide forward the centre console lid while
pressing the right upper lever (A).
To get in and out of the rear
seat (3-door models, passen- ger’s seat)
E00401000044
The lever can be used to make getting in and out easier.
Pull up the lever (A) or depress the pedal (B),
tilt the seatback forward. Then slide the en-
tire seat forward. To return the seat, raise the seatback, then slide the entire seat backward until there is a “click” in a locked position.
Adjust the seat position.WARNINGl Do not drive the vehicle with the seatback
folded forward. The seat is not retainedwith the seatback in this position, so seri- ous injuries could be suffered in the event
of hard braking or a collision.
Front seats
4-08OVWX17E1Seat and seat belts4

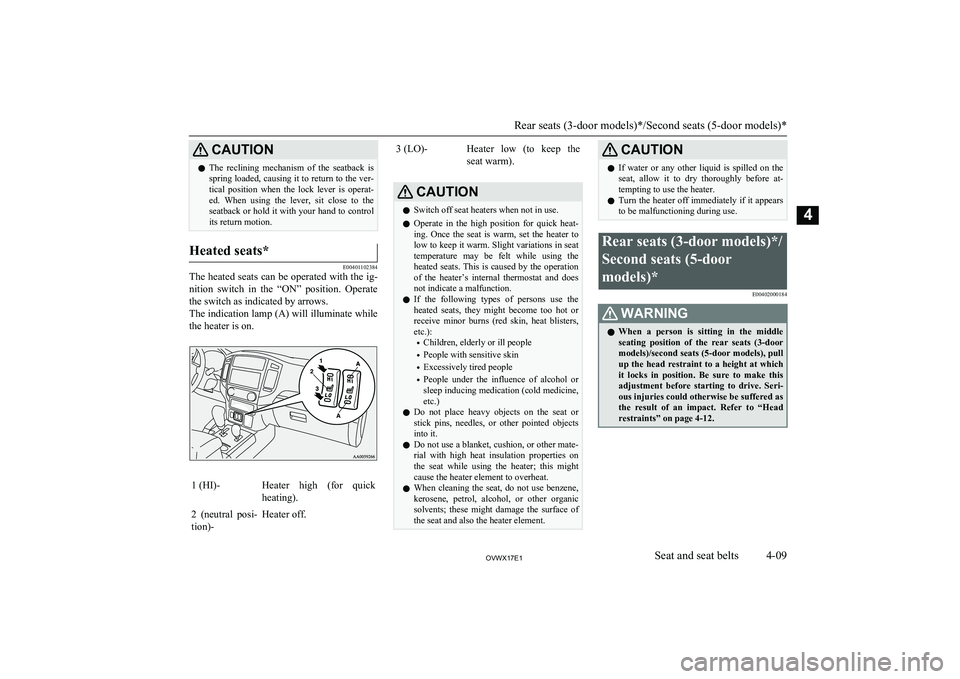

CAUTIONlThe reclining mechanism of the seatback is
spring loaded, causing it to return to the ver- tical position when the lock lever is operat- ed. When using the lever, sit close to the
seatback or hold it with your hand to control its return motion.Heated seats*
E00401102384
The heated seats can be operated with the ig-
nition switch in the “ON” position. Operate
the switch as indicated by arrows.
The indication lamp (A) will illuminate while the heater is on.
1 (HI)-Heater high (for quick
heating).2 (neutral posi- tion)-Heater off.3 (LO)-Heater low (to keep the
seat warm).CAUTIONl Switch off seat heaters when not in use.
l Operate in the high position for quick heat-
ing. Once the seat is warm, set the heater to low to keep it warm. Slight variations in seat
temperature may be felt while using the heated seats. This is caused by the operation
of the heater’s internal thermostat and does not indicate a malfunction.
l If the following types of persons use the
heated seats, they might become too hot or receive minor burns (red skin, heat blisters,
etc.):
• Children, elderly or ill people
• People with sensitive skin
• Excessively tired people
• People under the influence of alcohol or
sleep inducing medication (cold medicine, etc.)
l Do not place heavy objects on the seat or
stick pins, needles, or other pointed objects into it.
l Do not use a blanket, cushion, or other mate-
rial with high heat insulation properties on the seat while using the heater; this might
cause the heater element to overheat.
l When cleaning the seat, do not use benzene,
kerosene, petrol, alcohol, or other organicsolvents; these might damage the surface of the seat and also the heater element.CAUTIONl If water or any other liquid is spilled on the
seat, allow it to dry thoroughly before at-tempting to use the heater.
l Turn the heater off immediately if it appears
to be malfunctioning during use.Rear seats (3-door models)*/
Second seats (5-door
models)* E00402000184WARNINGlWhen a person is sitting in the middle
seating position of the rear seats (3-doormodels)/second seats (5-door models), pull
up the head restraint to a height at which
it locks in position. Be sure to make this adjustment before starting to drive. Seri- ous injuries could otherwise be suffered as
the result of an impact. Refer to “Head
restraints” on page 4-12.
Rear seats (3-door models)*/Second seats (5-door models)*
4-09OVWX17E1Seat and seat belts4

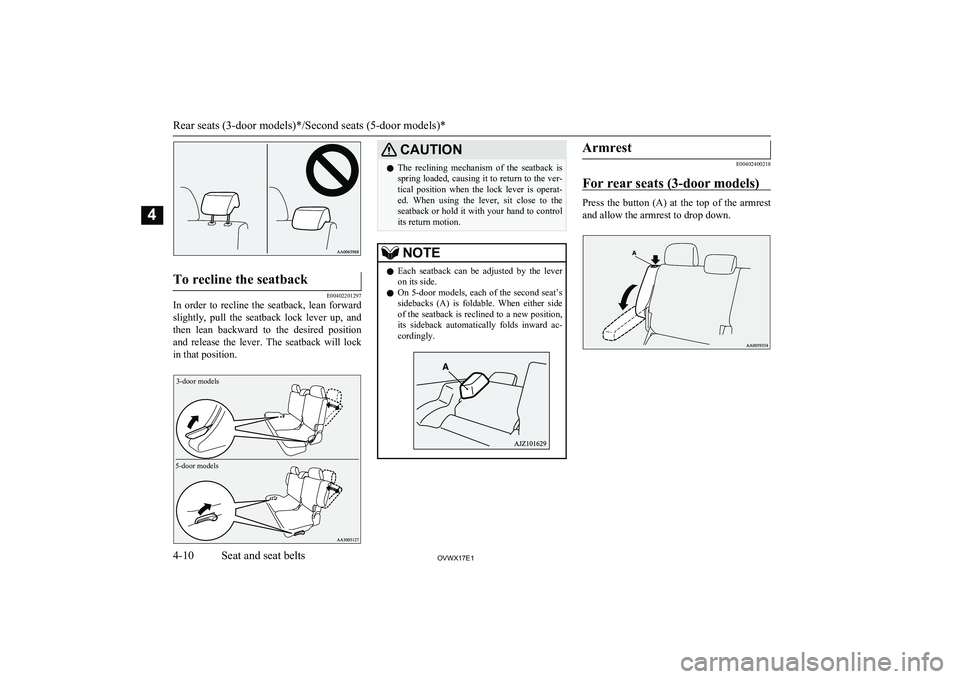

To recline the seatback
E00402201297
In order to recline the seatback, lean forwardslightly, pull the seatback lock lever up, and then lean backward to the desired position
and release the lever. The seatback will lock
in that position.
3-door models5-door models
CAUTIONl The reclining mechanism of the seatback is
spring loaded, causing it to return to the ver- tical position when the lock lever is operat- ed. When using the lever, sit close to the
seatback or hold it with your hand to control its return motion.NOTEl Each seatback can be adjusted by the lever
on its side.
l On 5-door models, each of the second seat’s
sidebacks (A) is foldable. When either side
of the seatback is reclined to a new position,
its sideback automatically folds inward ac- cordingly.Armrest
E00402400218
For rear seats (3-door models)
Press the button (A) at the top of the armrest
and allow the armrest to drop down.
Rear seats (3-door models)*/Second seats (5-door models)*
4-10OVWX17E1Seat and seat belts4
