NOTElWhen the room & map lamp switch is in the
“ON” position, closing the doors and back-door does not cause the room & map lamps
to go off.3 () -The room & map lamps, rear
personal lamps and luggage
compartment lamp are off re- gardless of opening and closing
of the doors and backdoor.NOTEl When the room & map lamp switch is in the
“ON” position, the interior lamp switch can-not be used to turn off the room & map
lamps.
l When the luggage compartment lamp switch
is in the “
” position, the interior lamp
switch cannot be used to turn off the luggage
compartment lamp.

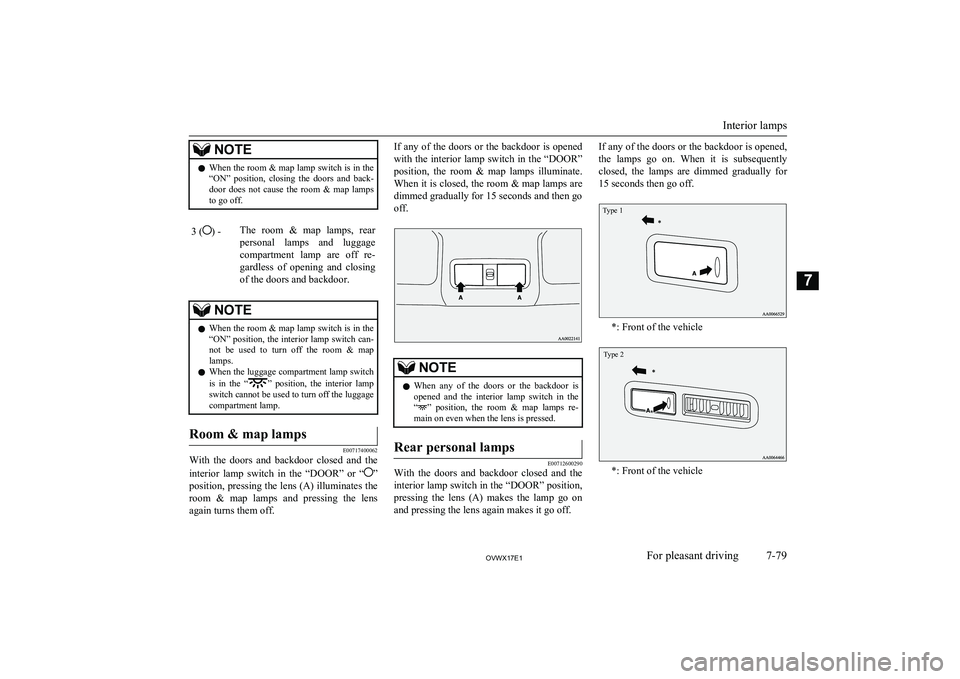

Room & map lamps
E00717400062
With the doors and backdoor closed and the
interior lamp switch in the “DOOR” or “
”
position, pressing the lens (A) illuminates the
room & map lamps and pressing the lens again turns them off.
If any of the doors or the backdoor is opened
with the interior lamp switch in the “DOOR”
position, the room & map lamps illuminate. When it is closed, the room & map lamps are
dimmed gradually for 15 seconds and then go
off.NOTEl When any of the doors or the backdoor is
opened and the interior lamp switch in the “
” position, the room & map lamps re-
main on even when the lens is pressed.
Rear personal lamps
E00712600290
With the doors and backdoor closed and the
interior lamp switch in the “DOOR” position,
pressing the lens (A) makes the lamp go on and pressing the lens again makes it go off.
If any of the doors or the backdoor is opened,
the lamps go on. When it is subsequently closed, the lamps are dimmed gradually for
15 seconds then go off.Type 1
*: Front of the vehicle
Type 2
*: Front of the vehicle
Interior lamps
7-79OVWX17E1For pleasant driving7

NOTElWhen the interior lamp switch is in the “”
position, the lamp remains off even when the
lens (A) is pressed and any of the doors or the backdoor is opened.Luggage compartment lamp
E00712701748
1 () -The lamp illuminates.2 () -With the interior lamp switch in
“DOOR” position, the lamp
goes on when any of the doors or the backdoor is opened.
When all the doors and the backdoor are closed, the lamp is
illuminated for 15 seconds, then goes off.
However, the lamp goes off im-
mediately without being dim-
med in case of the followings:
l The ignition switch is
turned to the “ON” posi-
tion.
l All the doors and the back-
door are locked using thecentral door lock function
or the keyless entry system (if so equipped).NOTEl When the interior lamp switch is in the “”
position, the luggage compartment lamp will not come on.NOTEl On vehicles with keyless entry system, when
the ignition key is removed with the doors
and the backdoor closed, the lamp is illumi- nated for 15 seconds, then goes off.
The dimming period is also adjustable.
For further information, we recommend you
to consult a MITSUBISHI MOTORS Au-
thorized Service Point.3 () -The lamp goes off.Foot lamps and ceiling lamp
E00726601344
The front foot lamps (A), rear foot lamp (B)
and ceiling lamp (C) illuminate when the
lamp switch in the “
”, “”, or “AUTO”
position (vehicles with automatic lamp con-
trol).
Front foot lamps*
Interior lamps
7-80OVWX17E1For pleasant driving7

Rear foot lamp*Ceiling lamp (Type 1)Ceiling lamp (Type 2)Door courtesy lamps
E00717500047
Each door courtesy lamp illuminates when
the relevant door is opened and goes off when the door is closed.
FrontRear (5-door models)Interior lamp* auto-cutout
function (Vehicles with keylessentry system)
E00712902428
*: Room & map lamps, rear personal lamps
and luggage compartment lamp

If any of the interior lamps are left switched on with the ignition switch in any position
other than “ON” or “ACC”, it goes off auto- matically after approximately 30 minutes.
The lamp comes on again if the ignition switch is turned to the “ON” or “ACC” posi-
tion, any door or backdoor is opened and
closed, or the keyless entry remote control is
operated.
NOTEl The interior lamp auto-cut function period
can be adjusted or deactivated. We recom-
mend you to consult a MITSUBISHI
MOTORS Authorized Service Point for de-
tailed information and assistance.
Interior lamps
7-81OVWX17E1For pleasant driving7

Storage spacesE00713103088CAUTIONlNever leave lighters, cans of carbonated
drink, and spectacles in the cabin when park-ing the vehicle in hot sunshine. The cabin will become extremely hot, so lighters and
other flammable items may catch fire and unopened drink cans (including beer cans)
may rupture. The heat may also deform or crack plastic spectacle lenses and other spec-
tacle parts that are made of plastic.
l Keep the lids of storage spaces closed while
driving the vehicle. A lid or the contents of a
storage space could otherwise cause injuries.NOTEl Do not leave valuables in any storage space
when leaving the vehicle.
1- Sunglasses holder*
2- Glove box
3- Accessory box*
4- Centre console box
5- Side box*
6- Luggage floor box
Glove box
E00717602824
The glove box can be locked and unlocked
using the key.
1- To lock
2- To unlock
3- To open, pull the lever
NOTEl When the lamp switch is in the “” or
“
” position, the lower glove box lamp il-
luminates.
l The Auxiliary Video connector (RCA) (A) is
located in the glove box (if so equipped).
l The USB port (B) is located in the glove box
(if so equipped). For details, refer to “USB
port*” on page 7-71.
Storage spaces
7-82OVWX17E1For pleasant driving7

NOTElSmall articles can be stored in the upper area

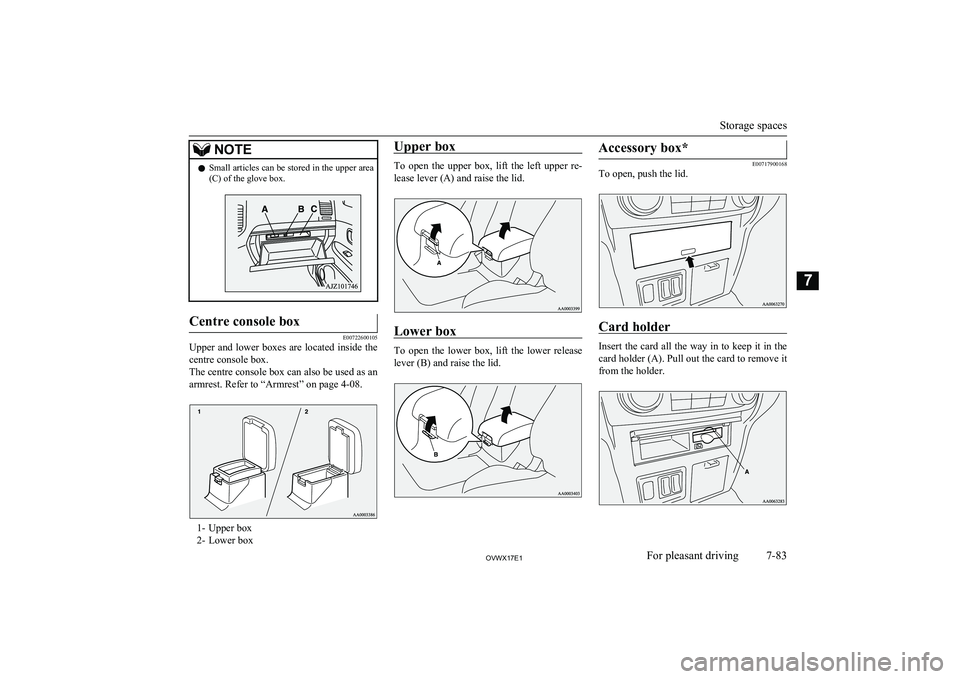

(C) of the glove box.Centre console box
E00722600105
Upper and lower boxes are located inside the
centre console box.
The centre console box can also be used as an
armrest. Refer to “Armrest” on page 4-08.
1- Upper box
2- Lower box
Upper box
To open the upper box, lift the left upper re-
lease lever (A) and raise the lid.
Lower box
To open the lower box, lift the lower releaselever (B) and raise the lid.
Accessory box*
E00717900168
To open, push the lid.
Card holder
Insert the card all the way in to keep it in the
card holder (A). Pull out the card to remove it from the holder.
Storage spaces
7-83OVWX17E1For pleasant driving7

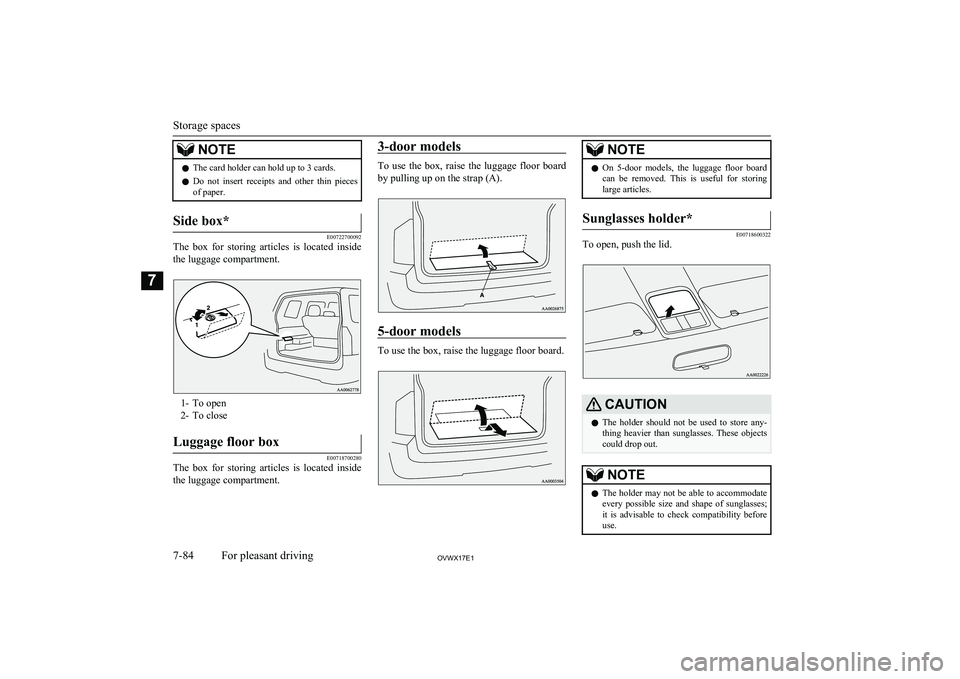

NOTElThe card holder can hold up to 3 cards.
l Do not insert receipts and other thin pieces
of paper.Side box*
E00722700092
The box for storing articles is located inside
the luggage compartment.
1- To open
2- To close
Luggage floor box
E00718700280
The box for storing articles is located inside
the luggage compartment.
3-door models
To use the box, raise the luggage floor board
by pulling up on the strap (A).
5-door models
To use the box, raise the luggage floor board.
NOTEl On
5-door models, the luggage floor board
can be removed. This is useful for storing large articles.Sunglasses holder*
E00718600322
To open, push the lid.
CAUTIONl The holder should not be used to store any-
thing heavier than sunglasses. These objects
could drop out.NOTEl The holder may not be able to accommodate
every possible size and shape of sunglasses;it is advisable to check compatibility before use.
Storage spaces
7-84OVWX17E1For pleasant driving7

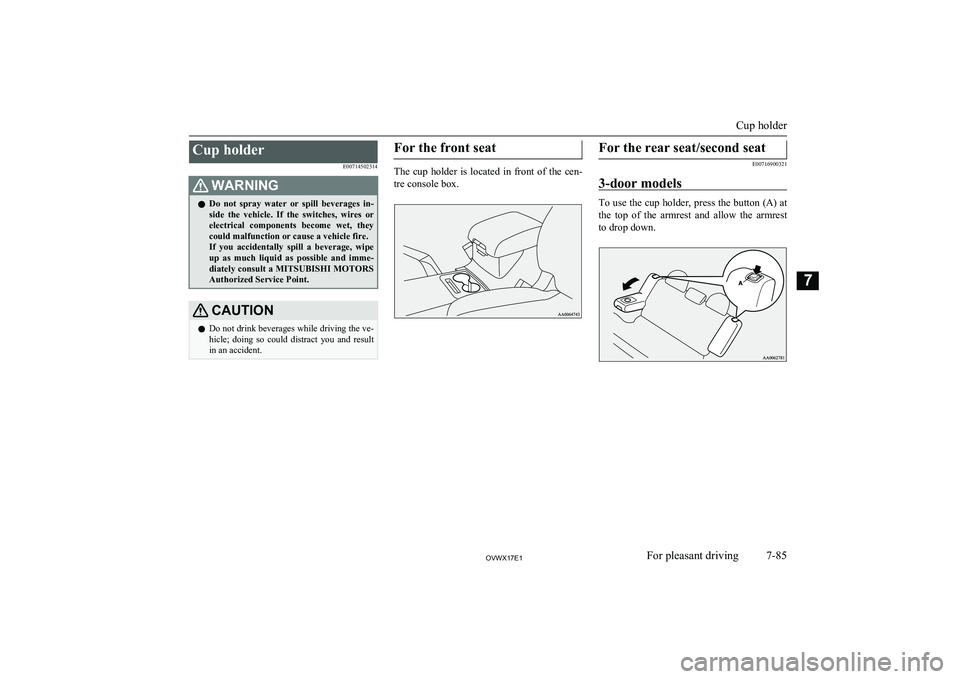

Cup holderE00714502314WARNINGlDo not spray water or spill beverages in-
side the vehicle. If the switches, wires or
electrical components become wet, they could malfunction or cause a vehicle fire.If you accidentally spill a beverage, wipe
up as much liquid as possible and imme- diately consult a MITSUBISHI MOTORS
Authorized Service Point.CAUTIONl Do not drink beverages while driving the ve-
hicle; doing so could distract you and result
in an accident.For the front seat
The cup holder is located in front of the cen-
tre console box.
For the rear seat/second seat
E00716900321
3-door models
To use the cup holder, press the button (A) at the top of the armrest and allow the armrest
to drop down.
Cup holder
7-85OVWX17E1For pleasant driving7

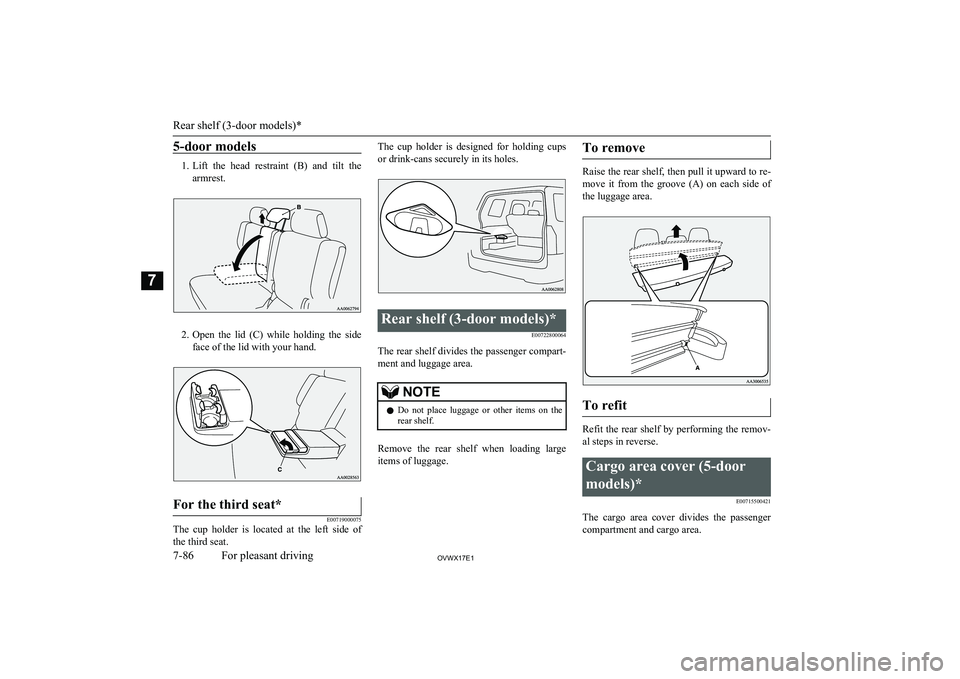

5-door models
1.Lift the head restraint (B) and tilt the
armrest.
2. Open the lid (C) while holding the side
face of the lid with your hand.
For the third seat*
E00719000075
The cup holder is located at the left side of the third seat.
The cup holder is designed for holding cups
or drink-cans securely in its holes.Rear shelf (3-door models)*
E00722800064
The rear shelf divides the passenger compart-
ment and luggage area.
NOTEl Do not place luggage or other items on the
rear shelf.
Remove the rear shelf when loading large
items of luggage.
To remove
Raise the rear shelf, then pull it upward to re-
move it from the groove (A) on each side of the luggage area.
To refit
Refit the rear shelf by performing the remov-al steps in reverse.
Cargo area cover (5-door
models)* E00715500421
The cargo area cover divides the passengercompartment and cargo area.
Rear shelf (3-door models)*
7-86OVWX17E1For pleasant driving7

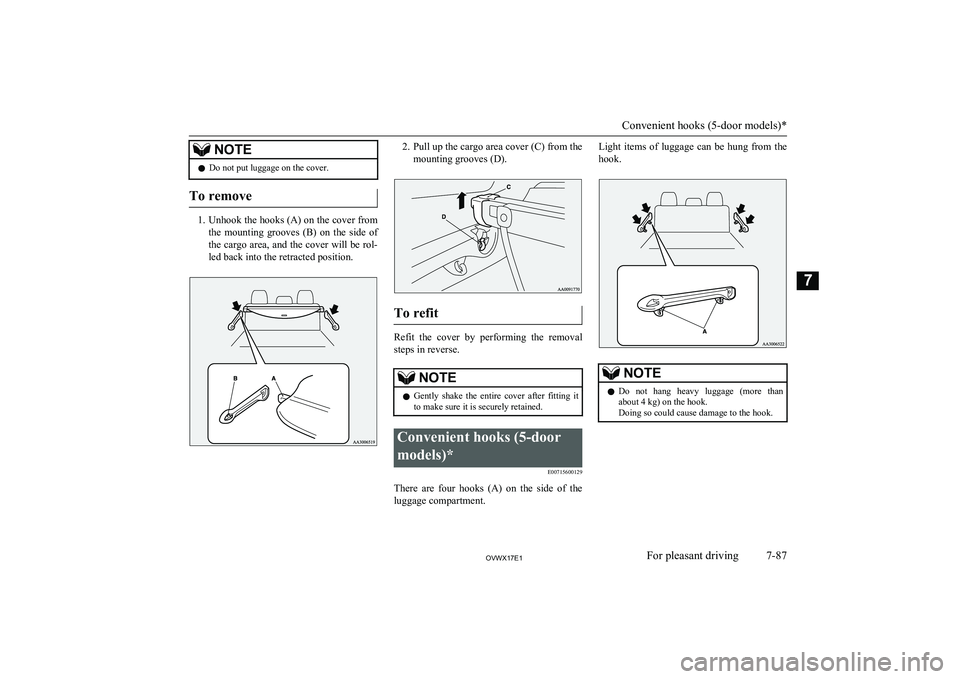

NOTElDo not put luggage on the cover.
To remove
1.
Unhook the hooks (A) on the cover from
the mounting grooves (B) on the side of the cargo area, and the cover will be rol- led back into the retracted position.
2. Pull up the cargo area cover (C) from the
mounting grooves (D).
To refit
Refit the cover by performing the removal steps in reverse.
NOTEl Gently shake the entire cover after fitting it
to make sure it is securely retained.Convenient hooks (5-door
models)* E00715600129
There are four hooks (A) on the side of theluggage compartment.
Light items of luggage can be hung from the
hook.NOTEl Do not hang heavy luggage (more than
about 4 kg) on the hook.
Doing so could cause damage to the hook.
Convenient hooks (5-door models)*
7-87OVWX17E1For pleasant driving7

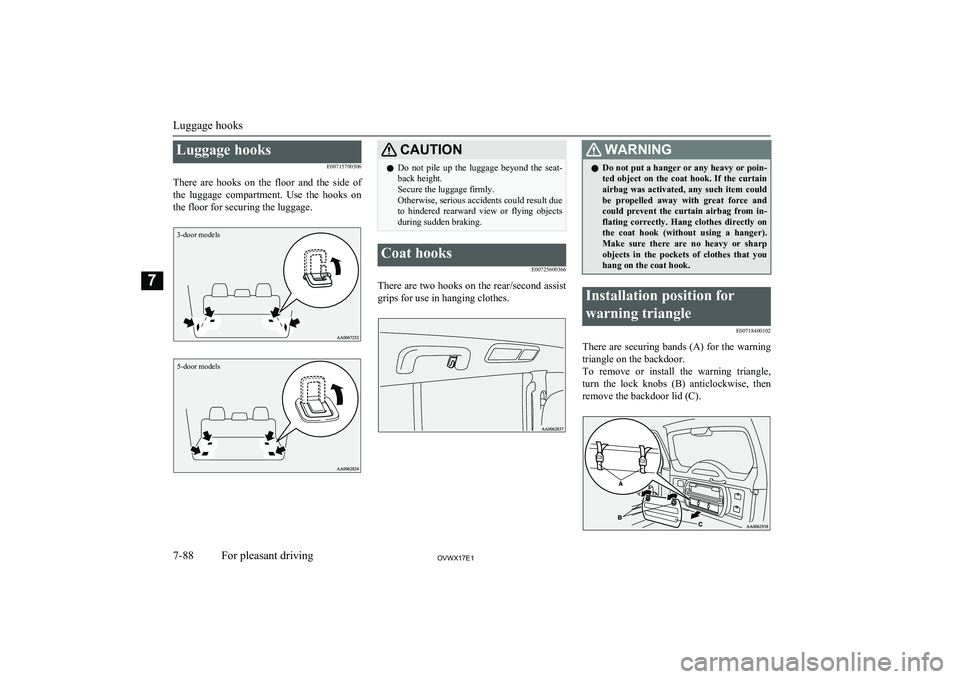

Luggage hooksE00715700306
There are hooks on the floor and the side of the luggage compartment. Use the hooks on
the floor for securing the luggage.
3-door models5-door models
CAUTIONl Do not pile up the luggage beyond the seat-
back height.
Secure the luggage firmly.
Otherwise, serious accidents could result due
to hindered rearward view or flying objects
during sudden braking.Coat hooks
E00725600366
There are two hooks on the rear/second assistgrips for use in hanging clothes.
WARNINGl Do not put a hanger or any heavy or poin-
ted object on the coat hook. If the curtain
airbag was activated, any such item could
be propelled away with great force and could prevent the curtain airbag from in-
flating correctly. Hang clothes directly on the coat hook (without using a hanger).
Make sure there are no heavy or sharp objects in the pockets of clothes that you
hang on the coat hook.Installation position for
warning triangle E00718400102
There are securing bands (A) for the warningtriangle on the backdoor.
To remove or install the warning triangle, turn the lock knobs (B) anticlockwise, then
remove the backdoor lid (C).
Luggage hooks
