Replacing tyres and wheels
E01007201530
CAUTIONlAvoid using different size tyres from the one
listed and the combined use of different
types of tyres, as this can affect driving safe- ty.
Refer to “Tyres and wheels” on page
11-11.
l Even if a wheel has the same rim size and
offset as the specified type of wheel, its
shape may prevent it from being fitted cor- rectly. We recommend you to consult a spe-
cialist before using wheels that you have.
l If your vehicle is equipped with a tyre pres-
sure monitoring system, only MITSUBISHI
MOTORS genuine wheels should be used.
Use of another type of wheel risks air leaks and sensor damage, as it will not be possible
to install the tyre pressure sensor properly.
Refer to “Tyre pressure monitoring system
(TPMS)” on page 6-48.
Wheel balance
On vehicles equipped with 17x7 1/2J size
aluminium wheels (round rim type), if you
need to balance a wheel, put the balance weight (A) on the specified position which is
spoke side from the notch (B) on the inner surface of the wheel.
There is a possibility that the balance weight
is interfered the related brake part if it is put
any place other than the specified position.
For details, we recommend you to consult a MITSUBISHI MOTORS Authorized Service
Point.Tyre rotation
E01001901203
Tyre wear varies with vehicle conditions,
road surface conditions and individual driv- er’s driving habits. To equalize the wear andhelp extend tyre life, it is recommended to ro-
tate the tyres immediately after discovery of
abnormal wear, or whenever the wear differ- ence between the front and rear tyres is rec-
ognizable.
When rotating tyres, check for uneven wear
and damage. Abnormal wear is usually caused by incorrect tyre pressure, improper wheel alignment, out of balance wheel, or se-
vere braking. We recommend you to have it checked to determine the cause of irregular
tread wear.Spare tyre used*Spare tyre not usedTyres that have arrows showing rotation directionFrontFrontFront
Tyres
10-13OVWX17E1Maintenance10

*- If the spare tyre wheel differs from thestandard tyre wheel, do not perform tyre rota-
tion using a spare wheel.CAUTIONl If the tyres have arrows (A) indicating the
correct direction of rotation, swap the front and rear wheels on the left hand side of the
vehicle and the front and rear wheels on the
right hand side of the vehicle separately. Keep each tyre on its original side of the ve-hicle. When fitting the tyres, make sure the
arrows point in the direction in which the wheels will turn when the vehicle moves
forward. Any tyre whose arrow points in the
wrong direction will not perform to its full potential.Front
CAUTIONl Avoid the combined use of different types of
tyres.
Using different types of tyres can affect ve-
hicle performance and safety.Snow tyres
E01002001894
The use of snow tyres is recommended for
driving on snow and ice. To preserve driving stability, mount snow tyres of the same size and tread pattern on all 4 wheels.
Snow tyres worn more than 50% are no lon-
ger suitable for use as snow tyres.
Snow tyres which do not meet specifications must not be used.
CAUTIONl Observe permissible maximum speed for
your snow tyres and the legal speed limit.
l If your vehicle is equipped with a tyre pres-
sure monitoring system, only MITSUBISHI
MOTORS genuine wheels should be used.
Use of another type of wheel risks air leaks and sensor damage, as it will not be possible
to install the tyre pressure sensor properly.
Refer to “Tyre pressure monitoring system
(TPMS)” on page 6-48.NOTEl The laws and regulations concerning snow
tyres (driving speed, required use, type, etc.)
vary. Find out and follow the laws and regu- lations in the area you intend to drive.
l If flange nuts are used on your vehicle,
change to tapered nuts when steel wheels are used.Tyre chains
E01002101794
On 4WD vehicles in which the driving power
is distributed preferentially to the rear wheels, ensure that the tyre chains are fitted
on the rear in accordance with the manufac- turer’s instructions.
Use only tyre chains which are designed for use with the tyres mounted on the vehicle: use of the incorrect size or type of chain
could result in damage to the vehicle body.
Before fitting tyre chains, we recommend you to consult a MITSUBISHI MOTORS
Authorized Service Point. The max. chain
height is as follows.
Tyre sizeWheel size
Max. chain
height[mm]265/65R17 112H
265/65R17 112S
17 x 7 1/2 J22Tyres
10-14OVWX17E1Maintenance10

Tyre sizeWheel size
Max. chainheight[mm]265/60R18 110H18 x 7 1/2 J
The speed limit for tyre chain is 50 km/h(30 mph) and remove the tyre chains as soon as possible on snow free roads.
CAUTIONl As your vehicle is equipped with anti-lock
brake system (ABS), in order to ensure that the anti-lock brake system (ABS) will oper- ate correctly in situations where tyre chains
have been fitted, drive in “4H”, “4HLc” or “4LLc”.
l Practice fitting the chains before you need
them.
Don’t expect help from other people in the
cold.
l Choose a clear straight stretch of road where
you can pull over and still be seen while you are fitting the chains.
l Do not fit chains before you need them. This
will wear out your tyres and the road sur-
face.
l After driving around 100-300 metres, stop
and retighten the chains.
l Drive carefully and do not exceed 50 km/h
(30 mph). Remember, fitting chains is notgoing to stop accidents from happening.
l When tyre chains are installed, take care that
they do not damage the disc wheel or body.CAUTIONl An aluminium wheel can be damaged by a
tyre chain while driving. When fitting a tyre
chain on an aluminium wheel, take care that any part of the chain and fitting cannot be
brought into contact with the wheel.
l When installing or removing the tyre chains,
take care that hands and other parts of your
body are not injured by the sharp edges of
the vehicle body.NOTEl The laws and regulations concerning the use
of tyre chains vary. Always follow local laws and regulations.
In most countries, it is prohibited by law to
use tyre chains on roads without snow.Parking brake break-in
E01008300010
Break-in the parking brake linings whenever
the brake performance of the parking brake is insufficient or whenever the parking brake
linings and/or discs are replaced, in order to
assure the best brake performance.
This procedure is described in the vehicle service manual and can be carried out by a
MITSUBISHI MOTORS Authorized Service
Point.
Wiper blade rubber
replacement E01008200208
1. Lift the wiper arm off the windscreen. 2. Pull the wiper blade until its stopper (A)
disengages from the hook (B). Then, pull the wiper blade further to remove it.NOTEl Do not allow the wiper arm to fall onto the
windscreen; it could damage the glass.
3. Attach the retainers (C) to a new wiper
blade.
Parking brake break-in
10-15OVWX17E1Maintenance10

Refer to the illustration to ensure that the
retainers are correctly aligned as you at-
tach them.
4. Insert the wiper blade into the arm, start-
ing with the opposite end of the blade from the stopper. Make sure the hook(B) is fitted correctly in the grooves in
the blade.
NOTEl If retainers are not supplied with the new
wiper blade, use the retainers from the old
blade.5. Push the wiper blade until the hook (B)
engages securely with the stopper (A).
Rear window wiper blade
1. Lift the wiper arm off the window glass.
2. Pull the wiper blade downward to disen-
gage it from the stopper (A) at the end of
the wiper arm. Pull the wiper blade fur-
ther to remove it.
3. Slide a new wiper blade through the
hook (B) on the wiper arm.NOTEl Do not allow the wiper arm to fall onto the
window glass; it could damage the glass.
4. Firmly insert the retainer (C) into the
groove (D) in the wiper blade.
Wiper blade rubber replacement
10-16OVWX17E1Maintenance10

Refer to the illustration to ensure that the
retainers are correctly aligned as you in- sert them into the groove.NOTEl If a retainer is not supplied with the new
wiper blade, use the retainer from the old
blade.General maintenance
E01002700360
Fuel, engine coolant, oil and ex- haust gas leakage
Look under the body of your vehicle to check
for fuel, engine coolant, oil and exhaust gas
leaks.
WARNINGl If you see a suspicious fuel leak or if you
smell fuel, do not operate the vehicle; we recommend you to call for assistance.
Exterior and interior lamp op-
eration
Operate the combination lamp switch to
check that all lamps are functioning properly.
If the lamps do not illuminate, the probable cause is a blown fuse or defective lamp bulb.
Check the fuses first. If there is no blown
fuses, check the lamp bulbs.
For information regarding the inspection and
replacement of the fuses and the lamp bulbs, refer to “Fuses” on page 10-18 and “Re-
placement of lamp bulbs” on page 10-23.
If the fuses and bulbs are all OK, we recom- mend you to have your vehicle checked and
repaired.
Meter, gauge and indicator/
warning lamps operation
Run the engine to check the operation of all meters, gauges, and indicator/warning lamps.
If there is anything wrong, we recommend you to have your vehicle inspected.
Hinges and latches lubrication
Check all latches and hinges, and, if necessa- ry, have them lubricated.
For cold and snowy weather
E01002800299
Ventilation slots
The ventilation slots in front of the wind-
screen should be kept clear of leaves or brushed clear after heavy snowfall, so that
the operation of the heating and ventilation
systems will not be impaired.
Weatherstripping
To prevent freezing of the weatherstripping
on the doors, bonnet, etc., they should be treated with silicone grease.
General maintenance
10-17OVWX17E1Maintenance10

Additional equipment
It is a good idea to carry a shovel or a short-handled spade in the vehicle during the win-ter so that you can clear away snow if you get
stranded. A small hand-brush for sweeping snow off the vehicle and a plastic scraper for
the windscreen and rear window are also use- ful.
Fusible links
E01002900434
The fusible links will melt to prevent a fire if
a large current attempts to flow through cer- tain electrical systems.
In case of a melted fusible link, we recom- mend you to have your vehicle inspected.For the fusible links, please refer to “Fuse
load capacity” on page 10-18.
WARNINGl Fusible links must not be replaced by any
other device. Failing to fit the correct fusi- ble link may result in fire in the vehicle,
property destruction and serious or fatal injuries at any time.Fuses

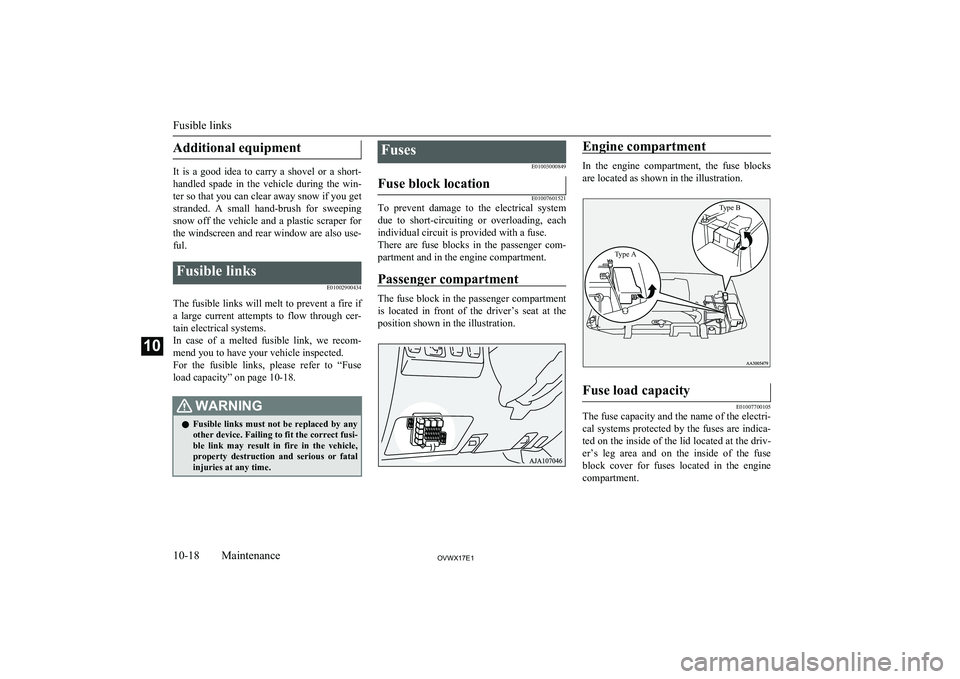

E01003000849Fuse block location
E01007601521
To prevent damage to the electrical systemdue to short-circuiting or overloading, each individual circuit is provided with a fuse.
There are fuse blocks in the passenger com- partment and in the engine compartment.
Passenger compartment
The fuse block in the passenger compartment is located in front of the driver’s seat at the position shown in the illustration.
Engine compartment
In the engine compartment, the fuse blocks
are located as shown in the illustration.
Type AType BFuse load capacity
E01007700105
The fuse capacity and the name of the electri- cal systems protected by the fuses are indica-
ted on the inside of the lid located at the driv-
er’s leg area and on the inside of the fuse block cover for fuses located in the engine
compartment.
Fusible links
10-18OVWX17E1Maintenance10

Passenger compartment fuse lo-cation table
E01007901957
NOTEl Spare fuses are contained in the fuse block
lid. Always use a fuse of the same capacity
for replacement.Passenger compartment fuse locationNo.SymbolElectrical
systemCapaci- ty1Ignition coil10 A2Gauge7.5 A3Reversinglamp7.5 A4Daytime run-ning lamps7.5 A5Relay7.5 A6Heated door mirror7.5 A7——30 A8Engine con- trol7.5 A9Cigarettelighter15 A10———11Outside rear-view mirrors7.5 A12Engine con- trol7.5 A13———14Rear windowwiper15 ANo.SymbolElectricalsystemCapaci- ty15Central door locks15 A16Rear fog lamp10 A17———18———19Heater30 A20Rear windowdemister30 A21Sunroof20 A22Anti-lock
brake system10 A23Heated seat20 A24Approach lamps10 A25Transfer con- trol10 A26ENG/
POWER10 A27Starter motor10 A28———29—Spare fuse10 A30—Spare fuse20 A
Fuses
10-19OVWX17E1Maintenance10

No.SymbolElectricalsystemCapaci- ty31—Spare fuse30 A32—Spare fuse25 A
lSome fuses may not be installed on your
vehicle, depending on the vehicle model
or specifications.
l The table above shows the main equip-
ment corresponding to each fuse.
The fuse block does not contain spare
7.5 A and 15 A fuses. If a fuse of one of these capacities blows, replace it tempo-
rarily by borrowing the one that matches
from:
7.5 A: Outside rear-view mirrors
15 A: Cigarette lighter
Replace the borrowed fuse as soon as
possible.

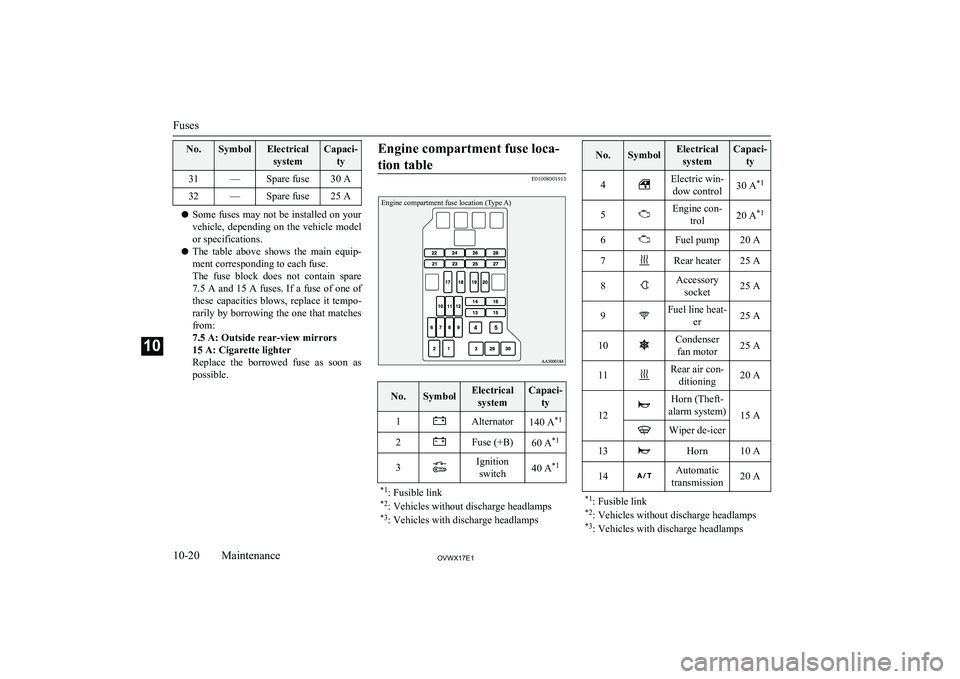

Engine compartment fuse loca-
tion table
E01008001913
Engine compartment fuse location (Type A)
No.SymbolElectrical systemCapaci- ty1Alternator140 A *12Fuse (+B)60 A*13Ignition
switch40 A *1*1
: Fusible link
*2 : Vehicles without discharge headlamps
*3 : Vehicles with discharge headlampsNo.SymbolElectrical
systemCapaci- ty4Electric win-dow control30 A *15Engine con-
trol20 A *16Fuel pump20 A7Rear heater25 A8Accessory
socket25 A9Fuel line heat- er25 A10Condenserfan motor25 A11Rear air con- ditioning20 A
12
Horn (Theft-
alarm system)
15 A
Wiper de-icer13Horn10 A14Automatic
transmission20 A*1 : Fusible link
*2 : Vehicles without discharge headlamps
*3 : Vehicles with discharge headlamps
Fuses
10-20OVWX17E1Maintenance10

No.SymbolElectricalsystemCapaci- ty15Hazard warn-ing flasher10 A16Stop lamps15 A17Radio10 A18Room lamp15 A19Air condition- ing10 A20Front foglamps15 A21———22Windscreen wiper20 A23Tail lamp(right)7.5 A24Tail lamp (left)7.5 A25Headlamp lowbeam (right)10 A *220 A*326Headlamp low
beam (left)10 A *2*1
: Fusible link
*2 : Vehicles without discharge headlamps
*3 : Vehicles with discharge headlampsNo.SymbolElectrical
systemCapaci- ty20 A *327
Headlamp
high-beam (right)
10 A28
Headlamp
high-beam (left)
10 A29Audio40 A *130Heater50 A*1*1
: Fusible link
*2 : Vehicles without discharge headlamps
*3 : Vehicles with discharge headlamps
l Some fuses may not be installed on your
vehicle, depending on the vehicle model
or specifications.
l The table above shows the main equip-
ment corresponding to each fuse.Engine compartment fuse location (Type B)No.SymbolElectrical systemCapaci- ty31Anti-lock
brake system60 A *32Brake system40 A*33Glow relay80 A**
: Fusible link
l Some fuses may not be installed on your
vehicle, depending on the vehicle model
or specifications.
l The table above shows the main equip-
ment corresponding to each fuse.
Fuses
10-21OVWX17E1Maintenance10

Identification of fuse
E01008100164
Ca-
pacityColour7.5 ABrown10 ARed15 ABlue20 AYellow (fuse type)/Light blue (fu- sible link type)25 ATransparent30 AGreen (fuse type)/
Pink (fusible link type)40 AGreen50 ARed60 AYellow80 ABlack140 AReddish brownFuse replacement
E01007801901

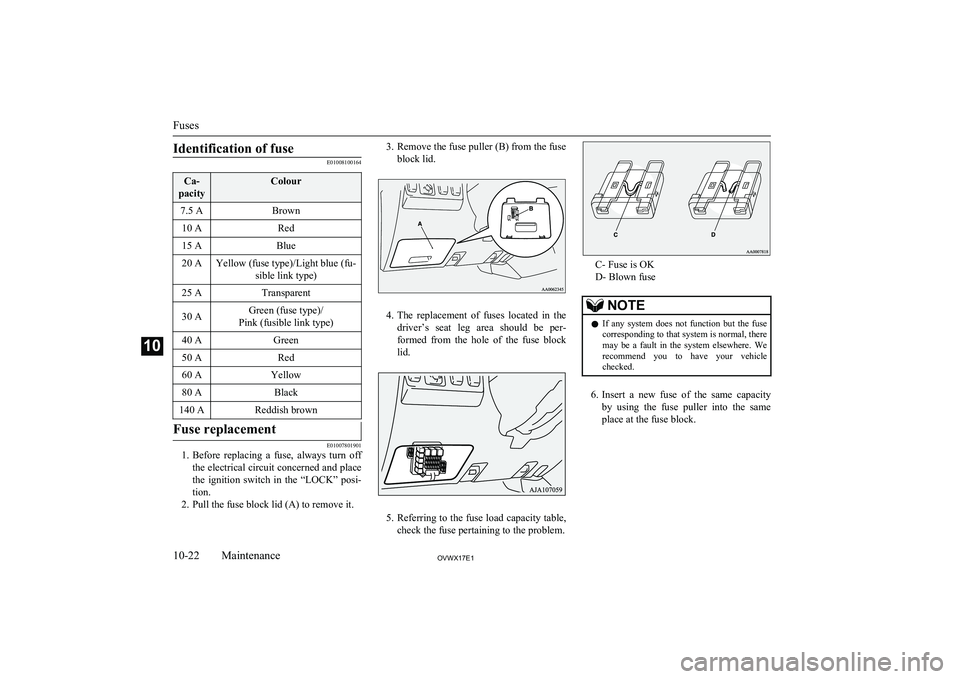

1. Before replacing a fuse, always turn off
the electrical circuit concerned and place
the ignition switch in the “LOCK” posi-
tion.
2. Pull the fuse block lid (A) to remove it.
3. Remove the fuse puller (B) from the fuse
block lid.
4. The replacement of fuses located in the
driver’s seat leg area should be per- formed from the hole of the fuse block
lid.
5. Referring to the fuse load capacity table,
check the fuse pertaining to the problem.
C- Fuse is OK
D- Blown fuse
NOTEl If any system does not function but the fuse
corresponding to that system is normal, theremay be a fault in the system elsewhere. We recommend you to have your vehiclechecked.
6. Insert a new fuse of the same capacity
by using the fuse puller into the same
place at the fuse block.
Fuses
10-22OVWX17E1Maintenance10
