CAUTIONlIf the newly inserted fuse blows again after a
short time, we recommend you to have the electrical system checked to find the causeand rectify it.
l Never use a fuse with a capacity larger than
that specified or any substitute, such as wire,
foil, etc.; doing so will cause the circuit wir-
ing to heat up and could cause a fire.Replacement of lamp bulbs
E01003102118
Before replacing a bulb, ensure the lamp isoff. Do not touch the glass part of the new
bulb with your bare fingers; the skin oil left
on the glass will evaporate when the bulb gets hot and the vapour will condense on the
reflector and dim the surface.
CAUTIONl Bulbs are extremely hot immediately after
being turned off.
When replacing a bulb, wait for it to cool
sufficiently before touching it. You could otherwise be burnt.
l Do not install commercially available LED-
type bulbs.
Commercially available LED-type bulbs
could adversely affect the operation of the vehicle, such as by preventing the lights andother vehicle equipment from operating
properly.NOTEl Do not attempt to repair or replace the lamp
bulbs other than described in this owner’s manual. For repair or replacement, contact aMITSUBISHI MOTORS Authorized Serv-
ice Point.
l If you are unsure of how to carry out the
work as required, we recommend you to consult a specialist.
l Be careful not to scratch the vehicle body
when removing a lamp or lens.NOTEl When it rains or when the vehicle has been
washed, the inside of the lens sometimes be-
comes foggy. This is the same phenomenon as when window glass mists up on a humid
day, and does not indicate a functional prob- lem. When the lamp is switched on, the heat
will remove the fog. However, if water gath- ers inside the lamp, we recommend you tohave it checked.Bulb capacity
E01003200014
When replacing a bulb, use a new bulb with
the same wattage and colour.
Outside
E01003304316
Replacement of lamp bulbs
10-23OVWX17E1Maintenance10 Front

1- Headlamps, high-beam: 65 W (H9)
2- Position and Daytime running lamps*
3- Front fog lamps*: 55 W (H11)
4- Headlamps, low beam with discharge
lamp: 35 W
Headlamps, low beam without discharge lamp: 55 W (H11)
5- Position lamps*: 5 W (W5W)
6- Front turn-signal lamps: 21 W
(WY21W)
7- Side turn-signal lamps (on fender)*: 5 W
8- Side turn-signal lamps (on outside rear-
view mirror)*
Codes in parentheses indicate bulb
types.CAUTIONl On vehicles with discharge headlamps, do
not attempt to disassemble or repair dis-
charge headlamps, and do not attempt to re- place their bulbs. A high voltage is presentin the power circuit and in the bulbs andbulb terminals. To avoid the risk of an elec-
tric shock, contact by a MITSUBISHI
MOTORS Authorized Service Point when-
ever repair or replacement is necessary.NOTEl The following lamps are not possible to re-
pair or replace only the bulb.NOTEIf you need to repair or replace these lampbulbs, contact a MITSUBISHI MOTORS
Authorized Service Point.
• Position and Daytime running lamps
• Side turn-signal lamps (on fender)
• Side turn-signal lamps (on outside rear-
view mirror)
1- High-mounted stop lamp (bulb type)*:
16 W (W16W)
2- Licence plate lamps: 5 W (W5W)
3- Rear fog lamp: 21 W (W21W)
4- Tail lamps*: 5 W (W5W)
5- Rear turn-signal lamps*: 21 W
(WY21W)
6- Rear turn-signal lamps*: 21 W
(WY21W)
7- Stop and tail lamps*: 21/5 W (W21/5W) Stop lamps*: 21/5 W (W21/5W)
8- Reversing lamps: 21 W (W21W) Codes in parentheses indicate bulbtypes.NOTEl On vehicles with LED type high-mounted
stop lamp, do not attempt to repair or replaceit.
For repair and replacement, contact a
MITSUBISHI MOTORS Authorized Serv-
ice Point.
Replacement of lamp bulbs
10-24OVWX17E1Maintenance10 3-door models5-door models
Rear

Inside
E01003403118
1- Luggage compartment lamp: 8 W
2- Door courtesy lamps: 3.4 W
3- Vanity mirror lamps* 2 W
4- Room & map lamps: 8 W
5- Rear personal lamps: 8 W
6- Glove box lamp: 1.4 W
Headlamps
E01003501199
Replacement of high-beam
1. Remove the bulb and connector assem-
bly (A) by turning it anticlockwise.
2. Depress the tab (B) on the harness con-
nector and pull the harness connector
(C) to remove it.
3. To install the bulb, perform the removal
steps in reverse.
Replacement of low beam (ex-
cept for vehicles with discharge
headlamps)
1. Remove the bulb and connector assem-
bly (A) by turning it anticlockwise.
Replacement of lamp bulbs
10-25OVWX17E1Maintenance10

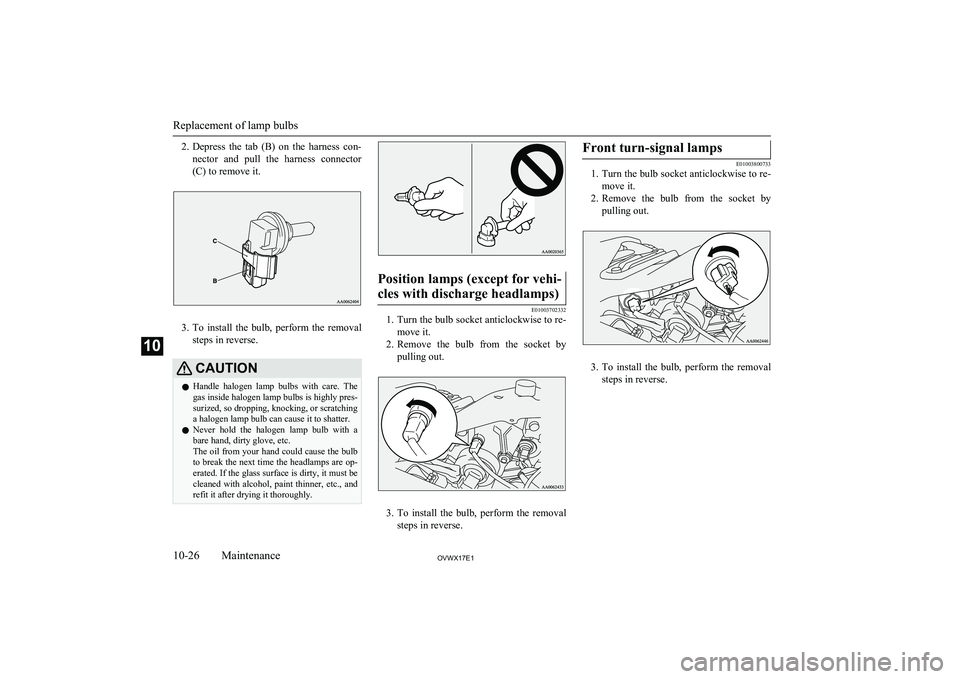

2.Depress the tab (B) on the harness con-
nector and pull the harness connector
(C) to remove it.
3. To install the bulb, perform the removal
steps in reverse.
CAUTIONl Handle halogen lamp bulbs with care. The
gas inside halogen lamp bulbs is highly pres- surized, so dropping, knocking, or scratching
a halogen lamp bulb can cause it to shatter.
l Never hold the halogen lamp bulb with a
bare hand, dirty glove, etc.
The oil from your hand could cause the bulb to break the next time the headlamps are op-
erated. If the glass surface is dirty, it must be cleaned with alcohol, paint thinner, etc., andrefit it after drying it thoroughly.Position lamps (except for vehi-
cles with discharge headlamps)
E01003702332
1. Turn the bulb socket anticlockwise to re-
move it.
2. Remove the bulb from the socket by
pulling out.
3. To install the bulb, perform the removal
steps in reverse.
Front turn-signal lamps
E01003800733
1. Turn the bulb socket anticlockwise to re-
move it.
2. Remove the bulb from the socket by
pulling out.
3. To install the bulb, perform the removal
steps in reverse.
Replacement of lamp bulbs
10-26OVWX17E1Maintenance10

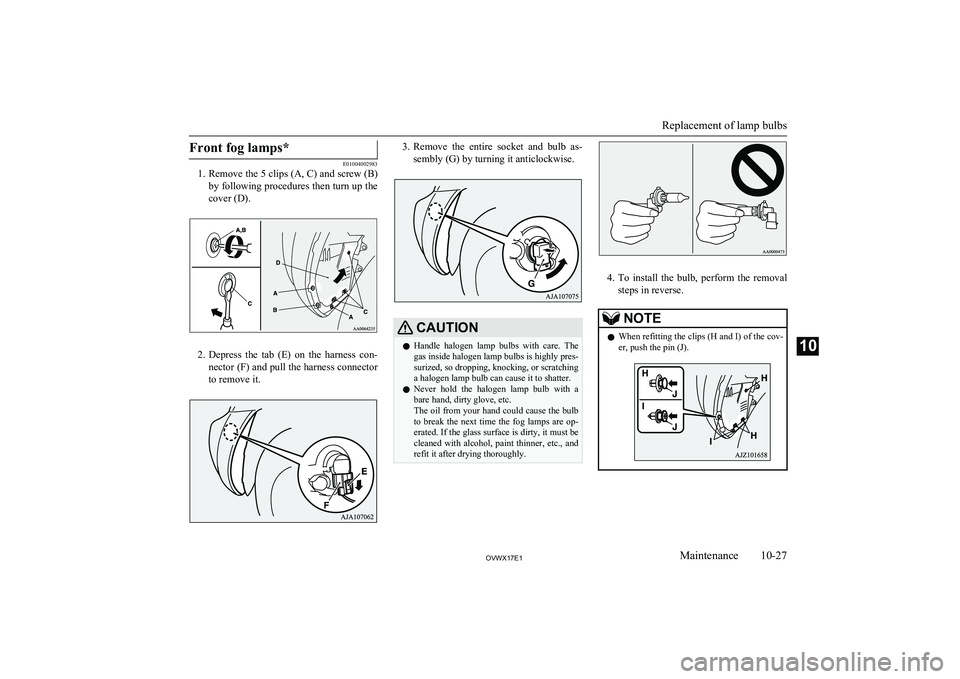

Front fog lamps*
E01004002983
1. Remove the 5 clips (A, C) and screw (B)
by following procedures then turn up the cover (D).
2. Depress the tab (E) on the harness con-
nector (F) and pull the harness connector
to remove it.
3. Remove the entire socket and bulb as-
sembly (G) by turning it anticlockwise.CAUTIONl Handle halogen lamp bulbs with care. The
gas inside halogen lamp bulbs is highly pres-
surized, so dropping, knocking, or scratching
a halogen lamp bulb can cause it to shatter.
l Never hold the halogen lamp bulb with a
bare hand, dirty glove, etc.
The oil from your hand could cause the bulb to break the next time the fog lamps are op- erated. If the glass surface is dirty, it must becleaned with alcohol, paint thinner, etc., and
refit it after drying thoroughly.
4. To install the bulb, perform the removal
steps in reverse.
NOTEl When refitting the clips (H and I) of the cov-
er, push the pin (J).
Replacement of lamp bulbs
10-27OVWX17E1Maintenance10

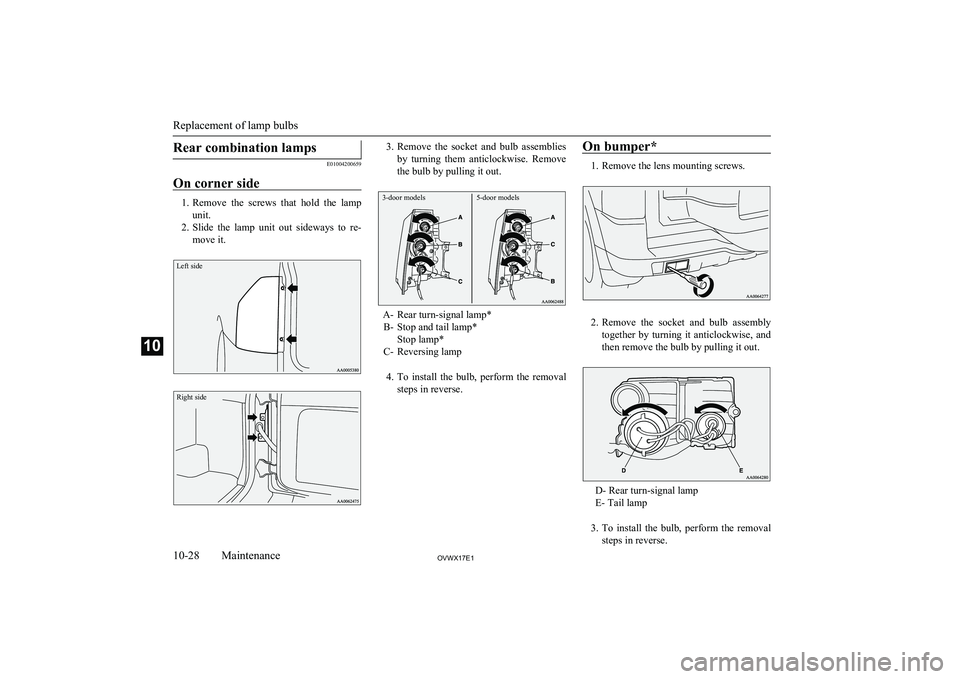

Rear combination lamps
E01004200659
On corner side
1. Remove the screws that hold the lamp
unit.
2. Slide the lamp unit out sideways to re-
move it.
Left sideRight side3. Remove the socket and bulb assemblies
by turning them anticlockwise. Remove the bulb by pulling it out.3-door models5-door models
A- Rear turn-signal lamp* B- Stop and tail lamp* Stop lamp*
C- Reversing lamp
4. To install the bulb, perform the removal
steps in reverse.
On bumper*
1. Remove the lens mounting screws.
2. Remove the socket and bulb assembly
together by turning it anticlockwise, and then remove the bulb by pulling it out.
D- Rear turn-signal lamp
E- Tail lamp
3. To install the bulb, perform the removal
steps in reverse.
Replacement of lamp bulbs
10-28OVWX17E1Maintenance10

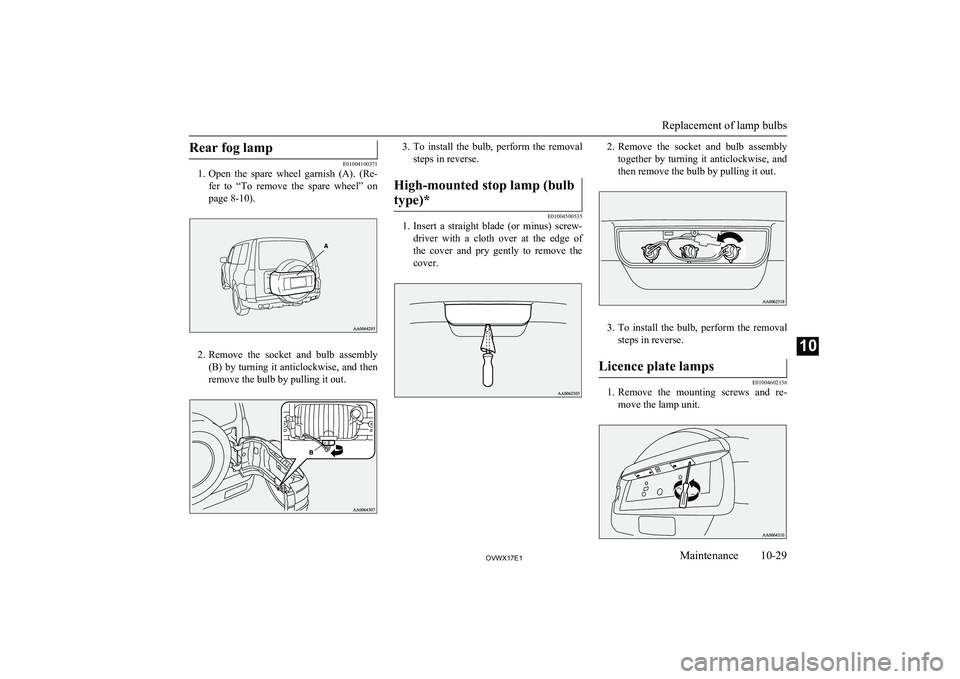

Rear fog lamp
E01004100371
1. Open the spare wheel garnish (A). (Re-
fer to “To remove the spare wheel” on
page 8-10).
2. Remove the socket and bulb assembly
(B) by turning it anticlockwise, and then remove the bulb by pulling it out.
3. To install the bulb, perform the removal
steps in reverse.High-mounted stop lamp (bulb
type)*
E01004500535
1. Insert a straight blade (or minus) screw-
driver with a cloth over at the edge of
the cover and pry gently to remove the cover.
2. Remove the socket and bulb assembly
together by turning it anticlockwise, and then remove the bulb by pulling it out.
3. To install the bulb, perform the removal
steps in reverse.
Licence plate lamps
E01004602136
1. Remove the mounting screws and re-
move the lamp unit.
Replacement of lamp bulbs
10-29OVWX17E1Maintenance10

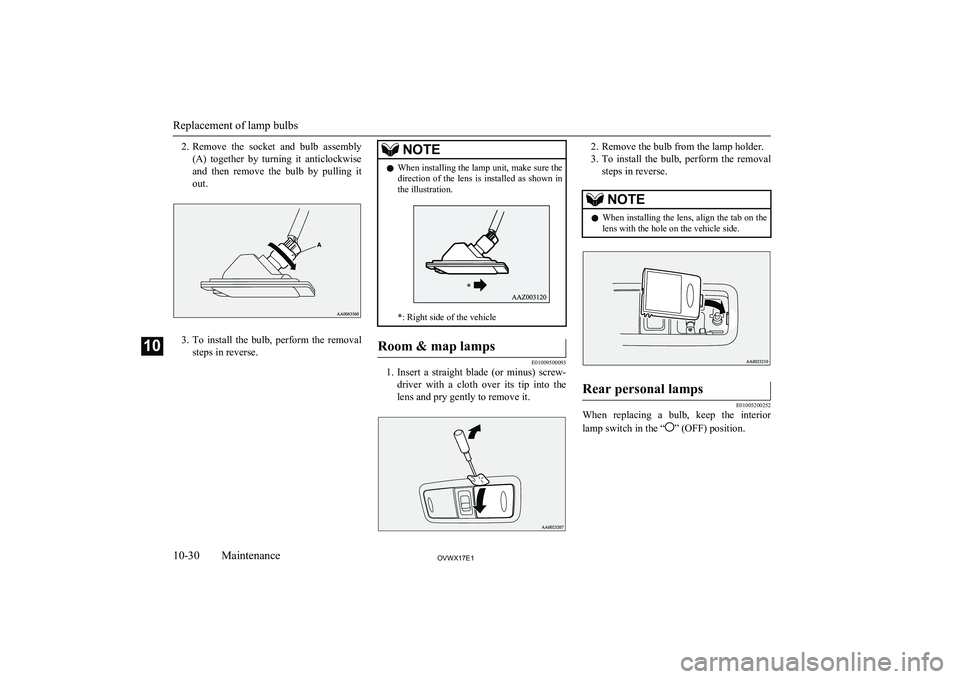

2.Remove the socket and bulb assembly
(A) together by turning it anticlockwise and then remove the bulb by pulling it out.
3. To install the bulb, perform the removal
steps in reverse.
NOTEl When installing the lamp unit, make sure the
direction of the lens is installed as shown in the illustration.
*: Right side of the vehicle
Room & map lamps
E01009500093
1. Insert a straight blade (or minus) screw-
driver with a cloth over its tip into the
lens and pry gently to remove it.
2. Remove the bulb from the lamp holder.
3. To install the bulb, perform the removal
steps in reverse.NOTEl When installing the lens, align the tab on the
lens with the hole on the vehicle side.Rear personal lamps
E01005200252
When replacing a bulb, keep the interior
lamp switch in the “
” (OFF) position.
Replacement of lamp bulbs
10-30OVWX17E1Maintenance10 *

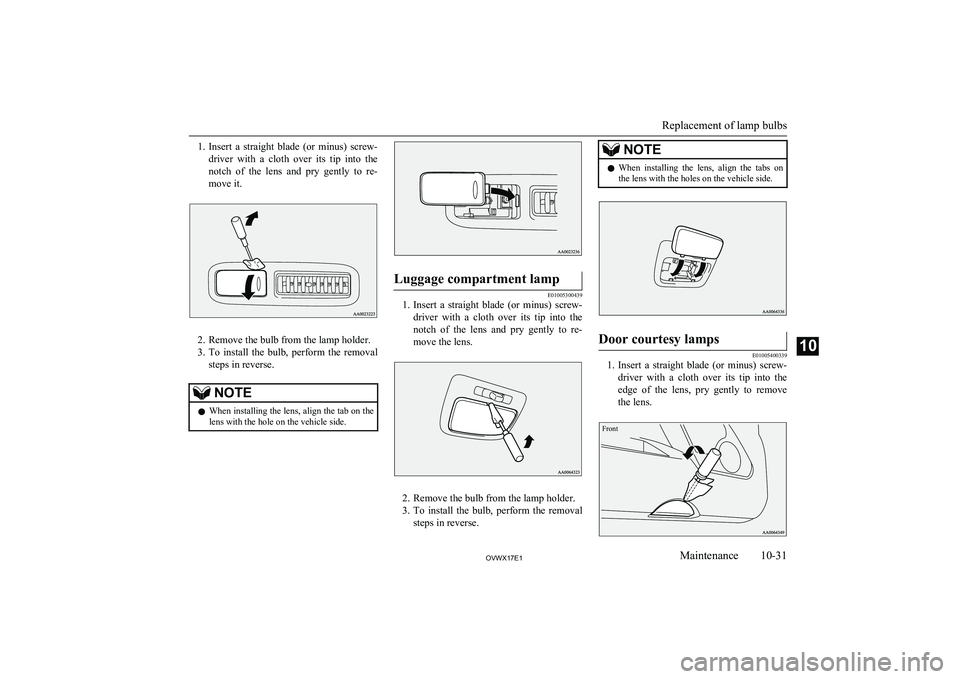

1.Insert a straight blade (or minus) screw-
driver with a cloth over its tip into the notch of the lens and pry gently to re-
move it.
2. Remove the bulb from the lamp holder.
3. To install the bulb, perform the removal
steps in reverse.
NOTEl When installing the lens, align the tab on the
lens with the hole on the vehicle side.Luggage compartment lamp
E01005300439
1. Insert a straight blade (or minus) screw-
driver with a cloth over its tip into the
notch of the lens and pry gently to re- move the lens.
2. Remove the bulb from the lamp holder.
3. To install the bulb, perform the removal
steps in reverse.
NOTEl When installing the lens, align the tabs on
the lens with the holes on the vehicle side.Door courtesy lamps
E01005400339
1. Insert a straight blade (or minus) screw-
driver with a cloth over its tip into the
edge of the lens, pry gently to remove
the lens.
Front
Replacement of lamp bulbs
10-31OVWX17E1Maintenance10

Rear
2. Remove the bulb from the lamp holder.
3. To install the bulb, perform the removal
steps in reverse.
NOTEl When installing the lens, align the 2 tabs on
the lens with the notches on the vehicle side.Glove box lamp
E01006100232
1. Pull out the bulb.
2. To install the bulb, perform the removal
steps in reverse.
Vanity mirror lamps*
E01006200262
1. Insert a straight blade (or minus) screw-
driver with a cloth over its tip into the
notch of the lens and pry gently to re-
move it.
2. Remove the bulb from the lamp holder.
3. To install the bulb, perform the removal
steps in reverse.
