ENGINE LUBRICATION SYSTEM
Oil Pressure Check
Be careful not to burn yourself, as the englne and
oil may be hot
1 Warm up engine
2 Stop engine and remove oil pressure switch
SLC545
3 Install pressure gauge
4 Start engine and check oil pressure with engine
running under no-load
Approximate discharge pressure
I kPa (kglcm2, psi1 Engine rpm
1,200 196 (2.281
2,000 294 (3.431
i 4.000 392 (4.571
Oil pressure at 600 rpm (Idling) should be more
than 78 kPa (0.8 kg/cm2, 11 PSI)
ST25051001 4
In-vehicle service)
The above table shows data tested when SAE
1OW-30 oil is used and oil temperature is between
77 and 83°C (171 and 181°F). Slight difference
will
be found because of oil viscosity or oil tem-
perature If difference is extreme, check oil passage
and
oil pump for oil leaks
LC-3
Page 5 of 18
ENGINE LUBRICATION SYSTEM -Oil Pump-
Visually inspect components for wear and
damage
Check
oil pressure regulator valve sliding sur-
face and valve spring
Washer Spr'ng 7
Regulalor, ,/ valve
SLC295
Using a feeler gauge, check the following clear-
ance
SLC550
tion
If it exceeds the limit, replace gear set or entire oil
pump assembly.
Unit rnrn (in)
I 011 -020(00043 000791 Body to outer gear
clearance
(i7
Outer gear to crescent 0 21 - 0 32 (0 0083 0 0126)
LC-5
Page 7 of 18
ENGINE LUBRICATION SYSTEM
-Lubricating
Oil Passage for Turbocharger-
Disassembly and Assembly
Always replace with new gasket.
After installation, run engine for
a few minutes and check for leaks
Lm 8-17 108.1 1.58-801
N m (kg-m. ft-lbl
SLC552
LC-7
Page 9 of 18
COOLING SYSTEM
-Changing Engine Coolant
Refer to Changing Engine Coolant in section
MA If the hoses connecting engine and heater
have
been disconnected to dismount heater core
unit and engine. always perform the following
work before filling with engine coolant
Set the heater temperature lever or button to
"Full Hot" position
Disconnect the upper hose from water cock,
and
fill the heater core unit with 500 mP (16.9
US fl 02, 17 6 Imp fl 02) or more of coolant
1
2
DO not remove englne ter
SLC609 v
3 Connect the hoses.
-Checking Cooling Systern-
WARNING:
Never remove the radiator cap when the engine
IS
hot, serious burns could be caused by high pressure
fluid escaping from the radiator
Wrap
a thick cloth around cap and carefully re-
move the cap by turning it a quarter turn to allow
built-up pressure
to escape and then turn the cap
all the way off.
CHECKING COOLING SYSTEM HOSES
Check hoses for proper attachment, leaks, cracks,
damage,
loose connections, chafing and deteriora-
tion
CHECKING COOLING SYSTEM FOR LEAKS
Apply pressure to the cooling system by means of
a tester to check for leakage
Test i ng pressure.
157 kPa (1 6 kg/cm2, 23 psi)
CHECKING RADIATOR CAP
Apply pressure to radiator cap by means of
a cap
tester to see if it is satisfactory
Radiator cap relief pressure:
59 - 98 kPa (0.6 - 1.0 kglcm' , 9 - 14 psi)
" SLC613
LC-9
Page 11 of 18

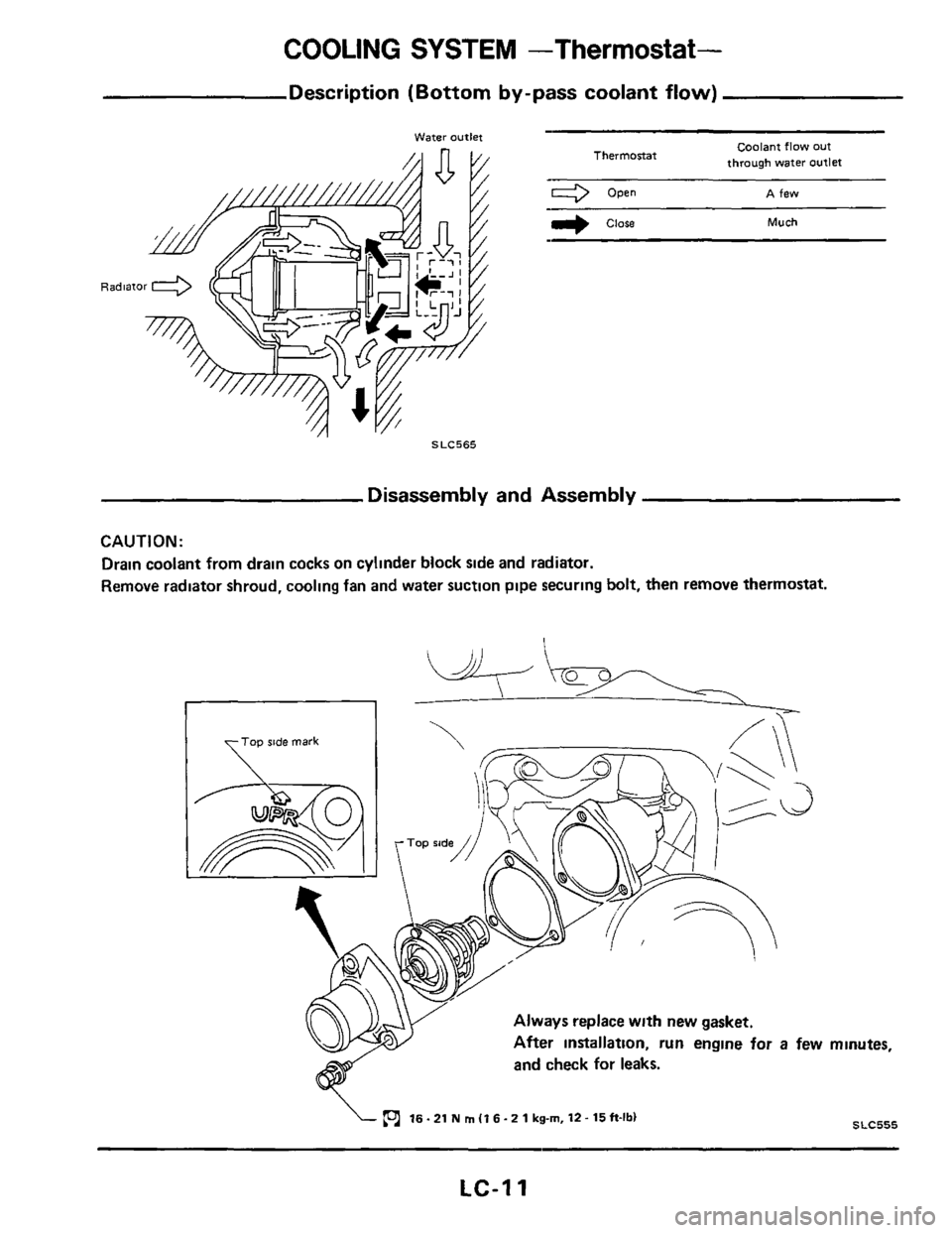

COOLING SYSTEM -Thermostat-
Description (Bottom by-pass coolant flow)
- water OUtkt Coalant flow out
through water Outlet Thermostat
Open A few
r) close Much
SLC565
Disassembly and Assembly
CAUTION:
Drain coolant from drain cocks on cylinder block side and radiator.
Remove radiator shroud, cooling fan and water suction pipe securing bolt, then remove thermostat.
Always replace with new gasket.
After installation. run engine for
a few
and check for leaks. minutes,
SLC555 16.21 N m (1 6.2 1 kg-m, 12.15 ft-lbl
LC-11
Page 16 of 18
SERVICE DATA AND SPECIFICATIONS (S.D.S.)
Engine Lubri
Oil pressure check
Engine rpm Approximate discharge
Dresure kPa
Ikdcm’, DII)
600 78 (0 8,ll I
1,200 196 (2,281
2,000 294 (3,431
4.000 392 14.571
011 pump
SLC573
Unit mm Inn1
Height H, H*
Except turbo model 18 5 IO 7281
Turbo model 15 5 IO 6101 21 5 (0 846)
12 5 IO 4921
Unit mm lml
0 11 -0 20 IO 0043 -0 0079) Body to Outer gear
clearance @
inner gear to CreKent clearance @
Outer gear to crescent
clearance
@
Housing to mnergear
0 12 -0 23 10 0047 -0 00911
0 21 -0 32 (0 0083 -0 01261
005-009 100020-000351 Clearance 0
0 05 0 11 (0 0020 - 0 0043) Housing to outer gear
clearance
@
Oil pressure regulator valve
Valve spring free length xxxxx mm On1
Valve spring assembly length
Opening pressure
373.412
xxxxx mm/N lmm/kg, dlbl
kPa Ikglcrn’. Pril/rpm 13 8.4 2. 54 - 601/2,000 rpm
tion System
Tightening torque
Unlt Nm kg-m it-lb
011 Pumpsecuring bolt M6
M8
011 pump cover screw
Regulator
valve cap bolt
081 strainer bolt
M6
M8
011 pressure switch
Turbocharger
Oil inlet tube to
cylinder block
011 inlet tube to turbocharger
011 outlet pipe to
turbochar~er
6-7
12.16
4-5
39 -49
63-83
16-21
10
- 16
15-20
8 11
8-11
06-07
12-16
04-05
4-5
0 64 -0 85
16-2
1
10-16
15-20
08-1 1
08-1 1
43-51
9-12 29-36
29-36
46-61
12-15
7-12
11 14
58 80
58-80
LC-16
