NISSAN 350Z 2004 Owner´s Manual

CAUTION
The dipstick must be inserted in place to
prevent oil spillage from the dipstick
hole while filling the engine with oil.
See “Capacities and recommended fuel/
lubricants” in the “9. Technical and consumer
information” section for drain and refill capac-
ity. The drain and refill capacity depends on
the oil temperature and drain time. Use these
specifications for reference only. Always use
the dipstick to determine the proper amount
of oil in the engine.
10. Start the engine and check for leakage
around the drain plug and the oil filter.
Correct as required.
11. Turn the engine off and wait more than 10
minutes. Check the oil level with the dip-
stick. Add engine oil if necessary.After the operation1. Install the engine undercover into position as
outlined in the following steps.
a. Pull the center of the small plastic clip out.
b. Hold the engine undercover into position.
c. Insert the clip through the undercover into thehole in the frame, then push the center of the
clip in to lock the clip in place.
d. Install the other bolts that hold the under-
cover in place. Be careful not to strip the
bolts or over-tighten them.
2. Lower the vehicle carefully to the ground.
3. Dispose of waste oil and filter properly.
WARNING

Prolonged and repeated contact with
used engine oil may cause skin can-
cer.

Try to avoid direct skin contact with
used oil. If skin contact is made,
wash thoroughly with soap or hand
cleaner as soon as possible.

Keep used engine oil out of reach of
children.When checking or replacement is required, we
recommend your NISSAN dealer for servicing.
CAUTION

Use only Genuine Nissan Matic J ATF.
Do not mix with other fluids.

Using automatic transmission fluid
other than Genuine Nissan Matic J
ATF will cause deterioration in drive-
ability and automatic transmission
durability, and may damage the auto-
matic transmission, which is not cov-
ered by the NISSAN new vehicle lim-
ited warranty.
The specified automatic transmission fluid is
also described on caution labels located in the
engine compartment.AUTOMATIC TRANSMISSION
FLUID
8-12
Maintenance and do-it-yourself


04.5.17/Z33-D/V5.0


Check the fluid level in the reservoir tank.
The fluid level should be checked using the HOT
range at fluid temperatures of 122 - 176°F (50 -
80°C) or using the COLD range at fluid tem-
peratures of 32 - 86°F (0 - 30°C).
CAUTION

Do not overfill.

Use Genuine NISSAN PSF or equiva-
lent.
BRAKE FLUIDCheck the fluid level in the reservoir. If the fluid is
below the MIN line or the brake warning light
comes on, add Genuine NISSAN Super Heavy
Duty Brake Fluid or equivalentDOT 3fluid up to
the MAX line. If fluid must be added frequently,
the system should be thoroughly checked by
your NISSAN dealer.
WARNING
Use only new fluid. Old, inferior, or con-taminated fluid may damage the brake
system. Do not add synthetic brake
fluid. The use of improper fluids can
damage the brake system and affect the
vehicle’s stopping ability.
CAUTION
Do not spill the fluid on painted sur-
faces. This will damage the paint. If fluid
is spilled, wash with water.
SDI1443
SDI0847
POWER STEERING FLUID BRAKE AND CLUTCH FLUID
Maintenance and do-it-yourself
8-13


04.5.17/Z33-D/V5.0


CLUTCH FLUIDCheck the fluid level in the reservoir. If the fluid
level is below the MIN. line, add Genuine
NISSAN Super Heavy Duty Brake Fluid or
equivalentDOT 3fluid up to the MAX. line.
If fluid is added frequently, the system should be
thoroughly checked by your NISSAN dealer.
WARNING
Use only new fluid from a sealed con-
tainer. Old, inferior or contaminated
fluid may damage the clutch system.
CAUTION
Do not spill the fluid on painted sur-
faces. This will damage the paint. If fluid
is spilled, wash the surface with water.
Open the cap and add fluid when the low
washer fluid warning light comes on. Add a
washer solvent to the washer fluid for better
cleaning. In the winter season, add a windshield
washer anti-freeze. Follow the manufacturer’s
instructions for the mixture ratio.
Recommended fluid is Genuine NISSAN Wind-
shield Washer Concentrate Cleaner & Anti-
freeze Fluid or equivalent.
SDI1478
SDI1444
WINDOW WASHER FLUID
8-14
Maintenance and do-it-yourself


04.5.17/Z33-D/V5.0


WARNING
Anti-freeze is poisonous and should be
stored carefully in marked containers
out of the reach of children.
CAUTION
Do not substitute engine anti-freeze
coolant for window washer solution.
This may result in damage to the paint.
Keep the battery surface clean and dry. Any
corrosion should be washed off with a solu-
tion of baking soda and water.

Make certain the terminal connections are
clean and securely tightened.

If the vehicle is not to be used for 30 days or
longer, disconnect the (—) negative battery
terminal to prevent discharging it.
CAUTION
When the battery cable is removed from
the battery terminal, do not close either
of the front doors. The automatic win-
dow adjusting function will not work,
and the side roof panel/top side rail
may be damaged by doing so.
To disconnect the negative (−) battery ter-
minal, perform the procedure in the follow-
ing order. Otherwise, the window and the
side roof panel/top side rail may contact
and be damaged.
1. Close the windows.
2. Open the hood.3. Close and lock all the doors using the
key or keyfob.
4. Disconnect the negative (−) battery ter-
minal.
5. Securely close the hood.
To connect the negative (−) battery termi-
nal, perform the procedure in the following
order. Otherwise, the window and the side
roof panel may contact and be damaged.
1. Unlock (using the key) and open the
driver side door. Do not close the door.
2. Open the hood.
3. Connect the negative (−) battery termi-
nal. Then close the hood.
4. Fully open the driver side door window.
5. Close the driver side door and the win-
dow.
WARNING

Do not expose the battery to flames
or electrical sparks. Hydrogen gas
generated by battery action is explo-
sive. Do not allow battery fluid to
contact your skin, eyes, fabrics, or
BATTERY
Maintenance and do-it-yourself
8-15


04.5.17/Z33-D/V5.0


painted surfaces. After touching a
battery or battery cap, do not touch
or rub your eyes. Thoroughly wash
your hands. If you get acid on your
eyes, skin or clothing, immediately
flush with water for at least 15 min-
utes and seek medical attention.

Do not operate the vehicle if the
battery fluid is low. Low battery fluid
can cause a higher load on the bat-
tery which can generate heat, reduce
battery life, and in some cases lead
to an explosion.

When working on or near a battery,
always wear suitable eye protection
and remove all jewelry.

Battery posts, terminals and related
accessories contain lead and lead
compounds. Wash hands after han-
dling.

Keep the battery out of the reach of
children.Check the fluid level in each cell. It should be
between the UPPER LEVEL
1
and LOWER
LEVEL
2lines.
If it is necessary to add fluid, add only distilled
water to bring the level to the indicator in each
filler opening.Do not overfill.
Vehicles operated in high temperatures or under
severe conditions require frequent checks of the
battery fluid level.
1. Remove the cell plugs
A.
2. Add distilled water up to the UPPER LEVEL
line
1.
3. Tighten cell plugs.
JUMP STARTINGIf jump starting is necessary, see “Jump starting”
in the “6. In case of emergency” section. If the
engine does not start by jump starting, the
battery may have to be replaced. Contact your
NISSAN dealer.
DI0137MA
SDI1480
8-16
Maintenance and do-it-yourself


04.5.17/Z33-D/V5.0


1. Power steering fluid pump
2. Alternator
3. Crankshaft pulley
4. Air conditioner compressor
: Tension checking points
WARNING
Be sure the ignition key is in the OFF or
LOCK position. The engine could rotate
unexpectedly.1. Visually inspect each belt for signs of unusual
wear, cuts, fraying, oil adhesion or looseness.
If the belt is in poor condition or loose, have
it replaced or adjusted by your NISSAN
dealer.
2. Have the belts checked regularly for condi-
tion and tension.
REPLACING SPARK PLUGSIf replacement is required, see your NISSAN
dealer for servicing.
WARNING
Be sure the engine and ignition switch
are off and that the parking brake is
engaged securely.
CAUTION
Be sure to use the correct socket to
remove the spark plugs. An incorrect
socket can damage the spark plugs.
SDI1389A
DRIVE BELTS SPARK PLUGS
Maintenance and do-it-yourself
8-17


04.5.17/Z33-D/V5.0

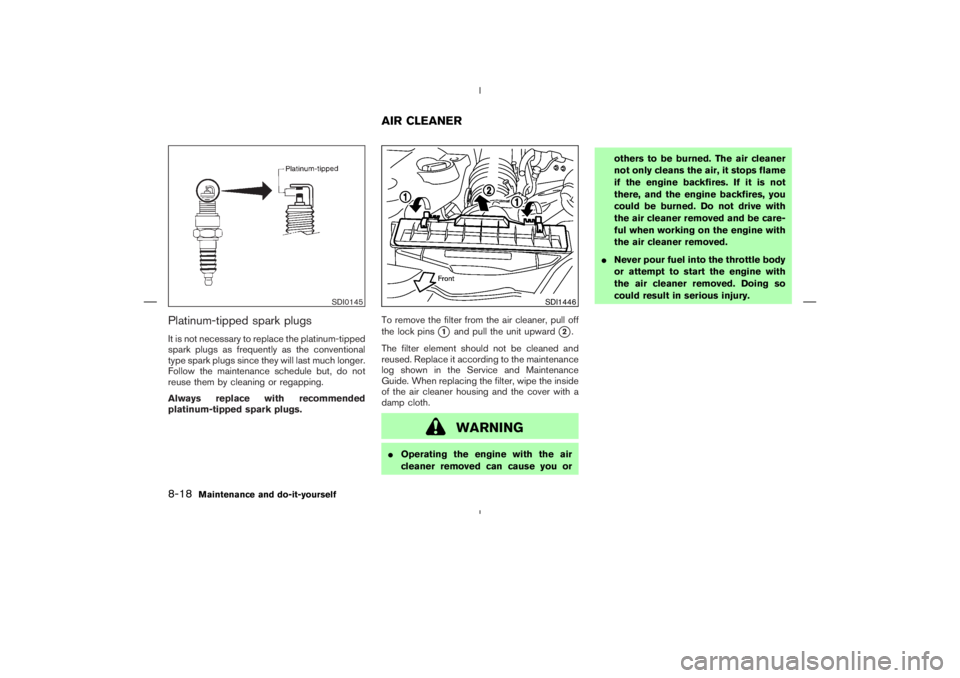

Platinum-tipped spark plugsIt is not necessary to replace the platinum-tipped
spark plugs as frequently as the conventional
type spark plugs since they will last much longer.
Follow the maintenance schedule but, do not
reuse them by cleaning or regapping.
Always replace with recommended
platinum-tipped spark plugs.To remove the filter from the air cleaner, pull off
the lock pins
1
and pull the unit upward
2.
The filter element should not be cleaned and
reused. Replace it according to the maintenance
log shown in the Service and Maintenance
Guide. When replacing the filter, wipe the inside
of the air cleaner housing and the cover with a
damp cloth.
WARNING

Operating the engine with the air
cleaner removed can cause you orothers to be burned. The air cleaner
not only cleans the air, it stops flame
if the engine backfires. If it is not
there, and the engine backfires, you
could be burned. Do not drive with
the air cleaner removed and be care-
ful when working on the engine with
the air cleaner removed.

Never pour fuel into the throttle body
or attempt to start the engine with
the air cleaner removed. Doing so
could result in serious injury.
SDI0145
SDI1446
AIR CLEANER
8-18
Maintenance and do-it-yourself


04.5.17/Z33-D/V5.0


CAUTION

After wiper blade replacement, return
the wiper arm to its original position.
Otherwise it may be damaged when
the engine hood is opened.

Make sure the wiper blade contacts
the glass, otherwise the arm may be
damaged from wind pressure.

Worn windshield wiper blades can
damage the windshield and impair
driver vision.CLEANINGIf your windshield is not clear after using the
windshield washer or if a wiper blade chatters
when running, wax or other material may be on
the blade or windshield.
Clean the outside of the windshield with a
washer solution or a mild detergent. Your wind-
shield is clean if beads do not form when rinsing
with clear water.
Clean the blade by wiping it with a cloth soaked
in a washer solution or a mild detergent. Thenrinse the blade with clear water. If your wind-
shield is still not clear after cleaning the blades
and using the wiper, replace the blades.WINDSHIELD WIPER BLADES
Maintenance and do-it-yourself
8-19


04.5.17/Z33-D/V5.0


REPLACINGReplace the wiper blades if they are worn.
1. Pull the wiper arm.
2. Push the lock pin, then remove the wiper
blade.
3. Insert the new wiper blade to the wiper arm
until a click sounds.
If necessary, clean the windshield washer
nozzle with a needle or small pin.
DI1018M
SDI1589
8-20
Maintenance and do-it-yourself


04.5.17/Z33-D/V5.0


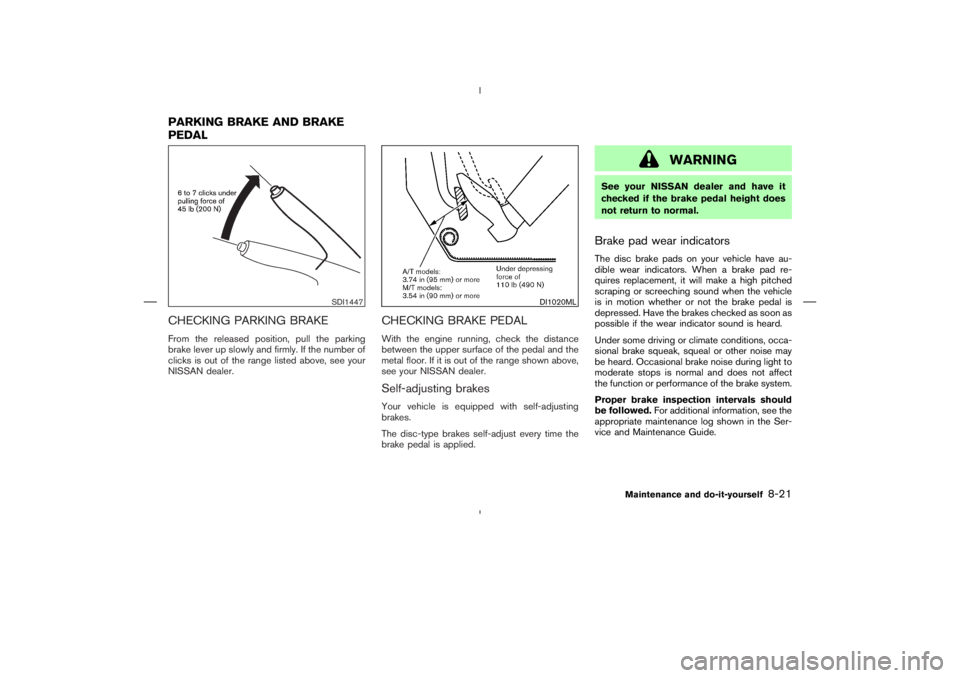

CHECKING PARKING BRAKEFrom the released position, pull the parking
brake lever up slowly and firmly. If the number of
clicks is out of the range listed above, see your
NISSAN dealer.
CHECKING BRAKE PEDALWith the engine running, check the distance
between the upper surface of the pedal and the
metal floor. If it is out of the range shown above,
see your NISSAN dealer.Self-adjusting brakesYour vehicle is equipped with self-adjusting
brakes.
The disc-type brakes self-adjust every time the
brake pedal is applied.
WARNING
See your NISSAN dealer and have it
checked if the brake pedal height does
not return to normal.Brake pad wear indicatorsThe disc brake pads on your vehicle have au-
dible wear indicators. When a brake pad re-
quires replacement, it will make a high pitched
scraping or screeching sound when the vehicle
is in motion whether or not the brake pedal is
depressed. Have the brakes checked as soon as
possible if the wear indicator sound is heard.
Under some driving or climate conditions, occa-
sional brake squeak, squeal or other noise may
be heard. Occasional brake noise during light to
moderate stops is normal and does not affect
the function or performance of the brake system.
Proper brake inspection intervals should
be followed.For additional information, see the
appropriate maintenance log shown in the Ser-
vice and Maintenance Guide.
SDI1447
DI1020ML
PARKING BRAKE AND BRAKE
PEDAL
Maintenance and do-it-yourself
8-21


04.5.17/Z33-D/V5.0
