BRAKE BOOSTERCheck the brake booster function as follows:
1. With the engine off, press and release the
brake pedal several times. When brake pedal
movement (distance of travel) remains the
same from one pedal application to the next,
continue on to the next step.
2. While depressing the brake pedal, start the
engine. The pedal height should drop a little.
3. With the brake pedal depressed, stop the
engine. Keeping the pedal depressed for
about 30 seconds, the pedal height should
not change.
4. Run the engine for one minute without de-
pressing the brake pedal, then turn it off.
Depress the brake pedal several times. The
pedal travel distance will decrease gradually
with each depression as the vacuum is re-
leased from the booster.
If the brakes do not operate properly, see your
NISSAN dealer.
CAUTION
Never use a fuse of higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or cause a fire.
ENGINE COMPARTMENTIf any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition key and headlight switch
are OFF.
2. Open the engine hood and remove the cover
on the battery and the fuse/fusible link holder.
3. Remove the fuse/fusible link holder cover.
4. Remove the fuse with the fuse puller.
5. If the fuse is open, replace it with a new fuse.
6. If a new fuse also opens, have the electrical
SDI1479
FUSES
8-22
Maintenance and do-it-yourself


04.5.17/Z33-D/V5.0


system checked and repaired by your
NISSAN dealer.
Fusible linksIf any electrical equipment does not operate and
fuses are in good condition, check the fusible
links. If any of these fusible links are melted,
replace only with genuine NISSAN parts.
PASSENGER COMPARTMENTIf any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition key and the headlight
switch are OFF.
2. Open the fuse box lid.
3. Pinch the fuse perpendicularly with the fuse
puller and pull it out.
4. If the fuse is open, replace it with a new fuse.
5. If a new fuse also opens, have the electrical
system checked and repaired by your
NISSAN dealer.
SDI1393
Maintenance and do-it-yourself
8-23


04.5.17/Z33-D/V5.0


Replace the battery as follows:
1. Open the lid using a suitable tool.
2. Replace the battery with a new one.
Recommended battery: CR2025 or equiva-
lentMake sure that the⊕side faces the
bottom case.
3. Close the lid securely.
4. Push the keyfobbutton two or three times to
check its operation.
See your NISSAN dealer if you need any assis-
tance for replacement.
If the battery is removed for any reason
other than replacement, perform step 4
above.

Be careful not to touch the circuit board
and the battery terminal.

An improperly disposed battery can
harm the environment. Always confirm
local regulations for battery disposal.

The keyfob is water-resistant; however,
if it gets wet, immediately wipe it com-
pletely dry.

When changing batteries, do not let
dust or oil get on the keyfob.
FCC Notice:
Changes or modifications not expressly
approved by the manufacturer compliance
could void the user’s authority to operate
the equipment. This device complies with
Part 15 of the FCC Rules and RSS-210 ofIndustry Canada. Operation is subject to
the following two conditions: (1) This de-
vice may not cause harmful interference,
and (2) this device must accept any inter-
ference received, including interference
that may cause undesired operation of the
device.
SDI1608
KEYFOB BATTERY
REPLACEMENT8-24
Maintenance and do-it-yourself


04.5.17/Z33-D/V5.0


1
Front view
1. Headlight (low-beam, high-beam)
2. Spot light
3. Front park light
4. Front turn signal light
5. Front side marker light2
Rear view (Coupe),
3
Rear view (Roadster)
6. Luggage compartment light (Coupe) or Trunk
light (Roadster)
7. High-mounted stop light
8. Rear combination light
(Side marker, Stop/Tail)
9. License plate lights
10. Rear combination light
(Back-up, Turn signal)
SDI1571
LIGHTS
Maintenance and do-it-yourself
8-25


04.5.17/Z33-D/V5.0

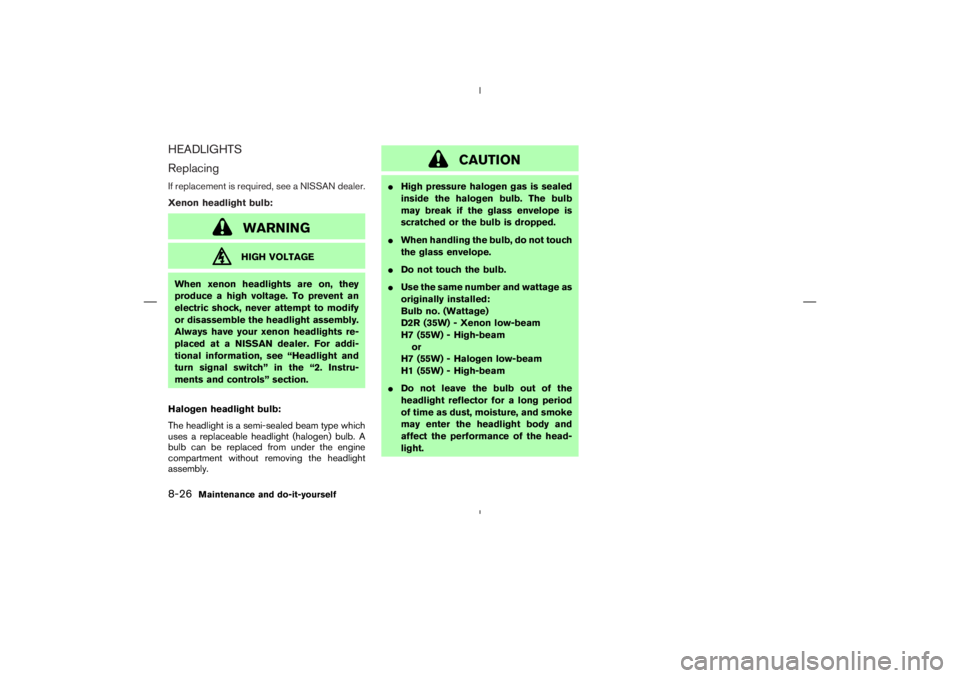

HEADLIGHTS
ReplacingIf replacement is required, see a NISSAN dealer.
Xenon headlight bulb:
WARNINGHIGH VOLTAGE
When xenon headlights are on, they
produce a high voltage. To prevent an
electric shock, never attempt to modify
or disassemble the headlight assembly.
Always have your xenon headlights re-
placed at a NISSAN dealer. For addi-
tional information, see “Headlight and
turn signal switch” in the “2. Instru-
ments and controls” section.
Halogen headlight bulb:
The headlight is a semi-sealed beam type which
uses a replaceable headlight (halogen) bulb. A
bulb can be replaced from under the engine
compartment without removing the headlight
assembly.
CAUTION

High pressure halogen gas is sealed
inside the halogen bulb. The bulb
may break if the glass envelope is
scratched or the bulb is dropped.

When handling the bulb, do not touch
the glass envelope.

Do not touch the bulb.

Use the same number and wattage as
originally installed:
Bulb no. (Wattage)
D2R (35W) - Xenon low-beam
H7 (55W) - High-beam
or
H7 (55W) - Halogen low-beam
H1 (55W) - High-beam

Do not leave the bulb out of the
headlight reflector for a long period
of time as dust, moisture, and smoke
may enter the headlight body and
affect the performance of the head-
light.
8-26
Maintenance and do-it-yourself


04.5.17/Z33-D/V5.0

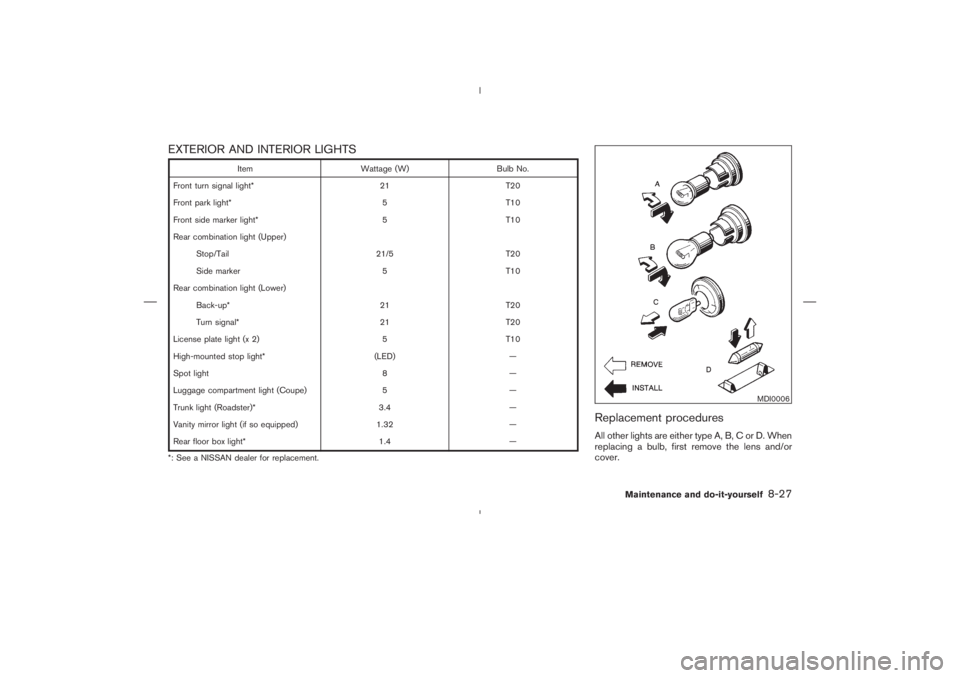

EXTERIOR AND INTERIOR LIGHTS
Item Wattage (W) BulbNo.
Front turn signal light* 21 T20
Front park light* 5 T10
Front side marker light* 5 T10
Rear combination light (Upper)
Stop/Tail 21/5 T20
Side marker 5 T10
Rear combination light (Lower)
Back-up* 21 T20
Turn signal* 21 T20
License plate light (x 2) 5 T10
High-mounted stop light* (LED) —
Spot light 8 —
Luggage compartment light (Coupe) 5 —
Trunk light (Roadster)* 3.4 —
Vanity mirror light (if so equipped) 1.32 —
Rear floor box light* 1.4 —
*: See a NISSAN dealer for replacement.
Replacement proceduresAll other lights are either type A, B, C or D. When
replacing a bulb, first remove the lens and/or
cover.
MDI0006
Maintenance and do-it-yourself
8-27


04.5.17/Z33-D/V5.0


Rear combination light
(Stop/Tail, Side marker)1Remove the covers and the bolts from the 3
places.
2Use a flat-bladed screwdriver to make a
clearance between the light unit and the
vehicle.
3Pull the light unit toward the direction shown
in the illustration. Be careful not to damage
the mounting pins
A.
4Turn the bulb sockets to replace the bulbs.
SDI1449
SDI1450A
8-28
Maintenance and do-it-yourself


04.5.17/Z33-D/V5.0

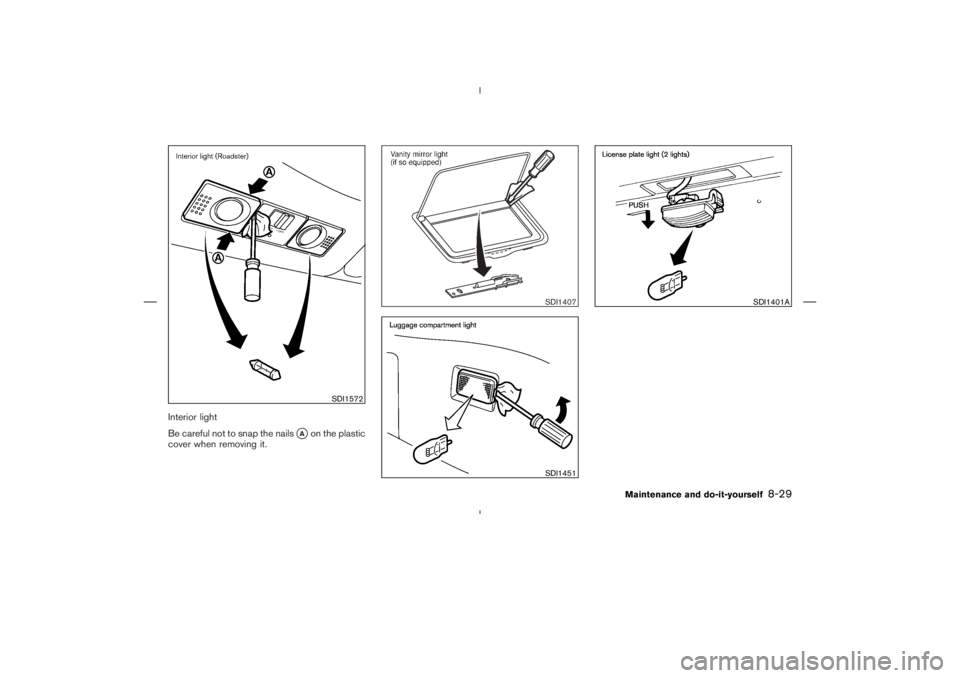

Interior light
Be careful not to snap the nails
Aon the plastic
cover when removing it.
SDI1572
SDI1407SDI1451
SDI1401A
Maintenance and do-it-yourself
8-29


04.5.17/Z33-D/V5.0

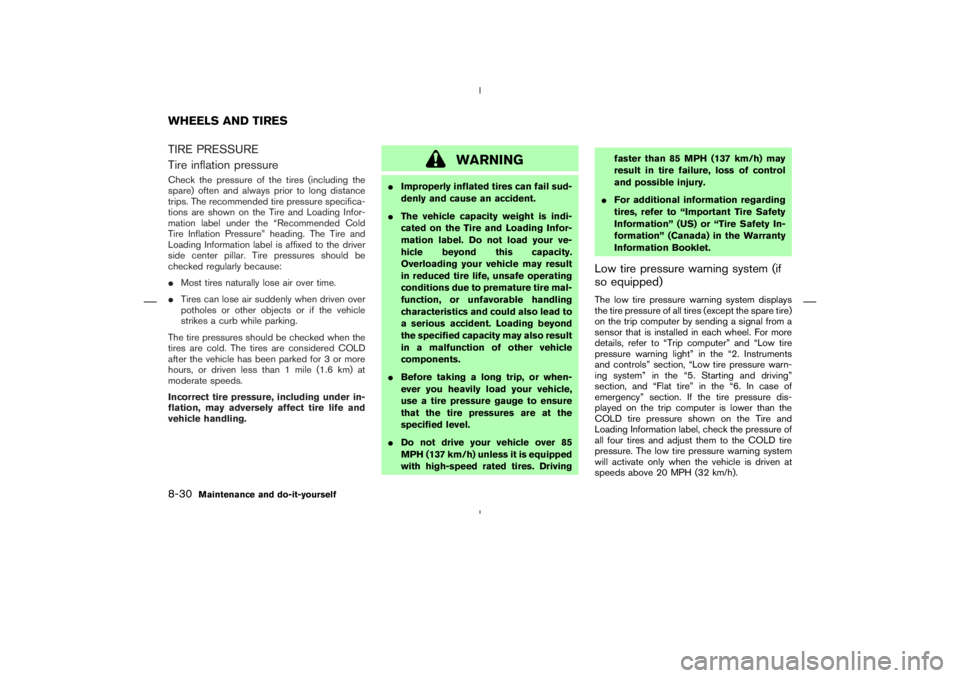

TIRE PRESSURE
Tire inflation pressureCheck the pressure of the tires (including the
spare) often and always prior to long distance
trips. The recommended tire pressure specifica-
tions are shown on the Tire and Loading Infor-
mation label under the “Recommended Cold
Tire Inflation Pressure” heading. The Tire and
Loading Information label is affixed to the driver
side center pillar. Tire pressures should be
checked regularly because:

Most tires naturally lose air over time.

Tires can lose air suddenly when driven over
potholes or other objects or if the vehicle
strikes a curbwhile parking.
The tire pressures should be checked when the
tires are cold. The tires are considered COLD
after the vehicle has been parked for 3 or more
hours, or driven less than 1 mile (1.6 km) at
moderate speeds.
Incorrect tire pressure, including under in-
flation, may adversely affect tire life and
vehicle handling.
WARNING

Improperly inflated tires can fail sud-
denly and cause an accident.

The vehicle capacity weight is indi-
cated on the Tire and Loading Infor-
mation label. Do not load your ve-
hicle beyond this capacity.
Overloading your vehicle may result
in reduced tire life, unsafe operating
conditions due to premature tire mal-
function, or unfavorable handling
characteristics and could also lead to
a serious accident. Loading beyond
the specified capacity may also result
in a malfunction of other vehicle
components.

Before taking a long trip, or when-
ever you heavily load your vehicle,
use a tire pressure gauge to ensure
that the tire pressures are at the
specified level.

Do not drive your vehicle over 85
MPH (137 km/h) unless it is equipped
with high-speed rated tires. Drivingfaster than 85 MPH (137 km/h) may
result in tire failure, loss of control
and possible injury.

For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety In-
formation” (Canada) in the Warranty
Information Booklet.
Low tire pressure warning system (if
so equipped)The low tire pressure warning system displays
the tire pressure of all tires (except the spare tire)
on the trip computer by sending a signal from a
sensor that is installed in each wheel. For more
details, refer to “Trip computer” and “Low tire
pressure warning light” in the “2. Instruments
and controls” section, “Low tire pressure warn-
ing system” in the “5. Starting and driving”
section, and “Flat tire” in the “6. In case of
emergency” section. If the tire pressure dis-
played on the trip computer is lower than the
COLD tire pressure shown on the Tire and
Loading Information label, check the pressure of
all four tires and adjust them to the COLD tire
pressure. The low tire pressure warning system
will activate only when the vehicle is driven at
speeds above 20 MPH (32 km/h).
WHEELS AND TIRES8-30
Maintenance and do-it-yourself


04.5.17/Z33-D/V5.0


Tire and loading information label
1Seating capacity: The maximum number of
occupants that can be seated in the vehicle.
2Vehicle load limit: See loading information in
the “9. Technical and consumer information”
section.
3Original tire size: The size of the tires origi-
nally installed on the vehicle at the factory.
4Recommended cold tire inflation pressure:
Inflate the tires to this pressure when the tires
are cold. Tires are considered COLD after
the vehicle has been parked for 3 or more
hours, or driven less than 1 mile (1.6 km) at
moderate speeds. The recommended cold
tire inflation is set by the manufacturer to
provide the best balance of tire wear, vehicle
handling, driveability, tire noise, etc., up to the
vehicles GVWR.
5Tire size — refer to “Tire labeling” later in this
section.
6and
7
Spare tire size or compact spare tire
size (if so equipped)
Checking the tire pressure1. Remove the valve stem cap from the tire.
2. Press the pressure gauge squarely onto the
valve stem. Do not press too hard or force the
valve stem sideways, or air will escape. If the
hissing sound of air escaping from the tire is
heard while checking the pressure, reposition
the gauge to eliminate this leakage.
3. Remove the gauge.
4. Read the tire pressure on the gauge stem
and compare it to the specification shown on
the Tire and Loading Information label.
5. Add air to the tire as needed. If too much air
SDI1574
Maintenance and do-it-yourself
8-31


04.5.17/Z33-D/V5.0
