is added, press the core of the valve stem
briefly with the tip of the gauge stem to
release pressure. Recheck the pressure and
add or release air as needed.
6. Install the valve stem cap.
7. Check the pressure of all other tires, includ-
ing the spare.
TIRE LABELINGFederal law requires tire manufacturers to place
standardized information on the sidewall of all
tires. This information identifies and describes
the fundamental characteristics of the tire and
also provides the tire identification number (TIN)
for safety standard certification. The TIN can be
used to identify the tire in case of a recall.
1Tire size (example: P215/60R16 94H)
P: The “P” indicates the tire is designed for
passenger vehicles. (Not all tires have this
information.)
Three-digit number (215): This number gives
the width in millimeters of the tire from side-
wall edge to sidewall edge.
1st two-digit number (60): This number,
known as the aspect ratio, gives the tire’s
ratio of height to width.
R: The “R” stands for radial.
2nd two-digit number (16): This number is
the wheel or rim diameter in inches.3rd two- or three-digit number (94): This
number is the tire’s load index. It is a mea-
surement of how much weight each tire can
support. (You may not find this information on
all tires because it is not required by law.)
H: Tire Speed Rating. The speed rating de-
notes the speed at which a tire is designed to
be driven for extended periods of time. The
ratings range from 98 MPH (miles per hour)
to 186 MPH. (You may not find this informa-
tion on all tires because it is not required by
law.)
2TIN (Tire Identification Number) for new tire
(example: DOT XX XX XXX XXXX)
DOT: Abbreviation for the “Department of
Transportation”. The symbol can be
placed above, below or to the left or
right of the Tire Identification Number.
1st two-digit code: Manufacturer’s identifica-
tion mark
2nd two-digit code: Tire size
3rd three-digit code: Tire type code (Op-
tional)
4th three-digit code: Date of Manufacture
Four numbers represent the week and year
the tire was built. For example, the numbers
3103 means the 31st week of 2003.
SDI1575
EXAMPLE
8-32
Maintenance and do-it-yourself
04.5.17/Z33-D/V5.0
Page 222 of 262

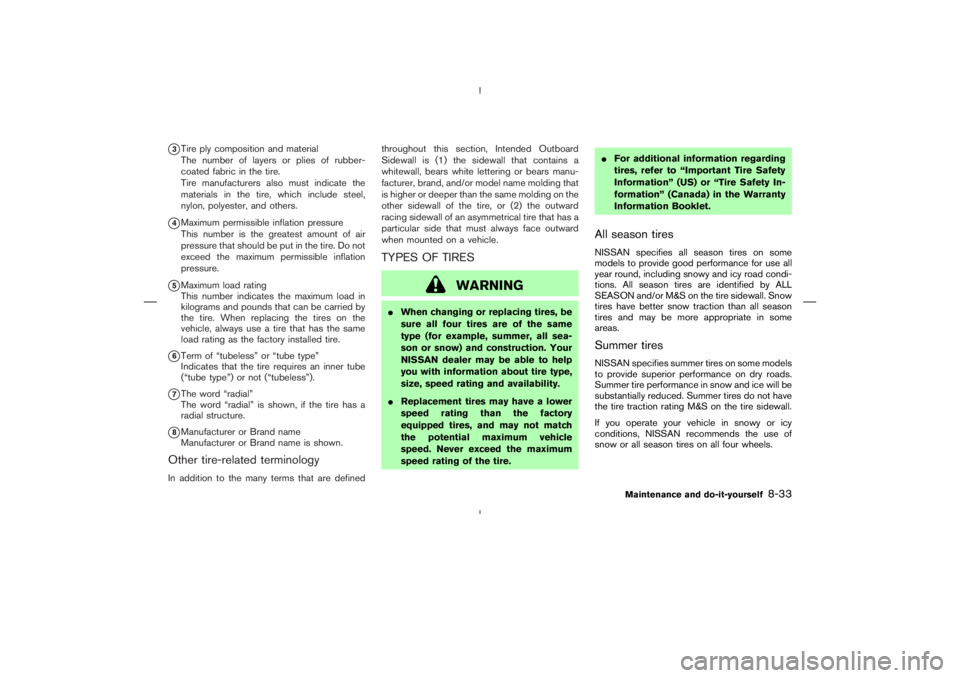

3Tire ply composition and material
The number of layers or plies of rubber-
coated fabric in the tire.
Tire manufacturers also must indicate the
materials in the tire, which include steel,
nylon, polyester, and others.
4Maximum permissible inflation pressure
This number is the greatest amount of air
pressure that should be put in the tire. Do not
exceed the maximum permissible inflation
pressure.
5Maximum load rating
This number indicates the maximum load in
kilograms and pounds that can be carried by
the tire. When replacing the tires on the
vehicle, always use a tire that has the same
load rating as the factory installed tire.
6Term of “tubeless” or “tube type”
Indicates that the tire requires an inner tube
(“tube type”) or not (“tubeless”).
7The word “radial”
The word “radial” is shown, if the tire has a
radial structure.
8Manufacturer or Brand name
Manufacturer or Brand name is shown.
Other tire-related terminologyIn addition to the many terms that are definedthroughout this section, Intended Outboard
Sidewall is (1) the sidewall that contains a
whitewall, bears white lettering or bears manu-
facturer, brand, and/or model name molding that
is higher or deeper than the same molding on the
other sidewall of the tire, or (2) the outward
racing sidewall of an asymmetrical tire that has a
particular side that must always face outward
when mounted on a vehicle.
TYPES OF TIRES
WARNING
When changing or replacing tires, be
sure all four tires are of the same
type (for example, summer, all sea-
son or snow) and construction. Your
NISSAN dealer may be able to help
you with information about tire type,
size, speed rating and availability.
Replacement tires may have a lower
speed rating than the factory
equipped tires, and may not match
the potential maximum vehicle
speed. Never exceed the maximum
speed rating of the tire.For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety In-
formation” (Canada) in the Warranty
Information Booklet.
All season tiresNISSAN specifies all season tires on some
models to provide good performance for use all
year round, including snowy and icy road condi-
tions. All season tires are identified by ALL
SEASON and/or M&S on the tire sidewall. Snow
tires have better snow traction than all season
tires and may be more appropriate in some
areas.Summer tiresNISSAN specifies summer tires on some models
to provide superior performance on dry roads.
Summer tire performance in snow and ice will be
substantially reduced. Summer tires do not have
the tire traction rating M&S on the tire sidewall.
If you operate your vehicle in snowy or icy
conditions, NISSAN recommends the use of
snow or all season tires on all four wheels.
Maintenance and do-it-yourself
8-33
04.5.17/Z33-D/V5.0
Page 223 of 262

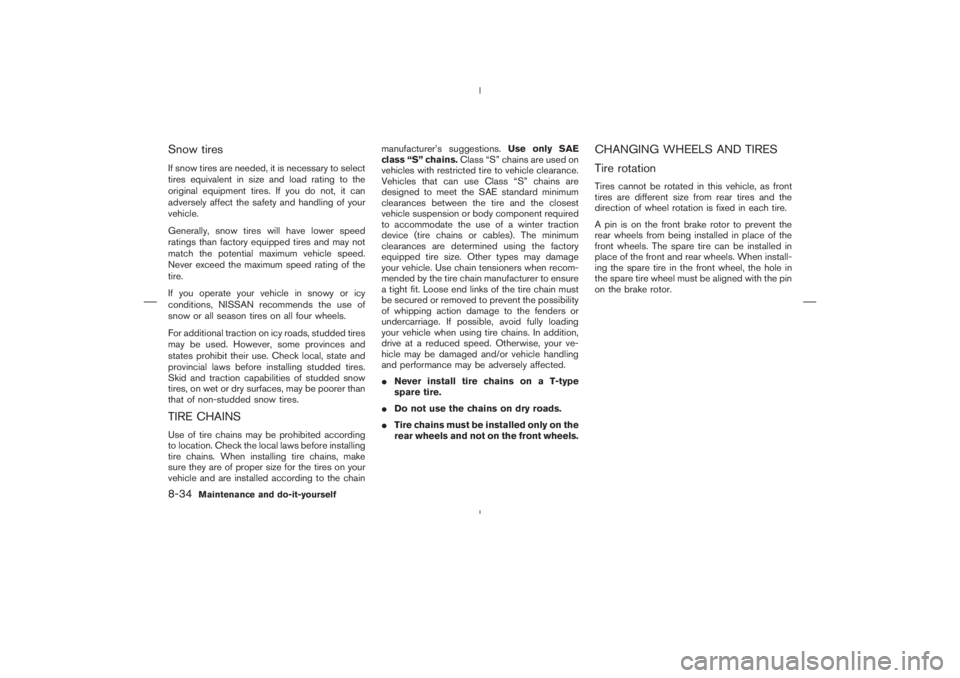

Snow tiresIf snow tires are needed, it is necessary to select
tires equivalent in size and load rating to the
original equipment tires. If you do not, it can
adversely affect the safety and handling of your
vehicle.
Generally, snow tires will have lower speed
ratings than factory equipped tires and may not
match the potential maximum vehicle speed.
Never exceed the maximum speed rating of the
tire.
If you operate your vehicle in snowy or icy
conditions, NISSAN recommends the use of
snow or all season tires on all four wheels.
For additional traction on icy roads, studded tires
may be used. However, some provinces and
states prohibit their use. Check local, state and
provincial laws before installing studded tires.
Skid and traction capabilities of studded snow
tires, on wet or dry surfaces, may be poorer than
that of non-studded snow tires.TIRE CHAINSUse of tire chains may be prohibited according
to location. Check the local laws before installing
tire chains. When installing tire chains, make
sure they are of proper size for the tires on your
vehicle and are installed according to the chainmanufacturer’s suggestions.Use only SAE
class “S” chains.Class “S” chains are used on
vehicles with restricted tire to vehicle clearance.
Vehicles that can use Class “S” chains are
designed to meet the SAE standard minimum
clearances between the tire and the closest
vehicle suspension or body component required
to accommodate the use of a winter traction
device (tire chains or cables). The minimum
clearances are determined using the factory
equipped tire size. Other types may damage
your vehicle. Use chain tensioners when recom-
mended by the tire chain manufacturer to ensure
a tight fit. Loose end links of the tire chain must
be secured or removed to prevent the possibility
of whipping action damage to the fenders or
undercarriage. If possible, avoid fully loading
your vehicle when using tire chains. In addition,
drive at a reduced speed. Otherwise, your ve-
hicle may be damaged and/or vehicle handling
and performance may be adversely affected.
Never install tire chains on a T-type
spare tire.
Do not use the chains on dry roads.
Tire chains must be installed only on the
rear wheels and not on the front wheels.
CHANGING WHEELS AND TIRES
Tire rotationTires cannot be rotated in this vehicle, as front
tires are different size from rear tires and the
direction of wheel rotation is fixed in each tire.
A pin is on the front brake rotor to prevent the
rear wheels from being installed in place of the
front wheels. The spare tire can be installed in
place of the front and rear wheels. When install-
ing the spare tire in the front wheel, the hole in
the spare tire wheel must be aligned with the pin
on the brake rotor.
8-34
Maintenance and do-it-yourself
04.5.17/Z33-D/V5.0
Page 224 of 262

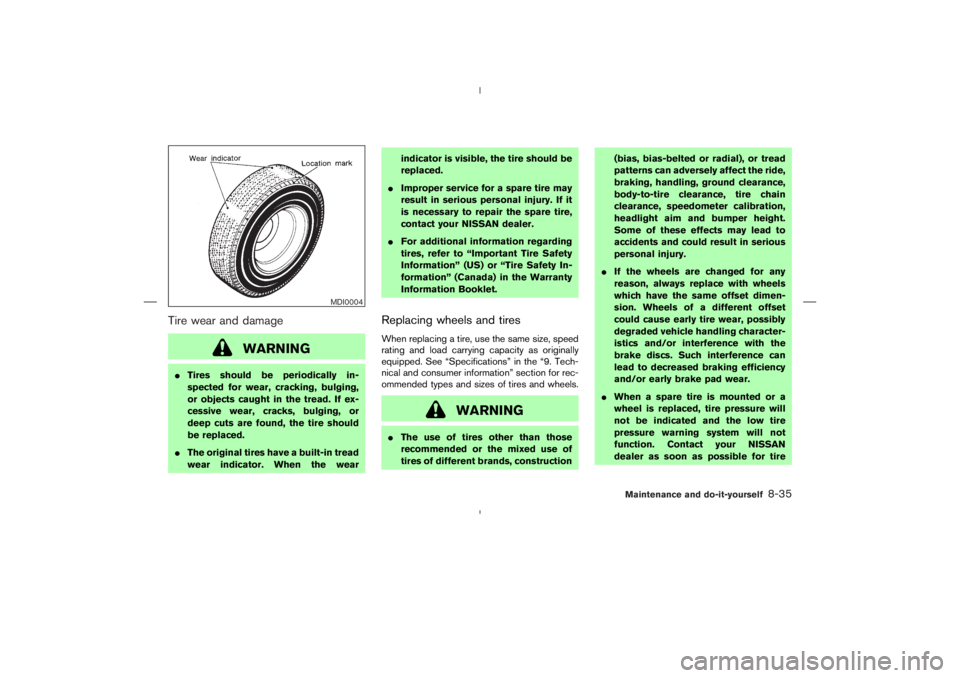

Tire wear and damage
WARNING
Tires should be periodically in-
spected for wear, cracking, bulging,
or objects caught in the tread. If ex-
cessive wear, cracks, bulging, or
deep cuts are found, the tire should
be replaced.
The original tires have a built-in tread
wear indicator. When the wearindicator is visible, the tire should be
replaced.
Improper service for a spare tire may
result in serious personal injury. If it
is necessary to repair the spare tire,
contact your NISSAN dealer.
For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety In-
formation” (Canada) in the Warranty
Information Booklet.
Replacing wheels and tiresWhen replacing a tire, use the same size, speed
rating and load carrying capacity as originally
equipped. See “Specifications” in the “9. Tech-
nical and consumer information” section for rec-
ommended types and sizes of tires and wheels.
WARNING
The use of tires other than those
recommended or the mixed use of
tires of different brands, construction(bias, bias-belted or radial), or tread
patterns can adversely affect the ride,
braking, handling, ground clearance,
body-to-tire clearance, tire chain
clearance, speedometer calibration,
headlight aim and bumper height.
Some of these effects may lead to
accidents and could result in serious
personal injury.
If the wheels are changed for any
reason, always replace with wheels
which have the same offset dimen-
sion. Wheels of a different offset
could cause early tire wear, possibly
degraded vehicle handling character-
istics and/or interference with the
brake discs. Such interference can
lead to decreased braking efficiency
and/or early brake pad wear.
When a spare tire is mounted or a
wheel is replaced, tire pressure will
not be indicated and the low tire
pressure warning system will not
function. Contact your NISSAN
dealer as soon as possible for tire
MDI0004
Maintenance and do-it-yourself
8-35
04.5.17/Z33-D/V5.0
Page 225 of 262

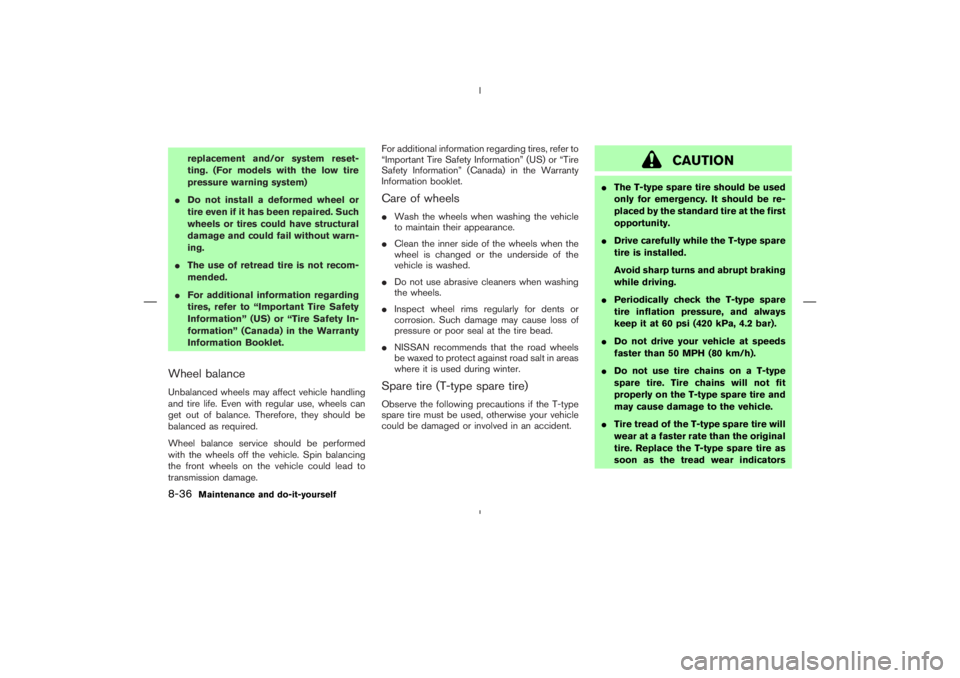

replacement and/or system reset-
ting. (For models with the low tire
pressure warning system)
Do not install a deformed wheel or
tire even if it has been repaired. Such
wheels or tires could have structural
damage and could fail without warn-
ing.
The use of retread tire is not recom-
mended.
For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety In-
formation” (Canada) in the Warranty
Information Booklet.
Wheel balanceUnbalanced wheels may affect vehicle handling
and tire life. Even with regular use, wheels can
get out of balance. Therefore, they should be
balanced as required.
Wheel balance service should be performed
with the wheels off the vehicle. Spin balancing
the front wheels on the vehicle could lead to
transmission damage.For additional information regarding tires, refer to
“Important Tire Safety Information” (US) or “Tire
Safety Information” (Canada) in the Warranty
Information booklet.
Care of wheelsWash the wheels when washing the vehicle
to maintain their appearance.
Clean the inner side of the wheels when the
wheel is changed or the underside of the
vehicle is washed.
Do not use abrasive cleaners when washing
the wheels.
Inspect wheel rims regularly for dents or
corrosion. Such damage may cause loss of
pressure or poor seal at the tire bead.
NISSAN recommends that the road wheels
be waxed to protect against road salt in areas
where it is used during winter.Spare tire (T-type spare tire)Observe the following precautions if the T-type
spare tire must be used, otherwise your vehicle
could be damaged or involved in an accident.
CAUTION
The T-type spare tire should be used
only for emergency. It should be re-
placed by the standard tire at the first
opportunity.
Drive carefully while the T-type spare
tire is installed.
Avoid sharp turns and abrupt braking
while driving.
Periodically check the T-type spare
tire inflation pressure, and always
keep it at 60 psi (420 kPa, 4.2 bar).
Do not drive your vehicle at speeds
faster than 50 MPH (80 km/h).
Do not use tire chains on a T-type
spare tire. Tire chains will not fit
properly on the T-type spare tire and
may cause damage to the vehicle.
Tire tread of the T-type spare tire will
wear at a faster rate than the original
tire. Replace the T-type spare tire as
soon as the tread wear indicators
8-36
Maintenance and do-it-yourself
04.5.17/Z33-D/V5.0
Page 226 of 262

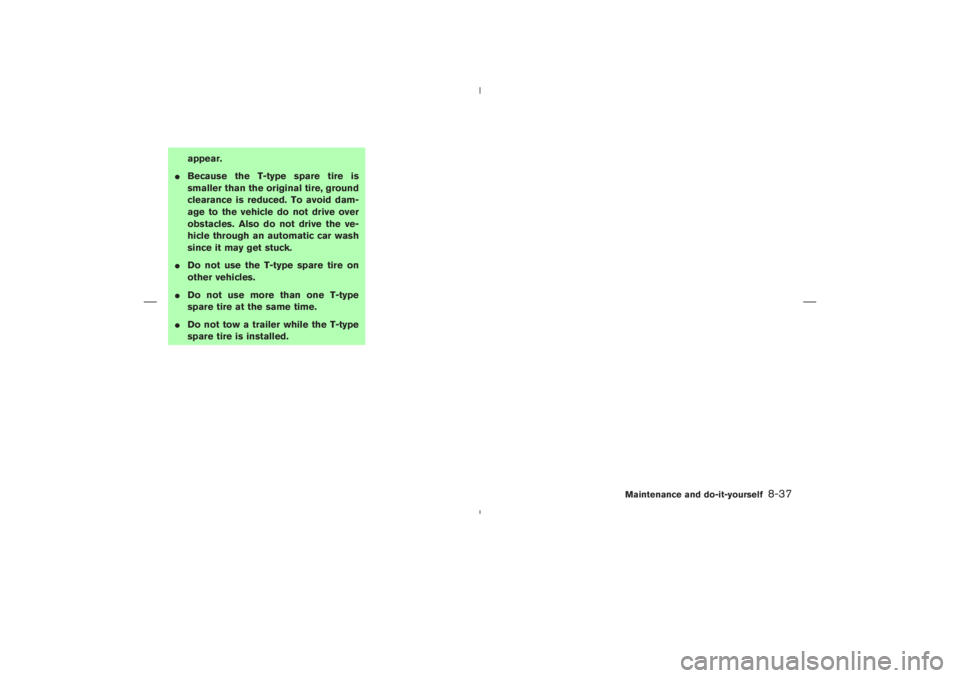

appear.
Because the T-type spare tire is
smaller than the original tire, ground
clearance is reduced. To avoid dam-
age to the vehicle do not drive over
obstacles. Also do not drive the ve-
hicle through an automatic car wash
since it may get stuck.
Do not use the T-type spare tire on
other vehicles.
Do not use more than one T-type
spare tire at the same time.
Do not tow a trailer while the T-type
spare tire is installed.
Maintenance and do-it-yourself
8-37
04.5.17/Z33-D/V5.0
Page 227 of 262

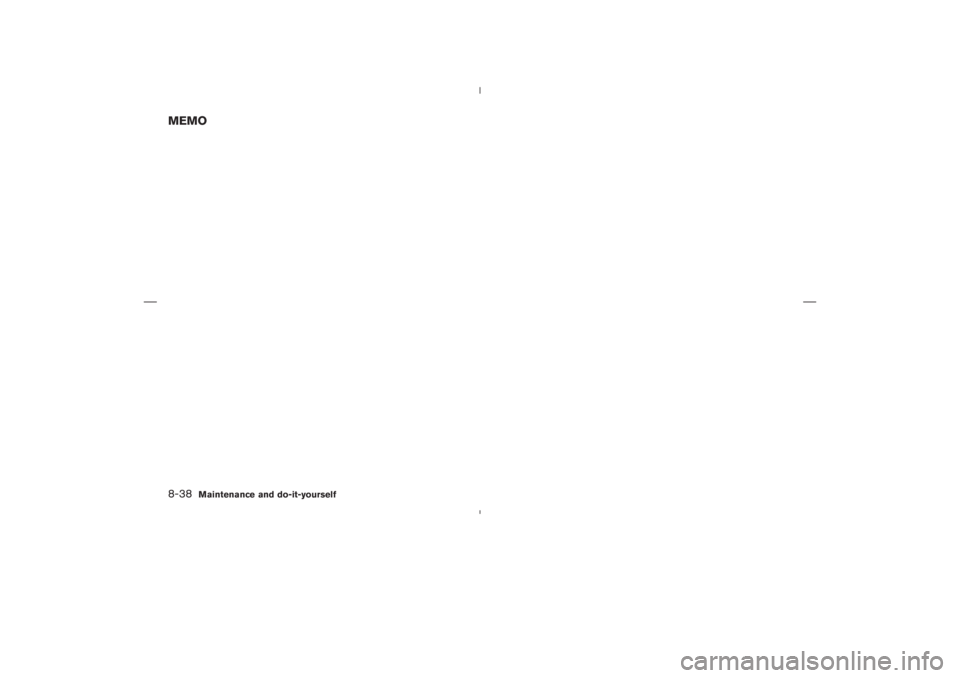

MEMO8-38
Maintenance and do-it-yourself
04.5.17/Z33-D/V5.0
Page 228 of 262
9 Technical and consumer informationCapacities and recommended fuel/lubricants .............. 9-2
Fuel recommendation .................................................... 9-3
Engine oil and oil filter recommendation .................. 9-5
Recommended SAE viscosity number ...................... 9-6
Air conditioning system refrigerant and lubricant
recommendations ........................................................... 9-6
Specifications ........................................................................ 9-8
Engine ................................................................................ 9-8
Wheels and tires ............................................................. 9-9
Dimensions and weights ............................................... 9-9
When traveling or registering your vehicle in another
country .................................................................................. 9-10
Vehicle identification ......................................................... 9-10
Vehicle identification number (VIN) plate ............... 9-10
Vehicle identification number (chassis number) .... 9-10
Engine serial number ................................................... 9-11
F.M.V.S.S. certification label ...................................... 9-11
Emission control information label ........................... 9-11
Tire and Loading Information label .......................... 9-12
Air conditioner specification label ............................ 9-12Installing front license plate ............................................. 9-13
Vehicle loading information ............................................. 9-14
Terms ............................................................................... 9-14
Vehicle load capacity.................................................... 9-15
Loading tips ................................................................... 9-15
Towing a trailer ................................................................... 9-16
Maximum load limits ...................................................... 9-16
Towing safety.................................................................. 9-17
Flat towing .......................................................................... 9-20
Automatic transmission ............................................. 9-20
Manual transmission .................................................... 9-20
Uniform tire quality grading ............................................. 9-21
Emission control system warranty ................................. 9-22
Reporting safety defects (US only) ............................... 9-22
Readiness for inspection/maintenance (I/M) test
(US only) .............................................................................. 9-22
Event data recorders ......................................................... 9-23
Owner’s Manual/Service Manual order
information ........................................................................... 9-24
In the event of a collision ........................................... 9-24
04.5.17/Z33-D/V5.0
Page 229 of 262

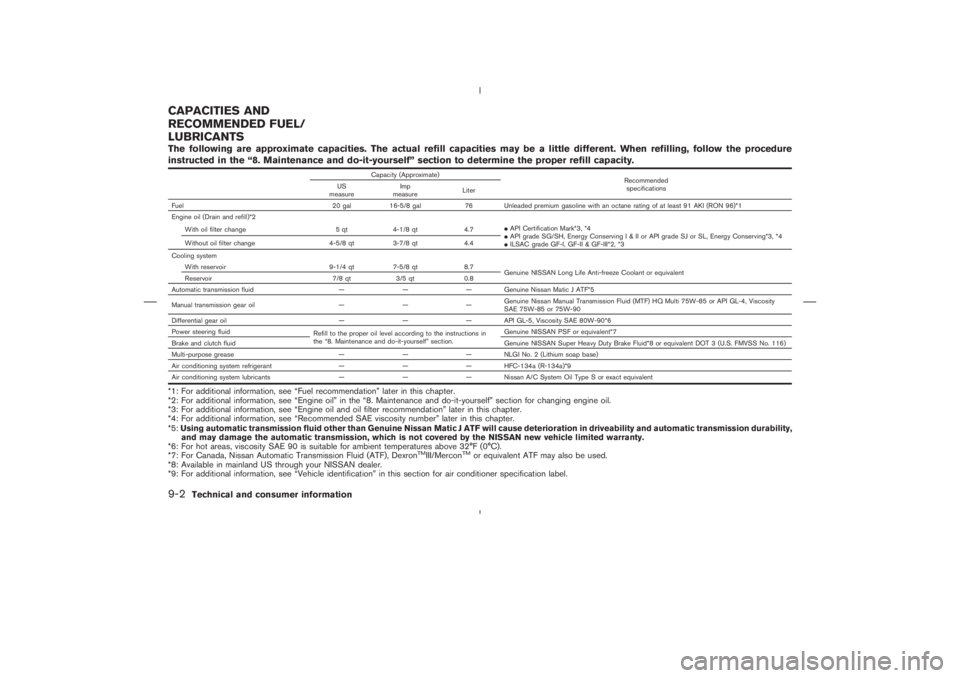

The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the procedure
instructed in the “8. Maintenance and do-it-yourself” section to determine the proper refill capacity.
Capacity (Approximate)
Recommended
specifications US
measureImp
measureLiter
Fuel 20 gal 16-5/8 gal 76 Unleaded premium gasoline with an octane rating of at least 91 AKI (RON 96)*1
Engine oil (Drain and refill)*2
With oil filter change 5 qt 4-1/8 qt 4.7API Certification Mark*3, *4
API grade SG/SH, Energy ConservingI&IIorAPIgradeSJorSL,Energy Conserving*3, *4
ILSAC grade GF-I, GF-II & GF-III*2, *3 Without oil filter change 4-5/8 qt 3-7/8 qt 4.4
Cooling system
With reservoir 9-1/4 qt 7-5/8 qt 8.7
Genuine NISSAN Long Life Anti-freeze Coolant or equivalent
Reservoir 7/8 qt 3/5 qt 0.8
Automatic transmission fluid — — — Genuine Nissan Matic J ATF*5
Manual transmission gear oil — — —Genuine Nissan Manual Transmission Fluid (MTF) HQ Multi 75W-85 or API GL-4, Viscosity
SAE 75W-85 or 75W-90
Differential gear oil — — — API GL-5, Viscosity SAE 80W-90*6
Power steering fluid
Refill to the proper oil level according to the instructions in
the “8. Maintenance and do-it-yourself” section.Genuine NISSAN PSF or equivalent*7
Brake and clutch fluidGenuine NISSAN Super Heavy Duty Brake Fluid*8 or equivalent DOT 3 (U.S. FMVSS No. 116)
Multi-purpose grease — — — NLGI No. 2 (Lithium soap base)
Air conditioning system refrigerant — — — HFC-134a (R-134a)*9
Air conditioning system lubricants — — — Nissan A/C System Oil Type S or exact equivalent
*1: For additional information, see “Fuel recommendation” later in this chapter.
*2: For additional information, see “Engine oil” in the “8. Maintenance and do-it-yourself” section for changing engine oil.
*3: For additional information, see “Engine oil and oil filter recommendation” later in this chapter.
*4: For additional information, see “Recommended SAE viscosity number” later in this chapter.
*5:Using automatic transmission fluid other than Genuine Nissan Matic J ATF will cause deterioration in driveability and automatic transmission durability,
and may damage the automatic transmission, which is not covered by the NISSAN new vehicle limited warranty.
*6: For hot areas, viscosity SAE 90 is suitable for ambient temperatures above 32°F (0°C).
*7: For Canada, Nissan Automatic Transmission Fluid (ATF), Dexron
TMIII/Mercon
TMor equivalent ATF may also be used.
*8: Available in mainland US through your NISSAN dealer.
*9: For additional information, see “Vehicle identification” in this section for air conditioner specification label.
CAPACITIES AND
RECOMMENDED FUEL/
LUBRICANTS9-2
Technical and consumer information
04.5.17/Z33-D/V5.0
Page 230 of 262

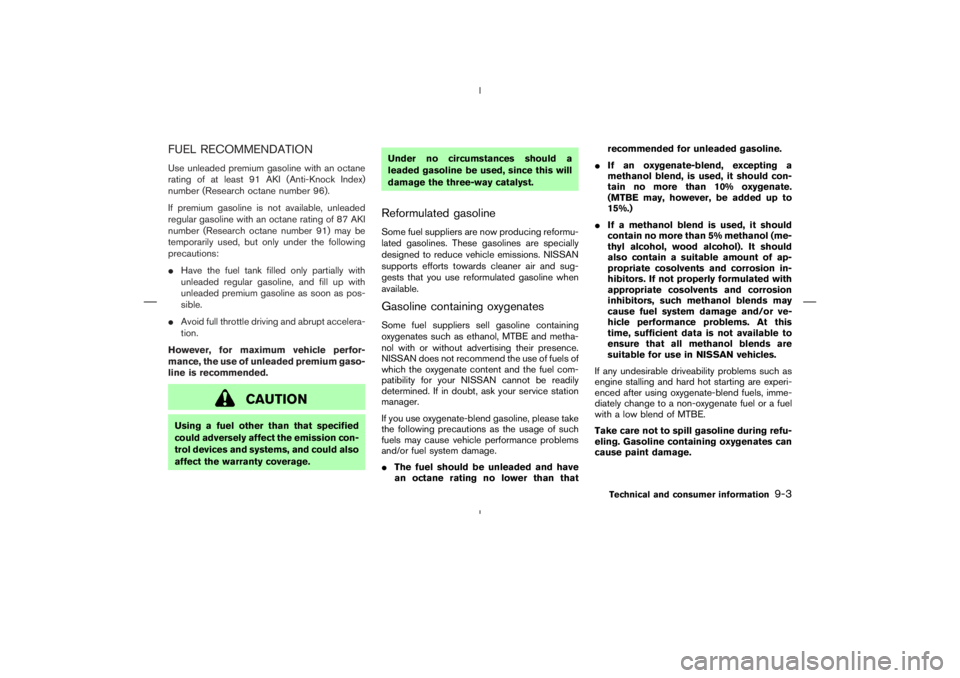

FUEL RECOMMENDATIONUse unleaded premium gasoline with an octane
rating of at least 91 AKI (Anti-Knock Index)
number (Research octane number 96).
If premium gasoline is not available, unleaded
regular gasoline with an octane rating of 87 AKI
number (Research octane number 91) may be
temporarily used, but only under the following
precautions:
Have the fuel tank filled only partially with
unleaded regular gasoline, and fill up with
unleaded premium gasoline as soon as pos-
sible.
Avoid full throttle driving and abrupt accelera-
tion.
However, for maximum vehicle perfor-
mance, the use of unleaded premium gaso-
line is recommended.
CAUTION
Using a fuel other than that specified
could adversely affect the emission con-
trol devices and systems, and could also
affect the warranty coverage.Under no circumstances should a
leaded gasoline be used, since this will
damage the three-way catalyst.
Reformulated gasolineSome fuel suppliers are now producing reformu-
lated gasolines. These gasolines are specially
designed to reduce vehicle emissions. NISSAN
supports efforts towards cleaner air and sug-
gests that you use reformulated gasoline when
available.Gasoline containing oxygenatesSome fuel suppliers sell gasoline containing
oxygenates such as ethanol, MTBE and metha-
nol with or without advertising their presence.
NISSAN does not recommend the use of fuels of
which the oxygenate content and the fuel com-
patibility for your NISSAN cannot be readily
determined. If in doubt, ask your service station
manager.
If you use oxygenate-blend gasoline, please take
the following precautions as the usage of such
fuels may cause vehicle performance problems
and/or fuel system damage.
The fuel should be unleaded and have
an octane rating no lower than thatrecommended for unleaded gasoline.
If an oxygenate-blend, excepting a
methanol blend, is used, it should con-
tain no more than 10% oxygenate.
(MTBE may, however, be added up to
15%.)
If a methanol blend is used, it should
contain no more than 5% methanol (me-
thyl alcohol, wood alcohol). It should
also contain a suitable amount of ap-
propriate cosolvents and corrosion in-
hibitors. If not properly formulated with
appropriate cosolvents and corrosion
inhibitors, such methanol blends may
cause fuel system damage and/or ve-
hicle performance problems. At this
time, sufficient data is not available to
ensure that all methanol blends are
suitable for use in NISSAN vehicles.
If any undesirable driveability problems such as
engine stalling and hard hot starting are experi-
enced after using oxygenate-blend fuels, imme-
diately change to a non-oxygenate fuel or a fuel
with a low blend of MTBE.
Take care not to spill gasoline during refu-
eling. Gasoline containing oxygenates can
cause paint damage.
Technical and consumer information
9-3
04.5.17/Z33-D/V5.0
