manufacturer’s suggestions.Use only SAE
class “S” chains.Class “S” chains are used on
vehicles with restricted tire to vehicle clearance.
Vehicles that can use Class “S” chains are
designed to meet the SAE standard minimum
clearances between the tire and the closest
vehicle suspension or body component required
to accommodate the use of a winter traction
device (tire chains or cables). The minimum
clearances are determined using the factory
equipped tire size. Other types may damage
your vehicle. Use chain tensioners when recom-
mended by the tire chain manufacturer to ensure
a tight fit. Loose end links of the tire chain must
be secured or removed to prevent the possibility
of whipping action damage to the fenders or
undercarriage. If possible, avoid fully loading
your vehicle when using tire chains. In addition,
drive at a reduced speed. Otherwise, your ve-
hicle may be damaged and/or vehicle handling
and performance may be adversely affected.
Never install tire chains on a T-type
spare tire.
Do not use the chains on dry roads.
Tire chains must be installed only on the
rear wheels and not on the front wheels.
CHANGING WHEELS AND TIRES
Tire rotationTires cannot be rotated in this vehicle, as front
tires are different size from rear tires and the
direction of wheel rotation is fixed in each tire.
A pin is on the front brake rotor to prevent the
rear wheels from being installed in place of the
front wheels. The spare tire can be installed in
place of the front and rear wheels. When install-
ing the spare tire in the front wheel, the hole in
the spare tire wheel must be aligned with the pin
on the brake rotor.
1. Wear indicator
2. Wear indicator location mark
Tire wear and damage
WARNING
Tires should be periodically in-
spected for wear, cracking, bulging or
objects caught in the tread. If exces-
sive wear, cracks, bulging or deep
cuts are found, the tire(s) should be
replaced.
SDI1663
8-36
Maintenance and do-it-yourself
04.8.23/Z33-D/V5.0
Page 242 of 279

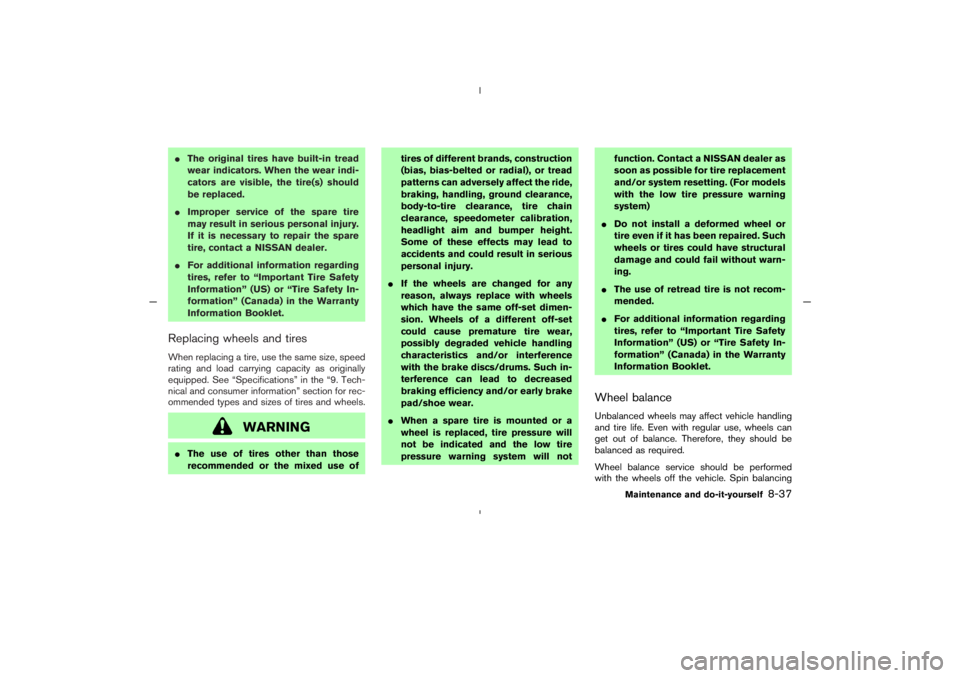

The original tires have built-in tread
wear indicators. When the wear indi-
cators are visible, the tire(s) should
be replaced.
Improper service of the spare tire
may result in serious personal injury.
If it is necessary to repair the spare
tire, contact a NISSAN dealer.
For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety In-
formation” (Canada) in the Warranty
Information Booklet.Replacing wheels and tiresWhen replacing a tire, use the same size, speed
rating and load carrying capacity as originally
equipped. See “Specifications” in the “9. Tech-
nical and consumer information” section for rec-
ommended types and sizes of tires and wheels.
WARNING
The use of tires other than those
recommended or the mixed use oftires of different brands, construction
(bias, bias-belted or radial), or tread
patterns can adversely affect the ride,
braking, handling, ground clearance,
body-to-tire clearance, tire chain
clearance, speedometer calibration,
headlight aim and bumper height.
Some of these effects may lead to
accidents and could result in serious
personal injury.
If the wheels are changed for any
reason, always replace with wheels
which have the same off-set dimen-
sion. Wheels of a different off-set
could cause premature tire wear,
possibly degraded vehicle handling
characteristics and/or interference
with the brake discs/drums. Such in-
terference can lead to decreased
braking efficiency and/or early brake
pad/shoe wear.
When a spare tire is mounted or a
wheel is replaced, tire pressure will
not be indicated and the low tire
pressure warning system will notfunction. Contact a NISSAN dealer as
soon as possible for tire replacement
and/or system resetting. (For models
with the low tire pressure warning
system)
Do not install a deformed wheel or
tire even if it has been repaired. Such
wheels or tires could have structural
damage and could fail without warn-
ing.
The use of retread tire is not recom-
mended.
For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety In-
formation” (Canada) in the Warranty
Information Booklet.
Wheel balanceUnbalanced wheels may affect vehicle handling
and tire life. Even with regular use, wheels can
get out of balance. Therefore, they should be
balanced as required.
Wheel balance service should be performed
with the wheels off the vehicle. Spin balancing
Maintenance and do-it-yourself
8-37
04.8.23/Z33-D/V5.0
Page 243 of 279

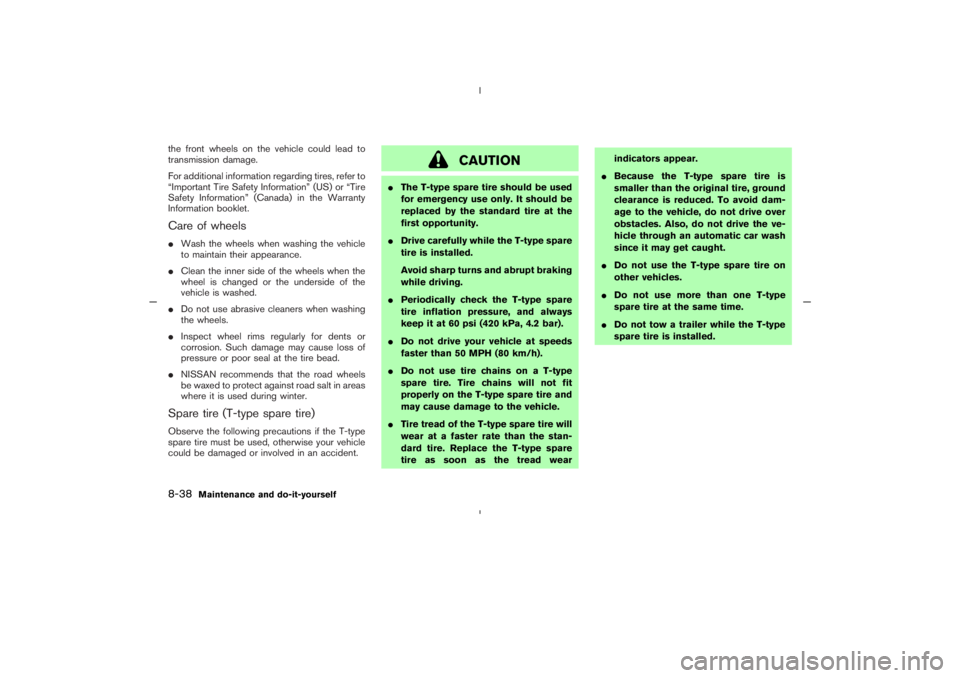

the front wheels on the vehicle could lead to
transmission damage.
For additional information regarding tires, refer to
“Important Tire Safety Information” (US) or “Tire
Safety Information” (Canada) in the Warranty
Information booklet.Care of wheelsWash the wheels when washing the vehicle
to maintain their appearance.
Clean the inner side of the wheels when the
wheel is changed or the underside of the
vehicle is washed.
Do not use abrasive cleaners when washing
the wheels.
Inspect wheel rims regularly for dents or
corrosion. Such damage may cause loss of
pressure or poor seal at the tire bead.
NISSAN recommends that the road wheels
be waxed to protect against road salt in areas
where it is used during winter.Spare tire (T-type spare tire)Observe the following precautions if the T-type
spare tire must be used, otherwise your vehicle
could be damaged or involved in an accident.
CAUTION
The T-type spare tire should be used
for emergency use only. It should be
replaced by the standard tire at the
first opportunity.
Drive carefully while the T-type spare
tire is installed.
Avoid sharp turns and abrupt braking
while driving.
Periodically check the T-type spare
tire inflation pressure, and always
keep it at 60 psi (420 kPa, 4.2 bar).
Do not drive your vehicle at speeds
faster than 50 MPH (80 km/h).
Do not use tire chains on a T-type
spare tire. Tire chains will not fit
properly on the T-type spare tire and
may cause damage to the vehicle.
Tire tread of the T-type spare tire will
wear at a faster rate than the stan-
dard tire. Replace the T-type spare
tire as soon as the tread wearindicators appear.
Because the T-type spare tire is
smaller than the original tire, ground
clearance is reduced. To avoid dam-
age to the vehicle, do not drive over
obstacles. Also, do not drive the ve-
hicle through an automatic car wash
since it may get caught.
Do not use the T-type spare tire on
other vehicles.
Do not use more than one T-type
spare tire at the same time.
Do not tow a trailer while the T-type
spare tire is installed.
8-38
Maintenance and do-it-yourself
04.8.23/Z33-D/V5.0
Page 244 of 279
9 Technical and consumer informationCapacities and recommended fuel/lubricants .............. 9-2
Fuel recommendation .................................................... 9-3
Engine oil and oil filter recommendation .................. 9-5
Recommended SAE viscosity number ...................... 9-6
Air conditioner system refrigerant and lubricant
recommendations ........................................................... 9-6
Specifications ........................................................................ 9-8
Engine ................................................................................ 9-8
Wheels and tires .............................................................. 9-9
Dimensions and weights ............................................... 9-9
When traveling or registering your vehicle in another
country .................................................................................. 9-10
Vehicle identification ......................................................... 9-10
Vehicle identification number (VIN) plate ............... 9-10
Vehicle identification number (chassis number) .... 9-10
Engine serial number ................................................... 9-11
F.M.V.S.S./C.M.V.S.S. certification label ................ 9-11
Emission control information label ........................... 9-11
Tire and loading information label ............................ 9-12
Air conditioner specification label ............................ 9-12Installing front license plate ............................................. 9-13
Vehicle loading information ............................................. 9-14
Terms ............................................................................... 9-14
Vehicle load capacity.................................................... 9-15
Loading tips .................................................................... 9-15
Towing a trailer ................................................................... 9-16
Maximum load limits .................................................... 9-16
Towing safety ................................................................ 9-17
Flat towing............................................................................. 9-20
Automatic transmission ................................................ 9-21
Manual transmission ..................................................... 9-21
Uniform tire quality grading ............................................. 9-21
Emission control system warranty ................................. 9-22
Reporting safety defects (US only) ................................ 9-22
Readiness for inspection/maintenance (I/M) test
(US only) .............................................................................. 9-23
Event data recorders ......................................................... 9-24
Owner’s Manual/Service Manual order
information ............................................................................. 9-25
In the event of a collision ........................................... 9-25
04.8.23/Z33-D/V5.0
Page 245 of 279
The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the procedure
instructed in the “8. Maintenance and do-it-yourself” section to determine the proper refill capacity.
Capacity (Approximate)
Recommended
specifications US
measureImp
measureLiter
Fuel 20 gal 16-5/8 gal 76 Unleaded premium gasoline with an octane rating of at least 91 AKI (RON 96)*1
Engine oil (Drain and refill)*2
With oil filter change 5 qt 4-1/8 qt 4.7API Certification Mark*3, *4
API grade SG/SH, Energy ConservingI&IIorAPIgradeSJorSL,Energy Conserving*3, *4
ILSAC grade GF-I, GF-II & GF-III*2, *3 Without oil filter change 4-5/8 qt 3-7/8 qt 4.4
Cooling system
With reservoir 9-1/4 qt 7-5/8 qt 8.7
Genuine NISSAN Long Life Antifreeze/Coolant or equivalent
Reservoir 7/8 qt 3/5 qt 0.8
Automatic transmission fluid — — — Genuine Nissan Matic J ATF*5
Manual transmission gear oil — — —Genuine NISSAN Manual Transmission Fluid (MTF) HQ Multi 75W-85 or API GL-4, Viscosity
SAE 75W-85 or 75W-90
Differential gear oil — — — API GL-5, Viscosity SAE 80W-90*6
Power steering fluid (PSF)
Refill to the proper fluid level according to the instructions in
the “8. Maintenance and do-it-yourself” section.Genuine NISSAN PSF or equivalent*7
Brake and clutch fluidGenuine NISSAN Super Heavy Duty Brake Fluid*8 or equivalent DOT 3 (U.S. FMVSS No. 116)
Multi-purpose grease — — — NLGI No. 2 (Lithium soap base)
Air conditioning system refrigerant — — — HFC-134a (R-134a)*9
Air conditioning system lubricants — — — NISSAN A/C System Oil Type S or exact equivalent
Windshield washer fluid — — — Genuine NISSAN Windshield Washer Concentrate Cleaner & Anti-freeze or equivalent
*1: For additional information, see “Fuel recommendation” later in this chapter.
*2: For additional information, see “Engine oil” in the “8. Maintenance and do-it-yourself” section for changing engine oil.
*3: For additional information, see “Engine oil and oil filter recommendation” later in this chapter.
*4: For additional information, see “Recommended SAE viscosity number” later in this chapter.
*5:Using automatic transmission fluid other than Genuine Nissan Matic J ATF will cause deterioration in driveability and automatic transmission durability,
and may damage the automatic transmission, which is not covered by the NISSAN new vehicle limited warranty.
*6: For hot areas, viscosity SAE 90 is suitable for ambient temperatures above 32°F (0°C).
*7: For Canada, Nissan Automatic Transmission Fluid (ATF), DEXRON
TMIII/MERCON
TMor equivalent ATF may also be used.
*8: Available in mainland US through a NISSAN dealer.
*9: For additional information, see “Vehicle identification” in this section for air conditioner specification label.
CAPACITIES AND
RECOMMENDED FUEL/
LUBRICANTS9-2
Technical and consumer information
04.8.23/Z33-D/V5.0
Page 246 of 279
FUEL RECOMMENDATIONUse unleaded premium gasoline with an octane
rating of at least 91 AKI (Anti-Knock Index)
number (Research octane number 96).
If premium gasoline is not available, unleaded
regular gasoline with an octane rating of 87 AKI
number (Research octane number 91) may be
temporarily used, but only under the following
precautions:
Have the fuel tank filled only partially with
unleaded regular gasoline, and fill up with
unleaded premium gasoline as soon as pos-
sible.
Avoid full throttle driving and abrupt accelera-
tion.
However, for maximum vehicle perfor-
mance, the use of unleaded premium gaso-
line is recommended.
CAUTION
Using a fuel other than that specified
could adversely affect the emission con-
trol system, and may also affect the
warranty coverage.Under no circumstances should a
leaded gasoline be used, because this
will damage the three-way catalyst.
Gasoline specificationsNISSAN recommends using gasoline that meets
the World-Wide Fuel Charter (WWFC) specifi-
cations where it is available. Many of the auto-
mobile manufacturers developed this specifica-
tion to improve emission control system and
vehicle performance. Ask your service station
manager if the gasoline meets the WWFC
specifications.Reformulated gasolineSome fuel suppliers are now producing reformu-
lated gasolines. These gasolines are specially
designed to reduce vehicle emissions. NISSAN
supports efforts towards cleaner air and sug-
gests that you use reformulated gasoline when
available.Gasoline containing oxygenatesSome fuel suppliers sell gasoline containing
oxygenates such as ethanol, MTBE and metha-
nol with or without advertising their presence.
NISSAN does not recommend the use of fuels of
which the oxygenate content and the fuel com-patibility for your NISSAN cannot be readily
determined. If in doubt, ask your service station
manager.
If you use oxygenate-blend gasoline, please take
the following precautions as the usage of such
fuels may cause vehicle performance problems
and/or fuel system damage.
The fuel should be unleaded and have
an octane rating no lower than that
recommended for unleaded gasoline.
If an oxygenate-blend, excepting a
methanol blend, is used, it should con-
tain no more than 10% oxygenate.
(MTBE may, however, be added up to
15%.)
If a methanol blend is used, it should
contain no more than 5% methanol (me-
thyl alcohol, wood alcohol). It should
also contain a suitable amount of ap-
propriate cosolvents and corrosion in-
hibitors. If not properly formulated with
appropriate cosolvents and corrosion
inhibitors, such methanol blends may
cause fuel system damage and/or ve-
hicle performance problems. At this
time, sufficient data is not available to
ensure that all methanol blends are
suitable for use in NISSAN vehicles.
Technical and consumer information
9-3
04.8.23/Z33-D/V5.0
Page 247 of 279
If any undesirable driveability problems such as
engine stalling and hard hot starting are experi-
enced after using oxygenate-blend fuels, imme-
diately change to a non-oxygenate fuel or a fuel
with a low blend of MTBE.
Take care not to spill gasoline during refu-
eling. Gasoline containing oxygenates can
cause paint damage.Aftermarket fuel additivesNISSAN does not recommend the use of any
aftermarket fuel additives (for example, fuel in-
jector cleaner, octane booster, intake valve de-
posit removers, etc.) which are sold commer-
cially. Many of these additives intended for gum,
varnish or deposit removal may contain active
solvents or similar ingredients that can be harm-
ful to the fuel system and engine.Octane rating tipsUsing unleaded gasoline with an octane
rating lower than recommended can cause
persistent, heavy spark knock. (Spark
knock is a metallic rapping noise.) If se-
vere, this can lead to engine damage. If you
detect a persistent heavy spark knock even
when using gasoline of the above stated
octane rating, or if you hear steady spark
knock while holding a steady speed on
level roads, have your dealer correct thecondition. Failure to correct the condition
is misuse of the vehicle, for which NISSAN
is not responsible.
Incorrect ignition timing will result in knocking,
after-run or overheating. This in turn may cause
excessive fuel consumption or damage to the
engine. If any of the above symptoms are en-
countered, have your vehicle checked at a
NISSAN dealer or other competent service fa-
cility.
However, now and then you may notice
light spark knock for a short time while
accelerating or driving up hills. This is no
cause for concern, because you get the
greatest fuel benefit when there is light
spark knock for a short time under heavy
engine load.9-4
Technical and consumer information
04.8.23/Z33-D/V5.0
Page 248 of 279
1
API certification mark
2
API service symbol
ENGINE OIL AND OIL FILTER
RECOMMENDATION
Selecting the correct oilIt is essential to choose the correct quality, and
viscosity oil to ensure satisfactory engine life and
performance. NISSAN recommends the use of a
low friction oil (energy conserving oil) in order to
improve fuel economy and conserve energy. Oils
which do not have the specified quality label
should not be used as they could cause engine
damage.Only those engine oils with the American Petro-
leum Institute (API) certification mark on the front
of the container should be used. This type of oil
supersedes the existing API SG, SH, or SJ and
Energy ConservingI&IIcategories.
If you cannot find engine oil with the API certifi-
cation mark, use an API grade SG/SH, Energy
ConservingI&IIorAPIgrade SJ or SL, Energy
conserving oil. An oil with a single designation
SG or SH, or in combination with other catego-
ries (for example, SG/CC or SG/CD) may also
be used if one with the API certification mark
cannot be found. An ILSAC grade GF-I, GF-II &
GF-III oil can also be used.NISSAN recommends mineral based oils. These
oils must however, meet the API quality and SAE
viscosity ratings specified for your vehicle.
Oil additivesNISSAN does not recommend the use of oil
additives. The use of an oil additive is not
necessary when the proper oil type is used and
maintenance intervals are followed.
Oil which may contain foreign matter or has
been previously used should not be used.Oil viscosityThe engine oil viscosity or thickness changes
with temperature. Because of this, it is important
that the engine oil viscosity be selected based
on the temperatures at which the vehicle will be
operated before the next oil change. The “Rec-
ommended SAE viscosity number” chart (on the
next page) shows the recommended oil viscosi-
ties for the expected ambient temperatures.
Choosing an oil viscosity other than that recom-
mended could cause serious engine damage.Selecting the correct oil filterYour new NISSAN vehicle is equipped with a
high-quality genuine NISSAN oil filter. When
replacing, use a genuine NISSAN oil filter or its
equivalent for the reason described in “Change
intervals”.
STI0367A
Technical and consumer information
9-5
04.8.23/Z33-D/V5.0
Page 249 of 279
Change intervalsThe oil and oil filter change intervals for your
engine are based on the use of the specified
quality oils and filters. Oil and filter other than the
specified quality, or oil and filter change intervals
longer than recommended could reduce engine
life. Damage to engines caused by improper
maintenance or use of incorrect oil and filter
quality and/or viscosity is not covered by the
new NISSAN vehicle warranties.
Your engine was filled with a high quality engine
oil when it was built. You do not have to change
the oil before the first recommended change
interval. Oil and filter change intervals depend
upon how you use your vehicle. Operation under
the following conditions may require more fre-
quent oil and filter changes.
repeated short distance driving at cold out-
side temperatures,
driving in dusty conditions,
extensive idling,
towing a trailer,
stop and go “rush hour” traffic.
RECOMMENDED SAE VISCOSITY
NUMBERSAE 5W-30 viscosity oil is preferred for all
ambient temperatures. SAE 10W-30 or
10W-40 viscosity oil may be used if the
ambient temperature is above 0°F (−18°C).
AIR CONDITIONER SYSTEM
REFRIGERANT AND LUBRICANT
RECOMMENDATIONSThe air conditioner system in your NISSAN
vehicle must be charged with the refriger-
ant HFC-134a (R-134a) and the lubricant,
NISSAN A/C System Oil Type S or the
exact equivalents.
CAUTION
The use of any other refrigerant or lubri-
cant will cause severe damage to the air
conditioning system and will require the
replacement of all air conditioner sys-
tem components.
The refrigerant HFC-134a (R-134a) in your
NISSAN vehicle will not harm the earth’s ozone
layer. Although this refrigerant does not affect
the earth’s atmosphere, certain governmental
regulations require the recovery and recycling of
any refrigerant during automotive air conditioner
system service. A NISSAN dealer has the trained
technicians and equipment needed to recover
and recycle your air conditioner system refriger-
ant.
TI1028-C
9-6
Technical and consumer information
04.8.23/Z33-D/V5.0
Page 250 of 279
Contact a NISSAN dealer when servicing your
air conditioner system.
Technical and consumer information
9-7
04.8.23/Z33-D/V5.0
