NISSAN 350Z 2005 Owner´s Manual

ENGINE
Model VQ35DE
Type Gasoline, 4-cycle
Cylinder arrangement 6-cylinder, V-slanted at 60°
Bore x Stroke in (mm) 3.760 x 3.205 (95.5 x 81.4)
Displacement cu in (cm
3) 213.5 (3,498)
Firing order 1-2-3-4-5-6*1
Idle speed rpm
See the emission control label on the
underside of the hood. Ignition timing (B.T.D.C.) degree/rpm
CO percentage at idle speed [No air] %
Spark plugStandard PLFR5A-11
Service option PLFR4A-11 (Hot), PLFR6A-11 (Cold)
Spark plug gap (Normal) in (mm) 0.043 (1.1)
Camshaft operation Timing chain
The spark ignition system of this vehicle
meets all requirements of the Canadian
Interference-Causing Equipment Regula-
tions.
TI0001-A
SPECIFICATIONS9-8
Technical and consumer information


04.8.23/Z33-D/V5.0


WHEELS AND TIRES
Road wheelModel Type Position SizeOffset
in (mm)
Coupe AluminumFront17 x 7-1/2JJ 1.18 (30)
18 x 8JJ* 1.18 (30)
Rear17 x 8JJ 1.30 (33)
18 x 8JJ* 1.18 (30)
18 x 8-1/2JJ* 1.30 (33)
Roadster AluminumFront17 x 7-1/2JJ 1.18 (30)
18 x 8JJ* 1.18 (30)
Rear17 x 8JJ 1.30 (33)
18 x 8JJ* 1.18 (30)TireModel Type Position Size Pressure (Cold)
CoupeConventionalFront 225/50R17 94W 240 kPa (35 psi)
Rear 235/50R17 96W 240 kPa (35 psi)
Front 225/45R18 91W* 240 kPa (35 psi)
Rear 245/45R18 96W* 240 kPa (35 psi)
Spare —T145/90D16 420 kPa (60 psi)
T155/80R17* 420 kPa (60 psi)
Road-
sterConventionalFront 225/50R17 94W 220 kPa (32 psi)
Rear 235/50R17 96W 220 kPa (32 psi)
Front 225/45R18 91W* 240 kPa (35 psi)
Rear 245/45R18 96W* 240 kPa (35 psi)
Spare —T145/90D16 420 kPa (60 psi)
T155/80R17* 420 kPa (60 psi)
*: For option
DIMENSIONS AND WEIGHTS
Coupe Roadster
Overall length in (mm) 169.4 (4,304) 169.4 (4,304)
Overall width in (mm) 71.5 (1,815) 71.5 (1,815)
Overall height in (mm) 51.9 (1,319) 52.3 (1,328)
Front tread in (mm) 60.4 (1,535) 60.4 (1,535)
Rear tread in (mm)60.6 (1,539)*1
60.8 (1,545)*260.6 (1,539)*1
60.8 (1,545)*2
Wheelbase in (mm) 104.3 (2,650) 104.3 (2,650)
Gross vehicle weight rating
(GVWR)lb(kg)
See the F.M.V.S.S. or C.M.V.S.S. cer-
tification label on the driver’s side
lock pillar. Gross axle weight rating
(GAWR)
Front lb(kg)
Rear lb(kg)
*1: The wheel offset is 1.30 in (33 mm).
*2: The wheel offset is 1.18 in (30 mm).
Technical and consumer information
9-9


04.8.23/Z33-D/V5.0


When planning to travel in another country,
you should first find out if the fuel available is
suitable for your vehicle’s engine.
Using fuel with too low an octane rating may
cause engine damage. All gasoline vehicles
must be operated with unleaded engine gaso-
line. Therefore, avoid taking your vehicle to areas
where appropriate fuel is not available.
When transferring the registration of your
vehicle to another country, state, province
or district,it may be necessary to modify the
vehicle to meet local laws and regulations.
The laws and regulations for motor vehicle emis-
sion control and safety standards vary according
to the country, state, province or district; there-
fore, vehicle specifications may differ.
When any vehicle is to be taken into an-
other country, state, province or district
and registered, its modifications, transpor-
tation, and registration are the responsibil-
ity of the user. NISSAN is not responsible
for any inconvenience that may result.
VEHICLE IDENTIFICATION NUMBER
(VIN) PLATEThe vehicle identification number plate is at-
tached as shown. This number is the identifica-
tion for your vehicle and is used in the vehicle
registration.
VEHICLE IDENTIFICATION NUMBER
(chassis number)The number is stamped as shown.
STI0320
STI0321
WHENTRAVELING OR
REGISTERING YOUR VEHICLE IN
ANOTHER COUNTRYVEHICLE IDENTIFICATION9-10
Technical and consumer information


04.8.23/Z33-D/V5.0


ENGINE SERIAL NUMBERThe number is stamped on the engine as shown.
F.M.V.S.S./C.M.V.S.S.
CERTIFICATION LABELThe Federal Motor Vehicle Safety Standards
(F.M.V.S.S.) or Canadian Motor Vehicle Safety
Standards (C.M.V.S.S.) certification label is af-
fixed as shown. This label contains valuable
vehicle information, such as: Gross Vehicle
Weight Ratings (GVWR), Gross Axle Weight
Rating (GAWR), month and year of manufacture,
Vehicle Identification Number (VIN), etc. Review
it carefully.
EMISSION CONTROL
INFORMATION LABELThe emission control information label is at-
tached as shown.
STI0303C
STI0322
STI0323
Technical and consumer information
9-11


04.8.23/Z33-D/V5.0


TIRE AND LOADING INFORMATION
LABELThe cold tire inflation pressure is shown on the
Tire and Loading Information label affixed to the
driver side center pillar.
AIR CONDITIONER SPECIFICATION
LABELThe air conditioner specification label is affixed
inside of the hood as shown.
STI0366
STI0325
9-12
Technical and consumer information


04.8.23/Z33-D/V5.0


Use the following steps to mount the license
plate:
Before mounting the license plate, confirm that
the following parts are enclosed in the vinyl bag.

License plate bracket

J-nut x 2

Screw x 2

Screw grommet x 2
1. Temporarily place the license plate bracket
while aligning points
A
of the front bumper
fascia with holes
B
in the license plate
bracket.
2. Remove the license plate bracket.
3. Carefully drill two shallow pilot holes
A
using a 0.39 in (10 mm) drill bit at the marked
locations.(Be sure that the drill only goes
through the fascia, or damage to the nut
may occur.)
4. Insert grommets into the hole on the fascia.
5. Insert a flat-blade screwdriver into the grom-
met hole to add 90° turn onto the part
C.
6. Insert a J-nut into the license plate bracket
before placing the license plate bracket on
the fascia.
7. Install the license plate bracket with screws.
STI0326
INSTALLING FRONT LICENSE
PLATE
Technical and consumer information
9-13


04.8.23/Z33-D/V5.0


8. Install the license plate with bolts that are no
longer than 0.55 in (14 mm).
WARNING

It is extremely dangerous to ride in a
cargo area inside the vehicle. In a
collision, people riding in these areas
are more likely to be seriously in-
jured or killed.

Do not allow people to ride in any
area of your vehicle that is not
equipped with seats and seat belts.

Be sure everyone in your vehicle is in
a seat and using a seat belt properly.TERMSIt is important to familiarize yourself with the
following terms before loading your vehicle:

CurbWeight (actual weight of your vehicle) -
vehicle weight including: standard and op-
tional equipment, fluids, emergency tools,
and spare tire assembly. This weightdoes
notinclude passengers and cargo.

GVW (Gross Vehicle Weight) - curbweight
plus the combined weight of passengers and
cargo.
GVWR (Gross Vehicle Weight Rating) -
maximum total combined weight of the un-
loaded vehicle, passengers, luggage, hitch,
trailer tongue load and any other optional
equipment. This information is located on the
F.M.V.S.S. label.

GAWR (Gross Axle Weight Rating) - maxi-
mum weight (load) limit specified for the front
or rear axle. This information is located on the
F.M.V.S.S. label.

GCWR (Gross Combined Weight rating) -
The maximum total weight rating of the ve-
hicle, passengers, cargo, and trailer.

Vehicle Capacity Weight, Load limit, Total
load capacity - maximum total weight limit
specified of the load (passengers and cargo)
for the vehicle. This is the maximum com-
bined weight of occupants and cargo that
can be loaded into the vehicle. If the vehicle is
used to tow a trailer, the trailer tongue weight
must be included as part of the cargo load.
This information is located on the Tire and
Loading Information label.

Cargo capacity - permissible weight of cargo,
the subtracted weight of occupants from the
load limit.VEHICLE LOADING
INFORMATION
9-14
Technical and consumer information


04.8.23/Z33-D/V5.0


VEHICLE LOAD CAPACITYDo not exceed the load limit of your vehicle
shown as “The combined weight of occupants
and cargo” on the Tire and Loading Information
label. Do not exceed the number of occupants
shown as “Seating Capacity” on the Tire and
Loading Information label.
To get “the combined weight of occupants and
cargo”, add the weight of all occupants, then
add the total luggage weight. Examples are
shown in the illustration.
Steps for determining correct load
limit(1) Locate the statement “The combined weight
of occupants and cargo should never exceed
XXX kilograms or XXX pounds” on your
vehicle’s placard.
(2) Determine the combined weight of the driver
and passengers that will be riding in your
vehicle.
(3) Subtract the combined weight of the driver
and passengers from XXX kilograms or XXX
pounds.(4) The resulting figure equals the available
amount of cargo and luggage load capacity.
For example, if the “XXX” amount equals
1,400 lbs. and there will be five - 150 lb.
passengers in your vehicle, the amount of
available cargo and luggage load capacity is
650 lbs. [1,400 − 750 (5 x 150) = 650 lbs.]
(5) Determine the combined weight of luggage
and cargo being loaded on the vehicle. For
safety, that weight must not exceed the avail-
able cargo and luggage load capacity calcu-
lated in Step 4.
(6) If your vehicle will be towing a trailer, load
from your trailer will be transferred to your
vehicle. Consult this manual to determine
how this reduces the available cargo and
luggage load capacity of your vehicle.
LOADING TIPS
The GVW must not exceed GVWR or
GAWR as specified on the F.M.V.S.S. certi-
fication label.

Do not load the front and rear axle to the
GAWR. Doing so will exceed the GVWR.
STI0369
Technical and consumer information
9-15


04.8.23/Z33-D/V5.0

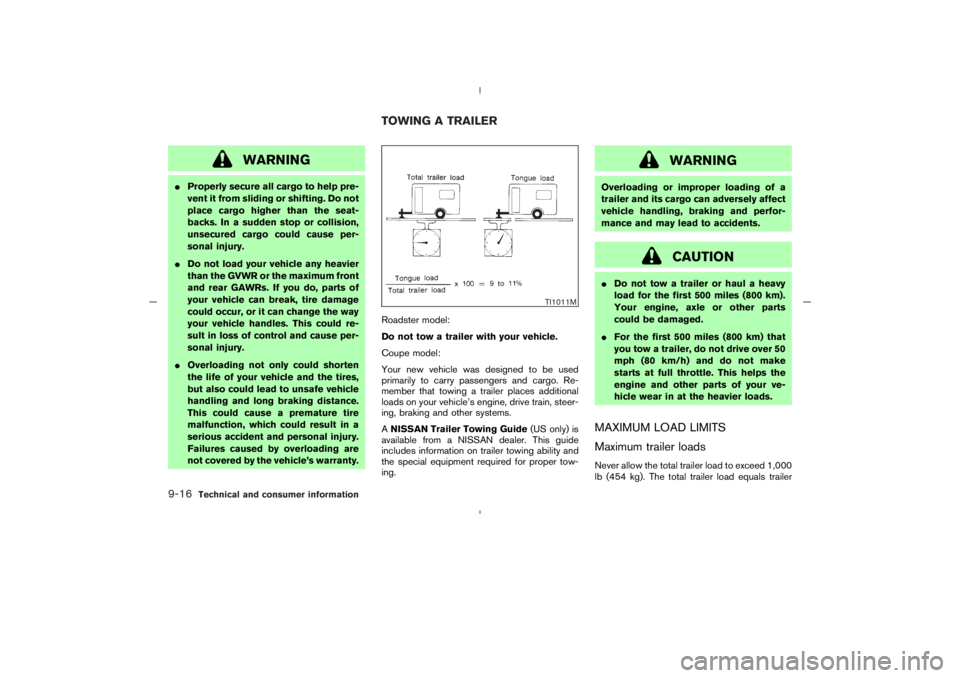

WARNING

Properly secure all cargo to help pre-
vent it from sliding or shifting. Do not
place cargo higher than the seat-
backs. In a sudden stop or collision,
unsecured cargo could cause per-
sonal injury.

Do not load your vehicle any heavier
than the GVWR or the maximum front
and rear GAWRs. If you do, parts of
your vehicle can break, tire damage
could occur, or it can change the way
your vehicle handles. This could re-
sult in loss of control and cause per-
sonal injury.

Overloading not only could shorten
the life of your vehicle and the tires,
but also could lead to unsafe vehicle
handling and long braking distance.
This could cause a premature tire
malfunction, which could result in a
serious accident and personal injury.
Failures caused by overloading are
not covered by the vehicle’s warranty.Roadster model:
Do not tow a trailer with your vehicle.
Coupe model:
Your new vehicle was designed to be used
primarily to carry passengers and cargo. Re-
member that towing a trailer places additional
loads on your vehicle’s engine, drive train, steer-
ing, braking and other systems.
ANISSAN Trailer Towing Guide(US only) is
available from a NISSAN dealer. This guide
includes information on trailer towing ability and
the special equipment required for proper tow-
ing.
WARNING
Overloading or improper loading of a
trailer and its cargo can adversely affect
vehicle handling, braking and perfor-
mance and may lead to accidents.
CAUTION

Do not tow a trailer or haul a heavy
load for the first 500 miles (800 km).
Your engine, axle or other parts
could be damaged.

For the first 500 miles (800 km) that
you tow a trailer, do not drive over 50
mph (80 km/h) and do not make
starts at full throttle. This helps the
engine and other parts of your ve-
hicle wear in at the heavier loads.MAXIMUM LOAD LIMITS
Maximum trailer loadsNever allow the total trailer load to exceed 1,000
lb(454 kg). The total trailer load equals trailer
TI1011M
TOWING A TRAILER
9-16
Technical and consumer information


04.8.23/Z33-D/V5.0


weight plus its cargo weight. Towing loads
greater than 1,000 lb(454 kg) or using improper
towing equipment could adversely affect vehicle
handling, braking and performance.
The ability of a vehicle to tow a trailer is not only
related to the maximum trailer loads, but also the
places you plan to tow. Tow weights appropriate
for level highway driving may have to be reduced
on very steep grades or in low traction situations
(for example, on slippery boat ramps).
CAUTION
Vehicle damage resulting from im-
proper towing procedures are not cov-
ered by NISSAN warranties. A NISSAN
Trailer Towing Guide (U.S. only) contain-
ing information on trailer towing ability
and the special equipment required may
be obtained from a NISSAN dealer.Tongue loadKeep the tongue load between 9 and 11% of the
total trailer load within the maximum tongue load
limits shown in the following Towing
Load/Specification chart. If the tongue load be-
comes excessive, rearrange cargo to allow for
proper tongue load.
Maximum gross vehicle weight/
maximum gross axle weightThe gross vehicle weight of the towing vehicle
must not exceed. GVWR shown on the
F.M.V.S.S./C.M.V.S.S. certification label. The
gross vehicle weight equals the combined
weight of the unloaded vehicle, passengers,
luggage, hitch, trailer tongue load and any other
optional equipment. In addition, front or rear
gross axle weight must not exceed GAWR
shown on the F.M.V.S.S./C.M.V.S.S. certifica-
tion label.
TOWING LOAD/SPECIFICATION CHART
Unit: lb(kg)
MAXIMUM
TOWING LOAD1,000 (454)
MAXIMUM
TONGUE LOAD100 (45.4)
TOWING SAFETY
Trailer hitchChoose a proper hitch for a vehicle and trailer.
Make sure the trailer hitch is securely attached to
the vehicle, to help avoid personal injury or
property damage due to sway caused by cross-
winds, rough road surfaces or passing trucks.Hitch ballChoose a hitch ball of the proper size and weight
rating for your trailer:

The required hitch ball size is stamped on
most trailer couplers. Most hitch balls also
have the size printed on top of the ball.

Choose the proper class hitch ball based on
the trailer weight.

The diameter of the threaded shank of the
hitch ball must be matched to the ball mount
hole diameter. The hitch ball shank should be
TI1012M
Technical and consumer information
9-17


04.8.23/Z33-D/V5.0
