NISSAN 350Z 2007 Z33 Body, Lock And Security System Workshop Manual

BODY REPAIR
BL-191
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z

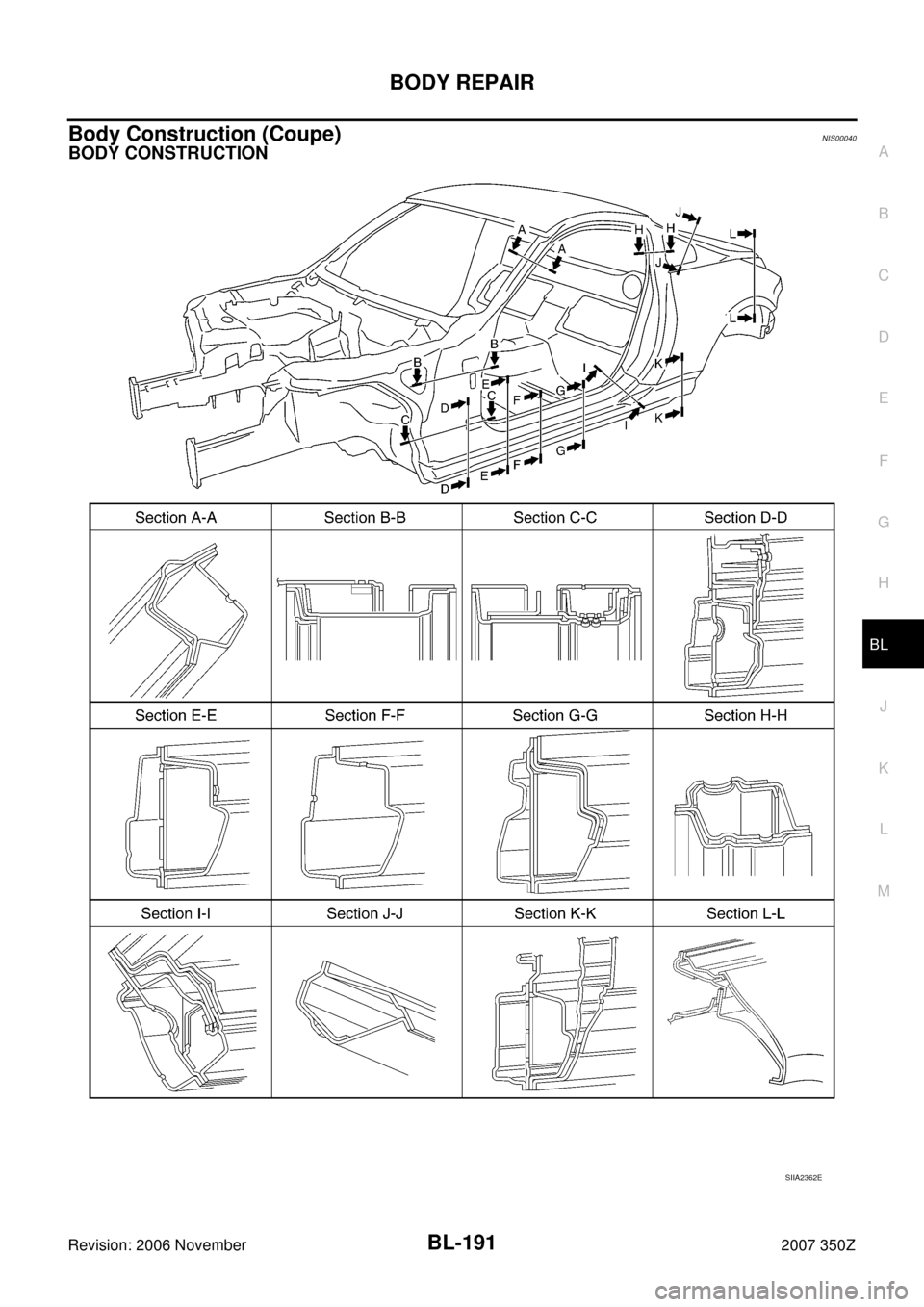

Body Construction (Coupe)NIS00040
BODY CONSTRUCTION
SIIA2362E

BL-192
BODY REPAIR
Revision: 2006 November2007 350Z

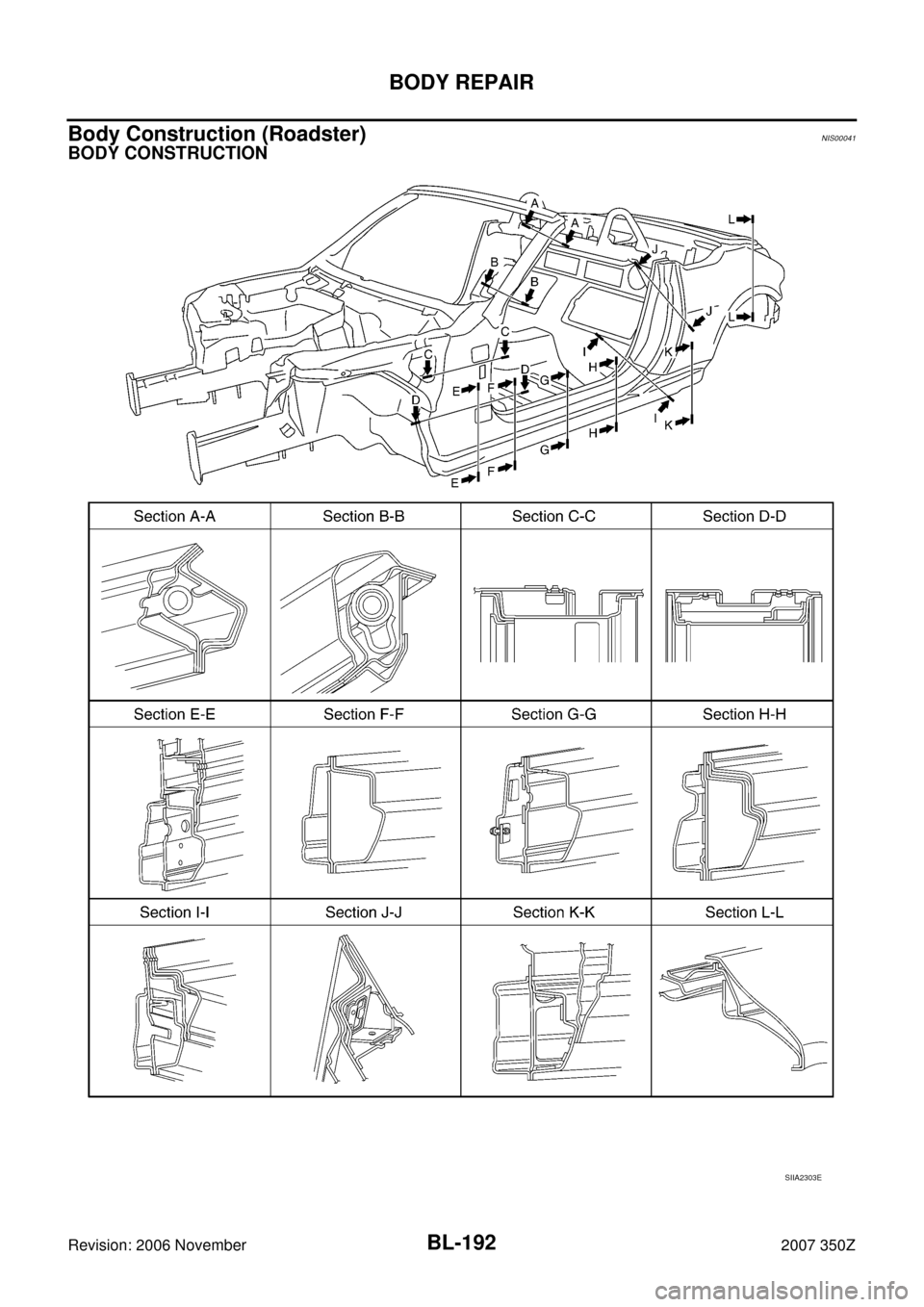

Body Construction (Roadster)NIS00041
BODY CONSTRUCTION
SIIA2303E

BODY REPAIR
BL-193
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
Body Alignment (Coupe)NIS00042

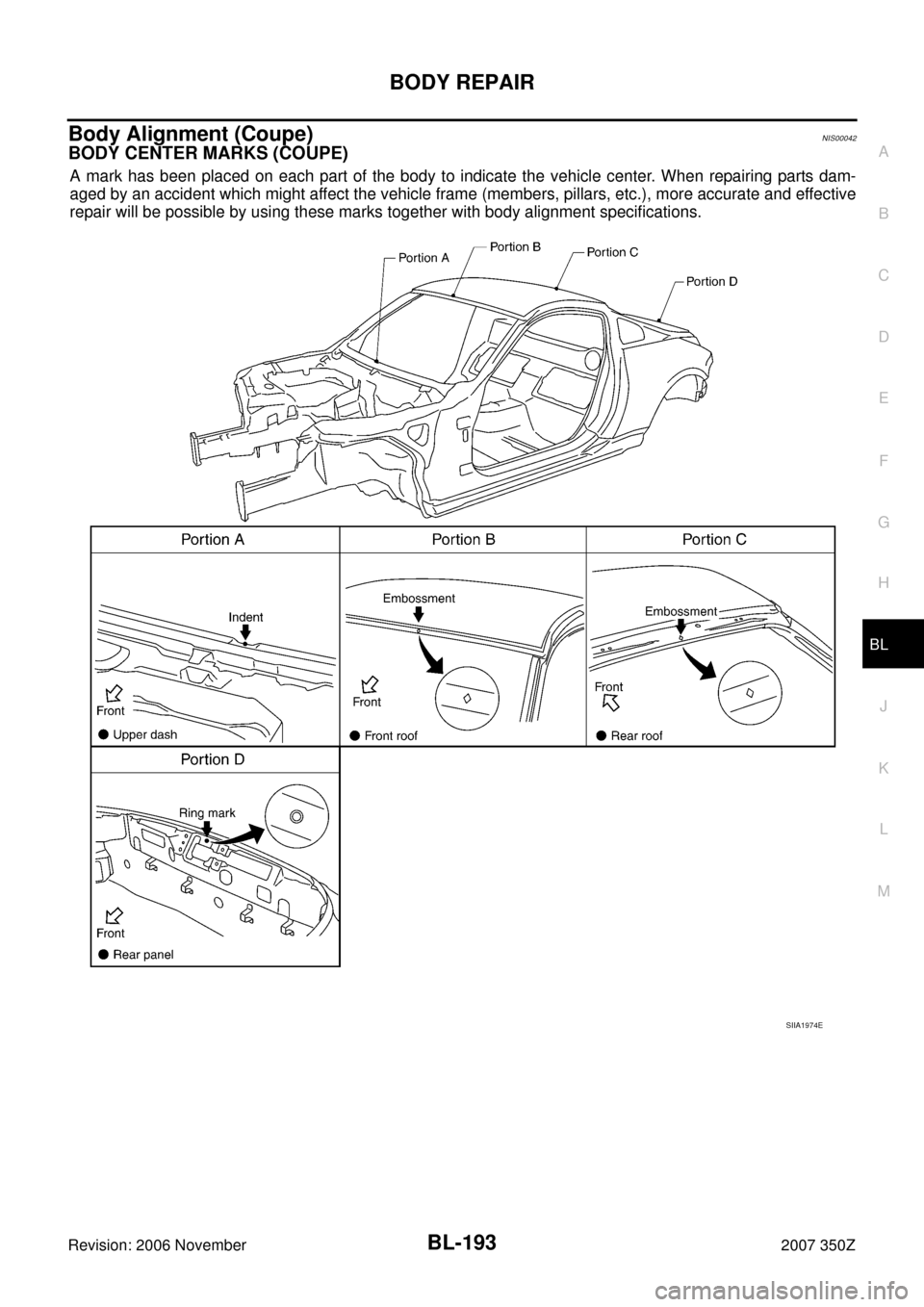

BODY CENTER MARKS (COUPE)
A mark has been placed on each part of the body to indicate the vehicle center. When repairing parts dam-
aged by an accident which might affect the vehicle frame (members, pillars, etc.), more accurate and effective
repair will be possible by using these marks together with body alignment specifications.
SIIA1974E

BL-194
BODY REPAIR
Revision: 2006 November2007 350Z

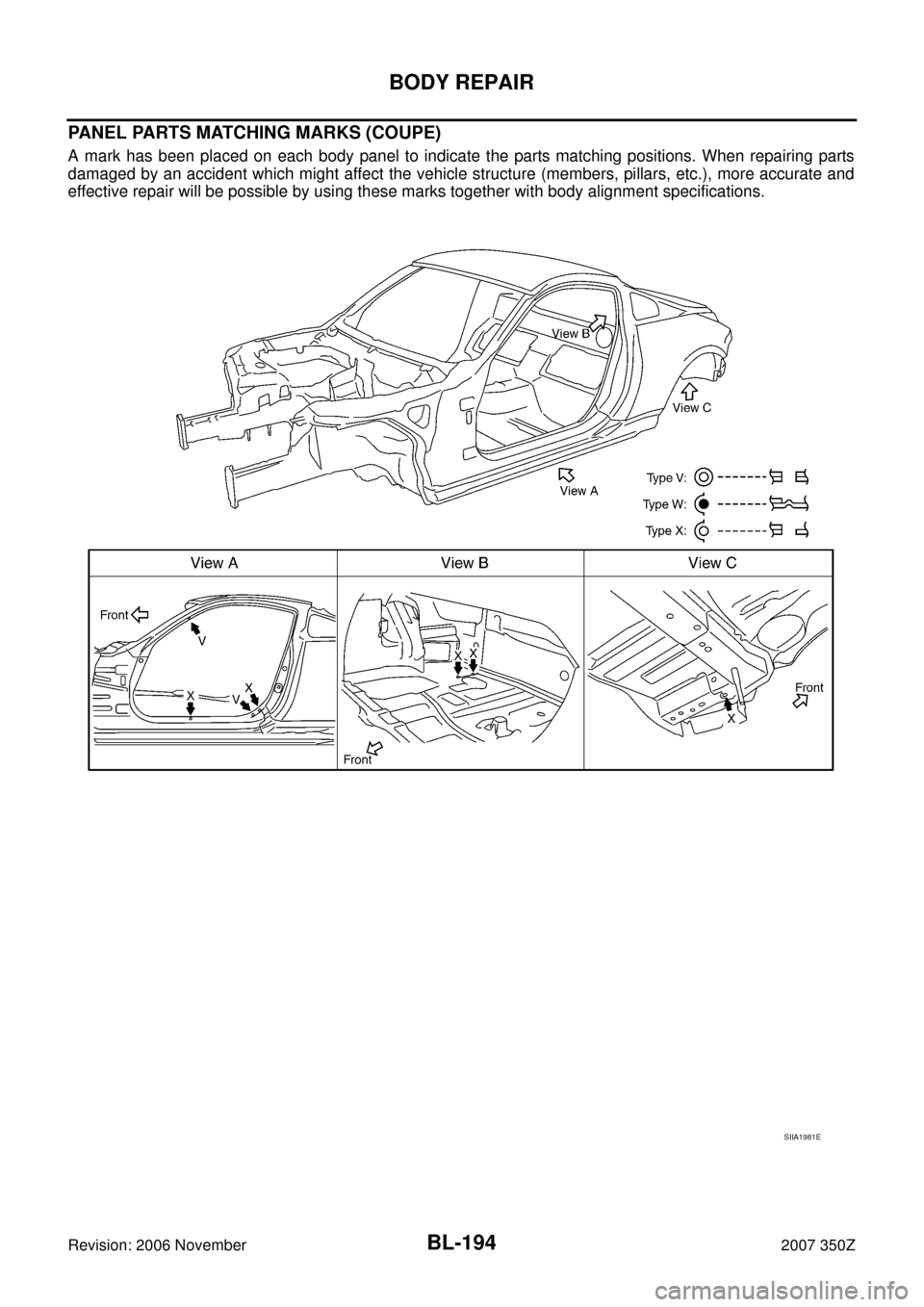

PANEL PARTS MATCHING MARKS (COUPE)
A mark has been placed on each body panel to indicate the parts matching positions. When repairing parts
damaged by an accident which might affect the vehicle structure (members, pillars, etc.), more accurate and
effective repair will be possible by using these marks together with body alignment specifications.
SIIA1981E

BODY REPAIR
BL-195
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
DESCRIPTION

All dimensions indicated in the figures are actual.

When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge
itself to make sure there is no free play.

When a measuring tape is used, check to be sure there is no elongation, twisting or bending.

Measurements should be taken at the center of the mounting holes.

An asterisk (*) following the value at the measuring point indicates that the measuring point on the other
side is symmetrically the same value.

The coordinates of the measurement points are the distances measured from the standard line of ″X″, ″Y″
and ″Z″.
PIIA0104E

BL-196
BODY REPAIR
Revision: 2006 November2007 350Z
ENGINE COMPARTMENT
Measurement
SIIA2306E

BODY REPAIR
BL-197
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z

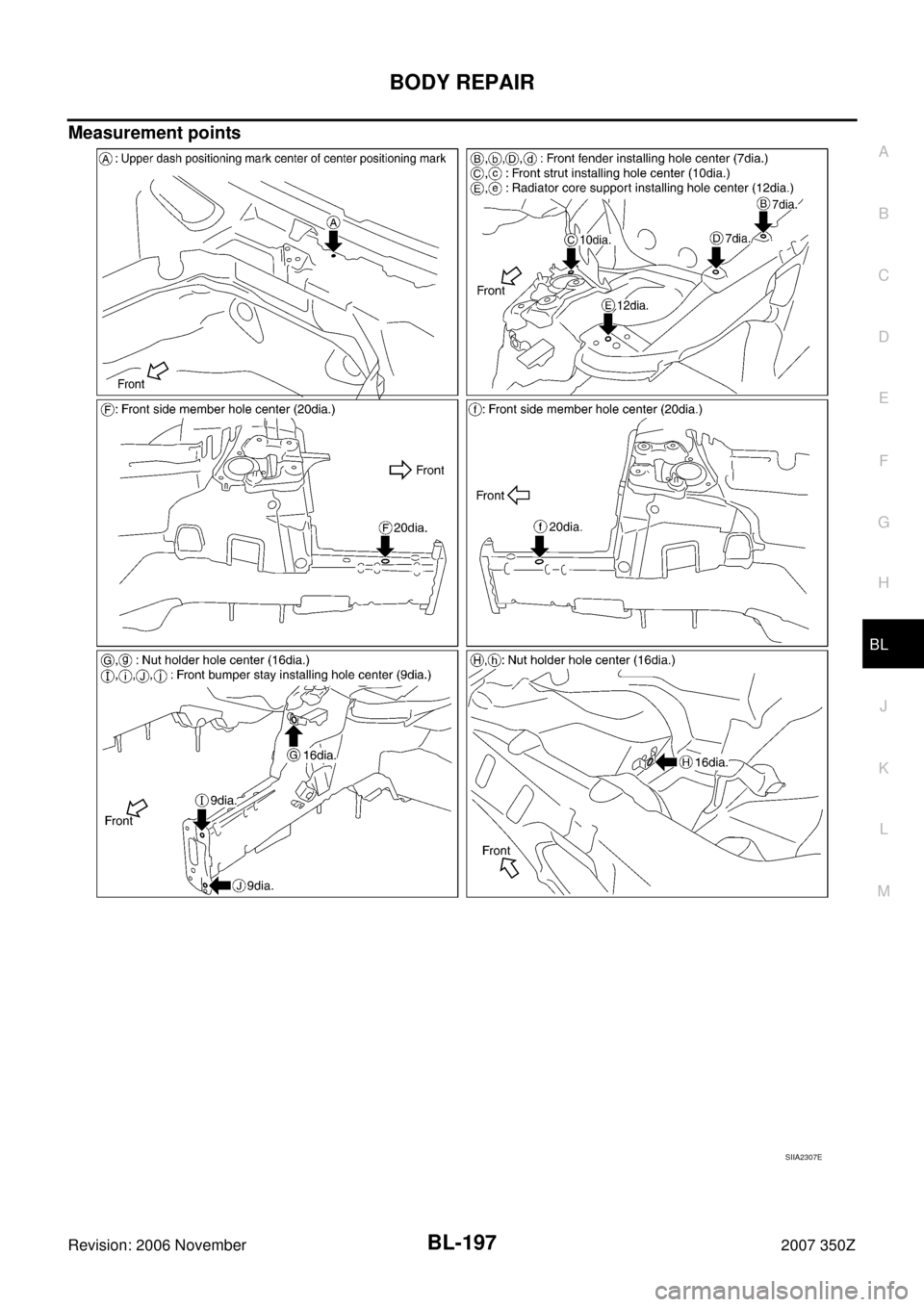

Measurement points
SIIA2307E

BL-198
BODY REPAIR
Revision: 2006 November2007 350Z

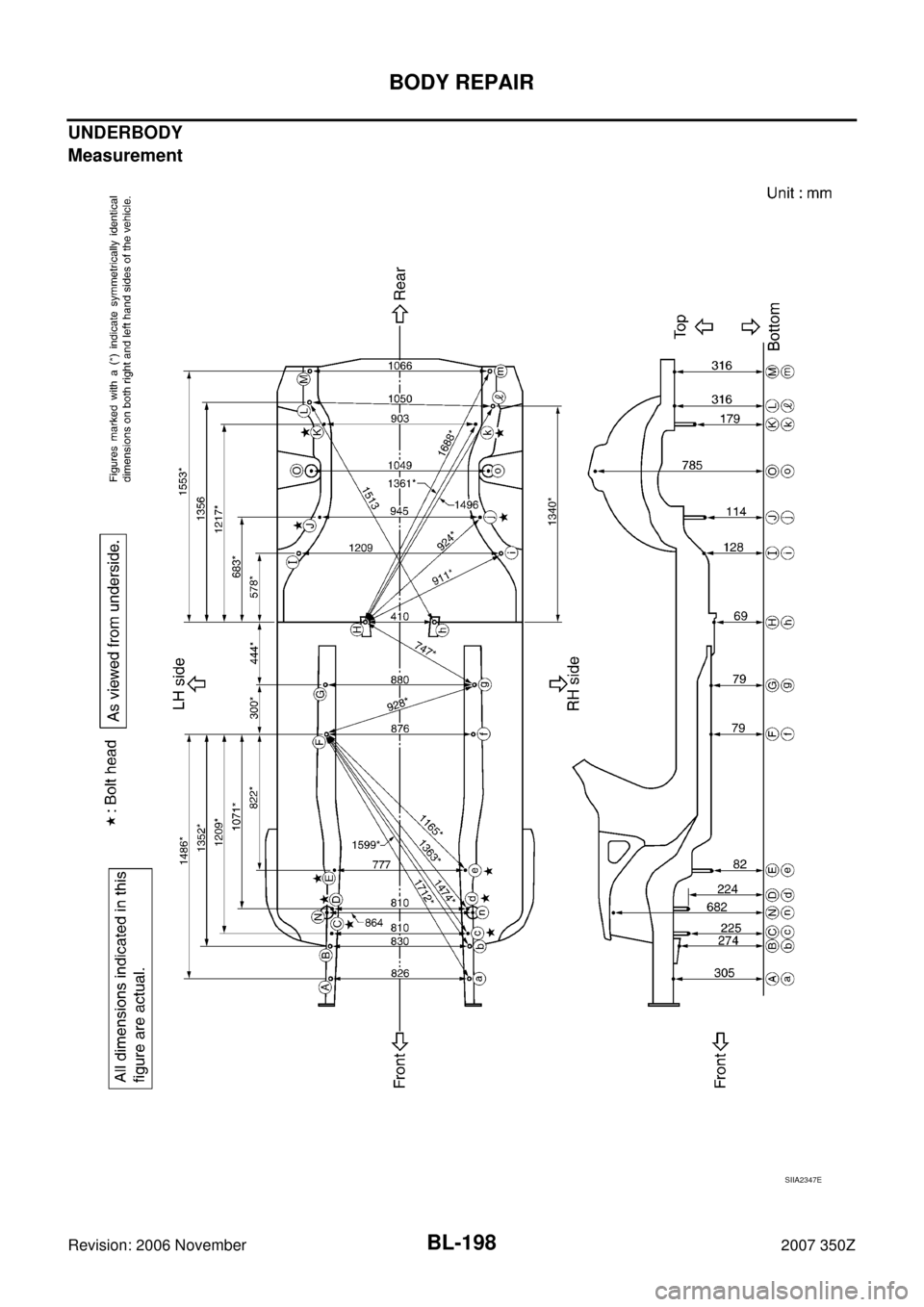

UNDERBODY
Measurement
SIIA2347E

BODY REPAIR
BL-199
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z

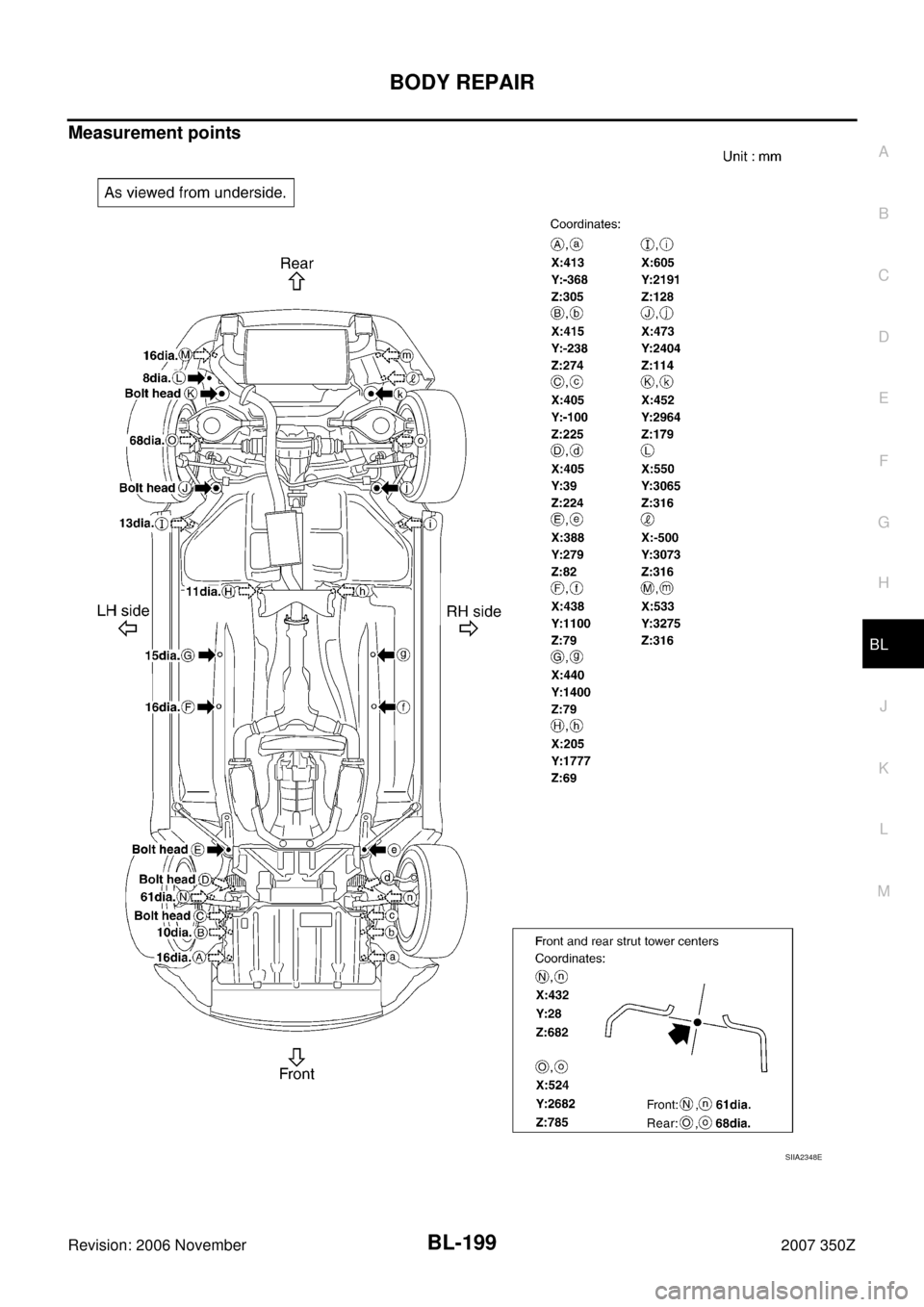

Measurement points
SIIA2348E

BL-200
BODY REPAIR
Revision: 2006 November2007 350Z

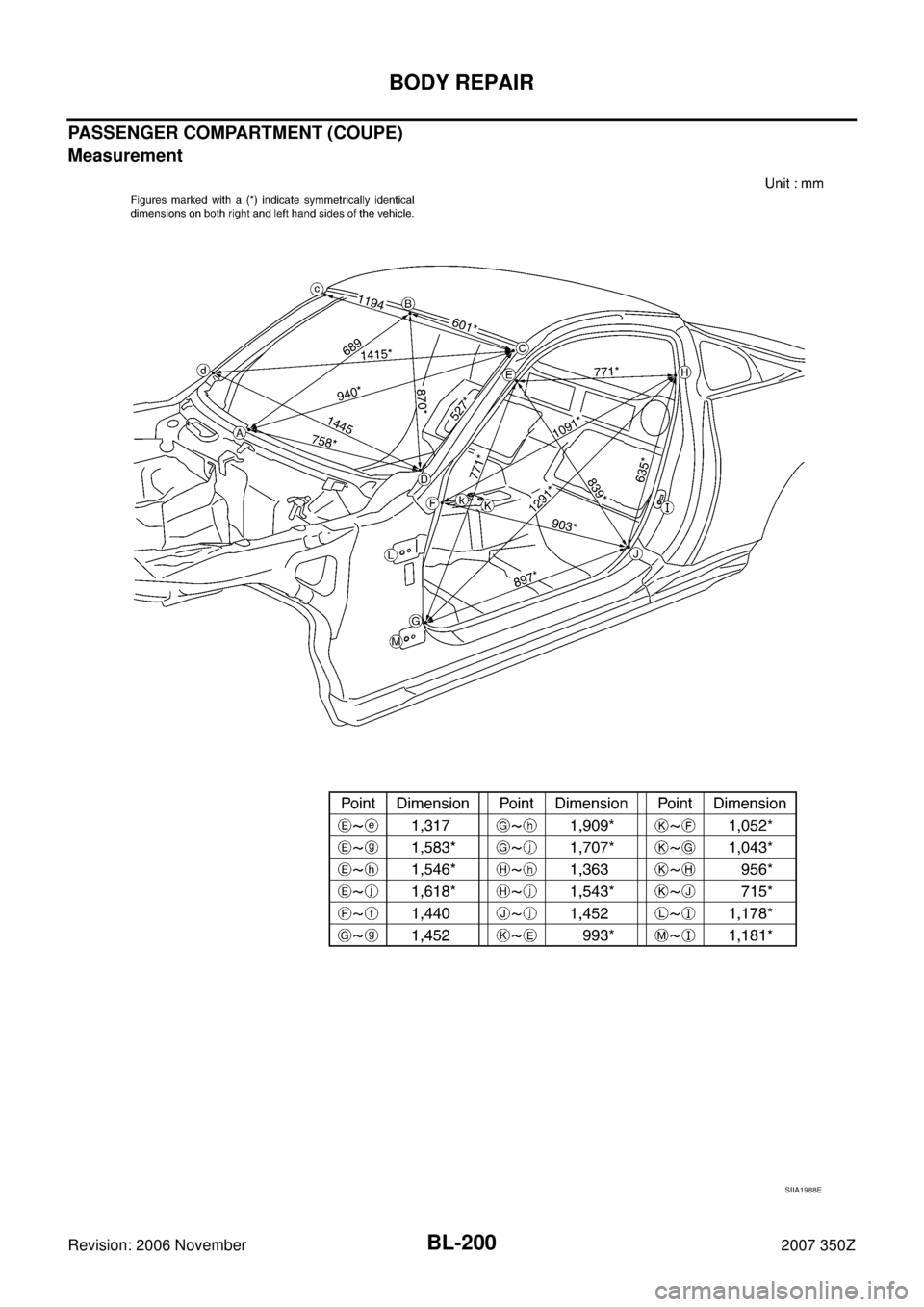

PASSENGER COMPARTMENT (COUPE)
Measurement
SIIA1988E
