diagram NISSAN 350Z 2007 Z33 Engine Control User Guide

EC-142
POWER SUPPLY AND GROUND CIRCUIT
Revision: 2006 November2007 350Z
POWER SUPPLY AND GROUND CIRCUITPFP:24110
Wiring DiagramNBS0003X
TBWT1614E

EC-146
POWER SUPPLY AND GROUND CIRCUIT
Revision: 2006 November2007 350Z
4. CHECK GROUND CONNECTIONS
Models with VDC system, navigation system or telephone
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body. Refer to EC-150, "
Ground Inspection" .
Models without VDC system, navigation system and telephone
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body. Refer to EC-150, "
Ground Inspection" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace ground connections.
5. CHECK ECM GROUND CIRCUIT FOR OPEN AND SHORT-I
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminals 8, 123, 124, 127, 128 and ground.
Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
1. Body ground E17 2. Body ground E43 3. Body ground B102
:Vehicle front
1. Body ground E17 2. Body ground E43 3. Body ground F152
(Passenger side view with dash side
finisher removed)
:Vehicle front
PBIB3560E
PBIB3561E
Continuity should exist.

EC-148
POWER SUPPLY AND GROUND CIRCUIT
Revision: 2006 November2007 350Z
10. CHECK ECM POWER SUPPLY CIRCUIT-V
1. Disconnect ECM harness connector.
2. Disconnect IPDM E/R harness connector E7.
3. Check harness continuity between ECM terminals 125 and IPDM E/R terminal 18.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 18.
NG >> GO TO 11.
11 . DETECT MALFUNCTIONING PART
Check the following.

Harness or connectors E108, M15

Harness for open or short between ECM and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
12. CHECK ECM POWER SUPPLY CIRCUIT-VI
1. Disconnect IPDM E/R harness connector E9.
2. Check harness continuity between ECM terminal 24 and IPDM E/R terminal 46.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 14.
NG >> GO TO 13.
13. DETECT MALFUNCTIONING PART
Check the following.

Harness or connectors E10, F1

Harness for open or short between ECM and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
14. CHECK 15A FUSE
1. Disconnect 15A fuse from IPDM E/R.
2. Check 15A fuse.
OK or NG
OK >> GO TO 18.
NG >> Replace 15A fuse.Continuity should exist.
Continuity should exist.

POWER SUPPLY AND GROUND CIRCUIT
EC-149
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
15. CHECK GROUND CONNECTIONS
Models with VDC system, navigation system or telephone
1. Loosen and retighten ground screws on the body. Refer to EC-150, "
Ground Inspection" .
Models without VDC system, navigation system and telephone
1. Loosen and retighten ground screws on the body. Refer to EC-150, "
Ground Inspection" .
OK or NG
OK >> GO TO 16.
NG >> Repair or replace ground connections.
16. CHECK ECM GROUND CIRCUIT FOR OPEN AND SHORT-II
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminals 8, 123, 124, 127, 128 and ground.
Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 18.
NG >> GO TO 17.
1. Body ground E17 2. Body ground E43 3. Body ground B102
:Vehicle front
1. Body ground E17 2. Body ground E43 3. Body ground F152
(Passenger side view with dash side
finisher removed)
:Vehicle front
PBIB3560E
PBIB3561E
Continuity should exist.

EC-152
DTC U1000, U1001 CAN COMMUNICATION LINE
Revision: 2006 November2007 350Z
Wiring DiagramNBS006T2
TBWT1616E

DTC P0011, P0021 IVT CONTROL
EC-159
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
6. CHECK TIMING CHAIN INSTALLATION
Check service records for any recent repairs that may cause timing chain misaligned.
Are there any service records that may cause timing chain misaligned?
Ye s o r N o
Yes >> Check timing chain installation. Refer to EM-53, "TIMING CHAIN" .
No >> GO TO 7.
7. CHECK LUBRICATION CIRCUIT
Refer to EM-74, "
INSPECTION AFTER REMOVAL" .
OK or NG
OK >> GO TO 8.
NG >> Clean lubrication line.
8. CHECK INTERMITTENT INCIDENT
Refer to EC-141, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
For Wiring Diagram, refer to EC-388
for crankshaft position sensor (POS) and EC-397 for camshaft position
sensor (PHASE).
>>INSPECTION END
Component InspectionNBS0004A
INTAKE VALVE TIMING CONTROL SOLENOID VALVE
1. Disconnect intake valve timing control solenoid valve harness connector.
2. Check resistance between intake valve timing control solenoid
valve as follows.
If NG, replace intake valve timing control solenoid valve.
If OK, go to next step.
3. Remove intake valve timing control solenoid valve.
4. Provide 12V DC between intake valve timing control solenoid
valve terminals and then interrupt it. Make sure that the plunger
moves as shown in the figure.
CAUTION:
Do not apply 12V DC continuously for 5 seconds or more.
Doing so may result in damage to the coil in intake valve
timing control solenoid valve.
If NG, replace intake valve timing control solenoid valve.
NOTE:
Always replace O-ring when intake valve timing control
solenoid valve is removed.
Removal and InstallationNBS0004B
INTAKE VALVE TIMING CONTROL SOLENOID VALVE
Refer to EM-53, "TIMING CHAIN" .
Terminal Resistance
1 and 2 7.0 - 7.5Ω [at 20°C (68°F)]
1 or 2 and ground∞ Ω
(Continuity should not exist.)
PBIB0193E
PBIB2275E

EC-164
DTC P0014 P0024 EVT CONTROL
Revision: 2006 November2007 350Z
12. CHECK INTERMITTENT INCIDENT
Refer to EC-141, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
For Wiring Diagram, refer to EC-388
for crankshaft position sensor (POS) and EC-397 for camshaft position
sensor (PHASE).
>>INSPECTION END
Component InspectionNBS0004H
EXHAUST VALVE TIMING CONTROL MAGNET RETARDER
1. Disconnect exhaust valve timing control magnet retarder harness connector.
2. Check resistance between exhaust valve timing control magnet
retarder terminals 1 and 2.
3. If NG, replace exhaust valve timing control magnet retarder and
go to the next step.
4. Perform EC-76, "
Exhaust Valve Timing Control Learning" .
Removal and InstallationNBS0004I
EXHAUST VALVE TIMING CONTROL MAGNET RETARDER
Refer to EM-44, "FRONT TIMING CHAIN CASE" . Resistance: 9.0 - 11.0Ω [at 20°C (68°F)]
PBIB3469E

EC-166
DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER
Revision: 2006 November2007 350Z
Wiring DiagramNBS000BA
BANK 1
TBWT1617E

DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER
EC-171
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
2. CHECK AIR FUEL RATIO (A/F) SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect air fuel ratio (A/F) sensor 1 harness connector.
2. Turn ignition switch ON.
3. Check voltage between air fuel ratio sensor (A/F) sensor 1 ter-
minal 4 and ground with CONSULT-III or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E12, F3

15A fuse

Harness for open or short between air fuel ratio (A/F) sensor 1 and fuse
>> Repair or replace harness or connectors.
4. CHECK AIR FUEL RATIO (A/F) SENSOR 1 HEATER OUTPUT SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 1 (bank 1) or 5 (bank 2) and air fuel ratio (A/F) sensor 1
terminal 3.
Refer to Wiring Diagram.
4. Also check harness for short to ground or short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
1. A/F sensor 1 (bank 1) harness con-
nector2. A/F sensor 1 (bank 2) harness con-
nector
:Ve h ic le f o rn t
Voltage: Battery voltage
PBIB3516E
PBIB3308E
Continuity should exist.

DTC P0037, P0038, P0057, P0058 HO2S2 HEATER
EC-175
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z

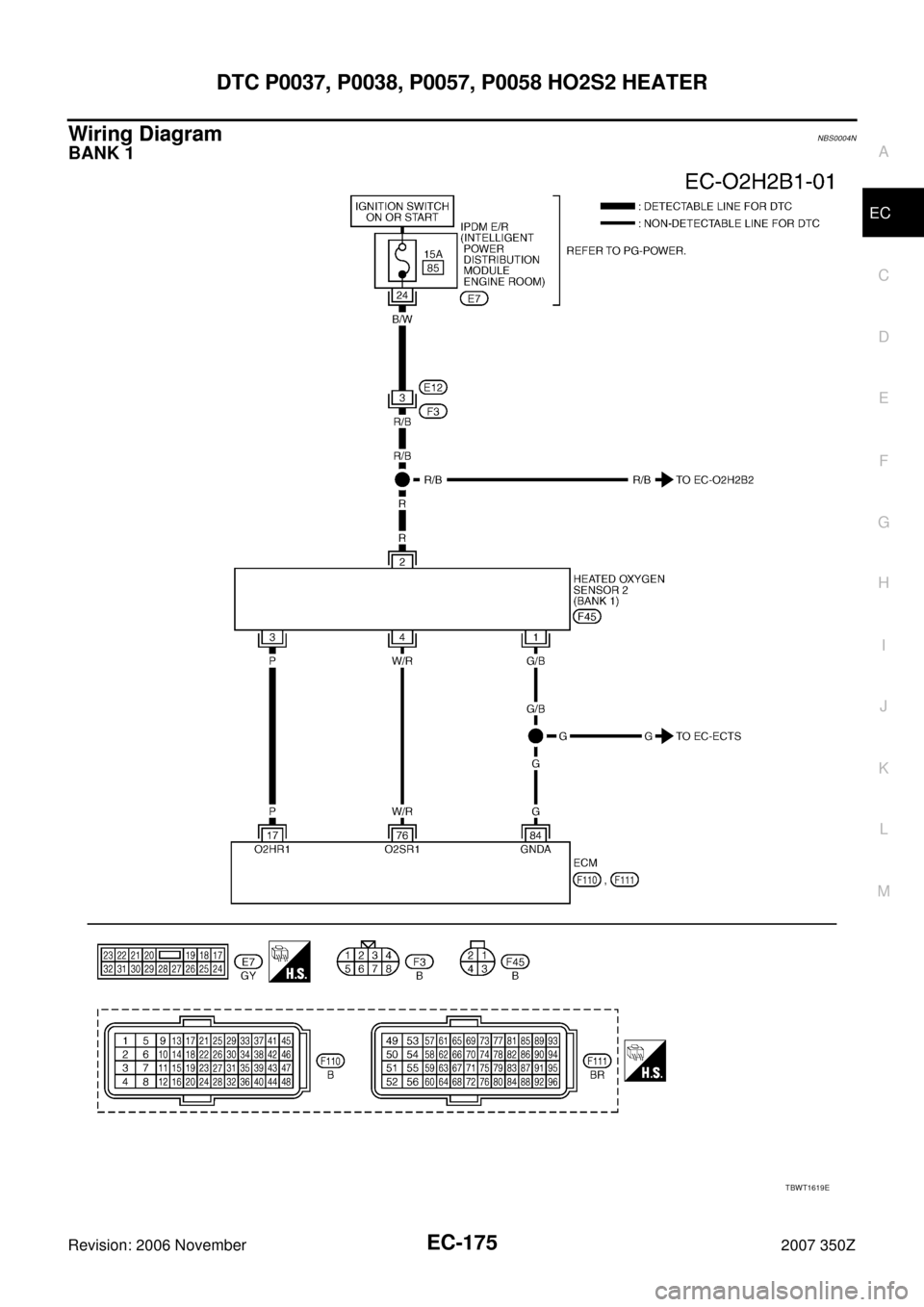

Wiring DiagramNBS0004N
BANK 1
TBWT1619E
