LIFTING POINT
GI-41
C
D
E
F
G
H
I
J
K
L
MB
GI
Revision: 2006 November2007 350Z
Board-on Lift NAS0000X
CAUTION:
Make sure vehicle is empty when lifting.
The board-on lift attachment set at front end of vehicle
should be set on the front of the sill under the front door
opening.
Position attachments at front and rear ends of board-on lift.
PIIB7445E
Page 42 of 54
GI-42
TOW TRUCK TOWING
Revision: 2006 November2007 350Z
TOW TRUCK TOWINGPFP:00000
Tow Truck TowingNAS0000Y
CAUTION:
All applicable state or Provincial (in Canada) laws and local
laws regarding the towing operation must be obeyed.
It is necessary to use proper towing equipment to avoid
possible damage to the vehicle during towing operation.
Towing is in accordance with Towing Procedure Manual at
dealer.
Always attach safety chains before towing.
When towing, make sure that the transmission, steering
system and power train are in good order. If any unit is
damaged, dollies must be used.
NISSAN recommends that the vehicle be towed with the driving
(rear) wheels off the ground as illustrated.
CAUTION:
Never tow an automatic transmission model with the rear
wheels or four wheels on the ground (forward or backward).
This may cause serious and expensive damage to the
transmission.
When towing with the front wheels on the ground (if you do
not use towing dollies), turn the ignition key to the OFF
position, and secure the steering wheel in the straight-
ahead position with a rope or similar device. Never place
the ignition key in the LOCK position. This will result in
damage to the steering lock mechanism.
When towing a manual transmission model with the rear
wheels on the ground (if you do not use towing dollies),
release the parking brake and move the shift lever to the N
(Neutral) position.
SGI994
PAIA0063E
Page 43 of 54
TOW TRUCK TOWING
GI-43
C
D
E
F
G
H
I
J
K
L
MB
GI
Revision: 2006 November2007 350Z
Vehicle Recovery (Freeing a Stuck Vehicle) NAS0000Z
FRONT
After removing the front licence plate (if so equipped),
1 Remove the recovery hook cover from the bumper.
2 Securely install the recovery hook stored with jacking tools.
Make sure that the hook is properly secured in the stored place after
use.
WARNING:
Stand clear of a stuck vehicle.
Do not spin your tires at high speed. This could cause them
to explode and result in serious injury. Parts of your vehicle
could also overheat and be damaged.
CAUTION:
Tow chains or cables must be attached only to the vehicle recovery hooks or main structural mem-
bers of the vehicle. Otherwise, the vehicle body will be damaged.
Do not use the vehicle tie downs to free a vehicle stuck in sand, snow, mud, etc. Never tow a vehi-
cle using the vehicle tie downs or recovery hooks.
Always pull the cable straight out from the front of the vehicle. Never pull on the vehicle at an
angle.
Pulling devices should be routed so they do not touch any part of the suspension, steering, brake
or cooling systems.
Pull devices such as ropes or canvas straps are not recommended for use in vehicle towing or
recovery.
If your vehicle is stuck in sand, snow, mad, etc., use the following procedure:
1. Turn off the Vehicle Dynamic Control System (if so equipped).
2. Make sure the area in front and behind the vehicle is clear of obstructions.
3. Turn the steering wheel right and left to clear an area around front tires.
4. Slowly rock the vehicle forward and backward.
Shift back and forth between R (reverse) and D (drive) (automatic transmission models) or 1st (low)
and R (reverse) (manual transmission models).
Apply the accelerator as little as possible to maintain the rocking motion.
Release the accelerator pedal before shifting between R and D (automatic transmission models) or 1st
and R (manual transmission models).
Do not spin the tires above 35 MPH (55 km/h).
5. If the vehicle cannot be freed after a few tires, contact a professional towing service to remove the vehicle.
REAR
Towing hook is not available.
PAIA0064E
Page 44 of 54
GI-44
TIGHTENING TORQUE OF STANDARD BOLTS
Revision: 2006 November2007 350Z
TIGHTENING TORQUE OF STANDARD BOLTSPFP:00000
Tightening Torque Table NAS00010
*: Nominal diameter
1.Special parts are excluded.
2.This standard is applicable to bolts having the following marks embossed on the bolt head. Grade Bolt sizeBolt diam-
eter *
mmPitch
mmTightening torque (Without lubricant)
Hexagon head bolt Hexagon flange bolt
N·m kg-m ft-lb in-lb N·m kg-m ft-lb in-lb
4TM6 6.0 1.0 5.5 0.56 4 49 7 0.71 5 62
M8 8.01.25 13.5 1.4 10 — 17 1.7 13 —
1.0 13.5 1.4 10 — 17 1.7 13 —
M10 10.01.5 28 2.9 21 — 35 3.6 26 —
1.25 28 2.9 21 — 35 3.6 26 —
M12 12.01.75 45 4.6 33 — 55 5.6 41 —
1.25 45 4.6 33 — 65 6.6 48 —
M14 14.0 1.5 80 8.2 59 — 100 10 74 —
7TM6 6.0 1.0 9 0.92 7 80 11 1.1 8 97
M8 8.01.25 22 2.2 16 — 28 2.9 21 —
1.0 22 2.2 16 — 28 2.9 21 —
M10 10.01.5 45 4.6 33 — 55 5.6 41 —
1.25 45 4.6 33 — 55 5.6 41 —
M12 12.01.75 80 8.2 59 — 100 10 74 —
1.25 80 8.2 59 — 100 10 74 —
M14 14.0 1.5 130 13 96 — 170 17 125 —
9TM6 6.0 1.0 11 1.1 8 — 13.5 1.4 10 —
M8 8.01.25 28 2.9 21 — 35 3.6 26 —
1.0 28 2.9 21 — 35 3.6 26 —
M10 10.01.5 55 5.6 41 — 80 8.2 59 —
1.25 55 5.6 41 — 80 8.2 59 —
M12 12.01.75 100 10 74 — 130 13 96 —
1.25 100 10 74 — 130 13 96 —
M14 14.0 1.5 170 17 125 — 210 21 155 —
MGI044A
Page 45 of 54
RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS
GI-45
C
D
E
F
G
H
I
J
K
L
MB
GI
Revision: 2006 November2007 350Z
RECOMMENDED CHEMICAL PRODUCTS AND SEALANTSPFP:00000
Recommended Chemical Products and SealantsNAS00011
Refer to the following chart for help in selecting the appropriate chemical product or sealant.
Product Description PurposeNissan North America
Part No. (USA)Nissan Canada Part
No. (Canada)Aftermarket Cross-
reference Part Nos.
1Rear View Mirror
AdhesiveUsed to permanently
remount rear view mirrors
to windows.999MP-AM000P 99998-50505 Permatex 81844
2Anaerobic Liquid Gas-
ketFor metal-to-metal flange
sealing.
Can fill a 0.38 mm (0.015
inch) gap and provide
instant sealing for most
powertrain applications.999MP-AM001P 99998-50503Permatex 51813 and
51817
3High Performance
Thread SealantProvides instant sealing on
any threaded straight or
parallel threaded fitting.
(Thread sealant only, no
locking ability.)
Do not use on plastic.999MP-AM002P 999MP-AM002P Permatex 56521
4 Silicone RTVGasket Maker999MP-AM003P
(Ultra Grey)99998-50506
(Ultra Grey)Permatex Ultra Grey
82194;
Three Bond
1207,1215, 1216,
1217F, 1217G and
1217H
Nissan RTV Part No.
999MP-A7007
Gasket Maker for Maxima/
Quest 5-speed automatic
transmission
(RE5F22A)––Three Bond 1281B
or exact equivalent
in its quality
5High Temperature,
High Strength Thread
Locking Sealant (Red)Threadlocker 999MP-AM004P 999MP-AM004PPermatex 27200;
Three Bond 1360,
1360N, 1305 N&P,
1307N, 1335,
1335B, 1363B,
1377C, 1386B, D&E
and 1388
Loctite 648
6Medium Strength
Thread Locking Seal-
ant (Blue)Threadlocker (service tool
removable)999MP-AM005P 999MP-AM005PPermatex 24200,
24206, 24240,
24283 and 09178;
Three Bond 1322,
1322N, 1324 D&N,
1333D, 1361C,
1364D, 1370C and
1374
Page 46 of 54
GI-46
IDENTIFICATION INFORMATION
Revision: 2006 November2007 350Z
IDENTIFICATION INFORMATIONPFP:00010
Model VariationNAS00012
Prefix and suffix designations:
Body Engine TransmissionDestination
USA Canada
Coupe
VQ35HRRE5R05A (5A/T)GLTALSN-EUA GLTALTN-ENA
GLTALTN-EUA GLTALVN-ENA
GLTALVN-EUA —
FS6R31A (6M/T)GLTALRY-EUA GLTALTY-ENA
GLTALSY-EUA GLTALVY-ENA
GLTALTY-EUA —
GLTALUY-EUA —
GLTALVY-EUA —
RoadsterRE5R05A (5A/T)2LTALSN-EUA 2LTALTN-ENA
2LTALTN-EUA 2LTALVN-ENA
2LTALVN-EUA —
FS6R31A (6M/T)2LTALSY-EUA 2LTALTY-ENA
2LTALTY-EUA 2LTALVY-ENA
2LTALVY-EUA —
SAIA1551E
Page 47 of 54
IDENTIFICATION INFORMATION
GI-47
C
D
E
F
G
H
I
J
K
L
MB
GI
Revision: 2006 November2007 350Z
IDENTIFICATION NUMBER

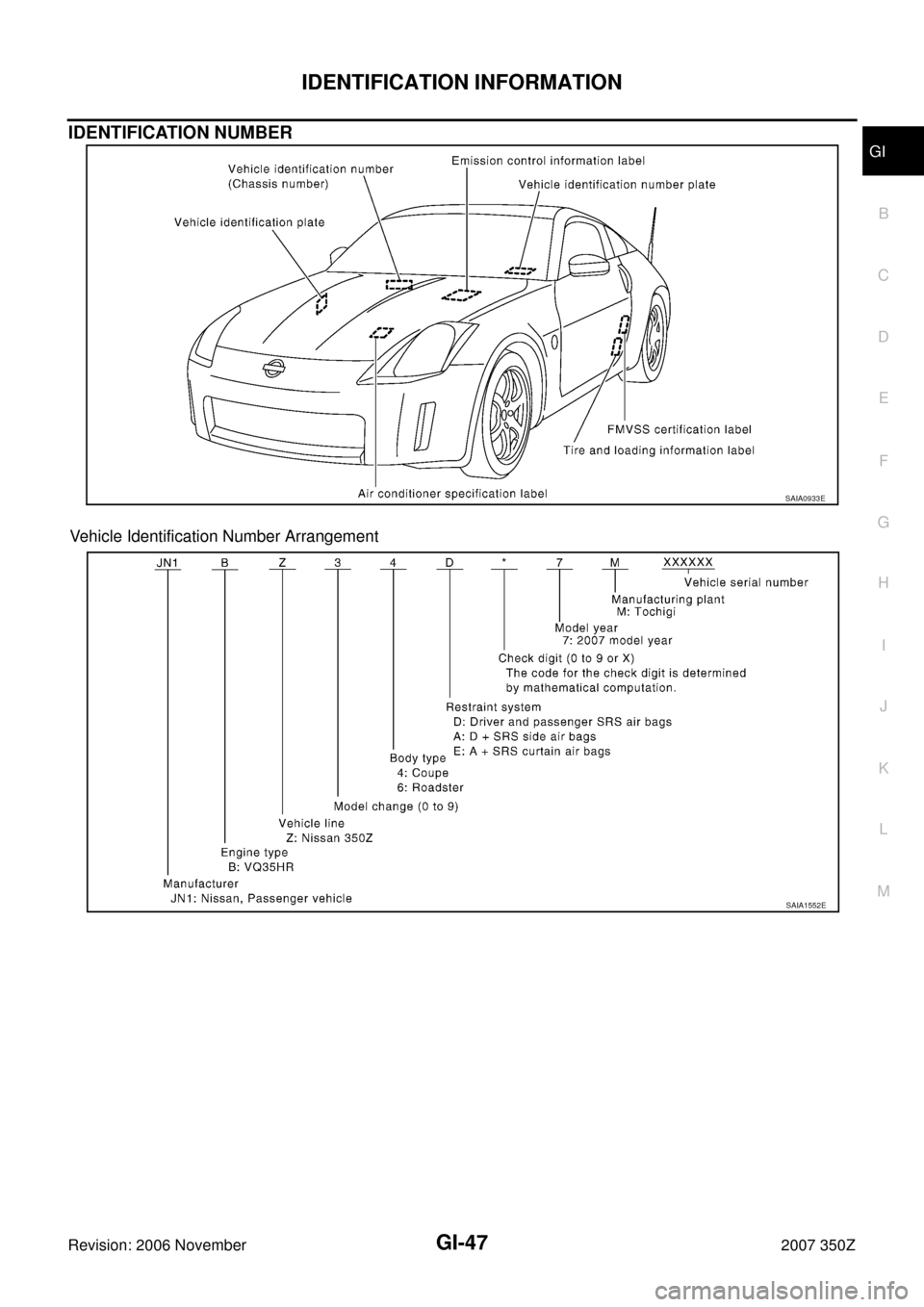

Vehicle Identification Number Arrangement
SAIA0933E
SAIA1552E
Page 48 of 54
GI-48
IDENTIFICATION INFORMATION
Revision: 2006 November2007 350Z

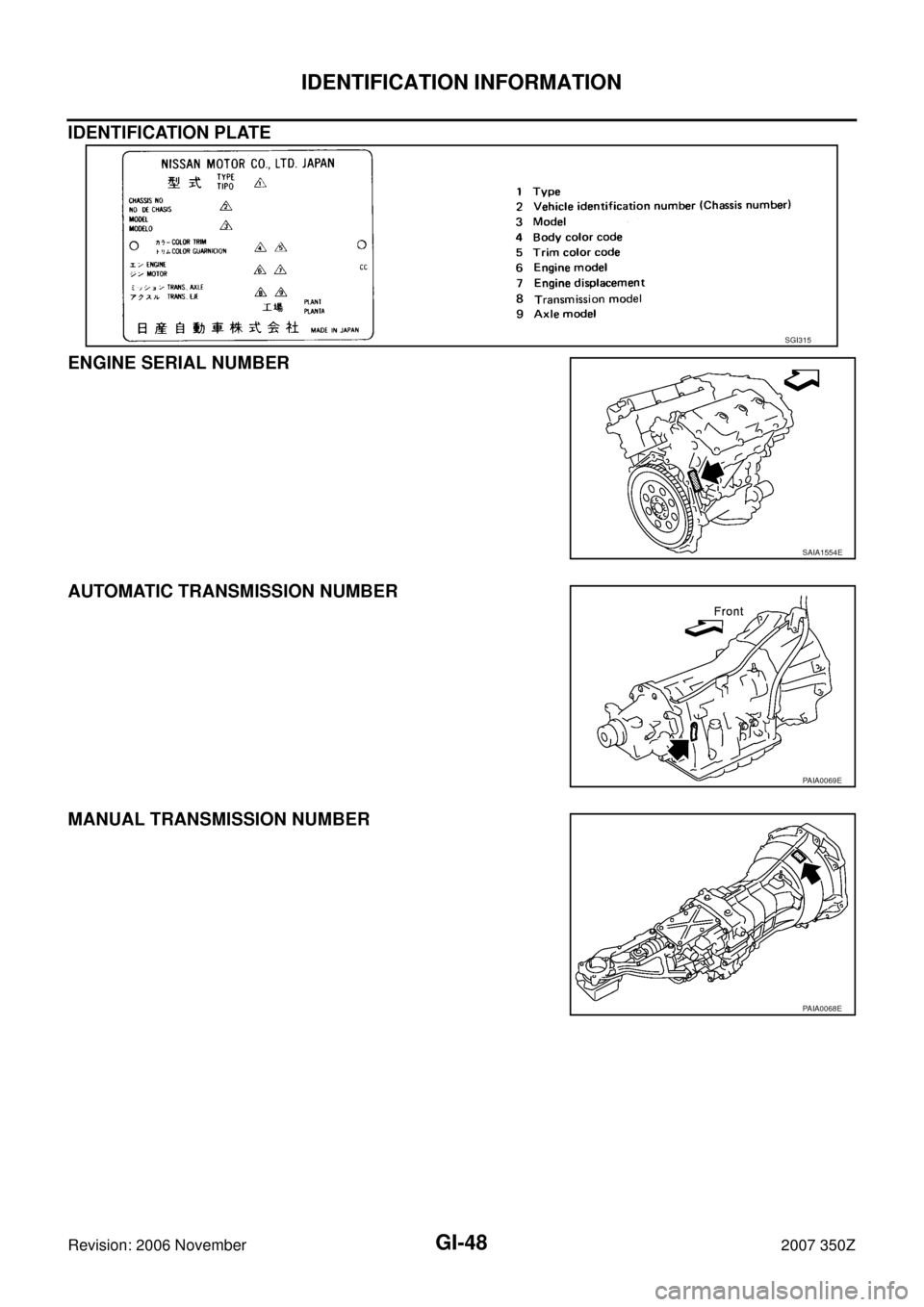

IDENTIFICATION PLATE
ENGINE SERIAL NUMBER
AUTOMATIC TRANSMISSION NUMBER
MANUAL TRANSMISSION NUMBER
SGI315
SAIA1554E
PAIA0069E
PAIA0068E
Page 49 of 54
IDENTIFICATION INFORMATION
GI-49
C
D
E
F
G
H
I
J
K
L
MB
GI
Revision: 2006 November2007 350Z
Dimensions NAS00013
Unit: mm (in)
*1: For model with 245/45R18 tires
*2: For model with 265/35R19 tires
Wheels & Tires NAS00014
Model Coupe Roadster
Overall length 4,314 (169.8) 4,314 (169.8)
Overall width 1,815 (71.5) 1,815 (71.5)
Overall height 1,323 (52.1) 1,333 (52.5)
Front tread 1,536 (60.5) 1,536 (60.5)
Rear tread 1,540 (60.6)*1, 1,546 (60.9)*2 1,540 (60.6)
Wheelbase 2,650 (104.3) 2,650 (104.3)
Road wheelType Size Offset mm (in)
AluminumFront18 x 8JJ
30 (1.18)
18 x 9 JJ
Rear18 x 8-1/2JJ 33 (1.30)
19 x 10JJ 30 (1.18)
Spare 17 x 4T 30 (1.18)
TireConventionalFront225/45R18 91W
245/40R18 93W*
Rear245/45R18 96W
265/35R19 94W*
Spare T145/80D17 107M
Page 50 of 54
GI-50
TERMINOLOGY
Revision: 2006 November2007 350Z
TERMINOLOGYPFP:00011
SAE J1930 Terminology List NAS00017
All emission related terms used in this publication in accordance with SAE J1930 are listed. Accordingly, new
terms, new acronyms/abbreviations and old terms are listed in the following chart.
NEW TERMNEW ACRONYM /
ABBREVIATIONOLD TERM
Air cleaner ACL Air cleaner
Barometric pressure BARO ***
Barometric pressure sensor-BCDD BAROS-BCDD BCDD
Camshaft position CMP ***
Camshaft position sensor CMPS Crank angle sensor
Canister *** Canister
Carburetor CARB Carburetor
Charge air cooler CAC Intercooler
Closed loop CL Closed loop
Closed throttle position switch CTP switch Idle switch
Clutch pedal position switch CPP switch Clutch switch
Continuous fuel injection system CFI system ***
Continuous trap oxidizer system CTOX system ***
Crankshaft position CKP ***
Crankshaft position sensor CKPS ***
Data link connector DLC ***
Data link connector for CONSULT-II DLC for CONSULT-II Diagnostic connector for CONSULT-II
Diagnostic test mode DTM Diagnostic mode
Diagnostic test mode selector DTM selector Diagnostic mode selector
Diagnostic test mode I DTM I Mode I
Diagnostic test mode II DTM II Mode II
Diagnostic trouble code DTC Malfunction code
Direct fuel injection system DFI system ***
Distributor ignition system DI system Ignition timing control
Early fuel evaporation-mixture heater EFE-mixture heater Mixture heater
Early fuel evaporation system EFE system Mixture heater control
Electrically erasable programmable read
only memoryEEPROM ***
Electronic ignition system EI system Ignition timing control
Engine control EC ***
Engine control module ECM ECCS control unit
Engine coolant temperature ECT Engine temperature
Engine coolant temperature sensor ECTS Engine temperature sensor
Engine modification EM ***
Engine speed RPM Engine speed
Erasable programmable read only memory EPROM ***
Evaporative emission canister EVAP canister Canister
Evaporative emission system EVAP system Canister control solenoid valve
Exhaust gas recirculation valve EGR valve EGR valve
