NISSAN 350Z 2007 Z33 Manual Transmission Owner's Guide

TRANSMISSION ASSEMBLY
MT-31
D
E
F
G
H
I
J
K
L
MA
B
MT
Revision: 2006 November2007 350Z

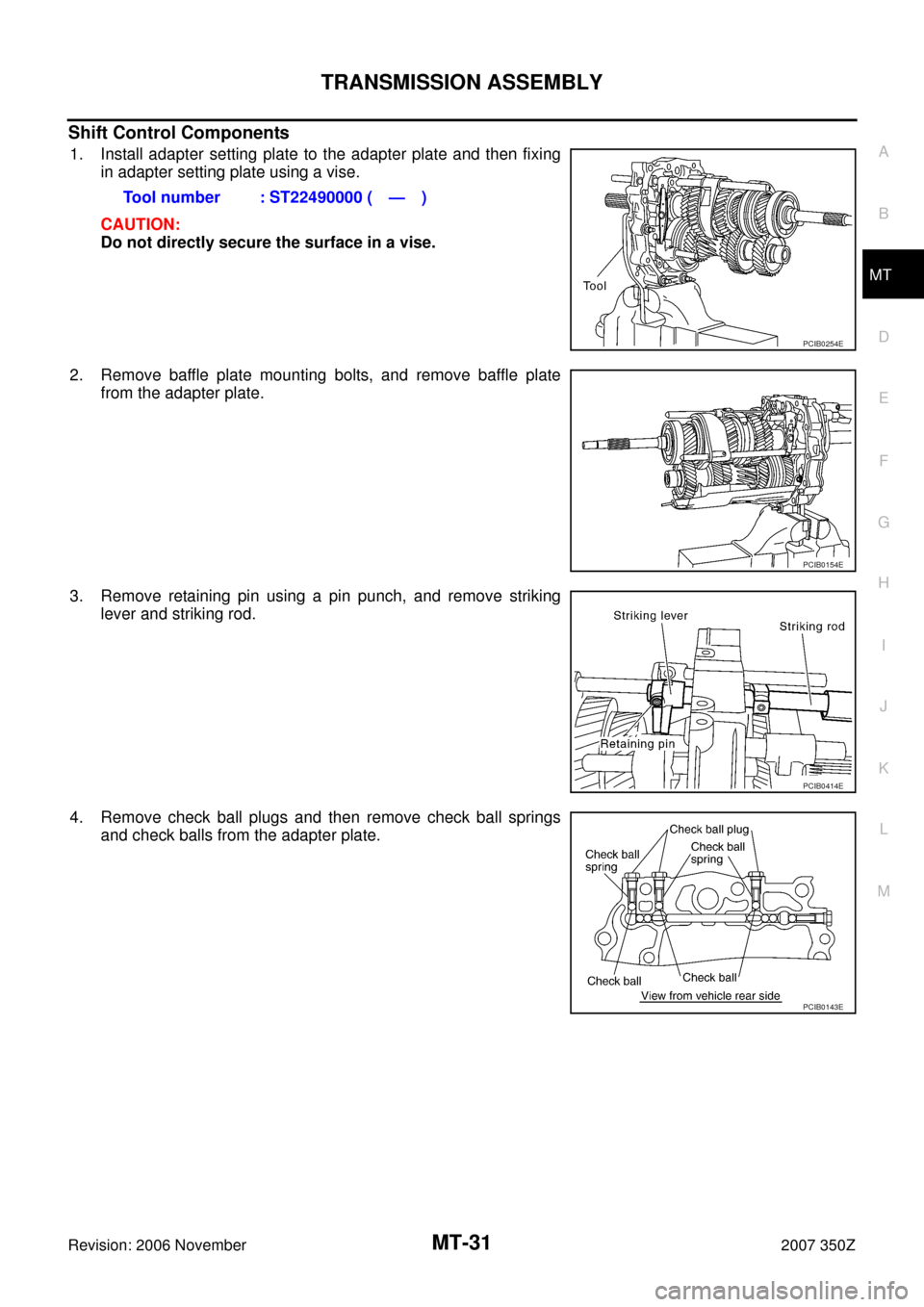

Shift Control Components
1. Install adapter setting plate to the adapter plate and then fixing
in adapter setting plate using a vise.
CAUTION:
Do not directly secure the surface in a vise.
2. Remove baffle plate mounting bolts, and remove baffle plate
from the adapter plate.
3. Remove retaining pin using a pin punch, and remove striking
lever and striking rod.
4. Remove check ball plugs and then remove check ball springs
and check balls from the adapter plate.Tool number : ST22490000 ( — )
PCIB0254E
PCIB0154E
PCIB0414E
PCIB0143E

MT-32
TRANSMISSION ASSEMBLY
Revision: 2006 November2007 350Z

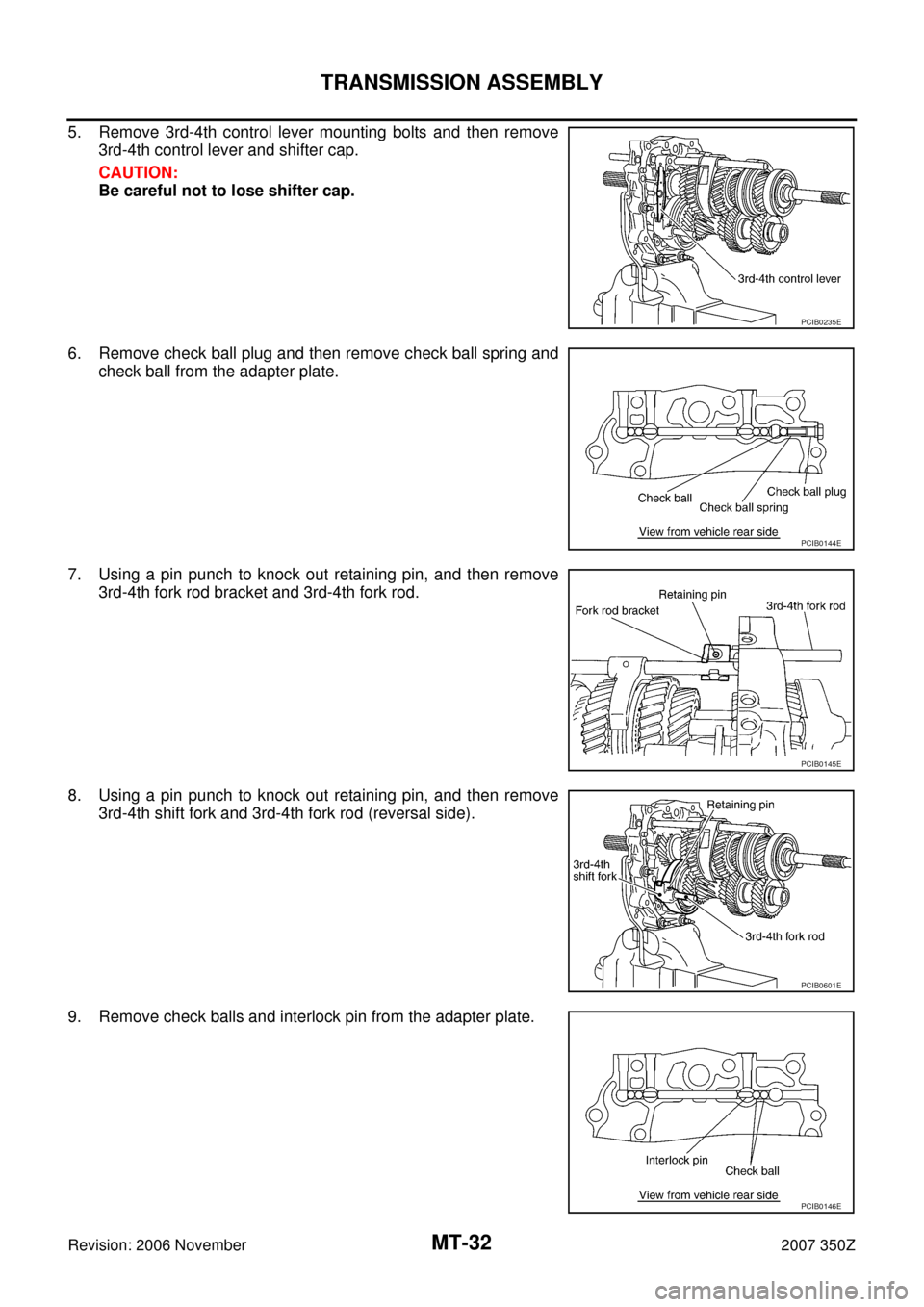

5. Remove 3rd-4th control lever mounting bolts and then remove
3rd-4th control lever and shifter cap.
CAUTION:
Be careful not to lose shifter cap.
6. Remove check ball plug and then remove check ball spring and
check ball from the adapter plate.
7. Using a pin punch to knock out retaining pin, and then remove
3rd-4th fork rod bracket and 3rd-4th fork rod.
8. Using a pin punch to knock out retaining pin, and then remove
3rd-4th shift fork and 3rd-4th fork rod (reversal side).
9. Remove check balls and interlock pin from the adapter plate.
PCIB0235E
PCIB0144E
PCIB0145E
PCIB0601E
PCIB0146E

TRANSMISSION ASSEMBLY
MT-33
D
E
F
G
H
I
J
K
L
MA
B
MT
Revision: 2006 November2007 350Z

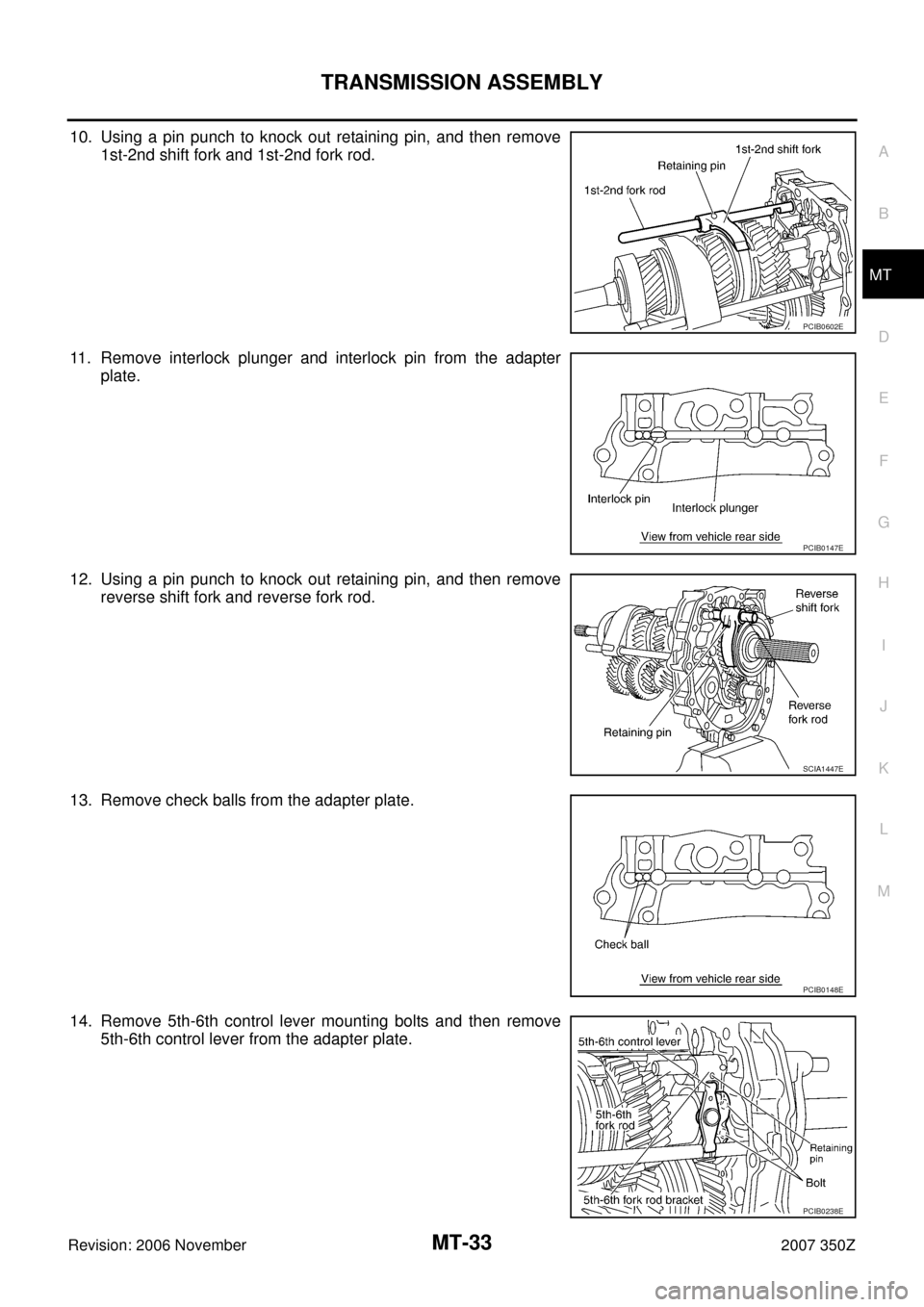

10. Using a pin punch to knock out retaining pin, and then remove
1st-2nd shift fork and 1st-2nd fork rod.
11. Remove interlock plunger and interlock pin from the adapter
plate.
12. Using a pin punch to knock out retaining pin, and then remove
reverse shift fork and reverse fork rod.
13. Remove check balls from the adapter plate.
14. Remove 5th-6th control lever mounting bolts and then remove
5th-6th control lever from the adapter plate.
PCIB0602E
PCIB0147E
SCIA1447E
PCIB0148E
PCIB0238E

MT-34
TRANSMISSION ASSEMBLY
Revision: 2006 November2007 350Z

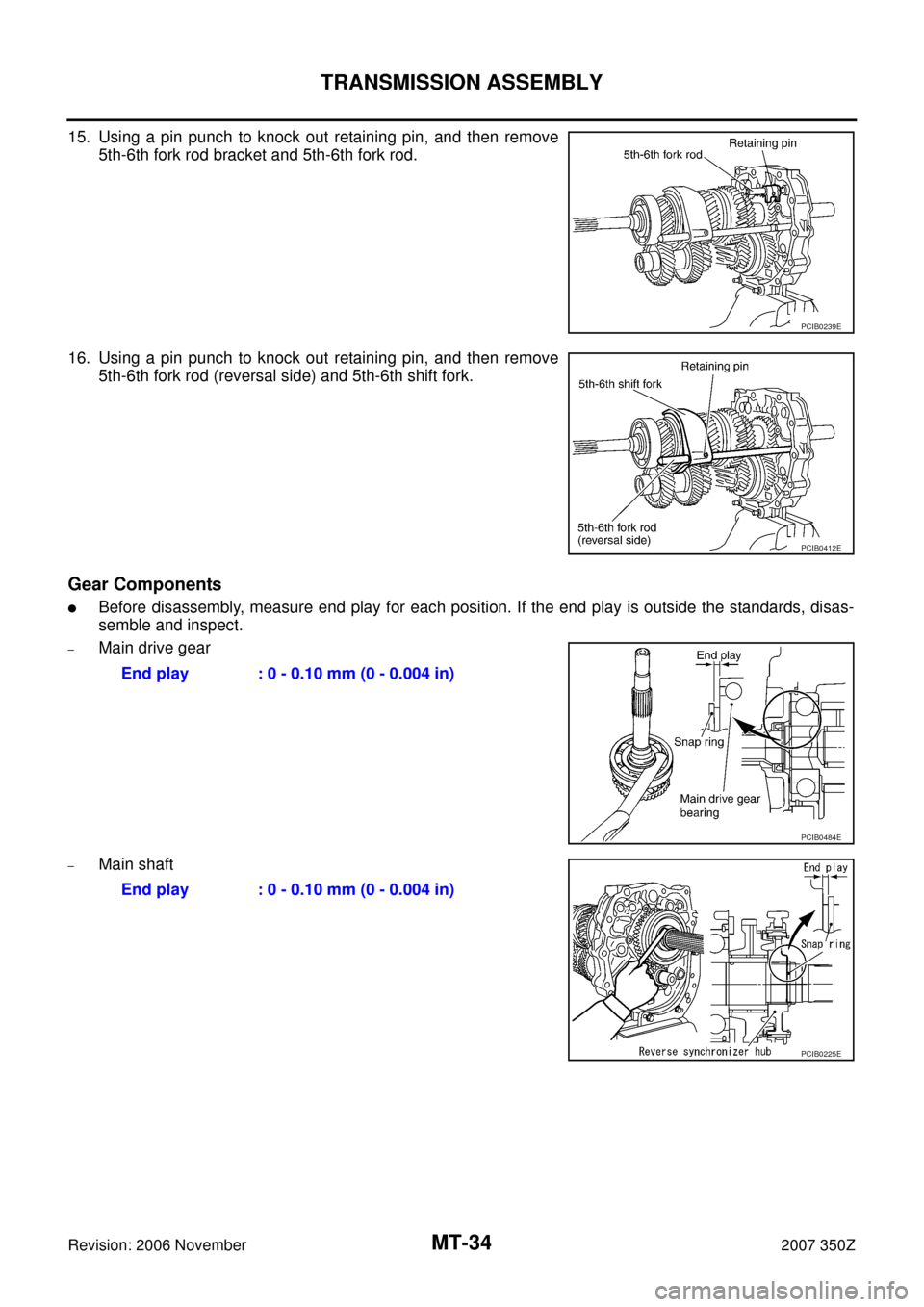

15. Using a pin punch to knock out retaining pin, and then remove
5th-6th fork rod bracket and 5th-6th fork rod.
16. Using a pin punch to knock out retaining pin, and then remove
5th-6th fork rod (reversal side) and 5th-6th shift fork.
Gear Components

Before disassembly, measure end play for each position. If the end play is outside the standards, disas-
semble and inspect.
–Main drive gear
–Main shaft
PCIB0239E
PCIB0412E
End play : 0 - 0.10 mm (0 - 0.004 in)
PCIB0484E
End play : 0 - 0.10 mm (0 - 0.004 in)
PCIB0225E

TRANSMISSION ASSEMBLY
MT-35
D
E
F
G
H
I
J
K
L
MA
B
MT
Revision: 2006 November2007 350Z

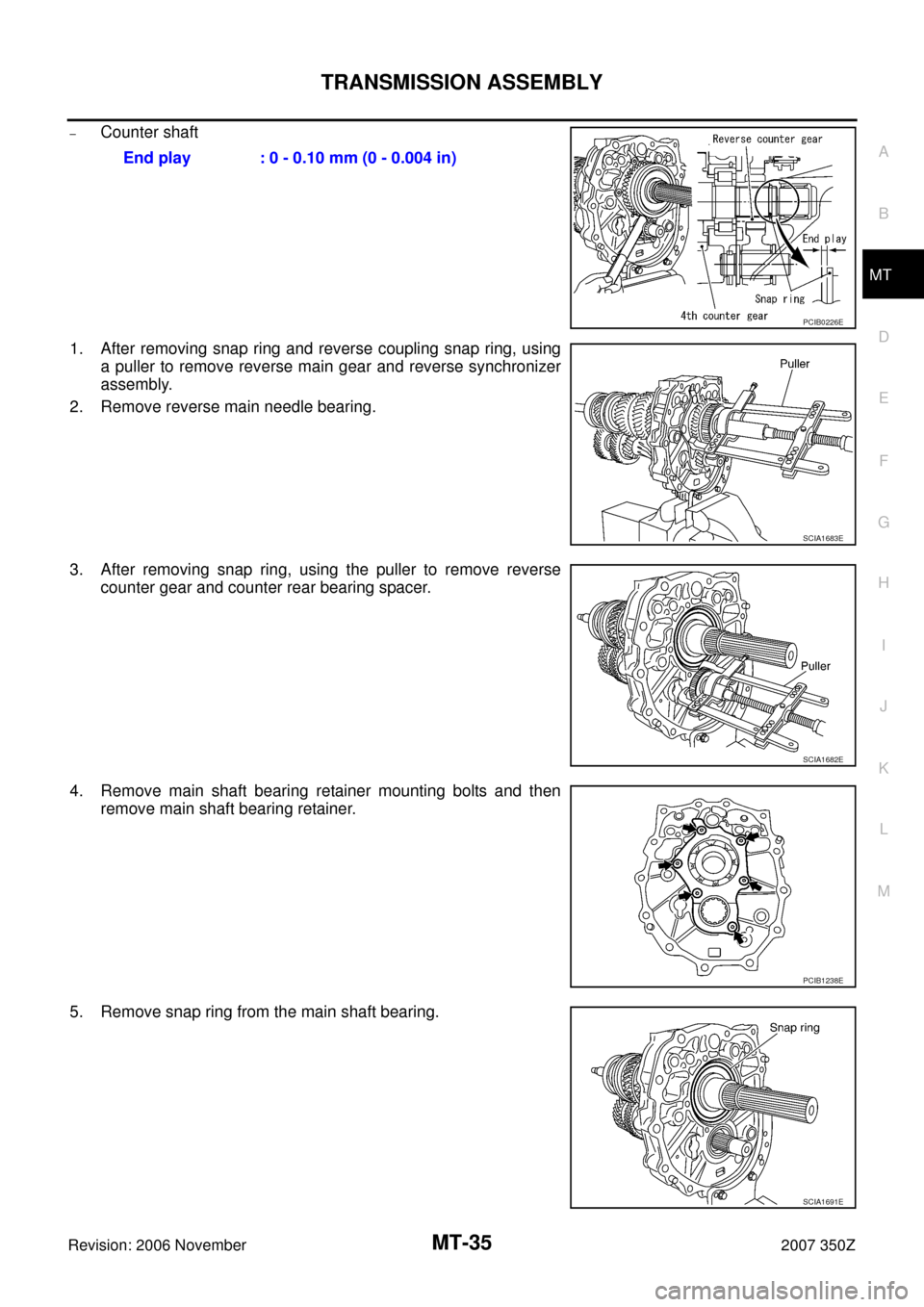

–Counter shaft
1. After removing snap ring and reverse coupling snap ring, using
a puller to remove reverse main gear and reverse synchronizer
assembly.
2. Remove reverse main needle bearing.
3. After removing snap ring, using the puller to remove reverse
counter gear and counter rear bearing spacer.
4. Remove main shaft bearing retainer mounting bolts and then
remove main shaft bearing retainer.
5. Remove snap ring from the main shaft bearing.End play : 0 - 0.10 mm (0 - 0.004 in)
PCIB0226E
SCIA1683E
SCIA1682E
PCIB1238E
SCIA1691E

MT-36
TRANSMISSION ASSEMBLY
Revision: 2006 November2007 350Z

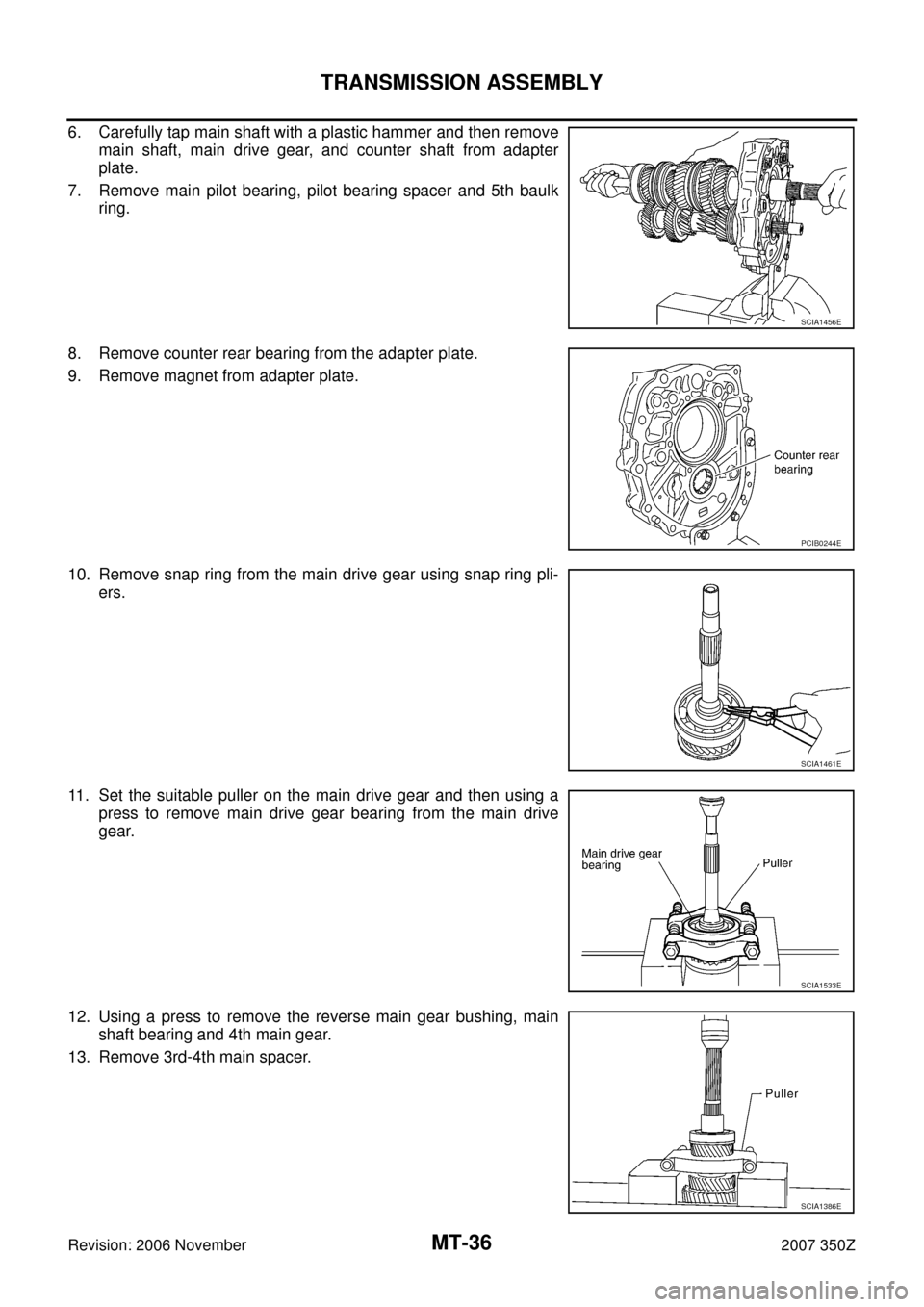

6. Carefully tap main shaft with a plastic hammer and then remove
main shaft, main drive gear, and counter shaft from adapter
plate.
7. Remove main pilot bearing, pilot bearing spacer and 5th baulk
ring.
8. Remove counter rear bearing from the adapter plate.
9. Remove magnet from adapter plate.
10. Remove snap ring from the main drive gear using snap ring pli-
ers.
11. Set the suitable puller on the main drive gear and then using a
press to remove main drive gear bearing from the main drive
gear.
12. Using a press to remove the reverse main gear bushing, main
shaft bearing and 4th main gear.
13. Remove 3rd-4th main spacer.
SCIA1456E
PCIB0244E
SCIA1461E
SCIA1533E
SCIA1386E

TRANSMISSION ASSEMBLY
MT-37
D
E
F
G
H
I
J
K
L
MA
B
MT
Revision: 2006 November2007 350Z

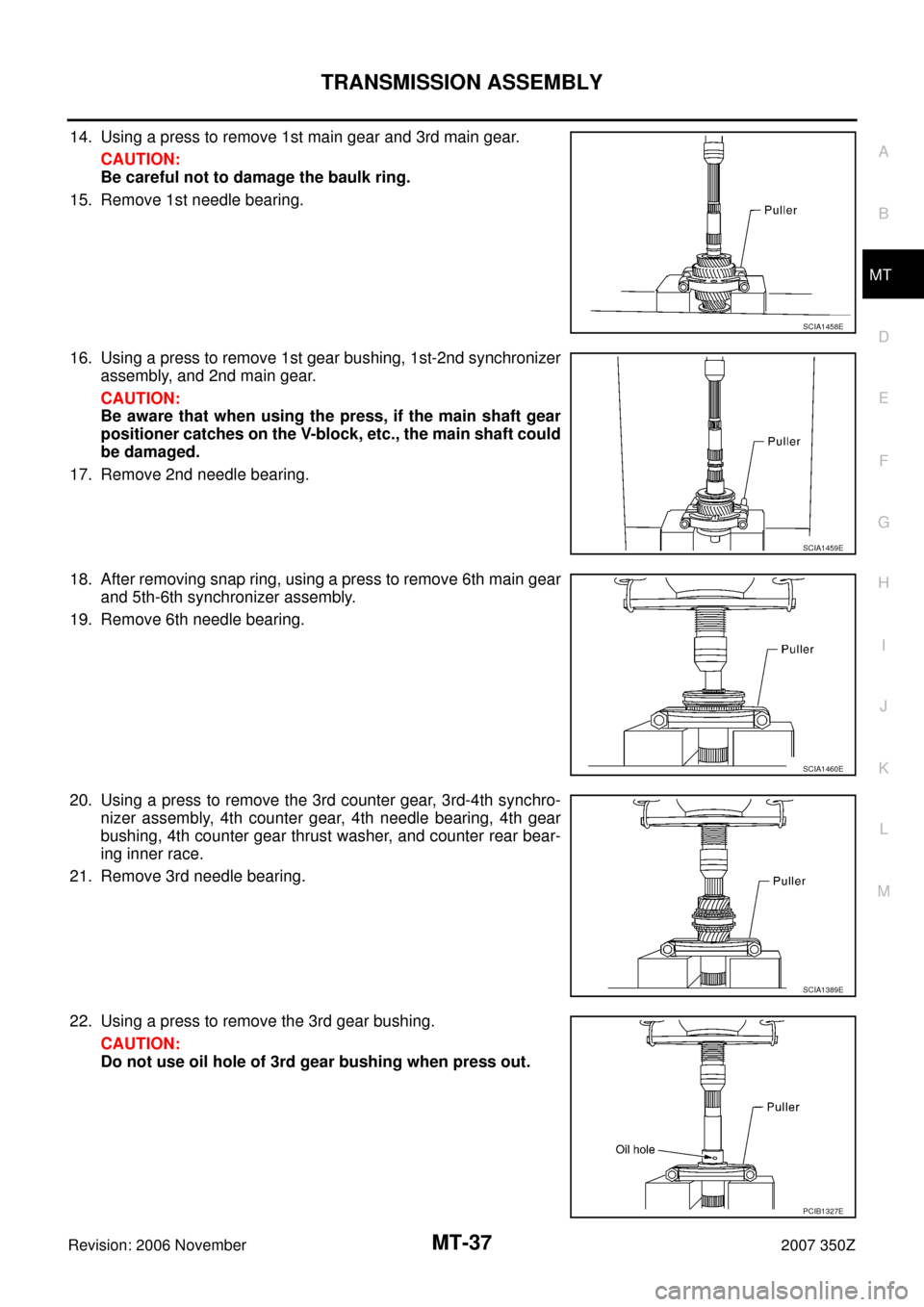

14. Using a press to remove 1st main gear and 3rd main gear.
CAUTION:
Be careful not to damage the baulk ring.
15. Remove 1st needle bearing.
16. Using a press to remove 1st gear bushing, 1st-2nd synchronizer
assembly, and 2nd main gear.
CAUTION:
Be aware that when using the press, if the main shaft gear
positioner catches on the V-block, etc., the main shaft could
be damaged.
17. Remove 2nd needle bearing.
18. After removing snap ring, using a press to remove 6th main gear
and 5th-6th synchronizer assembly.
19. Remove 6th needle bearing.
20. Using a press to remove the 3rd counter gear, 3rd-4th synchro-
nizer assembly, 4th counter gear, 4th needle bearing, 4th gear
bushing, 4th counter gear thrust washer, and counter rear bear-
ing inner race.
21. Remove 3rd needle bearing.
22. Using a press to remove the 3rd gear bushing.
CAUTION:
Do not use oil hole of 3rd gear bushing when press out.
SCIA1458E
SCIA1459E
SCIA1460E
SCIA1389E
PCIB1327E

MT-38
TRANSMISSION ASSEMBLY
Revision: 2006 November2007 350Z

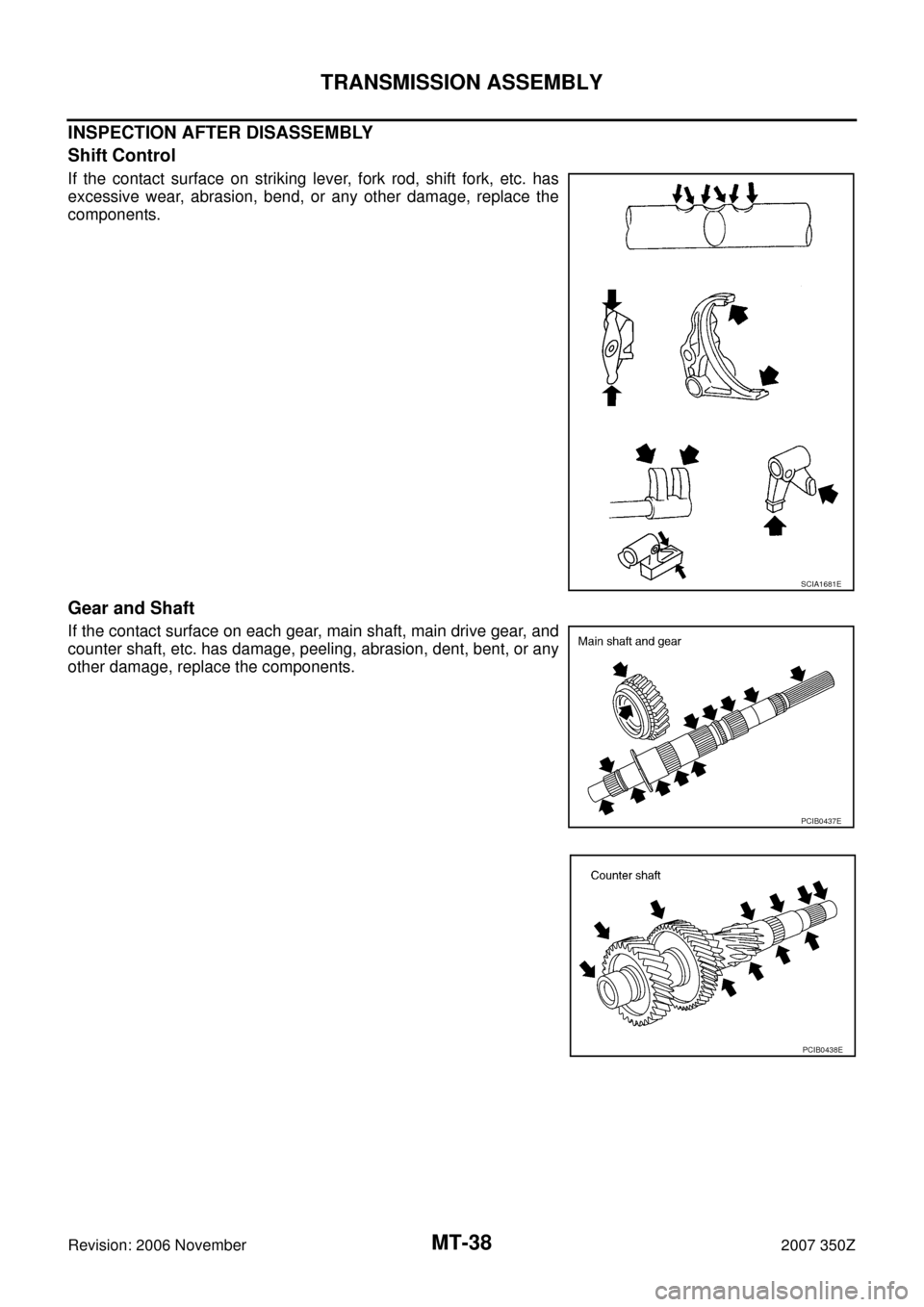

INSPECTION AFTER DISASSEMBLY
Shift Control
If the contact surface on striking lever, fork rod, shift fork, etc. has
excessive wear, abrasion, bend, or any other damage, replace the
components.
Gear and Shaft
If the contact surface on each gear, main shaft, main drive gear, and
counter shaft, etc. has damage, peeling, abrasion, dent, bent, or any
other damage, replace the components.
SCIA1681E
PCIB0437E
PCIB0438E

TRANSMISSION ASSEMBLY
MT-39
D
E
F
G
H
I
J
K
L
MA
B
MT
Revision: 2006 November2007 350Z

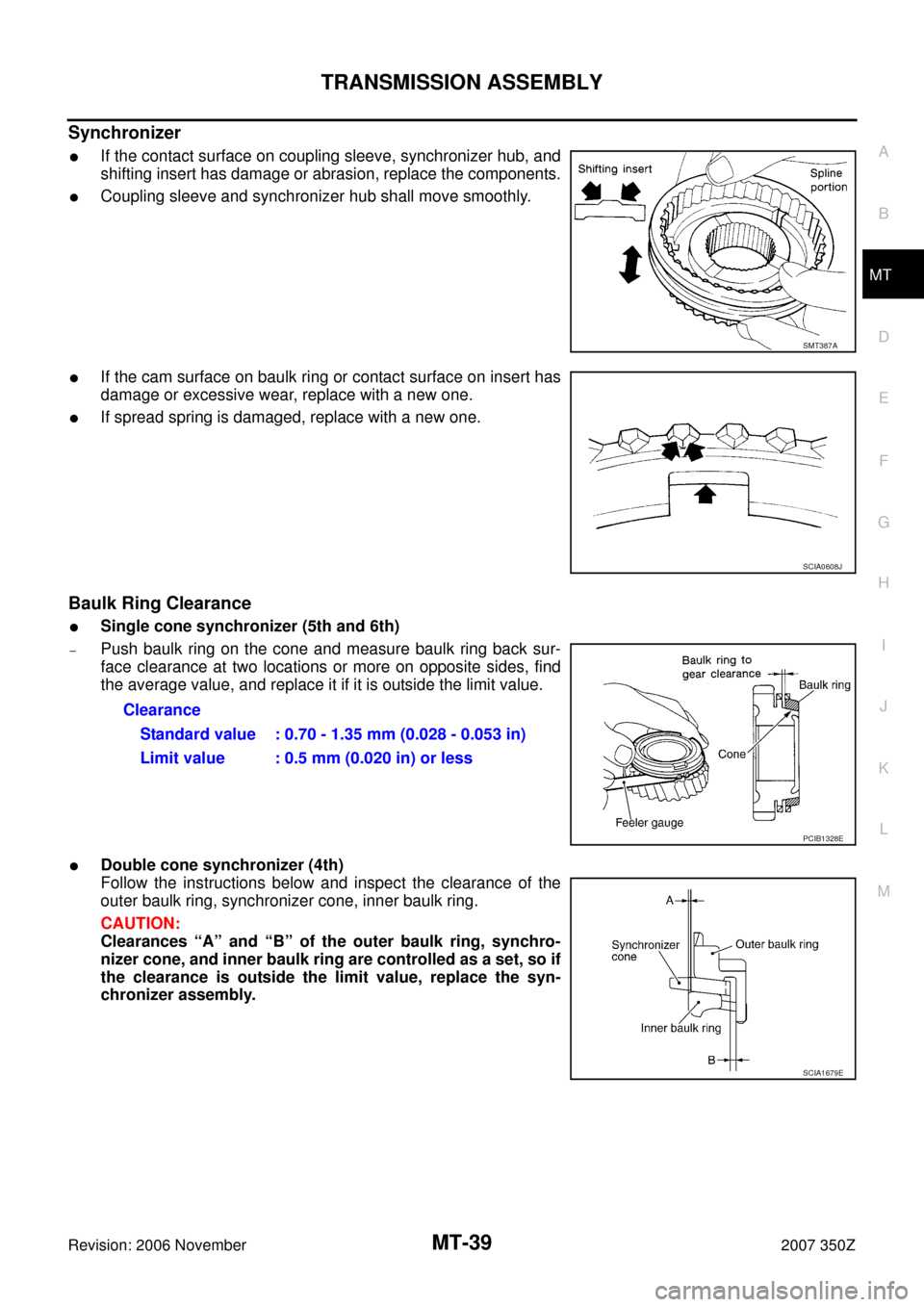

Synchronizer

If the contact surface on coupling sleeve, synchronizer hub, and
shifting insert has damage or abrasion, replace the components.

Coupling sleeve and synchronizer hub shall move smoothly.

If the cam surface on baulk ring or contact surface on insert has
damage or excessive wear, replace with a new one.

If spread spring is damaged, replace with a new one.
Baulk Ring Clearance

Single cone synchronizer (5th and 6th)
–Push baulk ring on the cone and measure baulk ring back sur-
face clearance at two locations or more on opposite sides, find
the average value, and replace it if it is outside the limit value.

Double cone synchronizer (4th)
Follow the instructions below and inspect the clearance of the
outer baulk ring, synchronizer cone, inner baulk ring.
CAUTION:
Clearances “A” and “B” of the outer baulk ring, synchro-
nizer cone, and inner baulk ring are controlled as a set, so if
the clearance is outside the limit value, replace the syn-
chronizer assembly.
SMT387A
SCIA0608J
Clearance
Standard value : 0.70 - 1.35 mm (0.028 - 0.053 in)
Limit value : 0.5 mm (0.020 in) or less
PCIB1328E
SCIA1679E

MT-40
TRANSMISSION ASSEMBLY
Revision: 2006 November2007 350Z

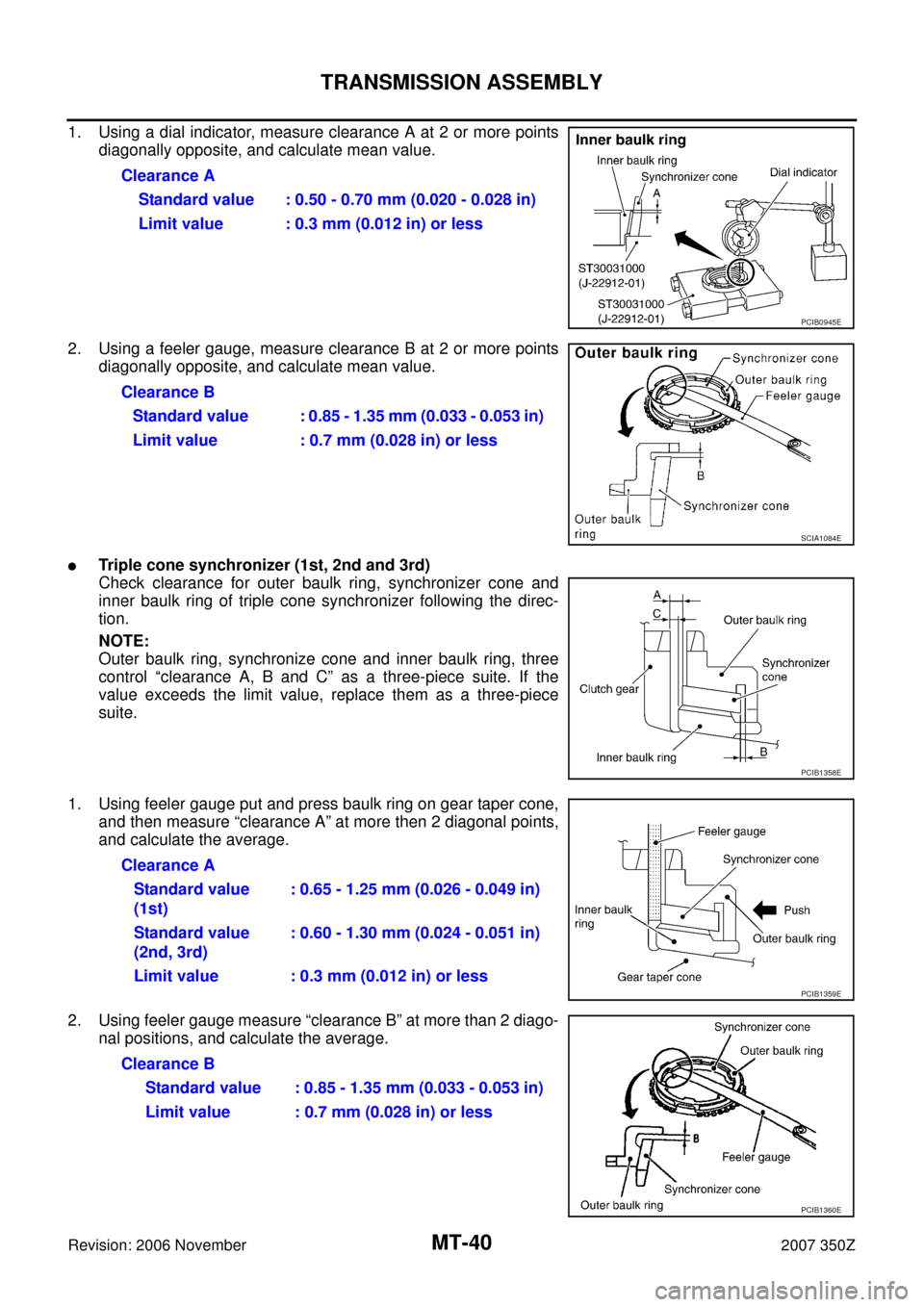

1. Using a dial indicator, measure clearance A at 2 or more points
diagonally opposite, and calculate mean value.
2. Using a feeler gauge, measure clearance B at 2 or more points
diagonally opposite, and calculate mean value.

Triple cone synchronizer (1st, 2nd and 3rd)
Check clearance for outer baulk ring, synchronizer cone and
inner baulk ring of triple cone synchronizer following the direc-
tion.
NOTE:
Outer baulk ring, synchronize cone and inner baulk ring, three
control “clearance A, B and C” as a three-piece suite. If the
value exceeds the limit value, replace them as a three-piece
suite.
1. Using feeler gauge put and press baulk ring on gear taper cone,
and then measure “clearance A” at more then 2 diagonal points,
and calculate the average.
2. Using feeler gauge measure “clearance B” at more than 2 diago-
nal positions, and calculate the average.Clearance A
Standard value : 0.50 - 0.70 mm (0.020 - 0.028 in)
Limit value : 0.3 mm (0.012 in) or less
PCIB0945E
Clearance B
Standard value : 0.85 - 1.35 mm (0.033 - 0.053 in)
Limit value : 0.7 mm (0.028 in) or less
SCIA1084E
PCIB1358E
Clearance A
Standard value
(1st): 0.65 - 1.25 mm (0.026 - 0.049 in)
Standard value
(2nd, 3rd): 0.60 - 1.30 mm (0.024 - 0.051 in)
Limit value : 0.3 mm (0.012 in) or less
PCIB1359E
Clearance B
Standard value : 0.85 - 1.35 mm (0.033 - 0.053 in)
Limit value : 0.7 mm (0.028 in) or less
PCIB1360E
