Page 21 of 62

NISSAN 350Z 2007 Z33 Manual Transmission Owners Manual TRANSMISSION ASSEMBLY
MT-21
D
E
F
G
H
I
J
K
L
MA
B
MT
Revision: 2006 November2007 350Z

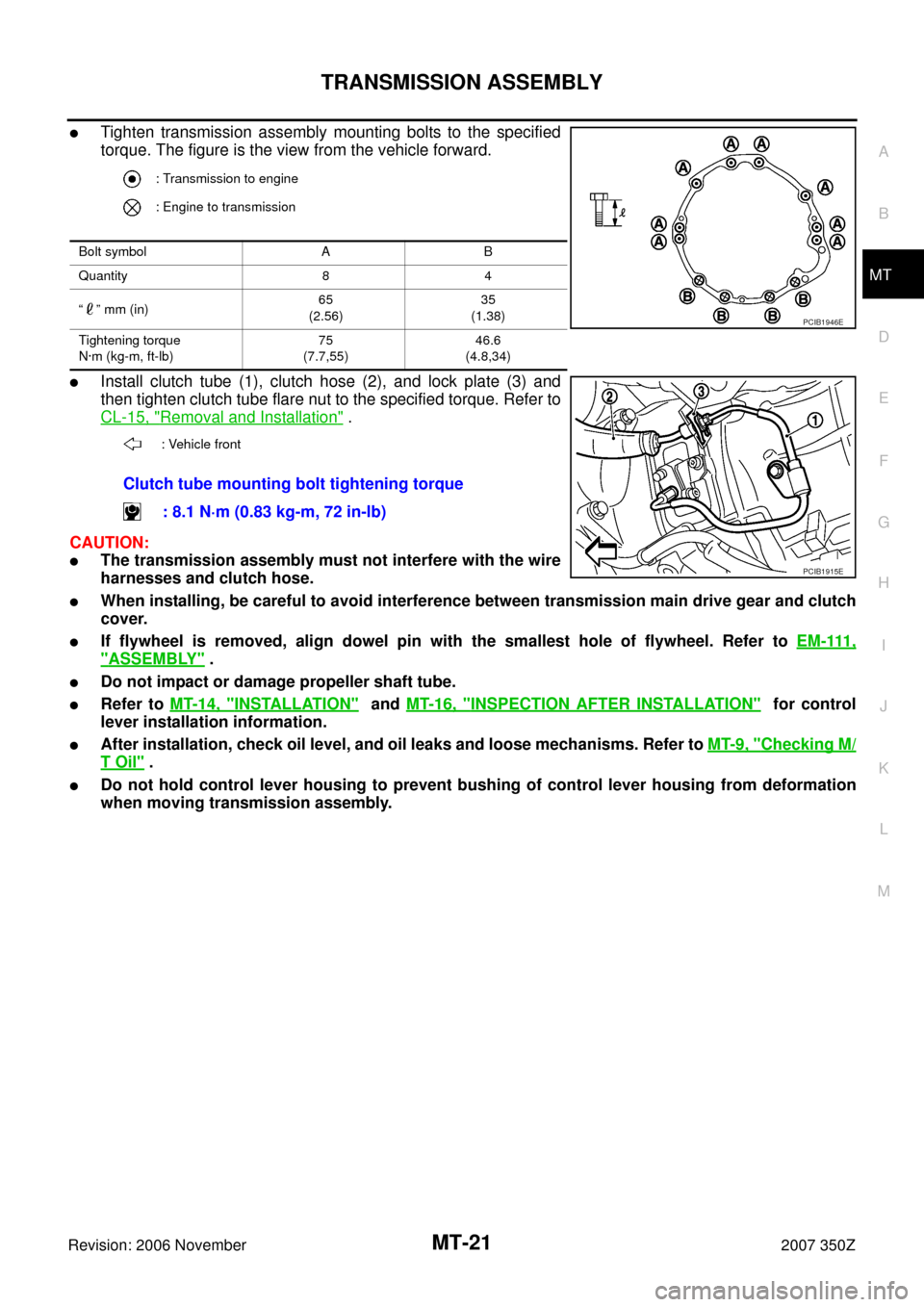

Tighten transmission assembly mounting bolts to the specified
torque. The figure is the view from the vehicle fo

Page 22 of 62

NISSAN 350Z 2007 Z33 Manual Transmission Owners Manual MT-22
TRANSMISSION ASSEMBLY
Revision: 2006 November2007 350Z
Disassembly and AssemblyNCS00011
COMPONENTS

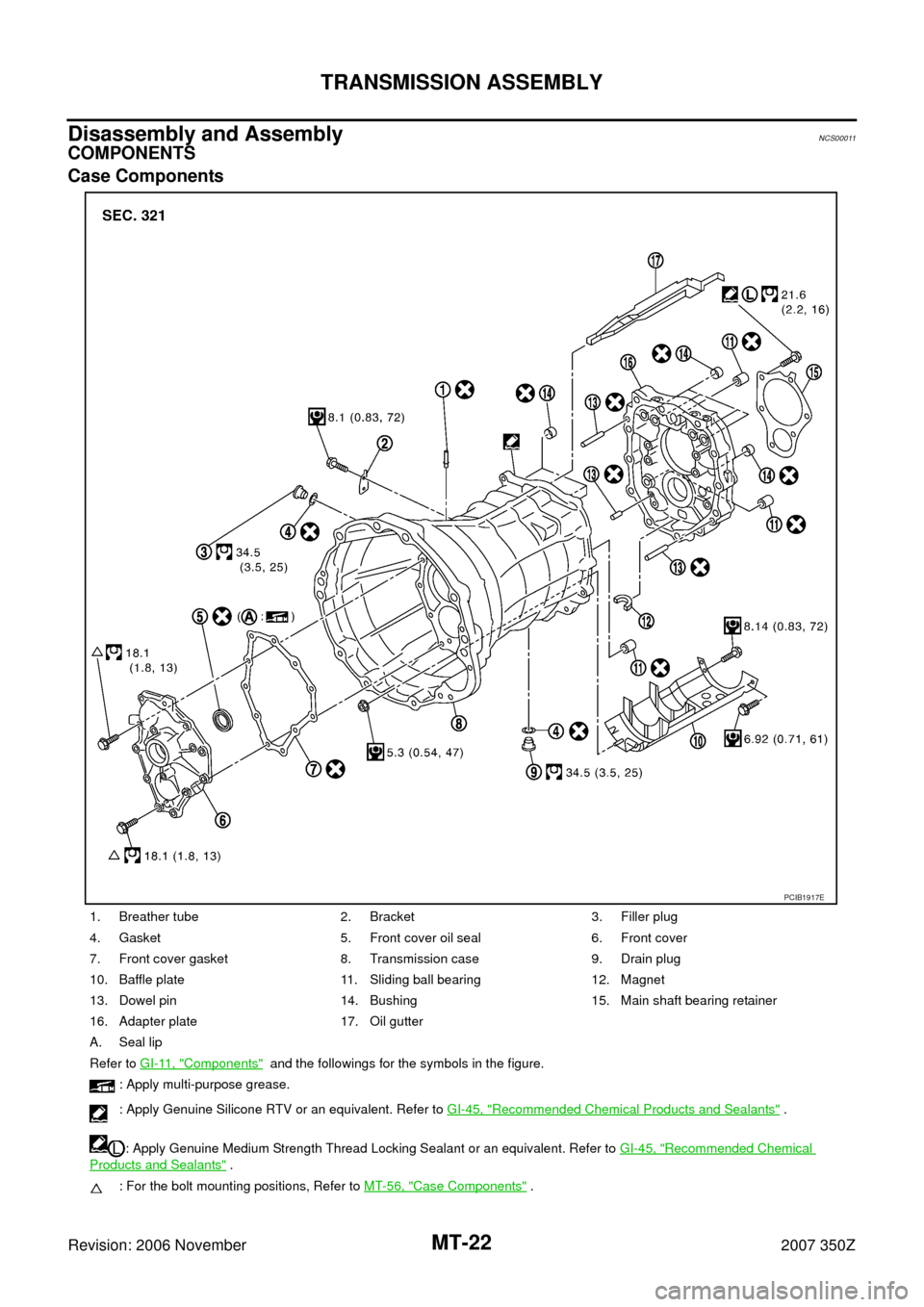

Case Components
1. Breather tube 2. Bracket 3. Filler plug
4. Gasket 5. Front cover oil seal 6.

Page 23 of 62

NISSAN 350Z 2007 Z33 Manual Transmission Owners Manual TRANSMISSION ASSEMBLY
MT-23
D
E
F
G
H
I
J
K
L
MA
B
MT
Revision: 2006 November2007 350Z

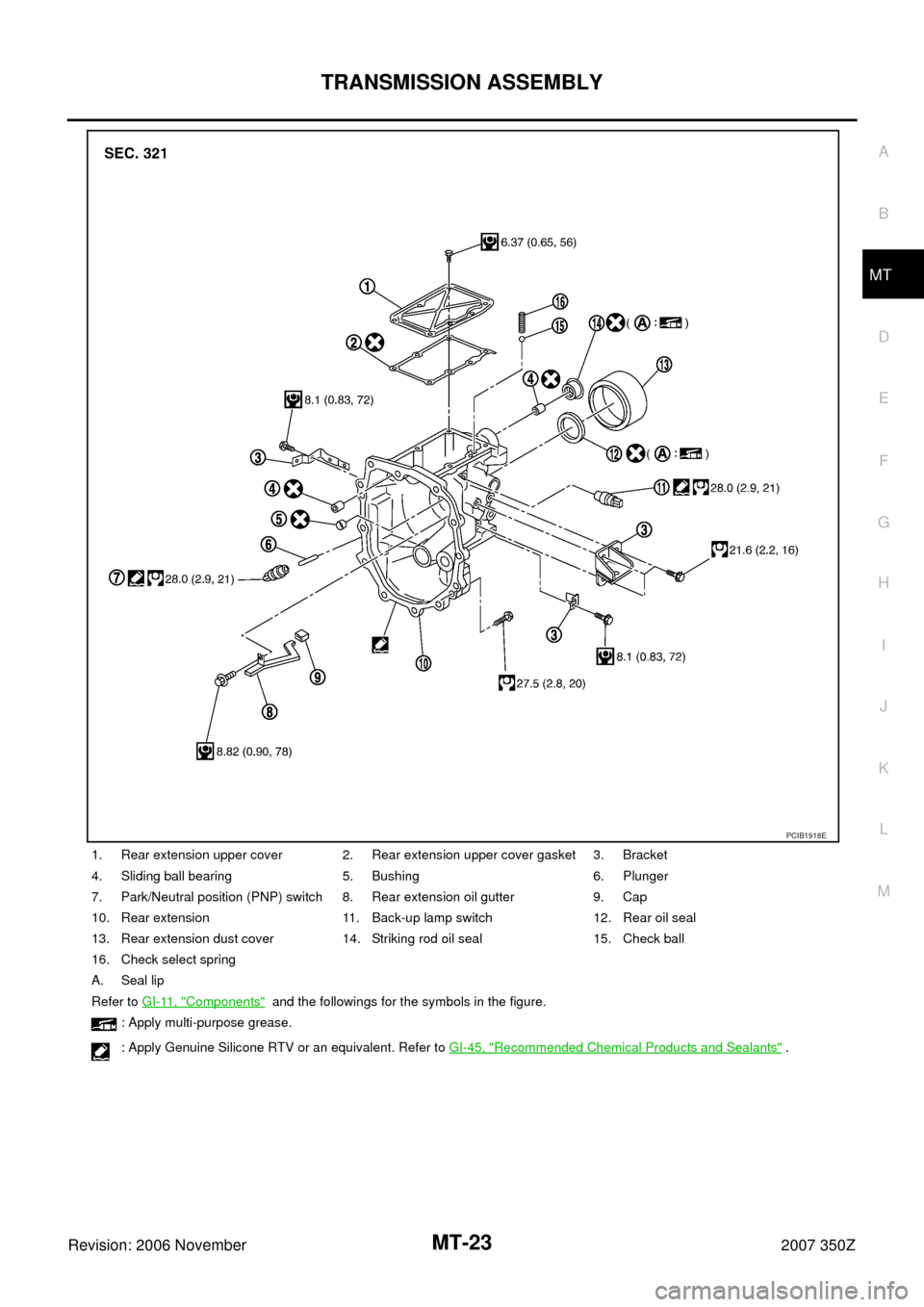

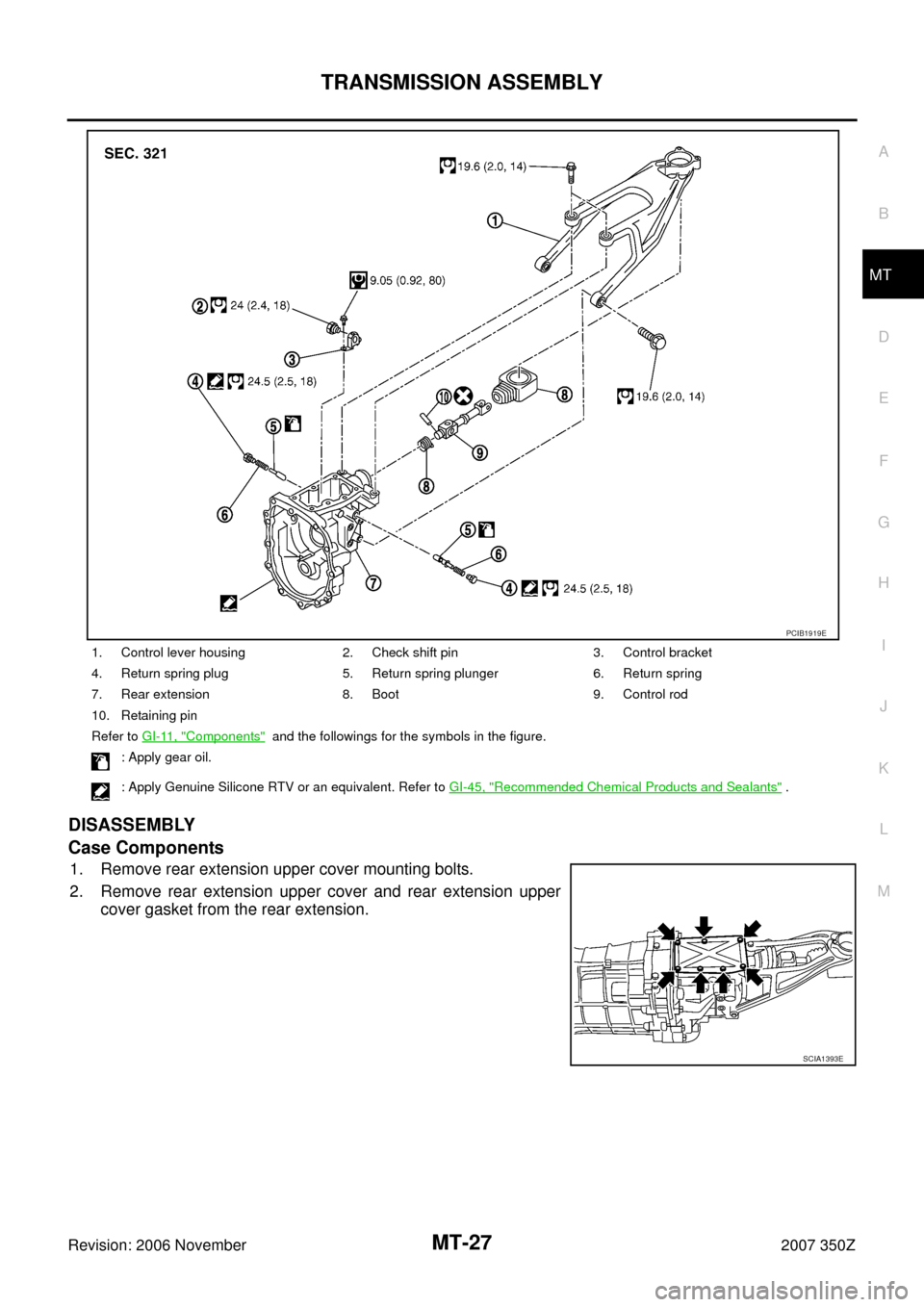

1. Rear extension upper cover 2. Rear extension upper cover gasket 3. Bracket
4. Sliding ball bearing 5. Bushing

Page 24 of 62

NISSAN 350Z 2007 Z33 Manual Transmission Owners Manual MT-24
TRANSMISSION ASSEMBLY
Revision: 2006 November2007 350Z

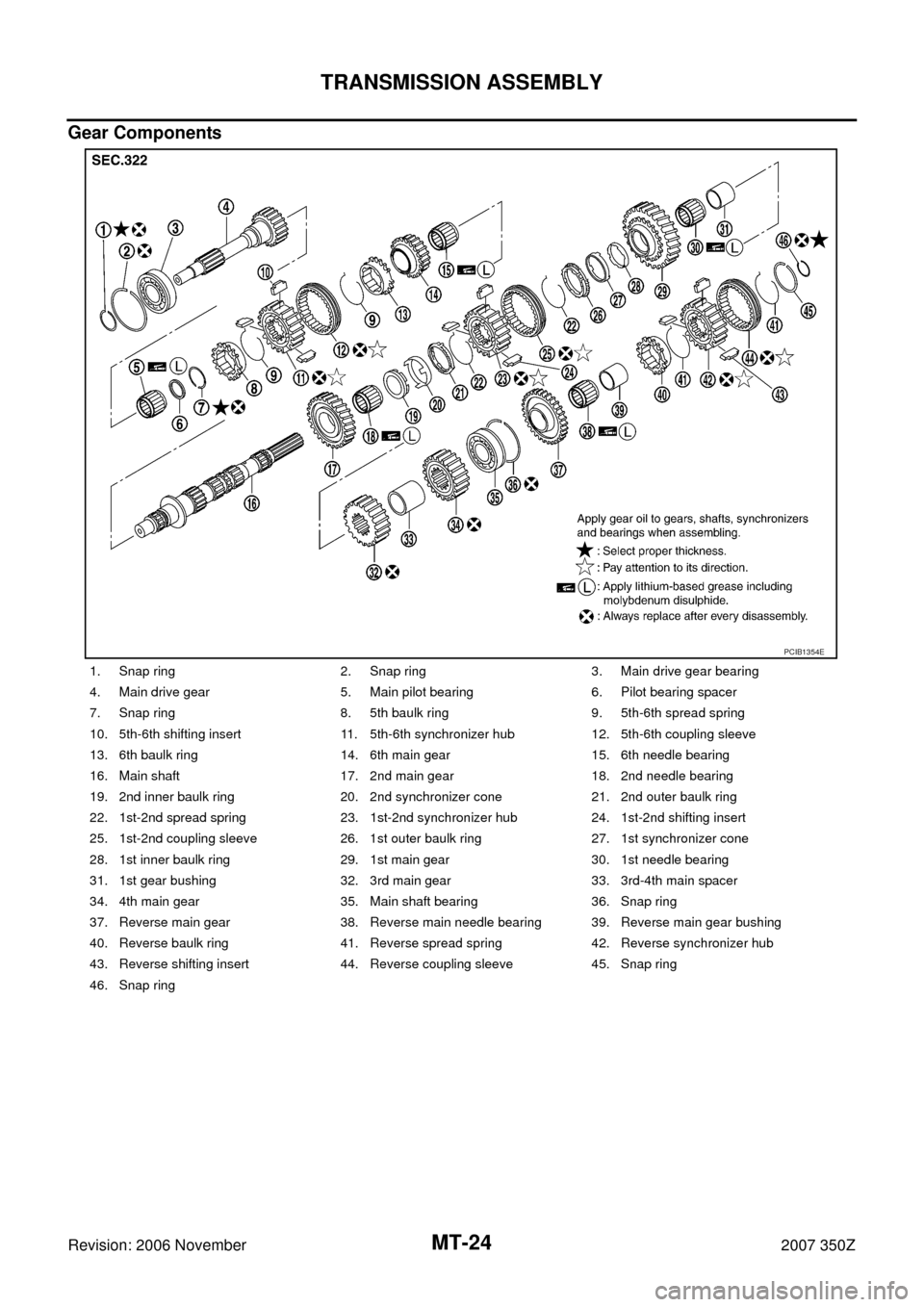

Gear Components
1. Snap ring 2. Snap ring 3. Main drive gear bearing
4. Main drive gear  5. Main pilot bearing 6. Pilot bearing spacer
7. S

Page 25 of 62

NISSAN 350Z 2007 Z33 Manual Transmission Owners Manual TRANSMISSION ASSEMBLY
MT-25
D
E
F
G
H
I
J
K
L
MA
B
MT
Revision: 2006 November2007 350Z

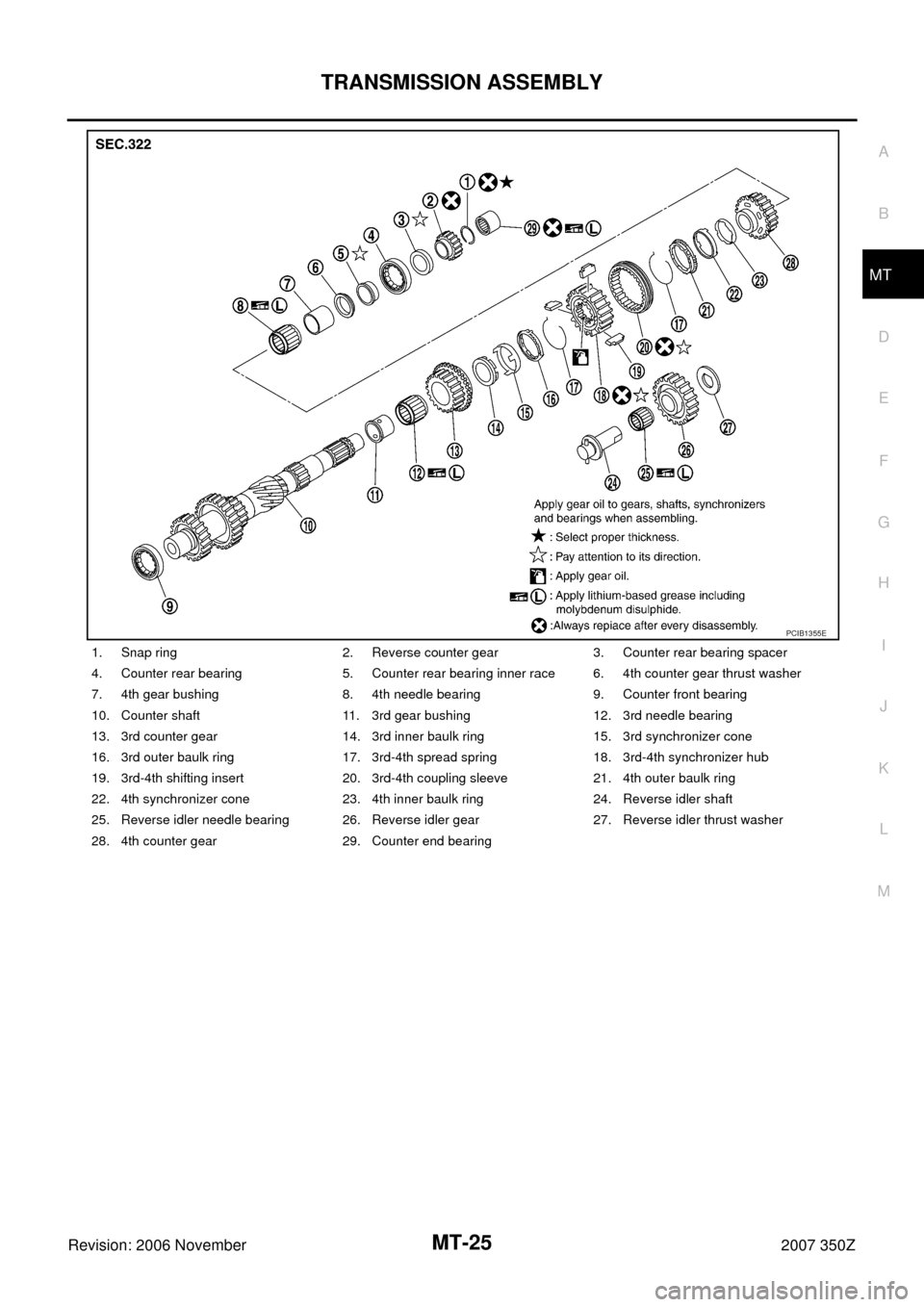

1. Snap ring 2. Reverse counter gear 3. Counter rear bearing spacer
4. Counter rear bearing  5. Counter rear bear

Page 26 of 62

NISSAN 350Z 2007 Z33 Manual Transmission Owners Manual MT-26
TRANSMISSION ASSEMBLY
Revision: 2006 November2007 350Z

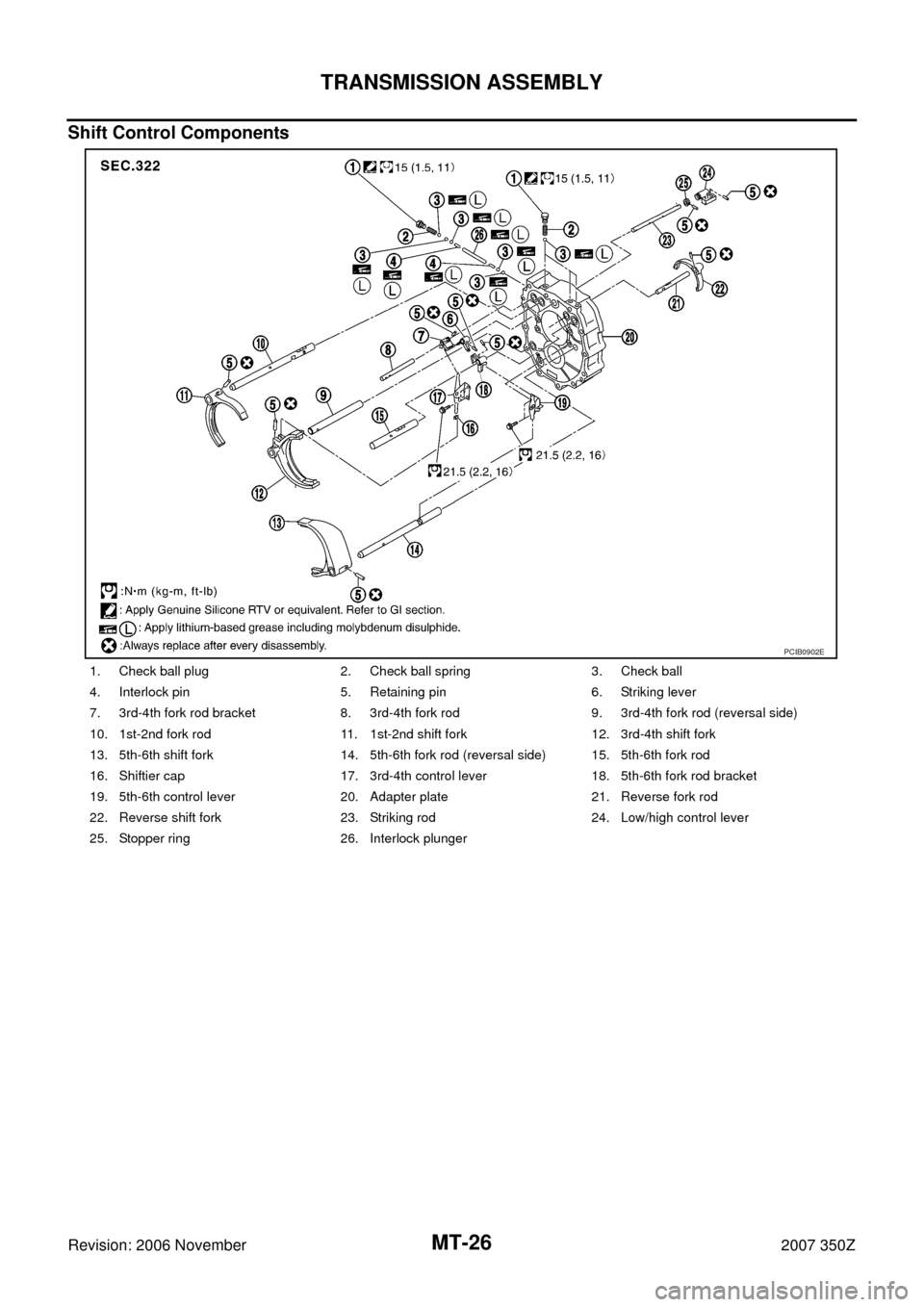

Shift Control Components
1. Check ball plug 2. Check ball spring 3. Check ball
4. Interlock pin 5. Retaining pin 6. Striking lever
7. 3rd-4

Page 27 of 62

NISSAN 350Z 2007 Z33 Manual Transmission Owners Manual TRANSMISSION ASSEMBLY
MT-27
D
E
F
G
H
I
J
K
L
MA
B
MT
Revision: 2006 November2007 350Z
DISASSEMBLY
Case Components
1. Remove rear extension upper cover mounting bolts.
2. Remove rear extension upper c

Page 28 of 62

NISSAN 350Z 2007 Z33 Manual Transmission Owners Manual MT-28
TRANSMISSION ASSEMBLY
Revision: 2006 November2007 350Z
3. Remove check select spring and check ball from the rear exten-
sion.
4. Remove retaining pin using a pin punch, and remove control
rod.

Page 29 of 62

NISSAN 350Z 2007 Z33 Manual Transmission Owners Manual TRANSMISSION ASSEMBLY
MT-29
D
E
F
G
H
I
J
K
L
MA
B
MT
Revision: 2006 November2007 350Z

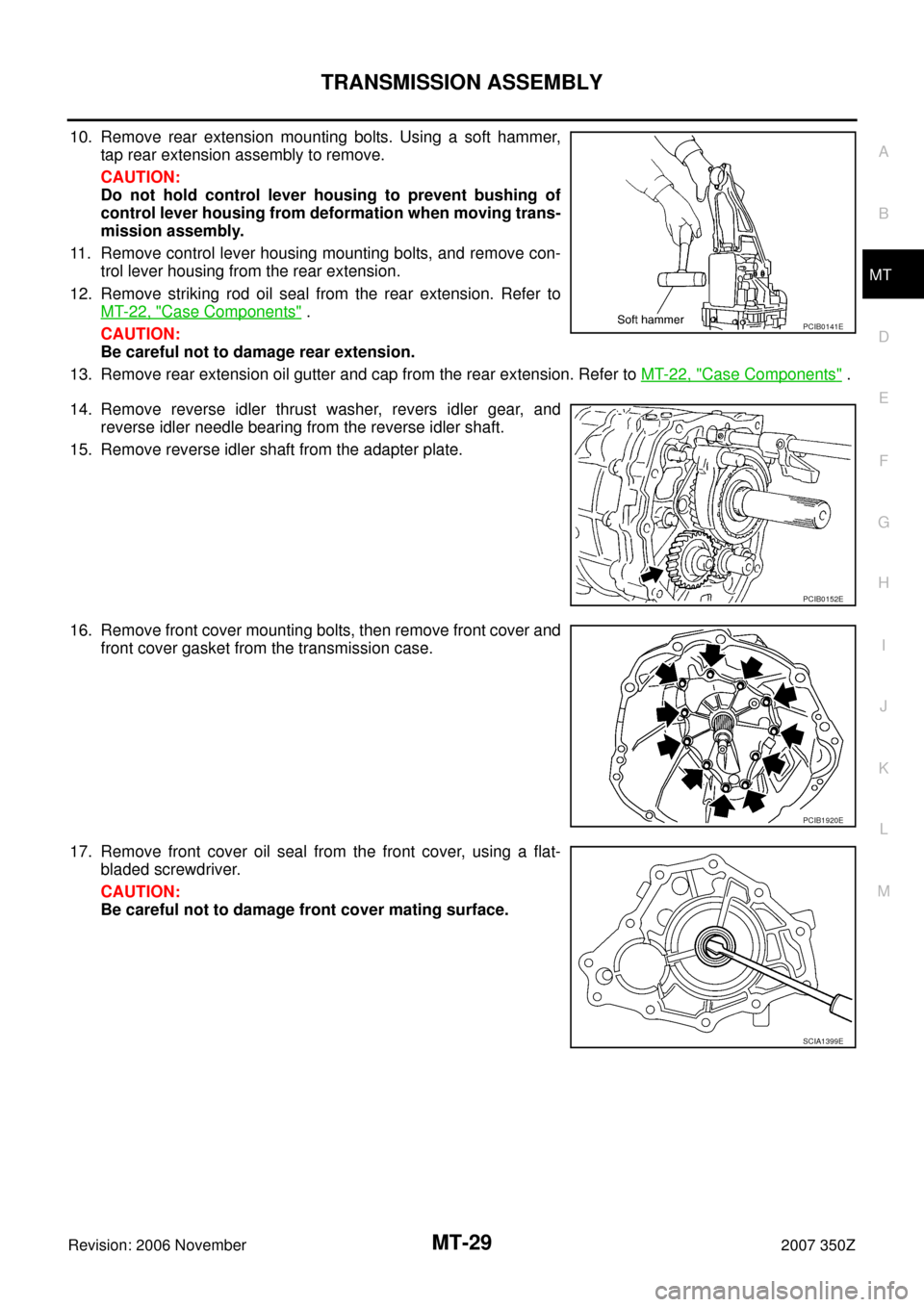

10. Remove rear extension mounting bolts. Using a soft hammer,
tap rear extension assembly to remove.
CAUTION:
Do

Page 30 of 62

NISSAN 350Z 2007 Z33 Manual Transmission Owners Manual MT-30
TRANSMISSION ASSEMBLY
Revision: 2006 November2007 350Z
18. Remove baffle plate mounting nut from the transmission case.
19. Remove snap ring from the main drive gear bearing, using snap
ring pli
