NISSAN 350Z 2007 Z33 Manual Transmission User Guide POSITION SWITCH
MT-11
D
E
F
G
H
I
J
K
L
MA
B
MT
Revision: 2006 November2007 350Z
POSITION SWITCHPFP:32005
CheckingNCS0000W
COMPONENT LOCATION
BACK-UP LAMP SWITCH
Check continuity.
PARK/NEUTRAL POSITI

Page 12 of 62

NISSAN 350Z 2007 Z33 Manual Transmission User Guide MT-12
SHIFT CONTROL
Revision: 2006 November2007 350Z
SHIFT CONTROLPFP:34103
Removal and InstallationNCS0000X

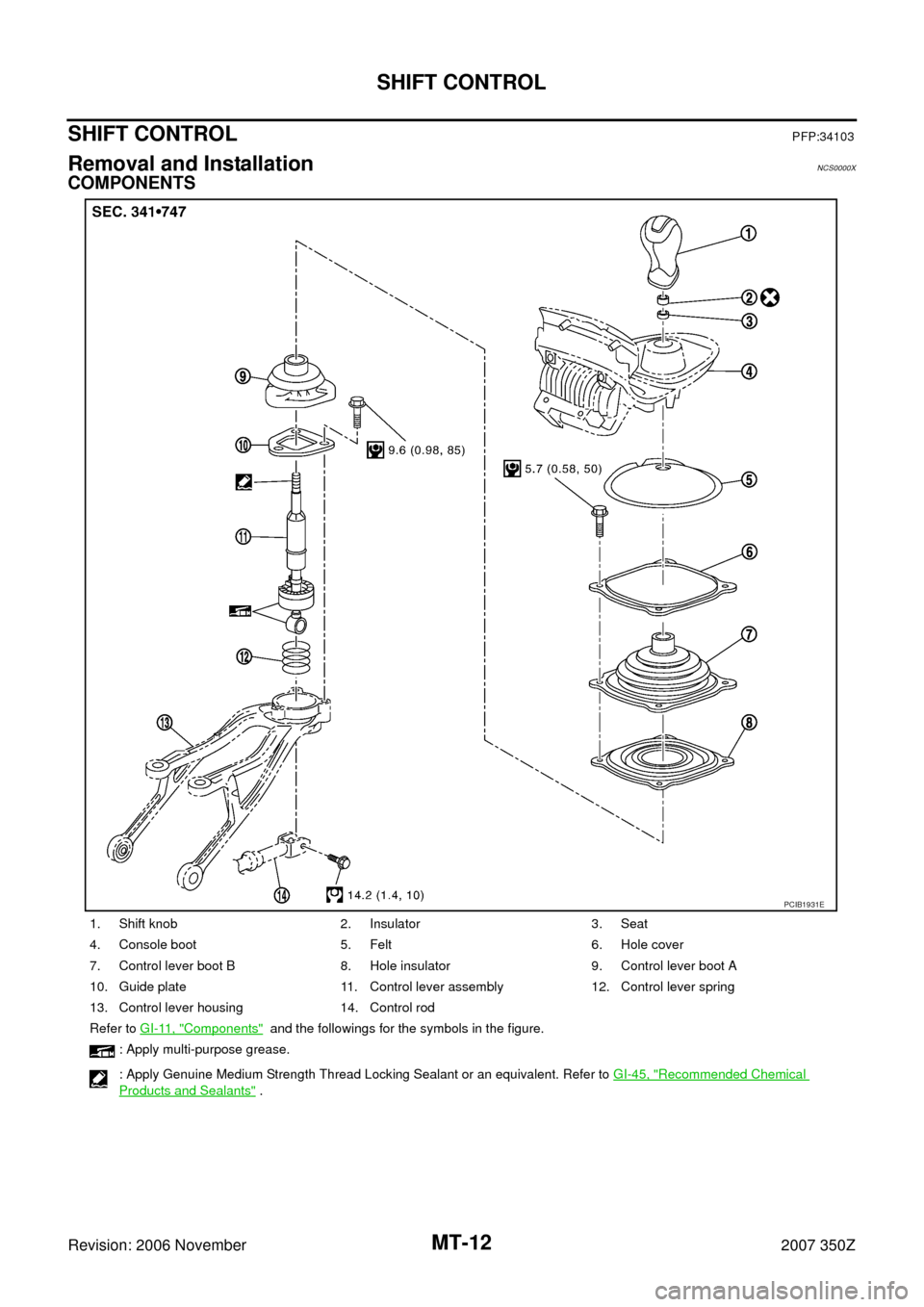

COMPONENTS
1. Shift knob 2. Insulator 3. Seat
4. Console boot 5. Felt 6. Hole cover
7. Cont

Page 13 of 62

NISSAN 350Z 2007 Z33 Manual Transmission User Guide SHIFT CONTROL
MT-13
D
E
F
G
H
I
J
K
L
MA
B
MT
Revision: 2006 November2007 350Z
REMOVAL
1. Remove the shift knob with the following procedure.
a. Release metal clips on console boot from center console

Page 14 of 62

NISSAN 350Z 2007 Z33 Manual Transmission User Guide MT-14
SHIFT CONTROL
Revision: 2006 November2007 350Z
6. Release the boot, remove control rod mounting bolt, and sepa-
rate control lever and control rod.
7. Remove the hole cover mounting bolts and th

Page 15 of 62

NISSAN 350Z 2007 Z33 Manual Transmission User Guide SHIFT CONTROL
MT-15
D
E
F
G
H
I
J
K
L
MA
B
MT
Revision: 2006 November2007 350Z
4. After shifting control lever assembly into 6th gear, push it toward
reverse gear (to the right) until it comes to a st

Page 16 of 62

NISSAN 350Z 2007 Z33 Manual Transmission User Guide MT-16
SHIFT CONTROL
Revision: 2006 November2007 350Z
CAUTION:
Remove the remaining adhesive on control lever and shift knob threads.
17. Put the shift knob in the correct position as the following ind

Page 17 of 62

NISSAN 350Z 2007 Z33 Manual Transmission User Guide AIR BREATHER HOSE
MT-17
D
E
F
G
H
I
J
K
L
MA
B
MT
Revision: 2006 November2007 350Z
AIR BREATHER HOSEPFP:31098
Removal and InstallationNCS0000Y

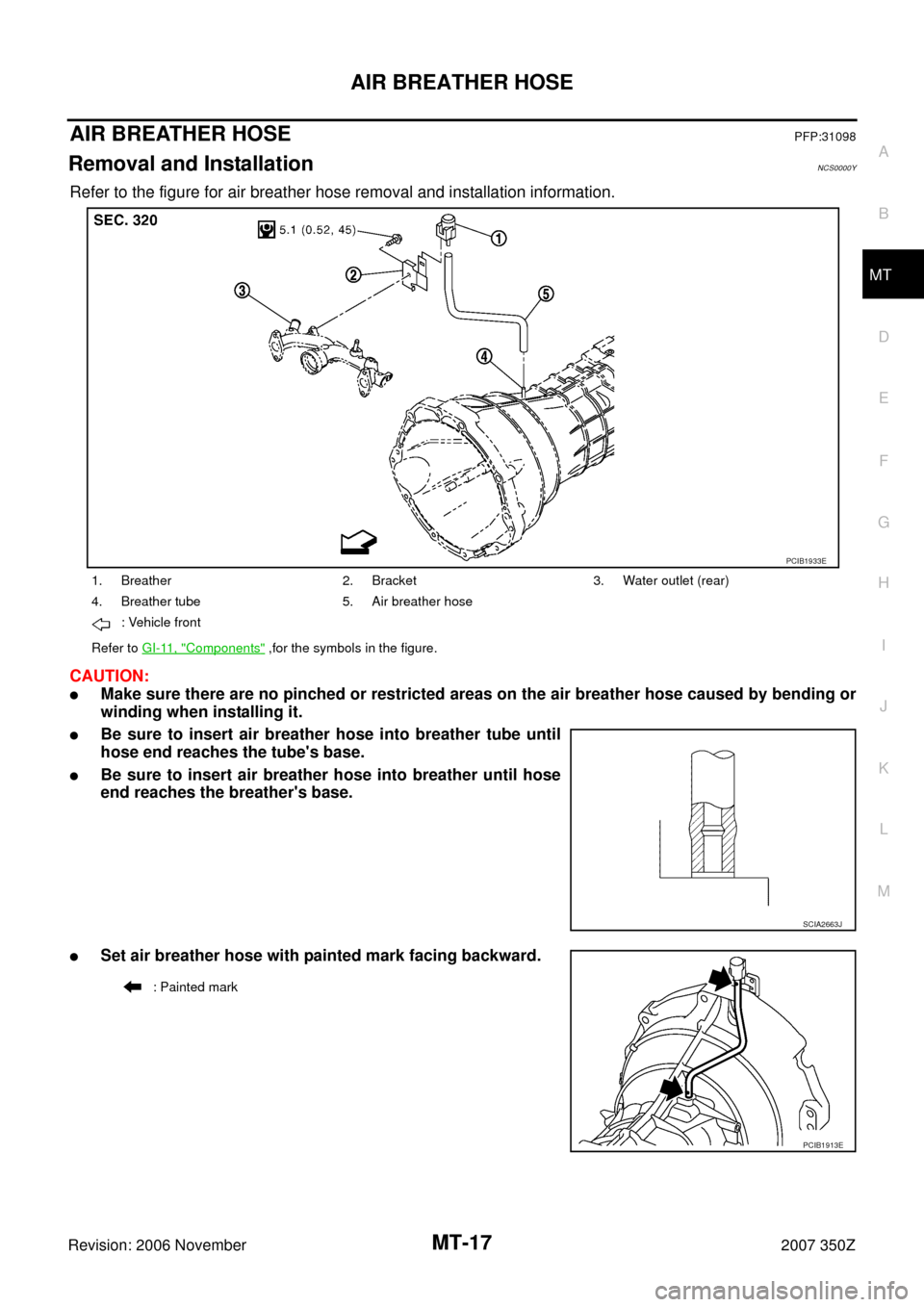

Refer to the figure for air breather hose removal and ins

Page 18 of 62

NISSAN 350Z 2007 Z33 Manual Transmission User Guide MT-18
TRANSMISSION ASSEMBLY
Revision: 2006 November2007 350Z
TRANSMISSION ASSEMBLYPFP:32010
Removal and InstallationNCS0000Z
CAUTION:

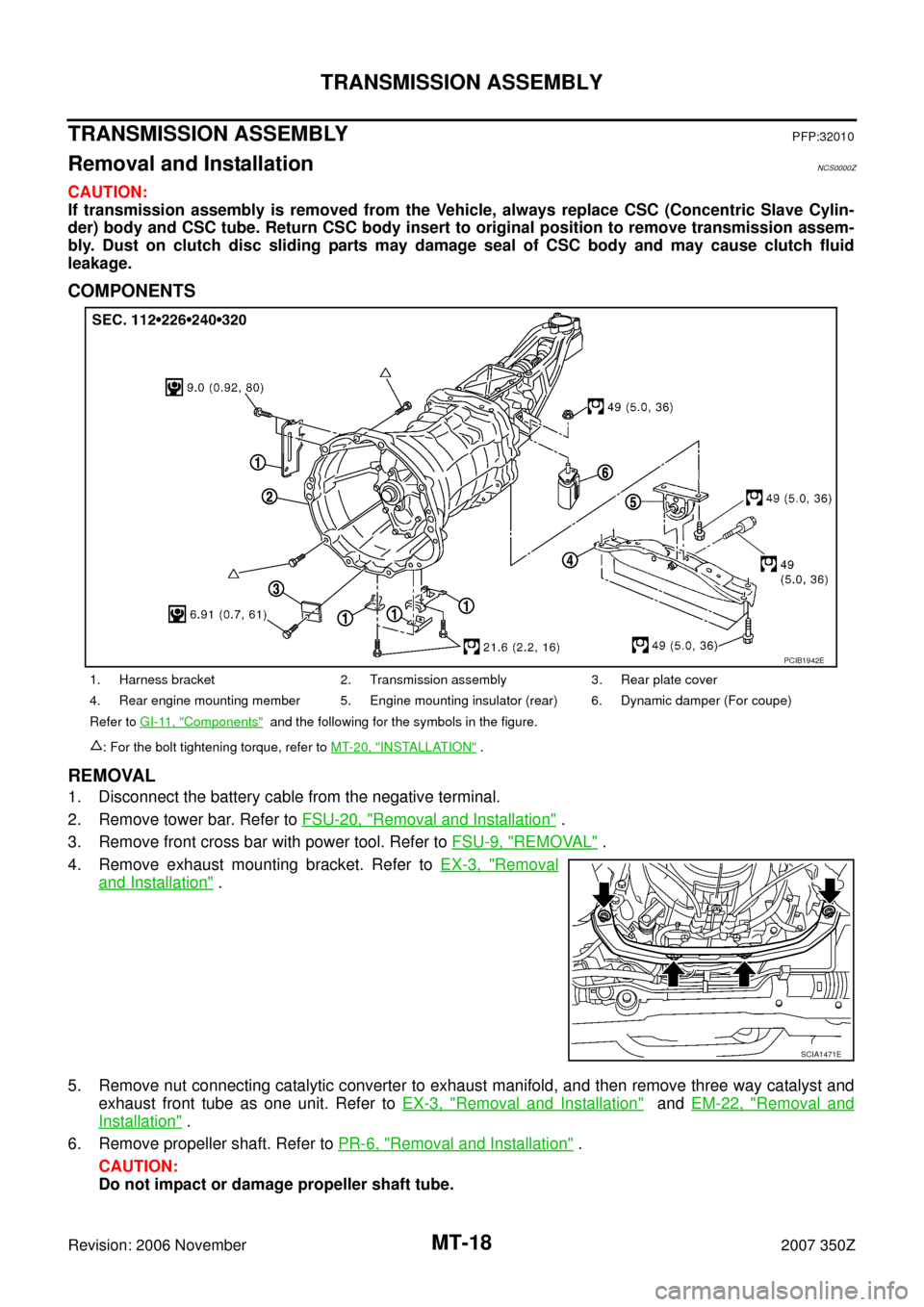

If transmission assembly is removed from the Vehicle, always repla

Page 19 of 62

NISSAN 350Z 2007 Z33 Manual Transmission User Guide TRANSMISSION ASSEMBLY
MT-19
D
E
F
G
H
I
J
K
L
MA
B
MT
Revision: 2006 November2007 350Z
7. Remove control rod mounting bolt and then separate control
lever assembly from the control rod.
8. Using a sui

Page 20 of 62

NISSAN 350Z 2007 Z33 Manual Transmission User Guide MT-20
TRANSMISSION ASSEMBLY
Revision: 2006 November2007 350Z

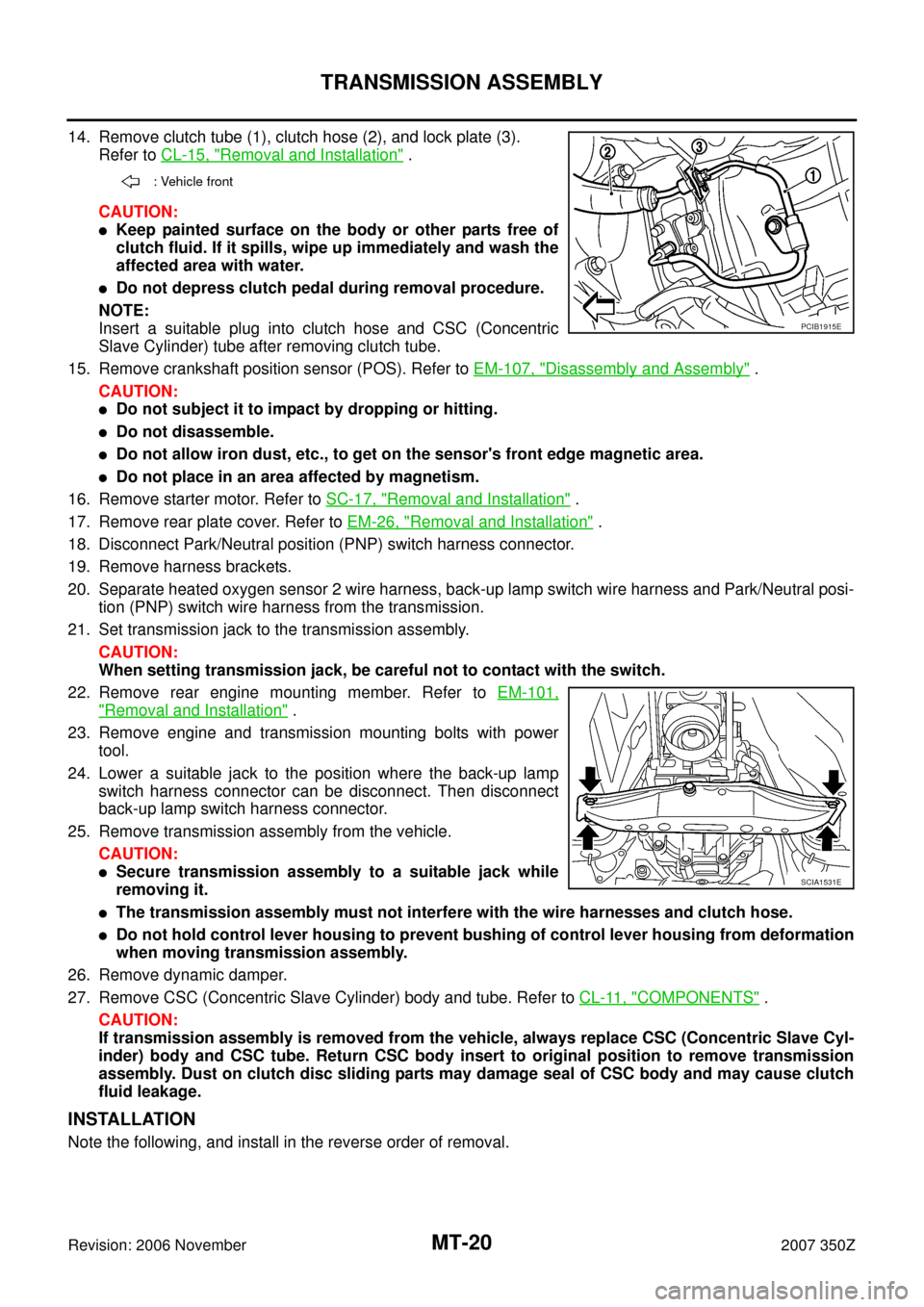

14. Remove clutch tube (1), clutch hose (2), and lock plate (3).
Refer to CL-15, "
Removal and Installation" .
CAUTION:
Keep painted surfa
