NISSAN 370Z COUPE 2015 Z34 Owners Manual
Manufacturer: NISSAN, Model Year: 2015, Model line: 370Z COUPE, Model: NISSAN 370Z COUPE 2015 Z34Pages: 419, PDF Size: 3.71 MB
Page 201 of 419
> ( G L W 0 R G H O = ' @

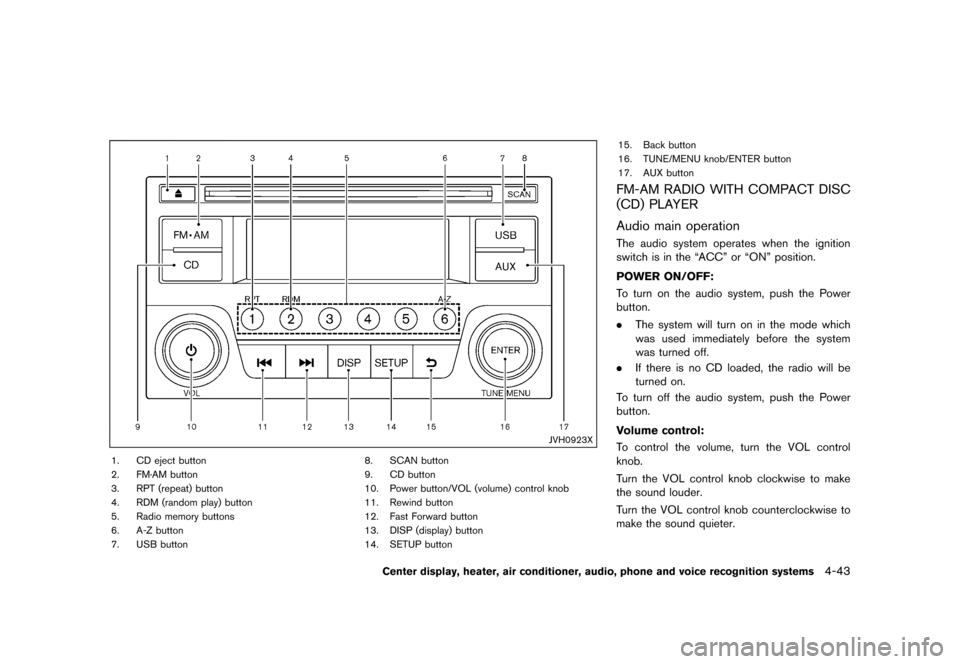

JVH0923X
1. CD eject button
2. FM´AM button
3. RPT (repeat) button
4. RDM (random play) button
5. Radio memory buttons
6. A-Z button
7. USB button8. SCAN button
9. CD button
10. Power button/VOL (volume) control knob
11. Rewind button
12. Fast Forward button
13. DISP (display) button
14. SETUP button15. Back button
16. TUNE/MENU knob/ENTER button
17. AUX button
FM-AM RADIO WITH COMPACT DISC
(CD) PLAYER
GUID-98B6ECD1-BC77-455E-9DFE-8E9AC08AA360
Audio main operationGUID-75409276-A7E4-47DA-9784-54B1AC9196BCThe audio system operates when the ignition
switch is in the ªACCº or ªONº position.
POWER ON/OFF:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To turn on the audio system, push the Power
button.
.
The system will turn on in the mode which
was used immediately before the system
was turned off.
. If there is no CD loaded, the radio will be
turned on.
To turn off the audio system, push the Power
button.
Volume control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To control the volume, turn the VOL control
knob.
Turn the VOL control knob clockwise to make
the sound louder.
Turn the VOL control knob counterclockwise to
make the sound quieter.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-43
& R Q G L W L R Q
Page 202 of 419
> ( G L W 0 R G H O = ' @
4-44Center display, heater, air conditioner, audio, phone and voice recognition systems

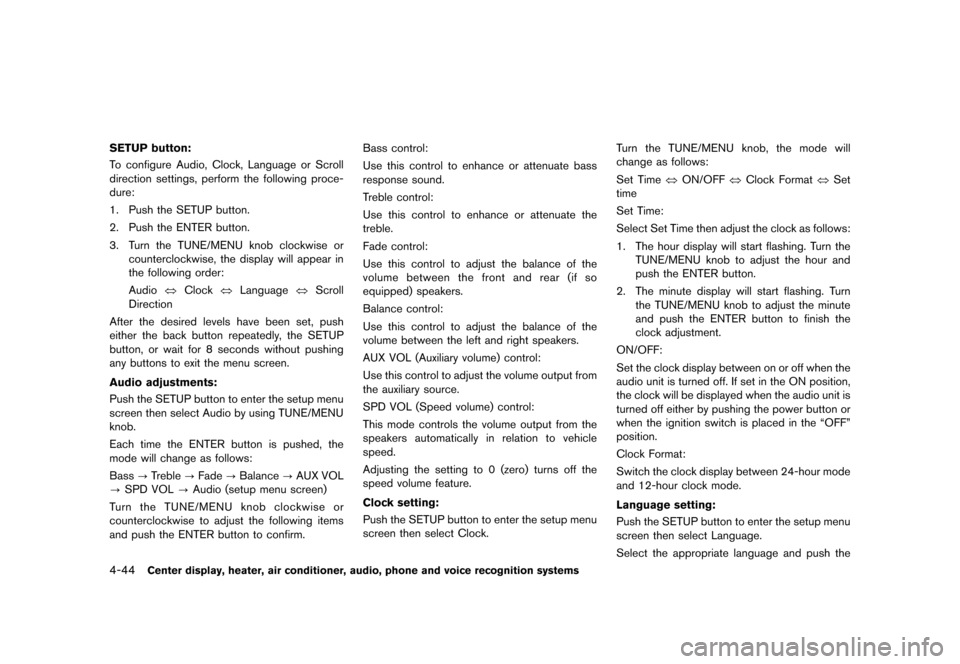

SETUP button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To configure Audio, Clock, Language or Scroll
direction settings, perform the following proce-
dure:
1. Push the SETUP button.
2. Push the ENTER button.
3. Turn the TUNE/MENU knob clockwise orcounterclockwise, the display will appear in
the following order:
Audio ÛClock ÛLanguage ÛScroll
Direction
After the desired levels have been set, push
either the back button repeatedly, the SETUP
button, or wait for 8 seconds without pushing
any buttons to exit the menu screen.
Audio adjustments:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the SETUP button to enter the setup menu
screen then select Audio by using TUNE/MENU
knob.
Each time the ENTER button is pushed, the
mode will change as follows:
Bass ?Treble ?Fade ?Balance ?AUX VOL
? SPD VOL ?Audio (setup menu screen)
Turn the TUNE/MENU knob clockwise or
counterclockwise to adjust the following items
and push the ENTER button to confirm. Bass control:
Use this control to enhance or attenuate bass
response sound.
Treble control:
Use this control to enhance or attenuate the
treble.
Fade control:
Use this control to adjust the balance of the
volume between the front and rear (if so
equipped) speakers.
Balance control:
Use this control to adjust the balance of the
volume between the left and right speakers.
AUX VOL (Auxiliary volume) control:
Use this control to adjust the volume output from
the auxiliary source.
SPD VOL (Speed volume) control:
This mode controls the volume output from the
speakers automatically in relation to vehicle
speed.
Adjusting the setting to 0 (zero) turns off the
speed volume feature.
Clock setting:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the SETUP button to enter the setup menu
screen then select Clock.
Turn the TUNE/MENU knob, the mode will
change as follows:
Set Time
ÛON/OFF ÛClock Format ÛSet
time
Set Time:
Select Set Time then adjust the clock as follows:
1. The hour display will start flashing. Turn the TUNE/MENU knob to adjust the hour and
push the ENTER button.
2. The minute display will start flashing. Turn the TUNE/MENU knob to adjust the minute
and push the ENTER button to finish the
clock adjustment.
ON/OFF:
Set the clock display between on or off when the
audio unit is turned off. If set in the ON position,
the clock will be displayed when the audio unit is
turned off either by pushing the power button or
when the ignition switch is placed in the ªOFFº
position.
Clock Format:
Switch the clock display between 24-hour mode
and 12-hour clock mode.
Language setting:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the SETUP button to enter the setup menu
screen then select Language.
Select the appropriate language and push the
& R Q G L W L R Q
Page 203 of 419
> ( G L W 0 R G H O = ' @

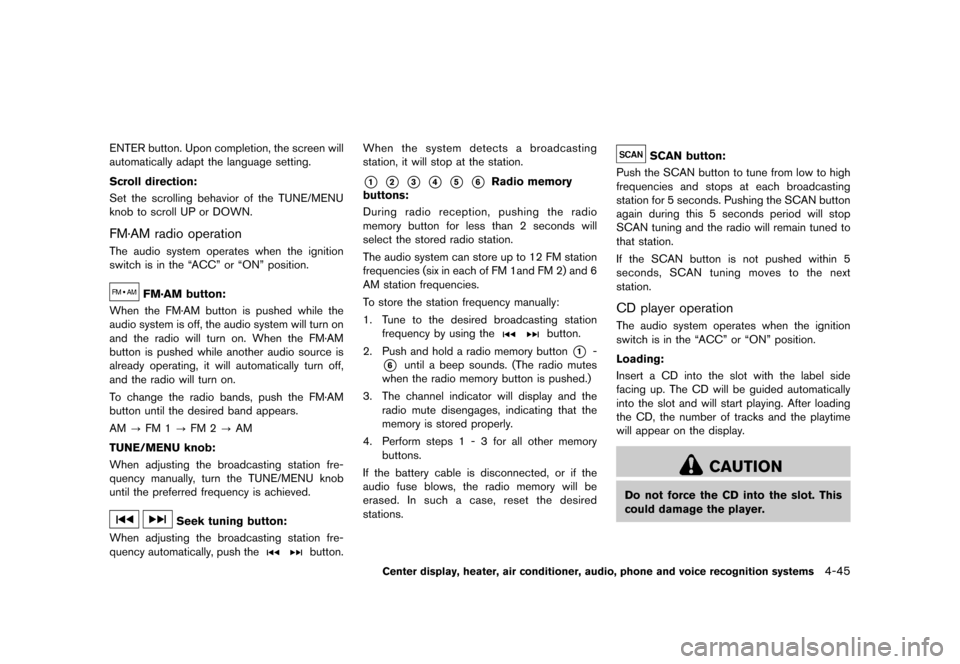

ENTER button. Upon completion, the screen will
automatically adapt the language setting.
Scroll direction:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Set the scrolling behavior of the TUNE/MENU
knob to scroll UP or DOWN.
FM´AM radio operationGUID-7EA9795F-CE29-43A2-A44D-071AE79243ABThe audio system operates when the ignition
switch is in the ªACCº or ªONº position.
FM´AM button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the FM´AM button is pushed while the
audio system is off, the audio system will turn on
and the radio will turn on. When the FM´AM
button is pushed while another audio source is
already operating, it will automatically turn off,
and the radio will turn on.
To change the radio bands, push the FM´AM
button until the desired band appears.
AM?FM 1 ?FM 2 ?AM
TUNE/MENU knob:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When adjusting the broadcasting station fre-
quency manually, turn the TUNE/MENU knob
until the preferred frequency is achieved.
Seek tuning button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When adjusting the broadcasting station fre-
quency automatically, push the
button. When the system detects a broadcasting
station, it will stop at the station.
*1*2*3*4*5*6Radio memory
buttons:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407During radio reception, pushing the radio
memory button for less than 2 seconds will
select the stored radio station.
The audio system can store up to 12 FM station
frequencies (six in each of FM 1and FM 2) and 6
AM station frequencies.
To store the station frequency manually:
1. Tune to the desired broadcasting station frequency by using the
button.
2. Push and hold a radio memory button
*1-
*6until a beep sounds. (The radio mutes
when the radio memory button is pushed.)
3. The channel indicator will display and the radio mute disengages, indicating that the
memory is stored properly.
4. Perform steps 1 - 3 for all other memory buttons.
If the battery cable is disconnected, or if the
audio fuse blows, the radio memory will be
erased. In such a case, reset the desired
stations.
SCAN button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the SCAN button to tune from low to high
frequencies and stops at each broadcasting
station for 5 seconds. Pushing the SCAN button
again during this 5 seconds period will stop
SCAN tuning and the radio will remain tuned to
that station.
If the SCAN button is not pushed within 5
seconds, SCAN tuning moves to the next
station.
CD player operationGUID-10447F92-9D65-4655-AF8E-320F2AB55E6DThe audio system operates when the ignition
switch is in the ªACCº or ªONº position.
Loading:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Insert a CD into the slot with the label side
facing up. The CD will be guided automatically
into the slot and will start playing. After loading
the CD, the number of tracks and the playtime
will appear on the display.
CAUTION
Do not force the CD into the slot. This
could damage the player.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-45
& R Q G L W L R Q
Page 204 of 419
> ( G L W 0 R G H O = ' @
4-46Center display, heater, air conditioner, audio, phone and voice recognition systems

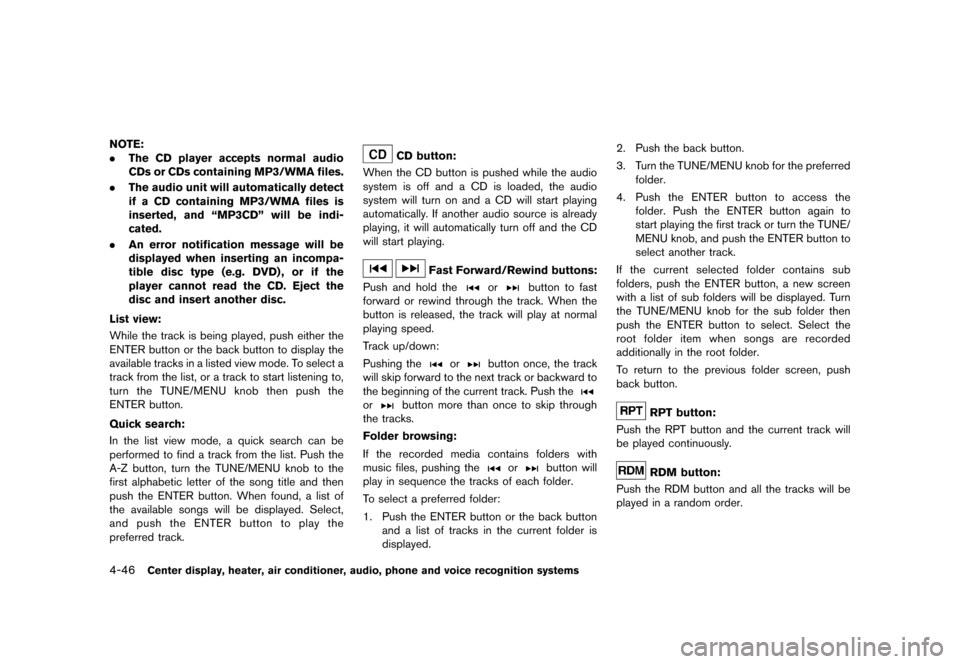

NOTE:
.The CD player accepts normal audio
CDs or CDs containing MP3/WMA files.
. The audio unit will automatically detect
if a CD containing MP3/WMA files is
inserted, and ªMP3CDº will be indi-
cated.
. An error notification message will be
displayed when inserting an incompa-
tible disc type (e.g. DVD) , or if the
player cannot read the CD. Eject the
disc and insert another disc.
List view:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407While the track is being played, push either the
ENTER button or the back button to display the
available tracks in a listed view mode. To select a
track from the list, or a track to start listening to,
turn the TUNE/MENU knob then push the
ENTER button.
Quick search:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407In the list view mode, a quick search can be
performed to find a track from the list. Push the
A-Z button, turn the TUNE/MENU knob to the
first alphabetic letter of the song title and then
push the ENTER button. When found, a list of
the available songs will be displayed. Select,
and push the ENTER button to play the
preferred track.
CD button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the CD button is pushed while the audio
system is off and a CD is loaded, the audio
system will turn on and a CD will start playing
automatically. If another audio source is already
playing, it will automatically turn off and the CD
will start playing.
Fast Forward/Rewind buttons:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push and hold theorbutton to fast
forward or rewind through the track. When the
button is released, the track will play at normal
playing speed.
Track up/down:
Pushing the
orbutton once, the track
will skip forward to the next track or backward to
the beginning of the current track. Push the
orbutton more than once to skip through
the tracks.
Folder browsing:
If the recorded media contains folders with
music files, pushing the
orbutton will
play in sequence the tracks of each folder.
To select a preferred folder:
1. Push the ENTER button or the back button
and a list of tracks in the current folder is
displayed. 2. Push the back button.
3. Turn the TUNE/MENU knob for the preferred
folder.
4. Push the ENTER button to access the
folder. Push the ENTER button again to
start playing the first track or turn the TUNE/
MENU knob, and push the ENTER button to
select another track.
If the current selected folder contains sub
folders, push the ENTER button, a new screen
with a list of sub folders will be displayed. Turn
the TUNE/MENU knob for the sub folder then
push the ENTER button to select. Select the
root folder item when songs are recorded
additionally in the root folder.
To return to the previous folder screen, push
back button.
RPT button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the RPT button and the current track will
be played continuously.
RDM button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the RDM button and all the tracks will be
played in a random order.
& R Q G L W L R Q
Page 205 of 419
> ( G L W 0 R G H O = ' @

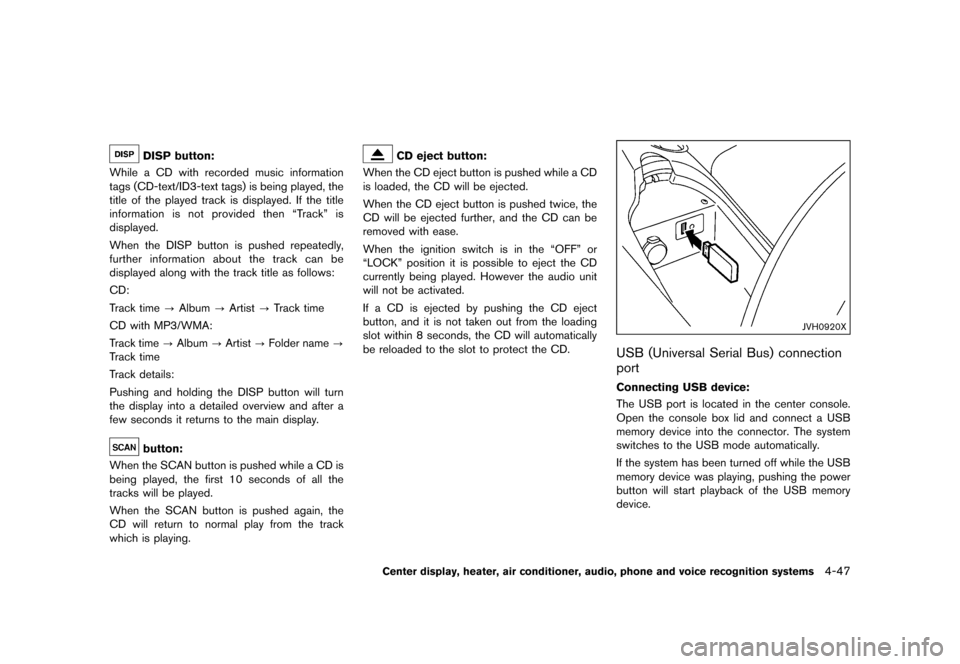

DISP button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407While a CD with recorded music information
tags (CD-text/ID3-text tags) is being played, the
title of the played track is displayed. If the title
information is not provided then ªTrackº is
displayed.
When the DISP button is pushed repeatedly,
further information about the track can be
displayed along with the track title as follows:
CD:
Track time?Album ?Artist ?Track time
CD with MP3/WMA:
Track time ?Album ?Artist ?Folder name ?
Track time
Track details:
Pushing and holding the DISP button will turn
the display into a detailed overview and after a
few seconds it returns to the main display.
button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the SCAN button is pushed while a CD is
being played, the first 10 seconds of all the
tracks will be played.
When the SCAN button is pushed again, the
CD will return to normal play from the track
which is playing.
CD eject button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the CD eject button is pushed while a CD
is loaded, the CD will be ejected.
When the CD eject button is pushed twice, the
CD will be ejected further, and the CD can be
removed with ease.
When the ignition switch is in the ªOFFº or
ªLOCKº position it is possible to eject the CD
currently being played. However the audio unit
will not be activated.
If a CD is ejected by pushing the CD eject
button, and it is not taken out from the loading
slot within 8 seconds, the CD will automatically
be reloaded to the slot to protect the CD.
JVH0920X
USB (Universal Serial Bus) connection
port
GUID-6DA703D4-5955-4D5B-9A97-E1E356D3384B
Connecting USB device:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The USB port is located in the center console.
Open the console box lid and connect a USB
memory device into the connector. The system
switches to the USB mode automatically.
If the system has been turned off while the USB
memory device was playing, pushing the power
button will start playback of the USB memory
device.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-47
& R Q G L W L R Q
Page 206 of 419
> ( G L W 0 R G H O = ' @

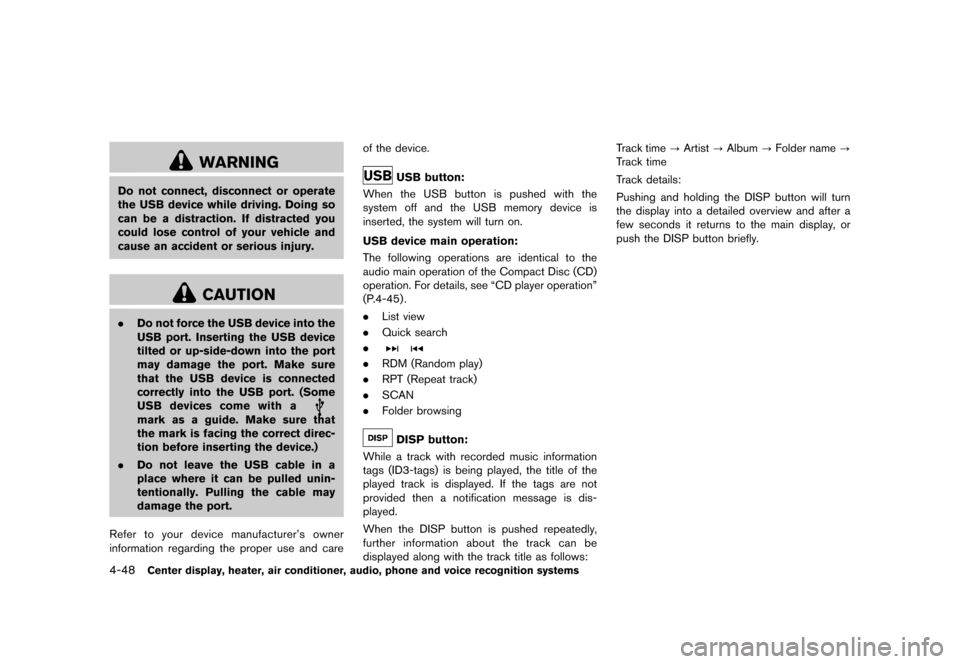

4-48Center display, heater, air conditioner, audio, phone and voice recognition systems
WARNING
Do not connect, disconnect or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.
CAUTION
.Do not force the USB device into the
USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure
that the USB device is connected
correctly into the USB port. (Some
USB devices come with a
mark as a guide. Make sure that
the mark is facing the correct direc-
tion before inserting the device.)
. Do not leave the USB cable in a
place where it can be pulled unin-
tentionally. Pulling the cable may
damage the port.
Refer to your device manufacturer's owner
information regarding the proper use and care of the device.
USB button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the USB button is pushed with the
system off and the USB memory device is
inserted, the system will turn on.
USB device main operation:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The following operations are identical to the
audio main operation of the Compact Disc (CD)
operation. For details, see ªCD player operationº
(P.4-45) .
.
List view
. Quick search
.
. RDM (Random play)
. RPT (Repeat track)
. SCAN
. Folder browsing
DISP button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407While a track with recorded music information
tags (ID3-tags) is being played, the title of the
played track is displayed. If the tags are not
provided then a notification message is dis-
played.
When the DISP button is pushed repeatedly,
further information about the track can be
displayed along with the track title as follows: Track time
?Artist ?Album ?Folder name ?
Track time
Track details:
Pushing and holding the DISP button will turn
the display into a detailed overview and after a
few seconds it returns to the main display, or
push the DISP button briefly.
& R Q G L W L R Q
Page 207 of 419
> ( G L W 0 R G H O = ' @

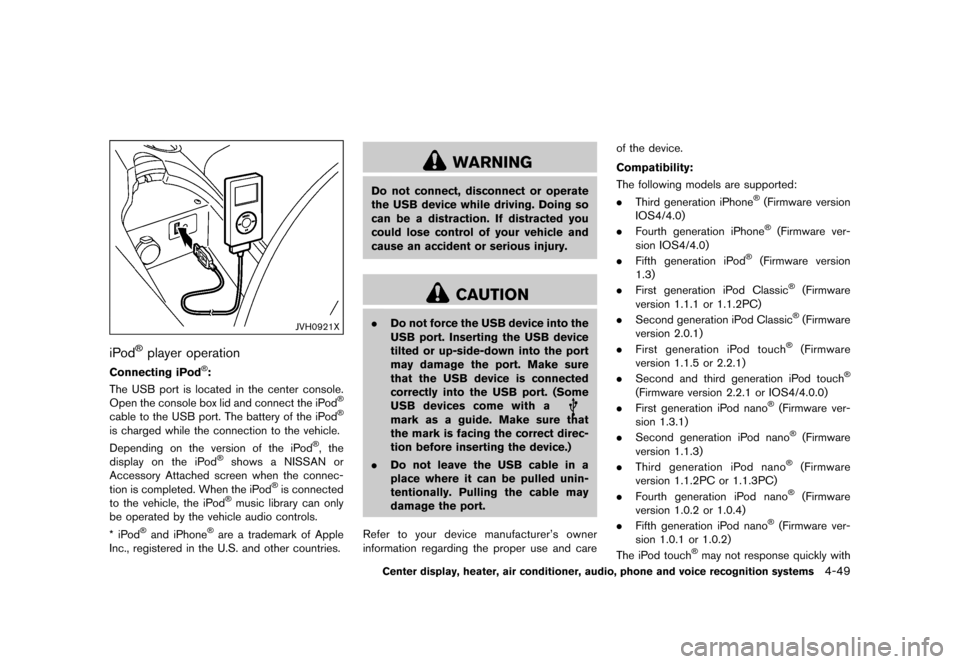

JVH0921X
iPod
Page 208 of 419
> ( G L W 0 R G H O = ' @

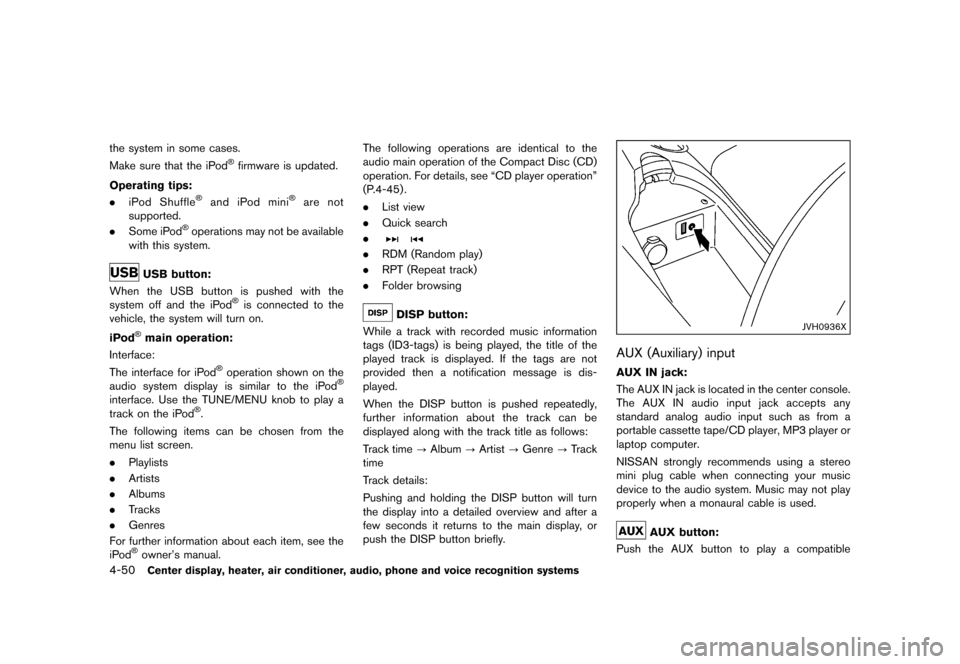

4-50Center display, heater, air conditioner, audio, phone and voice recognition systems
the system in some cases.
Make sure that the iPod
Page 209 of 419
> ( G L W 0 R G H O = ' @
device when it is connected.

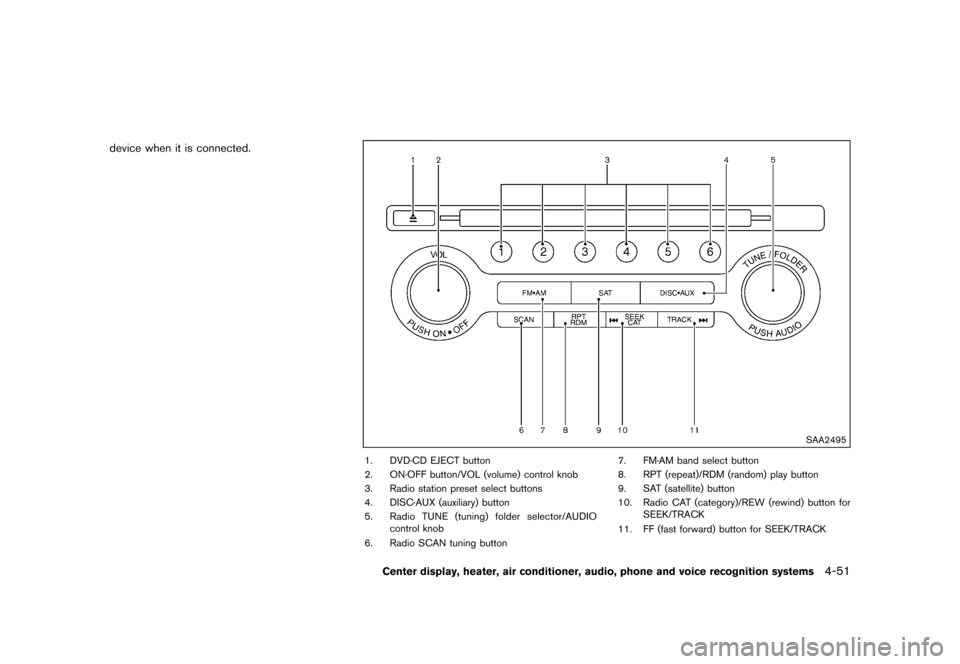

SAA2495
1. DVD´CD EJECT button
2. ON´OFF button/VOL (volume) control knob
3. Radio station preset select buttons
4. DISC´AUX (auxiliary) button
5.Radio TUNE (tuning) folder selector/AUDIO
control knob
6. Radio SCAN tuning button 7. FM´AM band select button
8. RPT (repeat)/RDM (random) play button
9. SAT (satellite) button
10. Radio CAT (category)/REW (rewind) button for
SEEK/TRACK
11. FF (fast forward) button for SEEK/TRACK
Center display, heater, air conditioner, audio, phone and voice recognition systems4-51
& R Q G L W L R Q
Page 210 of 419
> ( G L W 0 R G H O = ' @

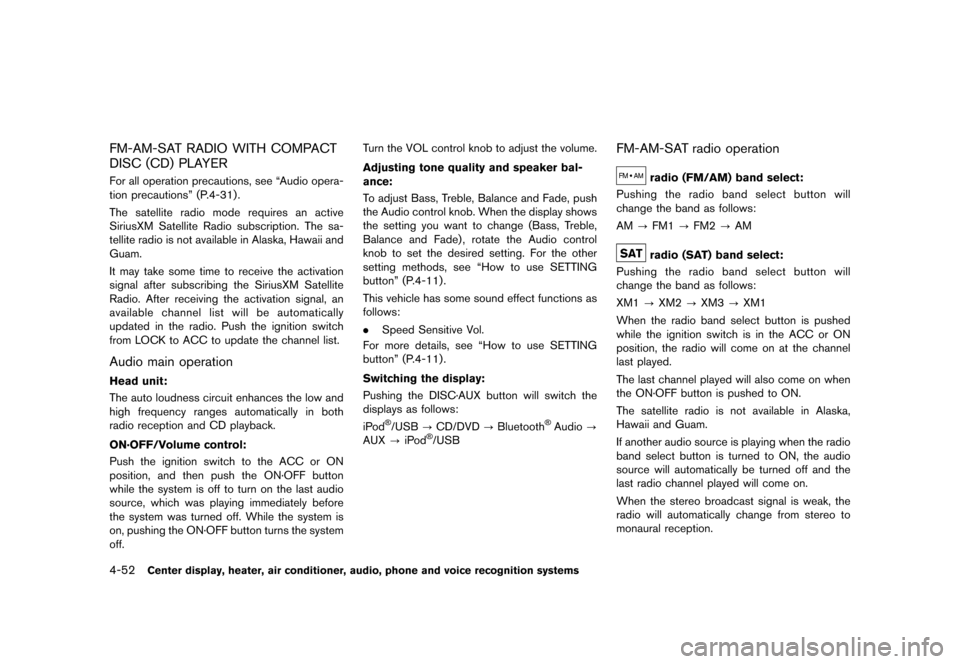

4-52Center display, heater, air conditioner, audio, phone and voice recognition systems
FM-AM-SAT RADIO WITH COMPACT
DISC (CD) PLAYER
GUID-AEF1E51C-CC8A-4C15-8A8F-21F5AF162C2DFor all operation precautions, see ªAudio opera-
tion precautionsº (P.4-31) .
The satellite radio mode requires an active
SiriusXM Satellite Radio subscription. The sa-
tellite radio is not available in Alaska, Hawaii and
Guam.
It may take some time to receive the activation
signal after subscribing the SiriusXM Satellite
Radio. After receiving the activation signal, an
available channel list will be automatically
updated in the radio. Push the ignition switch
from LOCK to ACC to update the channel list.
Audio main operationGUID-B7DFECA3-8AF6-4CCF-800D-9FC731278945
Head unit:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The auto loudness circuit enhances the low and
high frequency ranges automatically in both
radio reception and CD playback.
ON´OFF/Volume control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the ignition switch to the ACC or ON
position, and then push the ON´OFF button
while the system is off to turn on the last audio
source, which was playing immediately before
the system was turned off. While the system is
on, pushing the ON´OFF button turns the system
off.Turn the VOL control knob to adjust the volume.
Adjusting tone quality and speaker bal-
ance:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust Bass, Treble, Balance and Fade, push
the Audio control knob. When the display shows
the setting you want to change (Bass, Treble,
Balance and Fade) , rotate the Audio control
knob to set the desired setting. For the other
setting methods, see ªHow to use SETTING
buttonº (P.4-11).
This vehicle has some sound effect functions as
follows:
.
Speed Sensitive Vol.
For more details, see ªHow to use SETTING
buttonº (P.4-11).
Switching the display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the DISC´AUX button will switch the
displays as follows:
iPod
