NISSAN 370Z COUPE 2015 Z34 Owners Manual


> (GLW    0RGHO =' @
Bluetooth


> (GLW    0RGHO =' @
4-64Center display, heater, air conditioner, audio, phone and voice recognition systems
SAA2505
Connecting procedureGUID-577032B6-FDC3-44CC-B5E3-EE30D2F473DE1. Push the SETTING button and select theªBluetoothº key.
SAA2506
2. Select the ªConnect Bluetoothº key.
SAA2507
3. A confirmation screen will be displayed.
Select ªNoº.
Note: Selecting ªYesº will only connect the
hands free phone portion of a Bluetooth


> (GLW    0RGHO =' @

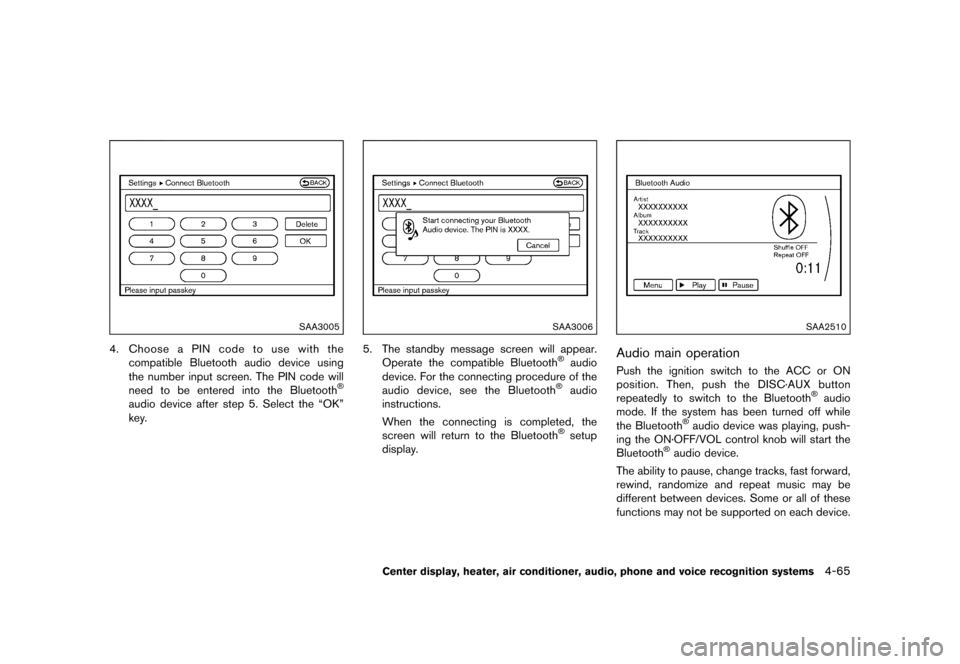

SAA3005
4.Choose a PIN code to use with the
compatible Bluetooth audio device using
the number input screen. The PIN code will
need to be entered into the Bluetooth


> (GLW    0RGHO =' @
4-66Center display, heater, air conditioner, audio, phone and voice recognition systems

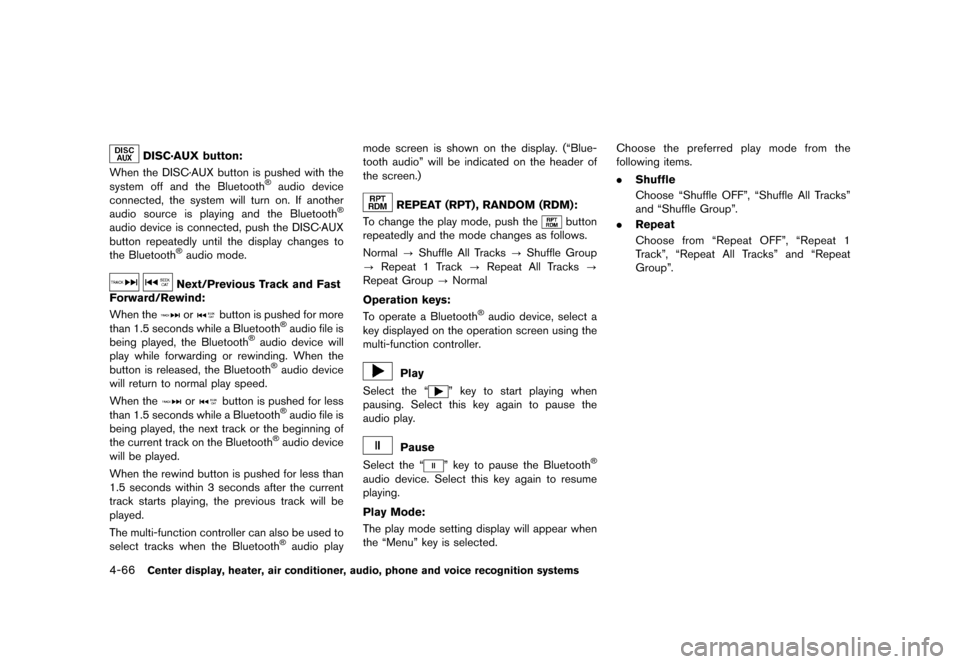

DISC´AUX button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the DISC´AUX button is pushed with the
system off and the Bluetooth


> (GLW    0RGHO =' @

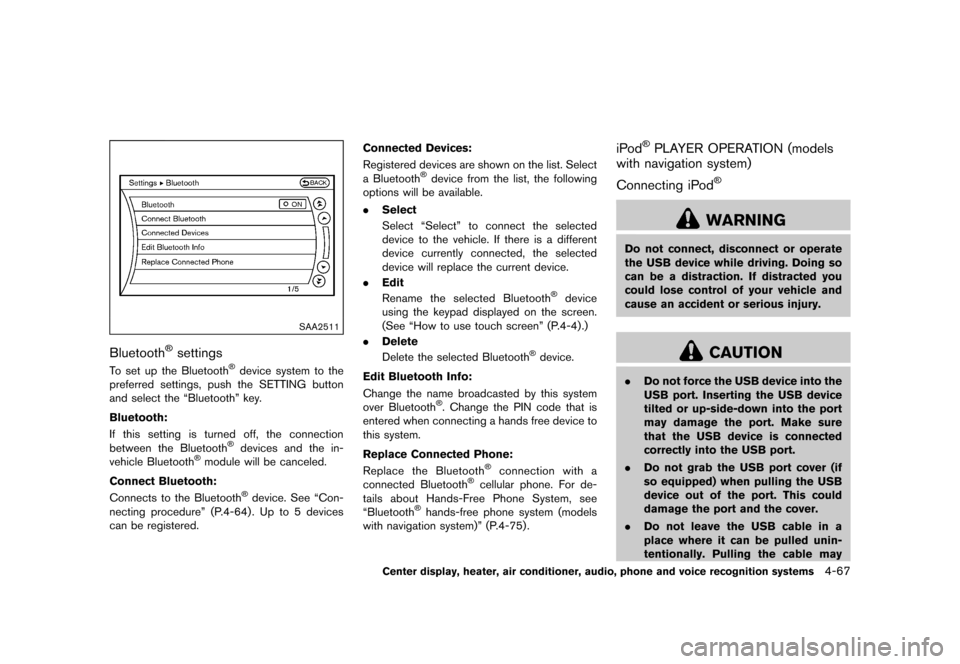

SAA2511
Bluetooth


> (GLW    0RGHO =' @
4-68Center display, heater, air conditioner, audio, phone and voice recognition systems
damage the port.
Refer to your device manufacturer's owner
information regarding the proper use and care
of the device.
SAA2512
Open the console lid and connect the iPod


> (GLW    0RGHO =' @

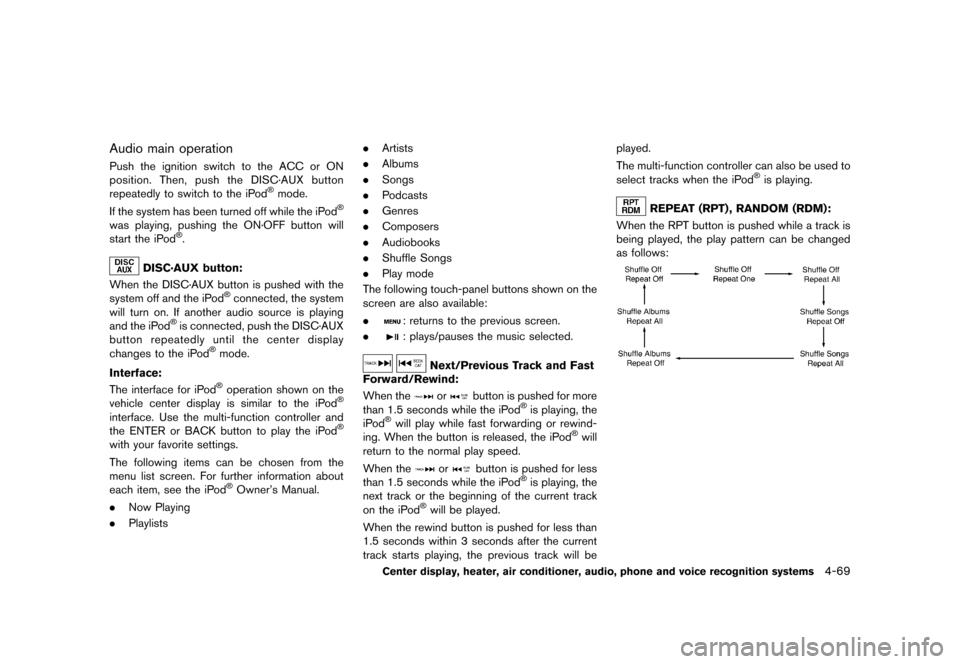

Audio main operationGUID-10937574-964E-4484-BAA2-4C0C4DE28316Push the ignition switch to the ACC or ON
position. Then, push the DISC´AUX button
repeatedly to switch to the iPod


> (GLW    0RGHO =' @
4-70Center display, heater, air conditioner, audio, phone and voice recognition systems

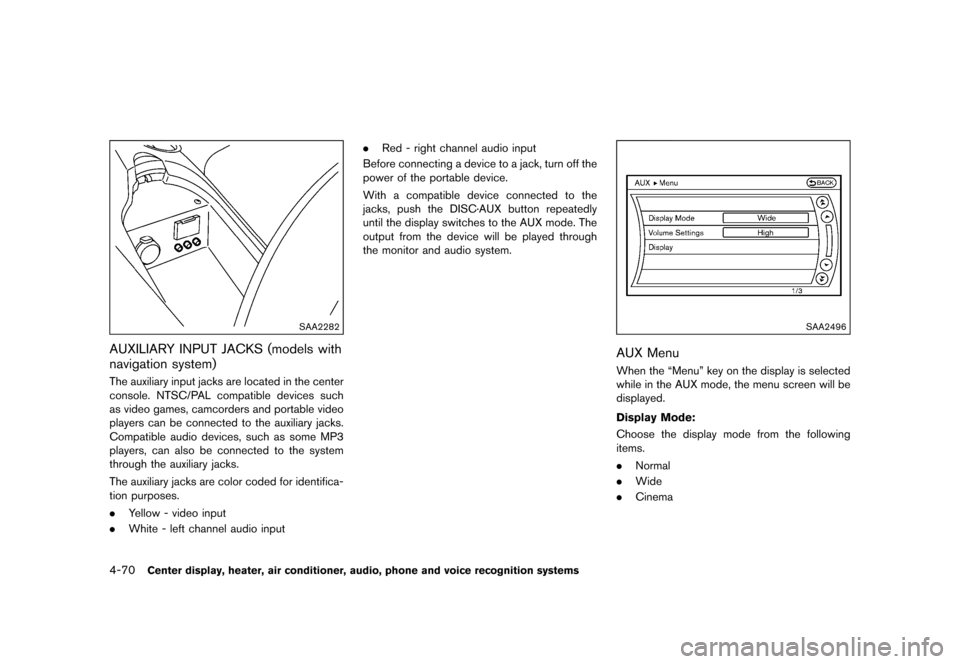

SAA2282
AUXILIARY INPUT JACKS (models with
navigation system)
GUID-CFF3E29F-6FF9-4504-9752-569E0E5A18F0The auxiliary input jacks are located in the center
console. NTSC/PAL compatible devices such
as video games, camcorders and portable video
players can be connected to the auxiliary jacks.
Compatible audio devices, such as some MP3
players, can also be connected to the system
through the auxiliary jacks.
The auxiliary jacks are color coded for identifica-
tion purposes.
.Yellow - video input
. White - left channel audio input .
Red - right channel audio input
Before connecting a device to a jack, turn off the
power of the portable device.
With a compatible device connected to the
jacks, push the DISC´AUX button repeatedly
until the display switches to the AUX mode. The
output from the device will be played through
the monitor and audio system.
SAA2496
AUX MenuGUID-4E84320F-E496-40BA-9551-CB09B00E528BWhen the ªMenuº key on the display is selected
while in the AUX mode, the menu screen will be
displayed.
Display Mode:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the display mode from the following
items.
. Normal
. Wide
. Cinema
&RQGLWLRQ


> (GLW    0RGHO =' @

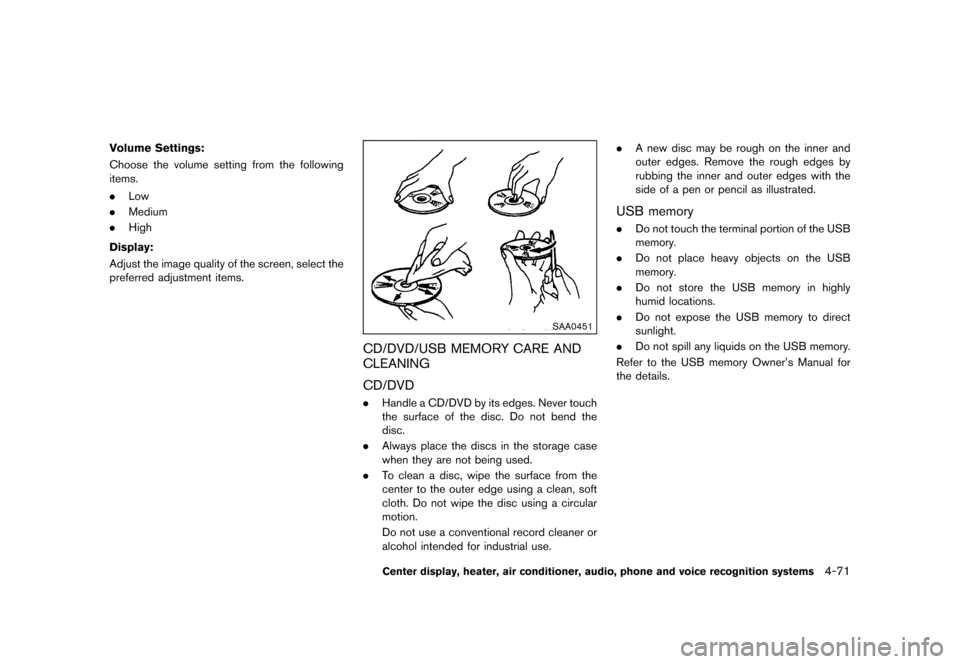

Volume Settings:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the volume setting from the following
items.
.Low
. Medium
. High
Display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Adjust the image quality of the screen, select the
preferred adjustment items.
SAA0451
CD/DVD/USB MEMORY CARE AND
CLEANING
GUID-301A506A-CF09-4772-9BDC-3DAF9AD425ED
CD/DVDGUID-2F28CE77-1B83-437E-81AA-C0A9092A1FF9. Handle a CD/DVD by its edges. Never touch
the surface of the disc. Do not bend the
disc.
. Always place the discs in the storage case
when they are not being used.
. To clean a disc, wipe the surface from the
center to the outer edge using a clean, soft
cloth. Do not wipe the disc using a circular
motion.
Do not use a conventional record cleaner or
alcohol intended for industrial use. .
A new disc may be rough on the inner and
outer edges. Remove the rough edges by
rubbing the inner and outer edges with the
side of a pen or pencil as illustrated.
USB memoryGUID-04BA806F-04A8-4791-A04B-9F98FE9D76BF.Do not touch the terminal portion of the USB
memory.
. Do not place heavy objects on the USB
memory.
. Do not store the USB memory in highly
humid locations.
. Do not expose the USB memory to direct
sunlight.
. Do not spill any liquids on the USB memory.
Refer to the USB memory Owner's Manual for
the details.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-71
&RQGLWLRQ


> (GLW    0RGHO =' @
4-72Center display, heater, air conditioner, audio, phone and voice recognition systems

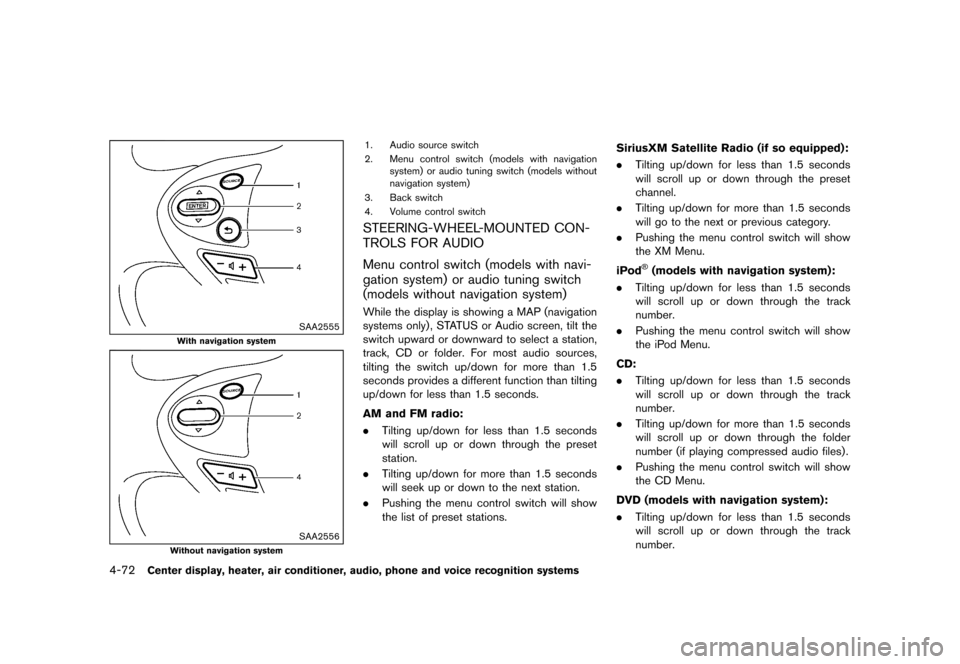

SAA2555
With navigation system
SAA2556
Without navigation system
1. Audio source switch
2. Menu control switch (models with navigationsystem) or audio tuning switch (models without
navigation system)
3. Back switch
4. Volume control switch
STEERING-WHEEL-MOUNTED CON-
TROLS FOR AUDIO
GUID-054A78E5-E14A-4987-81FA-331B044D7C40
Menu control switch (models with navi-
gation system) or audio tuning switch
(models without navigation system)
GUID-E28AA5F2-C253-4F89-B307-538A7968C617While the display is showing a MAP (navigation
systems only) , STATUS or Audio screen, tilt the
switch upward or downward to select a station,
track, CD or folder. For most audio sources,
tilting the switch up/down for more than 1.5
seconds provides a different function than tilting
up/down for less than 1.5 seconds.
AM and FM radio:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Tilting up/down for less than 1.5 seconds
will scroll up or down through the preset
station.
. Tilting up/down for more than 1.5 seconds
will seek up or down to the next station.
. Pushing the menu control switch will show
the list of preset stations. SiriusXM Satellite Radio (if so equipped):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407.
Tilting up/down for less than 1.5 seconds
will scroll up or down through the preset
channel.
. Tilting up/down for more than 1.5 seconds
will go to the next or previous category.
. Pushing the menu control switch will show
the XM Menu.
iPod
