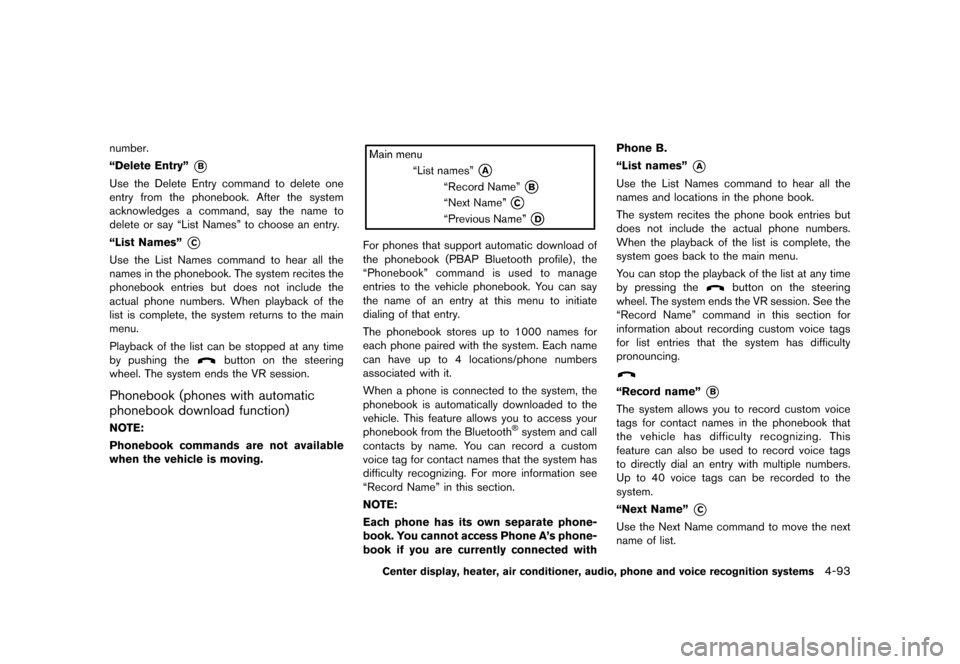

> ( G L W 0 R G H O = ' @
number.
ªDelete Entryº
*B
Use the Delete Entry command to delete one
entry from the phonebook. After the system
acknowledges a command, say the name to
delete or say ªList Namesº to choose an entry.
ªList Namesº
*C
Use the List Names command to hear all the
names in the phonebook. The system recites the
phonebook entries but does not include the
actual phone numbers. When playback of the
list is complete, the system returns to the main
menu.
Playback of the list can be stopped at any time
by pushing the
button on the steering
wheel. The system ends the VR session.
Phonebook (phones with automatic
phonebook download function)
GUID-FA7EC8AF-D427-467B-ABA5-091555EBC080NOTE:
Phonebook commands are not available
when the vehicle is moving.
JI0200
For phones that support automatic download of
the phonebook (PBAP Bluetooth profile) , the
ªPhonebookº command is used to manage
entries to the vehicle phonebook. You can say
the name of an entry at this menu to initiate
dialing of that entry.
The phonebook stores up to 1000 names for
each phone paired with the system. Each name
can have up to 4 locations/phone numbers
associated with it.
When a phone is connected to the system, the
phonebook is automatically downloaded to the
vehicle. This feature allows you to access your
phonebook from the Bluetooth
Page 252 of 419
> ( G L W 0 R G H O = ' @
4-94Center display, heater, air conditioner, audio, phone and voice recognition systems

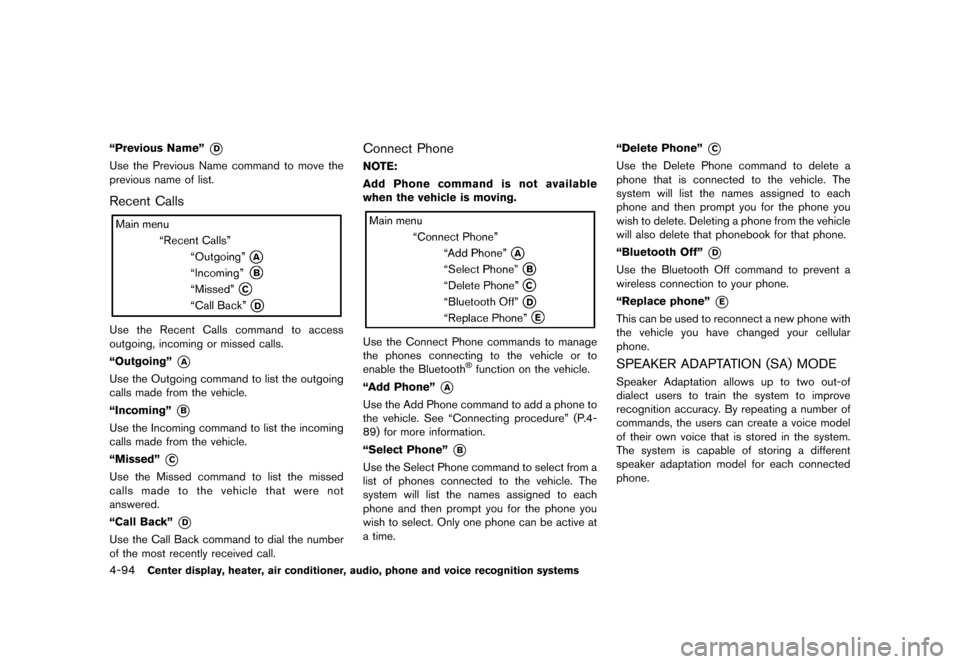

ªPrevious Nameº*D
Use the Previous Name command to move the
previous name of list.
Recent CallsGUID-B3482FA4-8849-443C-921D-D9B3703C50C5
JI0201
Use the Recent Calls command to access
outgoing, incoming or missed calls.
ªOutgoingº
*A
Use the Outgoing command to list the outgoing
calls made from the vehicle.
ªIncomingº
*B
Use the Incoming command to list the incoming
calls made from the vehicle.
ªMissedº
*C
Use the Missed command to list the missed
calls made to the vehicle that were not
answered.
ªCall Backº
*D
Use the Call Back command to dial the number
of the most recently received call.
Connect PhoneGUID-BE1ACF6C-ED1B-4F6E-9BDC-CFEEE300F90FNOTE:
Add Phone command is not available
when the vehicle is moving.
JI0202
Use the Connect Phone commands to manage
the phones connecting to the vehicle or to
enable the Bluetooth
Page 253 of 419
> ( G L W 0 R G H O = ' @

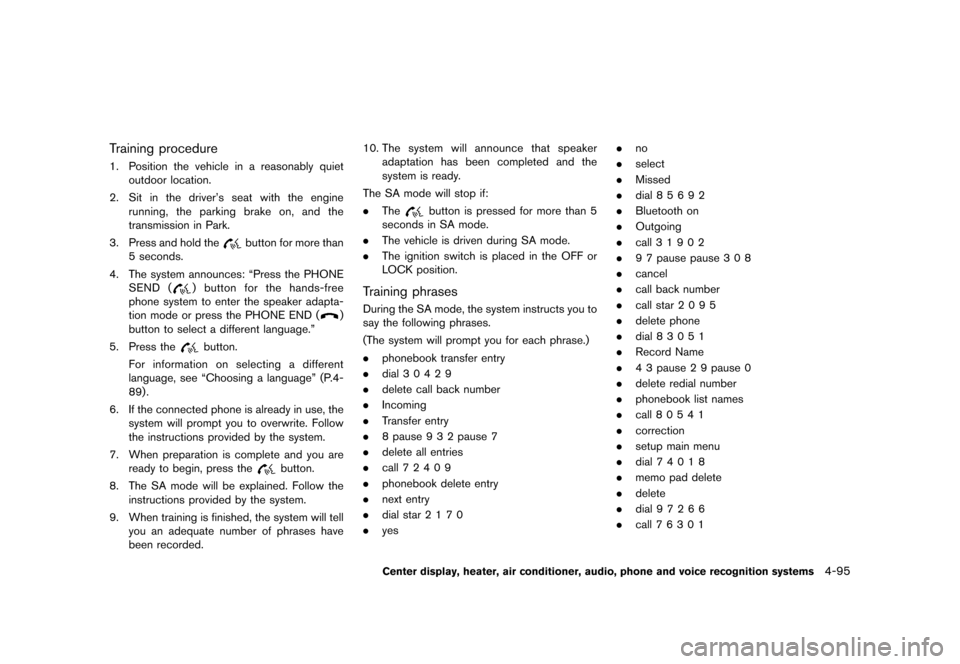

Training procedureGUID-CC68F582-AF8B-439B-9AAB-18C342AFE7531. Position the vehicle in a reasonably quietoutdoor location.
2. Sit in the driver's seat with the engine
running, the parking brake on, and the
transmission in Park.
3. Press and hold the
button for more than
5 seconds.
4. The system announces: ªPress the PHONE SEND (
) button for the hands-free
phone system to enter the speaker adapta-
tion mode or press the PHONE END (
)
button to select a different language.º
5. Press the
button.
For information on selecting a different
language, see ªChoosing a languageº (P.4-
89) .
6. If the connected phone is already in use, the system will prompt you to overwrite. Follow
the instructions provided by the system.
7. When preparation is complete and you are ready to begin, press the
button.
8. The SA mode will be explained. Follow the instructions provided by the system.
9. When training is finished, the system will tell you an adequate number of phrases have
been recorded. 10.
The system will announce that speaker
adaptation has been completed and the
system is ready.
The SA mode will stop if:
. The
button is pressed for more than 5
seconds in SA mode.
. The vehicle is driven during SA mode.
. The ignition switch is placed in the OFF or
LOCK position.
Training phrasesGUID-3011B099-B249-46F1-BC2D-2E2900FDB37EDuring the SA mode, the system instructs you to
say the following phrases.
(The system will prompt you for each phrase.)
.phonebook transfer entry
. dial 3 0 4 2 9
. delete call back number
. Incoming
. Transfer entry
. 8 pause 9 3 2 pause 7
. delete all entries
. call 7 2 4 0 9
. phonebook delete entry
. next entry
. dial star 2 1 7 0
. yes .
no
. select
. Missed
. dial 8 5 6 9 2
. Bluetooth on
. Outgoing
. call 3 1 9 0 2
. 9 7 pause pause 3 0 8
. cancel
. call back number
. call star 2 0 9 5
. delete phone
. dial 8 3 0 5 1
. Record Name
. 4 3 pause 2 9 pause 0
. delete redial number
. phonebook list names
. call 8 0 5 4 1
. correction
. setup main menu
. dial 7 4 0 1 8
. memo pad delete
. delete
. dial 9 7 2 6 6
. call 7 6 3 0 1
Center display, heater, air conditioner, audio, phone and voice recognition systems4-95
& R Q G L W L R Q
Page 254 of 419
> ( G L W 0 R G H O = ' @
4-96Center display, heater, air conditioner, audio, phone and voice recognition systems

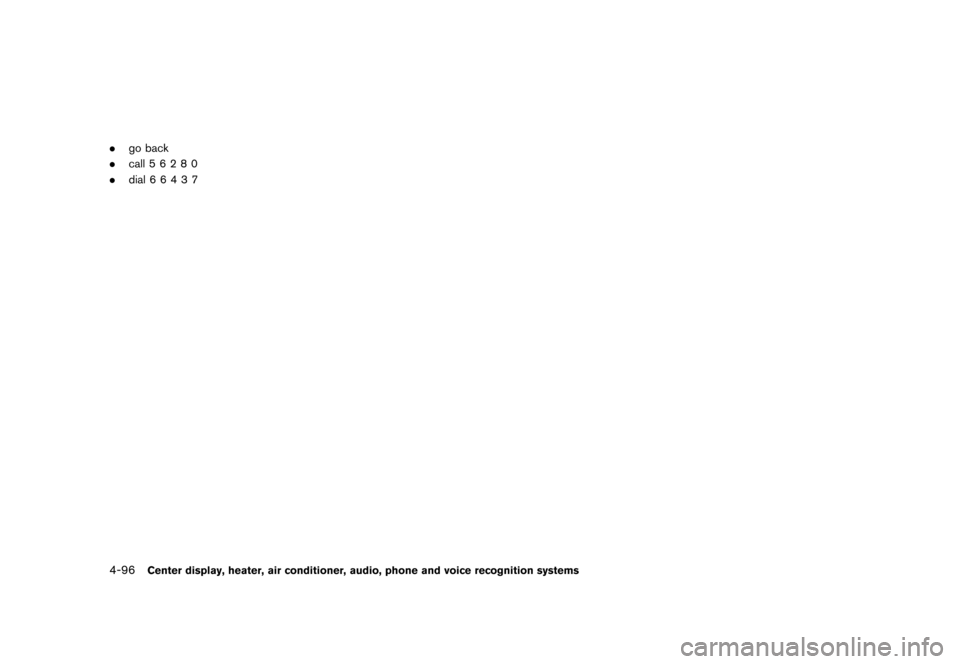

.go back
. call 5 6 2 8 0
. dial 6 6 4 3 7
& R Q G L W L R Q
Page 255 of 419
> ( G L W 0 R G H O = ' @

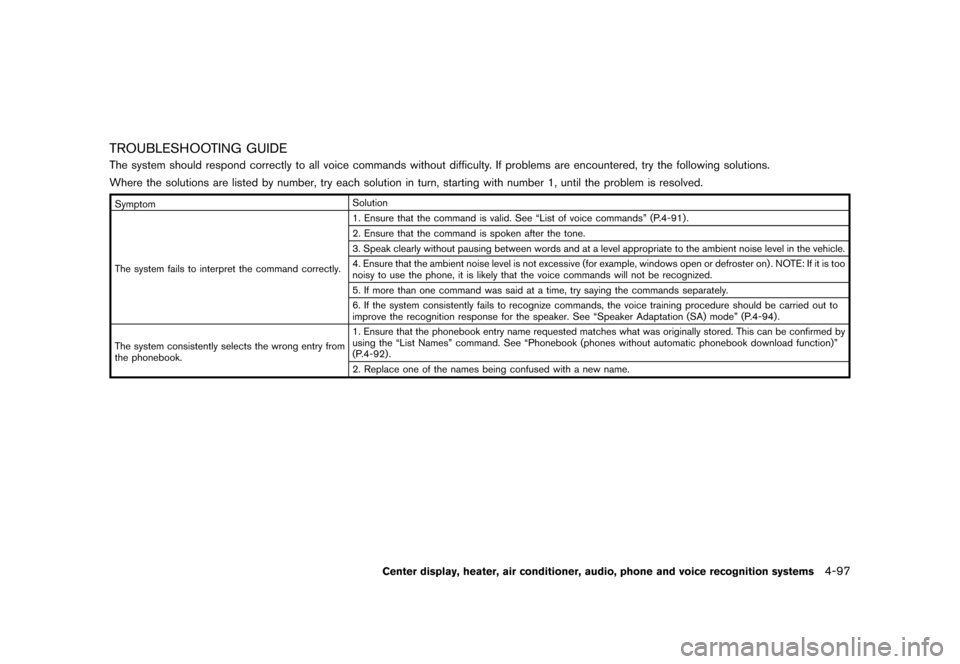

TROUBLESHOOTING GUIDEGUID-52990EB8-B4AB-4566-9493-212624E597BDThe system should respond correctly to all voice commands without difficulty. If problems are encountered, try the following solutions.
Where the solutions are listed by number, try each solution in turn, starting with number 1, until the problem is resolved.
SymptomSolution
The system fails to interpret the command correctly. 1. Ensure that the command is valid. See ªList of voice commandsº (P.4-91) .
2. Ensure that the command is spoken after the tone.
3. Speak clearly without pausing between words and at a level appropriate to the ambient noise level in the vehicle.
4. Ensure that the ambient noise level is not excessive (for example, windows open or defroster on) . NOTE: If it is too
noisy to use the phone, it is likely that the voice commands will not be recognized.
5. If more than one command was said at a time, try saying the commands separately.
6. If the system consistently fails to recognize commands, the voice training procedure should be carried out to
improve the recognition response for the speaker. See ªSpeaker Adaptation (SA) modeº (P.4-94) .
The system consistently selects the wrong entry from
the phonebook. 1. Ensure that the phonebook entry name requested matches what was originally stored. This can be confirmed by
using the ªList Namesº command. See ªPhonebook (phones without automatic phonebook download function)º
(P.4-92) .
2. Replace one of the names being confused with a new name.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-97
& R Q G L W L R Q
Page 256 of 419
> ( G L W 0 R G H O = ' @
4-98Center display, heater, air conditioner, audio, phone and voice recognition systems

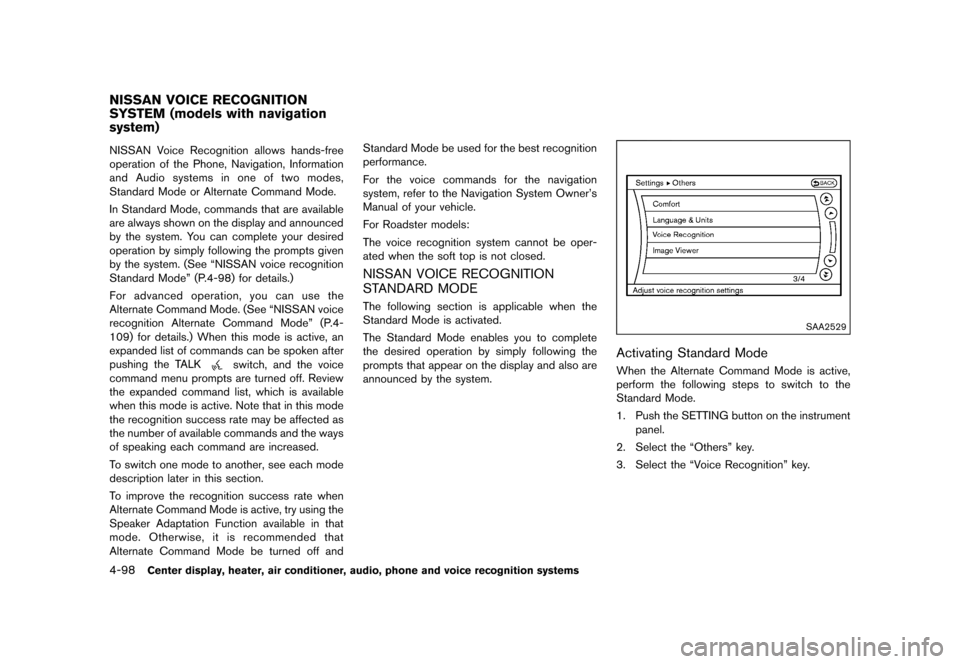

GUID-37229D59-D0EC-471D-9492-655C1A1A9AD9NISSAN Voice Recognition allows hands-free
operation of the Phone, Navigation, Information
and Audio systems in one of two modes,
Standard Mode or Alternate Command Mode.
In Standard Mode, commands that are available
are always shown on the display and announced
by the system. You can complete your desired
operation by simply following the prompts given
by the system. (See ªNISSAN voice recognition
Standard Modeº (P.4-98) for details.)
For advanced operation, you can use the
Alternate Command Mode. (See ªNISSAN voice
recognition Alternate Command Modeº (P.4-
109) for details.) When this mode is active, an
expanded list of commands can be spoken after
pushing the TALK
switch, and the voice
command menu prompts are turned off. Review
the expanded command list, which is available
when this mode is active. Note that in this mode
the recognition success rate may be affected as
the number of available commands and the ways
of speaking each command are increased.
To switch one mode to another, see each mode
description later in this section.
To improve the recognition success rate when
Alternate Command Mode is active, try using the
Speaker Adaptation Function available in that
mode. Otherwise, it is recommended that
Alternate Command Mode be turned off and Standard Mode be used for the best recognition
performance.
For the voice commands for the navigation
system, refer to the Navigation System Owner's
Manual of your vehicle.
For Roadster models:
The voice recognition system cannot be oper-
ated when the soft top is not closed.
NISSAN VOICE RECOGNITION
STANDARD MODE
GUID-E703B560-B3E5-422B-8DF4-CDC32B0D3197The following section is applicable when the
Standard Mode is activated.
The Standard Mode enables you to complete
the desired operation by simply following the
prompts that appear on the display and also are
announced by the system.
SAA2529
Activating Standard ModeGUID-897A0853-4DE8-4508-920F-193574F10F8FWhen the Alternate Command Mode is active,
perform the following steps to switch to the
Standard Mode.
1. Push the SETTING button on the instrument
panel.
2. Select the ªOthersº key.
3. Select the ªVoice Recognitionº key.
NISSAN VOICE RECOGNITION
SYSTEM (models with navigation
system)
& R Q G L W L R Q
Page 257 of 419
> ( G L W 0 R G H O = ' @
SAA2530

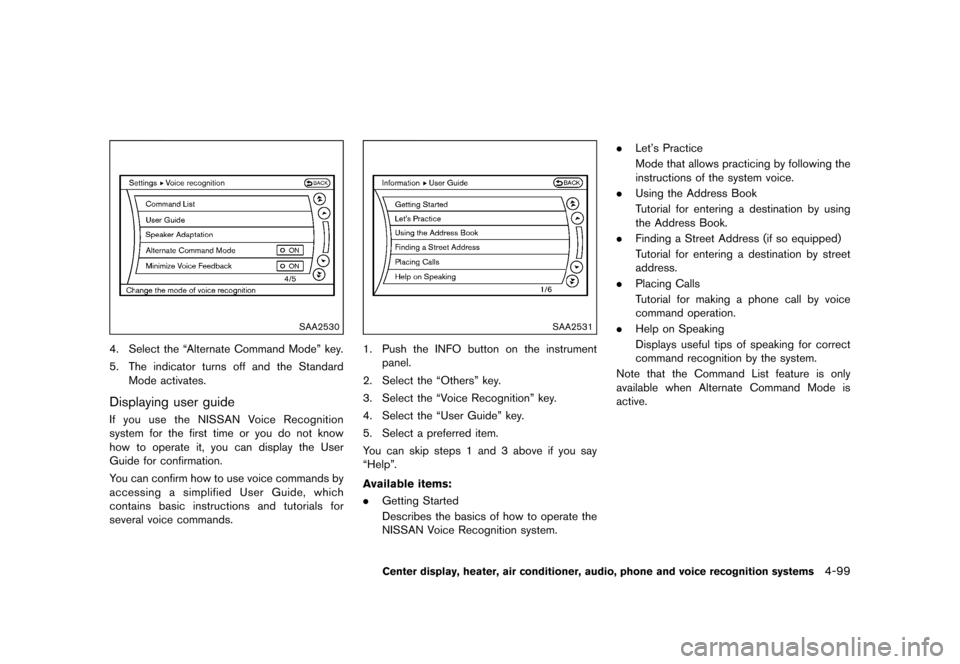

4. Select the ªAlternate Command Modeº key.
5. The indicator turns off and the StandardMode activates.
Displaying user guideGUID-F48ECCB5-607C-4543-AD52-15B9673BE11FIf you use the NISSAN Voice Recognition
system for the first time or you do not know
how to operate it, you can display the User
Guide for confirmation.
You can confirm how to use voice commands by
accessing a simplified User Guide, which
contains basic instructions and tutorials for
several voice commands.
SAA2531
1. Push the INFO button on the instrument
panel.
2. Select the ªOthersº key.
3. Select the ªVoice Recognitionº key.
4. Select the ªUser Guideº key.
5. Select a preferred item.
You can skip steps 1 and 3 above if you say
ªHelpº.
Available items:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Getting Started
Describes the basics of how to operate the
NISSAN Voice Recognition system. .
Let's Practice
Mode that allows practicing by following the
instructions of the system voice.
. Using the Address Book
Tutorial for entering a destination by using
the Address Book.
. Finding a Street Address (if so equipped)
Tutorial for entering a destination by street
address.
. Placing Calls
Tutorial for making a phone call by voice
command operation.
. Help on Speaking
Displays useful tips of speaking for correct
command recognition by the system.
Note that the Command List feature is only
available when Alternate Command Mode is
active.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-99
& R Q G L W L R Q
Page 258 of 419
> ( G L W 0 R G H O = ' @
4-100Center display, heater, air conditioner, audio, phone and voice recognition systems
SAA2532

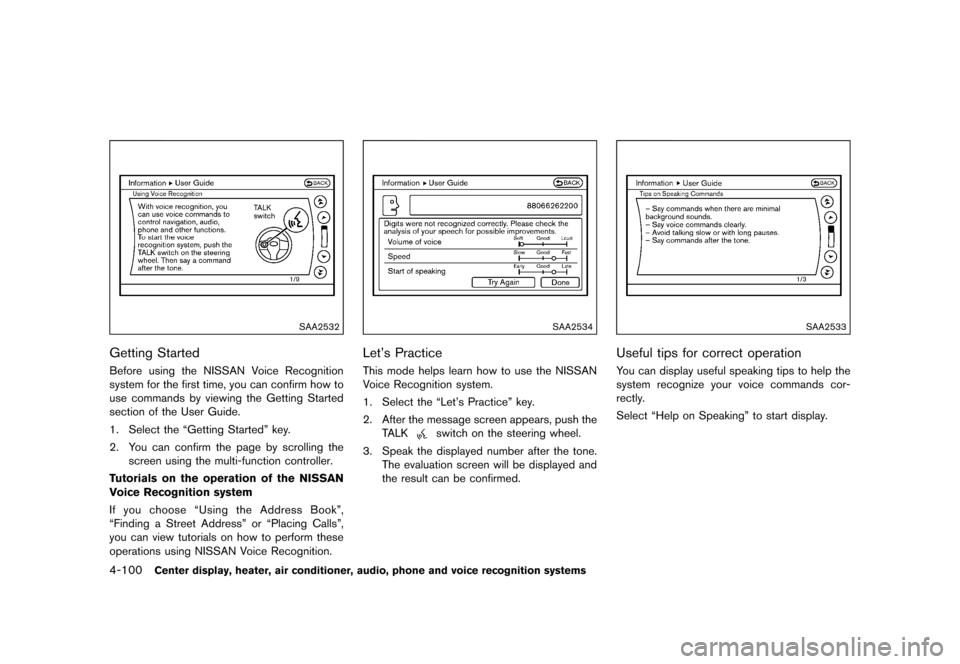

Getting StartedGUID-44B15F28-E5E2-417E-9B2E-33518066EA02Before using the NISSAN Voice Recognition
system for the first time, you can confirm how to
use commands by viewing the Getting Started
section of the User Guide.
1. Select the ªGetting Startedº key.
2. You can confirm the page by scrolling thescreen using the multi-function controller.
Tutorials on the operation of the NISSAN
Voice Recognition system
If you choose ªUsing the Address Bookº,
ªFinding a Street Addressº or ªPlacing Callsº,
you can view tutorials on how to perform these
operations using NISSAN Voice Recognition.
SAA2534
Let's PracticeGUID-F69C3BE4-348F-4348-96D4-582E1388E6ABThis mode helps learn how to use the NISSAN
Voice Recognition system.
1. Select the ªLet's Practiceº key.
2. After the message screen appears, push the TALK
switch on the steering wheel.
3. Speak the displayed number after the tone. The evaluation screen will be displayed and
the result can be confirmed.
SAA2533
Useful tips for correct operationGUID-5A3CD88E-9105-44FD-9E09-C1C4B2B42929You can display useful speaking tips to help the
system recognize your voice commands cor-
rectly.
Select ªHelp on Speakingº to start display.
& R Q G L W L R Q
Page 259 of 419
> ( G L W 0 R G H O = ' @

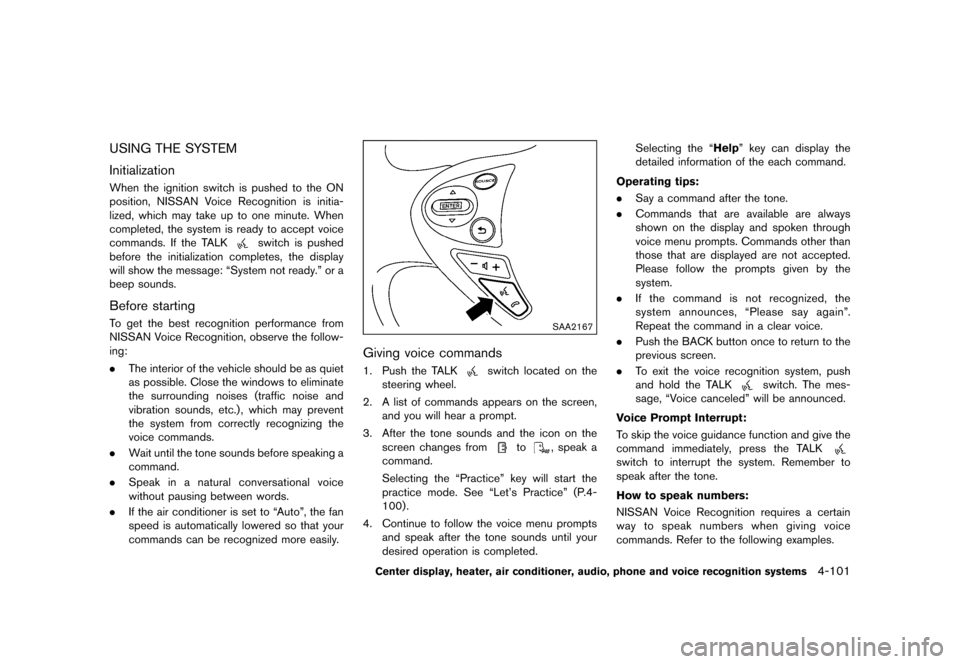

USING THE SYSTEMGUID-13FE8286-F49A-47DD-AFC2-36C923DBCD9C
InitializationGUID-DEE0FE37-A8C4-4ACE-920C-1EC3DF1AB51EWhen the ignition switch is pushed to the ON
position, NISSAN Voice Recognition is initia-
lized, which may take up to one minute. When
completed, the system is ready to accept voice
commands. If the TALK
switch is pushed
before the initialization completes, the display
will show the message: ªSystem not ready.º or a
beep sounds.
Before startingGUID-7A2836CD-019E-44BF-B870-61E70A9CD75FTo get the best recognition performance from
NISSAN Voice Recognition, observe the follow-
ing:
. The interior of the vehicle should be as quiet
as possible. Close the windows to eliminate
the surrounding noises (traffic noise and
vibration sounds, etc.) , which may prevent
the system from correctly recognizing the
voice commands.
. Wait until the tone sounds before speaking a
command.
. Speak in a natural conversational voice
without pausing between words.
. If the air conditioner is set to ªAutoº, the fan
speed is automatically lowered so that your
commands can be recognized more easily.SAA2167
Giving voice commandsGUID-ED11AF2C-564C-4543-87E0-EDB31F9069601. Push the TALKswitch located on the
steering wheel.
2. A list of commands appears on the screen, and you will hear a prompt.
3. After the tone sounds and the icon on the screen changes from
to, speak a
command.
Selecting the ªPracticeº key will start the
practice mode. See ªLet's Practiceº (P.4-
100) .
4. Continue to follow the voice menu prompts and speak after the tone sounds until your
desired operation is completed. Selecting the ªHelpº key can display the
detailed information of the each command.
Operating tips:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Say a command after the tone.
. Commands that are available are always
shown on the display and spoken through
voice menu prompts. Commands other than
those that are displayed are not accepted.
Please follow the prompts given by the
system.
. If the command is not recognized, the
system announces, ªPlease say againº.
Repeat the command in a clear voice.
. Push the BACK button once to return to the
previous screen.
. To exit the voice recognition system, push
and hold the TALK
switch. The mes-
sage, ªVoice canceledº will be announced.
Voice Prompt Interrupt:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To skip the voice guidance function and give the
command immediately, press the TALK
switch to interrupt the system. Remember to
speak after the tone.
How to speak numbers:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407NISSAN Voice Recognition requires a certain
way to speak numbers when giving voice
commands. Refer to the following examples.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-101
& R Q G L W L R Q
Page 260 of 419
> ( G L W 0 R G H O = ' @
4-102Center display, heater, air conditioner, audio, phone and voice recognition systems

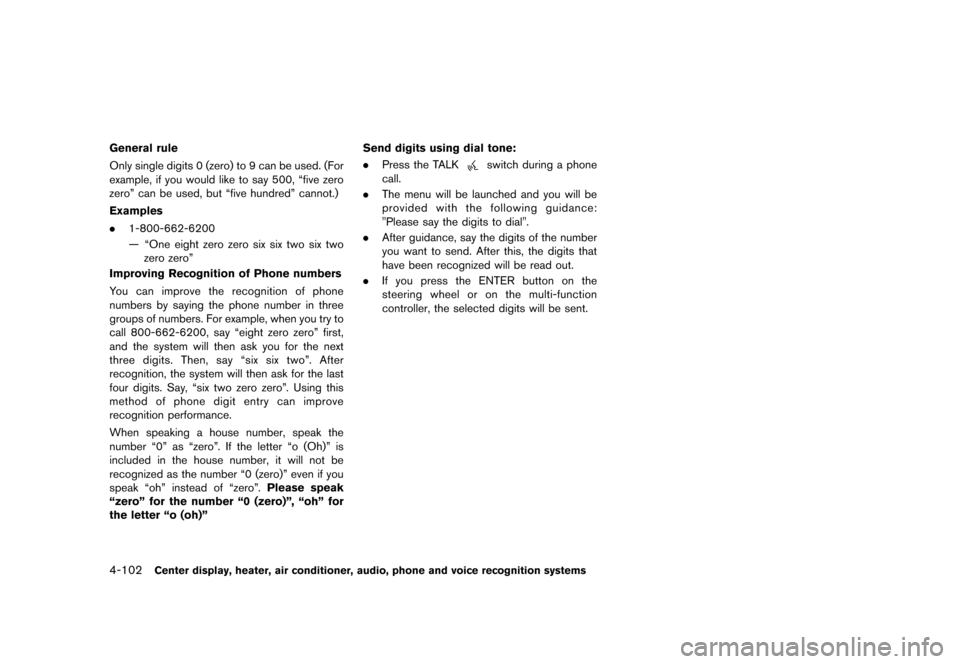

General rule
Only single digits 0 (zero) to 9 can be used. (For
example, if you would like to say 500, ªfive zero
zeroº can be used, but ªfive hundredº cannot.)
Examples
.1-800-662-6200
Ð ªOne eight zero zero six six two six two
zero zeroº
Improving Recognition of Phone numbers
You can improve the recognition of phone
numbers by saying the phone number in three
groups of numbers. For example, when you try to
call 800-662-6200, say ªeight zero zeroº first,
and the system will then ask you for the next
three digits. Then, say ªsix six twoº. After
recognition, the system will then ask for the last
four digits. Say, ªsix two zero zeroº. Using this
method of phone digit entry can improve
recognition performance.
When speaking a house number, speak the
number ª0º as ªzeroº. If the letter ªo (Oh)º is
included in the house number, it will not be
recognized as the number ª0 (zero)º even if you
speak ªohº instead of ªzeroº. Please speak
ªzeroº for the number ª0 (zero)º, ªohº for
the letter ªo (oh)º Send digits using dial tone:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407.
Press the TALKswitch during a phone
call.
. The menu will be launched and you will be
provided with the following guidance:
"Please say the digits to dial".
. After guidance, say the digits of the number
you want to send. After this, the digits that
have been recognized will be read out.
. If you press the ENTER button on the
steering wheel or on the multi-function
controller, the selected digits will be sent.
& R Q G L W L R Q
