> ( G L W 0 R G H O = ' @

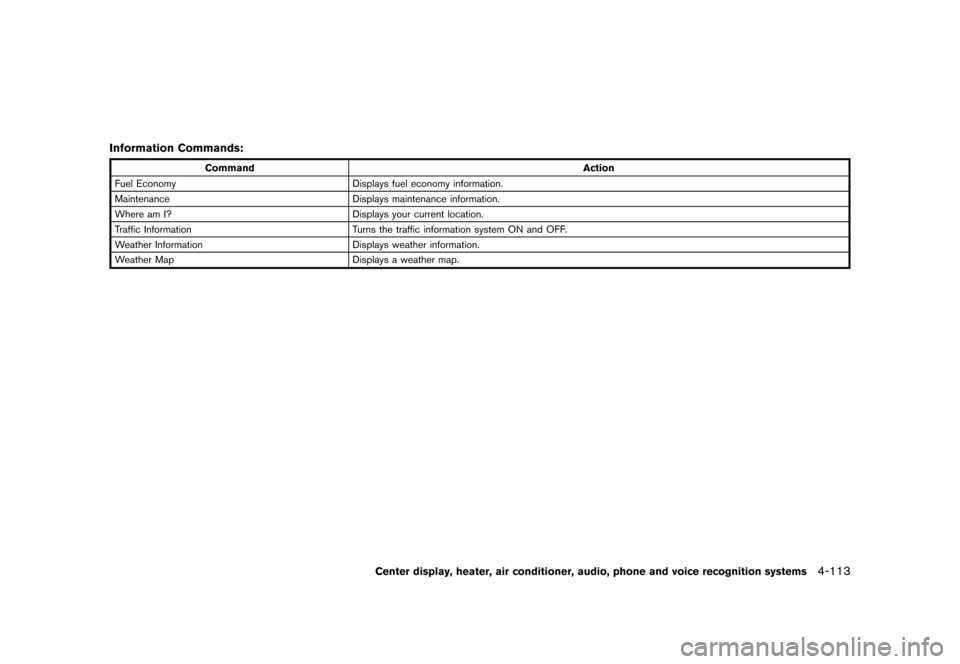

Information Commands:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
CommandAction
Fuel Economy Displays fuel economy information.
Maintenance Displays maintenance information.
Where am I? Displays your current location.
Traffic Information Turns the traffic information system ON and OFF.
Weather Information Displays weather information.
Weather Map Displays a weather map.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-113
& R Q G L W L R Q
Page 272 of 419
> ( G L W 0 R G H O = ' @
4-114Center display, heater, air conditioner, audio, phone and voice recognition systems

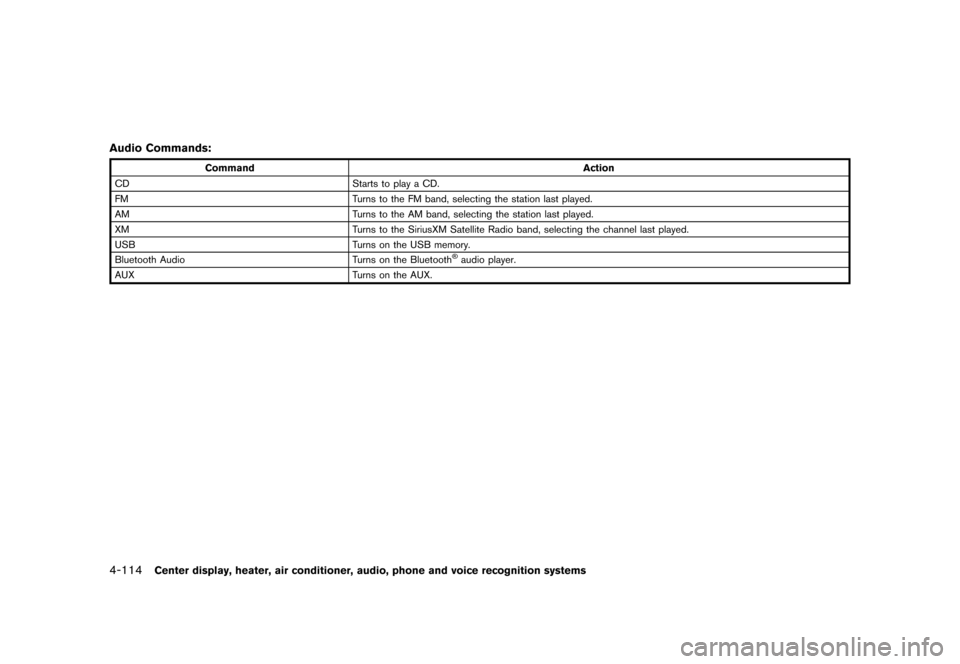

Audio Commands:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
CommandAction
CD Starts to play a CD.
FM Turns to the FM band, selecting the station last played.
AM Turns to the AM band, selecting the station last played.
XM Turns to the SiriusXM Satellite Radio band, selecting the channel last played.
USB Turns on the USB memory.
Bluetooth Audio Turns on the Bluetooth
Page 273 of 419
> ( G L W 0 R G H O = ' @
Help Commands:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
CommandAction
Command List Navigation Commands Displays the navigation command list. Phone Commands Displays the phone command list.
Audio Commands Displays the audio command list.
Information Commands Displays the information command list.
Help Commands Displays the help command list.
User Guide Displays the User Guide.
Speaker Adaptation The system can memorize the voices of up to three persons.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-115
& R Q G L W L R Q
Page 274 of 419
> ( G L W 0 R G H O = ' @
4-116Center display, heater, air conditioner, audio, phone and voice recognition systems

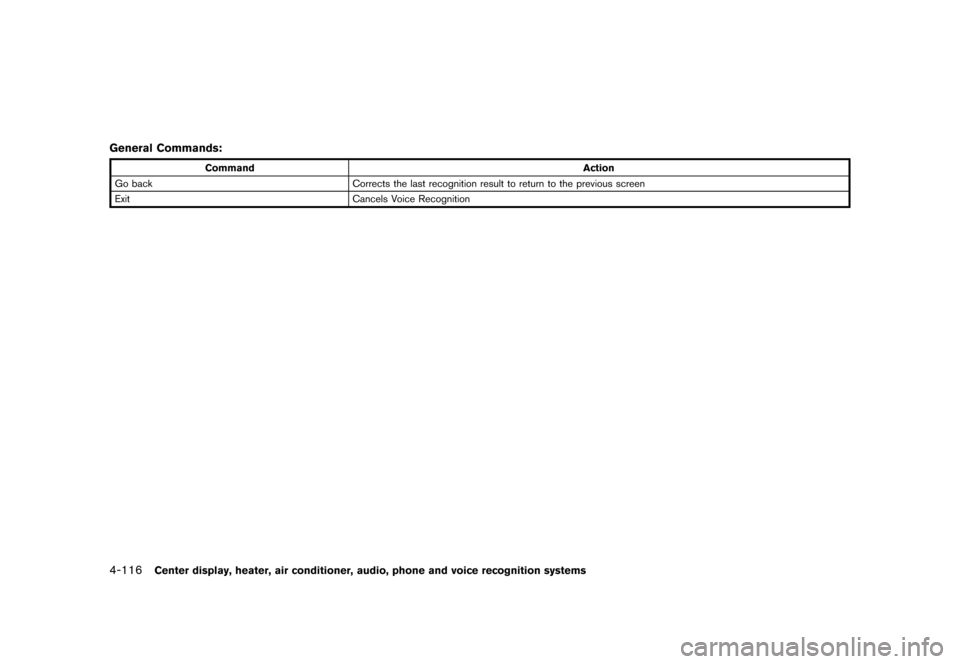

General Commands:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
CommandAction
Go back Corrects the last recognition result to return to the previous screen
Exit Cancels Voice Recognition
& R Q G L W L R Q
Page 275 of 419
> ( G L W 0 R G H O = ' @
SAA2547

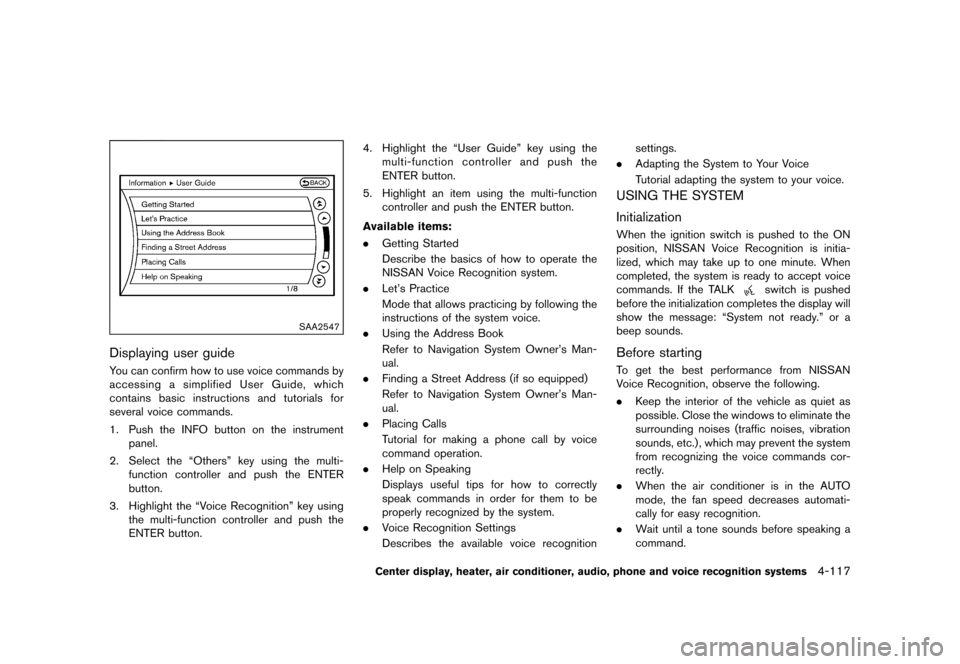

Displaying user guideGUID-5BC245CA-2E9D-45F1-9361-10D0E47CF16CYou can confirm how to use voice commands by
accessing a simplified User Guide, which
contains basic instructions and tutorials for
several voice commands.
1. Push the INFO button on the instrumentpanel.
2. Select the ªOthersº key using the multi- function controller and push the ENTER
button.
3. Highlight the ªVoice Recognitionº key using the multi-function controller and push the
ENTER button. 4. Highlight the ªUser Guideº key using the
multi-function controller and push the
ENTER button.
5. Highlight an item using the multi-function controller and push the ENTER button.
Available items:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Getting Started
Describe the basics of how to operate the
NISSAN Voice Recognition system.
. Let's Practice
Mode that allows practicing by following the
instructions of the system voice.
. Using the Address Book
Refer to Navigation System Owner's Man-
ual.
. Finding a Street Address (if so equipped)
Refer to Navigation System Owner's Man-
ual.
. Placing Calls
Tutorial for making a phone call by voice
command operation.
. Help on Speaking
Displays useful tips for how to correctly
speak commands in order for them to be
properly recognized by the system.
. Voice Recognition Settings
Describes the available voice recognition settings.
. Adapting the System to Your Voice
Tutorial adapting the system to your voice.
USING THE SYSTEMGUID-6ECC6D55-64C7-4AF1-8060-8F60134AB6AB
InitializationGUID-82DB48EF-479E-4DD1-9CAF-28658E1BD855When the ignition switch is pushed to the ON
position, NISSAN Voice Recognition is initia-
lized, which may take up to one minute. When
completed, the system is ready to accept voice
commands. If the TALK
switch is pushed
before the initialization completes the display will
show the message: ªSystem not ready.º or a
beep sounds.
Before startingGUID-0A52C084-B34F-4AFC-AB7A-6945D3E8423ETo get the best performance from NISSAN
Voice Recognition, observe the following.
. Keep the interior of the vehicle as quiet as
possible. Close the windows to eliminate the
surrounding noises (traffic noises, vibration
sounds, etc.) , which may prevent the system
from recognizing the voice commands cor-
rectly.
. When the air conditioner is in the AUTO
mode, the fan speed decreases automati-
cally for easy recognition.
. Wait until a tone sounds before speaking a
command.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-117
& R Q G L W L R Q
Page 276 of 419
> ( G L W 0 R G H O = ' @
4-118Center display, heater, air conditioner, audio, phone and voice recognition systems
.Speak in a natural voice without pausing
between words.
SAA2167
Giving voice commandGUID-460AF44A-F342-4746-B321-E40249F4C35A1. Push and release the TALKswitch
located on the steering wheel.
2. A list of commands appears on the screen, and the system announces, ªPlease say a
commandº.
3. After the tone sounds and the icon on the screen changes from
to, speak a
command.
Operating tips:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Voice commands cannot be accepted when
the icon is
. .
The list displayed can be scrolled by tilting
the menu control switch on the steering
wheel.
. If the command is not recognized, the
system announces, ªPlease say againº.
Repeat the command in a clear voice.
. Push the BACK button once to return to the
previous screen.
. If you want to cancel the command, push
and hold the TALK
switch for 1 second.
The message ªVoice canceledº will be
announced.
Voice Prompt Interrupt:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To skip the voice guidance function and give the
command immediately, press the TALK
switch to interrupt the system. Remember to
speak after the tone.
How to speak numbers:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407NISSAN Voice Recognition requires a certain
way to speak numbers when giving voice
commands. Refer to the following examples.
General rule
Only single digits 0 (zero) to 9 can be used. (For
example, if you would like to say 500, ªfive zero
zeroº can be used, but ªfive hundredº cannot.
Phone numbers
Speak phone numbers according to the follow-
& R Q G L W L R Q
Page 277 of 419
> ( G L W 0 R G H O = ' @

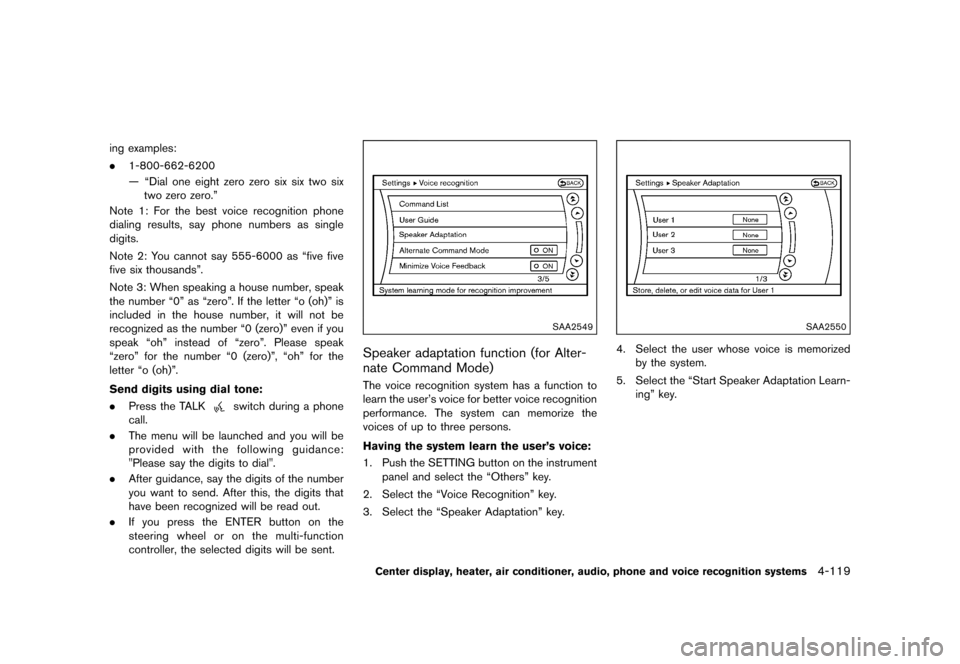

ing examples:
.1-800-662-6200
Ð ªDial one eight zero zero six six two six
two zero zero.º
Note 1: For the best voice recognition phone
dialing results, say phone numbers as single
digits.
Note 2: You cannot say 555-6000 as ªfive five
five six thousandsº.
Note 3: When speaking a house number, speak
the number ª0º as ªzeroº. If the letter ªo (oh)º is
included in the house number, it will not be
recognized as the number ª0 (zero)º even if you
speak ªohº instead of ªzeroº. Please speak
ªzeroº for the number ª0 (zero)º, ªohº for the
letter ªo (oh)º.
Send digits using dial tone:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Press the TALKswitch during a phone
call.
. The menu will be launched and you will be
provided with the following guidance:
"Please say the digits to dial".
. After guidance, say the digits of the number
you want to send. After this, the digits that
have been recognized will be read out.
. If you press the ENTER button on the
steering wheel or on the multi-function
controller, the selected digits will be sent.
SAA2549
Speaker adaptation function (for Alter-
nate Command Mode)
GUID-C2A9118C-AD04-4028-A5C0-29754102E03FThe voice recognition system has a function to
learn the user's voice for better voice recognition
performance. The system can memorize the
voices of up to three persons.
Having the system learn the user's voice:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. Push the SETTING button on the instrument
panel and select the ªOthersº key.
2. Select the ªVoice Recognitionº key.
3. Select the ªSpeaker Adaptationº key.
SAA2550
4. Select the user whose voice is memorized by the system.
5. Select the ªStart Speaker Adaptation Learn- ingº key.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-119
& R Q G L W L R Q
Page 278 of 419
> ( G L W 0 R G H O = ' @
4-120Center display, heater, air conditioner, audio, phone and voice recognition systems
SAA2551
6. Select a category to be learned by thesystem from the following list.
.Phone Commands.Navigation Commands.Information Commands.Audio Commands.Help Commands
The voice commands in the category are
displayed.
7. Select a voice command and then push the ENTER button.
The voice recognition system starts.
SAA2552
8.The system requests that you repeat a
command after a tone.
9. After the tone sounds and the icon on the screen changes from
to, speak the
command that the system requested.
10. When the system has recognized the voice command, the voice of the user is learned.
Push the
switch or BACK button to return
to the previous screen.
If the system has learned the command cor-
rectly, the voice command status on the right
side of the command turns from ªNoneº to
ªStoredº.
SAA2553
Speaker Adaptation function settings:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Edit User Name
Edit the user name using the keypad displayed
on the screen.
Delete Voice Data
Resets the user's voice that the voice recogni-
tion system has learned.
Continuous Learning
When this item is turned to ON, you can have
the system learn the voice commands in
succession, without selecting commands one
by one.
& R Q G L W L R Q
Page 279 of 419
> ( G L W 0 R G H O = ' @

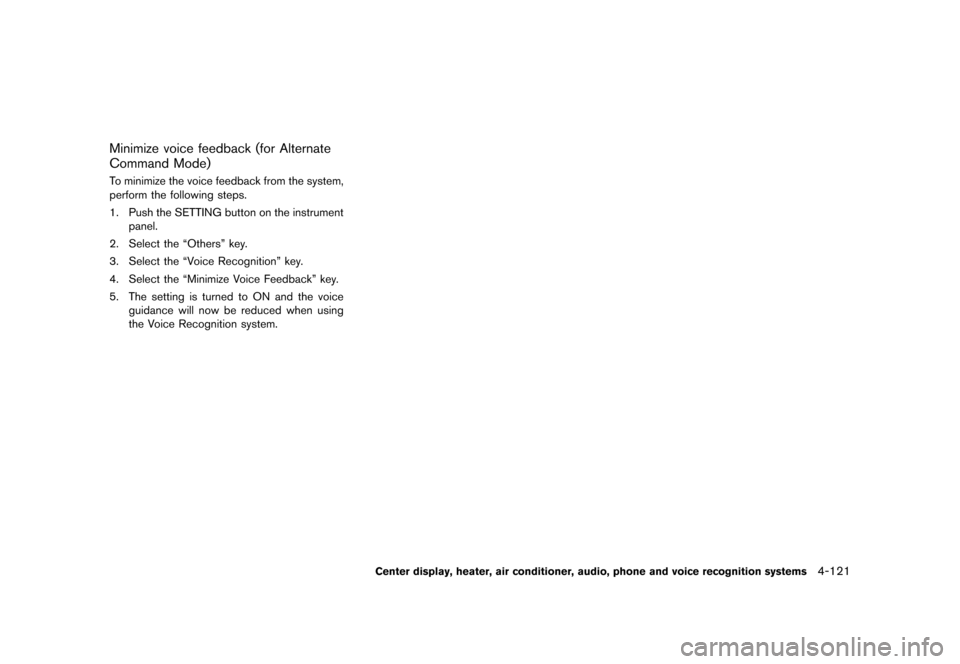

Minimize voice feedback (for Alternate
Command Mode)
GUID-164FACC0-68EF-43DE-8FCE-45B2D235C1D1To minimize the voice feedback from the system,
perform the following steps.
1. Push the SETTING button on the instrumentpanel.
2. Select the ªOthersº key.
3. Select the ªVoice Recognitionº key.
4. Select the ªMinimize Voice Feedbackº key.
5. The setting is turned to ON and the voice guidance will now be reduced when using
the Voice Recognition system.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-121
& R Q G L W L R Q
Page 280 of 419
> ( G L W 0 R G H O = ' @
4-122Center display, heater, air conditioner, audio, phone and voice recognition systems

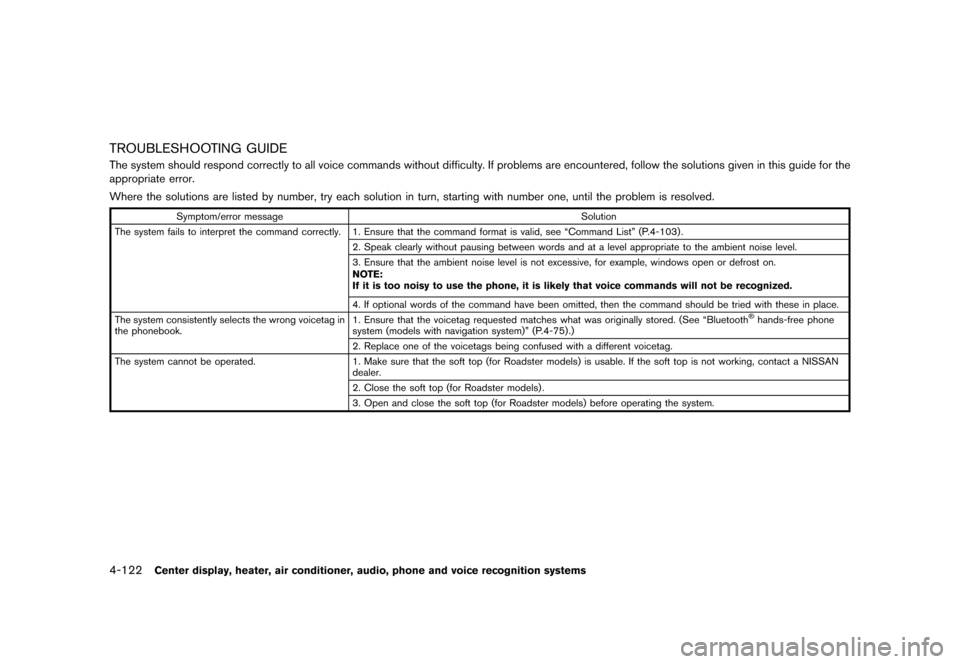

TROUBLESHOOTING GUIDEGUID-816509D7-9C2B-45B6-9DA6-7E6C03020665The system should respond correctly to all voice commands without difficulty. If problems are encountered, follow the solutions given in this guide for the
appropriate error.
Where the solutions are listed by number, try each solution in turn, starting with number one, until the problem is resolved.
Symptom/error messageSolution
The system fails to interpret the command correctly. 1. Ensure that the command format is valid, see ªCommand Listº (P.4-103) . 2. Speak clearly without pausing between words and at a level appropriate to the ambient noise level.
3. Ensure that the ambient noise level is not excessive, for example, windows open or defrost on.
NOTE:
If it is too noisy to use the phone, it is likely that voice commands will not be recognized.
4. If optional words of the command have been omitted, then the command should be tried with these in place.
The system consistently selects the wrong voicetag in
the phonebook. 1. Ensure that the voicetag requested matches what was originally stored. (See ªBluetooth
