Page 261 of 419
> ( G L W 0 R G H O = ' @

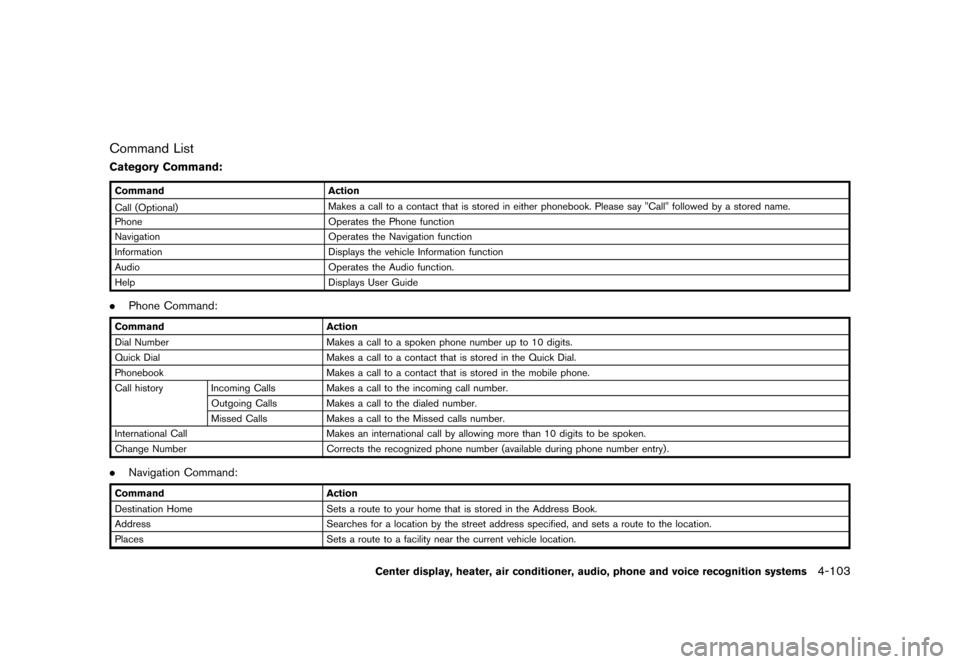

Command ListGUID-A735B46C-16D1-4771-B0BB-0876AC91025F
Category Command:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
CommandAction
Call (Optional) Makes a call to a contact that is stored in either phonebook. Please say "Call" followed by a stored name.
Phone Operates the Phone function
Navigation Operates the Navigation function
Information Displays the vehicle Information function
Audio Operates the Audio function.
Help Displays User Guide
.Phone Command:
Command Action
Dial Number Makes a call to a spoken phone number up to 10 digits.
Quick Dial Makes a call to a contact that is stored in the Quick Dial.
Phonebook Makes a call to a contact that is stored in the mobile phone.
Call history Incoming Calls Makes a call to the incoming call number.
Outgoing Calls Makes a call to the dialed number.
Missed Calls Makes a call to the Missed calls number.
International Call Makes an international call by allowing more than 10 digits to be spoken.
Change Number Corrects the recognized phone number (available during phone number entry) .
.Navigation Command:
Command Action
Destination Home Sets a route to your home that is stored in the Address Book.
Address Searches for a location by the street address specified, and sets a route to the location.
Places Sets a route to a facility near the current vehicle location.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-103
& R Q G L W L R Q
Page 262 of 419
> ( G L W 0 R G H O = ' @
4-104Center display, heater, air conditioner, audio, phone and voice recognition systems

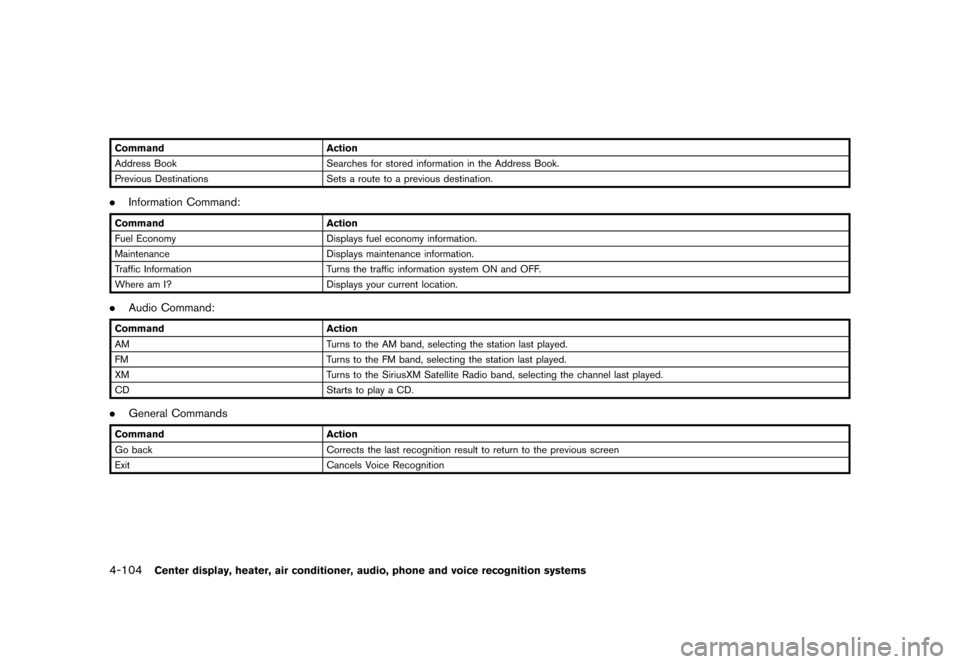

CommandAction
Address Book Searches for stored information in the Address Book.
Previous Destinations Sets a route to a previous destination.
.Information Command:
Command Action
Fuel Economy Displays fuel economy information.
Maintenance Displays maintenance information.
Traffic Information Turns the traffic information system ON and OFF.
Where am I? Displays your current location.
.Audio Command:
Command Action
AM Turns to the AM band, selecting the station last played.
FM Turns to the FM band, selecting the station last played.
XM Turns to the SiriusXM Satellite Radio band, selecting the channel last played.
CD Starts to play a CD.
.General Commands
Command Action
Go back Corrects the last recognition result to return to the previous screen
Exit Cancels Voice Recognition
& R Q G L W L R Q
Page 263 of 419
> ( G L W 0 R G H O = ' @

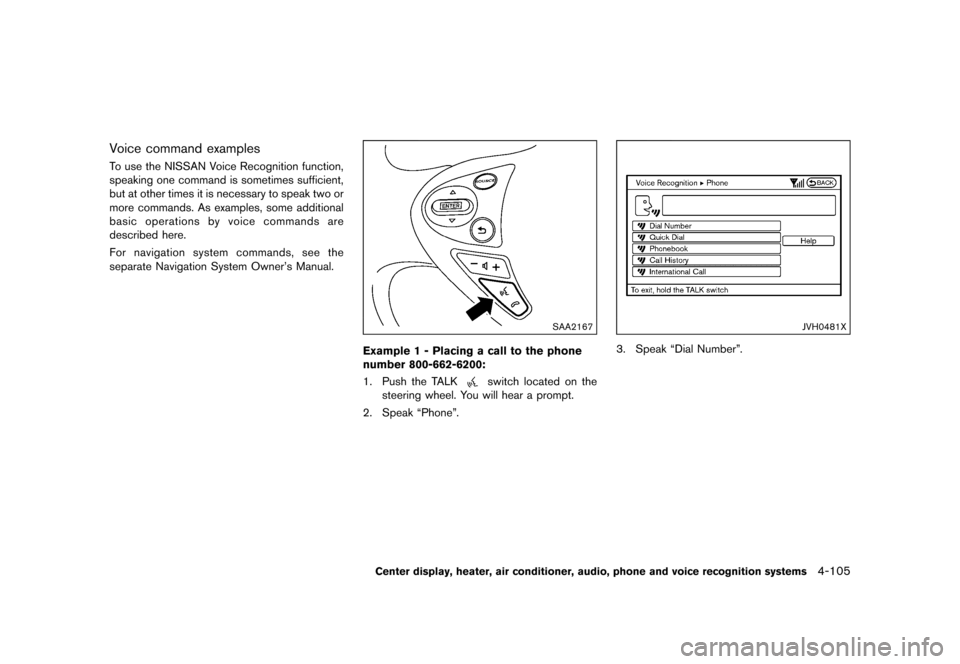

Voice command examplesGUID-F5D205C7-DB98-40FE-89D4-A0982846BA14To use the NISSAN Voice Recognition function,
speaking one command is sometimes sufficient,
but at other times it is necessary to speak two or
more commands. As examples, some additional
basic operations by voice commands are
described here.
For navigation system commands, see the
separate Navigation System Owner's Manual.
SAA2167
Example 1 - Placing a call to the phone
number 800-662-6200:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. Push the TALKswitch located on the
steering wheel. You will hear a prompt.
2. Speak ªPhoneº.
JVH0481X
3. Speak ªDial Numberº.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-105
& R Q G L W L R Q
Page 264 of 419
> ( G L W 0 R G H O = ' @
4-106Center display, heater, air conditioner, audio, phone and voice recognition systems

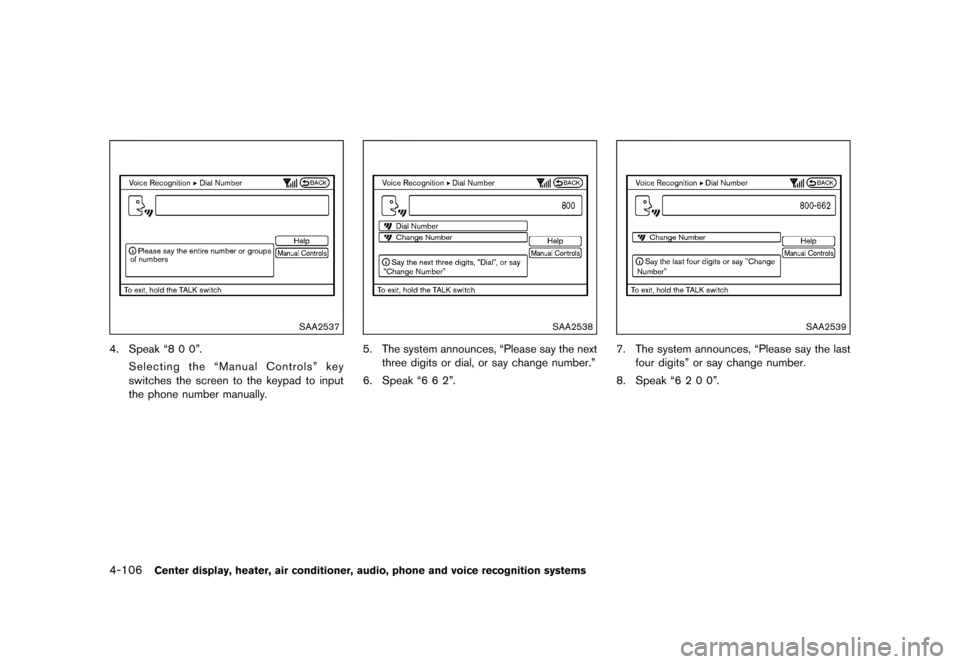

SAA2537
4. Speak ª8 0 0º.Selecting the ªManual Controlsº key
switches the screen to the keypad to input
the phone number manually.
SAA2538
5. The system announces, ªPlease say the nextthree digits or dial, or say change number.º
6. Speak ª6 6 2º.
SAA2539
7. The system announces, ªPlease say the last four digitsº or say change number.
8. Speak ª6 2 0 0º.
& R Q G L W L R Q
Page 265 of 419
> ( G L W 0 R G H O = ' @
SAA2540

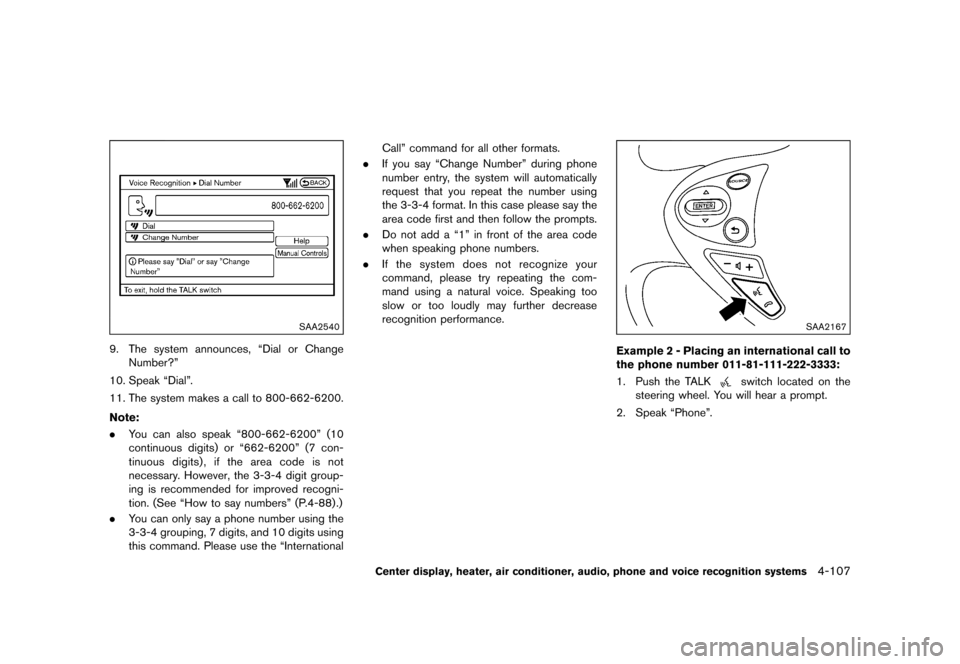

9. The system announces, ªDial or ChangeNumber?º
10. Speak ªDialº.
11. The system makes a call to 800-662-6200.
Note:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. You can also speak ª800-662-6200º (10
continuous digits) or ª662-6200º (7 con-
tinuous digits) , if the area code is not
necessary. However, the 3-3-4 digit group-
ing is recommended for improved recogni-
tion. (See ªHow to say numbersº (P.4-88) .)
. You can only say a phone number using the
3-3-4 grouping, 7 digits, and 10 digits using
this command. Please use the ªInternational Callº command for all other formats.
. If you say ªChange Numberº during phone
number entry, the system will automatically
request that you repeat the number using
the 3-3-4 format. In this case please say the
area code first and then follow the prompts.
. Do not add a ª1º in front of the area code
when speaking phone numbers.
. If the system does not recognize your
command, please try repeating the com-
mand using a natural voice. Speaking too
slow or too loudly may further decrease
recognition performance.
SAA2167
Example 2 - Placing an international call to
the phone number 011-81-111-222-3333:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. Push the TALKswitch located on the
steering wheel. You will hear a prompt.
2. Speak ªPhoneº.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-107
& R Q G L W L R Q
Page 266 of 419
> ( G L W 0 R G H O = ' @
4-108Center display, heater, air conditioner, audio, phone and voice recognition systems
JVH0481X

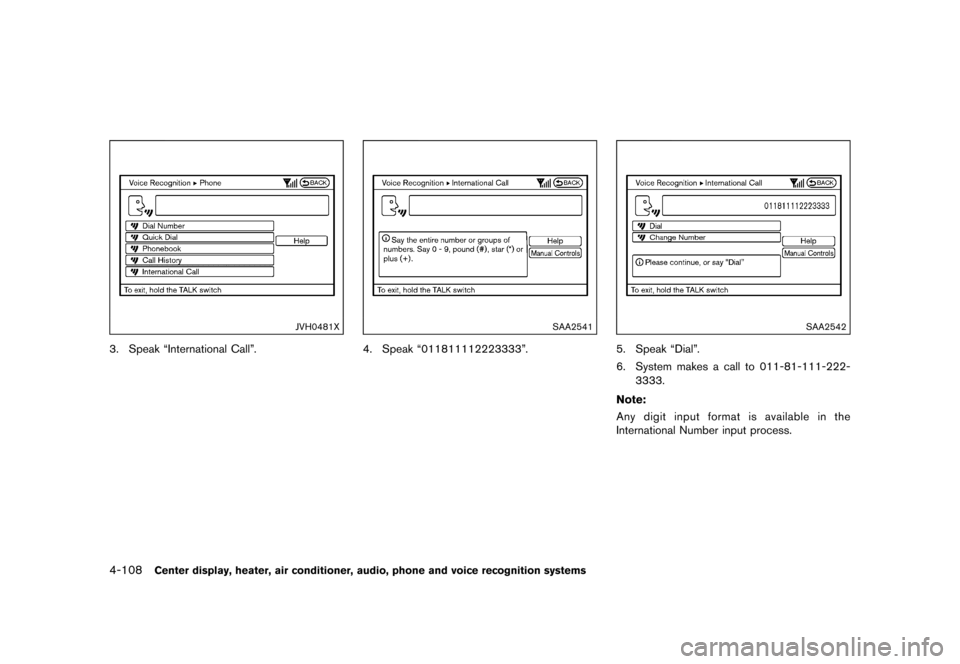

3. Speak ªInternational Callº.
SAA2541
4. Speak ª011811112223333º.
SAA2542
5. Speak ªDialº.
6. System makes a call to 011-81-111-222-3333.
Note:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Any digit input format is available in the
International Number input process.
& R Q G L W L R Q
Page 267 of 419
> ( G L W 0 R G H O = ' @

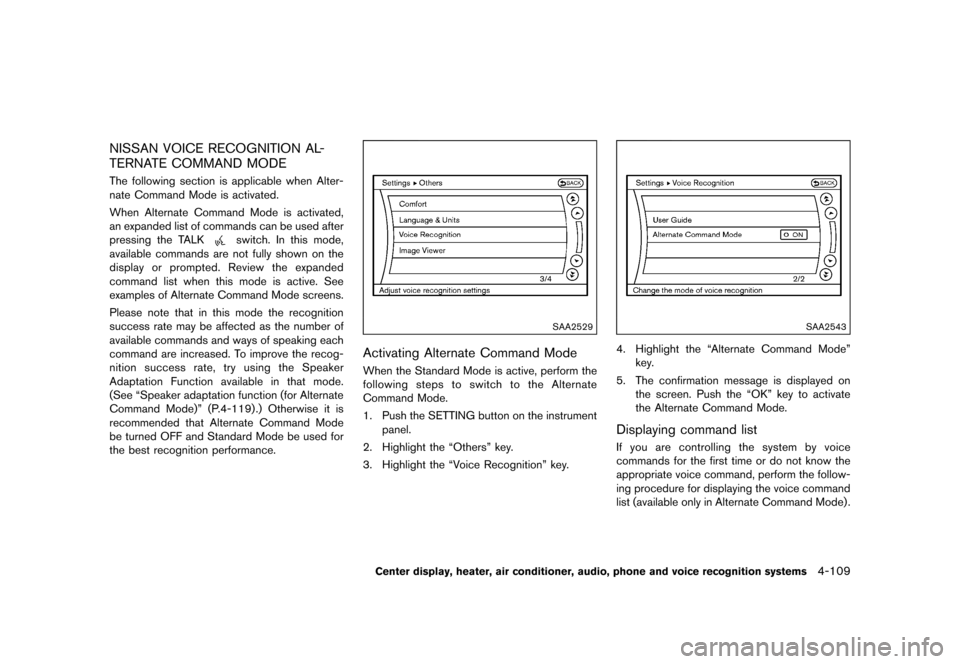

NISSAN VOICE RECOGNITION AL-
TERNATE COMMAND MODE
GUID-15614E01-7329-4468-BC10-F97EEFE29BA3The following section is applicable when Alter-
nate Command Mode is activated.
When Alternate Command Mode is activated,
an expanded list of commands can be used after
pressing the TALK
switch. In this mode,
available commands are not fully shown on the
display or prompted. Review the expanded
command list when this mode is active. See
examples of Alternate Command Mode screens.
Please note that in this mode the recognition
success rate may be affected as the number of
available commands and ways of speaking each
command are increased. To improve the recog-
nition success rate, try using the Speaker
Adaptation Function available in that mode.
(See ªSpeaker adaptation function (for Alternate
Command Mode)º (P.4-119) .) Otherwise it is
recommended that Alternate Command Mode
be turned OFF and Standard Mode be used for
the best recognition performance.
SAA2529
Activating Alternate Command ModeGUID-540D2F4D-821A-4252-95E3-C07F89CB49EAWhen the Standard Mode is active, perform the
following steps to switch to the Alternate
Command Mode.
1. Push the SETTING button on the instrument
panel.
2. Highlight the ªOthersº key.
3. Highlight the ªVoice Recognitionº key.
SAA2543
4. Highlight the ªAlternate Command Modeº key.
5. The confirmation message is displayed on the screen. Push the ªOKº key to activate
the Alternate Command Mode.
Displaying command listGUID-07326739-C98B-4963-8D2C-BF3D6A92A026If you are controlling the system by voice
commands for the first time or do not know the
appropriate voice command, perform the follow-
ing procedure for displaying the voice command
list (available only in Alternate Command Mode) .
Center display, heater, air conditioner, audio, phone and voice recognition systems4-109
& R Q G L W L R Q
Page 268 of 419
> ( G L W 0 R G H O = ' @
4-110Center display, heater, air conditioner, audio, phone and voice recognition systems
SAA2544

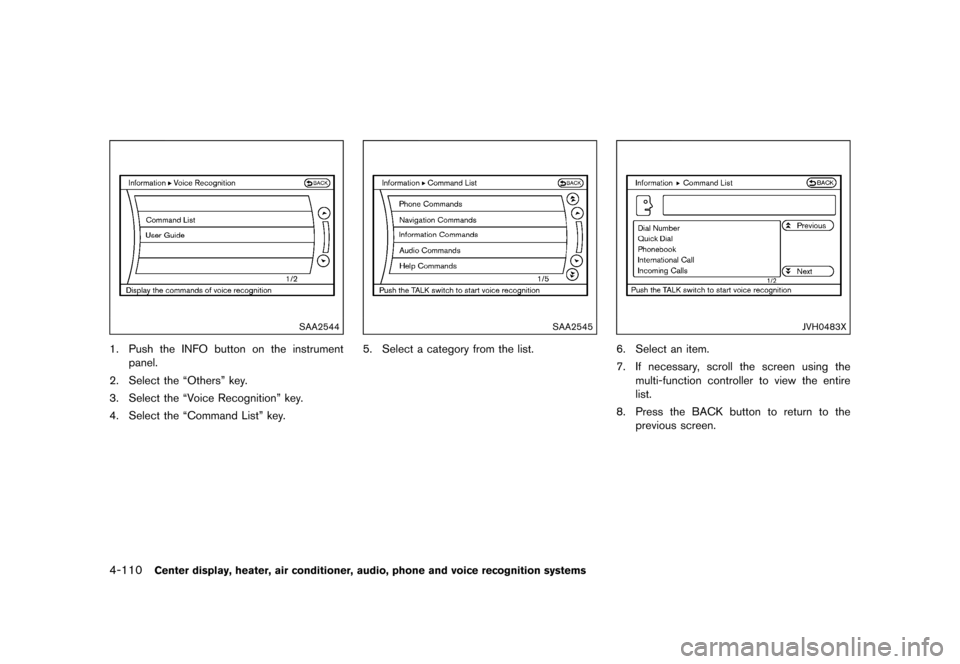

1. Push the INFO button on the instrumentpanel.
2. Select the ªOthersº key.
3. Select the ªVoice Recognitionº key.
4. Select the ªCommand Listº key.
SAA2545
5. Select a category from the list.
JVH0483X
6. Select an item.
7. If necessary, scroll the screen using the multi-function controller to view the entire
list.
8. Press the BACK button to return to the previous screen.
& R Q G L W L R Q
Page 269 of 419
> ( G L W 0 R G H O = ' @

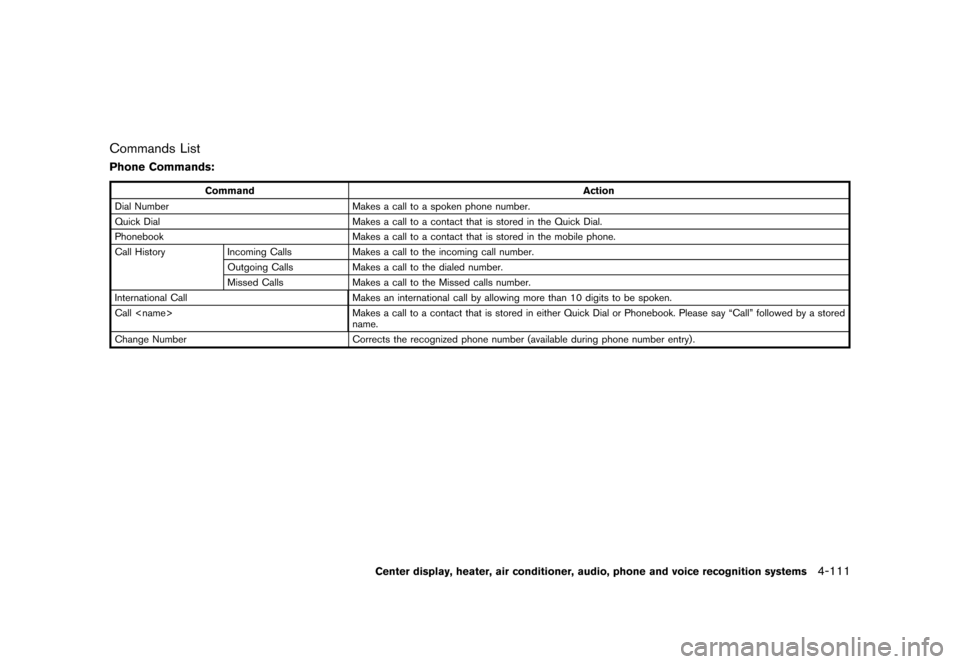

Commands ListGUID-B6B80DB4-AB40-43B0-9372-1488DF0C8C4F
Phone Commands:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
CommandAction
Dial Number Makes a call to a spoken phone number.
Quick Dial Makes a call to a contact that is stored in the Quick Dial.
Phonebook Makes a call to a contact that is stored in the mobile phone.
Call History Incoming Calls Makes a call to the incoming call number.
Outgoing Calls Makes a call to the dialed number.
Missed Calls Makes a call to the Missed calls number.
International Call Makes an international call by allowing more than 10 digits to be spoken.
Call
name.
Change Number Corrects the recognized phone number (available during phone number entry) .
Center display, heater, air conditioner, audio, phone and voice recognition systems4-111
& R Q G L W L R Q
Page 270 of 419
> ( G L W 0 R G H O = ' @
4-112Center display, heater, air conditioner, audio, phone and voice recognition systems

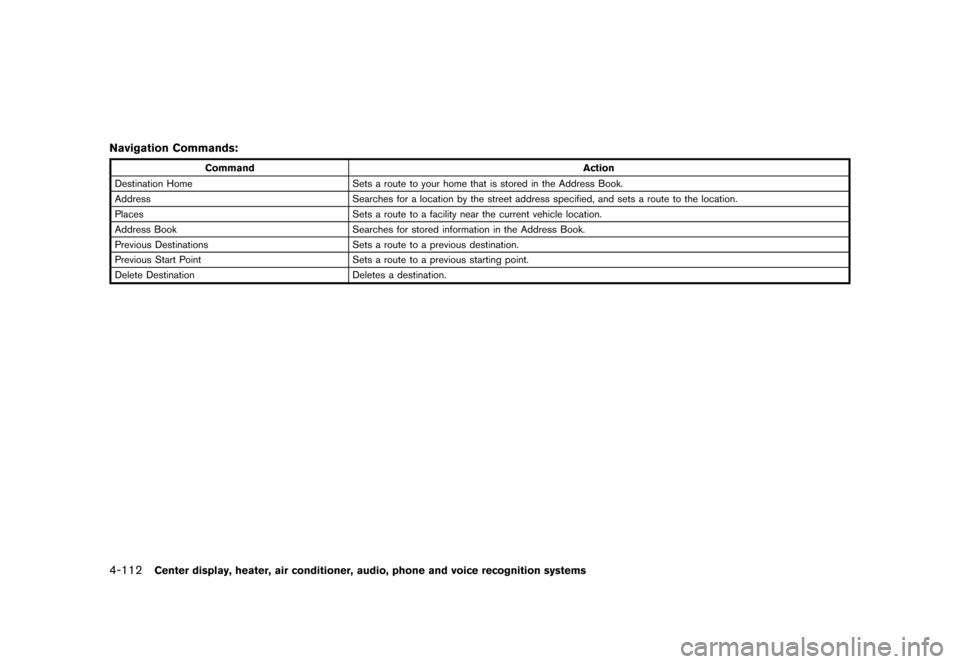

Navigation Commands:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
CommandAction
Destination Home Sets a route to your home that is stored in the Address Book.
Address Searches for a location by the street address specified, and sets a route to the location.
Places Sets a route to a facility near the current vehicle location.
Address Book Searches for stored information in the Address Book.
Previous Destinations Sets a route to a previous destination.
Previous Start Point Sets a route to a previous starting point.
Delete Destination Deletes a destination.
