2. CHECK AT IDLE=NJAT0028S03
1 CHECK ENGINE START
1. Park vehicle on flat surface.
2. Turn ignition switch to ªOFFº position.
3. Move selector lever to ªPº or ªNº position.
SAT769B
4. Turn ignition switch to ªSTARTº position.
5. Is engine started?
YesorNo
Ye s©GO TO 2.
No©Mark the box on the DIAGNOSTIC WORKSHEET. Go to ª2. Engine Cannot Be Started
In ªPº and ªNº Positionº, AT-299. Continue ROAD TEST.
2 CHECK ENGINE START
1. Turn ignition switch to ªOFFº position.
2. Move selector lever to ªDº, ª1º, ª2º or ªRº position.
SAT770B
3. Turn ignition switch to ªSTARTº position.
4. Is engine started?
YesorNo
Ye s©Mark the box on the DIAGNOSTIC WORKSHEET. Go to ª2. Engine Cannot Be Started
In ªPº and ªNº Positionº, AT-299. Continue ROAD TEST.
No©GO TO 3.
TROUBLE DIAGNOSIS Ð BASIC INSPECTION
Road Test (Cont'd)
AT-89

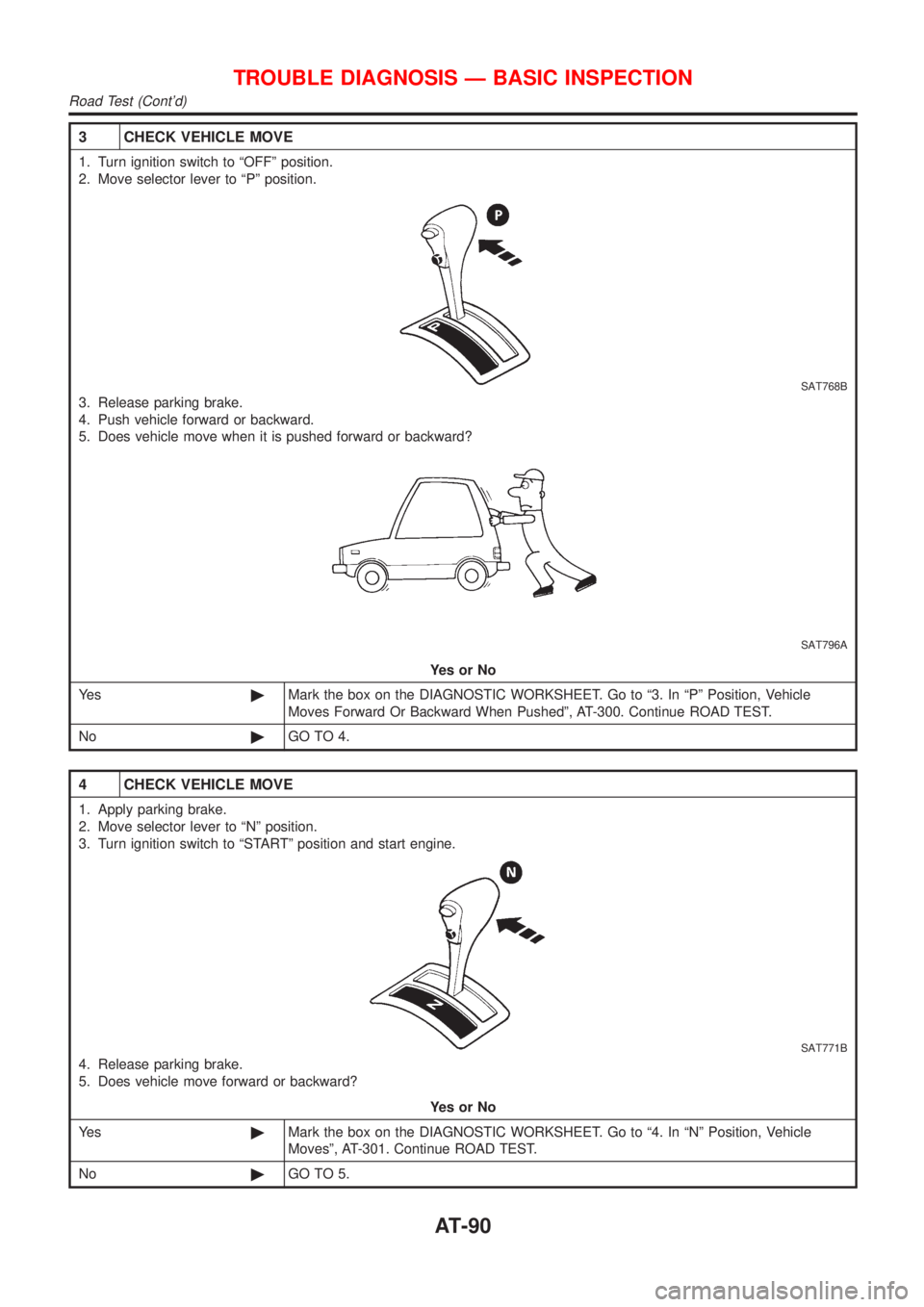

3 CHECK VEHICLE MOVE
1. Turn ignition switch to ªOFFº position.
2. Move selector lever to ªPº position.
SAT768B
3. Release parking brake.
4. Push vehicle forward or backward.
5. Does vehicle move when it is pushed forward or backward?
SAT796A
YesorNo
Ye s©Mark the box on the DIAGNOSTIC WORKSHEET. Go to ª3. In ªPº Position, Vehicle
Moves Forward Or Backward When Pushedº, AT-300. Continue ROAD TEST.
No©GO TO 4.
4 CHECK VEHICLE MOVE
1. Apply parking brake.
2. Move selector lever to ªNº position.
3. Turn ignition switch to ªSTARTº position and start engine.
SAT771B
4. Release parking brake.
5. Does vehicle move forward or backward?
YesorNo
Ye s©Mark the box on the DIAGNOSTIC WORKSHEET. Go to ª4. In ªNº Position, Vehicle
Movesº, AT-301. Continue ROAD TEST.
No©GO TO 5.
TROUBLE DIAGNOSIS Ð BASIC INSPECTION
Road Test (Cont'd)
AT-90

5 CHECK SHIFT SHOCK
1. Apply foot brake.
SAT797A
2. Move selector lever to ªRº position.
SAT772B
3. Is there large shock when changing from ªNº to ªRº position?
YesorNo
Ye s©Mark the box on the DIAGNOSTIC WORKSHEET. Go to ª5. Large Shock ªNº®ªRº
Positionº, AT-303. Continue ROAD TEST.
No©GO TO 6.
6 CHECK VEHICLE MOVE
1. Release foot brake for several seconds.
SAT799A
2. Does vehicle creep backward when foot brake is released?
YesorNo
Ye s©GO TO 7.
No©Mark the box on the DIAGNOSTIC WORKSHEET. Go to ª6. Vehicle Does Not Creep
Backward In ªRº Positionº, AT-305. Continue ROAD TEST.
TROUBLE DIAGNOSIS Ð BASIC INSPECTION
Road Test (Cont'd)
AT-91

7 CHECK VEHICLE MOVE
1. Move selector lever to ªDº, ª2º and ª1º positions and check if vehicle creeps forward.
SAT773B
2. Does vehicle creep forward in all three positions?
YesorNo
Ye s©Go to 3. CRUISE TEST, AT-92.
No©Mark the box on the DIAGNOSTIC WORKSHEET. Go to ª7. Vehicle Does Not Creep
Forward In ªDº, ª2º Or ª1º Positionº, AT-308. Continue ROAD TEST.
SAT601J
3. CRUISE TESTNJAT0028S04+Check all items listed in Parts 1 through 3.
With CONSULT-IINJAT0028S0401+Using CONSULT-II, conduct a cruise test and record the result.
+Print the result and ensure that shifts and lock-ups take place
as per Shift Schedule.
SAT998J
CONSULT-II Setting ProcedureNJAT0028S04021. Turn ignition switch ªOFFº.
2. Connect CONSULT-II to data link connector, which is located
in left side lower dash panel.
SAT586J
3. Turn ignition switch ªONº.
4. Touch ªSTARTº.
TROUBLE DIAGNOSIS Ð BASIC INSPECTION
Road Test (Cont'd)
AT-92

SAT580J
5. Touch ªA/Tº.
SAT971J
6. Touch ªDATA MONITORº.
SAT972J
7. Touch ªMAIN SIGNALSº or ªECU INPUT SIGNALSº.
8. Select ªNumerical Displayº, ªBarchart Displayº or ªLine Graph
Displayº.
SAT973J
9. Touch ªSETTINGº to recording condition (ªAUTO TRIGº or
ªMANU TRIGº) and touch ªBACKº.
10. Touch ªStartº.
SAT985J
11. When performing cruise test, touch ªRECORDº.
TROUBLE DIAGNOSIS Ð BASIC INSPECTION
Road Test (Cont'd)
AT-93

SAT986J
12. After finishing cruise test part 1, touch ªSTOPº.
SAT987J
SAT974J
13. Touch ªSTOREº and touch ªBACKº.
SAT975J
14. Touch ªDISPLAYº.
15. Touch ªPRINTº.
16. Check the monitor data printed out.
17. Continue cruise test part 2 and 3.
SAT417J
Without CONSULT-IINJAT0028S0403+Throttle position sensor can be checked by voltage across
terminals 41 and 42 of TCM.
TROUBLE DIAGNOSIS Ð BASIC INSPECTION
Road Test (Cont'd)
AT-94

Cruise Test Ð Part 1=NJAT0028S0404
1 CHECK STARTING GEAR (D1) POSITION
1. Drive vehicle for approx. 10 minutes to warm engine oil and ATF up to operating temperature.
ATF operating temperature:
50 - 80ÉC (122 - 176ÉF)
2. Park vehicle on flat surface.
3. Set overdrive control switch to ªONº position.
4. Move selector lever to ªPº position.
SAT774B
5. Start engine.
6. Move selector lever to ªDº position.
SAT775B
7. Accelerate vehicle by constantly depressing accelerator pedal halfway.
SAT495G
8. Does vehicle start from D1?
Read gear position.
YesorNo
Ye s©GO TO 2.
No©Go to ª8. Vehicle Cannot Be Started From D
1º, AT-311. Continue ROAD TEST.
TROUBLE DIAGNOSIS Ð BASIC INSPECTION
Road Test (Cont'd)
AT-95

2 CHECK SHIFT UP (D1TO D2)
Does A/T shift from D1to D2at the specified speed?
Read gear position, throttle opening and vehicle speed.
Specified speed when shifting from D
1to D2:
Refer to Shift schedule, AT-470.
SAT954I
YesorNo
Ye s©GO TO 3.
No©Go to ª9. A/T Does Not Shift: D
1®D2Or Does Not Kickdown: D4®D2º, AT-314. Con-
tinue ROAD TEST.
3 CHECK SHIFT UP (D2TO D3)
Does A/T shift from D2to D3at the specified speed?
Read gear position, throttle position and vehicle speed.
Specified speed when shifting from D
2to D3:
Refer to Shift schedule, AT-470.
SAT955I
YesorNo
Ye s©GO TO 4.
No©Go to ª10. A/T Does Not Shift: D
2®D3º, AT-317. Continue ROAD TEST.
TROUBLE DIAGNOSIS Ð BASIC INSPECTION
Road Test (Cont'd)
AT-96

4 CHECK SHIFT UP (D3TO D4)
Does A/T shift from D3to D4at the specified speed?
Read gear position, throttle position and vehicle speed.
Specified speed when shifting from D
3to D4:
Refer to Shift schedule, AT-470.
SAT956I
YesorNo
Ye s©GO TO 5.
No©Go to ª11. A/T Does Not Shift: D
3®D4º, AT-320. Continue ROAD TEST.
5 CHECK LOCK-UP (D4TO D4L/U)
Does A/T perform lock-up at the specified speed?
Read vehicle speed, throttle position when lock-up duty becomes 94%.
Specified speed when lock-up occurs:
Refer to Shift schedule, AT-470.
SAT957I
YesorNo
Ye s©GO TO 6.
No©Go to ª12. A/T Does Not Perform Lock-upº, AT-323. Continue ROAD TEST.
6 CHECK HOLD LOCK-UP
Does A/T hold lock-up condition for more than 30 seconds?
YesorNo
Ye s©GO TO 7.
No©Go to ª13. A/T Does Not Hold Lock-up Conditionº, AT-325.
TROUBLE DIAGNOSIS Ð BASIC INSPECTION
Road Test (Cont'd)
AT-97

7 CHECK SHIFT DOWN (D4L/U TO D4)
1. Release accelerator pedal.
2. Is lock-up released when accelerator pedal is released?
SAT958I
YesorNo
Ye s©GO TO 8.
No©Go to ª14. Lock-up Is Not Releasedº, AT-327. Continue ROAD TEST.
8 CHECK SHIFT DOWN (D4TO D3)
1. Decelerate vehicle by applying foot brake lightly.
2. Does engine speed return to idle smoothly when A/T is shifted from D
4to D3?
Read gear position and engine speed.
SAT959I
YesorNo
Ye s©1. Stop vehicle.
2. Go to ªCruise test Ð Part 2º, AT-99.
No©Go to ª15. Engine Speed Does Not Return To Idle (Light Braking D
4®D3)º, AT-328.
Continue ROAD TEST.
TROUBLE DIAGNOSIS Ð BASIC INSPECTION
Road Test (Cont'd)
