Item DisplayMonitor item
Description Remarks
ECU input
signalsMain sig-
nals
Throttle position THROTTLE
POSI
[/8]ÐX+Throttle position data,
used for computation by
TCM, is displayed.+A specific value used for
control is displayed if
fail-safe is activated due
to error.
Line pressure duty LINE PRES DTY
[%]
ÐX+Control value of line
pressure solenoid valve,
computed by TCM from
each input signal, is dis-
played.
Torque converter clutch
solenoid valve dutyTCC S/V DUTY
[%]
ÐX+Control value of torque
converter clutch sole-
noid valve, computed by
TCM from each input
signal, is displayed.
Shift solenoid valve A SHIFT S/V A
[ON/OFF]
ÐX+Control value of shift
solenoid valve A, com-
puted by TCM from
each input signal, is dis-
played.Control value of solenoid is
displayed even if solenoid
circuit is disconnected.
The ªOFFº signal is dis-
played if solenoid circuit is
shorted.
Shift solenoid valve B SHIFT S/V B
[ON/OFF]
ÐX+Control value of shift
solenoid valve B, com-
puted by TCM from
each input signal, is dis-
played.
Overrun clutch solenoid
valveOVERRUN/C S/V
[ON/OFF]
ÐX+Control value of overrun
clutch solenoid valve
computed by TCM from
each input signal is dis-
played.
Self-diagnosis display lamp
(O/D OFF indicator lamp)SELF-D DP LMP
[ON/OFF] Ð X+Control status of O/D
OFF indicator lamp is
displayed.
X: Applicable
Ð: Not applicable
SAT998J
DTC WORK SUPPORT MODE WITH CONSULT-IINJAT0256S04CONSULT-II Setting ProcedureNJAT0256S04011. Turn ignition switch ªOFFº.
2. Connect CONSULT-II to data link connector which is located
in left side lower dash panel.
ON BOARD DIAGNOSTIC SYSTEM
DESCRIPTION
EURO-OBD
CONSULT-II (Cont'd)
AT-59

SAT586J

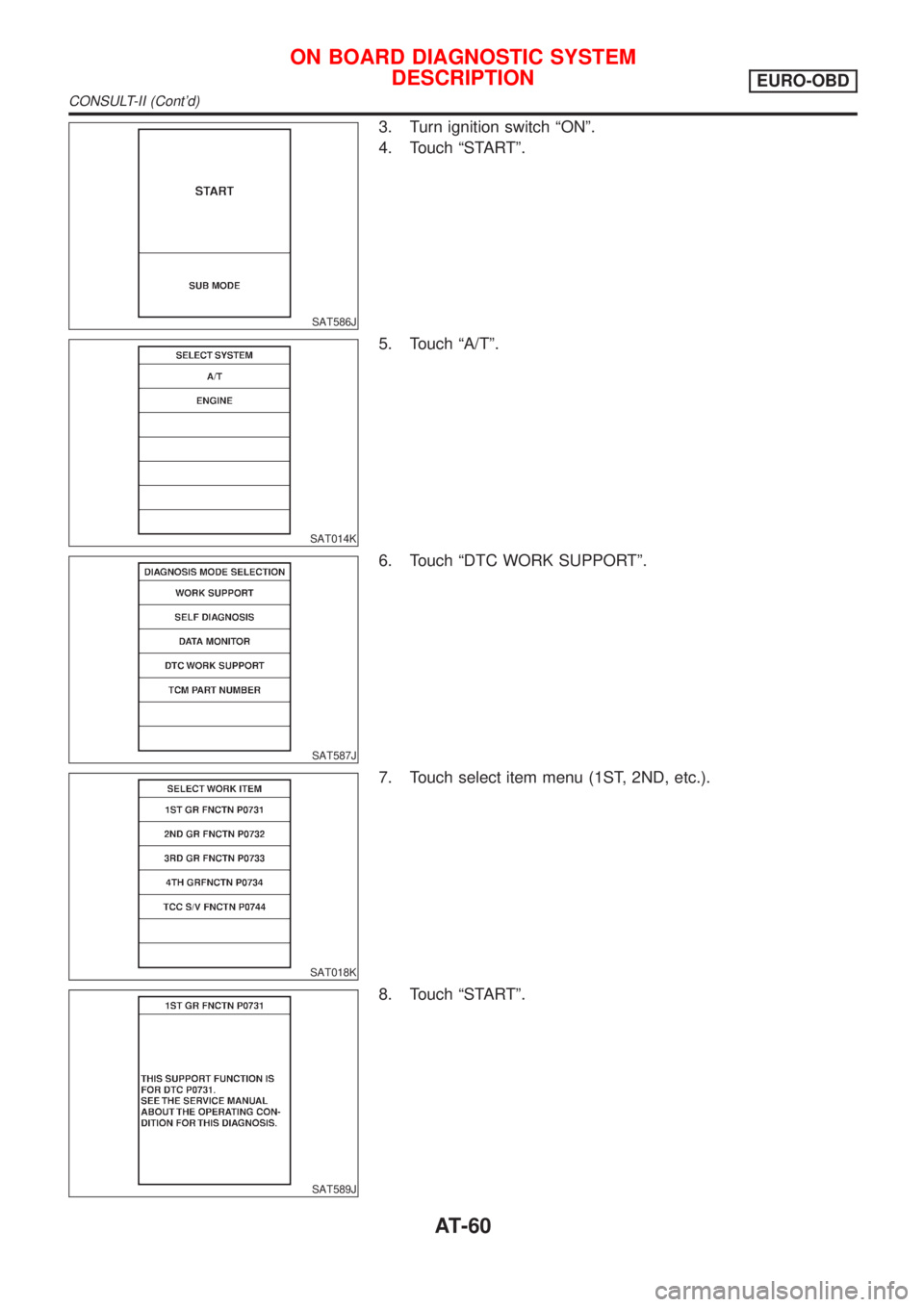

3. Turn ignition switch ªONº.
4. Touch ªSTARTº.
SAT014K
5. Touch ªA/Tº.
SAT587J
6. Touch ªDTC WORK SUPPORTº.
SAT018K
7. Touch select item menu (1ST, 2ND, etc.).
SAT589J
8. Touch ªSTARTº.
ON BOARD DIAGNOSTIC SYSTEM
DESCRIPTION
EURO-OBD
CONSULT-II (Cont'd)
AT-60

SAT590JA

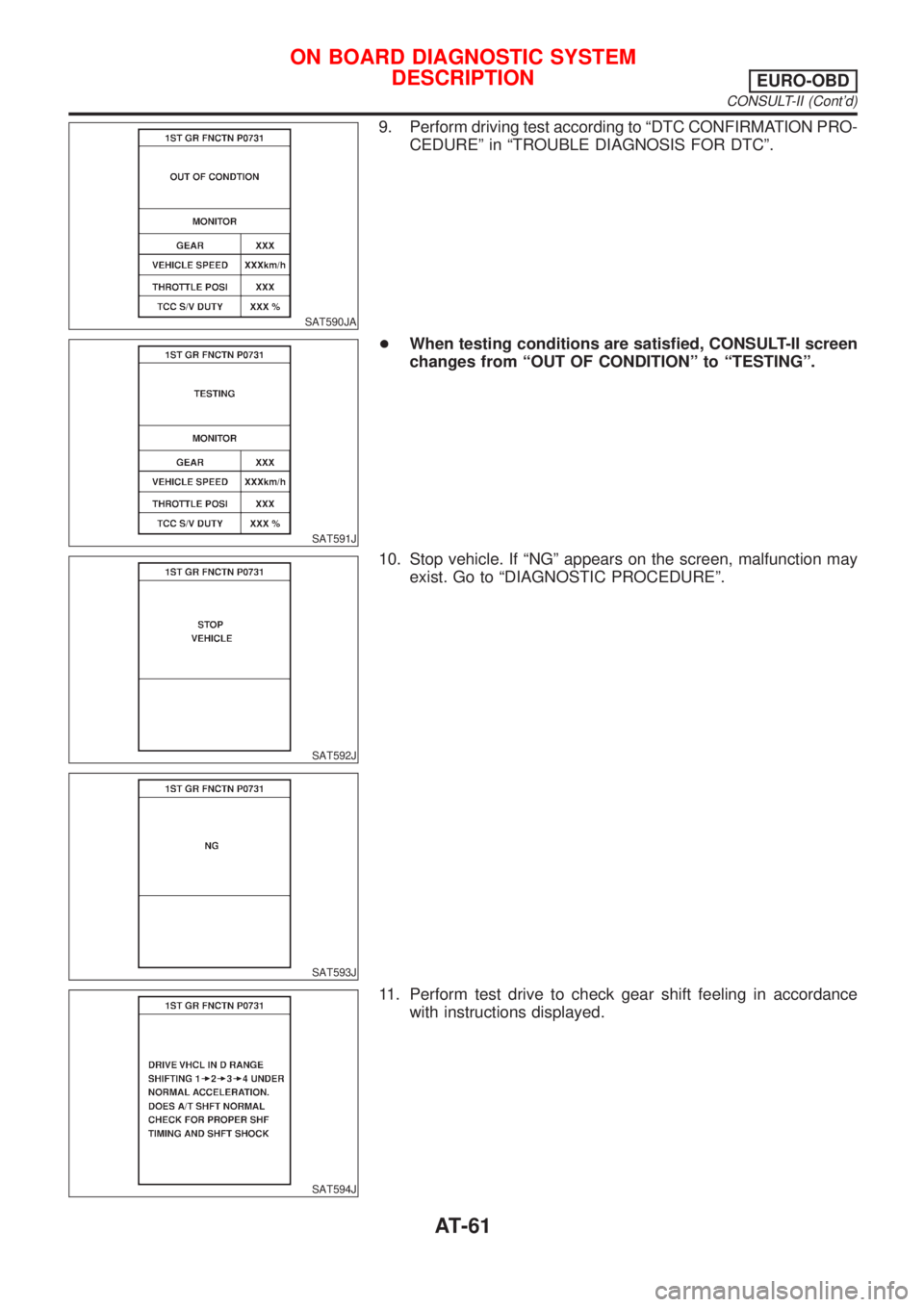

9. Perform driving test according to ªDTC CONFIRMATION PRO-
CEDUREº in ªTROUBLE DIAGNOSIS FOR DTCº.
SAT591J
+When testing conditions are satisfied, CONSULT-II screen
changes from ªOUT OF CONDITIONº to ªTESTINGº.
SAT592J
SAT593J
10. Stop vehicle. If ªNGº appears on the screen, malfunction may
exist. Go to ªDIAGNOSTIC PROCEDUREº.
SAT594J
11. Perform test drive to check gear shift feeling in accordance
with instructions displayed.
ON BOARD DIAGNOSTIC SYSTEM
DESCRIPTION
EURO-OBD
CONSULT-II (Cont'd)
AT-61

SAT595J

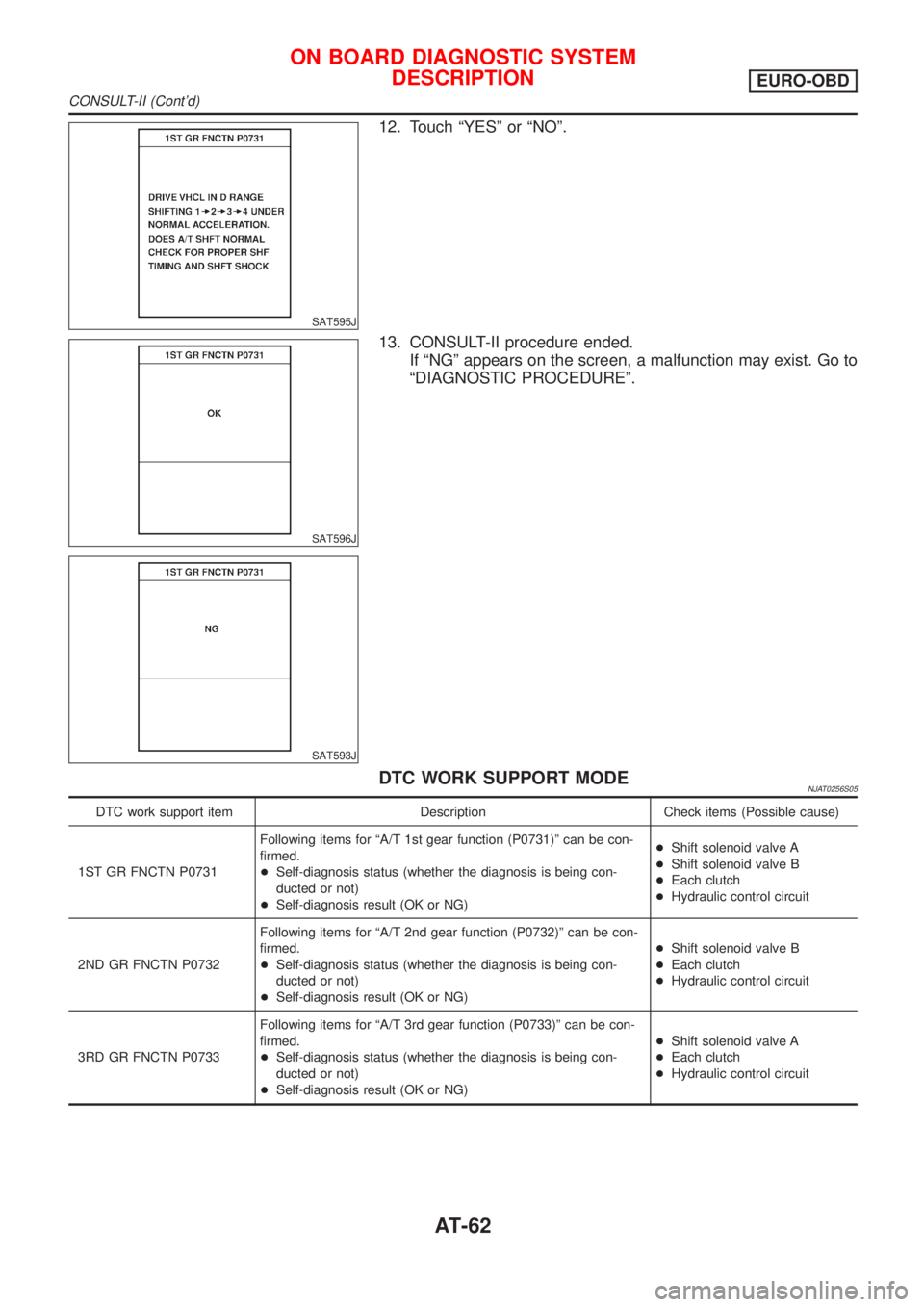

12. Touch ªYESº or ªNOº.
SAT596J
SAT593J
13. CONSULT-II procedure ended.
If ªNGº appears on the screen, a malfunction may exist. Go to
ªDIAGNOSTIC PROCEDUREº.
DTC WORK SUPPORT MODENJAT0256S05
DTC work support item Description Check items (Possible cause)
1ST GR FNCTN P0731Following items for ªA/T 1st gear function (P0731)º can be con-
firmed.
+Self-diagnosis status (whether the diagnosis is being con-
ducted or not)
+Self-diagnosis result (OK or NG)+Shift solenoid valve A
+Shift solenoid valve B
+Each clutch
+Hydraulic control circuit
2ND GR FNCTN P0732Following items for ªA/T 2nd gear function (P0732)º can be con-
firmed.
+Self-diagnosis status (whether the diagnosis is being con-
ducted or not)
+Self-diagnosis result (OK or NG)+Shift solenoid valve B
+Each clutch
+Hydraulic control circuit
3RD GR FNCTN P0733Following items for ªA/T 3rd gear function (P0733)º can be con-
firmed.
+Self-diagnosis status (whether the diagnosis is being con-
ducted or not)
+Self-diagnosis result (OK or NG)+Shift solenoid valve A
+Each clutch
+Hydraulic control circuit
ON BOARD DIAGNOSTIC SYSTEM
DESCRIPTION
EURO-OBD
CONSULT-II (Cont'd)
AT-62

DTC work support item Description Check items (Possible cause)
4TH GR FNCTN P0734Following items for ªA/T 4th gear function (P0734)º can be con-
firmed.
+Self-diagnosis status (whether the diagnosis is being con-
ducted or not)
+Self-diagnosis result (OK or NG)+Shift solenoid valve A
+Shift solenoid valve B
+Overrun clutch solenoid valve
+Line pressure solenoid valve
+Each clutch
+Hydraulic control circuit
Diagnostic Procedure Without CONSULT-IINJAT0352EURO-OBD SELF-DIAGNOSTIC PROCEDURE (WITH
GST)
NJAT0352S04Refer to EC-94, section ªGeneric Scan Tool (GST)º.
EURO-OBD SELF-DIAGNOSTIC PROCEDURE (NO
TOOLS)
NJAT0352S05Refer to EC-74, ªMalfunction Indicator (MI)º.
SAT491J
SAT851JA

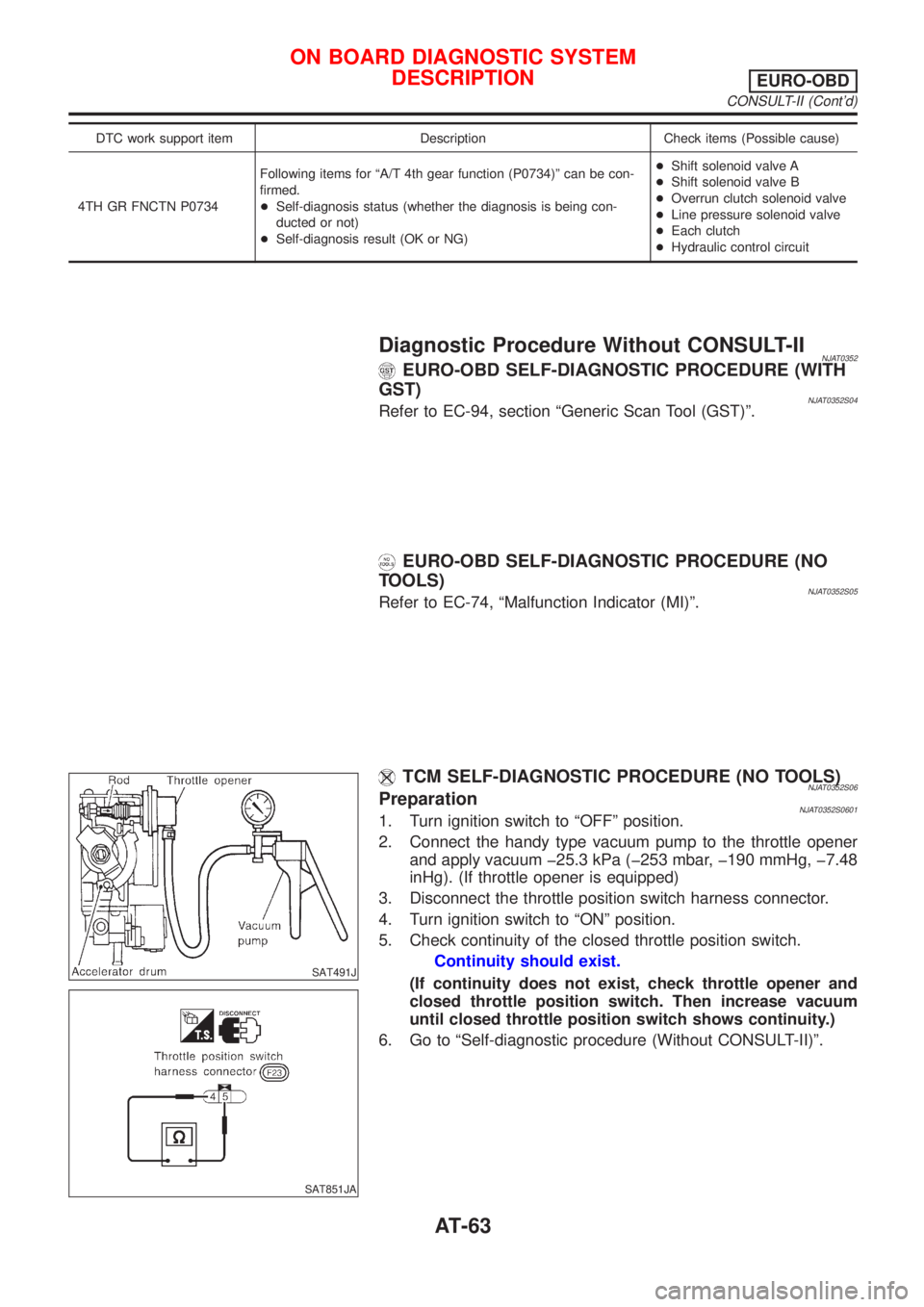

TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS)NJAT0352S06PreparationNJAT0352S06011. Turn ignition switch to ªOFFº position.
2. Connect the handy type vacuum pump to the throttle opener
and apply vacuum þ25.3 kPa (þ253 mbar, þ190 mmHg, þ7.48
inHg). (If throttle opener is equipped)
3. Disconnect the throttle position switch harness connector.
4. Turn ignition switch to ªONº position.
5. Check continuity of the closed throttle position switch.
Continuity should exist.
(If continuity does not exist, check throttle opener and
closed throttle position switch. Then increase vacuum
until closed throttle position switch shows continuity.)
6. Go to ªSelf-diagnostic procedure (Without CONSULT-II)º.
ON BOARD DIAGNOSTIC SYSTEM
DESCRIPTION
EURO-OBD
CONSULT-II (Cont'd)
AT-63

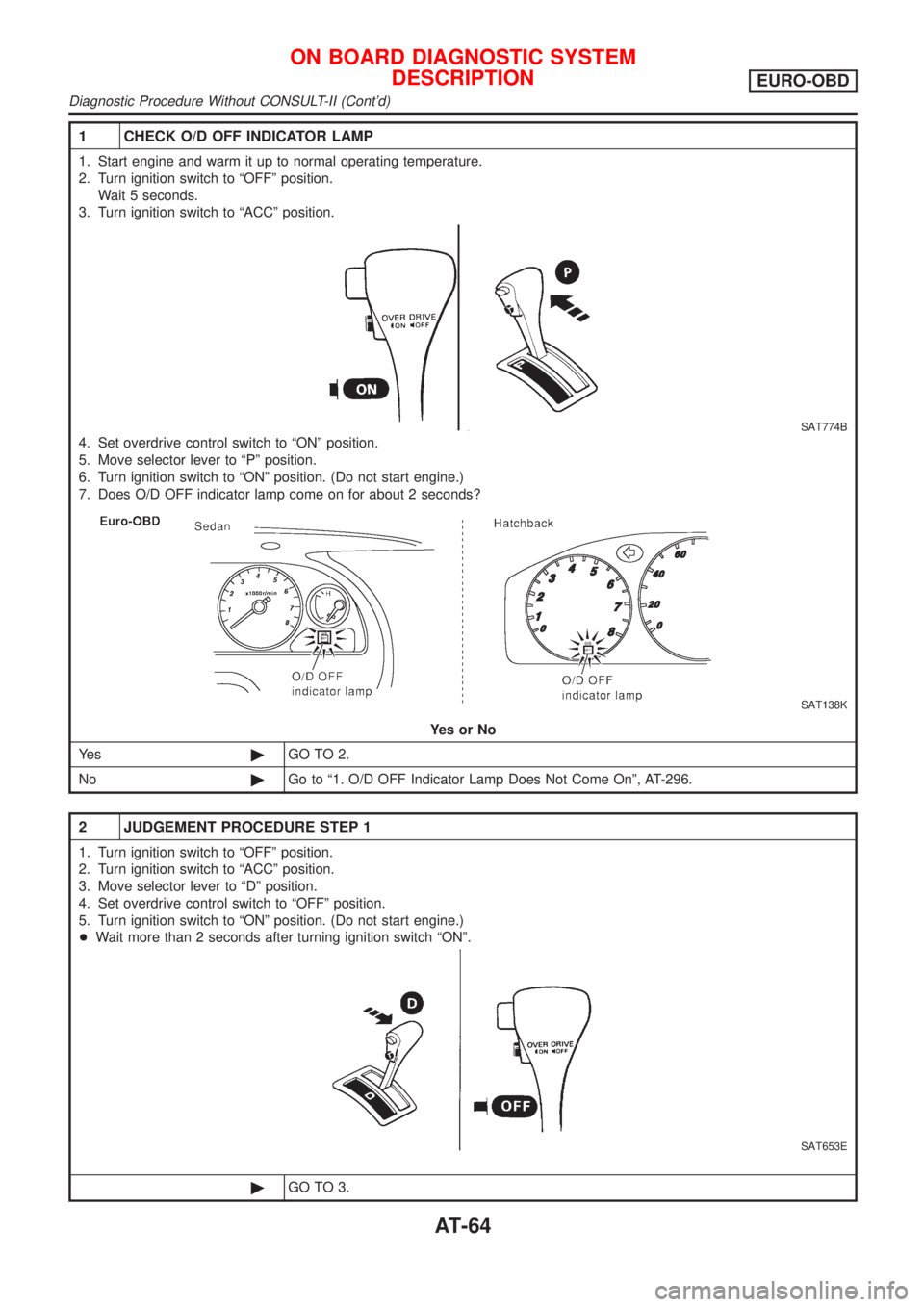

1 CHECK O/D OFF INDICATOR LAMP
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch to ªOFFº position.
Wait 5 seconds.
3. Turn ignition switch to ªACCº position.
SAT774B
4. Set overdrive control switch to ªONº position.
5. Move selector lever to ªPº position.
6. Turn ignition switch to ªONº position. (Do not start engine.)
7. Does O/D OFF indicator lamp come on for about 2 seconds?
SAT138K
YesorNo
Ye s©GO TO 2.
No©Go to ª1. O/D OFF Indicator Lamp Does Not Come Onº, AT-296.
2 JUDGEMENT PROCEDURE STEP 1
1. Turn ignition switch to ªOFFº position.
2. Turn ignition switch to ªACCº position.
3. Move selector lever to ªDº position.
4. Set overdrive control switch to ªOFFº position.
5. Turn ignition switch to ªONº position. (Do not start engine.)
+Wait more than 2 seconds after turning ignition switch ªONº.
SAT653E
©GO TO 3.
ON BOARD DIAGNOSTIC SYSTEM
DESCRIPTION
EURO-OBD
Diagnostic Procedure Without CONSULT-II (Cont'd)
AT-64

3 JUDGEMENT PROCEDURE STEP 2
1. Move selector lever to ª2º position.
2. Set overdrive control switch to ªONº position.
SAT780B
©GO TO 4.

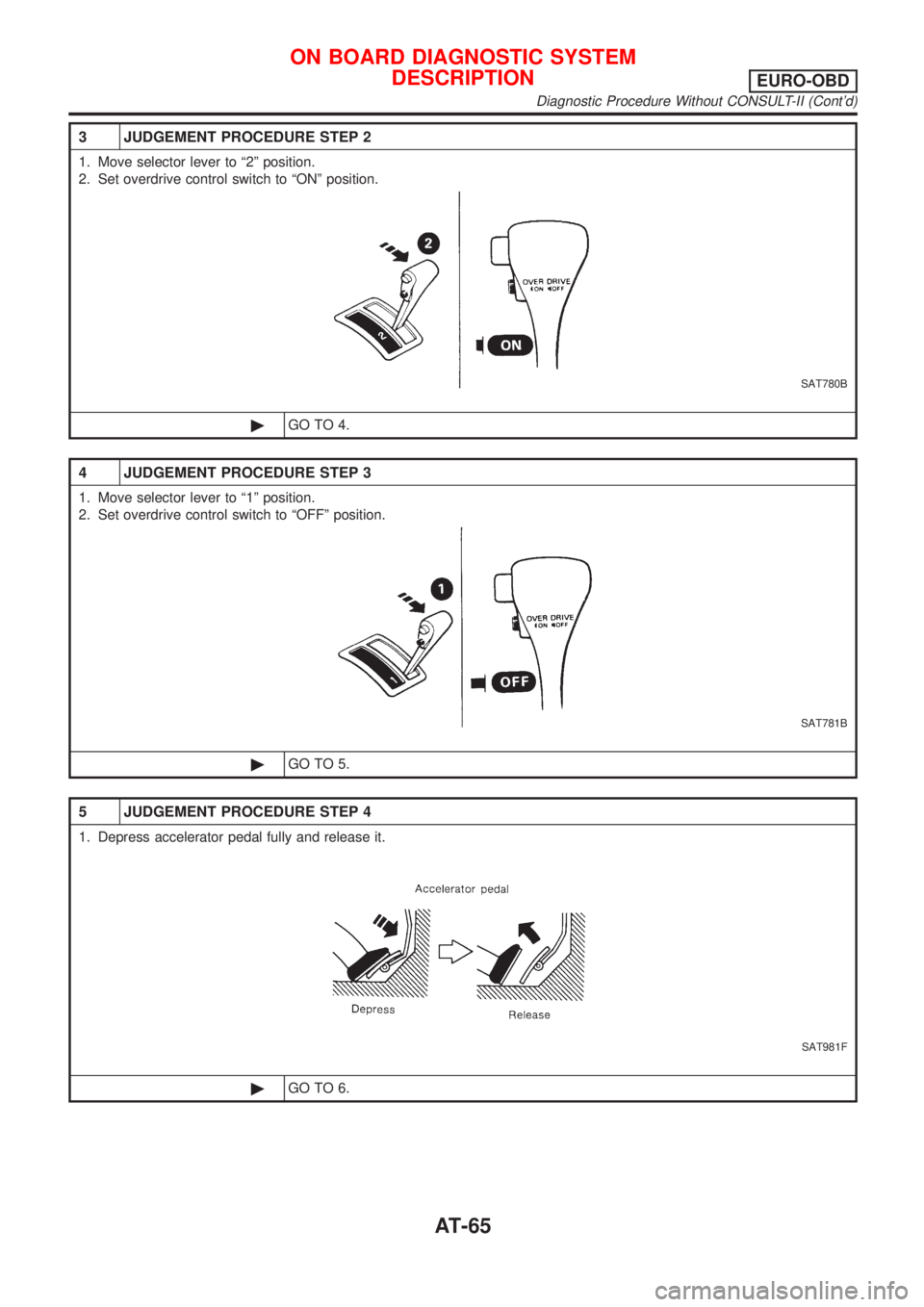

4 JUDGEMENT PROCEDURE STEP 3
1. Move selector lever to ª1º position.
2. Set overdrive control switch to ªOFFº position.
SAT781B
©GO TO 5.
5 JUDGEMENT PROCEDURE STEP 4
1. Depress accelerator pedal fully and release it.
SAT981F
©GO TO 6.
ON BOARD DIAGNOSTIC SYSTEM
DESCRIPTION
EURO-OBD
Diagnostic Procedure Without CONSULT-II (Cont'd)
AT-65

6 CHECK SELF-DIAGNOSIS CODE
Check O/D OFF indicator lamp. Refer to JUDGEMENT OF SELF-DIAGNOSIS CODE, AT-66.
SAT138K
©DIAGNOSIS END
JUDGEMENT OF SELF-DIAGNOSIS CODENJAT0352S02
O/D OFF indicator lamp:
All judgement flickers are the same.
SAT436F
All circuits that can be confirmed by self-diagnosis are OK.1st judgement flicker is longer than others.
SAT437F
Revolution sensor circuit is short-circuited or disconnected.
ÞGo to VEHICLE SPEED SENSOR´A/T (REVOLUTION SEN-
SOR).
EURO-OBD: AT-195
2nd judgement flicker is longer than others.
SAT439F
Vehicle speed sensor circuit is short-circuited or disconnected.
ÞGo to VEHICLE SPEED SENSOR´MTR.
EURO-OBD: AT-2813rd judgement flicker is longer than others.SAT441F
Throttle position sensor circuit is short-circuited or disconnected.
ÞGo to THROTTLE POSITION SENSOR.
EURO-OBD: AT-258
ON BOARD DIAGNOSTIC SYSTEM
DESCRIPTION
EURO-OBD
Diagnostic Procedure Without CONSULT-II (Cont'd)
AT-66

O/D OFF indicator lamp:
4th judgement flicker is longer than others.
SAT443F
Shift solenoid valve A circuit is short-circuited or disconnected.
ÞGo to SHIFT SOLENOID VALVE A.
EURO-OBD: AT-2465th judgement flicker is longer than others.
SAT445F
Shift solenoid valve B circuit is short-circuited or disconnected.
ÞGo to SHIFT SOLENOID VALVE B.
EURO-OBD: AT-252
6th judgement flicker is longer than others.
SAT447F
Overrun clutch solenoid valve circuit is short-circuited or discon-
nected.
ÞGo to OVERRUN CLUTCH SOLENOID VALVE.
EURO-OBD: AT-2687th judgement flicker is longer than others.
SAT449F
Torque converter clutch solenoid valve circuit is short-circuited
or disconnected.
ÞGo to TORQUE CONVERTER CLUTCH SOLENOID
VA LV E .
EURO-OBD: AT-233
8th judgement flicker is longer than others.
SAT451F
A/T fluid temperature sensor is disconnected or TCM power
source circuit is damaged.
ÞGo to A/T FLUID TEMPERATURE SENSOR AND TCM
POWER SOURCE.
EURO-OBD: AT-2749th judgement flicker is longer than others.
SAT453F
Engine speed signal circuit is short-circuited or disconnected.
ÞGo to ENGINE SPEED SIGNAL.
EURO-OBD: AT-200
ON BOARD DIAGNOSTIC SYSTEM
DESCRIPTION
EURO-OBD
Diagnostic Procedure Without CONSULT-II (Cont'd)
AT-67

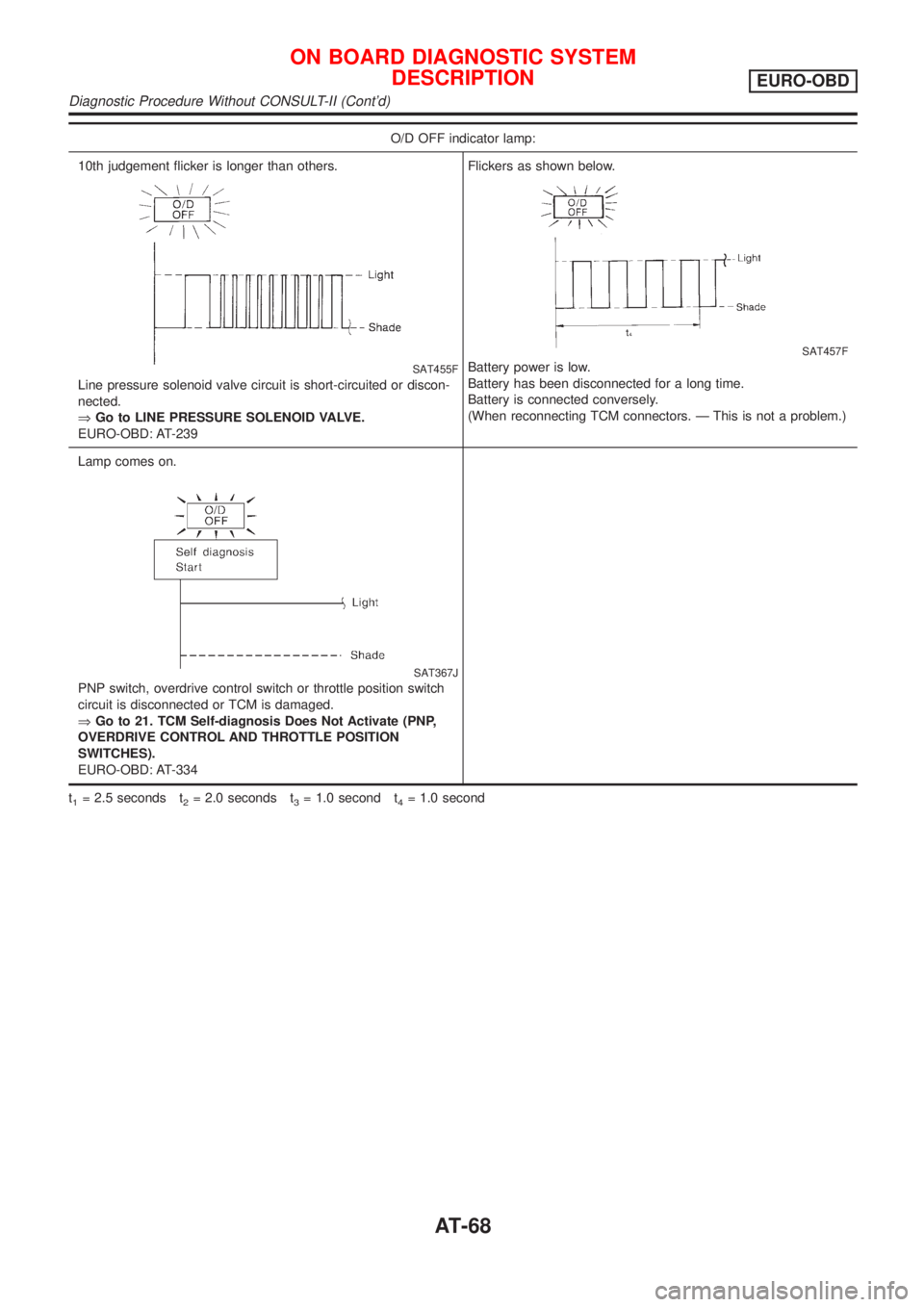

O/D OFF indicator lamp:
10th judgement flicker is longer than others.
SAT455F
Line pressure solenoid valve circuit is short-circuited or discon-
nected.
ÞGo to LINE PRESSURE SOLENOID VALVE.
EURO-OBD: AT-239Flickers as shown below.
SAT457F
Battery power is low.
Battery has been disconnected for a long time.
Battery is connected conversely.
(When reconnecting TCM connectors. Ð This is not a problem.)
Lamp comes on.
SAT367J
PNP switch, overdrive control switch or throttle position switch
circuit is disconnected or TCM is damaged.
ÞGo to 21. TCM Self-diagnosis Does Not Activate (PNP,
OVERDRIVE CONTROL AND THROTTLE POSITION
SWITCHES).
EURO-OBD: AT-334
t
1= 2.5 seconds t2= 2.0 seconds t3= 1.0 second t4= 1.0 second
ON BOARD DIAGNOSTIC SYSTEM
DESCRIPTION
EURO-OBD
Diagnostic Procedure Without CONSULT-II (Cont'd)
AT-68
