NISSAN ALMERA 2001 Service Manual

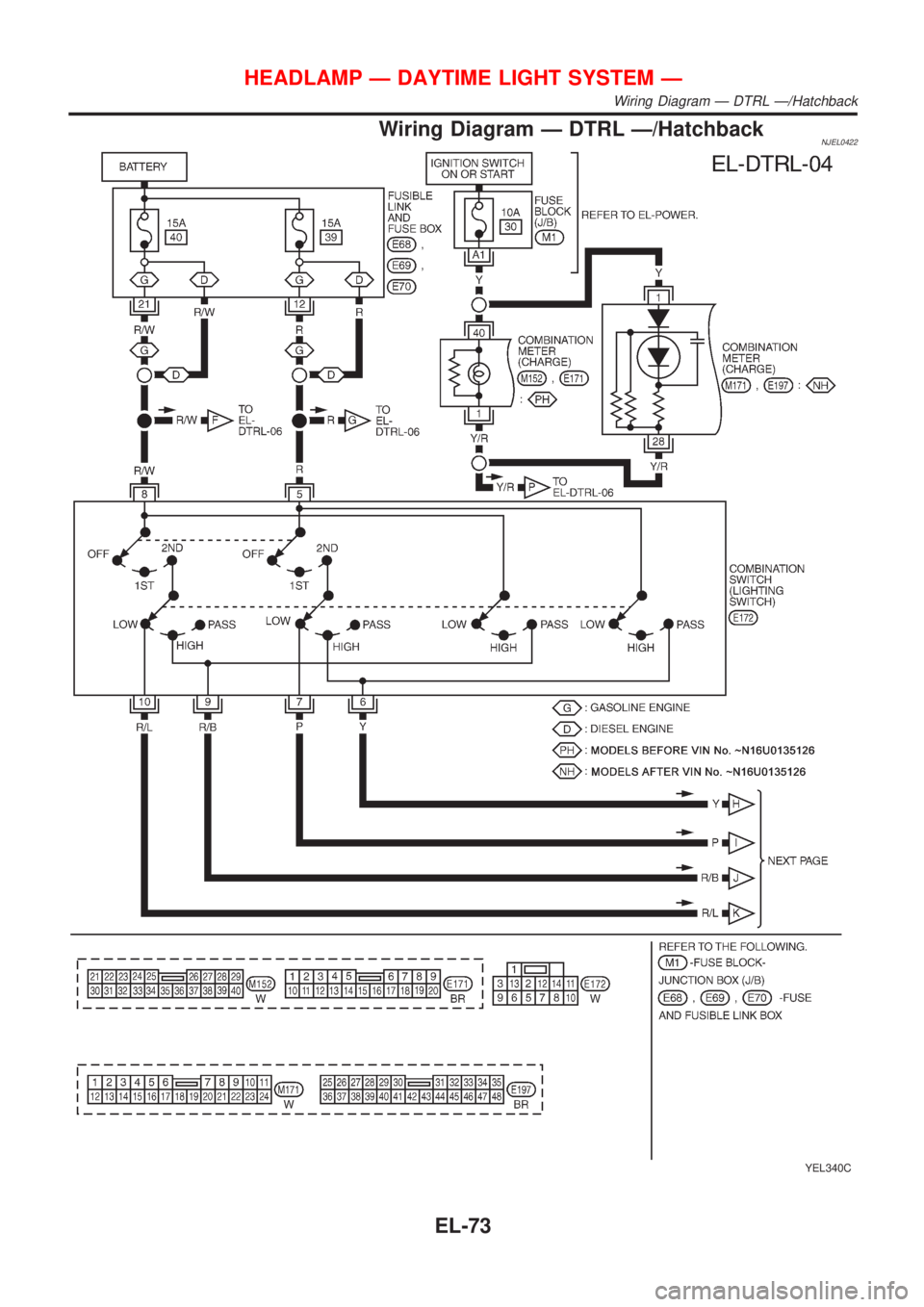

Wiring Diagram Ð DTRL Ð/HatchbackNJEL0422
YEL340C
HEADLAMP Ð DAYTIME LIGHT SYSTEM Ð
Wiring Diagram Ð DTRL Ð/Hatchback
EL-73

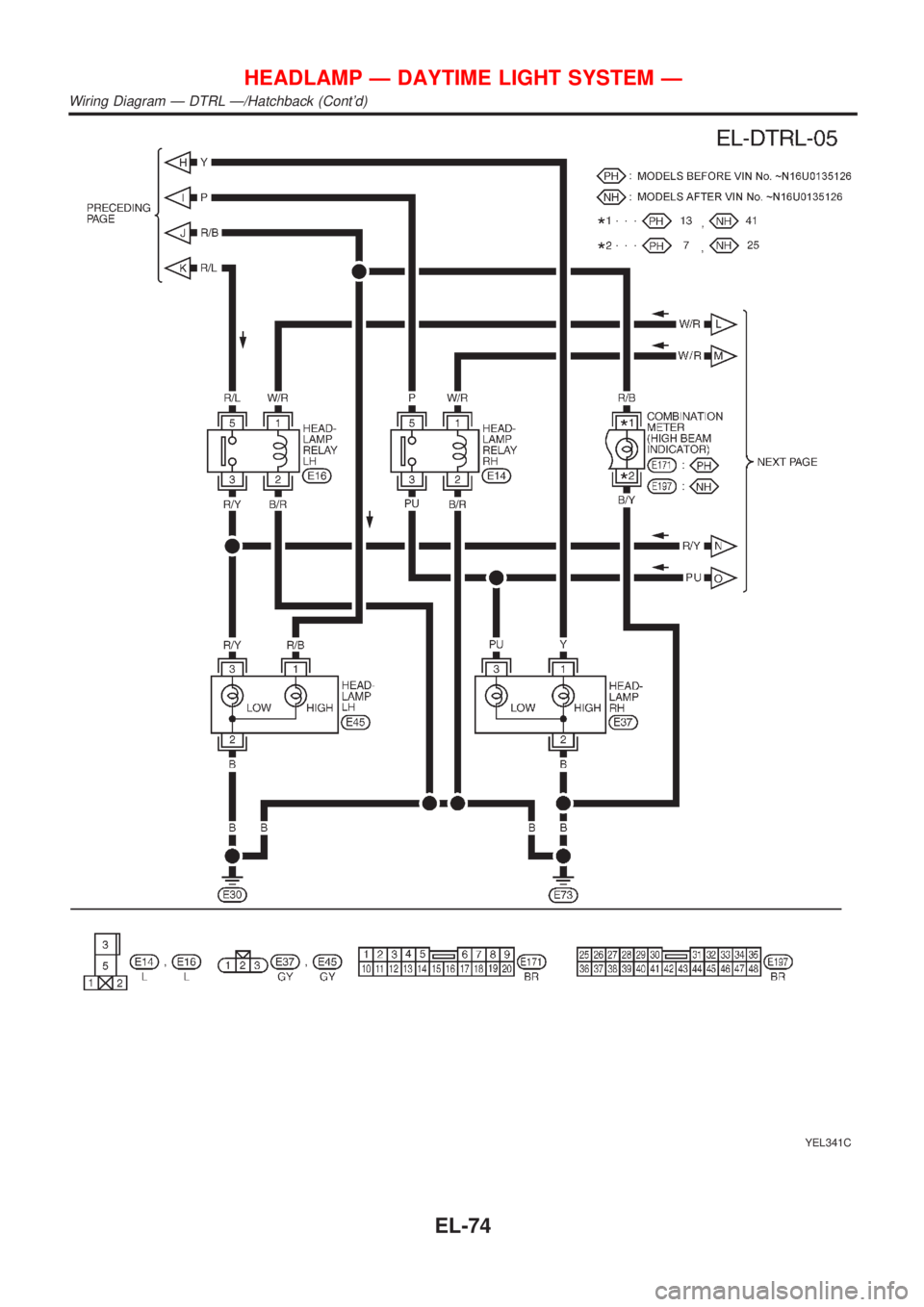

YEL341C
HEADLAMP Ð DAYTIME LIGHT SYSTEM Ð
Wiring Diagram Ð DTRL Ð/Hatchback (Cont'd)
EL-74

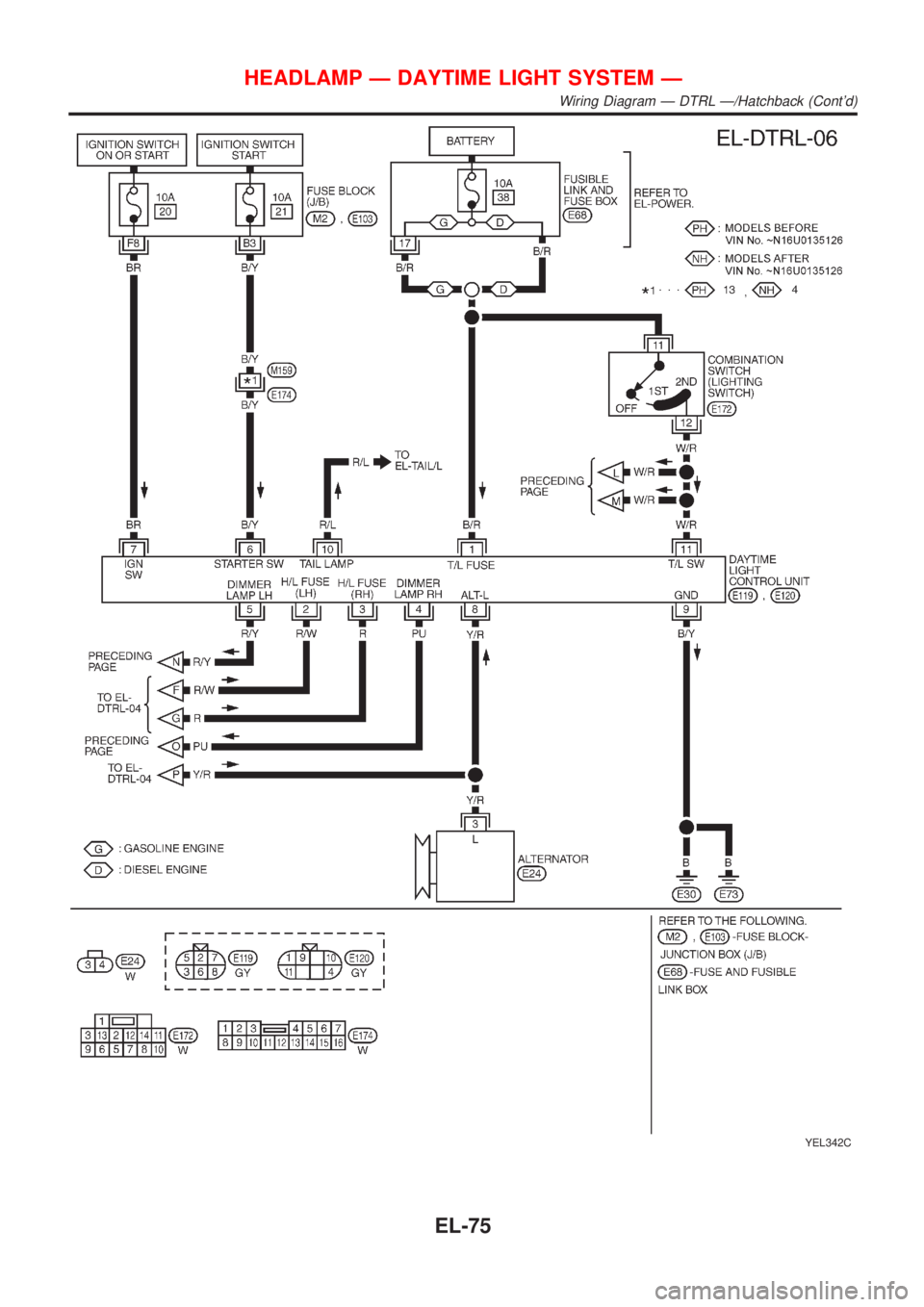

YEL342C
HEADLAMP Ð DAYTIME LIGHT SYSTEM Ð
Wiring Diagram Ð DTRL Ð/Hatchback (Cont'd)
EL-75

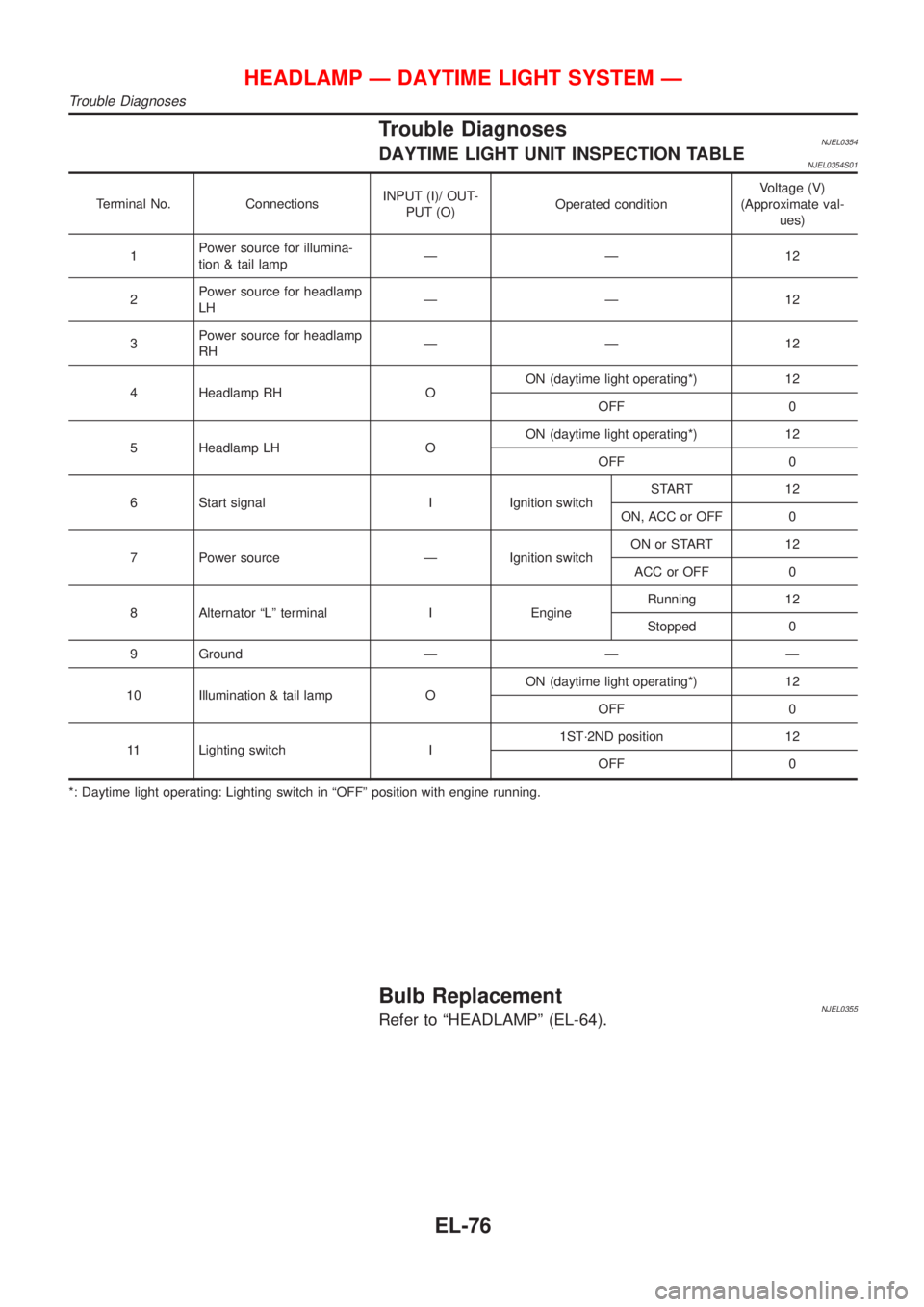

Trouble DiagnosesNJEL0354DAYTIME LIGHT UNIT INSPECTION TABLENJEL0354S01
Terminal No. ConnectionsINPUT (I)/ OUT-
PUT (O)Operated conditionVoltage (V)
(Approximate val-
ues)
1Power source for illumina-
tion & tail lampÐÐ12
2Power source for headlamp
LHÐÐ12
3Power source for headlamp
RHÐÐ12
4 Headlamp RH OON (daytime light operating*) 12
OFF 0
5 Headlamp LH OON (daytime light operating*) 12
OFF 0
6 Start signal I Ignition switchSTART 12
ON, ACC or OFF 0
7 Power source Ð Ignition switchON or START 12
ACC or OFF 0
8 Alternator ªLº terminal I EngineRunning 12
Stopped 0
9 Ground Ð Ð Ð
10 Illumination & tail lamp OON (daytime light operating*) 12
OFF 0
11 Lighting switch I1ST´2ND position 12
OFF 0
*: Daytime light operating: Lighting switch in ªOFFº position with engine running.
Bulb ReplacementNJEL0355Refer to ªHEADLAMPº (EL-64).
HEADLAMP Ð DAYTIME LIGHT SYSTEM Ð
Trouble Diagnoses
EL-76

Aiming AdjustmentNJEL0356Refer to ªHEADLAMPº (EL-65).
HEADLAMP Ð DAYTIME LIGHT SYSTEM Ð
Aiming Adjustment
EL-77

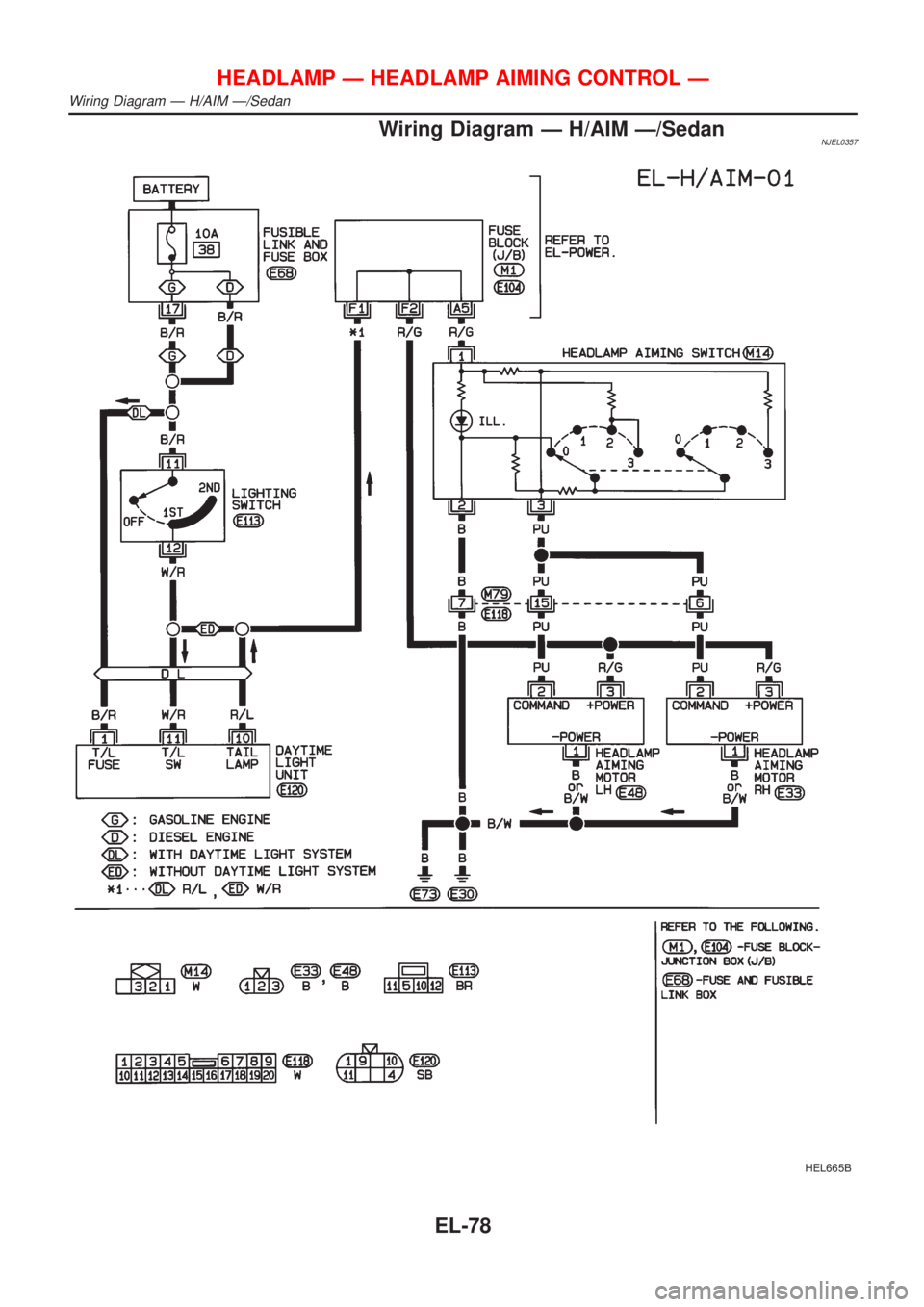

Wiring Diagram Ð H/AIM Ð/SedanNJEL0357
HEL665B
HEADLAMP Ð HEADLAMP AIMING CONTROL Ð
Wiring Diagram Ð H/AIM Ð/Sedan
EL-78

Wiring Diagram Ð H/AIM Ð/HatchbackNJEL0424
YEL343C
HEADLAMP Ð HEADLAMP AIMING CONTROL Ð
Wiring Diagram Ð H/AIM Ð/Hatchback
EL-79

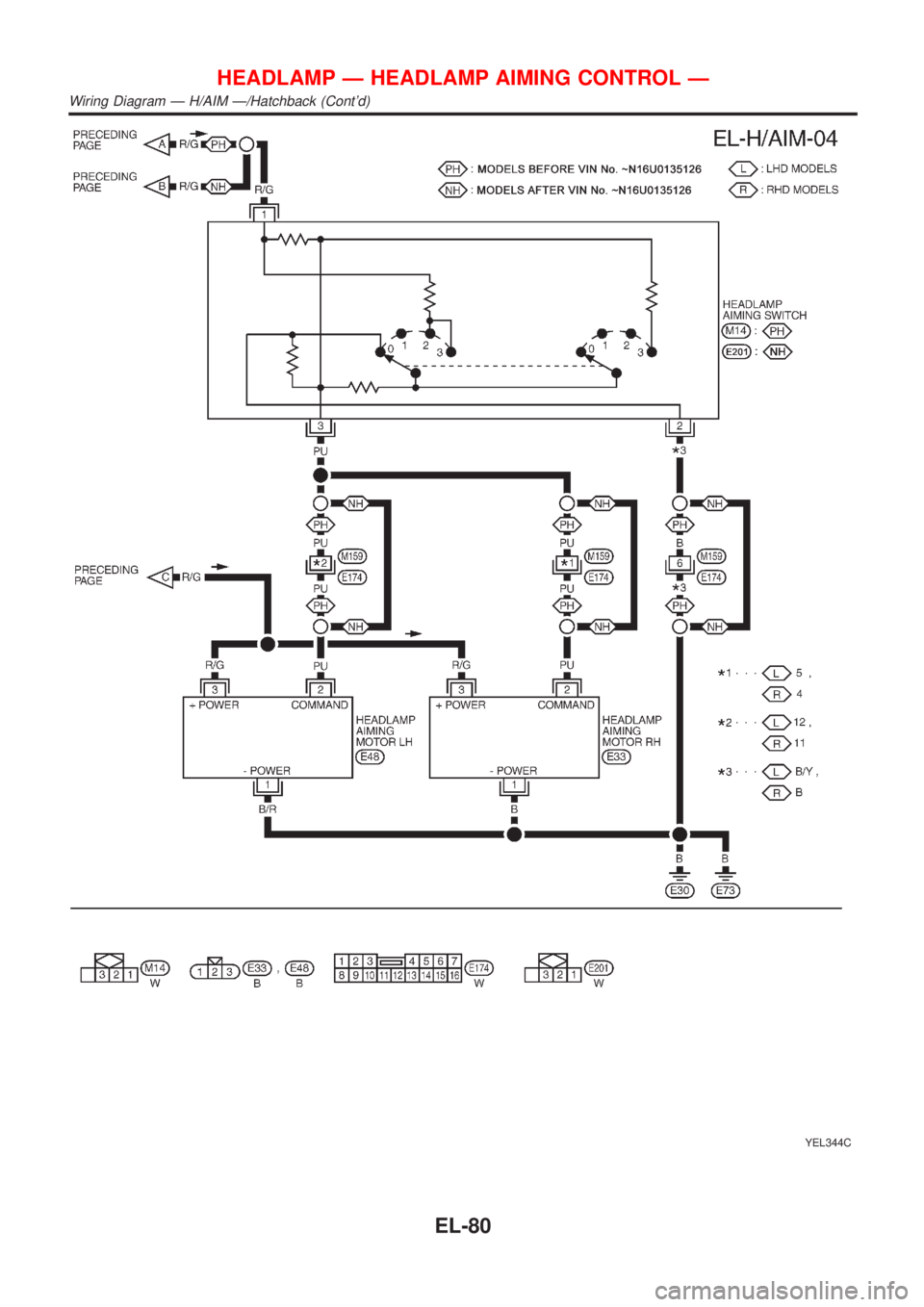

YEL344C
HEADLAMP Ð HEADLAMP AIMING CONTROL Ð
Wiring Diagram Ð H/AIM Ð/Hatchback (Cont'd)
EL-80

Wiring Diagram Ð TAIL/L Ð/SedanNJEL0359
HEL370B
PARKING, LICENSE AND TAIL LAMPS
Wiring Diagram Ð TAIL/L Ð/Sedan
EL-81

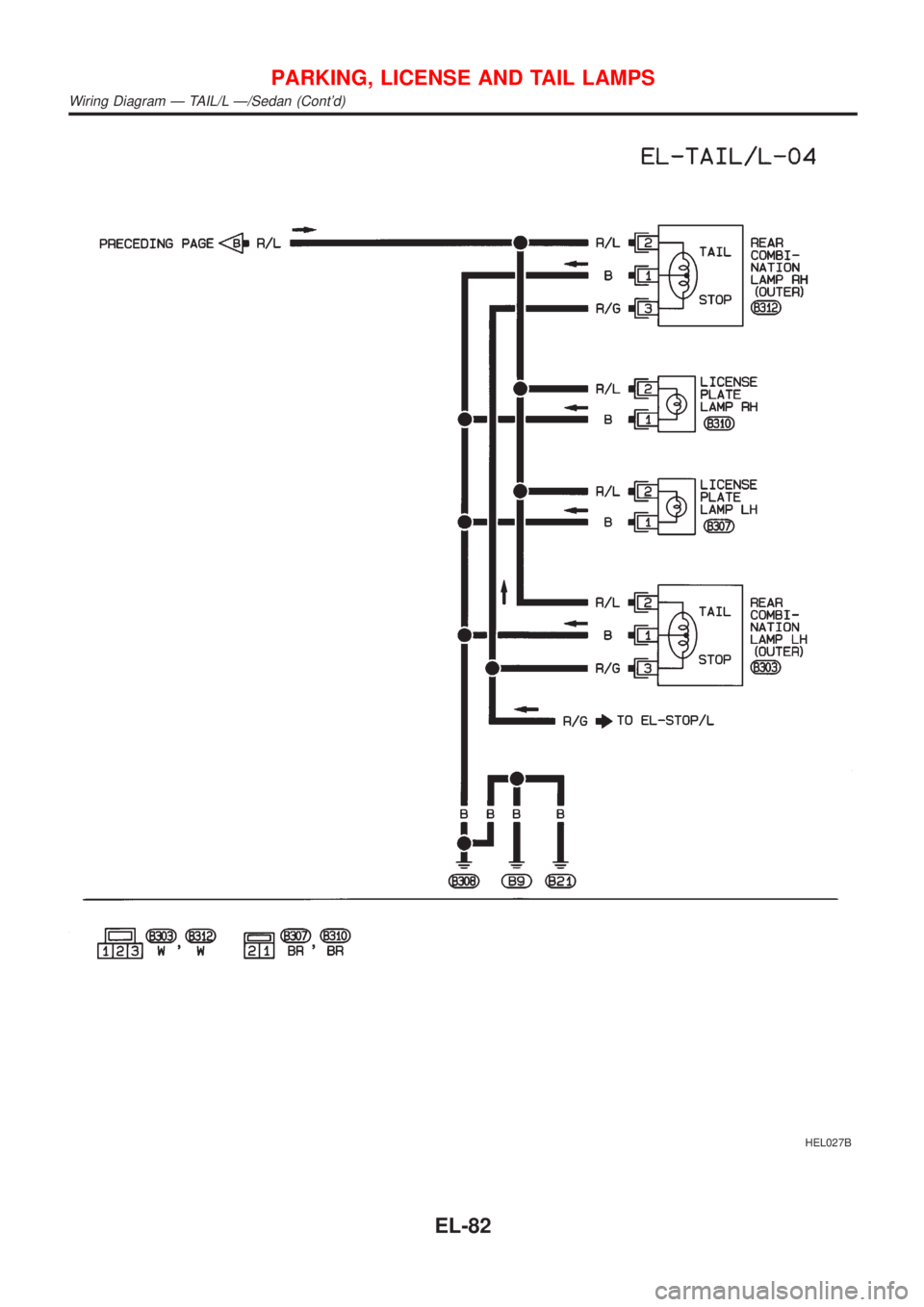

HEL027B
PARKING, LICENSE AND TAIL LAMPS
Wiring Diagram Ð TAIL/L Ð/Sedan (Cont'd)
EL-82
