NISSAN ALMERA 2001 Service Manual

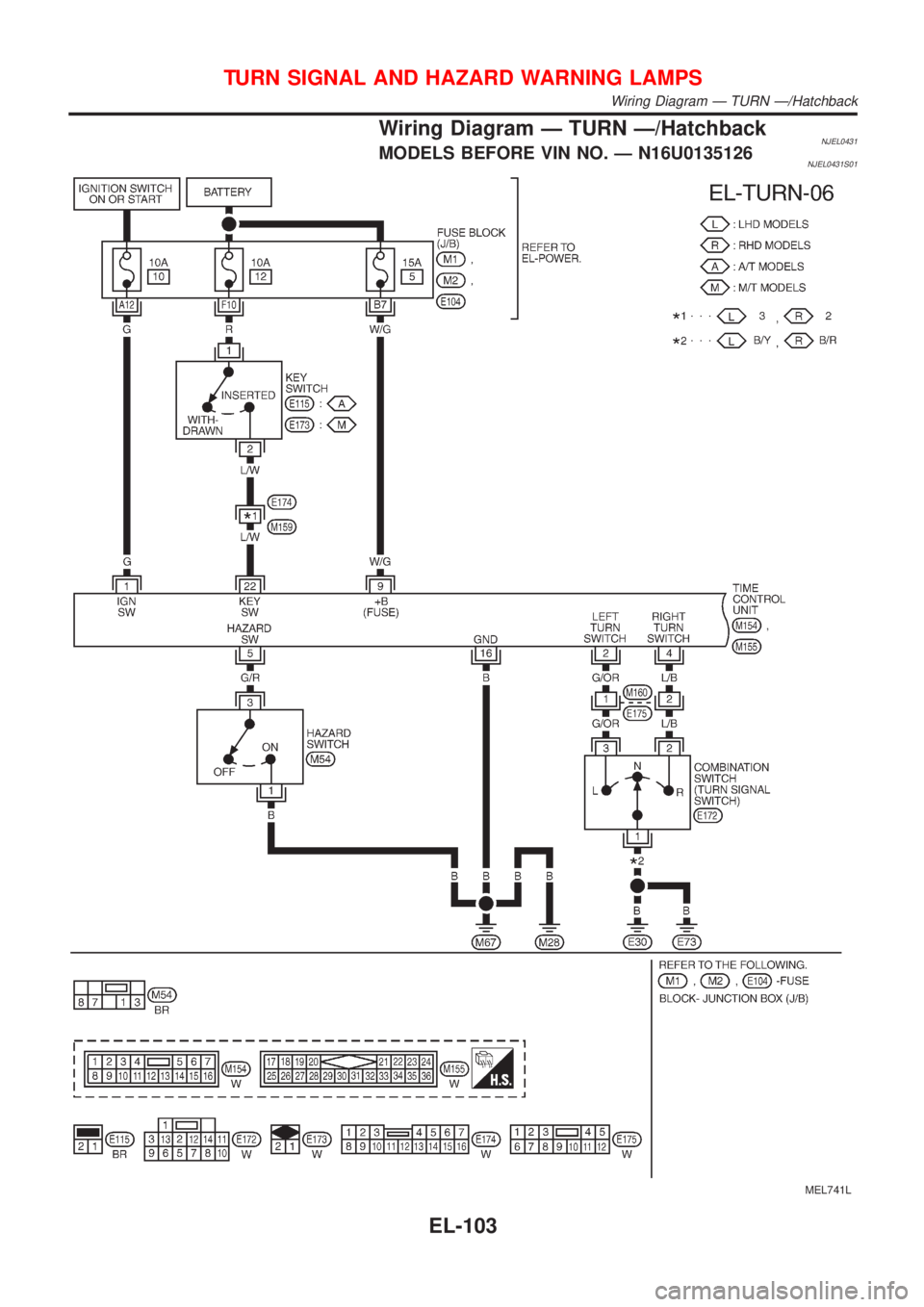

Wiring Diagram Ð TURN Ð/HatchbackNJEL0431MODELS BEFORE VIN NO. Ð N16U0135126NJEL0431S01
MEL741L
TURN SIGNAL AND HAZARD WARNING LAMPS
Wiring Diagram Ð TURN Ð/Hatchback
EL-103

MEL742L

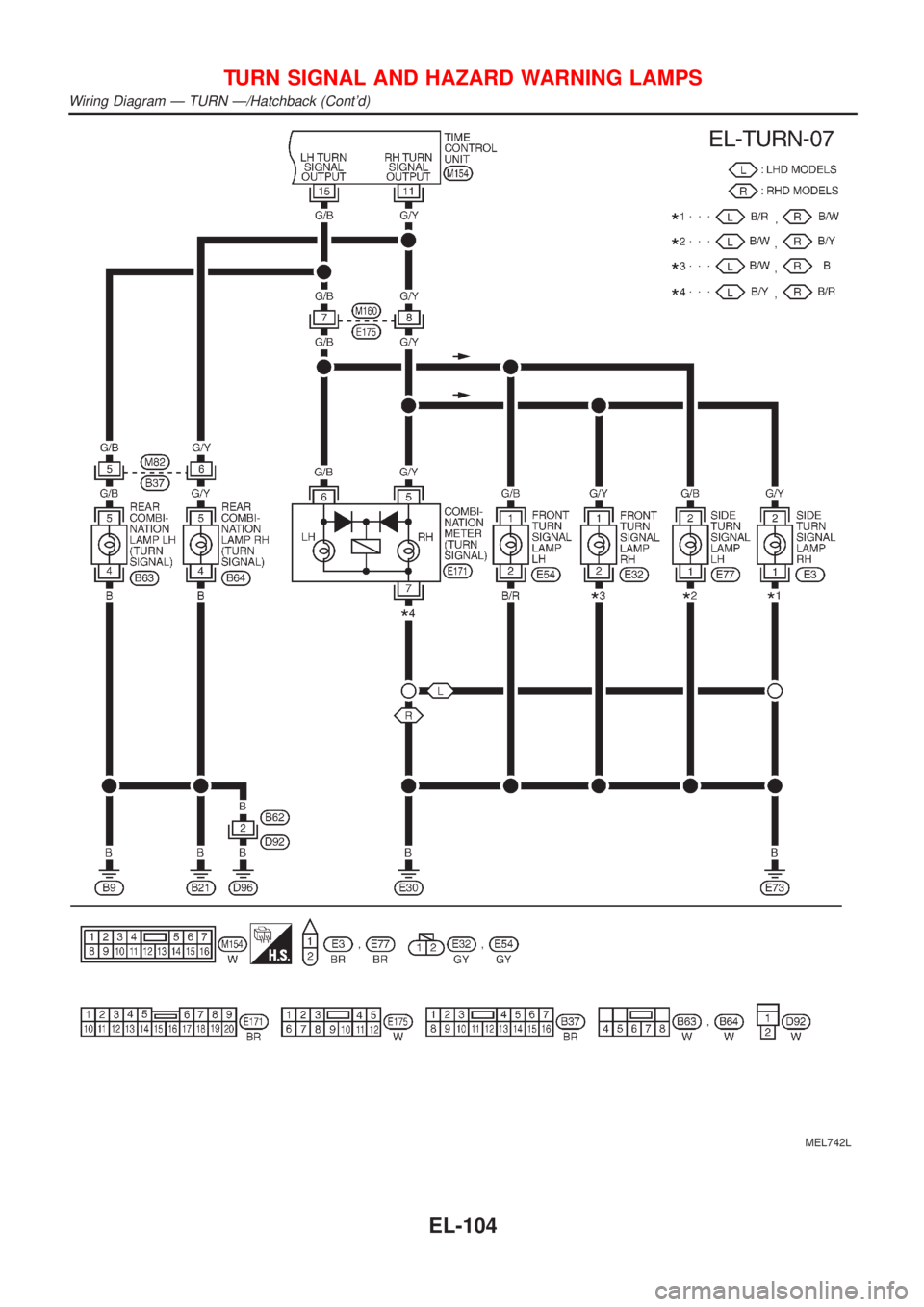

TURN SIGNAL AND HAZARD WARNING LAMPS
Wiring Diagram Ð TURN Ð/Hatchback (Cont'd)
EL-104

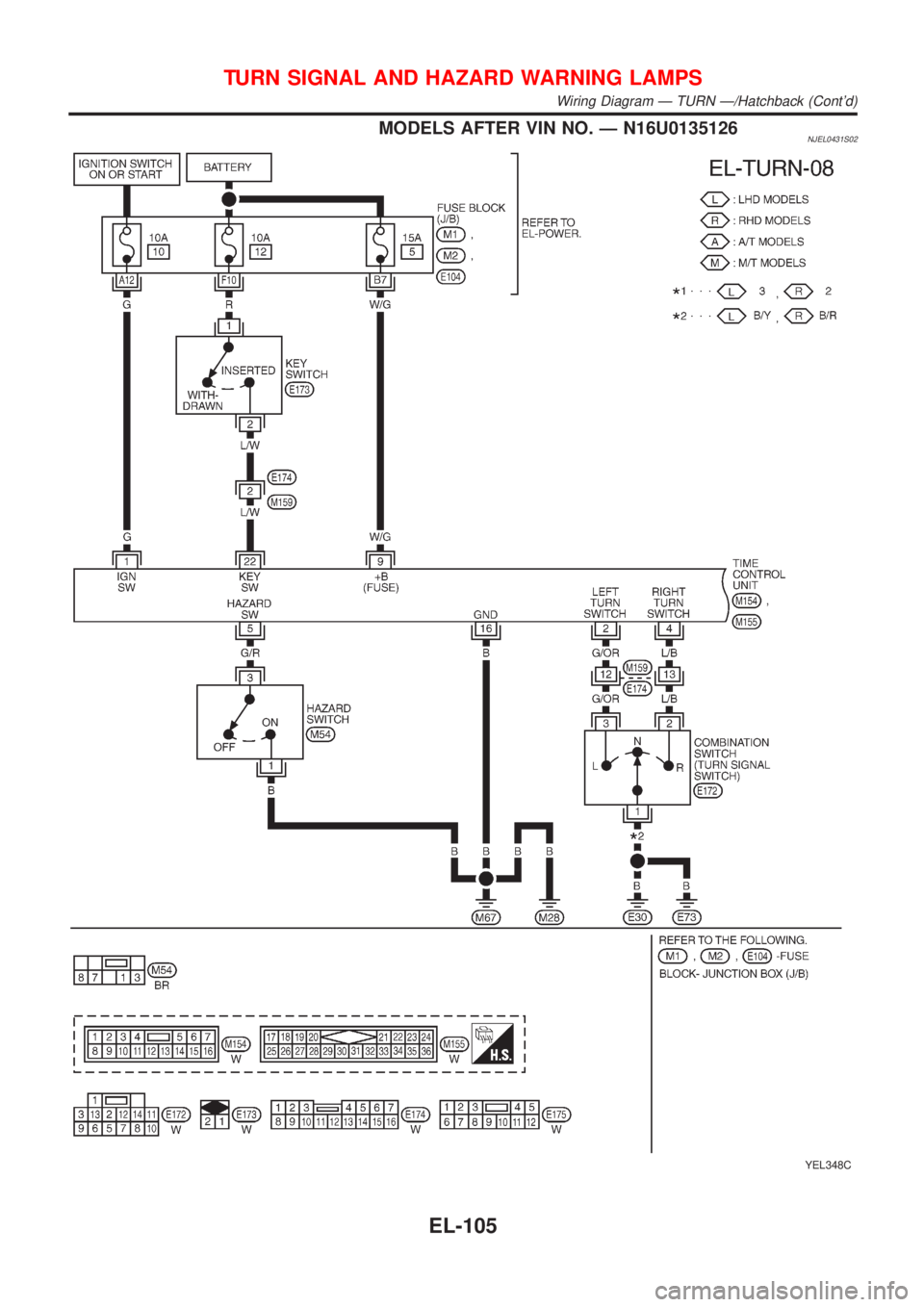

MODELS AFTER VIN NO. Ð N16U0135126NJEL0431S02
YEL348C
TURN SIGNAL AND HAZARD WARNING LAMPS
Wiring Diagram Ð TURN Ð/Hatchback (Cont'd)
EL-105

YEL349C

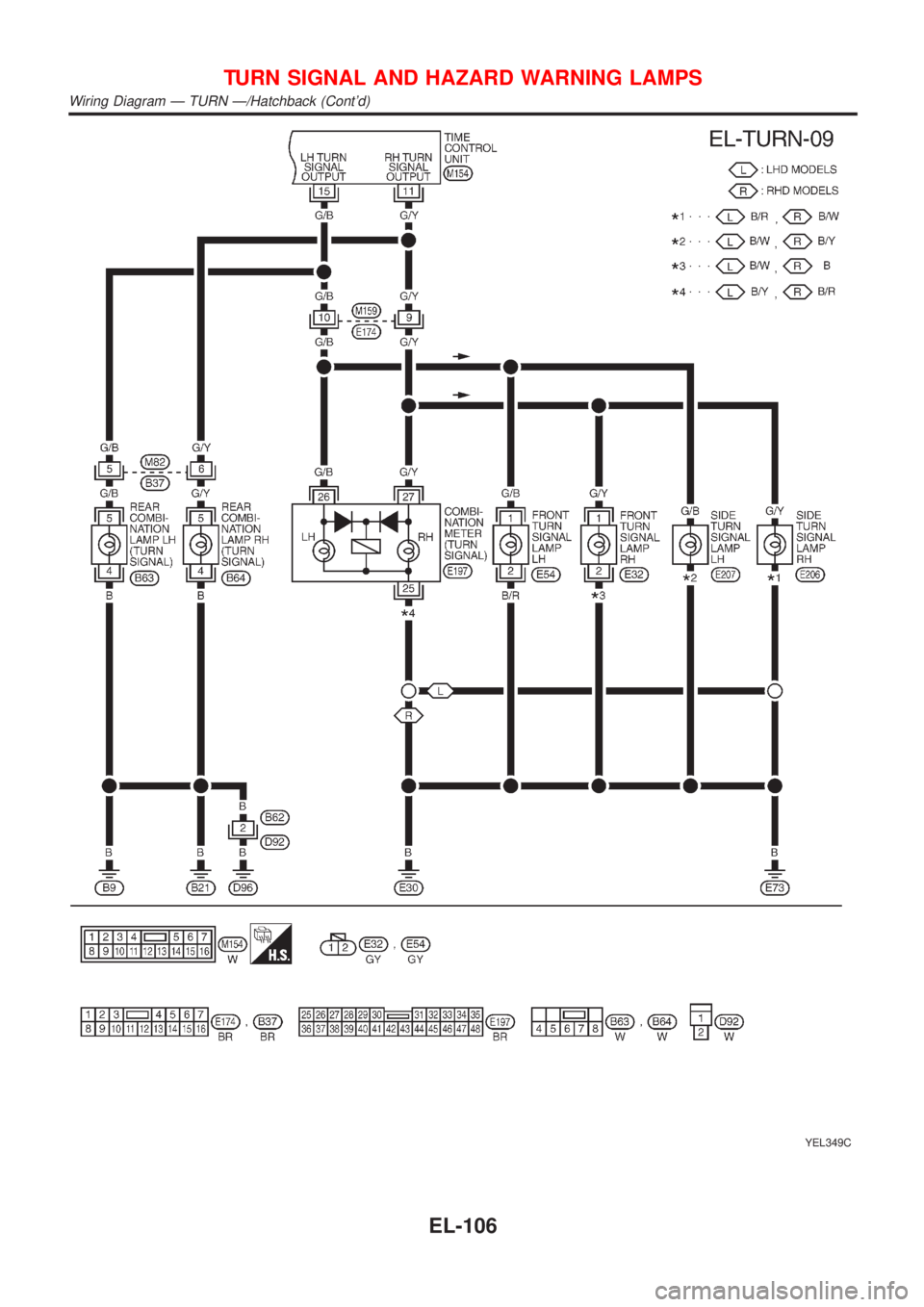

TURN SIGNAL AND HAZARD WARNING LAMPS
Wiring Diagram Ð TURN Ð/Hatchback (Cont'd)
EL-106

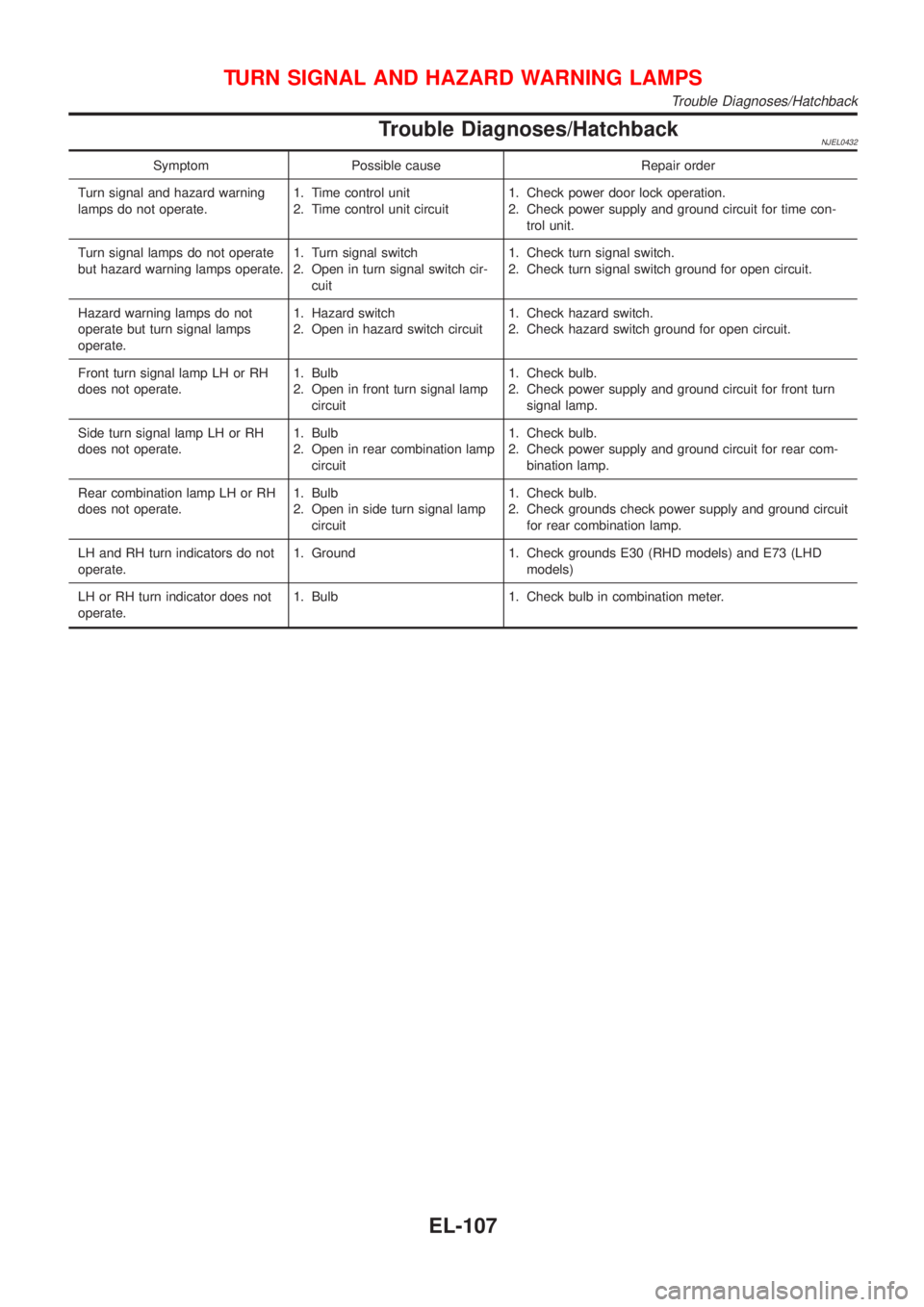

Trouble Diagnoses/HatchbackNJEL0432
Symptom Possible cause Repair order
Turn signal and hazard warning
lamps do not operate.1. Time control unit
2. Time control unit circuit1. Check power door lock operation.
2. Check power supply and ground circuit for time con-
trol unit.
Turn signal lamps do not operate
but hazard warning lamps operate.1. Turn signal switch
2. Open in turn signal switch cir-
cuit1. Check turn signal switch.
2. Check turn signal switch ground for open circuit.
Hazard warning lamps do not
operate but turn signal lamps
operate.1. Hazard switch
2. Open in hazard switch circuit1. Check hazard switch.
2. Check hazard switch ground for open circuit.
Front turn signal lamp LH or RH
does not operate.1. Bulb
2. Open in front turn signal lamp
circuit1. Check bulb.
2. Check power supply and ground circuit for front turn
signal lamp.
Side turn signal lamp LH or RH
does not operate.1. Bulb
2. Open in rear combination lamp
circuit1. Check bulb.
2. Check power supply and ground circuit for rear com-
bination lamp.
Rear combination lamp LH or RH
does not operate.1. Bulb
2. Open in side turn signal lamp
circuit1. Check bulb.
2. Check grounds check power supply and ground circuit
for rear combination lamp.
LH and RH turn indicators do not
operate.1. Ground 1. Check grounds E30 (RHD models) and E73 (LHD
models)
LH or RH turn indicator does not
operate.1. Bulb 1. Check bulb in combination meter.
TURN SIGNAL AND HAZARD WARNING LAMPS
Trouble Diagnoses/Hatchback
EL-107

Schematic/SedanNJEL0036
HEL376B
ILLUMINATION
Schematic/Sedan
EL-108

Wiring Diagram Ð ILL Ð/SedanNJEL0365
HEL377B
ILLUMINATION
Wiring Diagram Ð ILL Ð/Sedan
EL-109

HEL378B
ILLUMINATION
Wiring Diagram Ð ILL Ð/Sedan (Cont'd)
EL-110

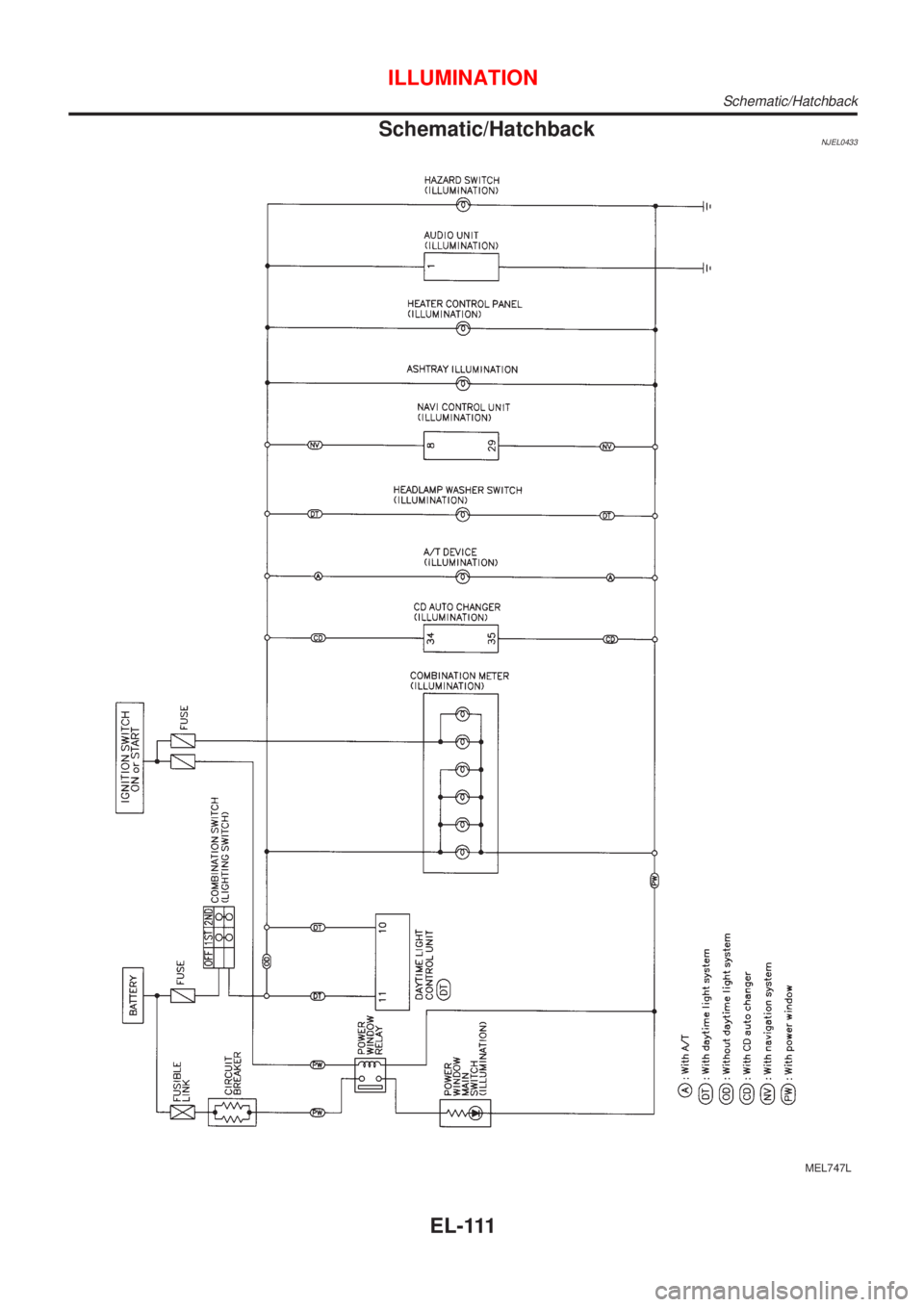

Schematic/HatchbackNJEL0433
MEL747L
ILLUMINATION
Schematic/Hatchback
EL-111

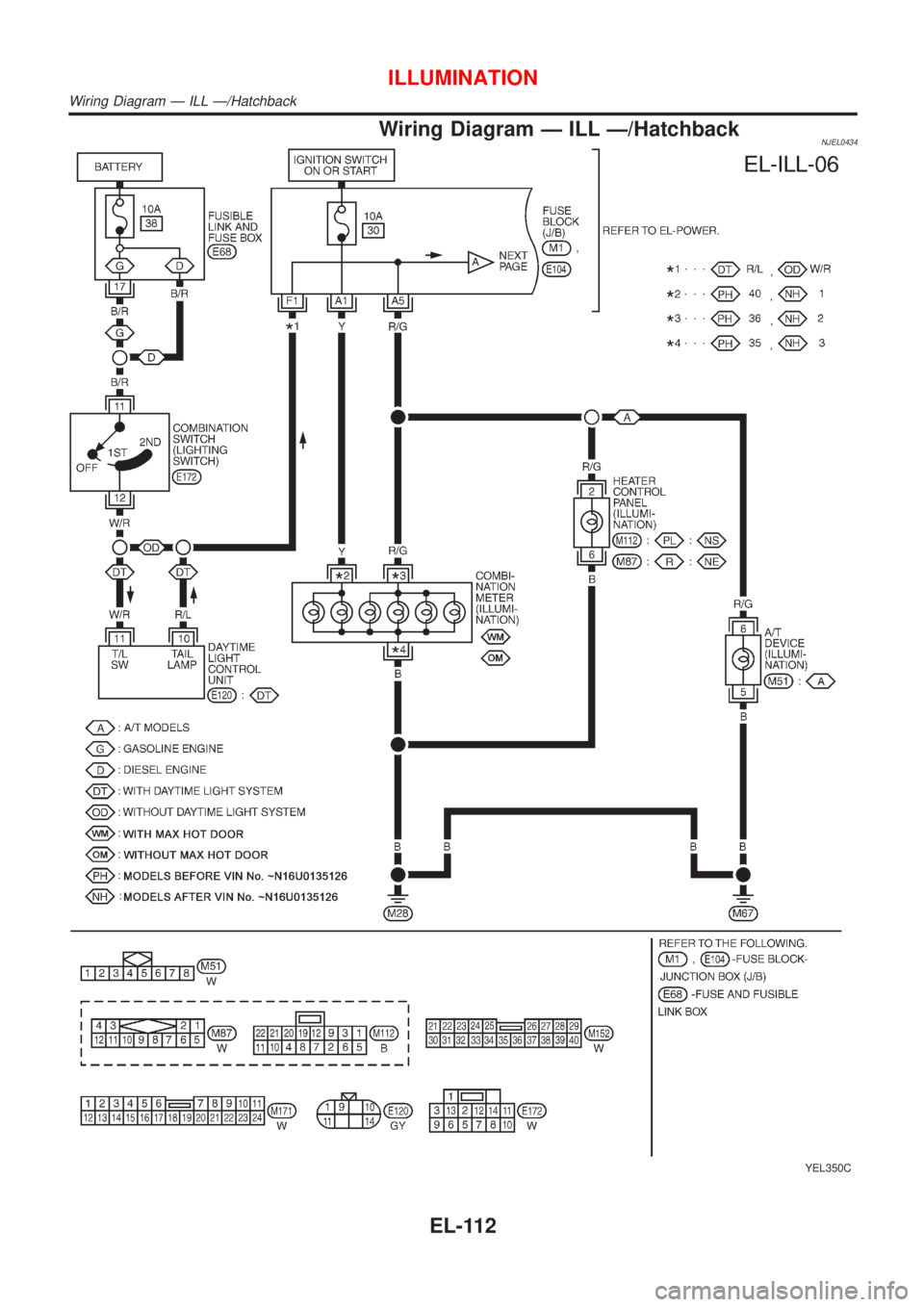

Wiring Diagram Ð ILL Ð/HatchbackNJEL0434
YEL350C
ILLUMINATION
Wiring Diagram Ð ILL Ð/Hatchback
EL-112
