Wiring Diagram Ð R/FOG Ð/SedanNJEL0362WITHOUT FRONT FOG LAMPNJEL0362S01
HEL372B
REAR FOG LAMP
Wiring Diagram Ð R/FOG Ð/Sedan
EL-93

WITH FRONT FOG LAMPNJEL0362S02
HEL373B
REAR FOG LAMP
Wiring Diagram Ð R/FOG Ð/Sedan (Cont'd)
EL-94

Wiring Diagram Ð R/FOG Ð/HatchbackNJEL0429
YEL347C
REAR FOG LAMP
Wiring Diagram Ð R/FOG Ð/Hatchback
EL-95

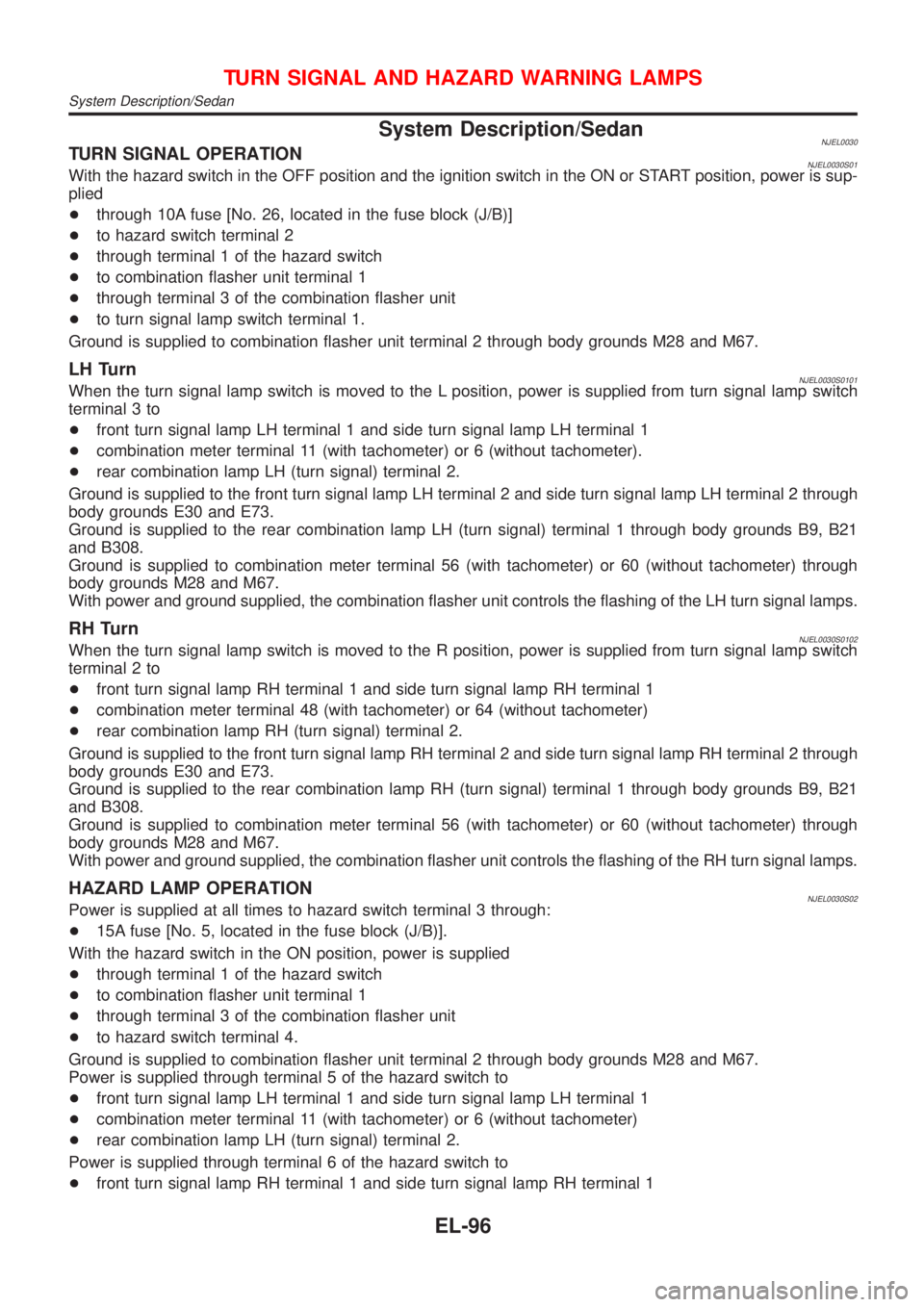

System Description/SedanNJEL0030TURN SIGNAL OPERATIONNJEL0030S01With the hazard switch in the OFF position and the ignition switch in the ON or START position, power is sup-
plied
+through 10A fuse [No. 26, located in the fuse block (J/B)]
+to hazard switch terminal 2
+through terminal 1 of the hazard switch
+to combination flasher unit terminal 1
+through terminal 3 of the combination flasher unit
+to turn signal lamp switch terminal 1.
Ground is supplied to combination flasher unit terminal 2 through body grounds M28 and M67.
LH TurnNJEL0030S0101When the turn signal lamp switch is moved to the L position, power is supplied from turn signal lamp switch
terminal 3 to
+front turn signal lamp LH terminal 1 and side turn signal lamp LH terminal 1
+combination meter terminal 11 (with tachometer) or 6 (without tachometer).
+rear combination lamp LH (turn signal) terminal 2.
Ground is supplied to the front turn signal lamp LH terminal 2 and side turn signal lamp LH terminal 2 through
body grounds E30 and E73.
Ground is supplied to the rear combination lamp LH (turn signal) terminal 1 through body grounds B9, B21
and B308.
Ground is supplied to combination meter terminal 56 (with tachometer) or 60 (without tachometer) through
body grounds M28 and M67.
With power and ground supplied, the combination flasher unit controls the flashing of the LH turn signal lamps.
RH TurnNJEL0030S0102When the turn signal lamp switch is moved to the R position, power is supplied from turn signal lamp switch
terminal 2 to
+front turn signal lamp RH terminal 1 and side turn signal lamp RH terminal 1
+combination meter terminal 48 (with tachometer) or 64 (without tachometer)
+rear combination lamp RH (turn signal) terminal 2.
Ground is supplied to the front turn signal lamp RH terminal 2 and side turn signal lamp RH terminal 2 through
body grounds E30 and E73.
Ground is supplied to the rear combination lamp RH (turn signal) terminal 1 through body grounds B9, B21
and B308.
Ground is supplied to combination meter terminal 56 (with tachometer) or 60 (without tachometer) through
body grounds M28 and M67.
With power and ground supplied, the combination flasher unit controls the flashing of the RH turn signal lamps.
HAZARD LAMP OPERATIONNJEL0030S02Power is supplied at all times to hazard switch terminal 3 through:
+15A fuse [No. 5, located in the fuse block (J/B)].
With the hazard switch in the ON position, power is supplied
+through terminal 1 of the hazard switch
+to combination flasher unit terminal 1
+through terminal 3 of the combination flasher unit
+to hazard switch terminal 4.
Ground is supplied to combination flasher unit terminal 2 through body grounds M28 and M67.
Power is supplied through terminal 5 of the hazard switch to
+front turn signal lamp LH terminal 1 and side turn signal lamp LH terminal 1
+combination meter terminal 11 (with tachometer) or 6 (without tachometer)
+rear combination lamp LH (turn signal) terminal 2.
Power is supplied through terminal 6 of the hazard switch to
+front turn signal lamp RH terminal 1 and side turn signal lamp RH terminal 1
TURN SIGNAL AND HAZARD WARNING LAMPS
System Description/Sedan
EL-96

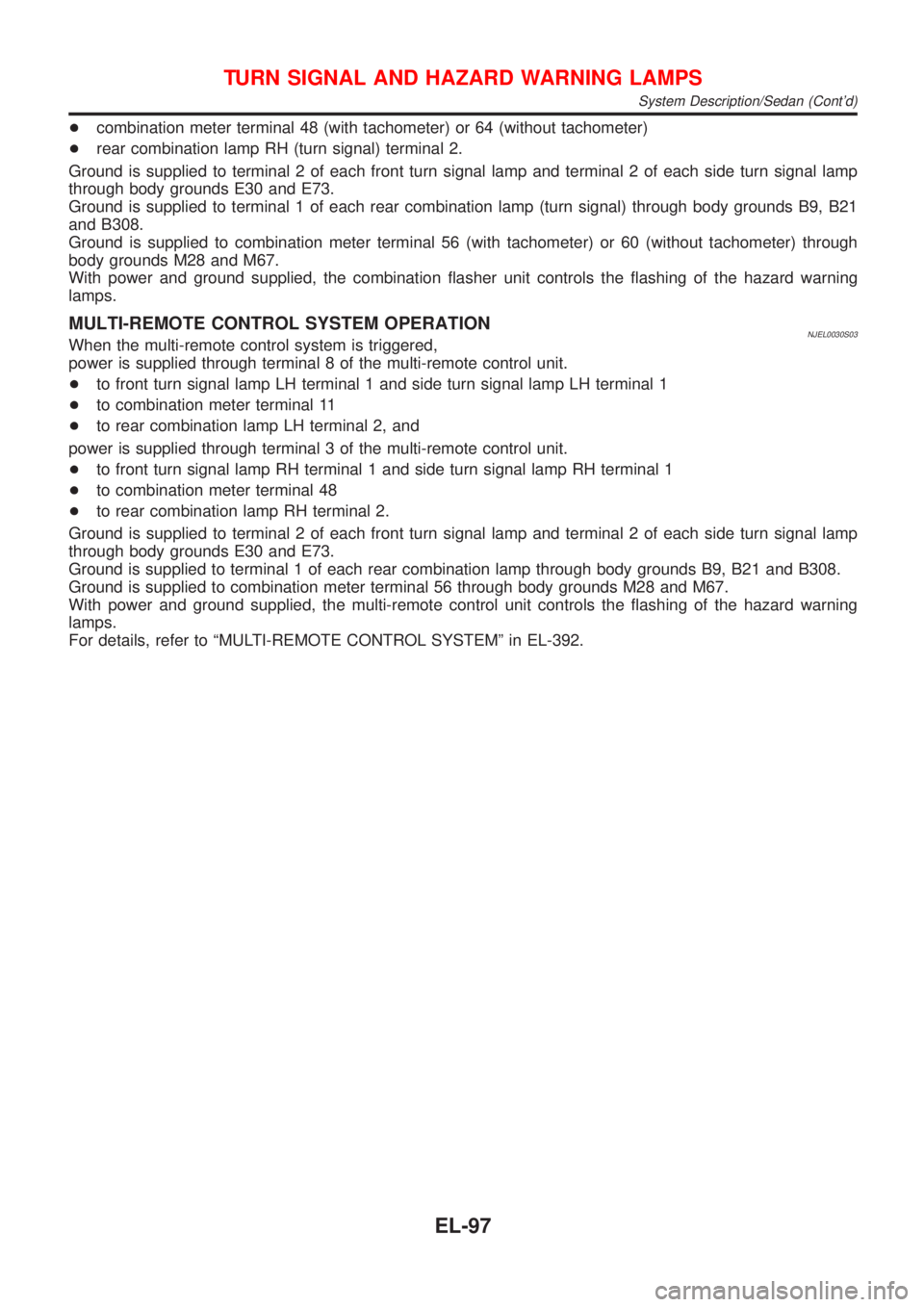

+combination meter terminal 48 (with tachometer) or 64 (without tachometer)
+rear combination lamp RH (turn signal) terminal 2.
Ground is supplied to terminal 2 of each front turn signal lamp and terminal 2 of each side turn signal lamp
through body grounds E30 and E73.
Ground is supplied to terminal 1 of each rear combination lamp (turn signal) through body grounds B9, B21
and B308.
Ground is supplied to combination meter terminal 56 (with tachometer) or 60 (without tachometer) through
body grounds M28 and M67.
With power and ground supplied, the combination flasher unit controls the flashing of the hazard warning
lamps.
MULTI-REMOTE CONTROL SYSTEM OPERATIONNJEL0030S03When the multi-remote control system is triggered,
power is supplied through terminal 8 of the multi-remote control unit.
+to front turn signal lamp LH terminal 1 and side turn signal lamp LH terminal 1
+to combination meter terminal 11
+to rear combination lamp LH terminal 2, and
power is supplied through terminal 3 of the multi-remote control unit.
+to front turn signal lamp RH terminal 1 and side turn signal lamp RH terminal 1
+to combination meter terminal 48
+to rear combination lamp RH terminal 2.
Ground is supplied to terminal 2 of each front turn signal lamp and terminal 2 of each side turn signal lamp
through body grounds E30 and E73.
Ground is supplied to terminal 1 of each rear combination lamp through body grounds B9, B21 and B308.
Ground is supplied to combination meter terminal 56 through body grounds M28 and M67.
With power and ground supplied, the multi-remote control unit controls the flashing of the hazard warning
lamps.
For details, refer to ªMULTI-REMOTE CONTROL SYSTEMº in EL-392.
TURN SIGNAL AND HAZARD WARNING LAMPS
System Description/Sedan (Cont'd)
EL-97

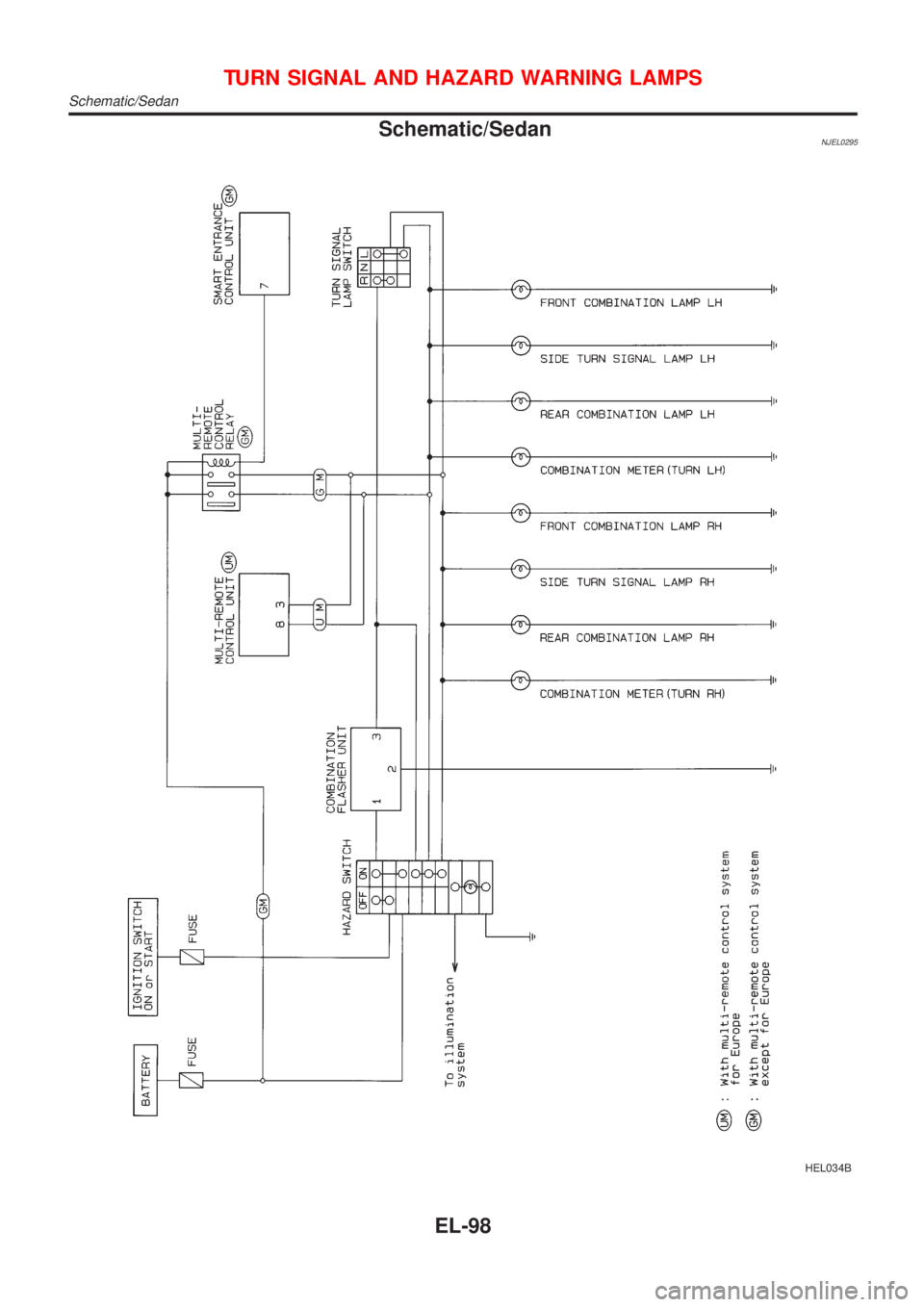

Schematic/SedanNJEL0295
HEL034B
TURN SIGNAL AND HAZARD WARNING LAMPS
Schematic/Sedan
EL-98

Wiring Diagram Ð TURN Ð/SedanNJEL0364
HEL374B
TURN SIGNAL AND HAZARD WARNING LAMPS
Wiring Diagram Ð TURN Ð/Sedan
EL-99

HEL375B
TURN SIGNAL AND HAZARD WARNING LAMPS
Wiring Diagram Ð TURN Ð/Sedan (Cont'd)
EL-100

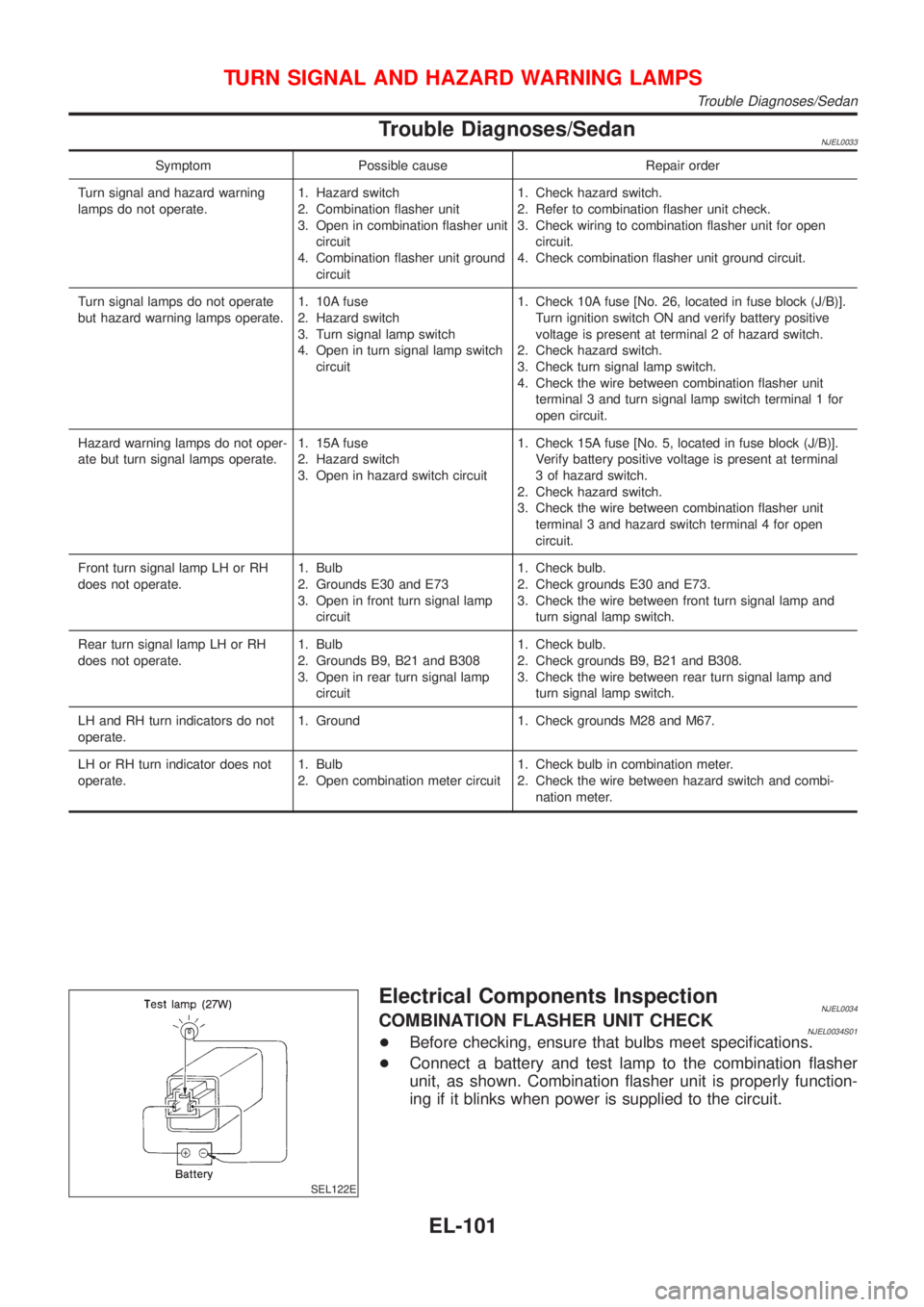

Trouble Diagnoses/SedanNJEL0033
Symptom Possible cause Repair order
Turn signal and hazard warning
lamps do not operate.1. Hazard switch
2. Combination flasher unit
3. Open in combination flasher unit
circuit
4. Combination flasher unit ground
circuit1. Check hazard switch.
2. Refer to combination flasher unit check.
3. Check wiring to combination flasher unit for open
circuit.
4. Check combination flasher unit ground circuit.
Turn signal lamps do not operate
but hazard warning lamps operate.1. 10A fuse
2. Hazard switch
3. Turn signal lamp switch
4. Open in turn signal lamp switch
circuit1. Check 10A fuse [No. 26, located in fuse block (J/B)].
Turn ignition switch ON and verify battery positive
voltage is present at terminal 2 of hazard switch.
2. Check hazard switch.
3. Check turn signal lamp switch.
4. Check the wire between combination flasher unit
terminal 3 and turn signal lamp switch terminal 1 for
open circuit.
Hazard warning lamps do not oper-
ate but turn signal lamps operate.1. 15A fuse
2. Hazard switch
3. Open in hazard switch circuit1. Check 15A fuse [No. 5, located in fuse block (J/B)].
Verify battery positive voltage is present at terminal
3 of hazard switch.
2. Check hazard switch.
3. Check the wire between combination flasher unit
terminal 3 and hazard switch terminal 4 for open
circuit.
Front turn signal lamp LH or RH
does not operate.1. Bulb
2. Grounds E30 and E73
3. Open in front turn signal lamp
circuit1. Check bulb.
2. Check grounds E30 and E73.
3. Check the wire between front turn signal lamp and
turn signal lamp switch.
Rear turn signal lamp LH or RH
does not operate.1. Bulb
2. Grounds B9, B21 and B308
3. Open in rear turn signal lamp
circuit1. Check bulb.
2. Check grounds B9, B21 and B308.
3. Check the wire between rear turn signal lamp and
turn signal lamp switch.
LH and RH turn indicators do not
operate.1. Ground 1. Check grounds M28 and M67.
LH or RH turn indicator does not
operate.1. Bulb
2. Open combination meter circuit1. Check bulb in combination meter.
2. Check the wire between hazard switch and combi-
nation meter.
SEL122E
Electrical Components InspectionNJEL0034COMBINATION FLASHER UNIT CHECKNJEL0034S01+Before checking, ensure that bulbs meet specifications.
+Connect a battery and test lamp to the combination flasher
unit, as shown. Combination flasher unit is properly function-
ing if it blinks when power is supplied to the circuit.
TURN SIGNAL AND HAZARD WARNING LAMPS
Trouble Diagnoses/Sedan
EL-101

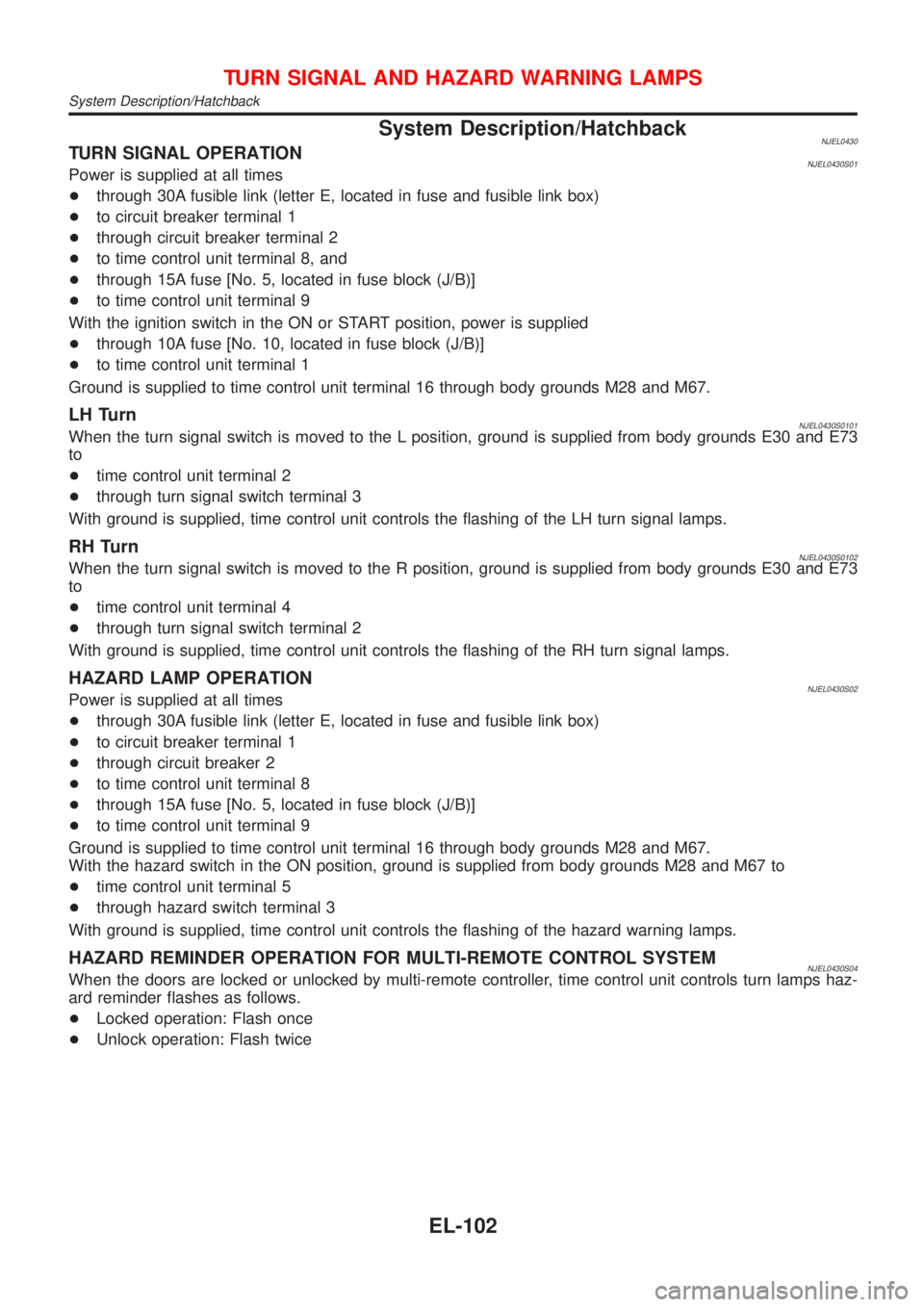

System Description/HatchbackNJEL0430TURN SIGNAL OPERATIONNJEL0430S01Power is supplied at all times
+through 30A fusible link (letter E, located in fuse and fusible link box)
+to circuit breaker terminal 1
+through circuit breaker terminal 2
+to time control unit terminal 8, and
+through 15A fuse [No. 5, located in fuse block (J/B)]
+to time control unit terminal 9
With the ignition switch in the ON or START position, power is supplied
+through 10A fuse [No. 10, located in fuse block (J/B)]
+to time control unit terminal 1
Ground is supplied to time control unit terminal 16 through body grounds M28 and M67.
LH TurnNJEL0430S0101When the turn signal switch is moved to the L position, ground is supplied from body grounds E30 and E73
to
+time control unit terminal 2
+through turn signal switch terminal 3
With ground is supplied, time control unit controls the flashing of the LH turn signal lamps.
RH TurnNJEL0430S0102When the turn signal switch is moved to the R position, ground is supplied from body grounds E30 and E73
to
+time control unit terminal 4
+through turn signal switch terminal 2
With ground is supplied, time control unit controls the flashing of the RH turn signal lamps.
HAZARD LAMP OPERATIONNJEL0430S02Power is supplied at all times
+through 30A fusible link (letter E, located in fuse and fusible link box)
+to circuit breaker terminal 1
+through circuit breaker 2
+to time control unit terminal 8
+through 15A fuse [No. 5, located in fuse block (J/B)]
+to time control unit terminal 9
Ground is supplied to time control unit terminal 16 through body grounds M28 and M67.
With the hazard switch in the ON position, ground is supplied from body grounds M28 and M67 to
+time control unit terminal 5
+through hazard switch terminal 3
With ground is supplied, time control unit controls the flashing of the hazard warning lamps.
HAZARD REMINDER OPERATION FOR MULTI-REMOTE CONTROL SYSTEMNJEL0430S04When the doors are locked or unlocked by multi-remote controller, time control unit controls turn lamps haz-
ard reminder flashes as follows.
+Locked operation: Flash once
+Unlock operation: Flash twice
TURN SIGNAL AND HAZARD WARNING LAMPS
System Description/Hatchback
EL-102
