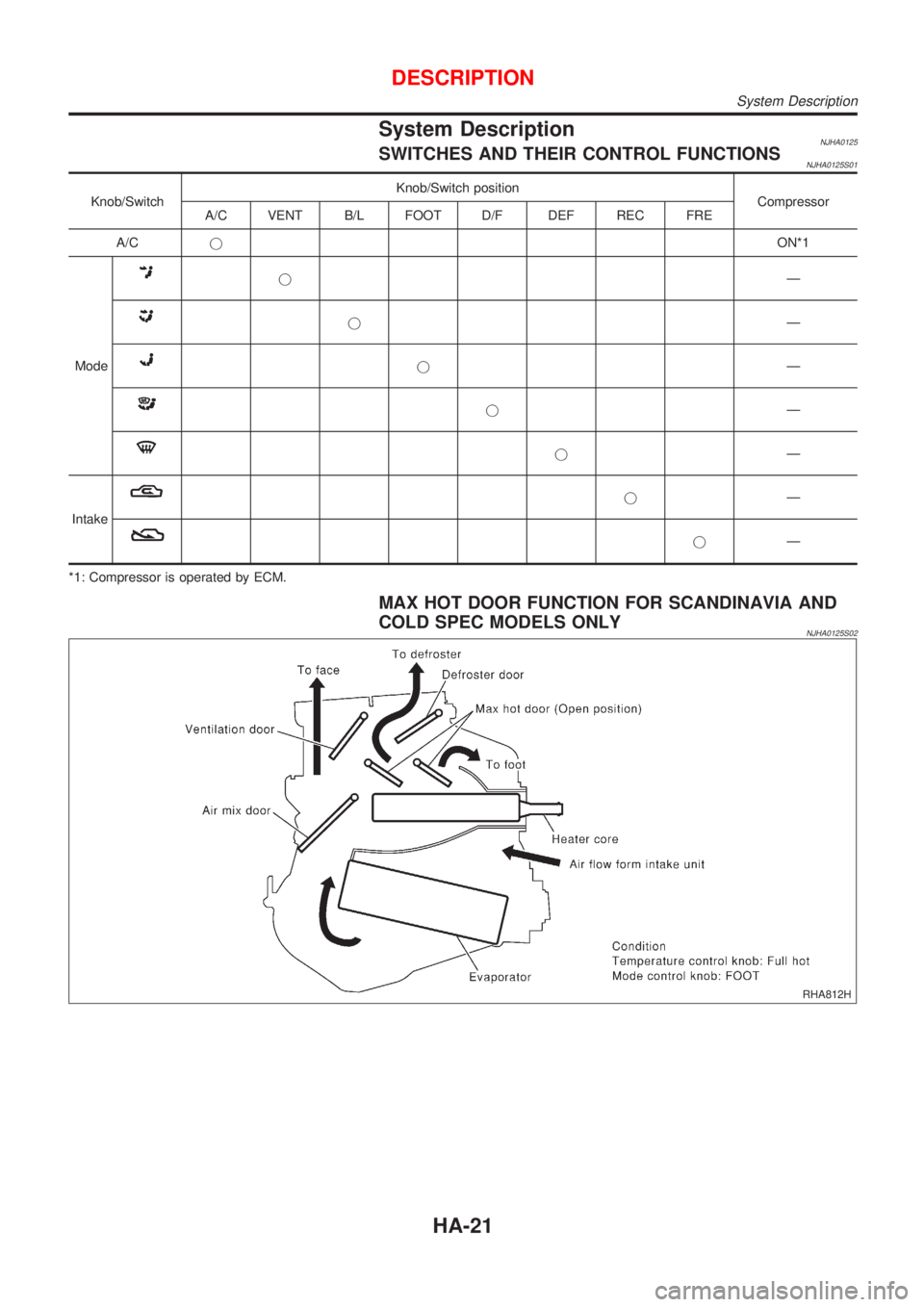

NISSAN ALMERA 2001 Service Manual System DescriptionNJHA0125SWITCHES AND THEIR CONTROL FUNCTIONSNJHA0125S01 Knob/SwitchKnob/Switch position Compressor A/C VENT B/L FOOT D/F DEF REC FRE A/CjON*1 Mode jÐ jÐ jÐ jÐ jÐ Intake jÐ jÐ

Page 2422 of 2898

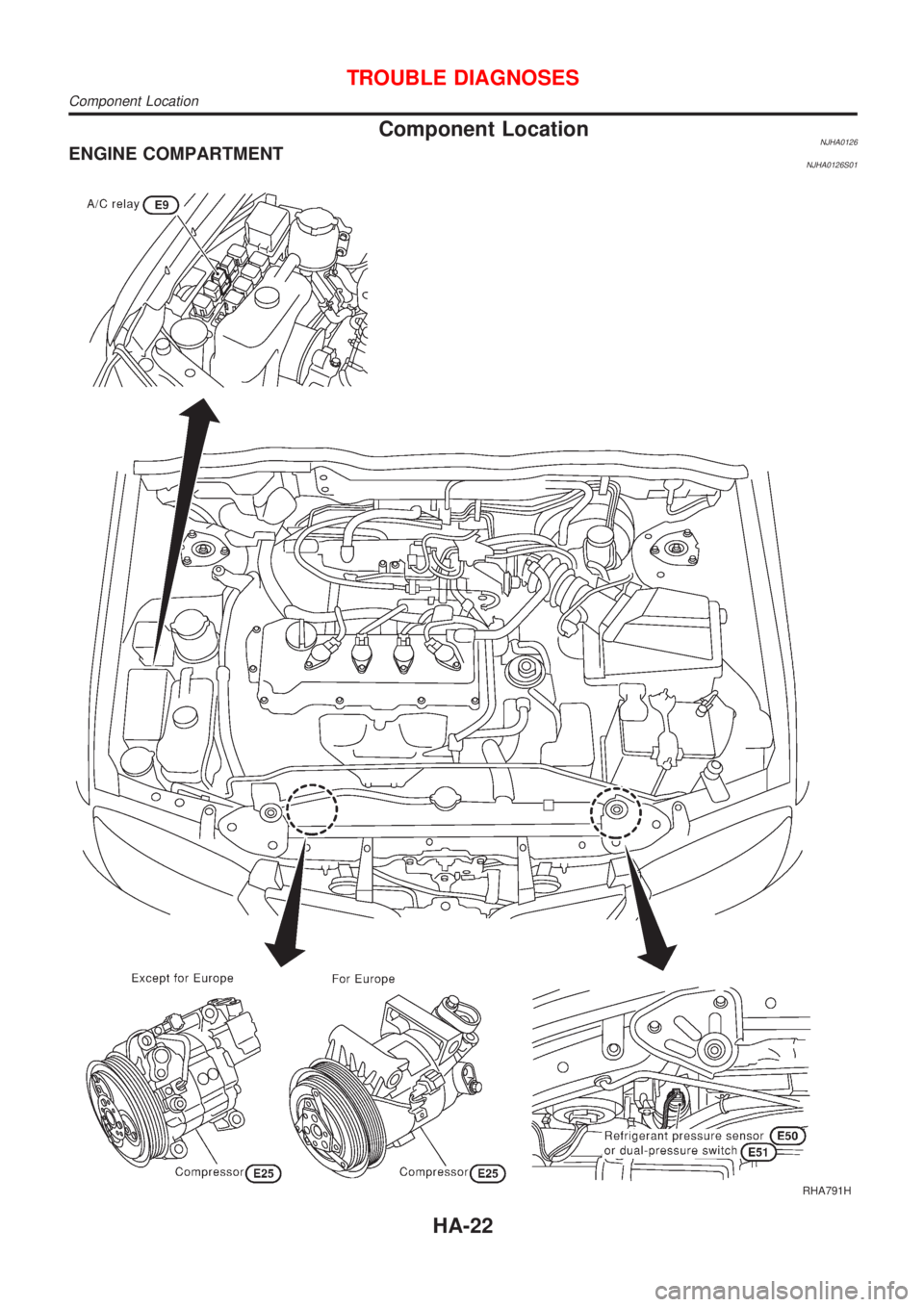

NISSAN ALMERA 2001 Service Manual Component LocationNJHA0126ENGINE COMPARTMENTNJHA0126S01 RHA791H TROUBLE DIAGNOSES Component Location HA-22

Page 2423 of 2898

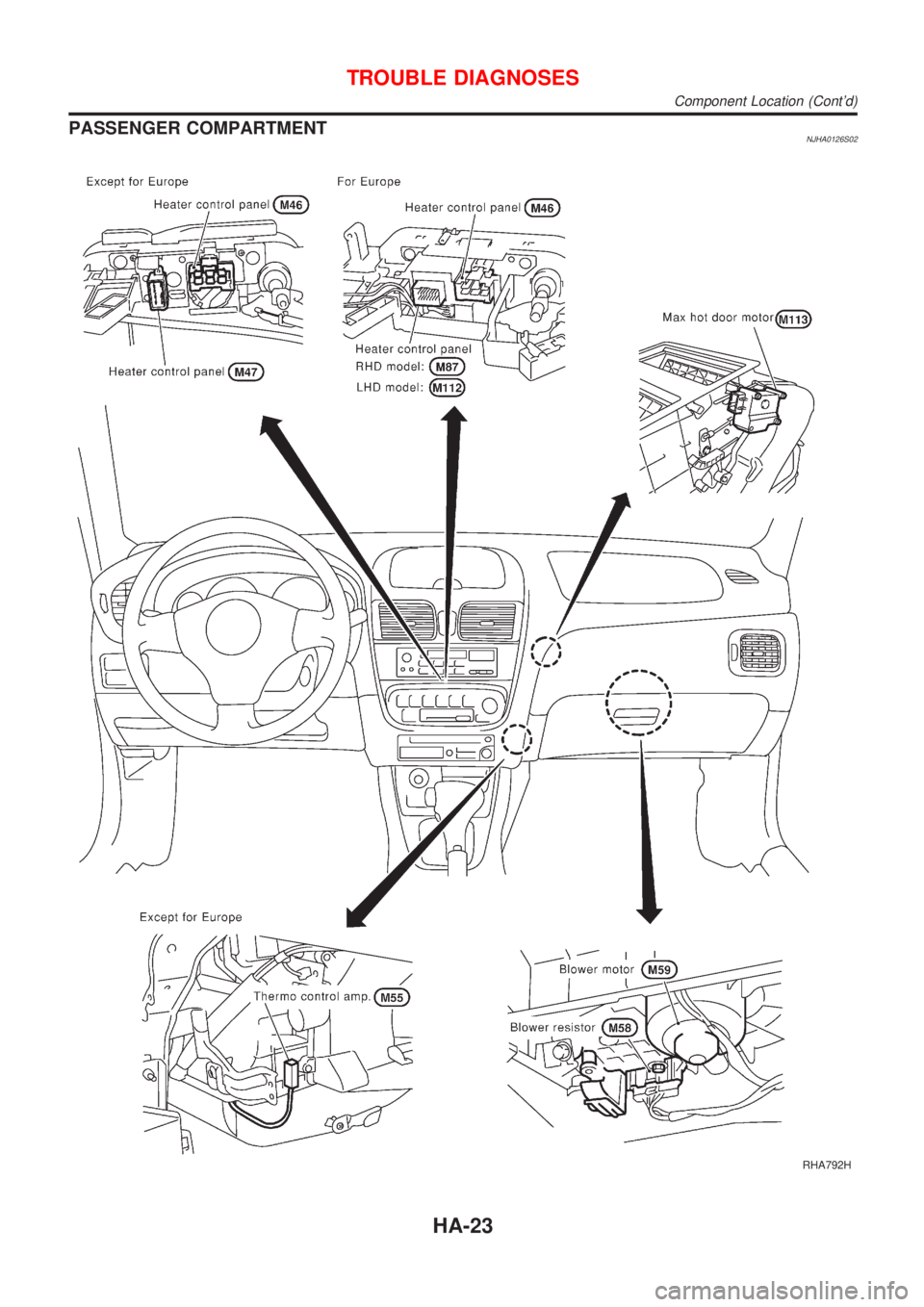

NISSAN ALMERA 2001 Service Manual PASSENGER COMPARTMENTNJHA0126S02 RHA792H TROUBLE DIAGNOSES Component Location (Contd) HA-23

Page 2424 of 2898

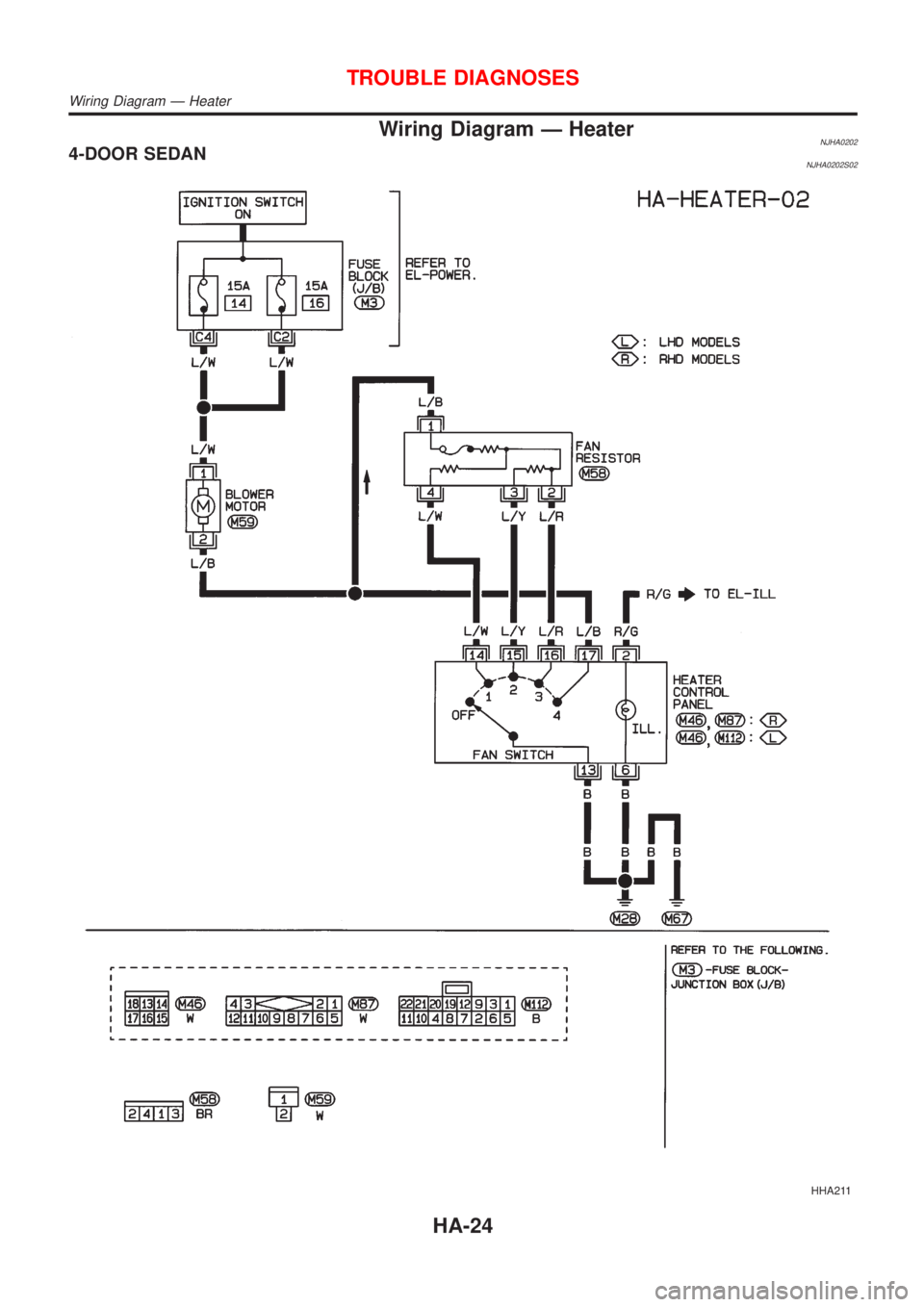

NISSAN ALMERA 2001 Service Manual Wiring Diagram Ð HeaterNJHA02024-DOOR SEDANNJHA0202S02 HHA211 TROUBLE DIAGNOSES Wiring Diagram Ð Heater HA-24

Page 2425 of 2898

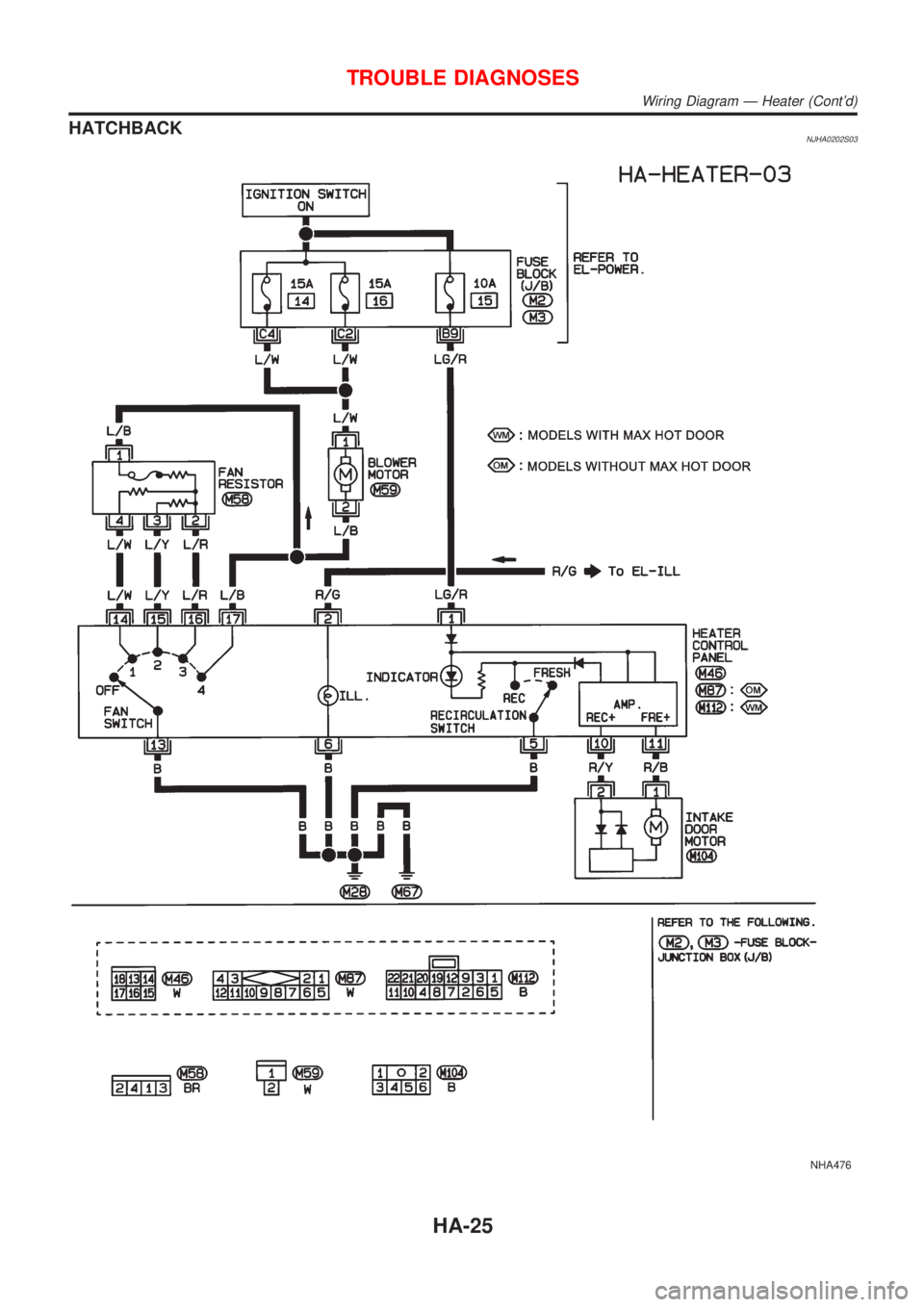

NISSAN ALMERA 2001 Service Manual HATCHBACKNJHA0202S03 NHA476 TROUBLE DIAGNOSES Wiring Diagram Ð Heater (Contd) HA-25

Page 2426 of 2898

NISSAN ALMERA 2001 Service Manual Circuit Diagram Ð Air ConditionerNJHA0127 HHA240 TROUBLE DIAGNOSES Circuit Diagram Ð Air Conditioner HA-26

Page 2427 of 2898

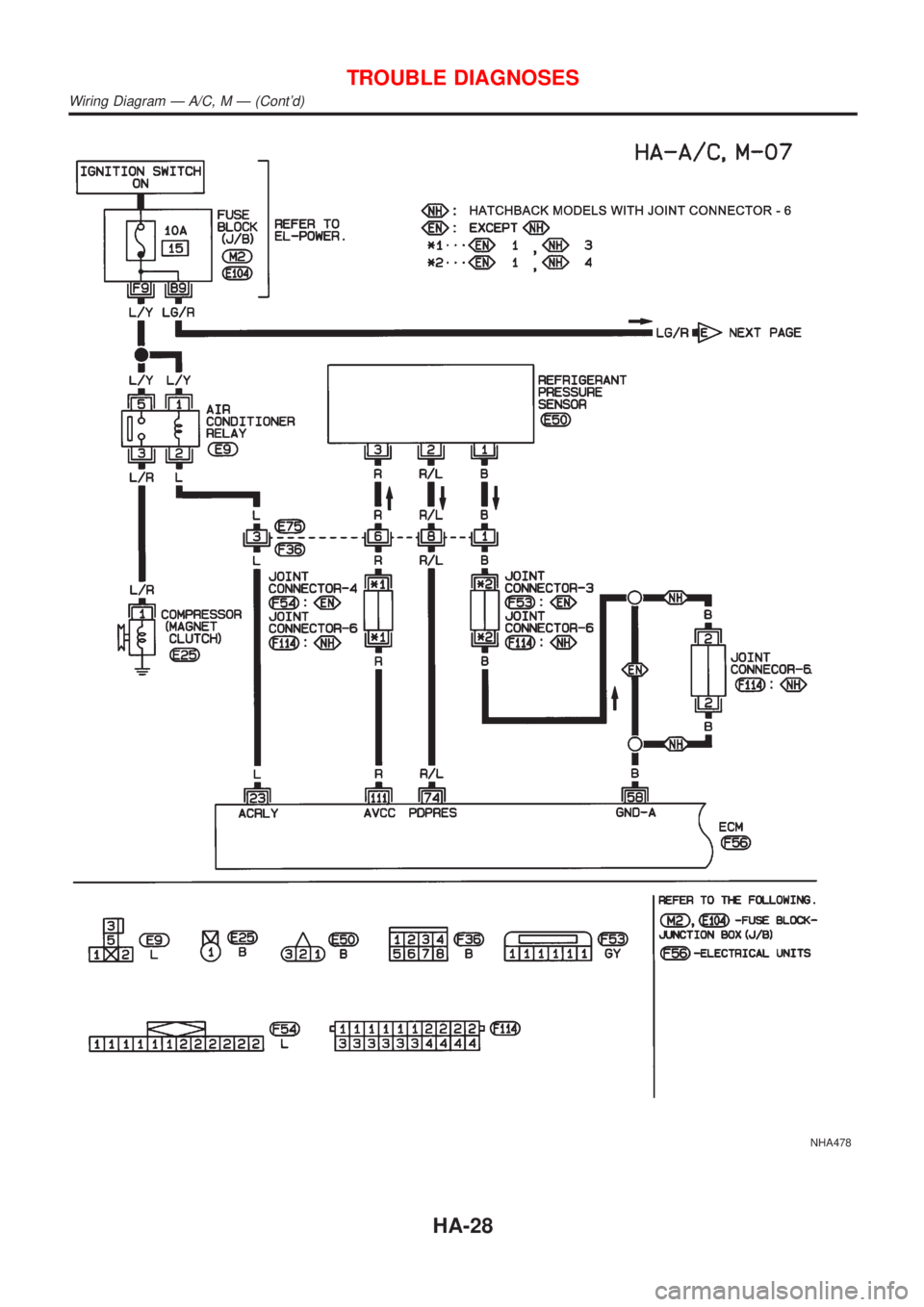

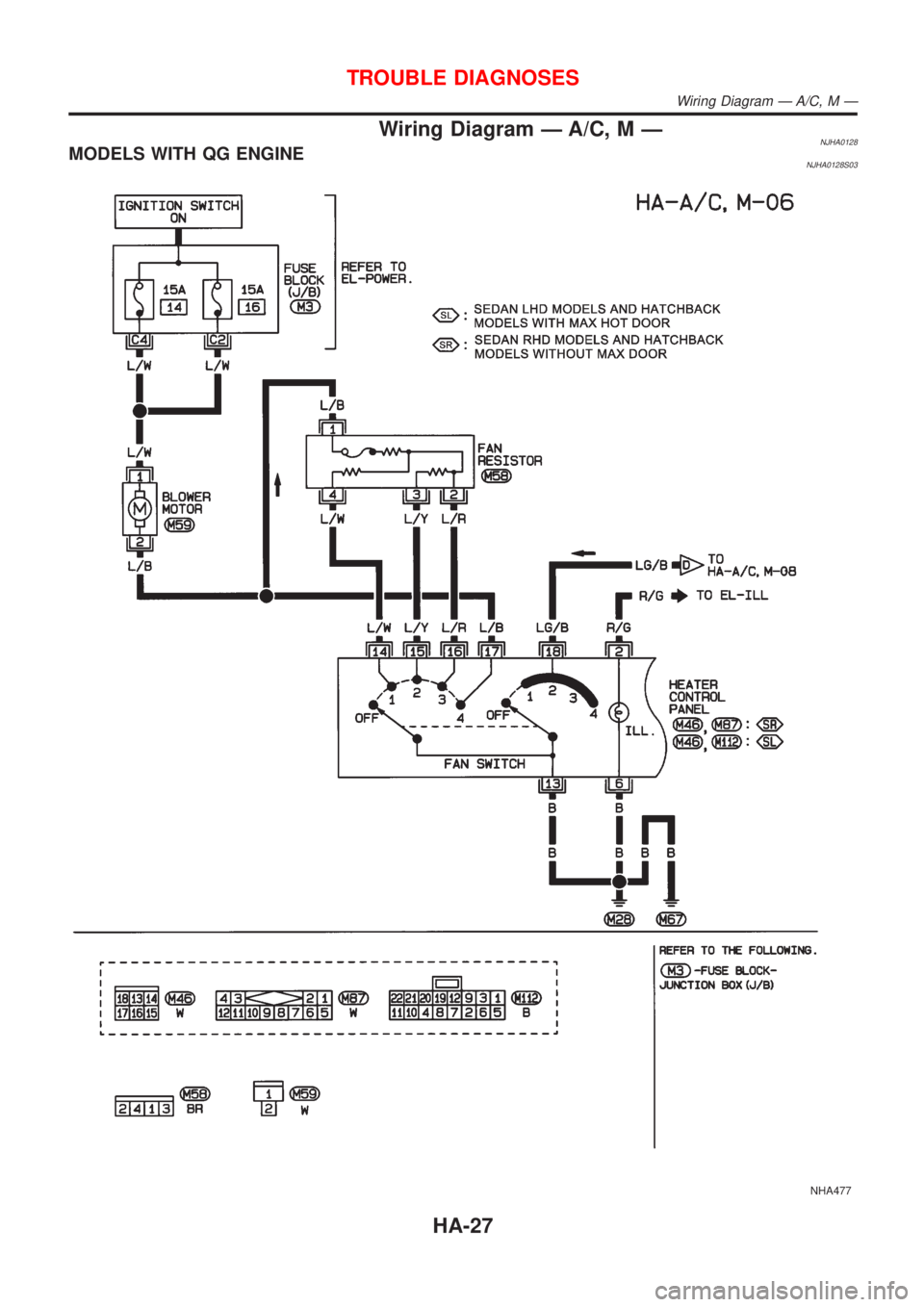

NISSAN ALMERA 2001 Service Manual Wiring Diagram Ð A/C, M ÐNJHA0128MODELS WITH QG ENGINENJHA0128S03 NHA477 TROUBLE DIAGNOSES Wiring Diagram Ð A/C, M Ð HA-27

Page 2428 of 2898

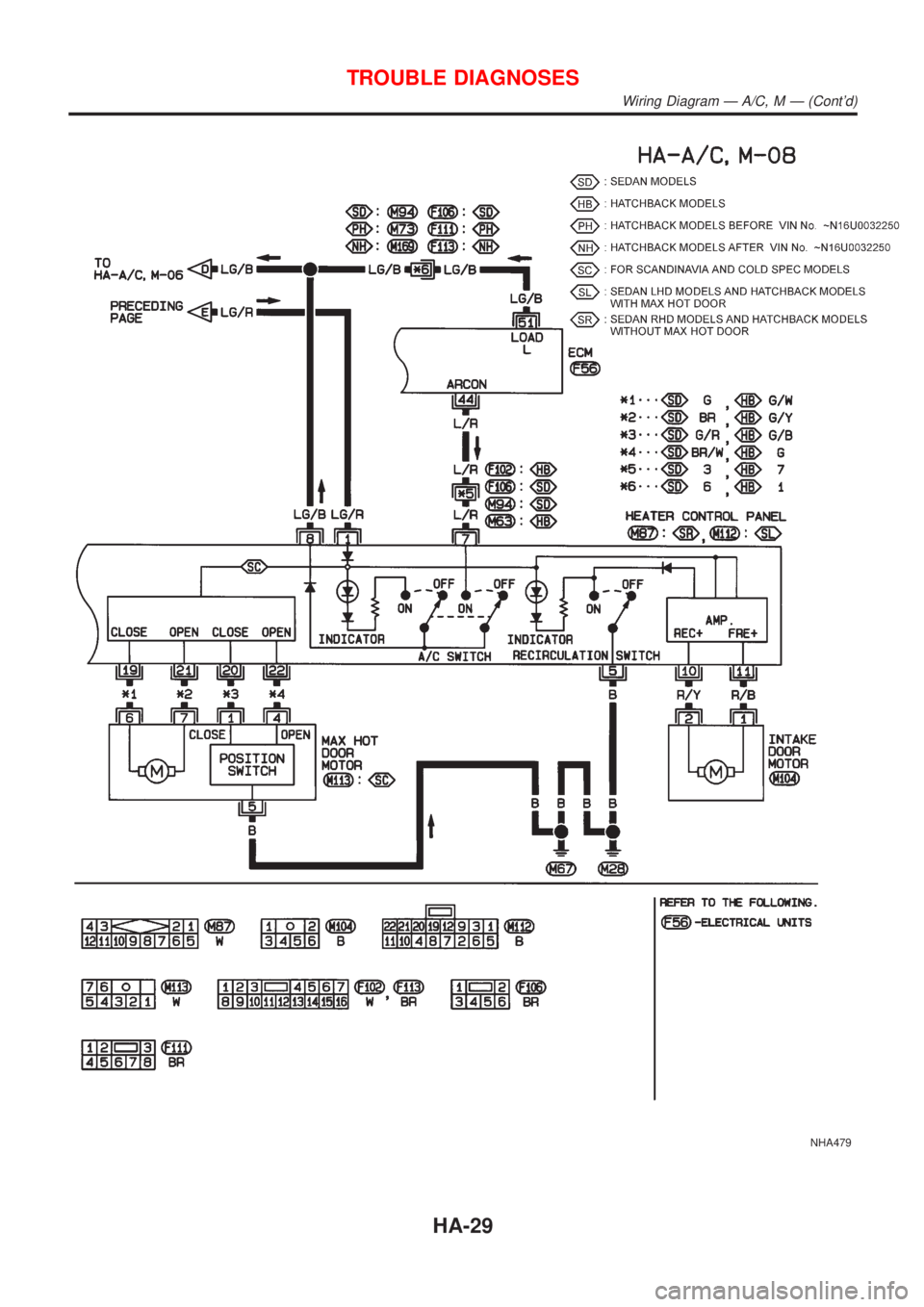

NISSAN ALMERA 2001 Service Manual NHA478 TROUBLE DIAGNOSES Wiring Diagram Ð A/C, M Ð (Contd) HA-28

Page 2429 of 2898

NISSAN ALMERA 2001 Service Manual NHA479 TROUBLE DIAGNOSES Wiring Diagram Ð A/C, M Ð (Contd) HA-29

Page 2430 of 2898

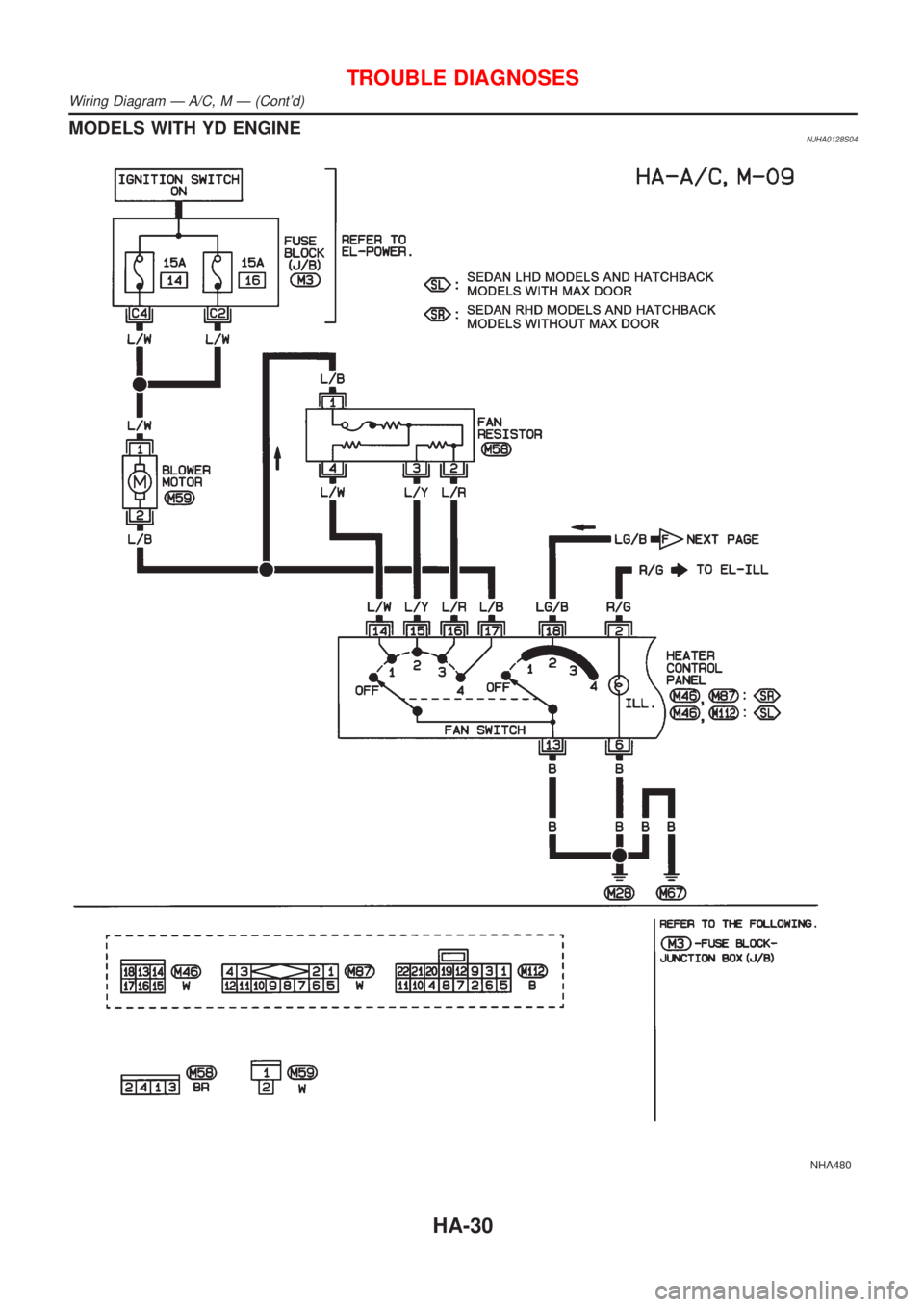

NISSAN ALMERA 2001 Service Manual MODELS WITH YD ENGINENJHA0128S04 NHA480 TROUBLE DIAGNOSES Wiring Diagram Ð A/C, M Ð (Contd) HA-30
