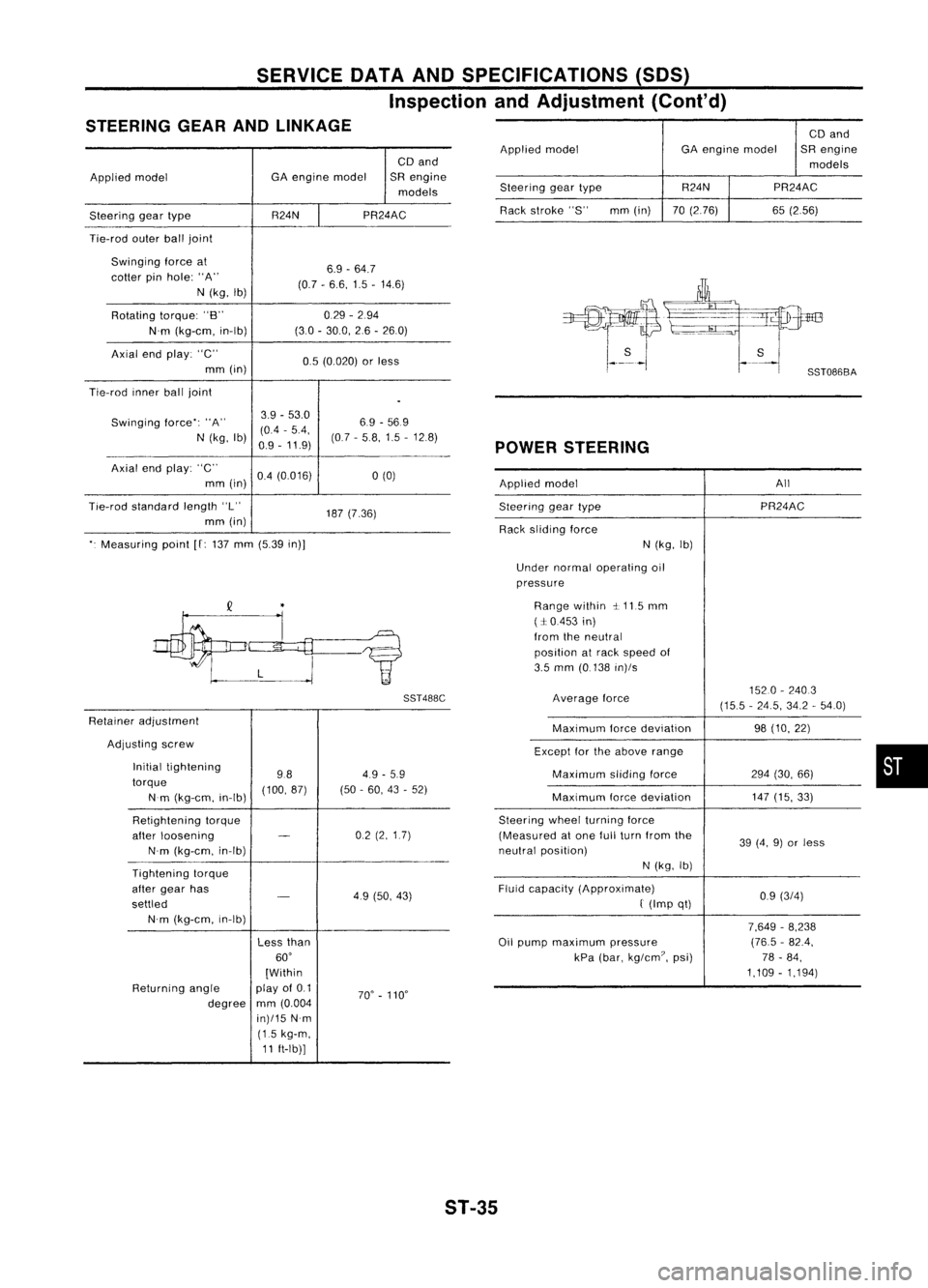

SERVICEDATAANDSPECIFICATIONS (50S)
Inspection andAdjustment (Cont'd)
STEERING GEARANDLINKAGE
CDand
Applied model GA
engine model SRengine
models
Steering geartype R24NPR24AC
Tie-rod outerballjoint
Swinging forceat
6.9-64.7
cotter pinhole: "A"
(0.7-6.6, 1.5-14.6)
N (kg, Ib)
Rotating torque:"B" 0.29
-294
N'm (kg-em, in-Ib) (30
-30.0, 26-260)
Axial endplay: "C"
0.5(0.020) orless
mm (in)
Tie-rod innerballjoint
.
Swinging force":"A" 3.9
-53.0
6.9-569
(0.4 -5.4,
N (kg, Ib)
0.9-11.9) (07
-58,1.5 -12.8)
Axial endplay: "C"
0.4(0.016)
a
(0)
mm (in)
Tie-rod standard length"L"
187(7.36)
mm (in)
". Measuring point
[f:
137 mm (5.39 in)]
SST488C
Retainer adjustment
Adjusting screw
Initial tightening
984.9
-5.9
torque (100,87)(50-60, 43-52)
Nm (kg-em, in-Ib)
Retightening torque
after loosening
-
02
(2,1.7)
N'm (kg-em, in-Ib)
Tightening torque
after gear has
-
49(50, 43)
settled
N'm (kg-em, in-Ib)
Lessthan
60'
[Within
Returning angle play
of0.1
70'-110'
degree mm
(0.004
in)/15 N'm
(1.5 kg-m,
11 ft-Ib)] CD
and
Applied model GAengine model SRengine
models
Steering geartype R24N
PR24AC
Rack stroke "S" mm(in) 70(2.76) 65(2.56)
POWER STEERING
Applied model All
Steering geartype PR24AC
Rack sliding force
N(kg, Ib)
Under normal operating oil
pressure
Range within ~.115 mm
(:1:0.453 in)
from theneutral
position atrack speed of
3.5 mm (0.138 in)/s
Average force 1520
-2403
(15.5 -24.5, 34.2-54.0)
Maximum forcedeviation 98(10, 22)
Except forthe above range
Maximum slidingforce 294(30, 66)
Maximum forcedeviation 147
(15, 33)
Steering wheelturning force
(Measured atone fullturn from the
39(4, 9)or less
neutral position)
N(kg, Ib)
Fluid capacity (Approximate)
0.9(3/4)
f
(Imp qt)
7,649-8,238
Oil pump maximum pressure (76.5
-82.4,
kPa (bar, kg/em?, psi) 78-84,
1,109 -1,194)
•
ST-35
