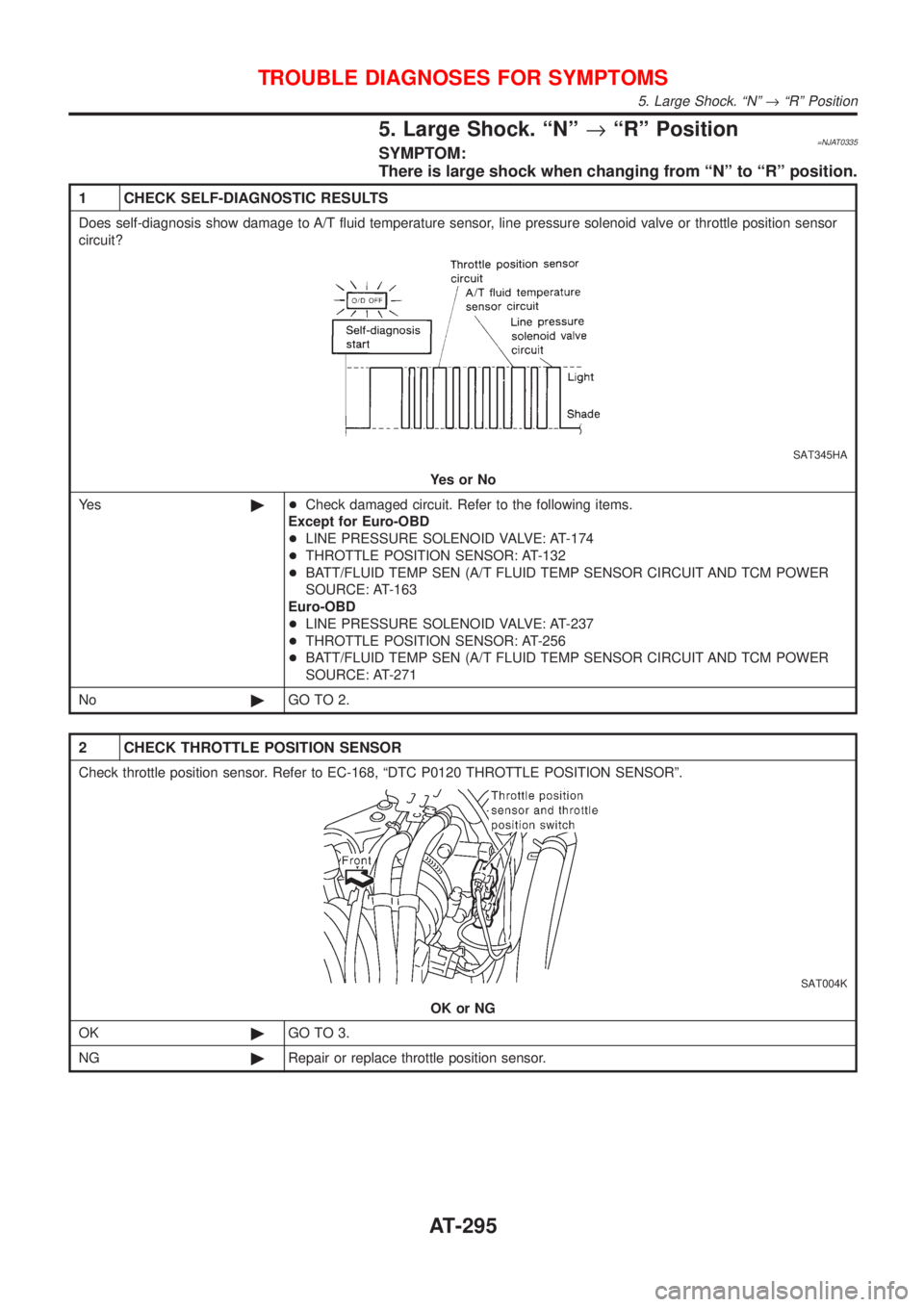

5. Large Shock. ªNº®ªRº Position=NJAT0335SYMPTOM:
There is large shock when changing from ªNº to ªRº position.
1 CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to A/T fluid temperature sensor, line pressure solenoid valve or throttle position sensor
circuit?
SAT345HA
YesorNo
Ye s©+Check damaged circuit. Refer to the following items.
Except for Euro-OBD
+LINE PRESSURE SOLENOID VALVE: AT-174
+THROTTLE POSITION SENSOR: AT-132
+BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POWER
SOURCE: AT-163
Euro-OBD
+LINE PRESSURE SOLENOID VALVE: AT-237
+THROTTLE POSITION SENSOR: AT-256
+BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POWER
SOURCE: AT-271
No©GO TO 2.
2 CHECK THROTTLE POSITION SENSOR
Check throttle position sensor. Refer to EC-168, ªDTC P0120 THROTTLE POSITION SENSORº.
SAT004K
OK or NG
OK©GO TO 3.
NG©Repair or replace throttle position sensor.
TROUBLE DIAGNOSES FOR SYMPTOMS
5. Large Shock. ªNº®ªRº Position
AT-295

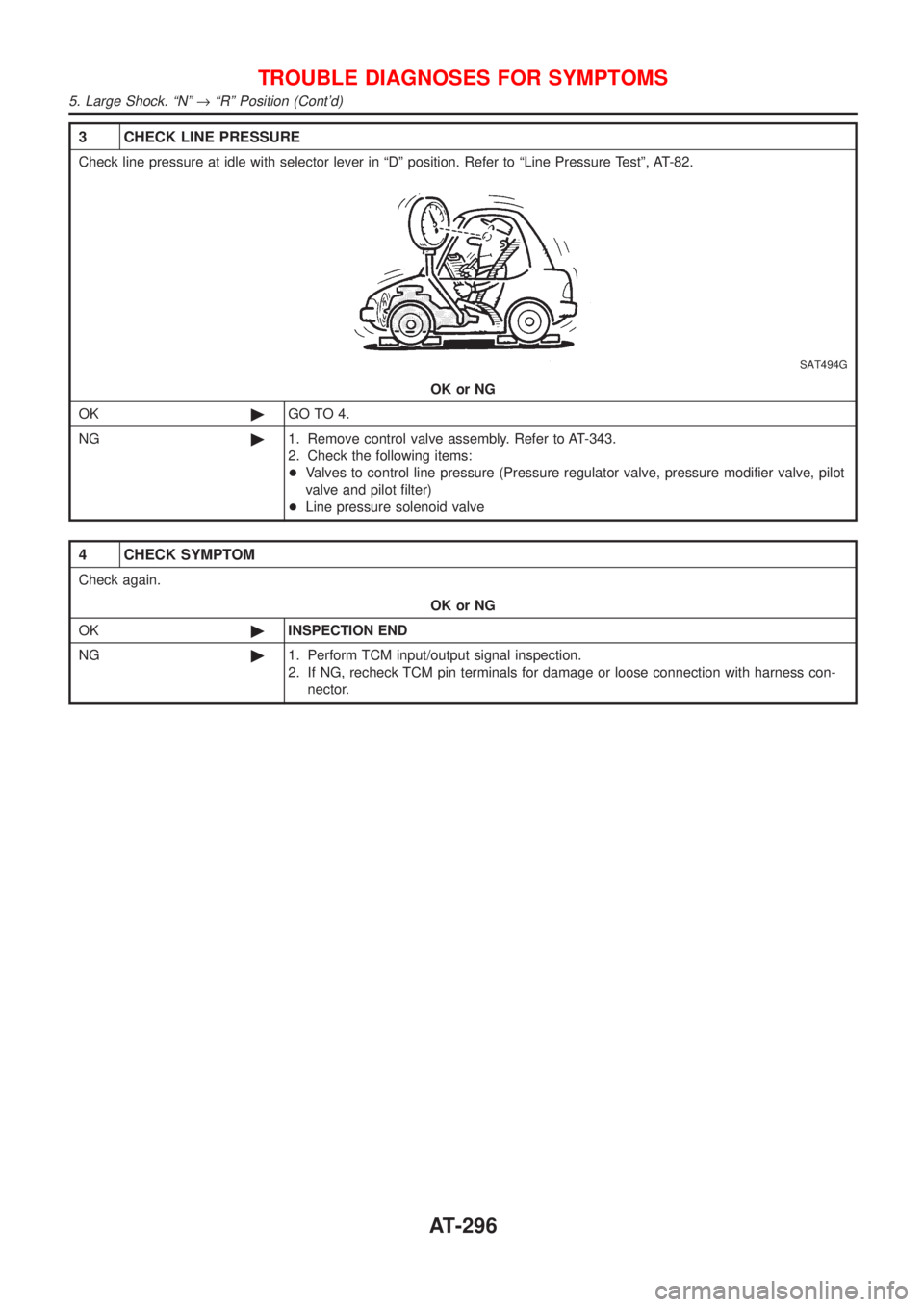

3 CHECK LINE PRESSURE
Check line pressure at idle with selector lever in ªDº position. Refer to ªLine Pressure Testº, AT-82.
SAT494G
OK or NG
OK©GO TO 4.
NG©1. Remove control valve assembly. Refer to AT-343.
2. Check the following items:
+Valves to control line pressure (Pressure regulator valve, pressure modifier valve, pilot
valve and pilot filter)
+Line pressure solenoid valve
4 CHECK SYMPTOM
Check again.
OK or NG
OK©INSPECTION END
NG©1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-
nector.
TROUBLE DIAGNOSES FOR SYMPTOMS
5. Large Shock. ªNº®ªRº Position (Cont'd)
AT-296

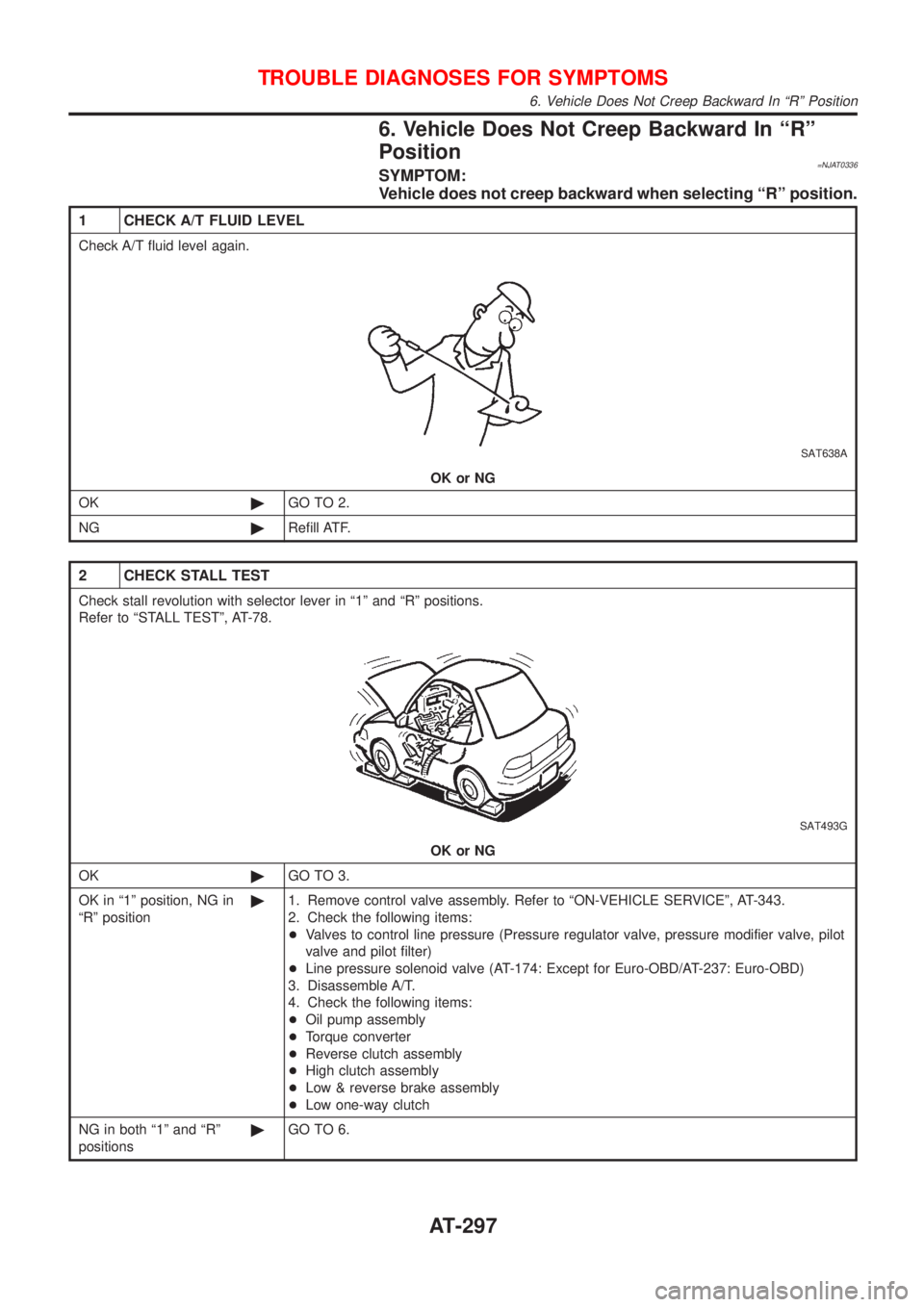

6. Vehicle Does Not Creep Backward In ªRº
Position
=NJAT0336SYMPTOM:
Vehicle does not creep backward when selecting ªRº position.
1 CHECK A/T FLUID LEVEL
Check A/T fluid level again.
SAT638A
OK or NG
OK©GO TO 2.
NG©Refill ATF.
2 CHECK STALL TEST
Check stall revolution with selector lever in ª1º and ªRº positions.
Refer to ªSTALL TESTº, AT-78.
SAT493G
OK or NG
OK©GO TO 3.
OK in ª1º position, NG in
ªRº position©1. Remove control valve assembly. Refer to ªON-VEHICLE SERVICEº, AT-343.
2. Check the following items:
+Valves to control line pressure (Pressure regulator valve, pressure modifier valve, pilot
valve and pilot filter)
+Line pressure solenoid valve (AT-174: Except for Euro-OBD/AT-237: Euro-OBD)
3. Disassemble A/T.
4. Check the following items:
+Oil pump assembly
+Torque converter
+Reverse clutch assembly
+High clutch assembly
+Low & reverse brake assembly
+Low one-way clutch
NG in both ª1º and ªRº
positions©GO TO 6.
TROUBLE DIAGNOSES FOR SYMPTOMS
6. Vehicle Does Not Creep Backward In ªRº Position
AT-297

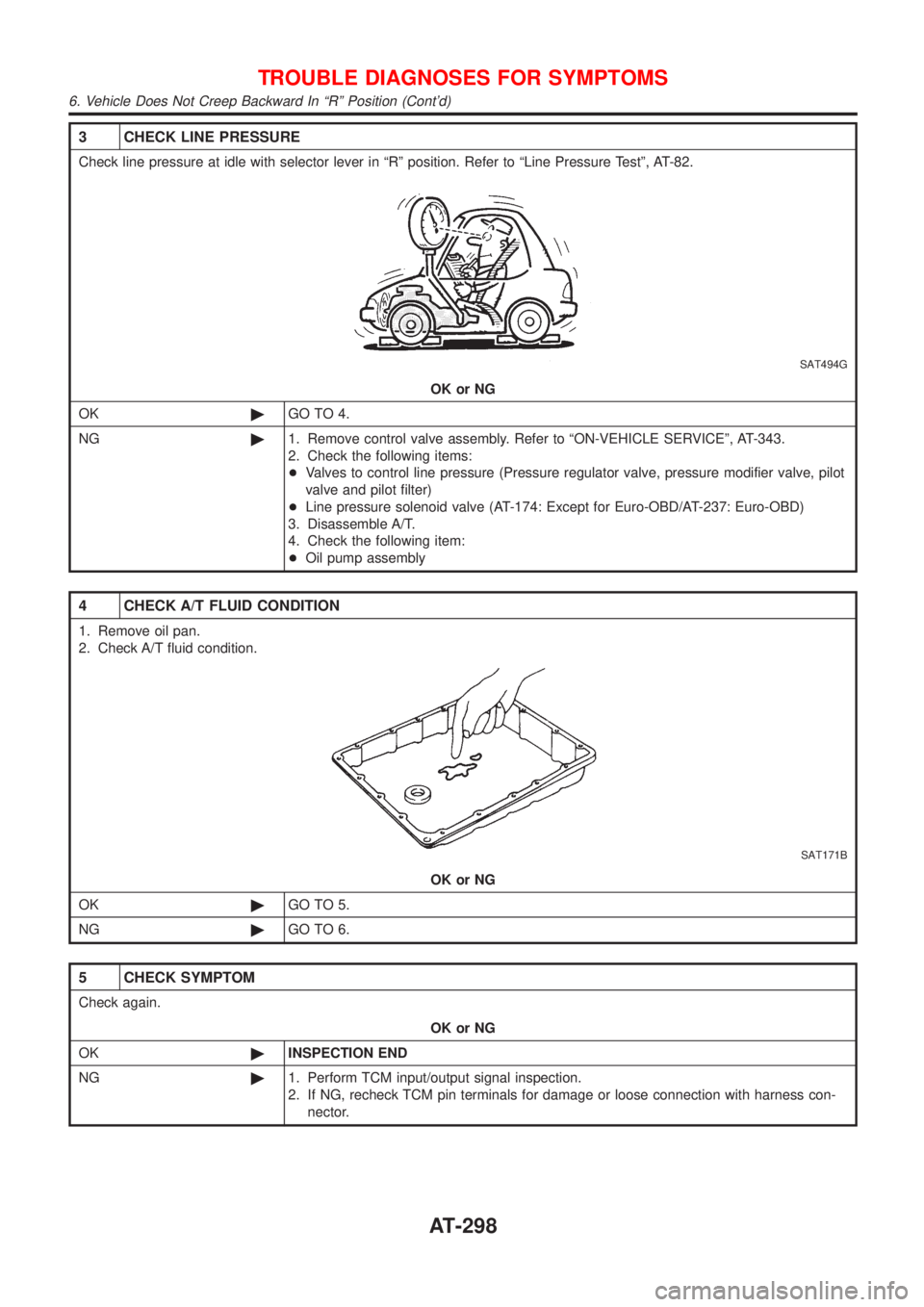

3 CHECK LINE PRESSURE
Check line pressure at idle with selector lever in ªRº position. Refer to ªLine Pressure Testº, AT-82.
SAT494G
OK or NG
OK©GO TO 4.
NG©1. Remove control valve assembly. Refer to ªON-VEHICLE SERVICEº, AT-343.
2. Check the following items:
+Valves to control line pressure (Pressure regulator valve, pressure modifier valve, pilot
valve and pilot filter)
+Line pressure solenoid valve (AT-174: Except for Euro-OBD/AT-237: Euro-OBD)
3. Disassemble A/T.
4. Check the following item:
+Oil pump assembly
4 CHECK A/T FLUID CONDITION
1. Remove oil pan.
2. Check A/T fluid condition.
SAT171B
OK or NG
OK©GO TO 5.
NG©GO TO 6.
5 CHECK SYMPTOM
Check again.
OK or NG
OK©INSPECTION END
NG©1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-
nector.
TROUBLE DIAGNOSES FOR SYMPTOMS
6. Vehicle Does Not Creep Backward In ªRº Position (Cont'd)
AT-298

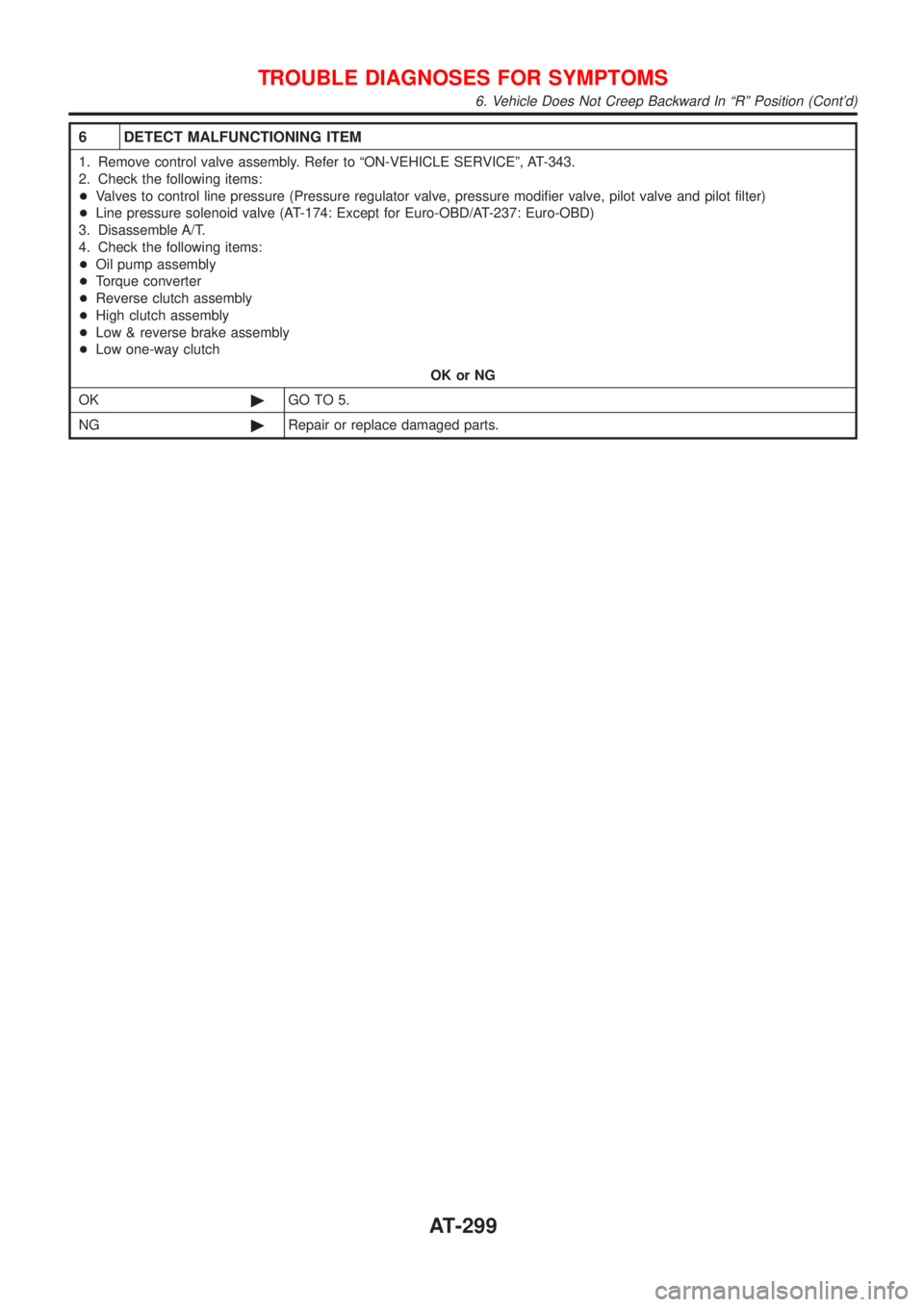

6 DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to ªON-VEHICLE SERVICEº, AT-343.
2. Check the following items:
+Valves to control line pressure (Pressure regulator valve, pressure modifier valve, pilot valve and pilot filter)
+Line pressure solenoid valve (AT-174: Except for Euro-OBD/AT-237: Euro-OBD)
3. Disassemble A/T.
4. Check the following items:
+Oil pump assembly
+Torque converter
+Reverse clutch assembly
+High clutch assembly
+Low & reverse brake assembly
+Low one-way clutch
OK or NG
OK©GO TO 5.
NG©Repair or replace damaged parts.
TROUBLE DIAGNOSES FOR SYMPTOMS
6. Vehicle Does Not Creep Backward In ªRº Position (Cont'd)
AT-299

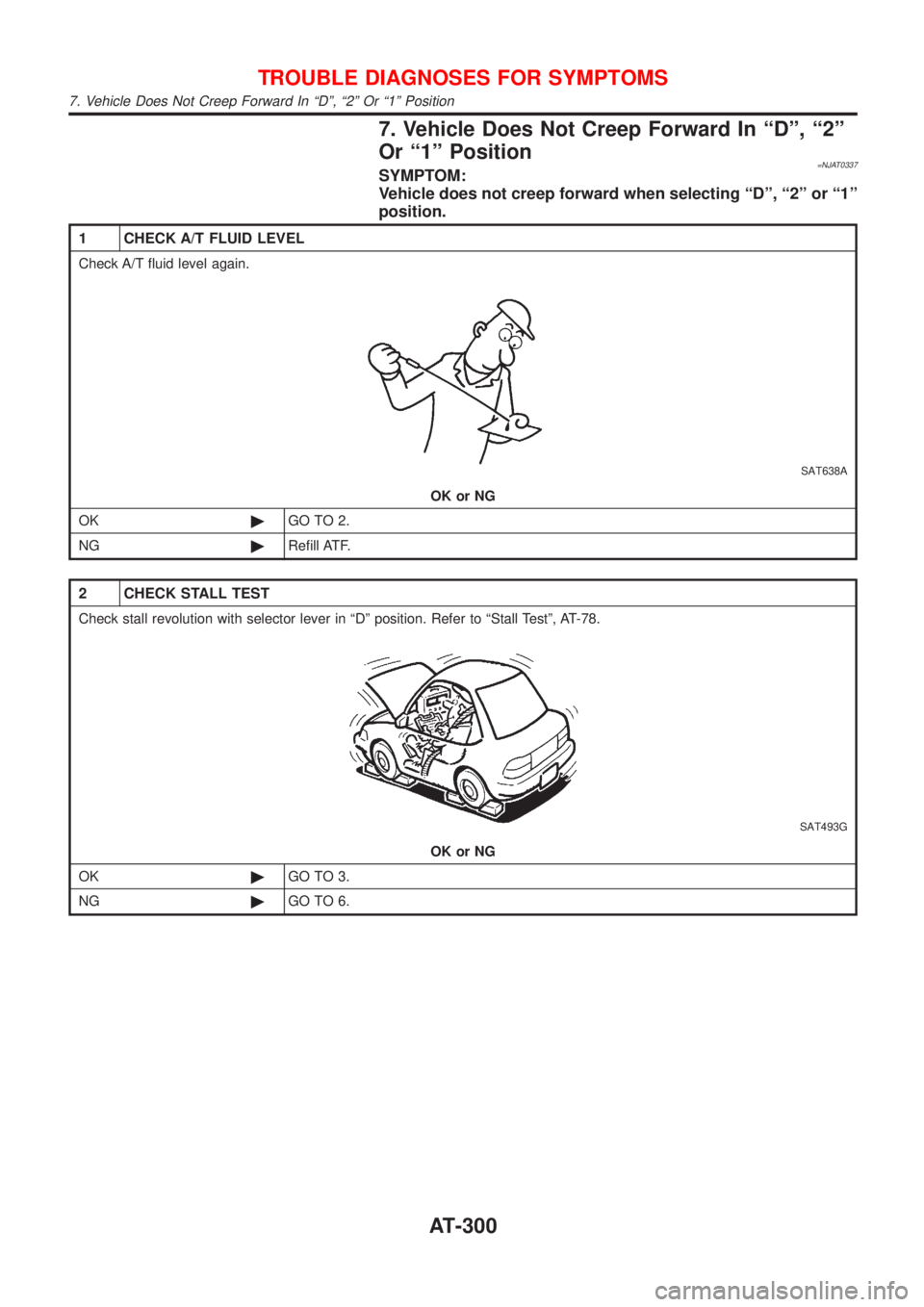

7. Vehicle Does Not Creep Forward In ªDº, ª2º
Or ª1º Position
=NJAT0337SYMPTOM:
Vehicle does not creep forward when selecting ªDº, ª2º or ª1º
position.
1 CHECK A/T FLUID LEVEL
Check A/T fluid level again.
SAT638A
OK or NG
OK©GO TO 2.
NG©Refill ATF.
2 CHECK STALL TEST
Check stall revolution with selector lever in ªDº position. Refer to ªStall Testº, AT-78.
SAT493G
OK or NG
OK©GO TO 3.
NG©GO TO 6.
TROUBLE DIAGNOSES FOR SYMPTOMS
7. Vehicle Does Not Creep Forward In ªDº, ª2º Or ª1º Position
AT-300

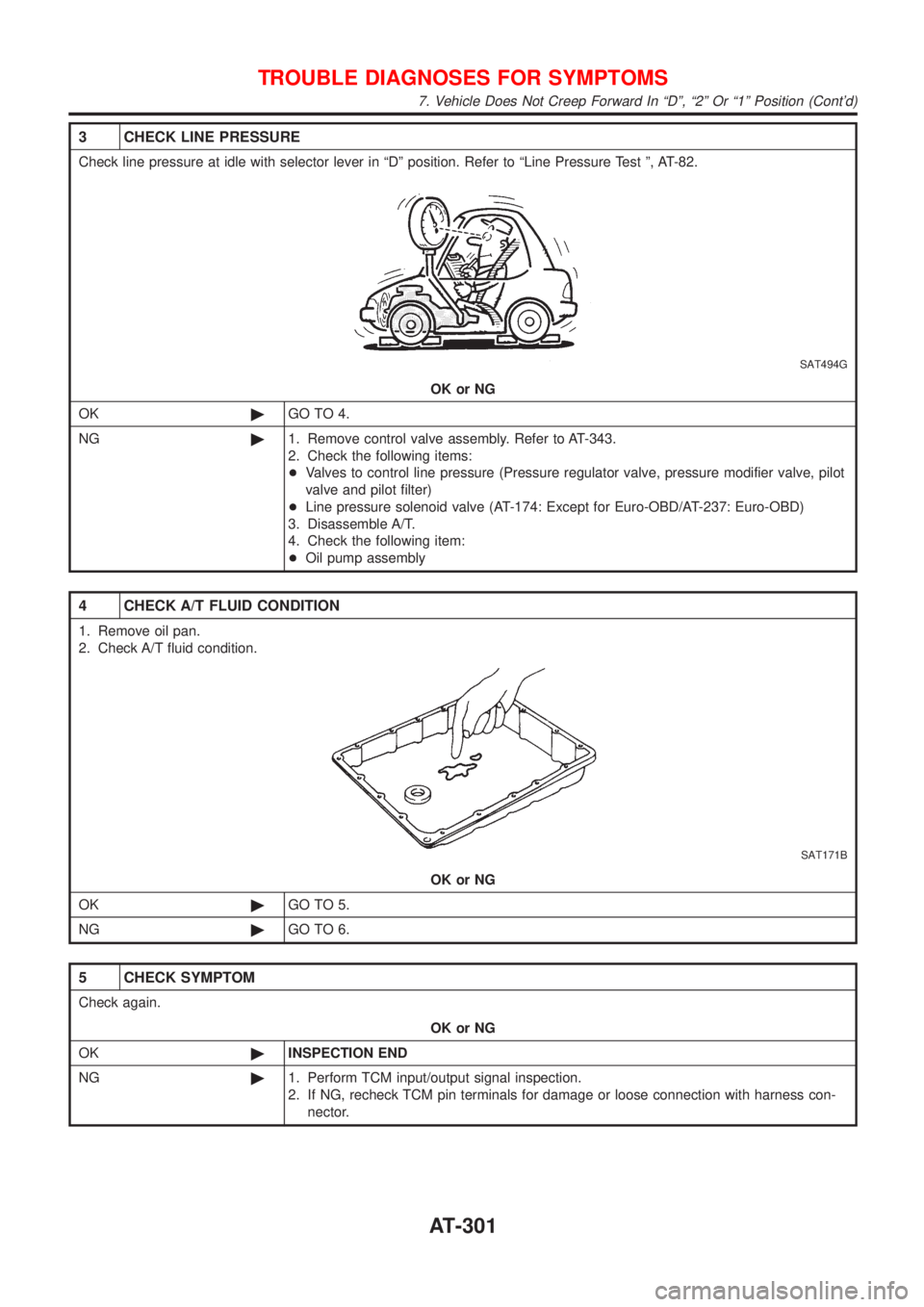

3 CHECK LINE PRESSURE
Check line pressure at idle with selector lever in ªDº position. Refer to ªLine Pressure Test º, AT-82.
SAT494G
OK or NG
OK©GO TO 4.
NG©1. Remove control valve assembly. Refer to AT-343.
2. Check the following items:
+Valves to control line pressure (Pressure regulator valve, pressure modifier valve, pilot
valve and pilot filter)
+Line pressure solenoid valve (AT-174: Except for Euro-OBD/AT-237: Euro-OBD)
3. Disassemble A/T.
4. Check the following item:
+Oil pump assembly
4 CHECK A/T FLUID CONDITION
1. Remove oil pan.
2. Check A/T fluid condition.
SAT171B
OK or NG
OK©GO TO 5.
NG©GO TO 6.
5 CHECK SYMPTOM
Check again.
OK or NG
OK©INSPECTION END
NG©1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-
nector.
TROUBLE DIAGNOSES FOR SYMPTOMS
7. Vehicle Does Not Creep Forward In ªDº, ª2º Or ª1º Position (Cont'd)
AT-301

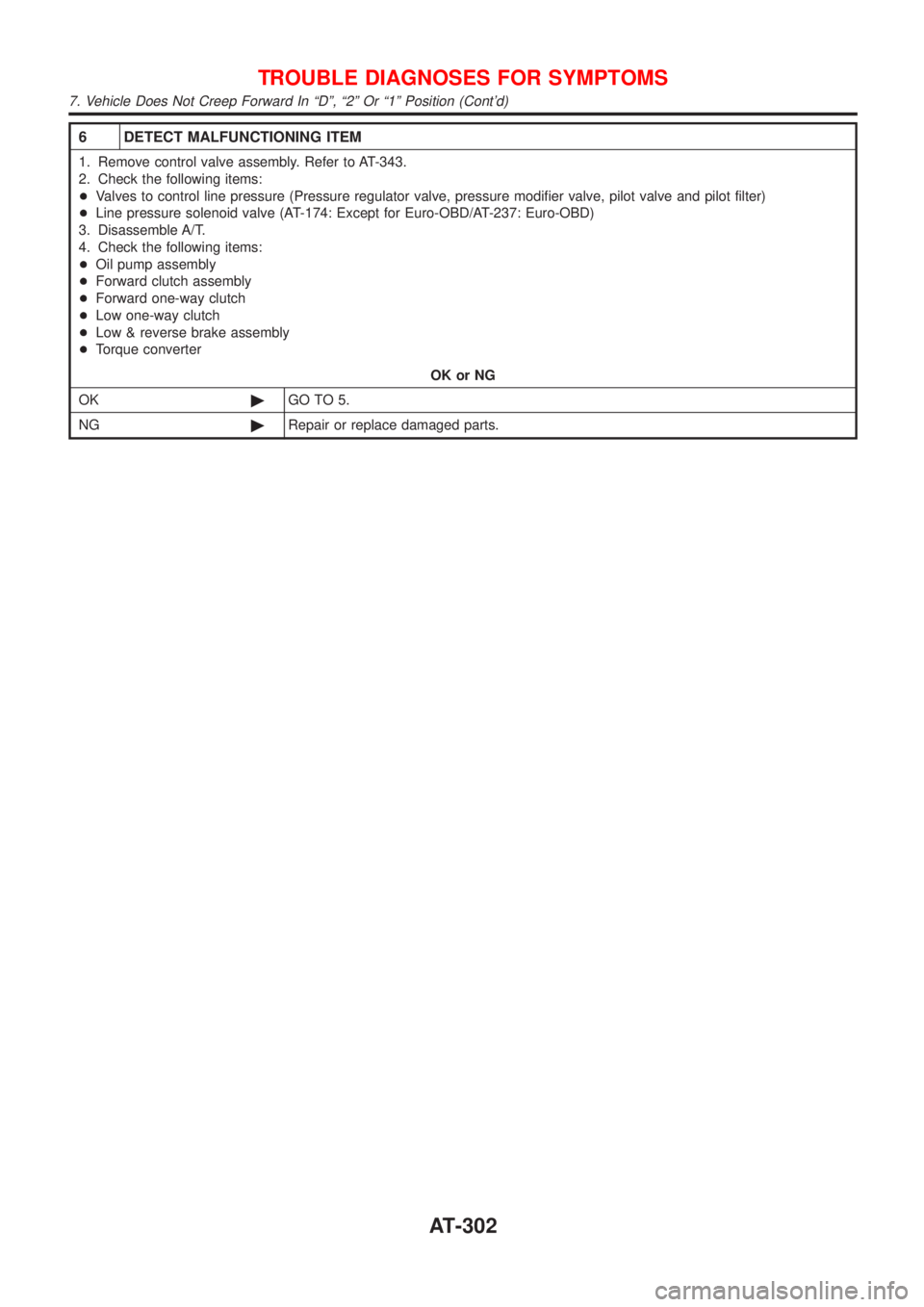

6 DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT-343.
2. Check the following items:
+Valves to control line pressure (Pressure regulator valve, pressure modifier valve, pilot valve and pilot filter)
+Line pressure solenoid valve (AT-174: Except for Euro-OBD/AT-237: Euro-OBD)
3. Disassemble A/T.
4. Check the following items:
+Oil pump assembly
+Forward clutch assembly
+Forward one-way clutch
+Low one-way clutch
+Low & reverse brake assembly
+Torque converter
OK or NG
OK©GO TO 5.
NG©Repair or replace damaged parts.
TROUBLE DIAGNOSES FOR SYMPTOMS
7. Vehicle Does Not Creep Forward In ªDº, ª2º Or ª1º Position (Cont'd)
AT-302

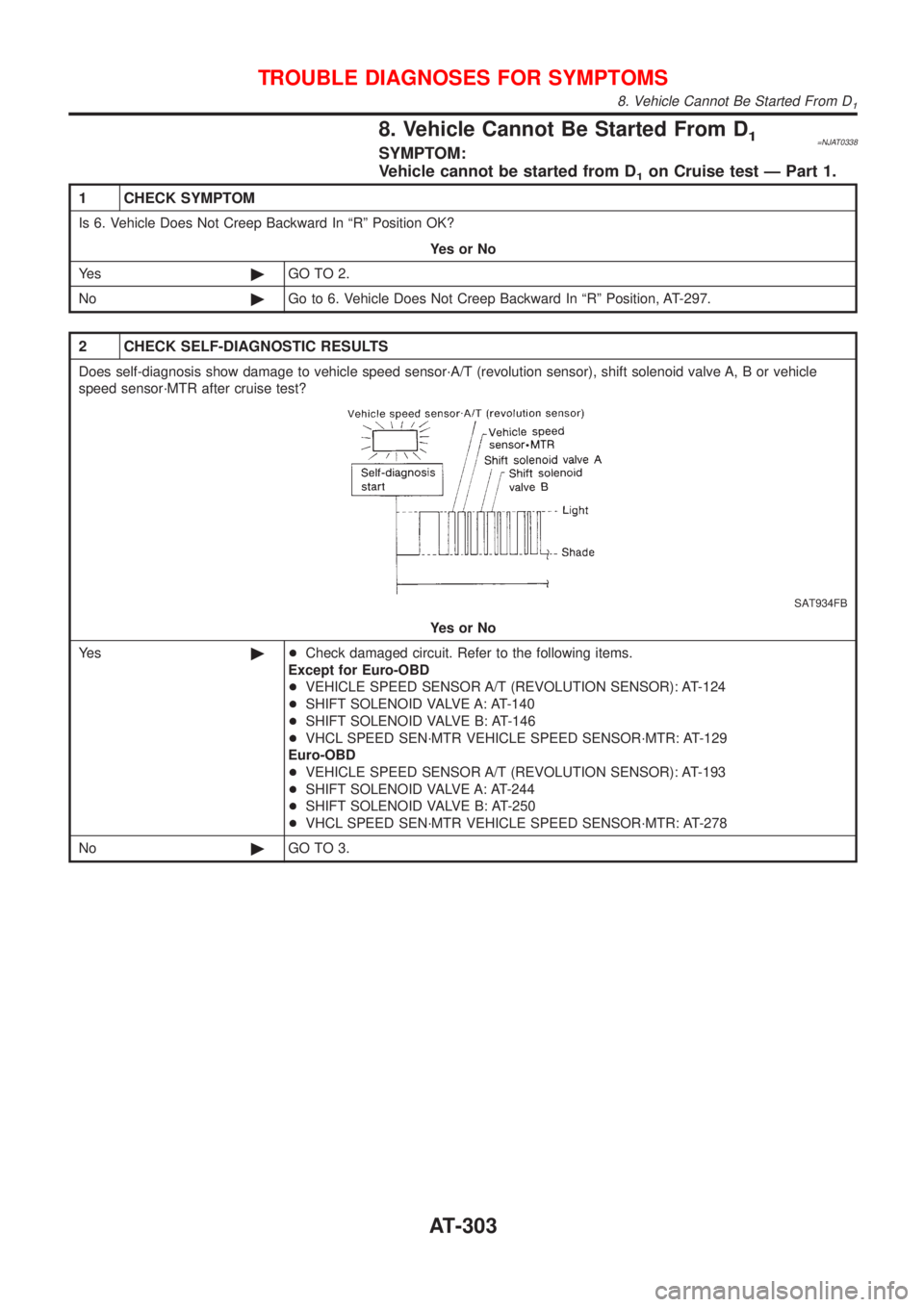

8. Vehicle Cannot Be Started From D1=NJAT0338SYMPTOM:
Vehicle cannot be started from D
1on Cruise test Ð Part 1.
1 CHECK SYMPTOM
Is 6. Vehicle Does Not Creep Backward In ªRº Position OK?
YesorNo
Ye s©GO TO 2.
No©Go to 6. Vehicle Does Not Creep Backward In ªRº Position, AT-297.
2 CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to vehicle speed sensor´A/T (revolution sensor), shift solenoid valve A, B or vehicle
speed sensor´MTR after cruise test?
SAT934FB
YesorNo
Ye s©+Check damaged circuit. Refer to the following items.
Except for Euro-OBD
+VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR): AT-124
+SHIFT SOLENOID VALVE A: AT-140
+SHIFT SOLENOID VALVE B: AT-146
+VHCL SPEED SEN´MTR VEHICLE SPEED SENSOR´MTR: AT-129
Euro-OBD
+VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR): AT-193
+SHIFT SOLENOID VALVE A: AT-244
+SHIFT SOLENOID VALVE B: AT-250
+VHCL SPEED SEN´MTR VEHICLE SPEED SENSOR´MTR: AT-278
No©GO TO 3.
TROUBLE DIAGNOSES FOR SYMPTOMS
8. Vehicle Cannot Be Started From D1
AT-303

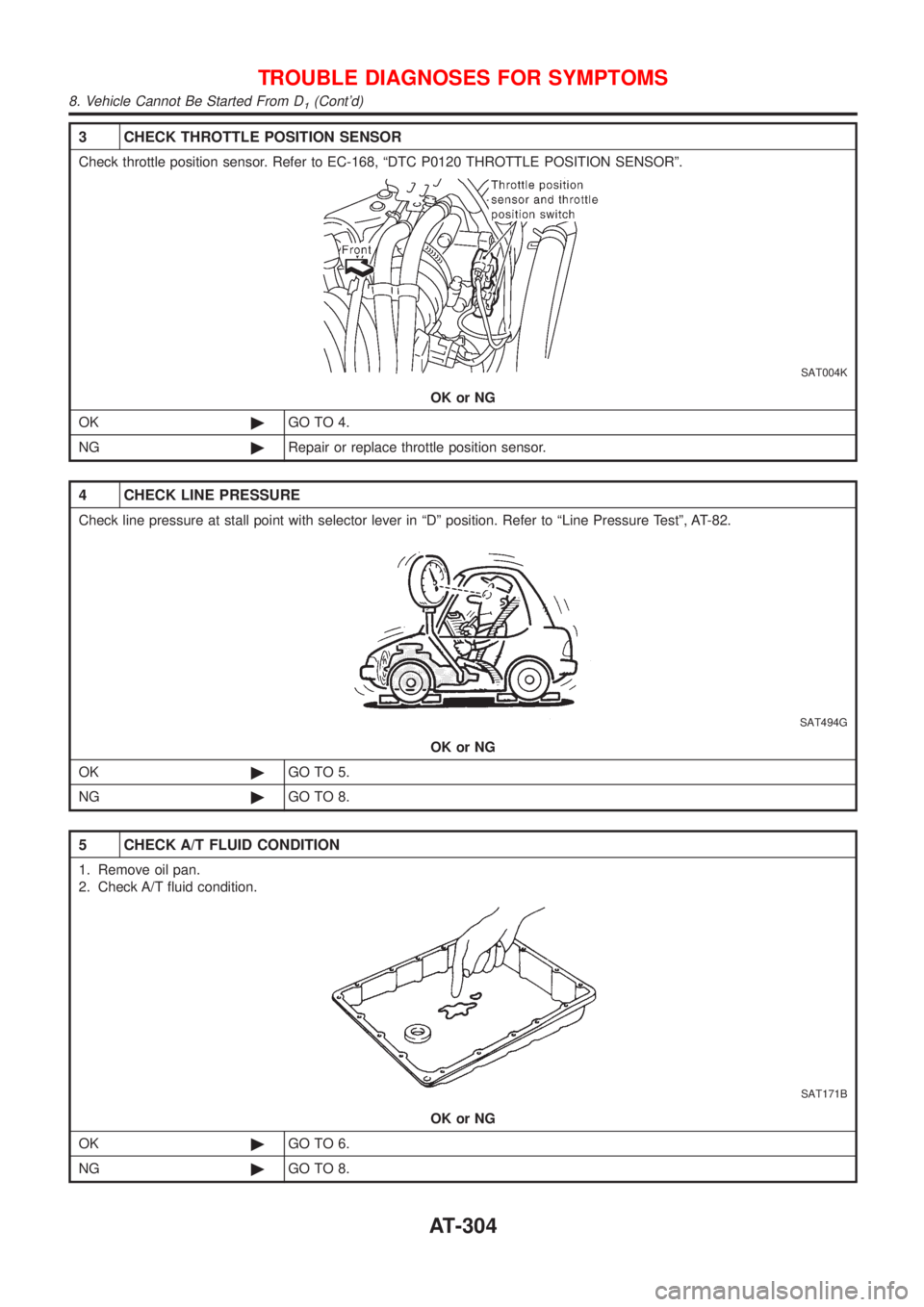

3 CHECK THROTTLE POSITION SENSOR
Check throttle position sensor. Refer to EC-168, ªDTC P0120 THROTTLE POSITION SENSORº.
SAT004K
OK or NG
OK©GO TO 4.
NG©Repair or replace throttle position sensor.
4 CHECK LINE PRESSURE
Check line pressure at stall point with selector lever in ªDº position. Refer to ªLine Pressure Testº, AT-82.
SAT494G
OK or NG
OK©GO TO 5.
NG©GO TO 8.
5 CHECK A/T FLUID CONDITION
1. Remove oil pan.
2. Check A/T fluid condition.
SAT171B
OK or NG
OK©GO TO 6.
NG©GO TO 8.
TROUBLE DIAGNOSES FOR SYMPTOMS
8. Vehicle Cannot Be Started From D1(Cont'd)
AT-304
