NISSAN ALMERA N16 2001 Electronic Repair Manual

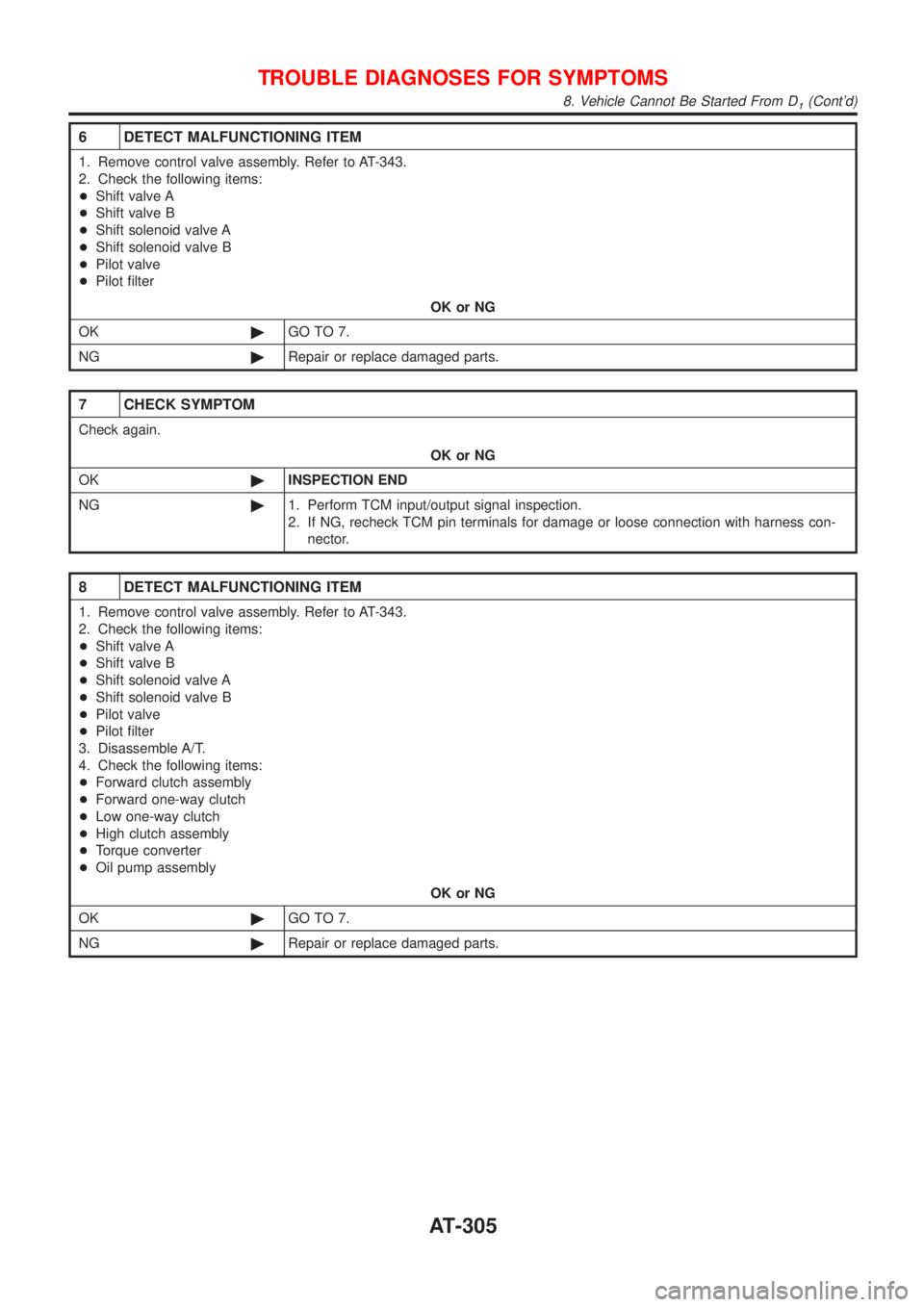

6 DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT-343.
2. Check the following items:
+Shift valve A
+Shift valve B
+Shift solenoid valve A
+Shift solenoid valve B
+Pilot valve
+Pilot filter
OK or NG
OK©GO TO 7.
NG©Repair or replace damaged parts.
7 CHECK SYMPTOM
Check again.
OK or NG
OK©INSPECTION END
NG©1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-
nector.
8 DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT-343.
2. Check the following items:
+Shift valve A
+Shift valve B
+Shift solenoid valve A
+Shift solenoid valve B
+Pilot valve
+Pilot filter
3. Disassemble A/T.
4. Check the following items:
+Forward clutch assembly
+Forward one-way clutch
+Low one-way clutch
+High clutch assembly
+Torque converter
+Oil pump assembly
OK or NG
OK©GO TO 7.
NG©Repair or replace damaged parts.
TROUBLE DIAGNOSES FOR SYMPTOMS
8. Vehicle Cannot Be Started From D1(Cont'd)
AT-305

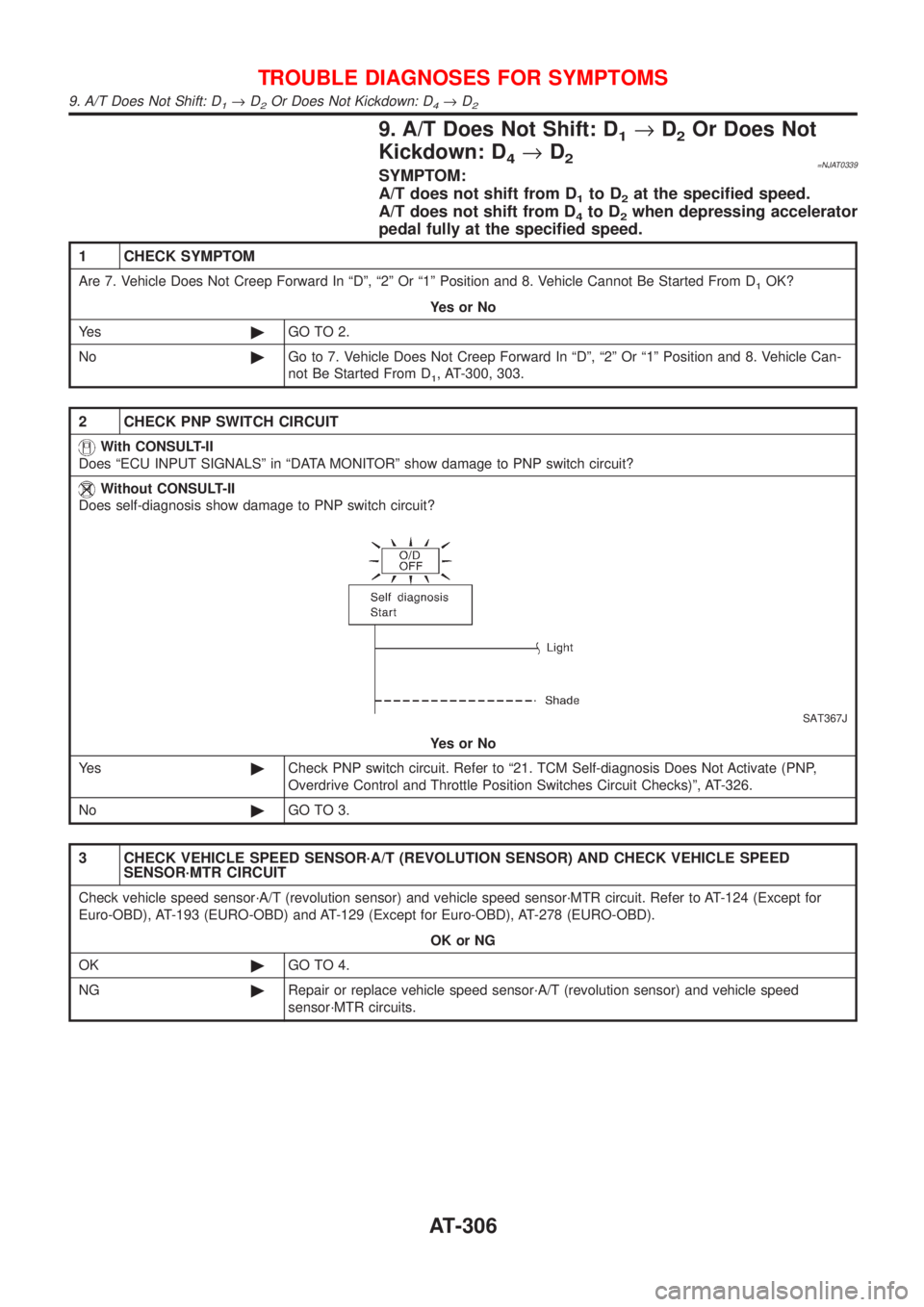

9. A/T Does Not Shift: D1®D2Or Does Not
Kickdown: D
4®D2=NJAT0339SYMPTOM:
A/T does not shift from D
1to D2at the specified speed.
A/T does not shift from D
4to D2when depressing accelerator
pedal fully at the specified speed.
1 CHECK SYMPTOM
Are 7. Vehicle Does Not Creep Forward In ªDº, ª2º Or ª1º Position and 8. Vehicle Cannot Be Started From D1OK?
YesorNo
Ye s©GO TO 2.
No©Go to 7. Vehicle Does Not Creep Forward In ªDº, ª2º Or ª1º Position and 8. Vehicle Can-
not Be Started From D
1, AT-300, 303.
2 CHECK PNP SWITCH CIRCUIT
With CONSULT-II
Does ªECU INPUT SIGNALSº in ªDATA MONITORº show damage to PNP switch circuit?
Without CONSULT-II
Does self-diagnosis show damage to PNP switch circuit?
SAT367J
YesorNo
Ye s©Check PNP switch circuit. Refer to ª21. TCM Self-diagnosis Does Not Activate (PNP,
Overdrive Control and Throttle Position Switches Circuit Checks)º, AT-326.
No©GO TO 3.
3 CHECK VEHICLE SPEED SENSOR´A/T (REVOLUTION SENSOR) AND CHECK VEHICLE SPEED
SENSOR´MTR CIRCUIT
Check vehicle speed sensor´A/T (revolution sensor) and vehicle speed sensor´MTR circuit. Refer to AT-124 (Except for
Euro-OBD), AT-193 (EURO-OBD) and AT-129 (Except for Euro-OBD), AT-278 (EURO-OBD).
OK or NG
OK©GO TO 4.
NG©Repair or replace vehicle speed sensor´A/T (revolution sensor) and vehicle speed
sensor´MTR circuits.
TROUBLE DIAGNOSES FOR SYMPTOMS
9. A/T Does Not Shift: D1®D2Or Does Not Kickdown: D4®D2
AT-306

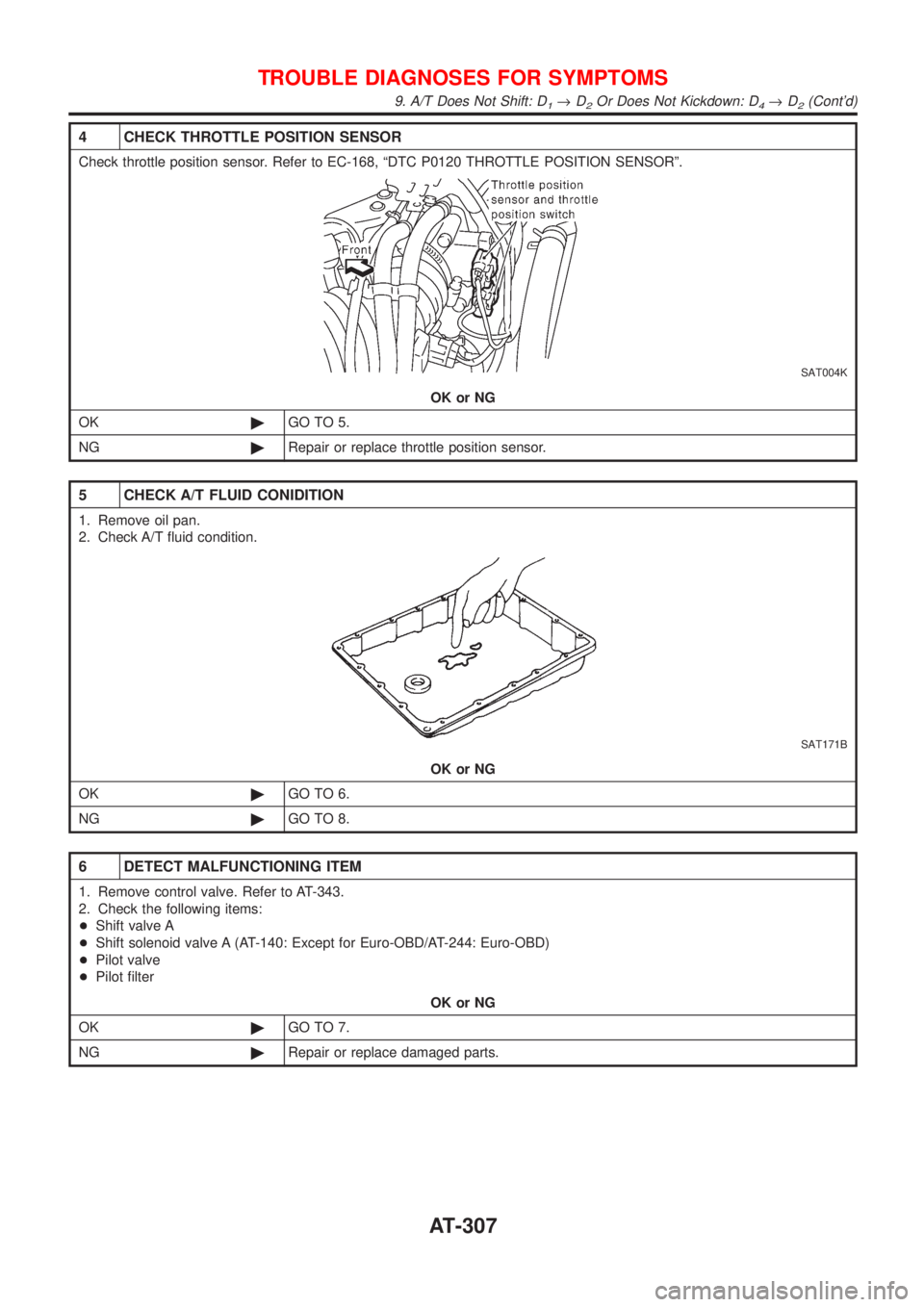

4 CHECK THROTTLE POSITION SENSOR
Check throttle position sensor. Refer to EC-168, ªDTC P0120 THROTTLE POSITION SENSORº.
SAT004K
OK or NG
OK©GO TO 5.
NG©Repair or replace throttle position sensor.
5 CHECK A/T FLUID CONIDITION
1. Remove oil pan.
2. Check A/T fluid condition.
SAT171B
OK or NG
OK©GO TO 6.
NG©GO TO 8.
6 DETECT MALFUNCTIONING ITEM
1. Remove control valve. Refer to AT-343.
2. Check the following items:
+Shift valve A
+Shift solenoid valve A (AT-140: Except for Euro-OBD/AT-244: Euro-OBD)
+Pilot valve
+Pilot filter
OK or NG
OK©GO TO 7.
NG©Repair or replace damaged parts.
TROUBLE DIAGNOSES FOR SYMPTOMS
9. A/T Does Not Shift: D1®D2Or Does Not Kickdown: D4®D2(Cont'd)
AT-307

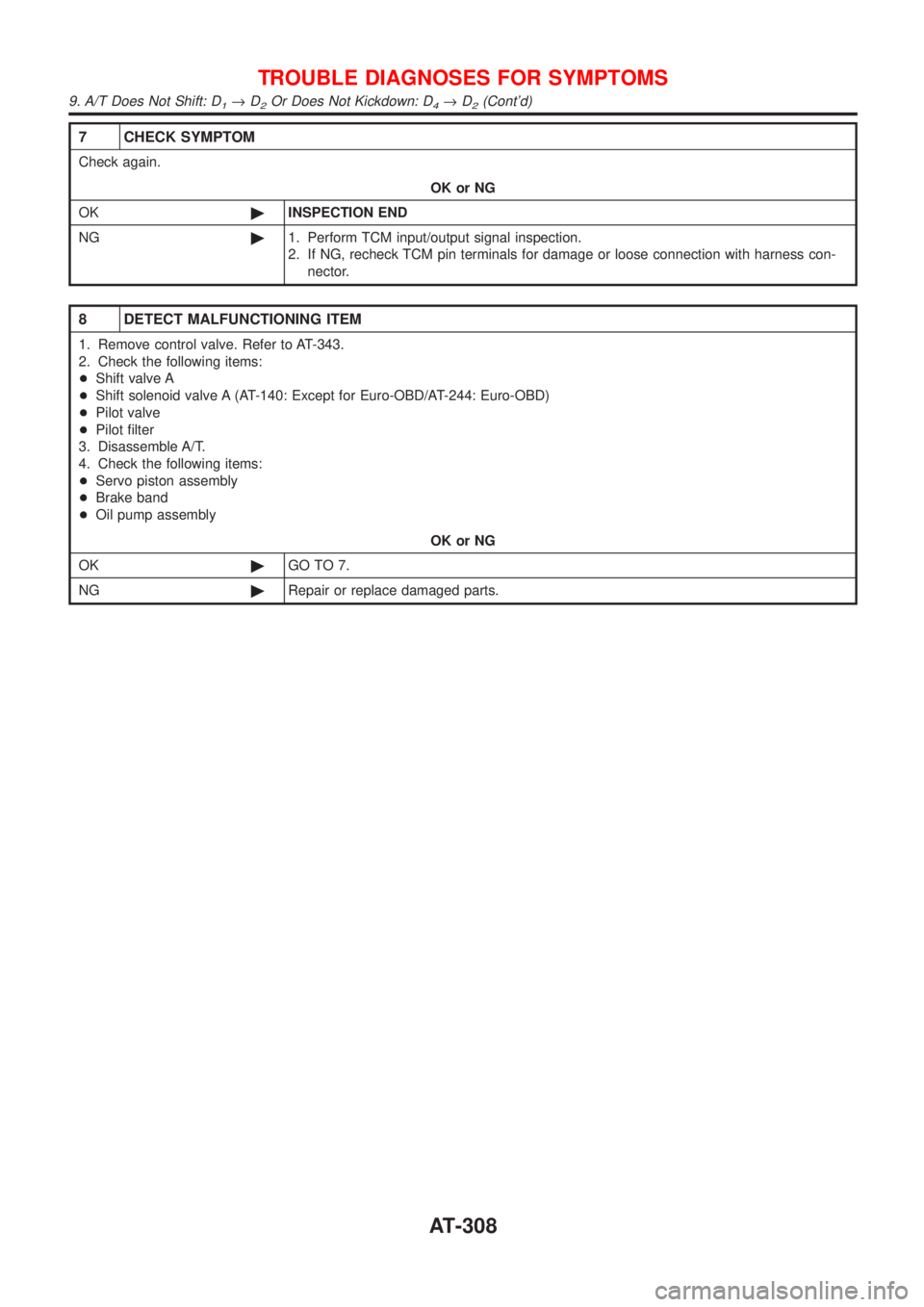

7 CHECK SYMPTOM
Check again.
OK or NG
OK©INSPECTION END
NG©1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-
nector.
8 DETECT MALFUNCTIONING ITEM
1. Remove control valve. Refer to AT-343.
2. Check the following items:
+Shift valve A
+Shift solenoid valve A (AT-140: Except for Euro-OBD/AT-244: Euro-OBD)
+Pilot valve
+Pilot filter
3. Disassemble A/T.
4. Check the following items:
+Servo piston assembly
+Brake band
+Oil pump assembly
OK or NG
OK©GO TO 7.
NG©Repair or replace damaged parts.
TROUBLE DIAGNOSES FOR SYMPTOMS
9. A/T Does Not Shift: D1®D2Or Does Not Kickdown: D4®D2(Cont'd)
AT-308

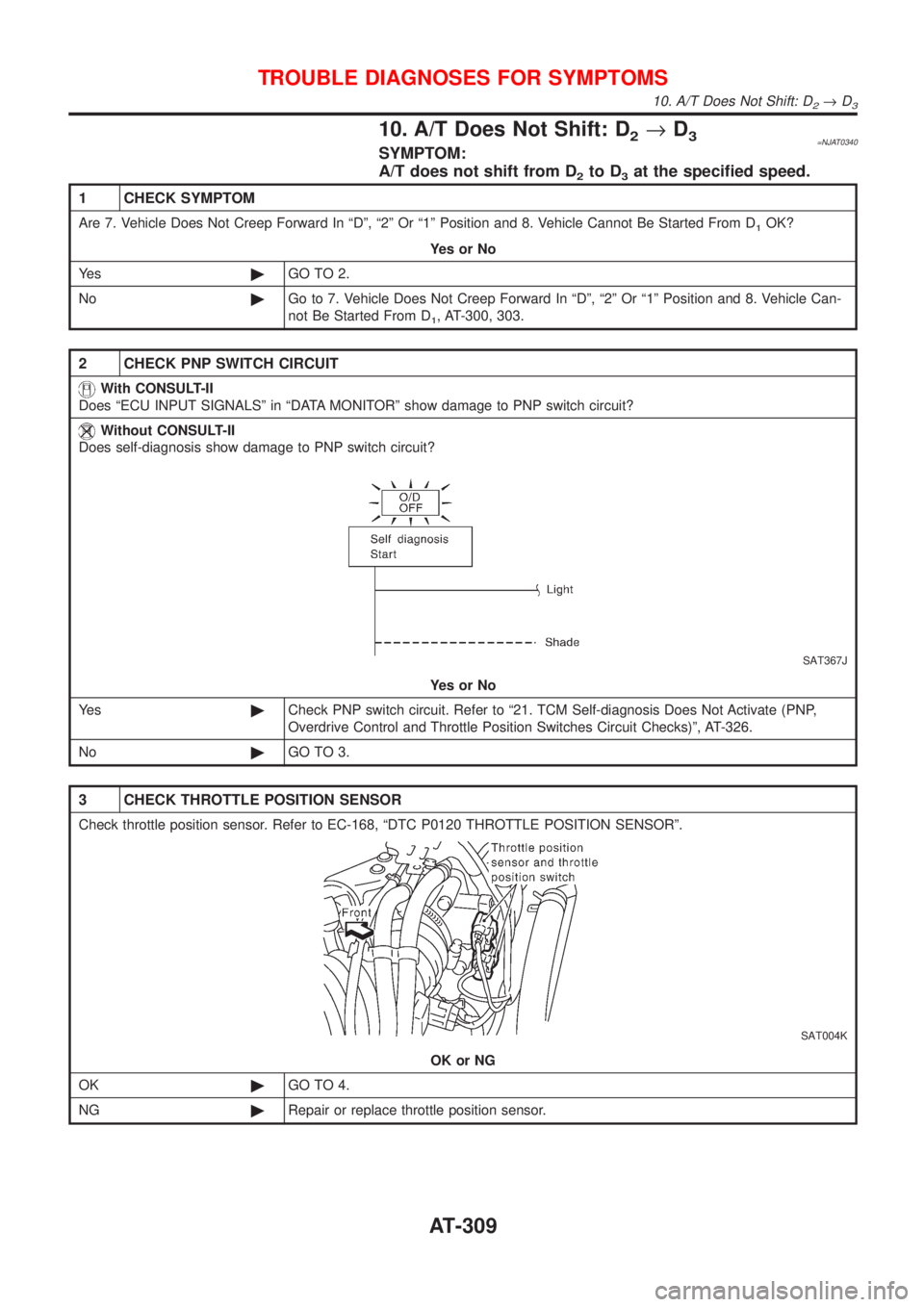

10. A/T Does Not Shift: D2®D3=NJAT0340SYMPTOM:
A/T does not shift from D
2to D3at the specified speed.
1 CHECK SYMPTOM
Are 7. Vehicle Does Not Creep Forward In ªDº, ª2º Or ª1º Position and 8. Vehicle Cannot Be Started From D1OK?
YesorNo
Ye s©GO TO 2.
No©Go to 7. Vehicle Does Not Creep Forward In ªDº, ª2º Or ª1º Position and 8. Vehicle Can-
not Be Started From D
1, AT-300, 303.
2 CHECK PNP SWITCH CIRCUIT
With CONSULT-II
Does ªECU INPUT SIGNALSº in ªDATA MONITORº show damage to PNP switch circuit?
Without CONSULT-II
Does self-diagnosis show damage to PNP switch circuit?
SAT367J
YesorNo
Ye s©Check PNP switch circuit. Refer to ª21. TCM Self-diagnosis Does Not Activate (PNP,
Overdrive Control and Throttle Position Switches Circuit Checks)º, AT-326.
No©GO TO 3.
3 CHECK THROTTLE POSITION SENSOR
Check throttle position sensor. Refer to EC-168, ªDTC P0120 THROTTLE POSITION SENSORº.
SAT004K
OK or NG
OK©GO TO 4.
NG©Repair or replace throttle position sensor.
TROUBLE DIAGNOSES FOR SYMPTOMS
10. A/T Does Not Shift: D2®D3
AT-309

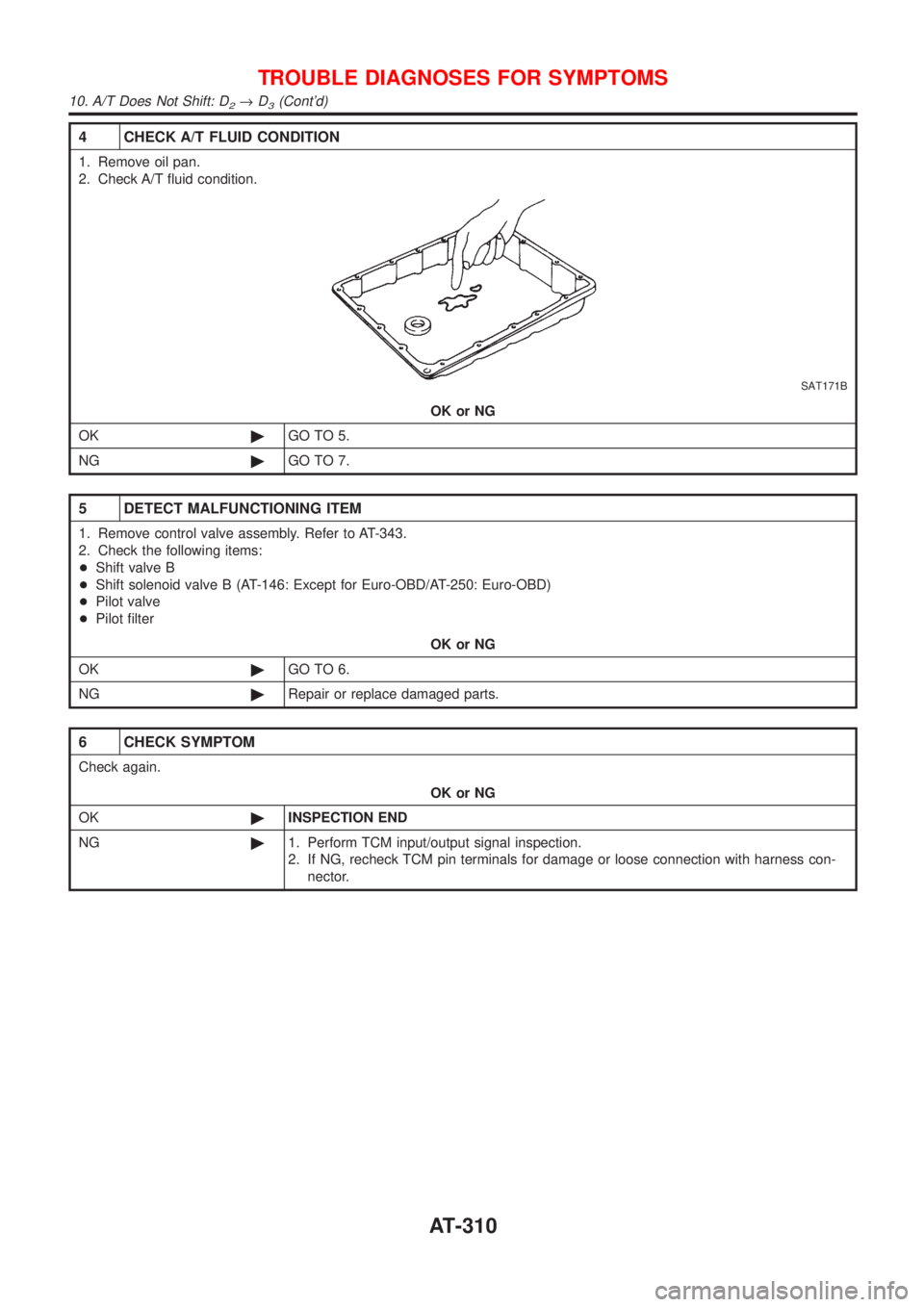

4 CHECK A/T FLUID CONDITION
1. Remove oil pan.
2. Check A/T fluid condition.
SAT171B
OK or NG
OK©GO TO 5.
NG©GO TO 7.
5 DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT-343.
2. Check the following items:
+Shift valve B
+Shift solenoid valve B (AT-146: Except for Euro-OBD/AT-250: Euro-OBD)
+Pilot valve
+Pilot filter
OK or NG
OK©GO TO 6.
NG©Repair or replace damaged parts.
6 CHECK SYMPTOM
Check again.
OK or NG
OK©INSPECTION END
NG©1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-
nector.
TROUBLE DIAGNOSES FOR SYMPTOMS
10. A/T Does Not Shift: D2®D3(Cont'd)
AT-310

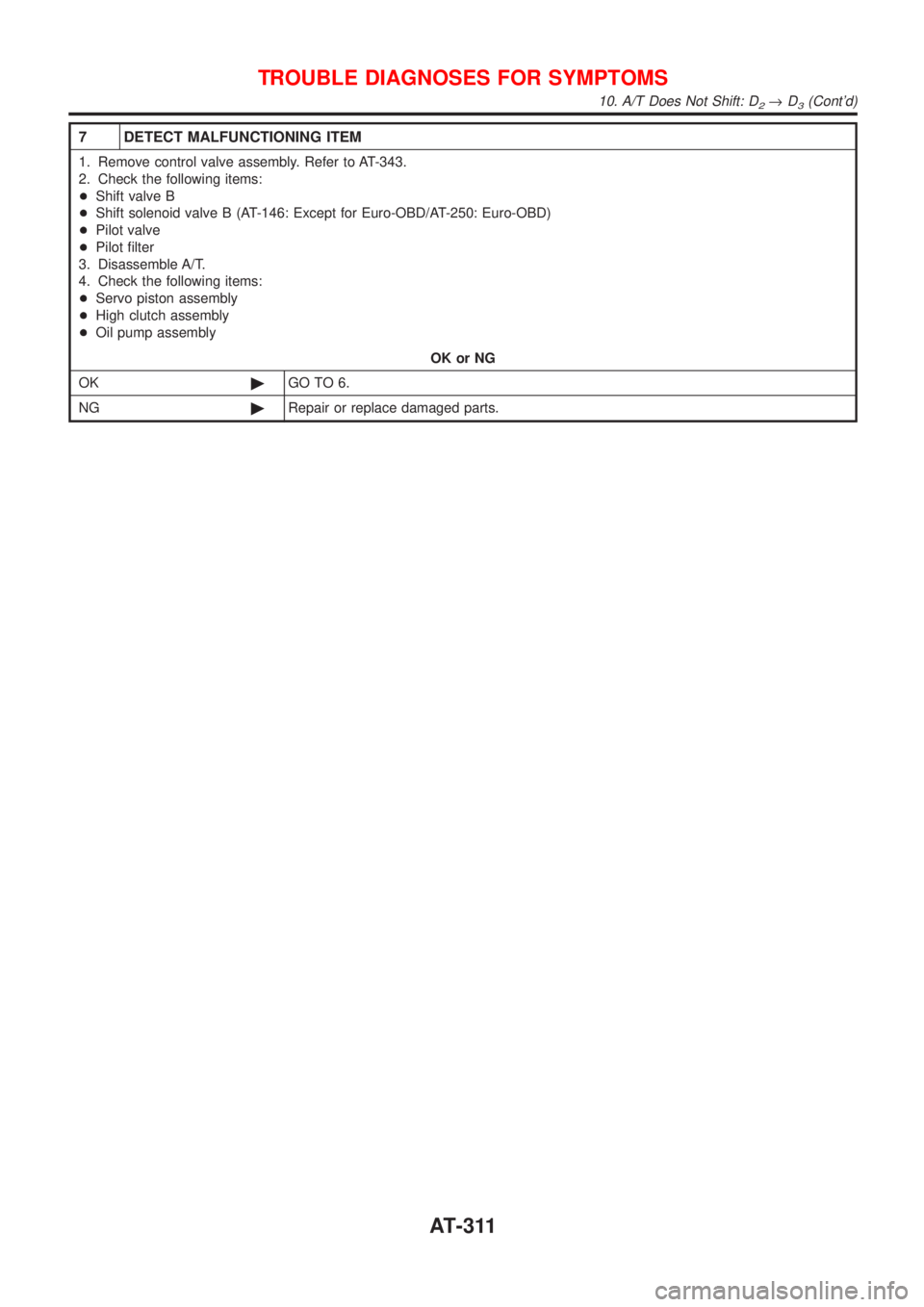

7 DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT-343.
2. Check the following items:
+Shift valve B
+Shift solenoid valve B (AT-146: Except for Euro-OBD/AT-250: Euro-OBD)
+Pilot valve
+Pilot filter
3. Disassemble A/T.
4. Check the following items:
+Servo piston assembly
+High clutch assembly
+Oil pump assembly
OK or NG
OK©GO TO 6.
NG©Repair or replace damaged parts.
TROUBLE DIAGNOSES FOR SYMPTOMS
10. A/T Does Not Shift: D2®D3(Cont'd)
AT-311

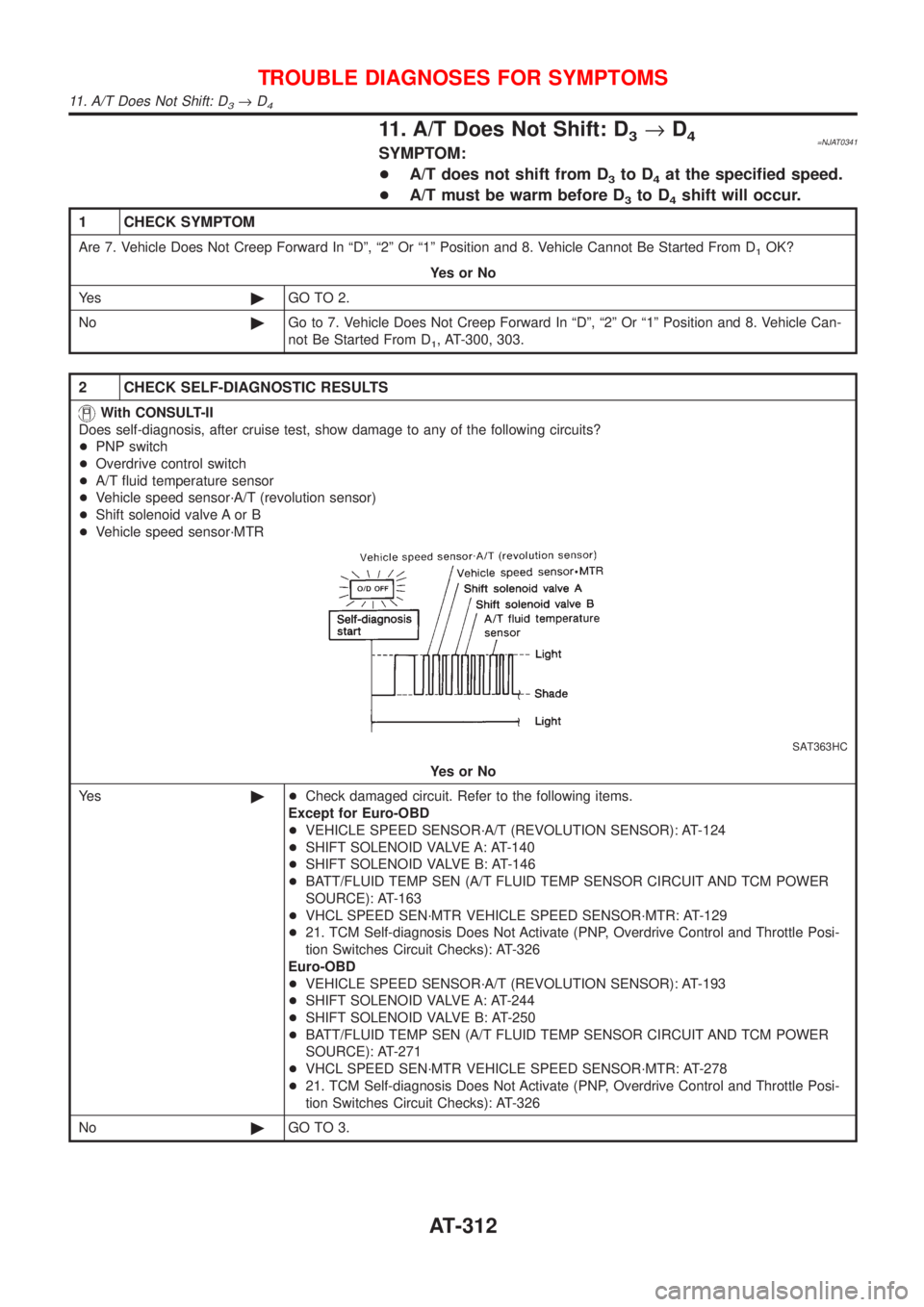

11. A/T Does Not Shift: D3®D4=NJAT0341SYMPTOM:
+A/T does not shift from D
3to D4at the specified speed.
+A/T must be warm before D
3to D4shift will occur.
1 CHECK SYMPTOM
Are 7. Vehicle Does Not Creep Forward In ªDº, ª2º Or ª1º Position and 8. Vehicle Cannot Be Started From D1OK?
YesorNo
Ye s©GO TO 2.
No©Go to 7. Vehicle Does Not Creep Forward In ªDº, ª2º Or ª1º Position and 8. Vehicle Can-
not Be Started From D
1, AT-300, 303.
2 CHECK SELF-DIAGNOSTIC RESULTS
With CONSULT-II
Does self-diagnosis, after cruise test, show damage to any of the following circuits?
+PNP switch
+Overdrive control switch
+A/T fluid temperature sensor
+Vehicle speed sensor´A/T (revolution sensor)
+Shift solenoid valve A or B
+Vehicle speed sensor´MTR
SAT363HC
YesorNo
Ye s©+Check damaged circuit. Refer to the following items.
Except for Euro-OBD
+VEHICLE SPEED SENSOR´A/T (REVOLUTION SENSOR): AT-124
+SHIFT SOLENOID VALVE A: AT-140
+SHIFT SOLENOID VALVE B: AT-146
+BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POWER
SOURCE): AT-163
+VHCL SPEED SEN´MTR VEHICLE SPEED SENSOR´MTR: AT-129
+21. TCM Self-diagnosis Does Not Activate (PNP, Overdrive Control and Throttle Posi-
tion Switches Circuit Checks): AT-326
Euro-OBD
+VEHICLE SPEED SENSOR´A/T (REVOLUTION SENSOR): AT-193
+SHIFT SOLENOID VALVE A: AT-244
+SHIFT SOLENOID VALVE B: AT-250
+BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POWER
SOURCE): AT-271
+VHCL SPEED SEN´MTR VEHICLE SPEED SENSOR´MTR: AT-278
+21. TCM Self-diagnosis Does Not Activate (PNP, Overdrive Control and Throttle Posi-
tion Switches Circuit Checks): AT-326
No©GO TO 3.
TROUBLE DIAGNOSES FOR SYMPTOMS
11. A/T Does Not Shift: D3®D4
AT-312

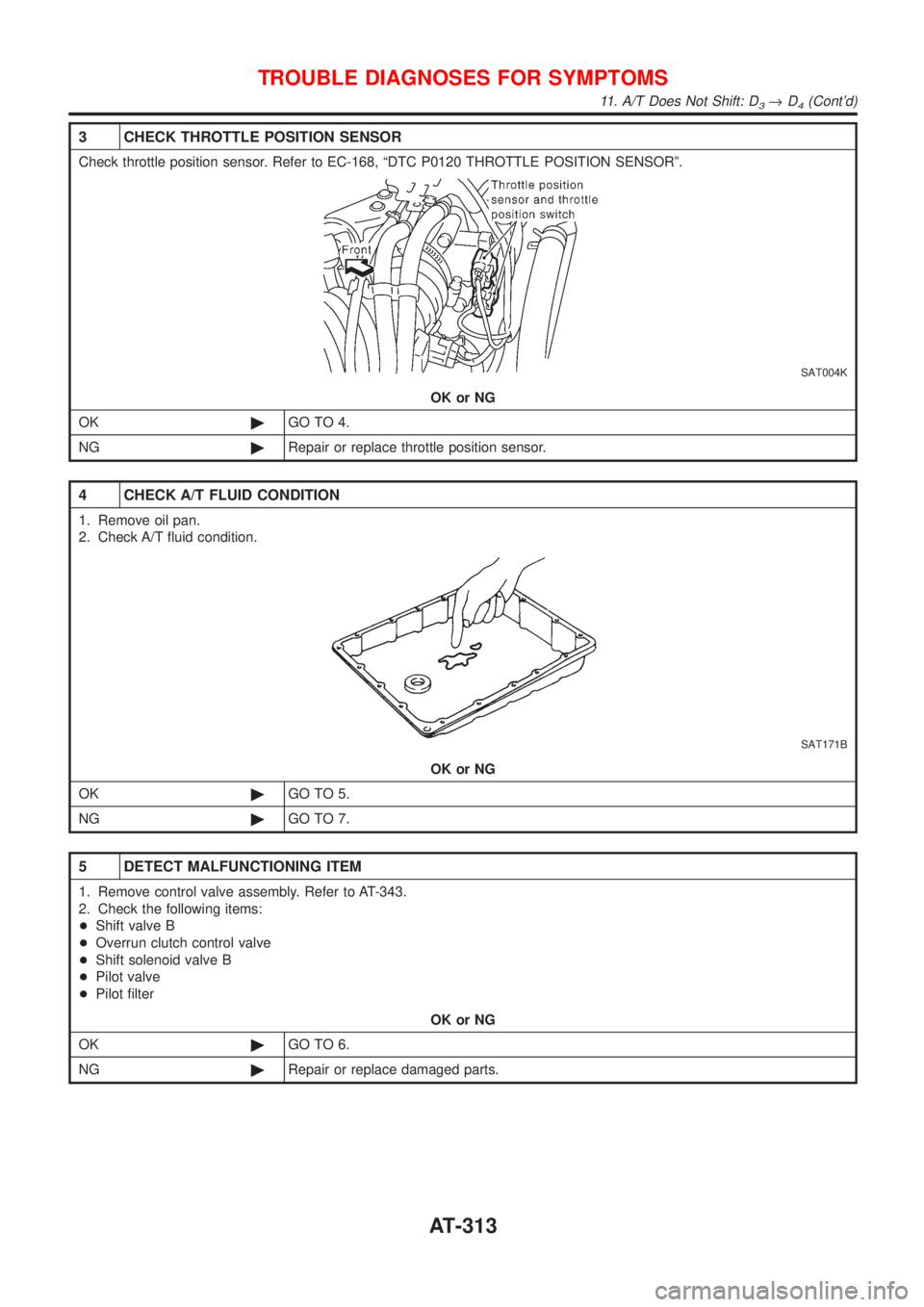

3 CHECK THROTTLE POSITION SENSOR
Check throttle position sensor. Refer to EC-168, ªDTC P0120 THROTTLE POSITION SENSORº.
SAT004K
OK or NG
OK©GO TO 4.
NG©Repair or replace throttle position sensor.
4 CHECK A/T FLUID CONDITION
1. Remove oil pan.
2. Check A/T fluid condition.
SAT171B
OK or NG
OK©GO TO 5.
NG©GO TO 7.
5 DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT-343.
2. Check the following items:
+Shift valve B
+Overrun clutch control valve
+Shift solenoid valve B
+Pilot valve
+Pilot filter
OK or NG
OK©GO TO 6.
NG©Repair or replace damaged parts.
TROUBLE DIAGNOSES FOR SYMPTOMS
11. A/T Does Not Shift: D3®D4(Cont'd)
AT-313

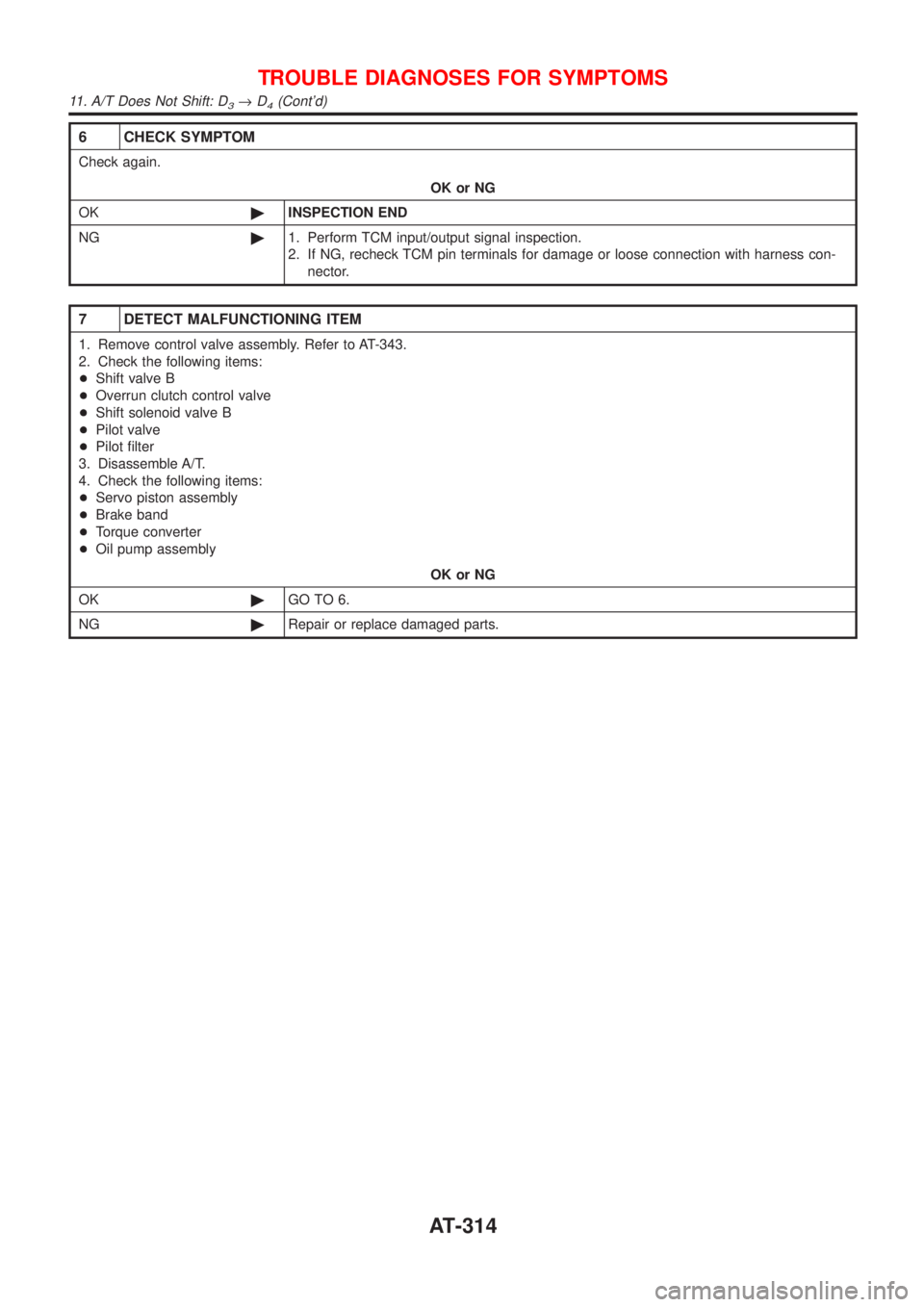

6 CHECK SYMPTOM
Check again.
OK or NG
OK©INSPECTION END
NG©1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-
nector.
7 DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT-343.
2. Check the following items:
+Shift valve B
+Overrun clutch control valve
+Shift solenoid valve B
+Pilot valve
+Pilot filter
3. Disassemble A/T.
4. Check the following items:
+Servo piston assembly
+Brake band
+Torque converter
+Oil pump assembly
OK or NG
OK©GO TO 6.
NG©Repair or replace damaged parts.
TROUBLE DIAGNOSES FOR SYMPTOMS
11. A/T Does Not Shift: D3®D4(Cont'd)
AT-314
