SchematicNJEL0530
YEL713C
NAVIGATION SYSTEM
Schematic
EL-269

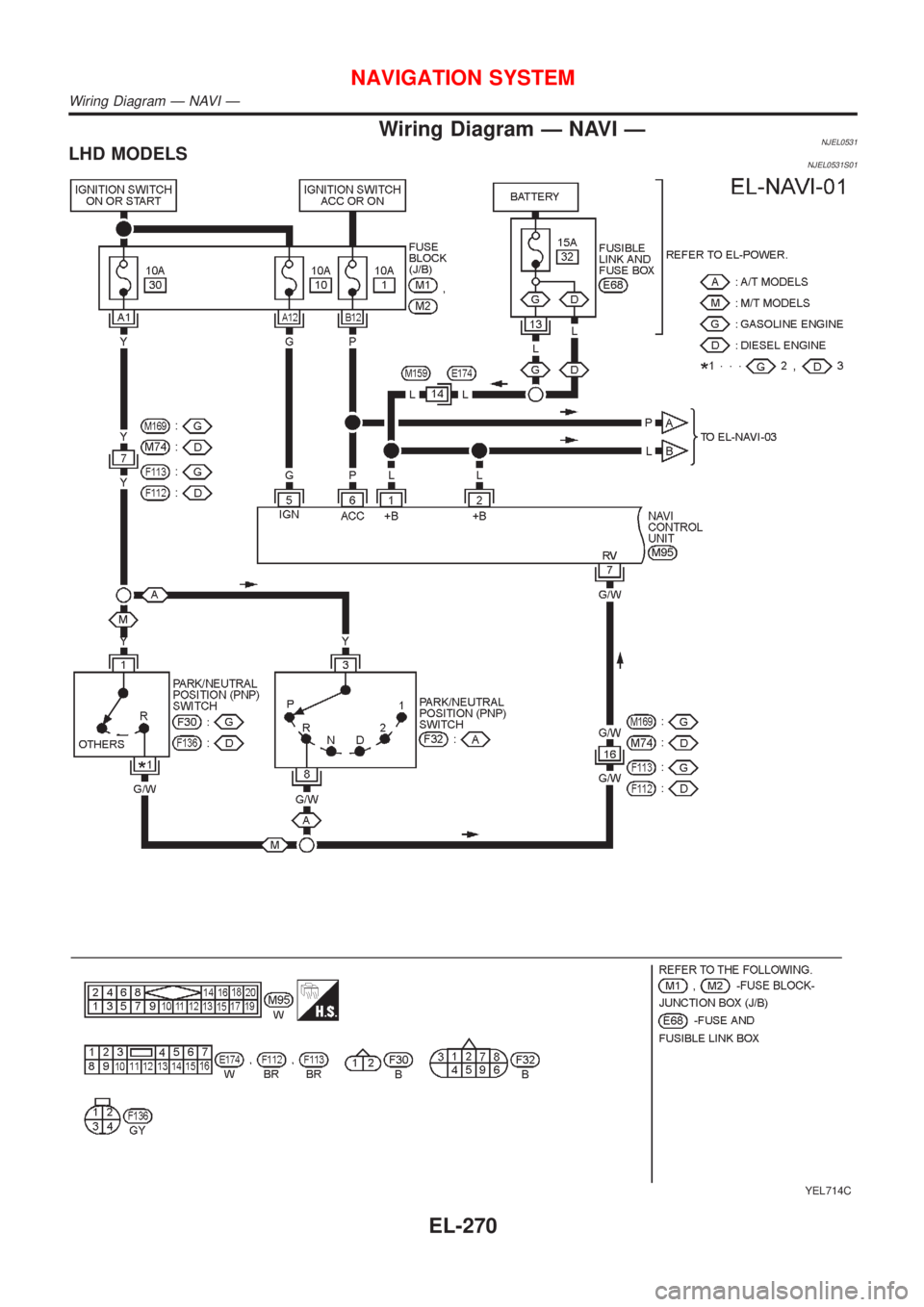

Wiring Diagram Ð NAVI ÐNJEL0531LHD MODELSNJEL0531S01
YEL714C
NAVIGATION SYSTEM
Wiring Diagram Ð NAVI Ð
EL-270

YEL715C
NAVIGATION SYSTEM

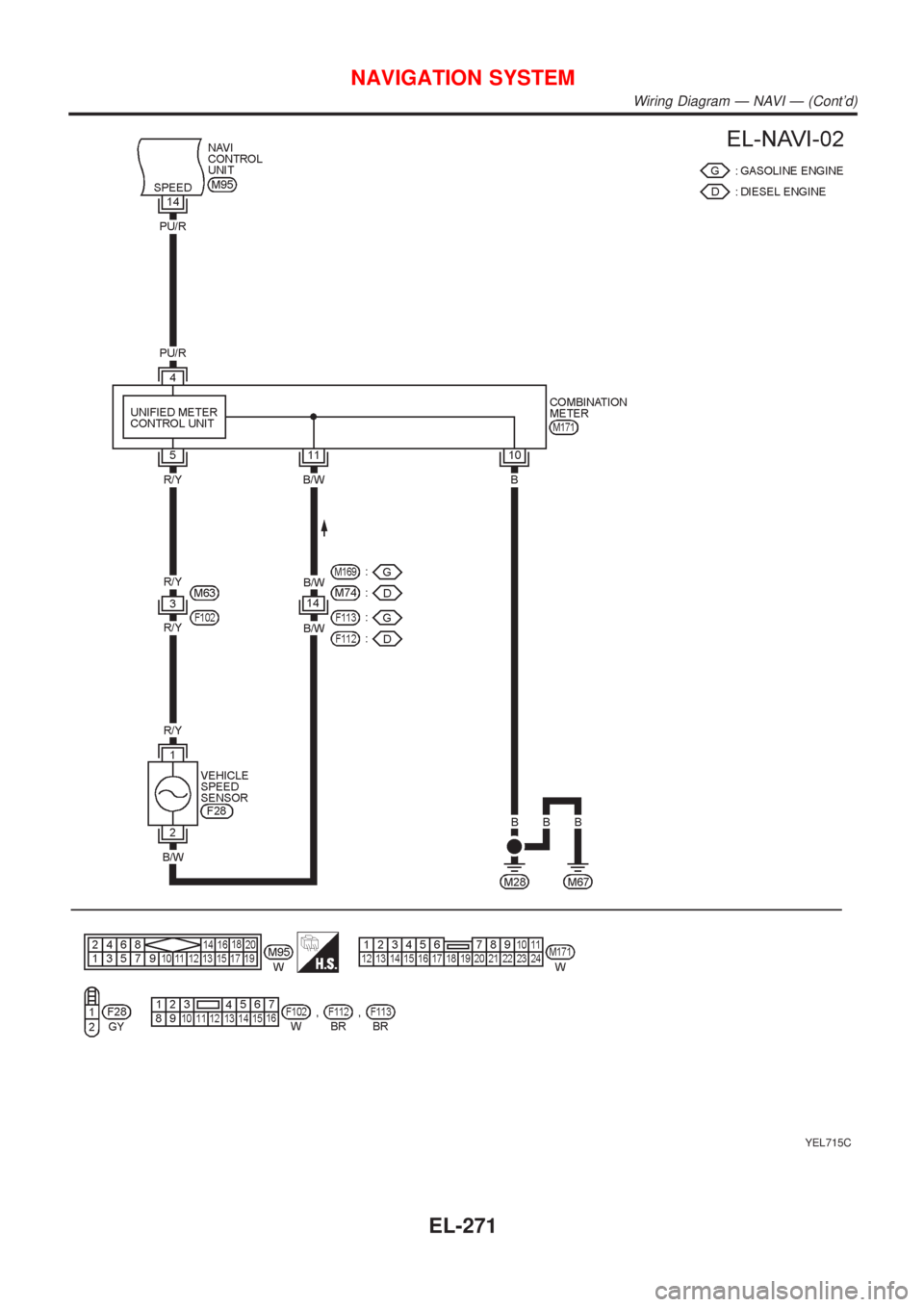

Wiring Diagram Ð NAVI Ð (Cont'd)
EL-271

YEL716C
NAVIGATION SYSTEM

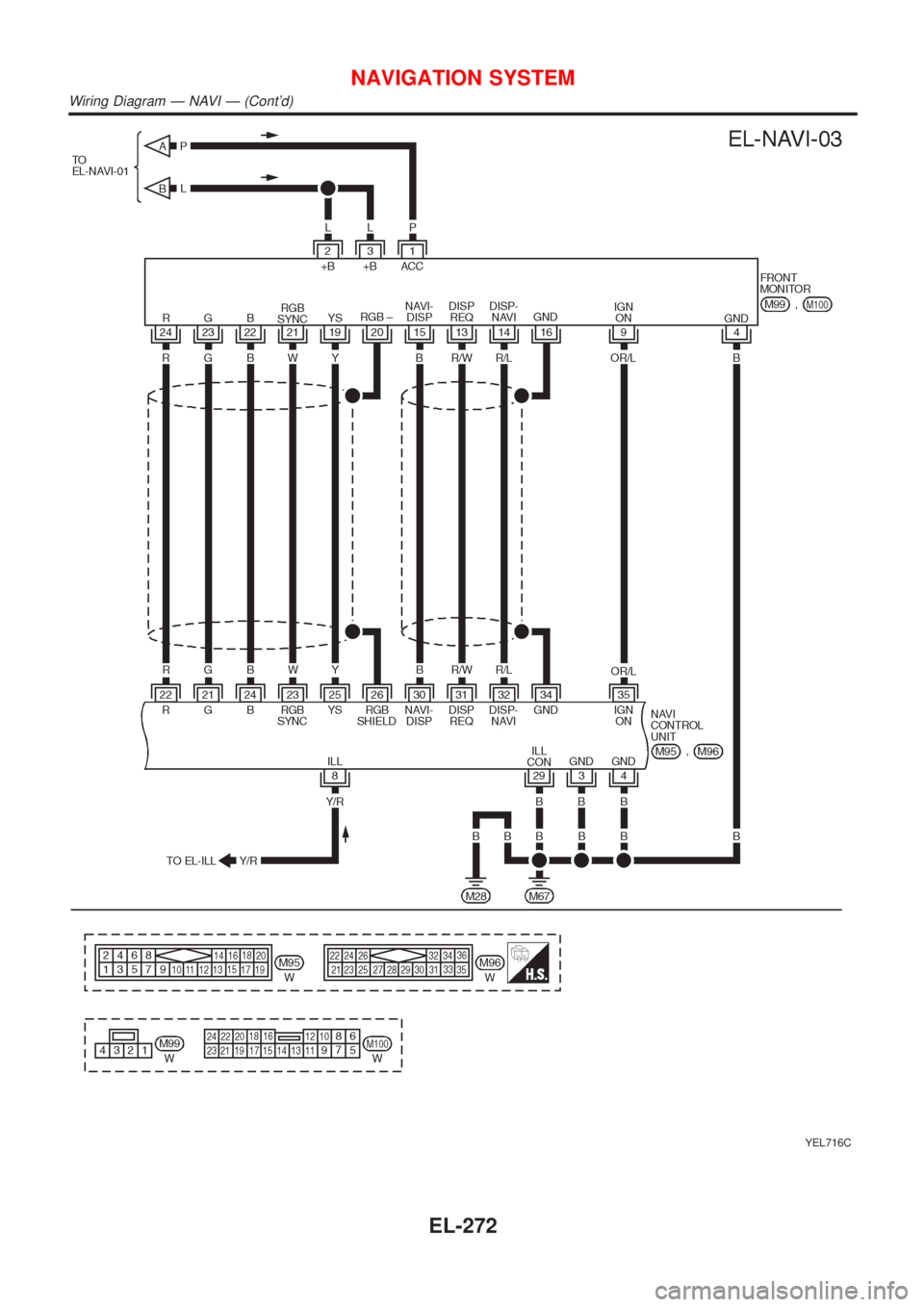

Wiring Diagram Ð NAVI Ð (Cont'd)
EL-272

YEL717C
NAVIGATION SYSTEM

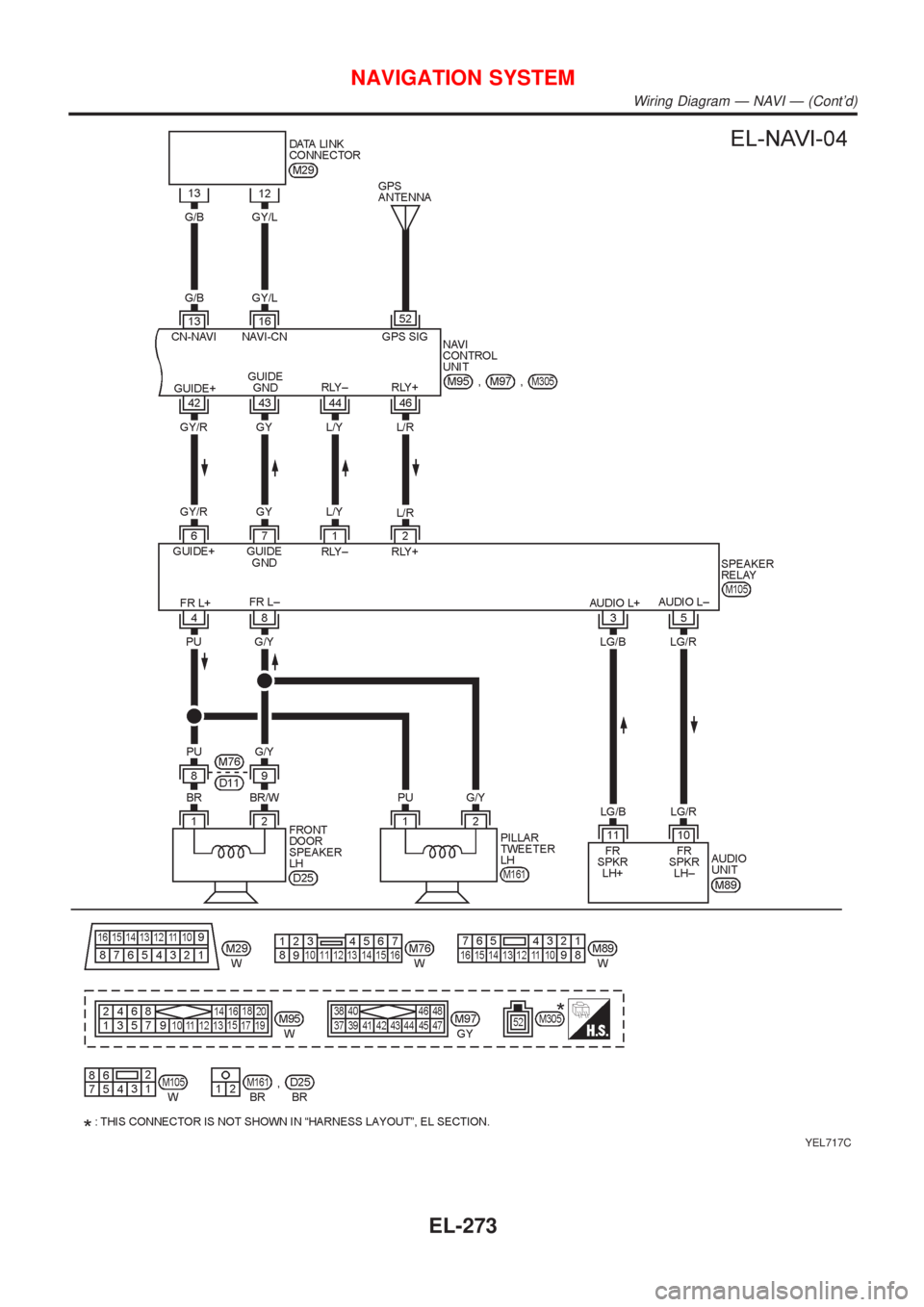

Wiring Diagram Ð NAVI Ð (Cont'd)
EL-273

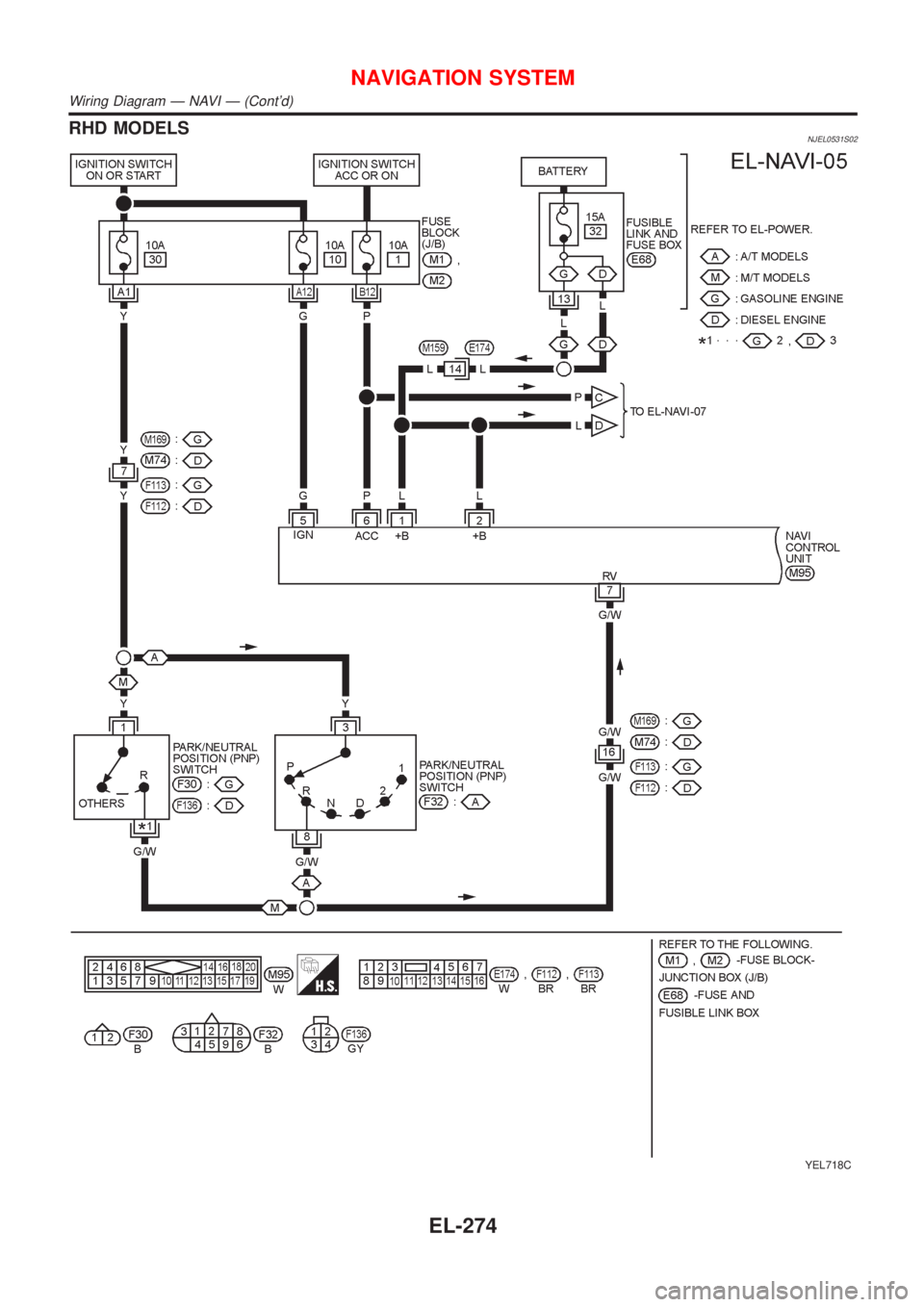

RHD MODELSNJEL0531S02
YEL718C
NAVIGATION SYSTEM
Wiring Diagram Ð NAVI Ð (Cont'd)
EL-274

YEL719C
NAVIGATION SYSTEM
Wiring Diagram Ð NAVI Ð (Cont'd)
EL-275

YEL720C
NAVIGATION SYSTEM
Wiring Diagram Ð NAVI Ð (Cont'd)
EL-276

YEL721C
NAVIGATION SYSTEM

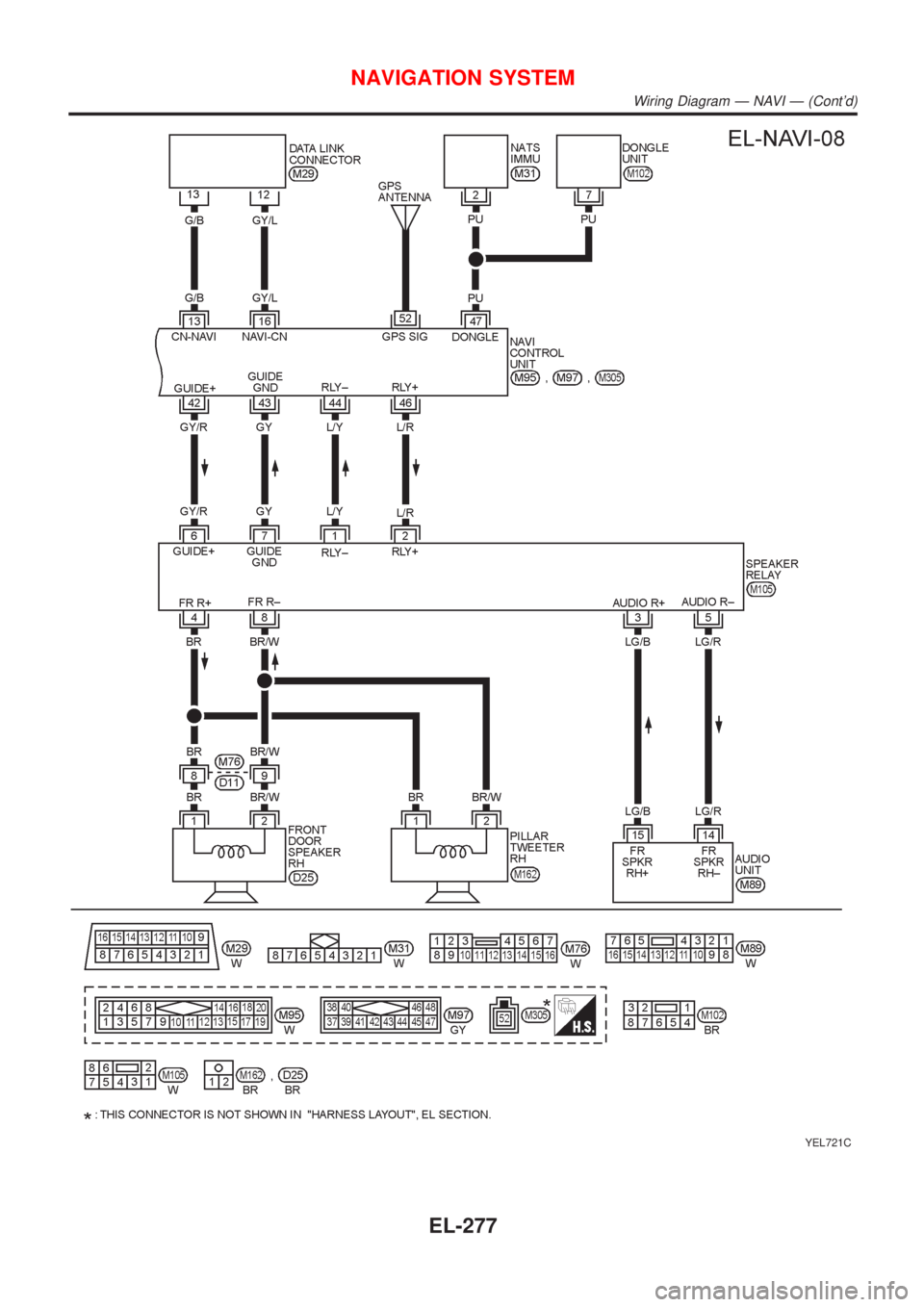

Wiring Diagram Ð NAVI Ð (Cont'd)
EL-277

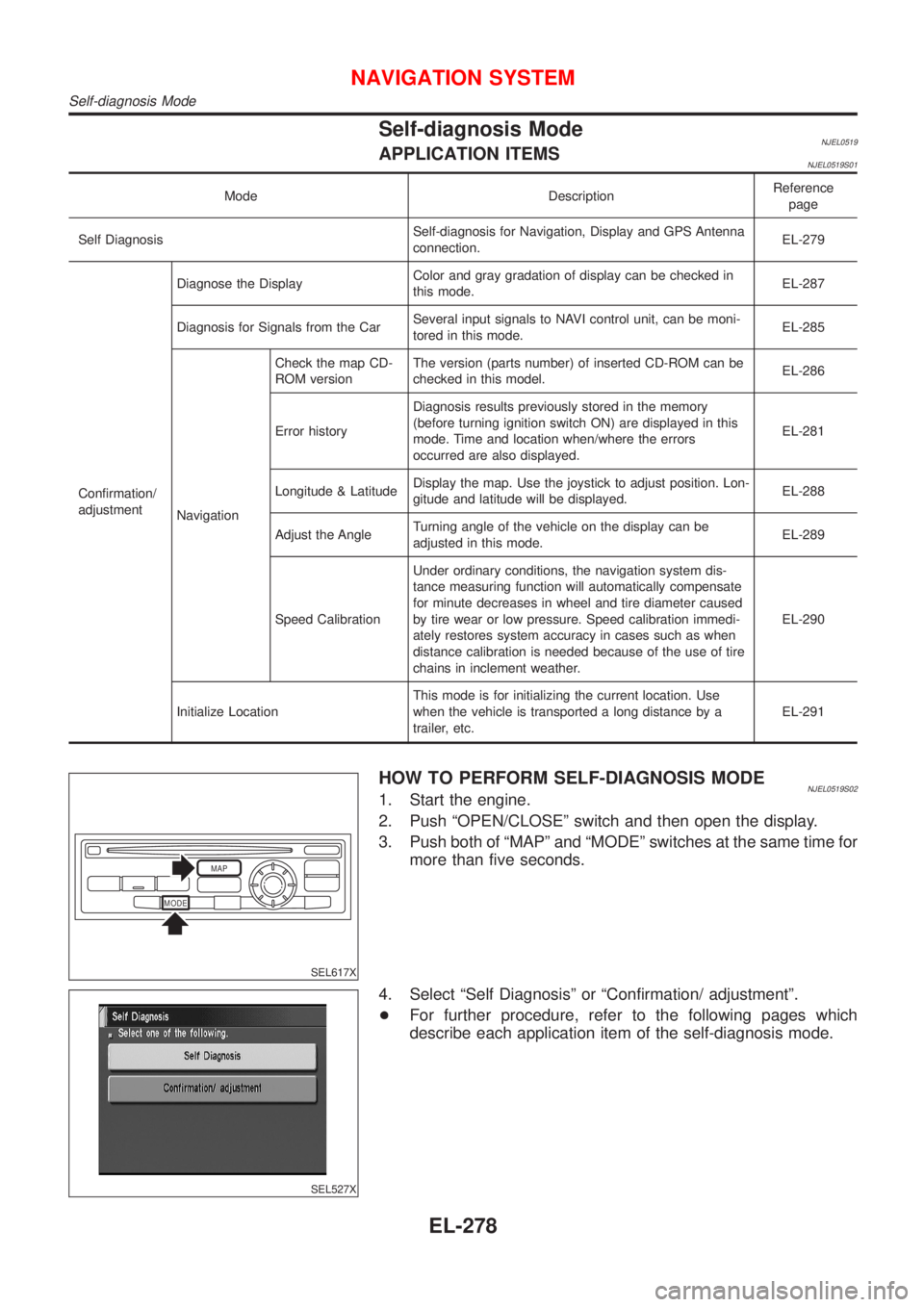

Self-diagnosis ModeNJEL0519APPLICATION ITEMSNJEL0519S01
Mode DescriptionReference
page
Self DiagnosisSelf-diagnosis for Navigation, Display and GPS Antenna
connection.EL-279
Confirmation/
adjustmentDiagnose the DisplayColor and gray gradation of display can be checked in
this mode.EL-287
Diagnosis for Signals from the CarSeveral input signals to NAVI control unit, can be moni-
tored in this mode.EL-285
NavigationCheck the map CD-
ROM versionThe version (parts number) of inserted CD-ROM can be
checked in this model.EL-286
Error historyDiagnosis results previously stored in the memory
(before turning ignition switch ON) are displayed in this
mode. Time and location when/where the errors
occurred are also displayed.EL-281
Longitude & LatitudeDisplay the map. Use the joystick to adjust position. Lon-
gitude and latitude will be displayed.EL-288
Adjust the AngleTurning angle of the vehicle on the display can be
adjusted in this mode.EL-289
Speed CalibrationUnder ordinary conditions, the navigation system dis-
tance measuring function will automatically compensate
for minute decreases in wheel and tire diameter caused
by tire wear or low pressure. Speed calibration immedi-
ately restores system accuracy in cases such as when
distance calibration is needed because of the use of tire
chains in inclement weather.EL-290
Initialize LocationThis mode is for initializing the current location. Use
when the vehicle is transported a long distance by a
trailer, etc.EL-291
MODEMAP
SEL617X
HOW TO PERFORM SELF-DIAGNOSIS MODENJEL0519S021. Start the engine.
2. Push ªOPEN/CLOSEº switch and then open the display.
3. Push both of ªMAPº and ªMODEº switches at the same time for
more than five seconds.
SEL527X
4. Select ªSelf Diagnosisº or ªConfirmation/ adjustmentº.
+For further procedure, refer to the following pages which
describe each application item of the self-diagnosis mode.
NAVIGATION SYSTEM
Self-diagnosis Mode
EL-278
