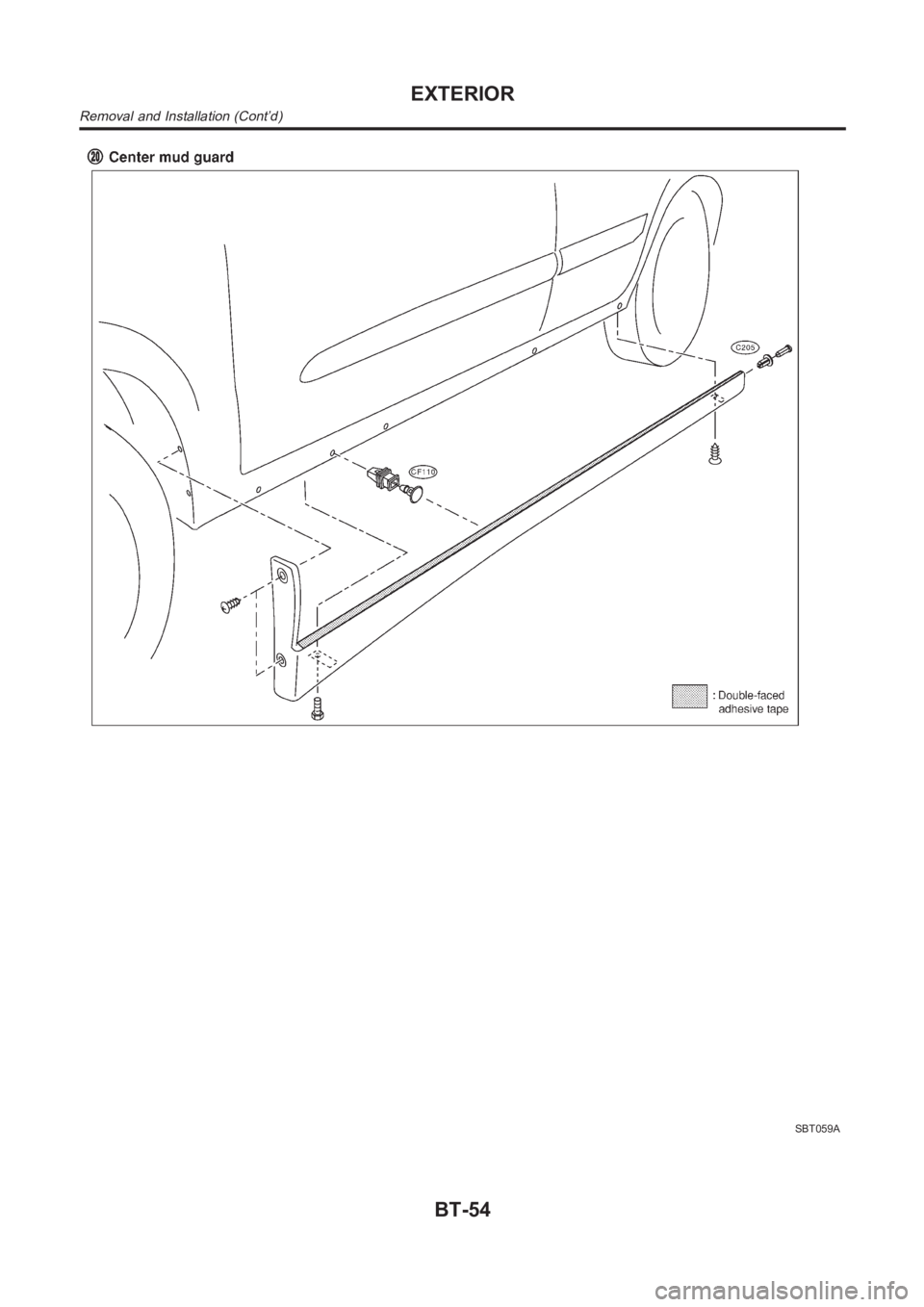

EXTERIOR
Removal and Installation (Cont’d)
BT-53

SBT059A

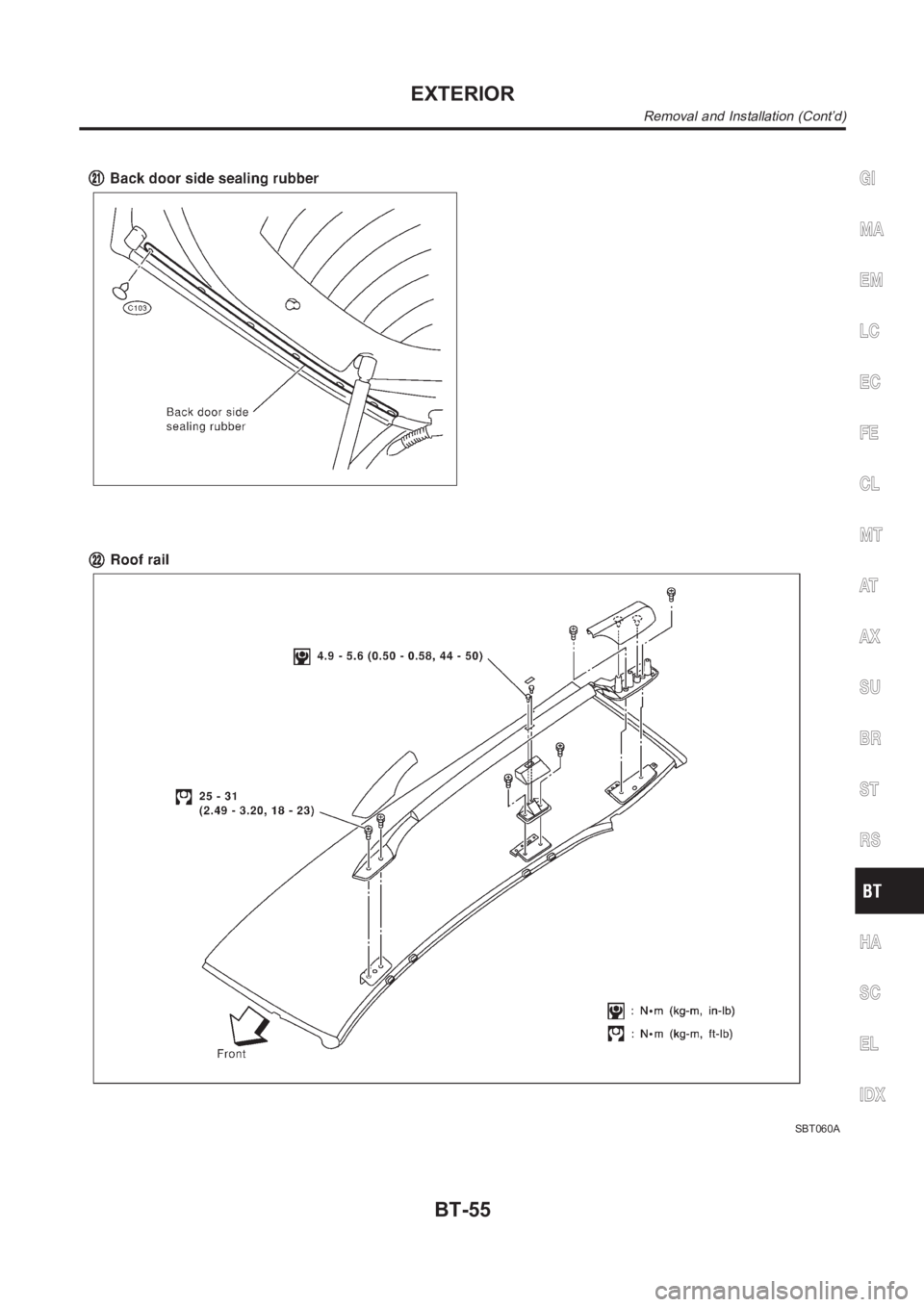

EXTERIOR
Removal and Installation (Cont’d)
BT-54

SBT060A
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
HA
SC
EL
IDX
EXTERIOR
Removal and Installation (Cont’d)
BT-55

Removal and InstallationNJBT0018When removing or installing the seat trim, carefully handle it to keep dirtout and avoid damage.
★For Wiring Diagram, refer to EL-247, “Wiring Diagram — HEATED SEAT —”.
CAUTION:
Before removing the front seat, turn the ignition switch off, disconnect both battery cables and wait
at least 3 minutes.
Do not drop, tilt, or bump the side air bag module installed in the seat. Always handle it with care.
Disconnect the side air bag harness connector and heated seat harness connector from under the
seat before removing the seat.
Disconnect the side air bag harness connector before removing the seat back. Refer to RS-33,
“Front Side Air Bag Module” for details.
FRONT SEAT
Removal and Installation
BT-56

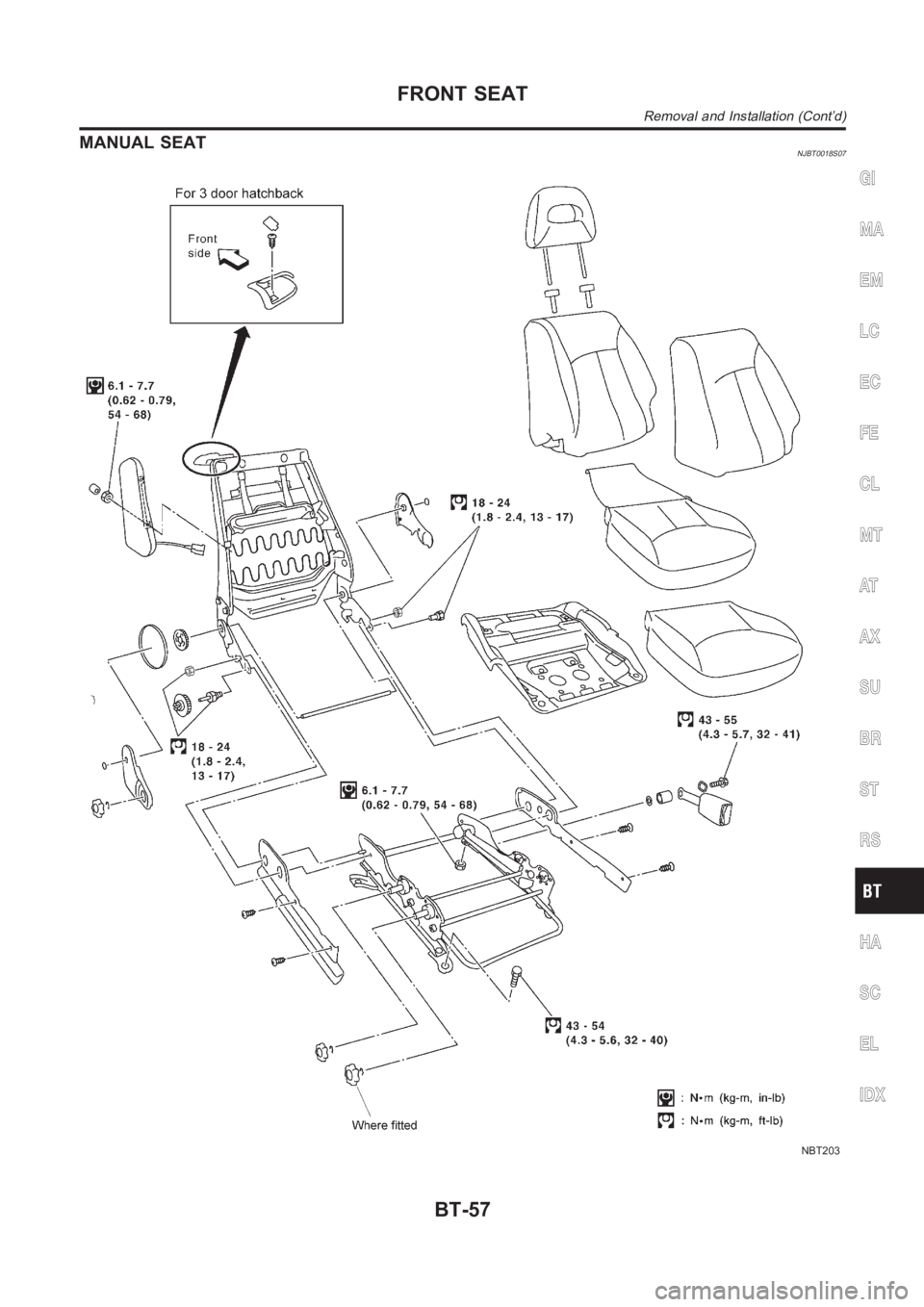

MANUAL SEATNJBT0018S07
NBT203
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
HA
SC
EL
IDX
FRONT SEAT
Removal and Installation (Cont’d)
BT-57

Heated SeatNJBT0036★For Wiring Diagram, refer to EL-247, “HEATED SEAT” for details.
SBT014A

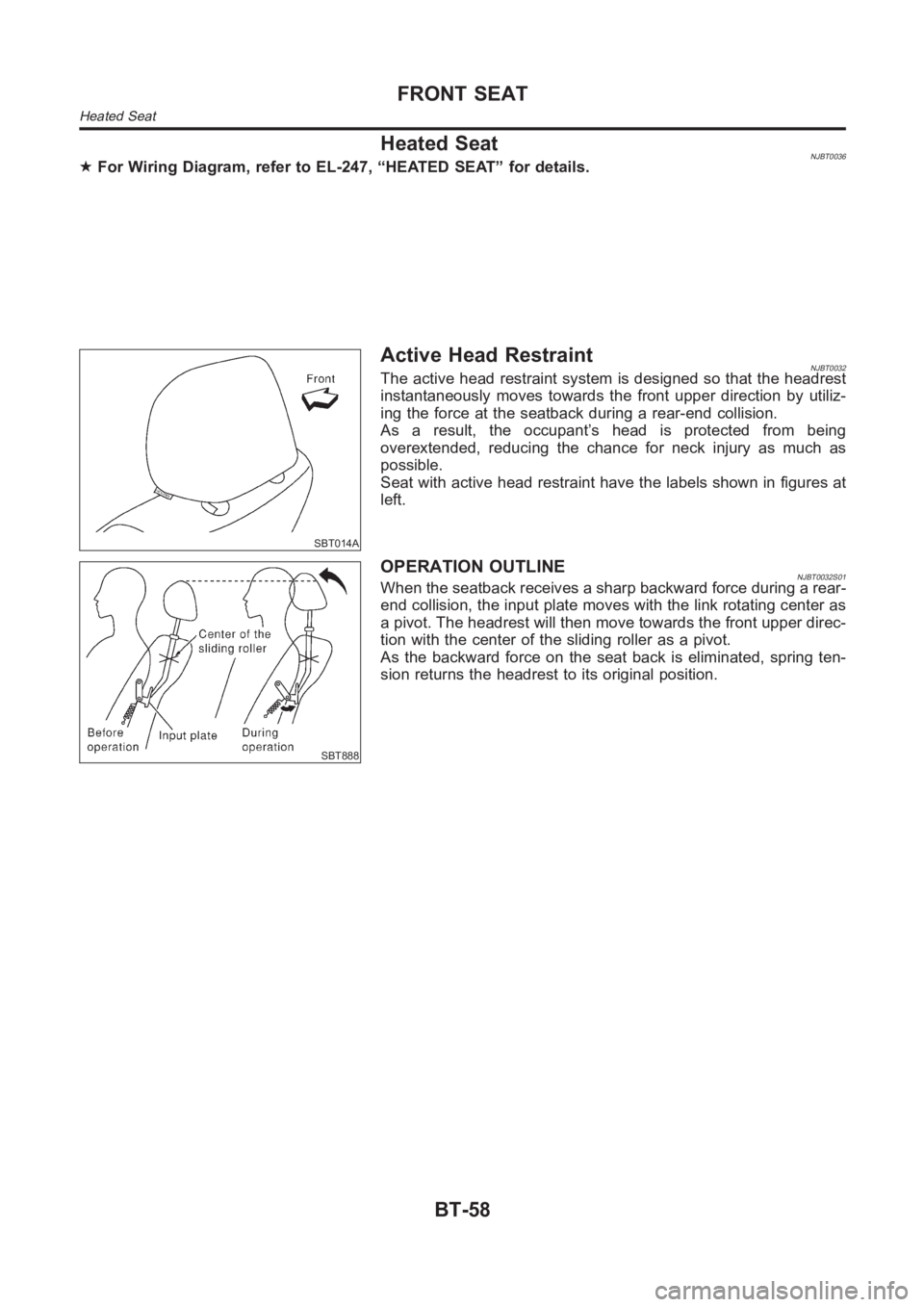

Active Head RestraintNJBT0032The active head restraint system is designed so that the headrest
instantaneously moves towards the front upper direction by utiliz-
ing the force at the seatback during a rear-end collision.
As a result, the occupant’s head is protected from being
overextended, reducing the chance for neck injury as much as
possible.
Seat with active head restraint have the labels shown in figures at
left.
SBT888
OPERATION OUTLINENJBT0032S01When the seatback receives a sharp backward force during a rear-
end collision, the input plate moves with the link rotating center as
a pivot. The headrest will then move towards the front upper direc-
tion with the center of the sliding roller as a pivot.
As the backward force on the seat back is eliminated, spring ten-
sion returns the headrest to its original position.
FRONT SEAT
Heated Seat
BT-58

Removal and InstallationNJBT0019
NBT204
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
HA
SC
EL
IDX

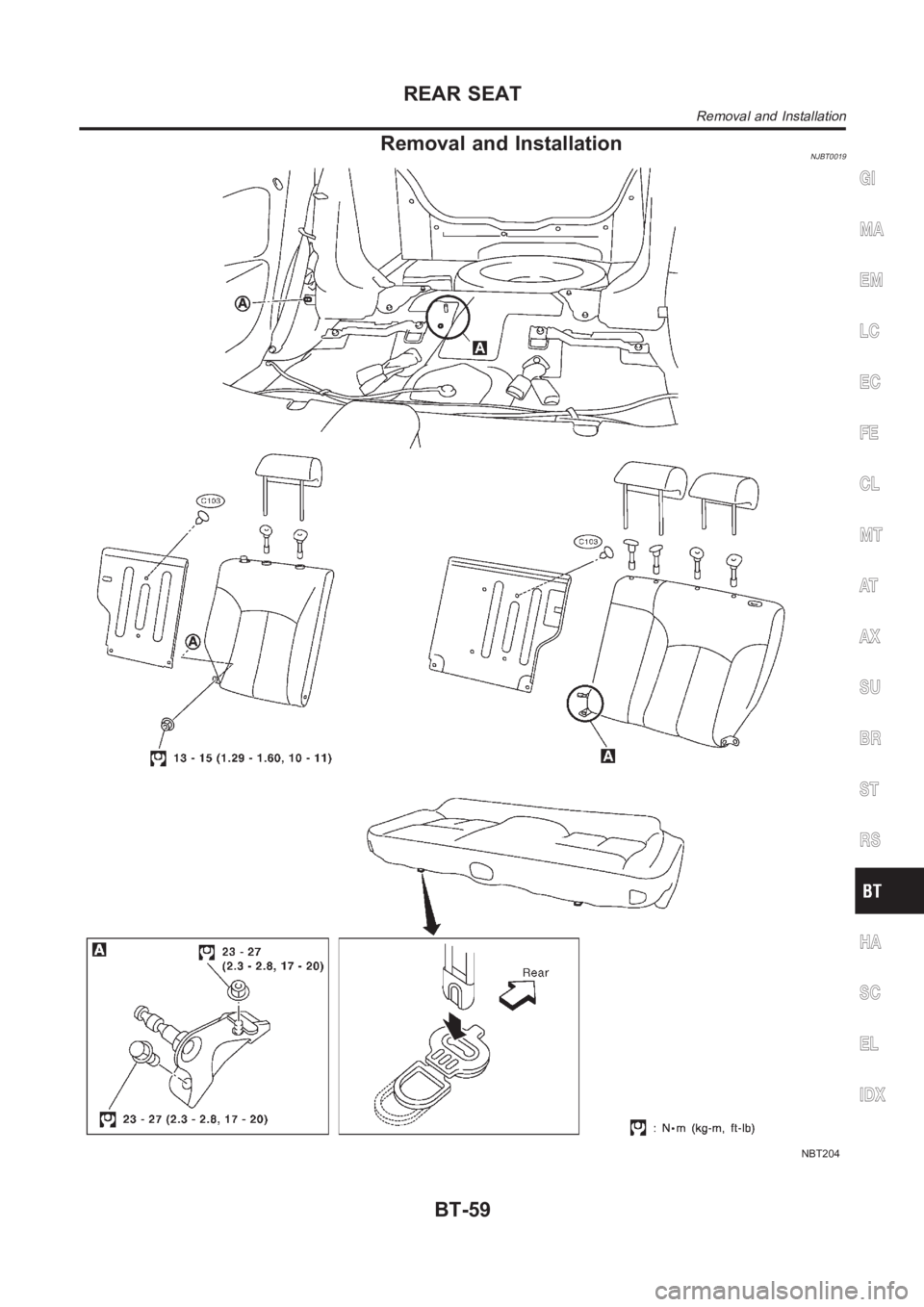

REAR SEAT
Removal and Installation
BT-59

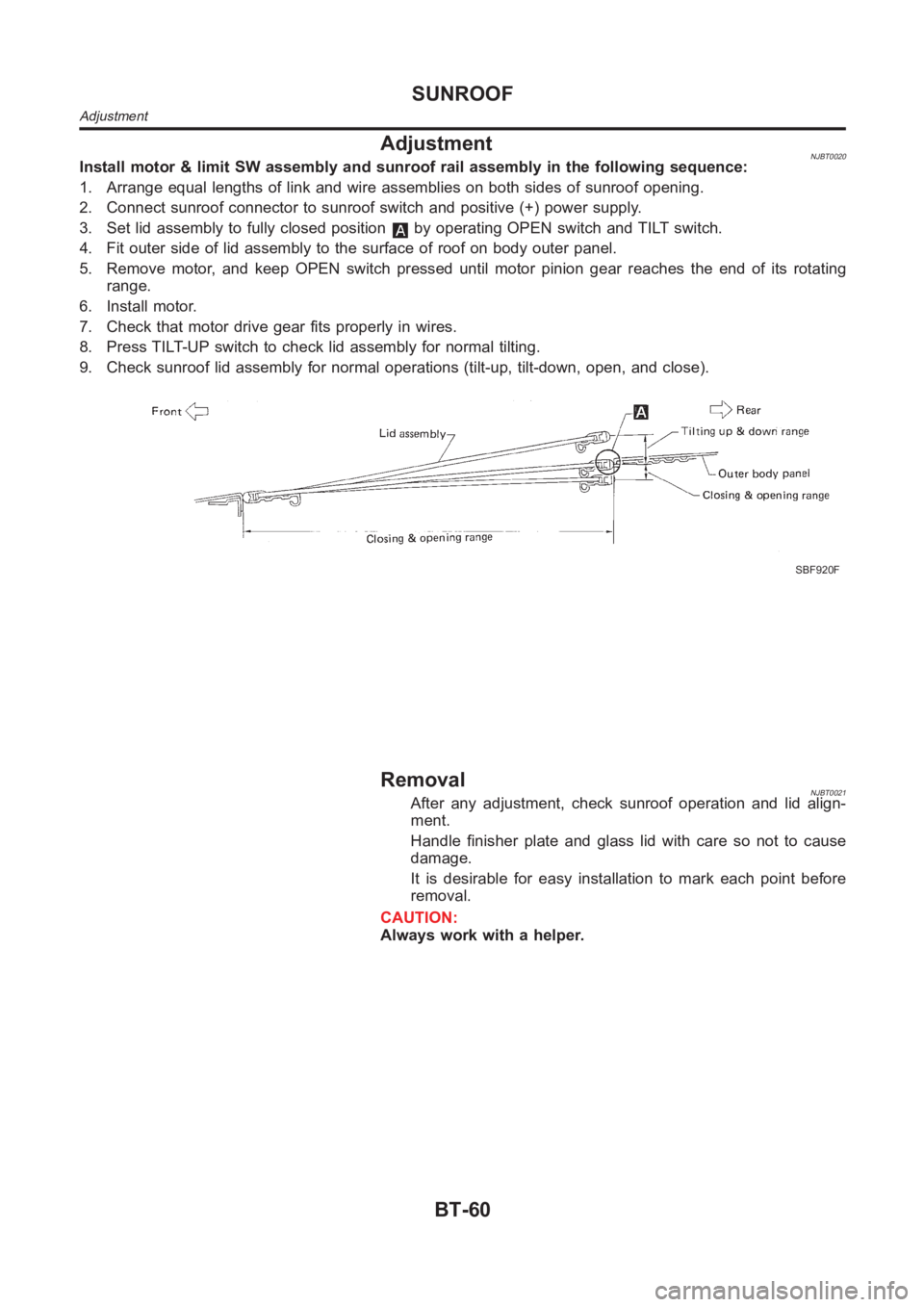

AdjustmentNJBT0020Install motor & limit SW assembly and sunroof rail assembly in the following sequence:
1. Arrange equal lengths of link and wire assemblies on both sides of sunroof opening.
2. Connect sunroof connector to sunroof switch and positive (+) power supply.
3. Set lid assembly to fully closed position
by operating OPEN switch and TILT switch.
4. Fit outer side of lid assembly to the surface of roof on body outer panel.
5. Remove motor, and keep OPEN switch pressed until motor pinion gear reaches the end of its rotating
range.
6. Install motor.
7. Check that motor drive gear fits properly in wires.
8. Press TILT-UP switch to check lid assembly for normal tilting.
9. Check sunroof lid assembly for normal operations (tilt-up, tilt-down,open, and close).
SBF920F
RemovalNJBT0021After any adjustment, check sunroof operation and lid align-
ment.
Handle finisher plate and glass lid with care so not to cause
damage.
It is desirable for easy installation to mark each point before
removal.
CAUTION:
Always work with a helper.
SUNROOF
Adjustment
BT-60

SBT838
*1 BT-43 *2 EL-249
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
HA
SC
EL
IDX
SUNROOF
Removal (Cont’d)
BT-61

NBT193

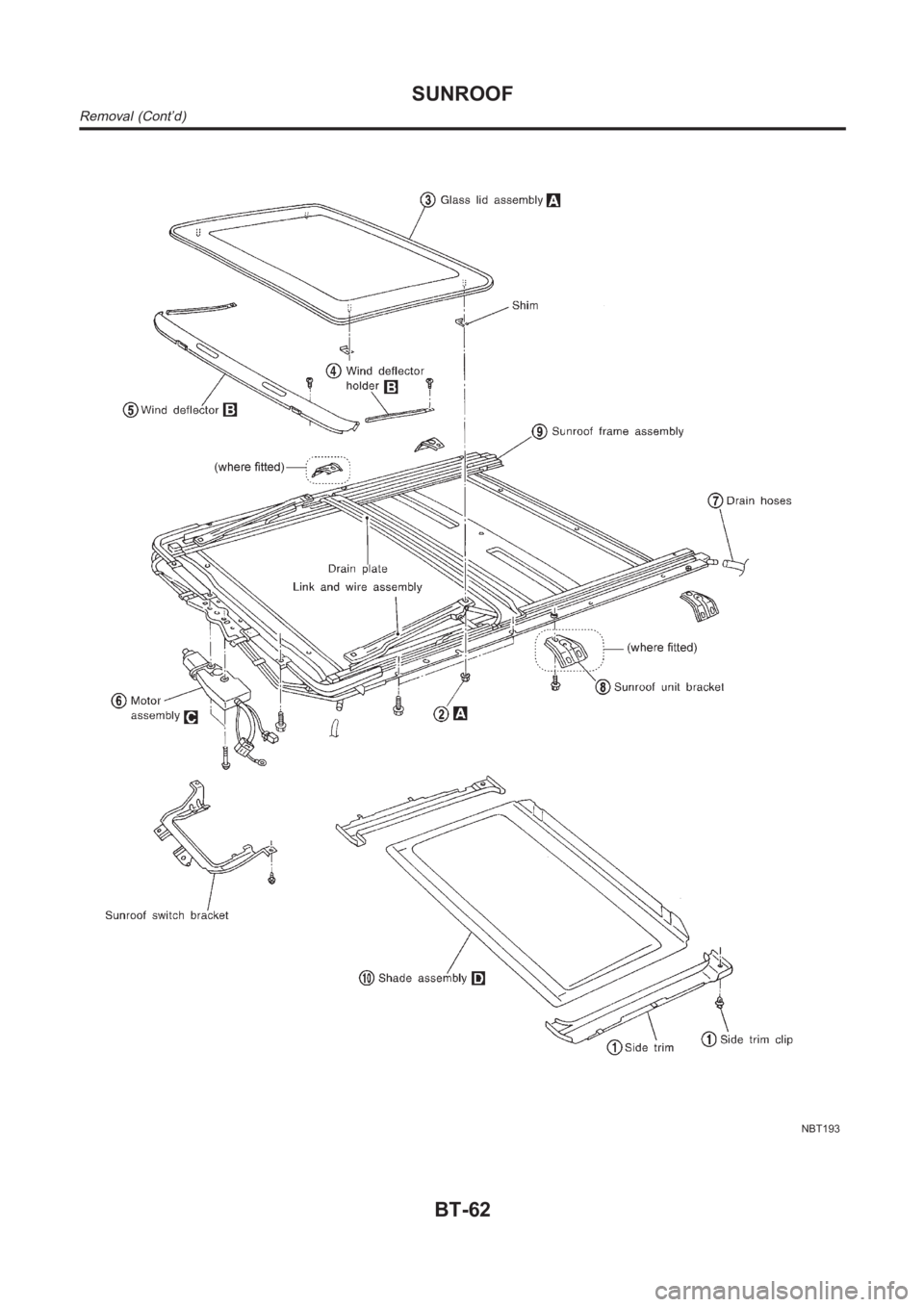

SUNROOF
Removal (Cont’d)
BT-62
