Removal and InstallationNJBT00151. Remove rear seat. Refer to “REAR SEAT” for details, BT-59.
2. Remove shoulder anchor bolts. Refer to RS-5, “Front Seat Belt” for details.
3. Remove front pillar garnishes, center pillar upper garnishes, center pillar lower garnishes and rear pillar
garnishes. Refer to “SIDE AND FLOOR TRIM” for details, BT-31.
4. Push back the front seat back.
5. Remove sunroof and spot lamp switch, then disconnect connectors. (Model with sunroof)
6. Remove sunroof welt. (Model with sunroof)
7. Remove interior lamp assembly, then disconnect connectors.
8. Remove rear interior lamp assembly, then disconnect connector.(For Hatchback)
9. Remove rear seat belt center finisher.
(For Hatchback)
10. Remove sun visors.
11. Remove assist grips.
12. Remove clips securing headlining, then remove headlining from vehicle through front passenger side.
SBT055A
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
HA
SC
EL
IDX
ROOF TRIM
Removal and Installation
BT-43

SBT056A
ROOF TRIM
Removal and Installation (Cont’d)
BT-44

Removal and InstallationNJBT0016SEDANNJBT0016S01
NBT199
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
HA
SC
EL
IDX
TRUNK ROOM TRIM
Removal and Installation
BT-45

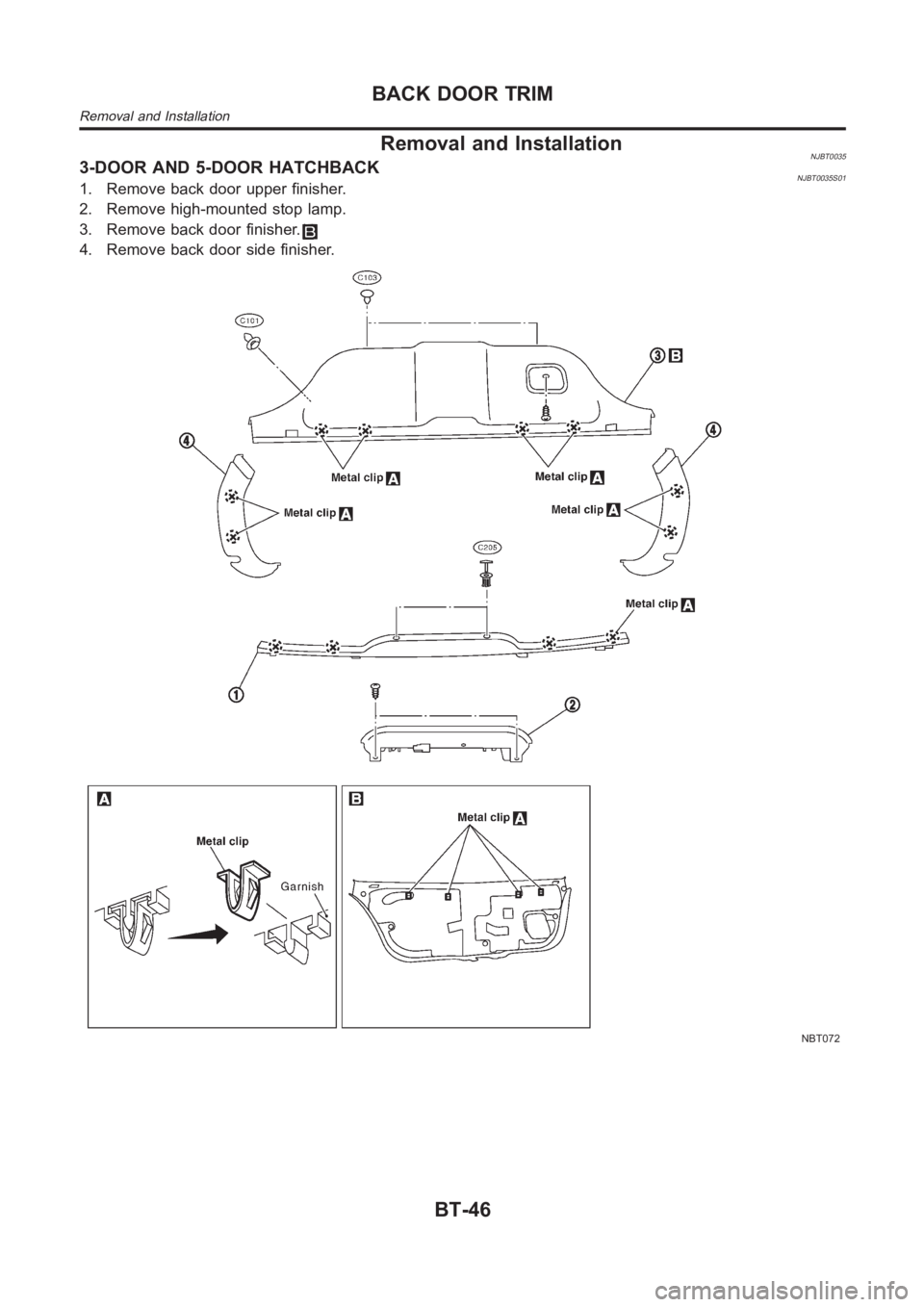

Removal and InstallationNJBT00353-DOOR AND 5-DOOR HATCHBACKNJBT0035S011. Remove back door upper finisher.
2. Remove high-mounted stop lamp.
3. Remove back door finisher.
4. Remove back door side finisher.
NBT072
BACK DOOR TRIM
Removal and Installation
BT-46

Removal and InstallationNJBT0017
NBT200
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
HA
SC
EL
IDX
EXTERIOR
Removal and Installation
BT-47

NBT201

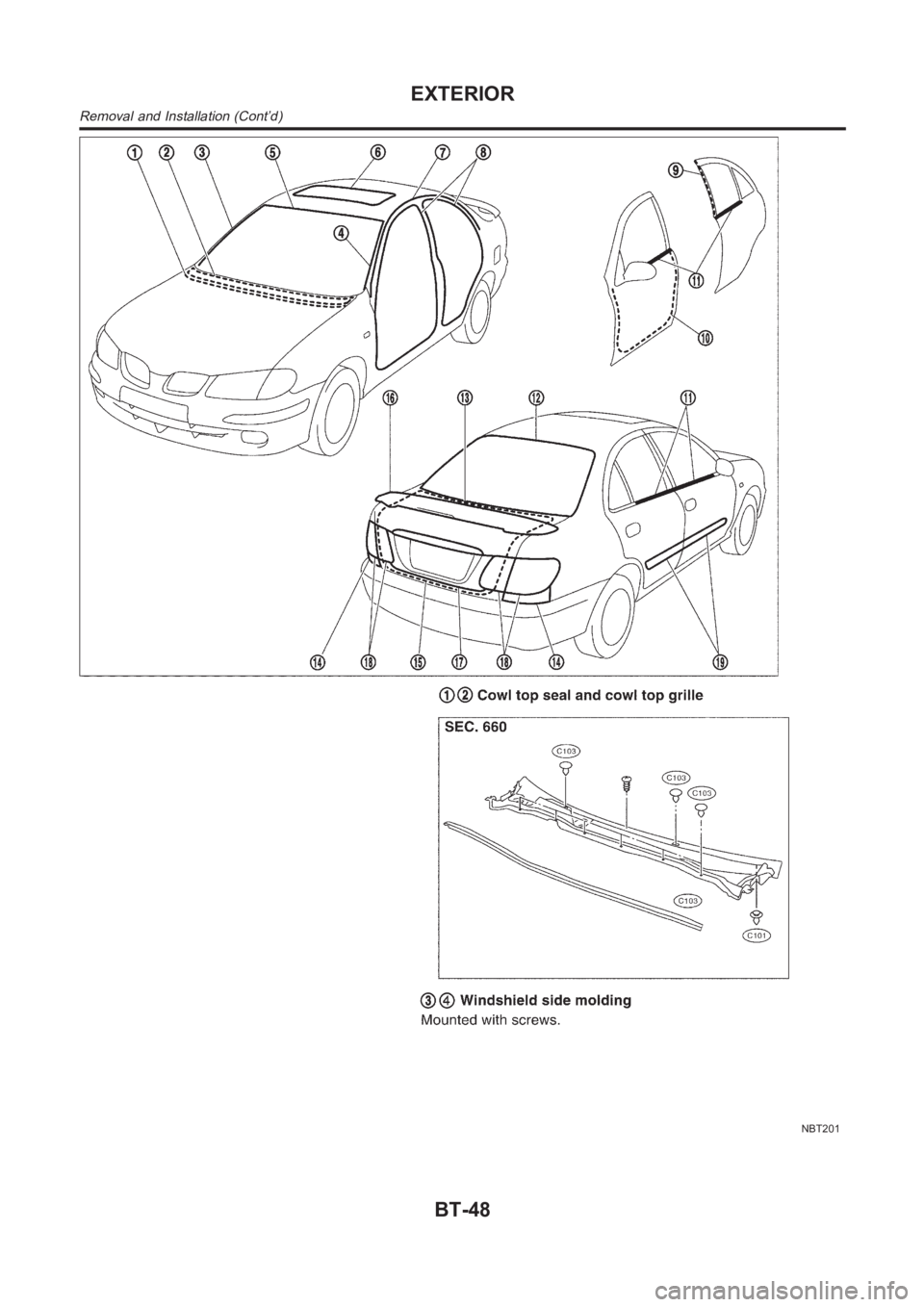

EXTERIOR
Removal and Installation (Cont’d)
BT-48

NBT202
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
HA
SC
EL
IDX

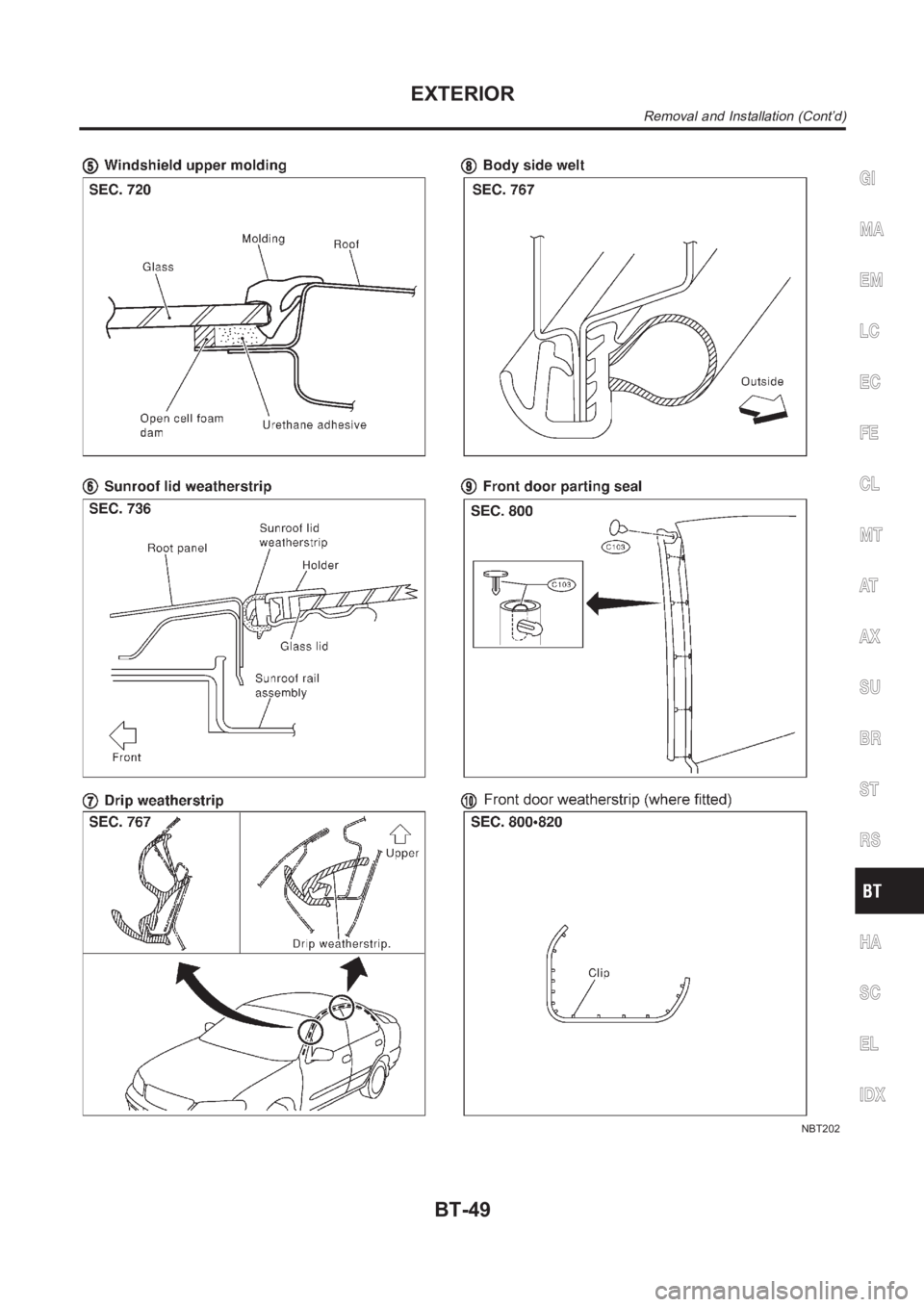

EXTERIOR
Removal and Installation (Cont’d)
BT-49

SBT997

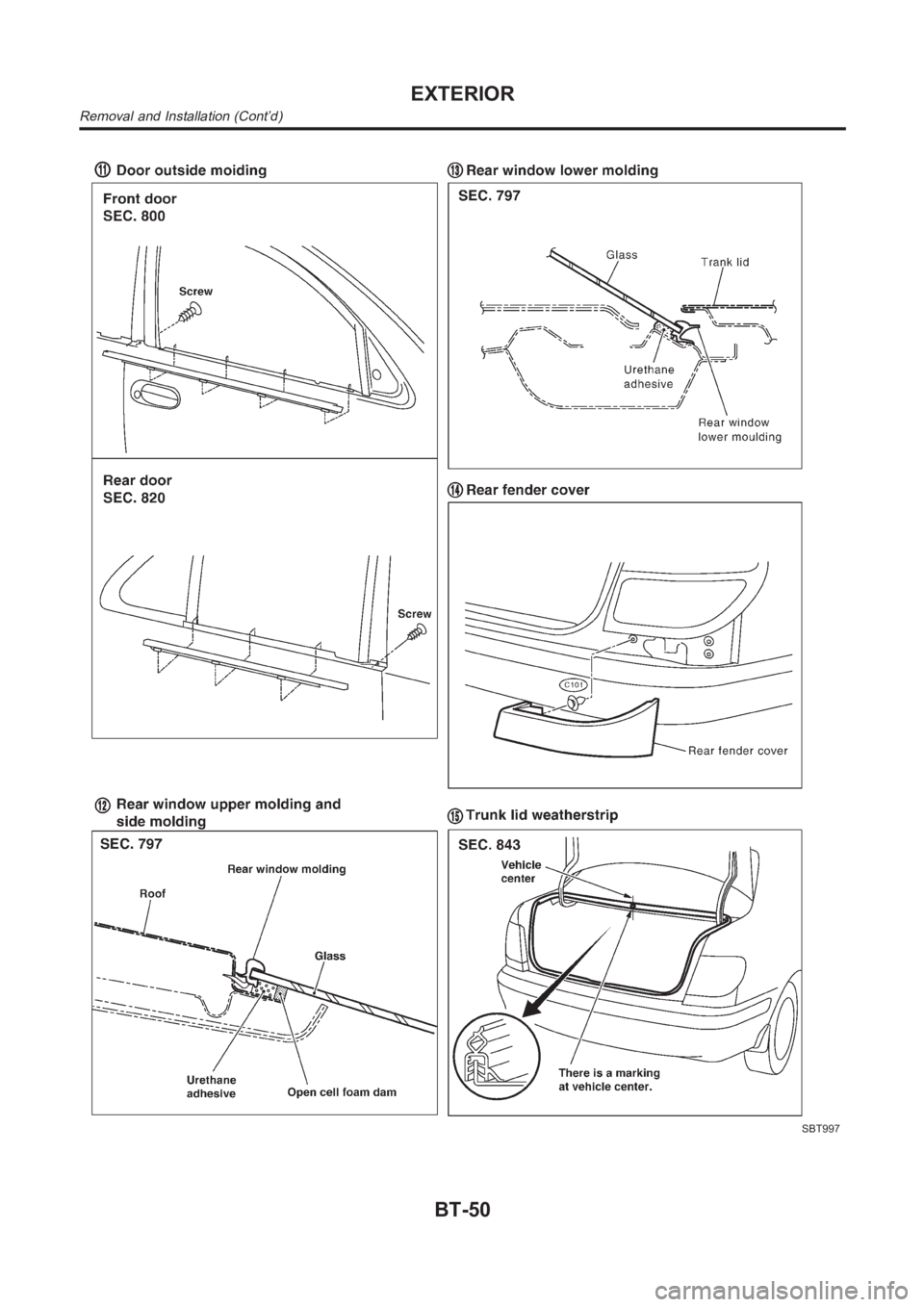

EXTERIOR
Removal and Installation (Cont’d)
BT-50

SBT057A
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
HA
SC
EL
IDX

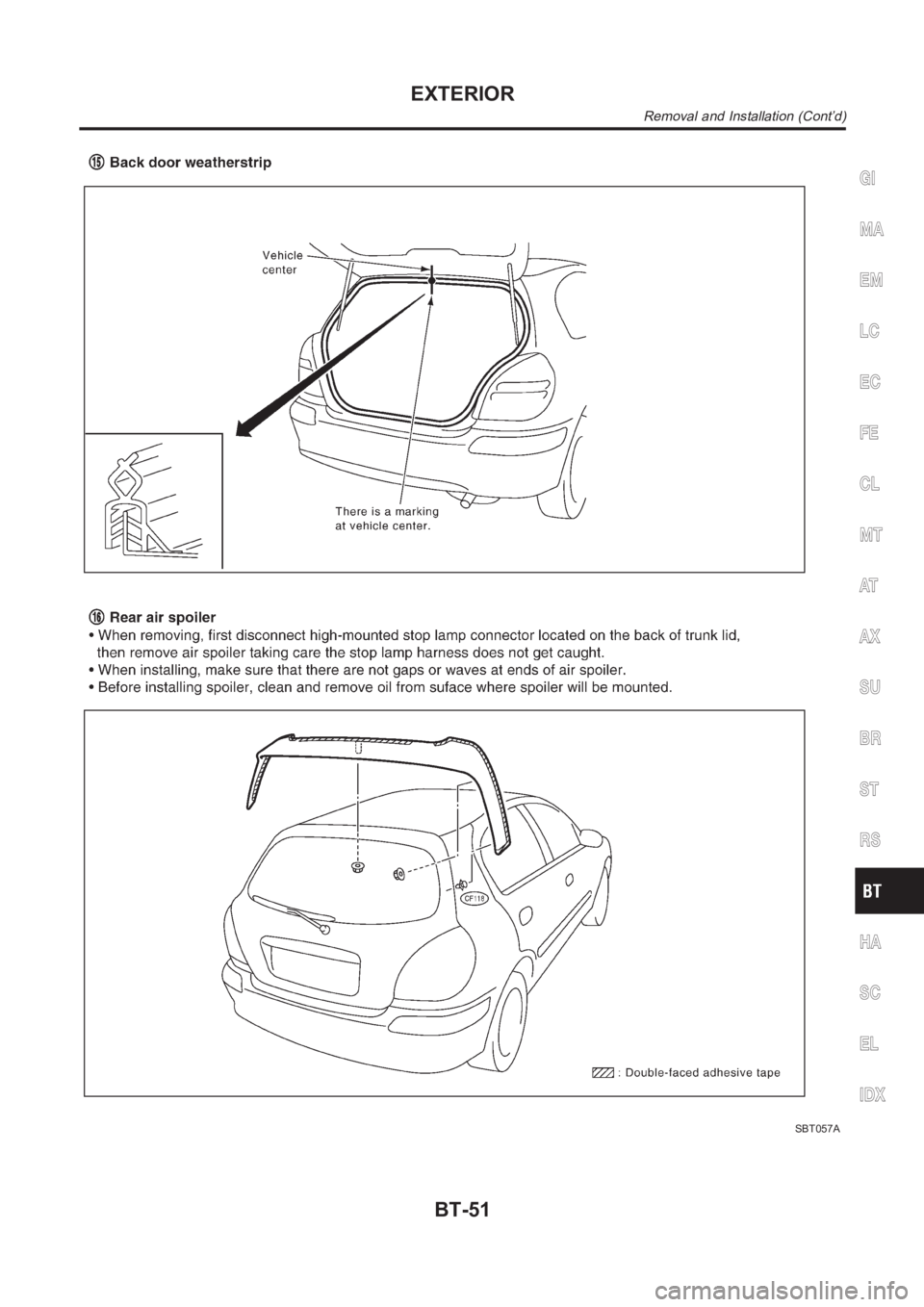

EXTERIOR
Removal and Installation (Cont’d)
BT-51

SBT998

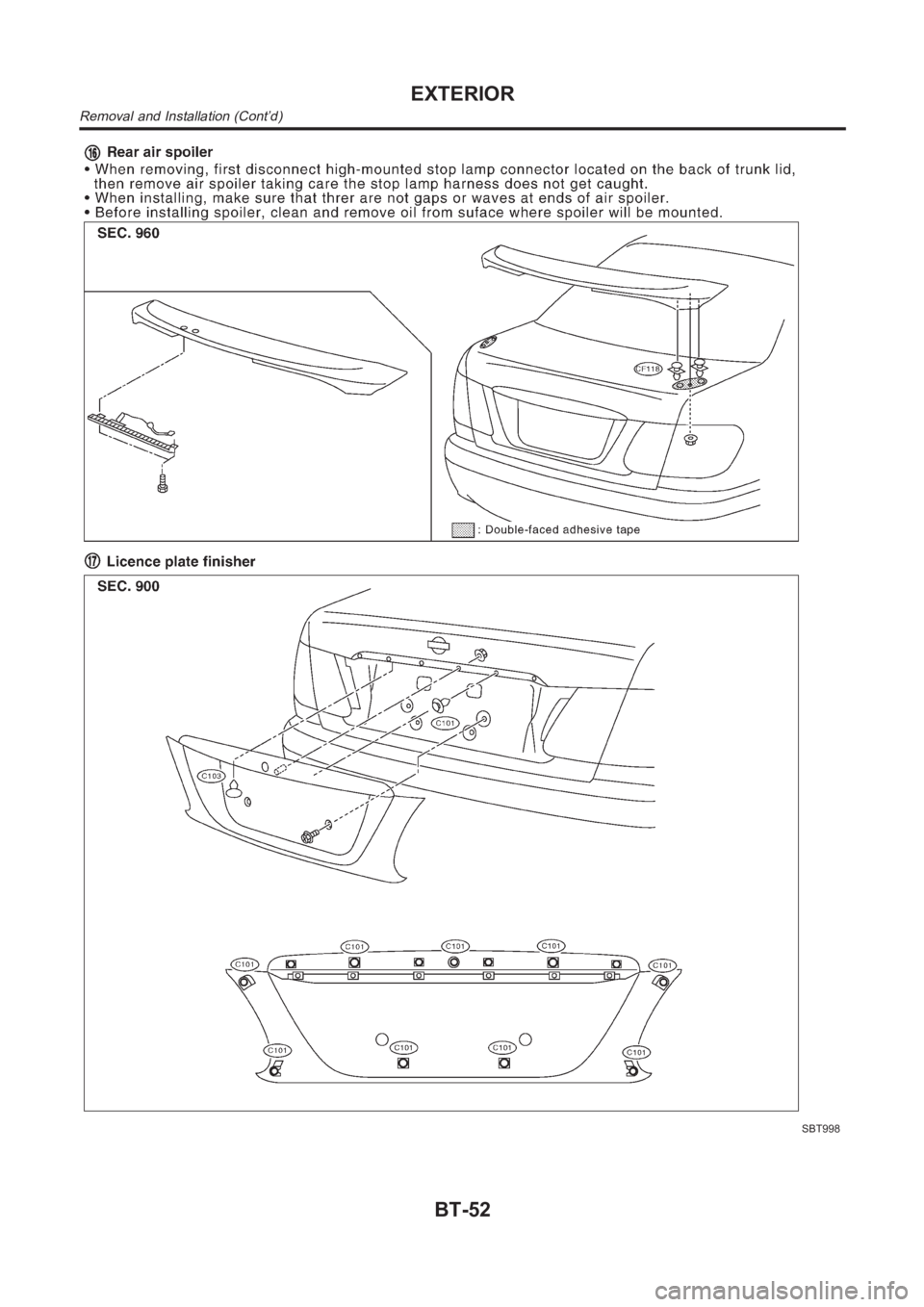

EXTERIOR
Removal and Installation (Cont’d)
BT-52
