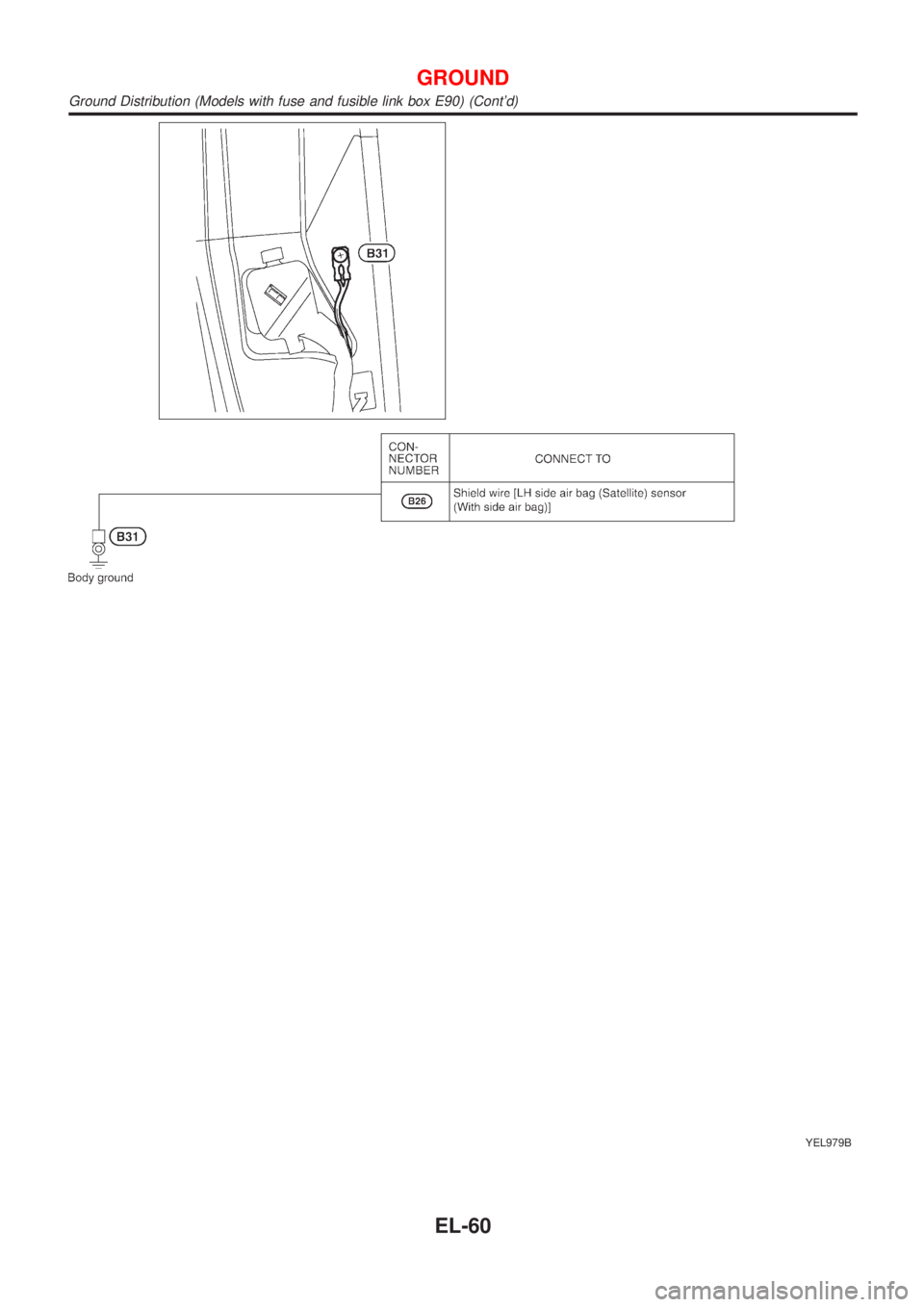

Ground Distribution (Models with fuse and fusible link box E90) (Cont'd)
EL-60

BACK DOOR HARNESS/LHD MODELSNLEL0528S08
YEL977B
GROUND
Ground Distribution (Models with fuse and fusible link box E90) (Cont'd)
EL-61

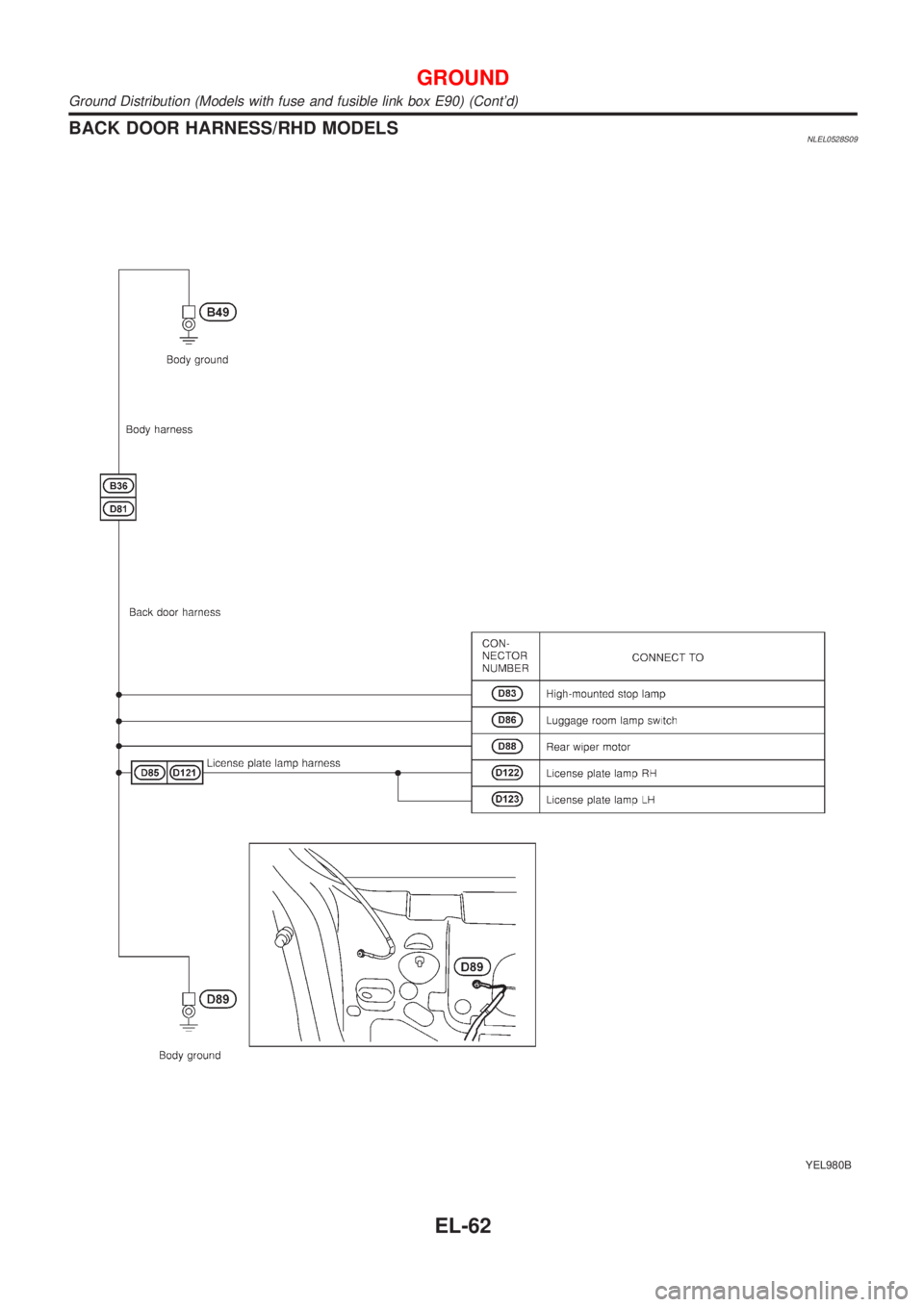

BACK DOOR HARNESS/RHD MODELSNLEL0528S09
YEL980B
GROUND
Ground Distribution (Models with fuse and fusible link box E90) (Cont'd)
EL-62

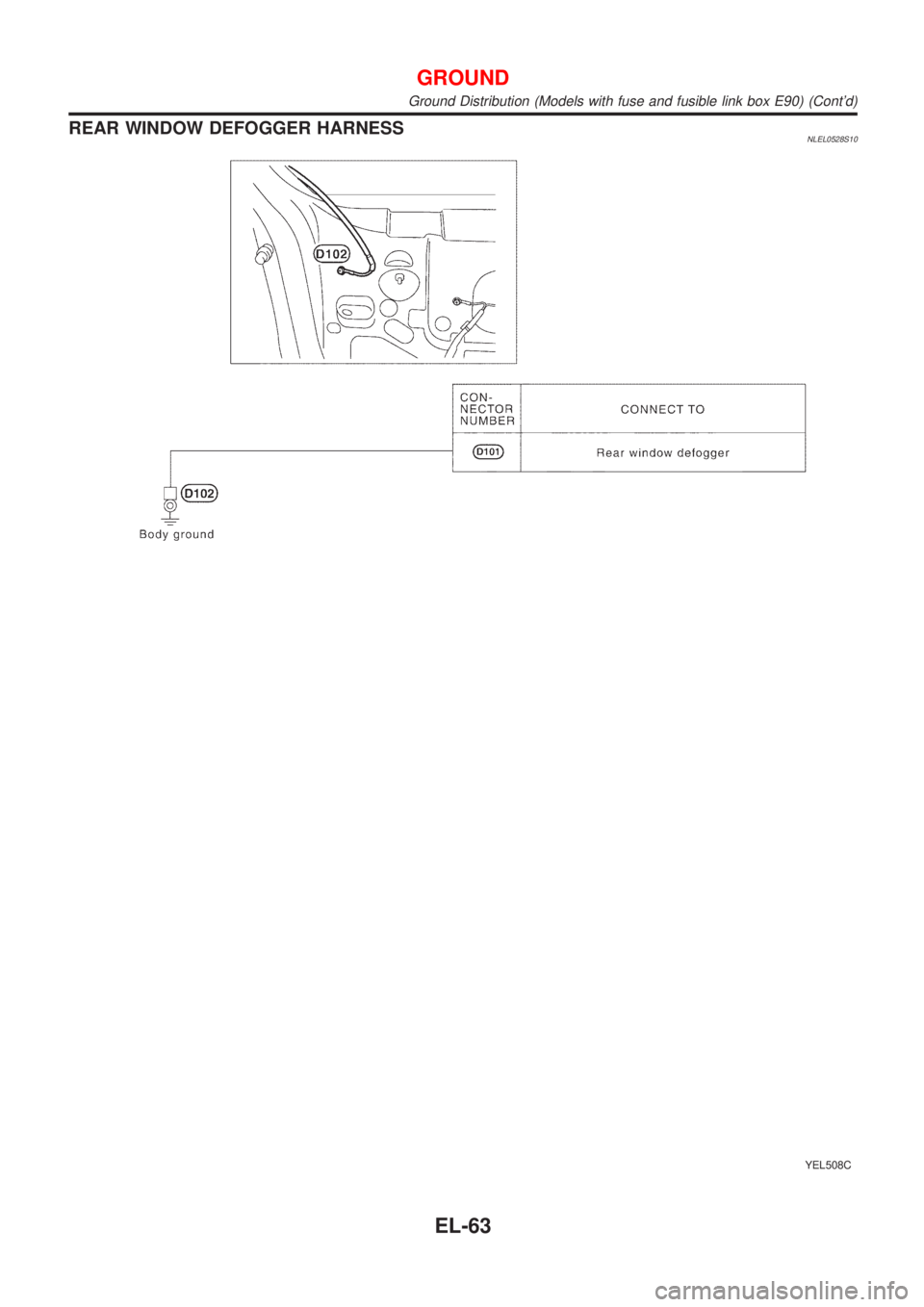

REAR WINDOW DEFOGGER HARNESSNLEL0528S10
YEL508C
GROUND
Ground Distribution (Models with fuse and fusible link box E90) (Cont'd)
EL-63

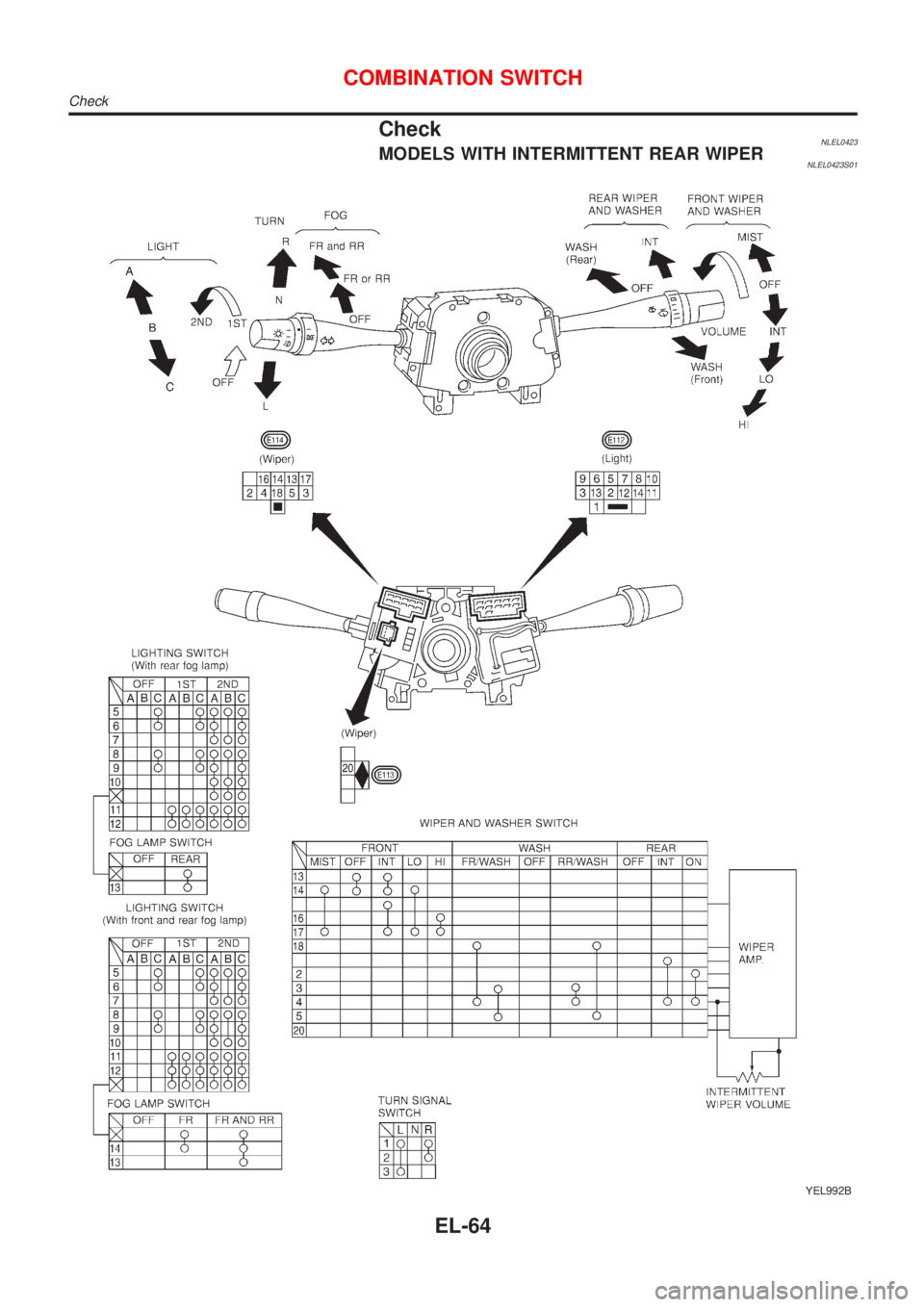

CheckNLEL0423MODELS WITH INTERMITTENT REAR WIPERNLEL0423S01
YEL992B
COMBINATION SWITCH
Check
EL-64

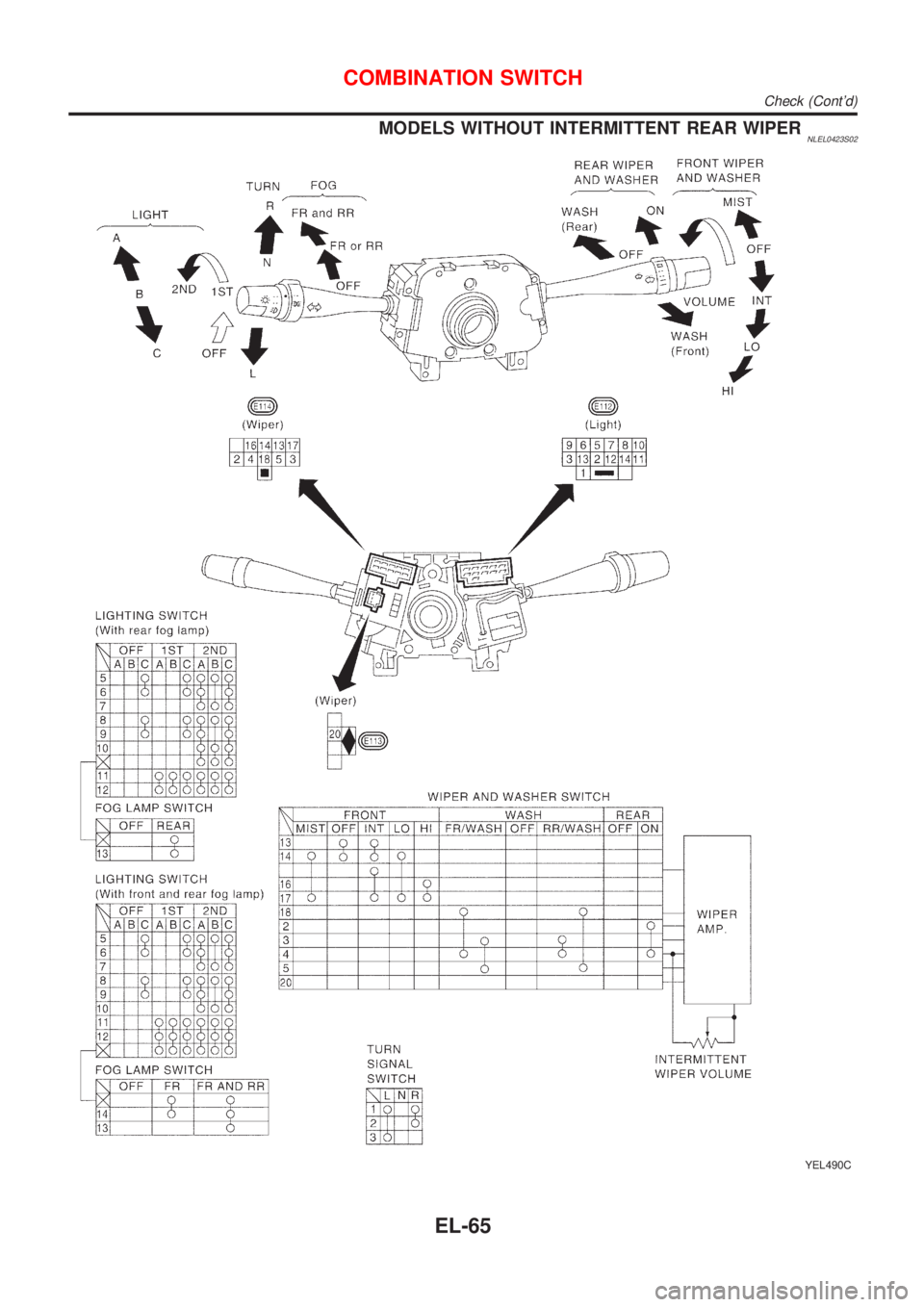

MODELS WITHOUT INTERMITTENT REAR WIPERNLEL0423S02
YEL490C
COMBINATION SWITCH
Check (Cont'd)
EL-65

CEL501

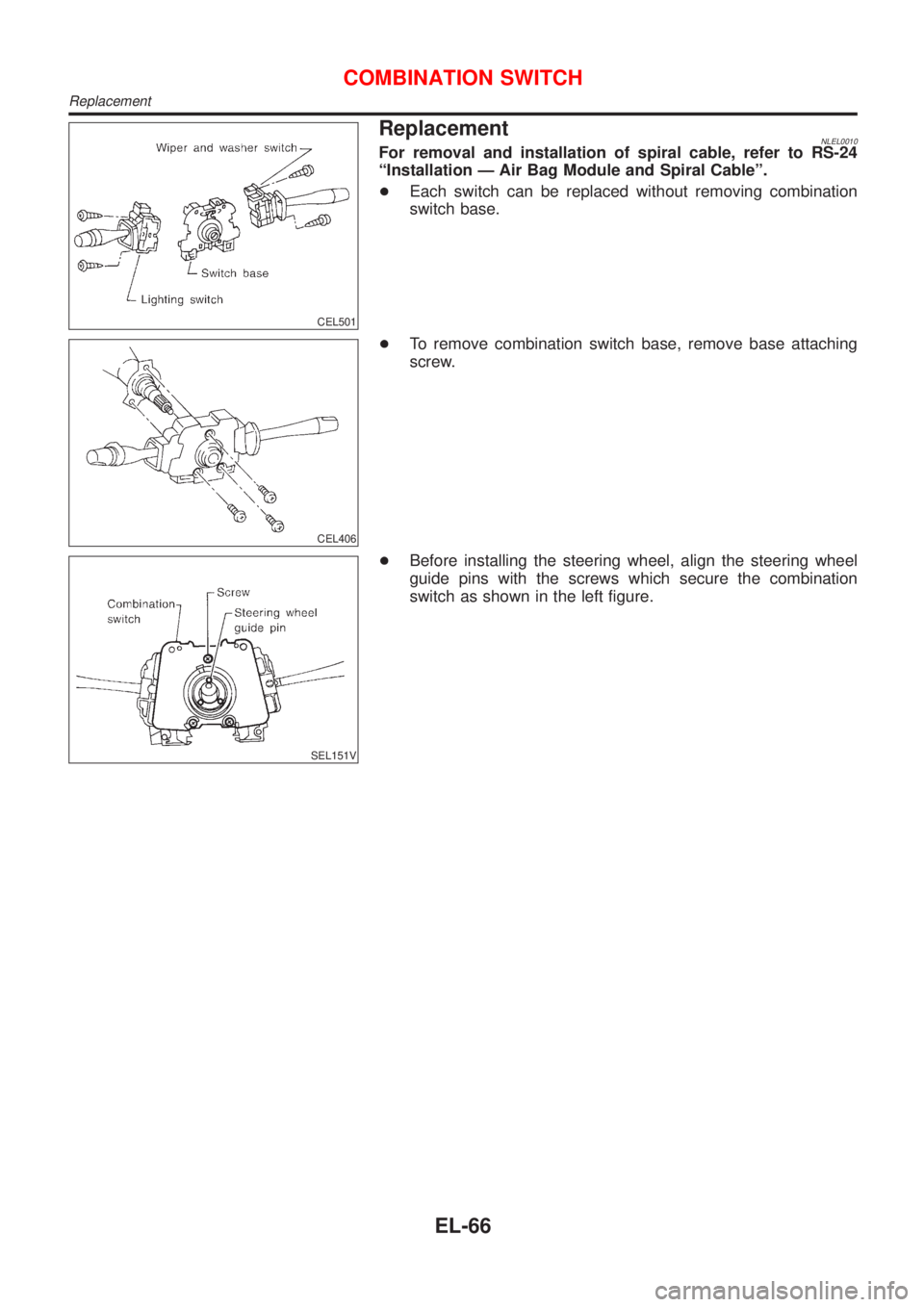

ReplacementNLEL0010For removal and installation of spiral cable, refer to RS-24
ªInstallation Ð Air Bag Module and Spiral Cableº.
+Each switch can be replaced without removing combination
switch base.
CEL406
+To remove combination switch base, remove base attaching
screw.
SEL151V
+Before installing the steering wheel, align the steering wheel
guide pins with the screws which secure the combination
switch as shown in the left figure.
COMBINATION SWITCH
Replacement
EL-66

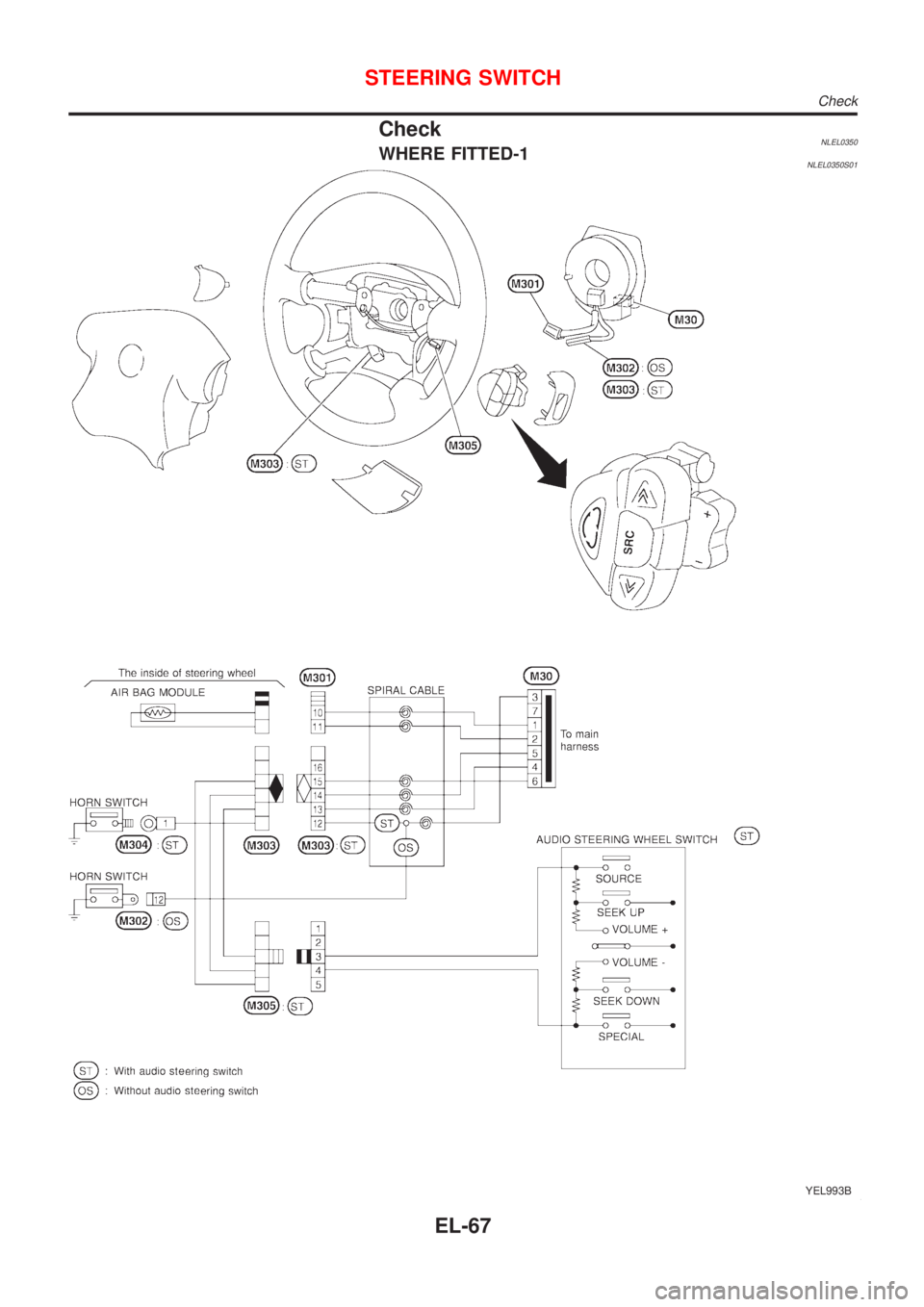

CheckNLEL0350WHERE FITTED-1NLEL0350S01
YEL993B
STEERING SWITCH
Check
EL-67

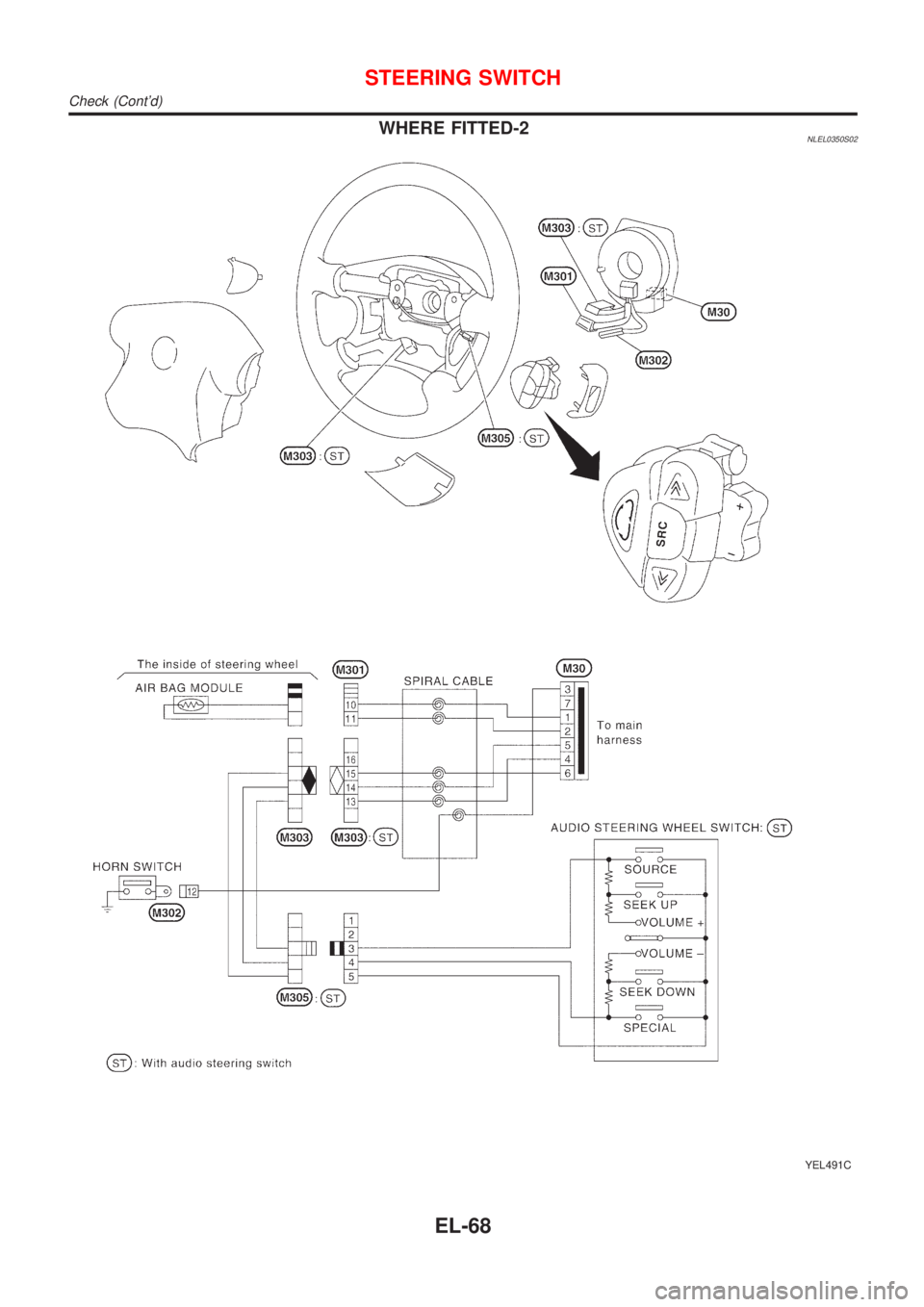

WHERE FITTED-2NLEL0350S02
YEL491C
STEERING SWITCH
Check (Cont'd)
EL-68

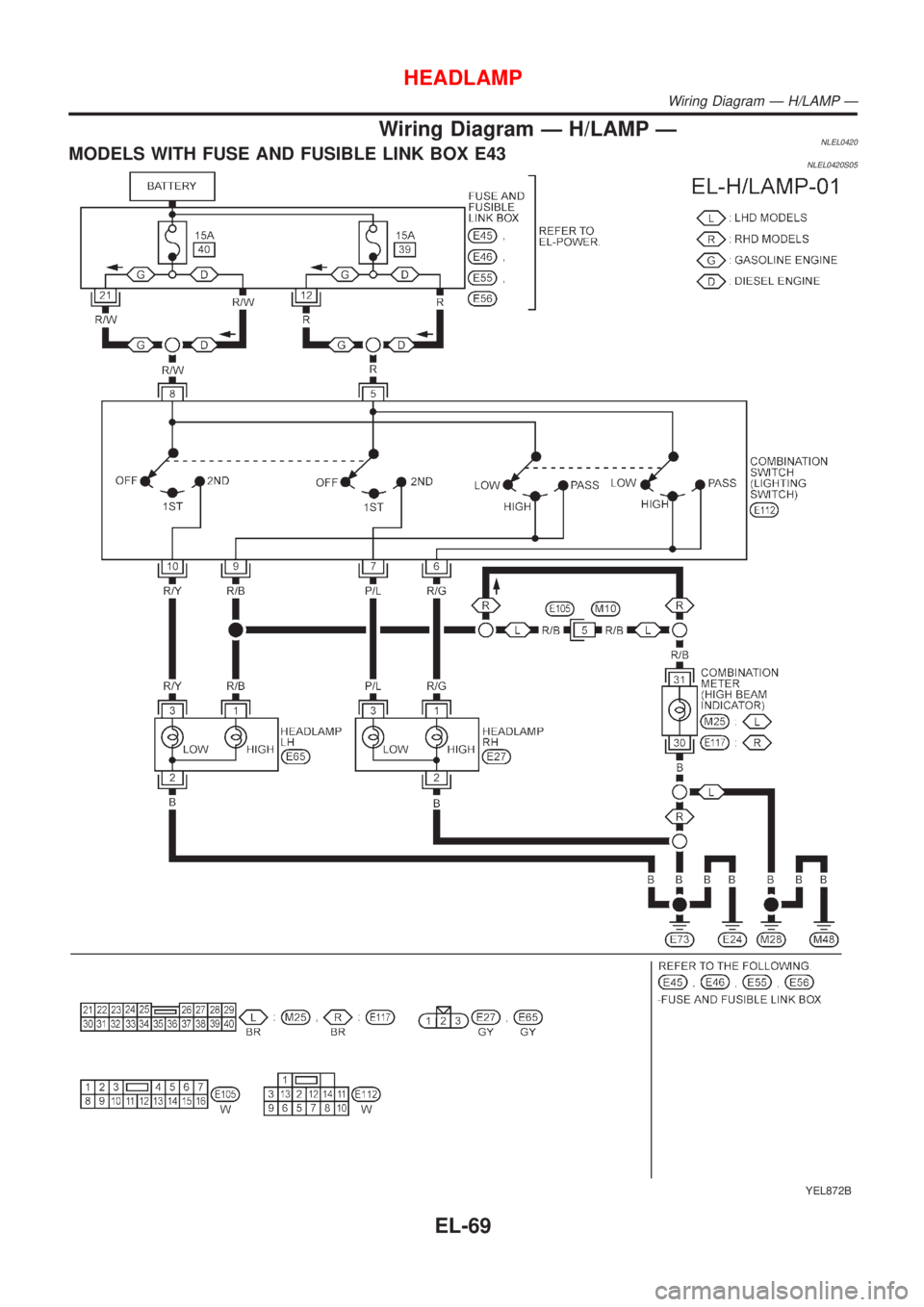

Wiring Diagram Ð H/LAMP ÐNLEL0420MODELS WITH FUSE AND FUSIBLE LINK BOX E43NLEL0420S05
YEL872B
HEADLAMP
Wiring Diagram Ð H/LAMP Ð
EL-69
