NISSAN ALMERA TINO 2001 Service Repair Manual

YEL398C

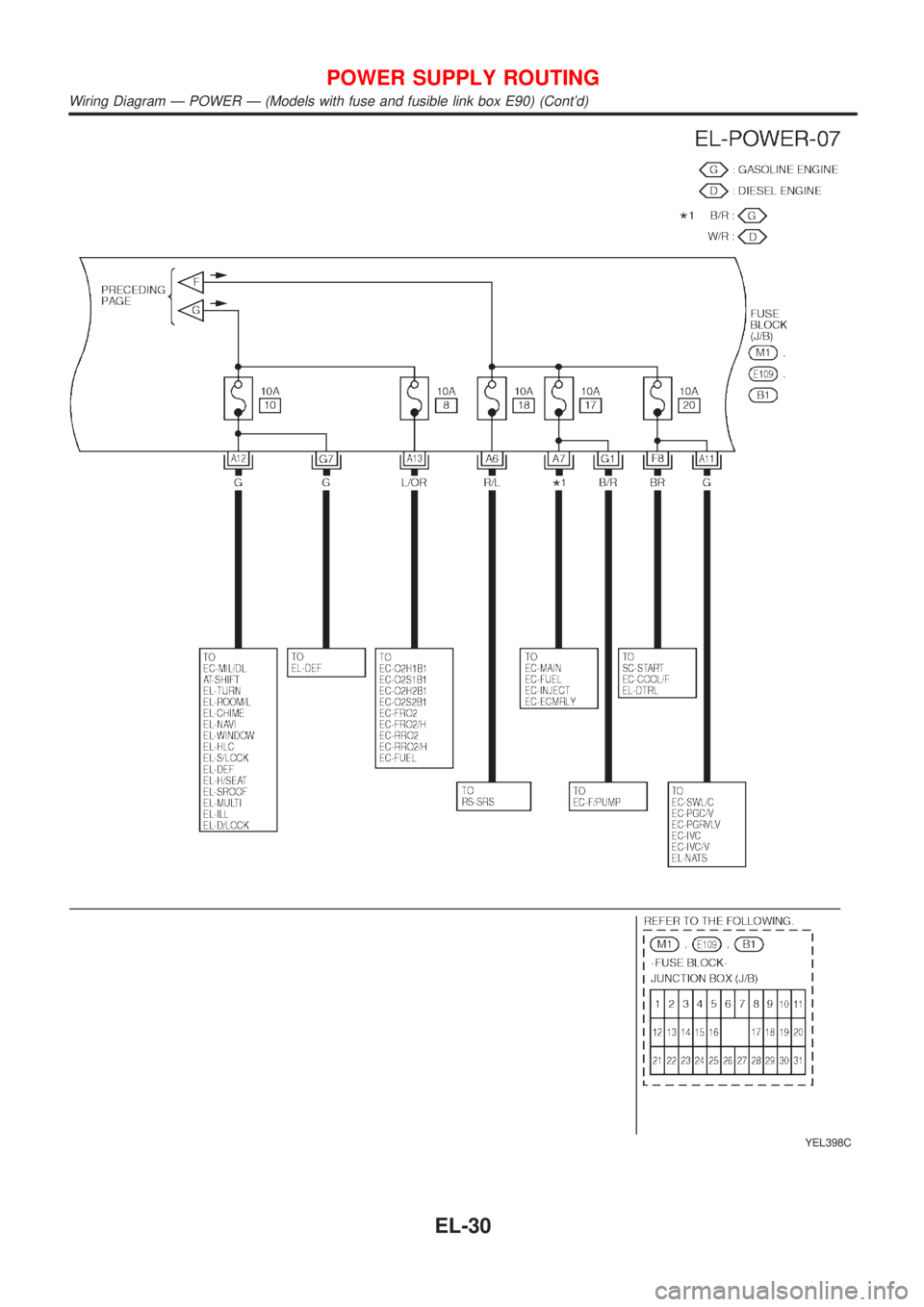

POWER SUPPLY ROUTING
Wiring Diagram Ð POWER Ð (Models with fuse and fusible link box E90) (Cont'd)
EL-30

YEL399C
POWER SUPPLY ROUTING
Wiring Diagram Ð POWER Ð (Models with fuse and fusible link box E90) (Cont'd)
EL-31

CEL083

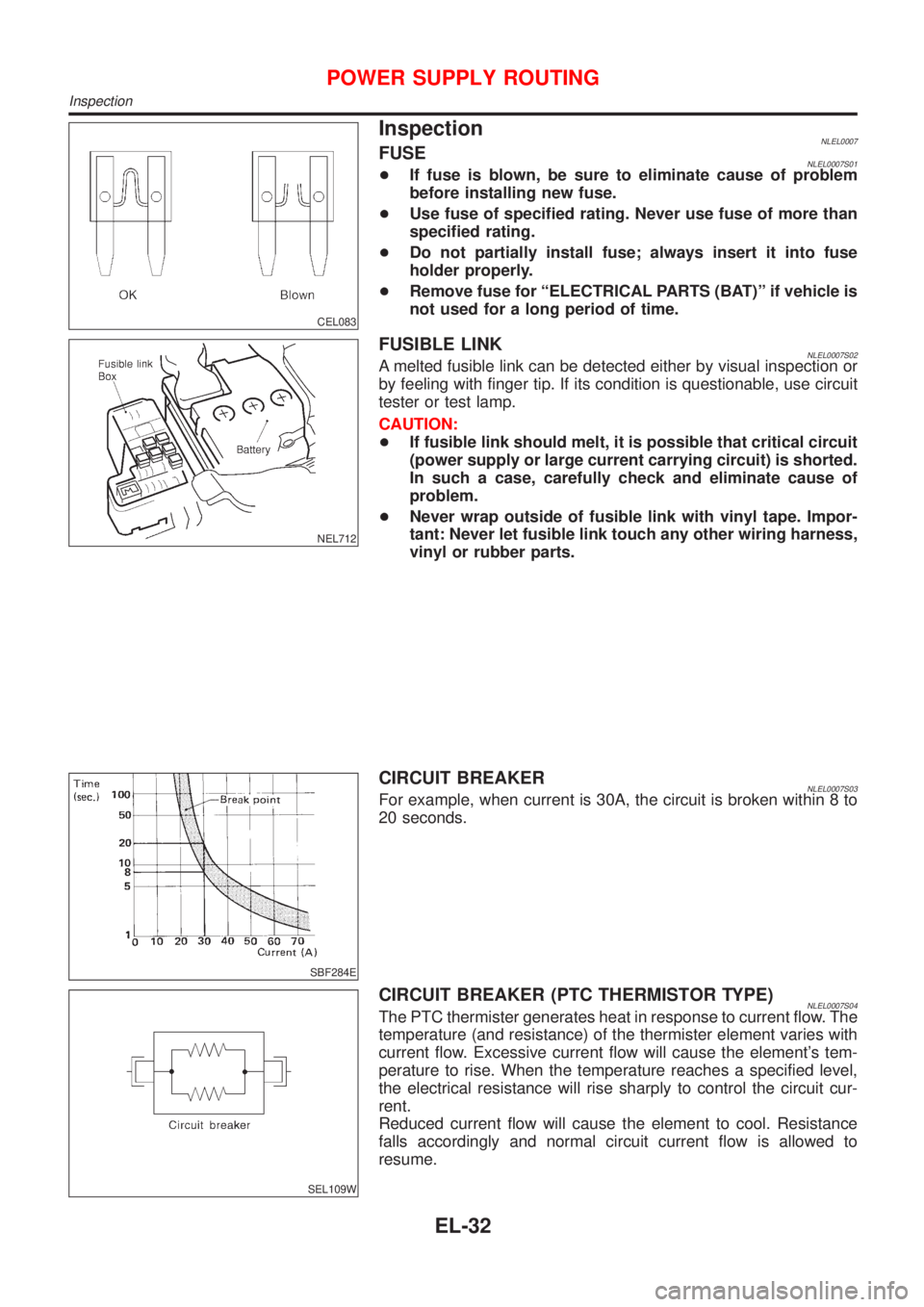

InspectionNLEL0007FUSENLEL0007S01+If fuse is blown, be sure to eliminate cause of problem
before installing new fuse.
+Use fuse of specified rating. Never use fuse of more than
specified rating.
+Do not partially install fuse; always insert it into fuse
holder properly.
+Remove fuse for ªELECTRICAL PARTS (BAT)º if vehicle is
not used for a long period of time.
NEL712
FUSIBLE LINKNLEL0007S02A melted fusible link can be detected either by visual inspection or
by feeling with finger tip. If its condition is questionable, use circuit
tester or test lamp.
CAUTION:
+If fusible link should melt, it is possible that critical circuit
(power supply or large current carrying circuit) is shorted.
In such a case, carefully check and eliminate cause of
problem.
+Never wrap outside of fusible link with vinyl tape. Impor-
tant: Never let fusible link touch any other wiring harness,
vinyl or rubber parts.
SBF284E
CIRCUIT BREAKERNLEL0007S03For example, when current is 30A, the circuit is broken within 8 to
20 seconds.
SEL109W
CIRCUIT BREAKER (PTC THERMISTOR TYPE)NLEL0007S04The PTC thermister generates heat in response to current flow. The
temperature (and resistance) of the thermister element varies with
current flow. Excessive current flow will cause the element's tem-
perature to rise. When the temperature reaches a specified level,
the electrical resistance will rise sharply to control the circuit cur-
rent.
Reduced current flow will cause the element to cool. Resistance
falls accordingly and normal circuit current flow is allowed to
resume.
POWER SUPPLY ROUTING
Inspection
EL-32

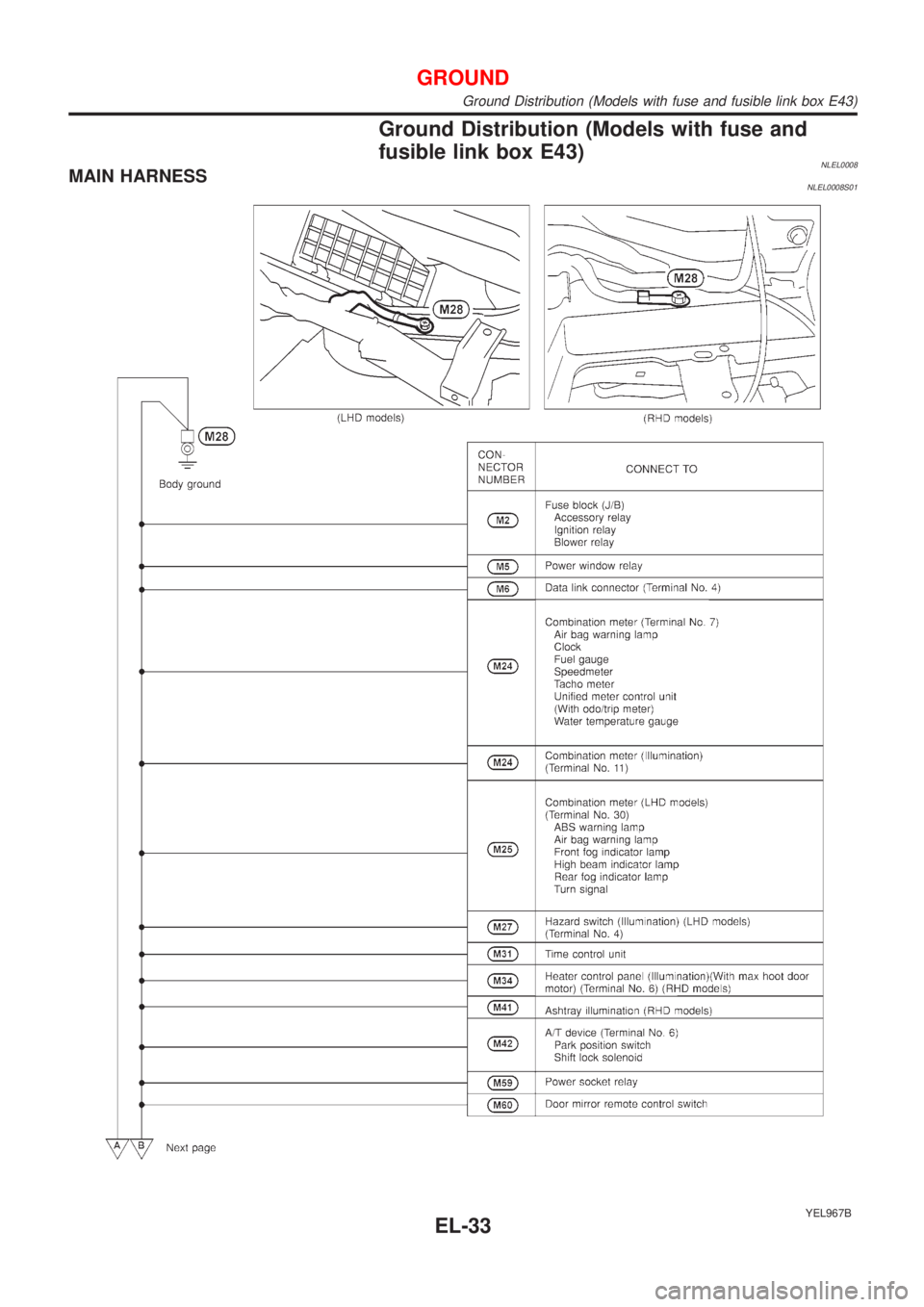

Ground Distribution (Models with fuse and
fusible link box E43)
NLEL0008MAIN HARNESSNLEL0008S01
YEL967B
GROUND
Ground Distribution (Models with fuse and fusible link box E43)
EL-33

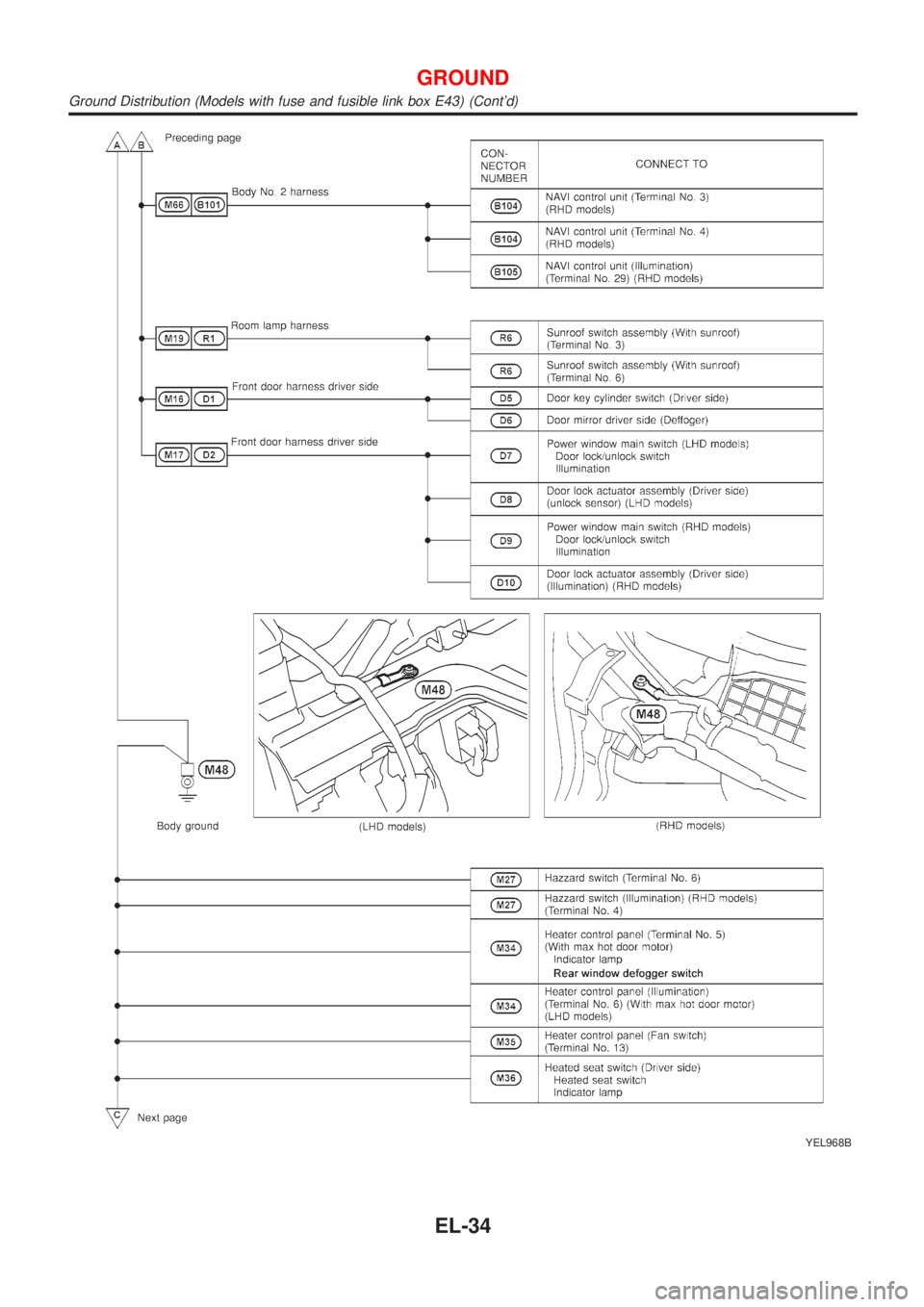

YEL968B
GROUND
Ground Distribution (Models with fuse and fusible link box E43) (Cont'd)
EL-34

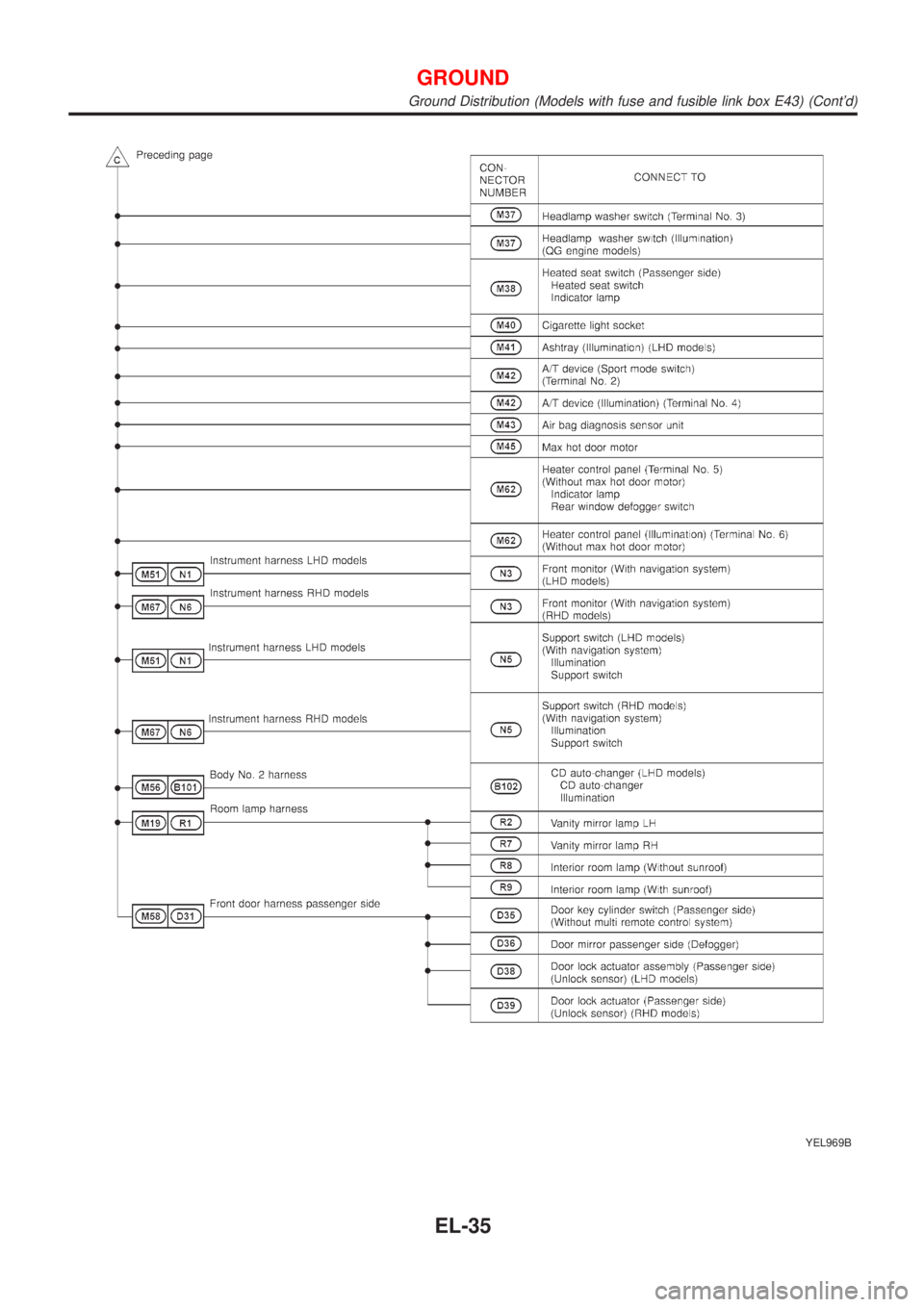

YEL969B
GROUND
Ground Distribution (Models with fuse and fusible link box E43) (Cont'd)
EL-35

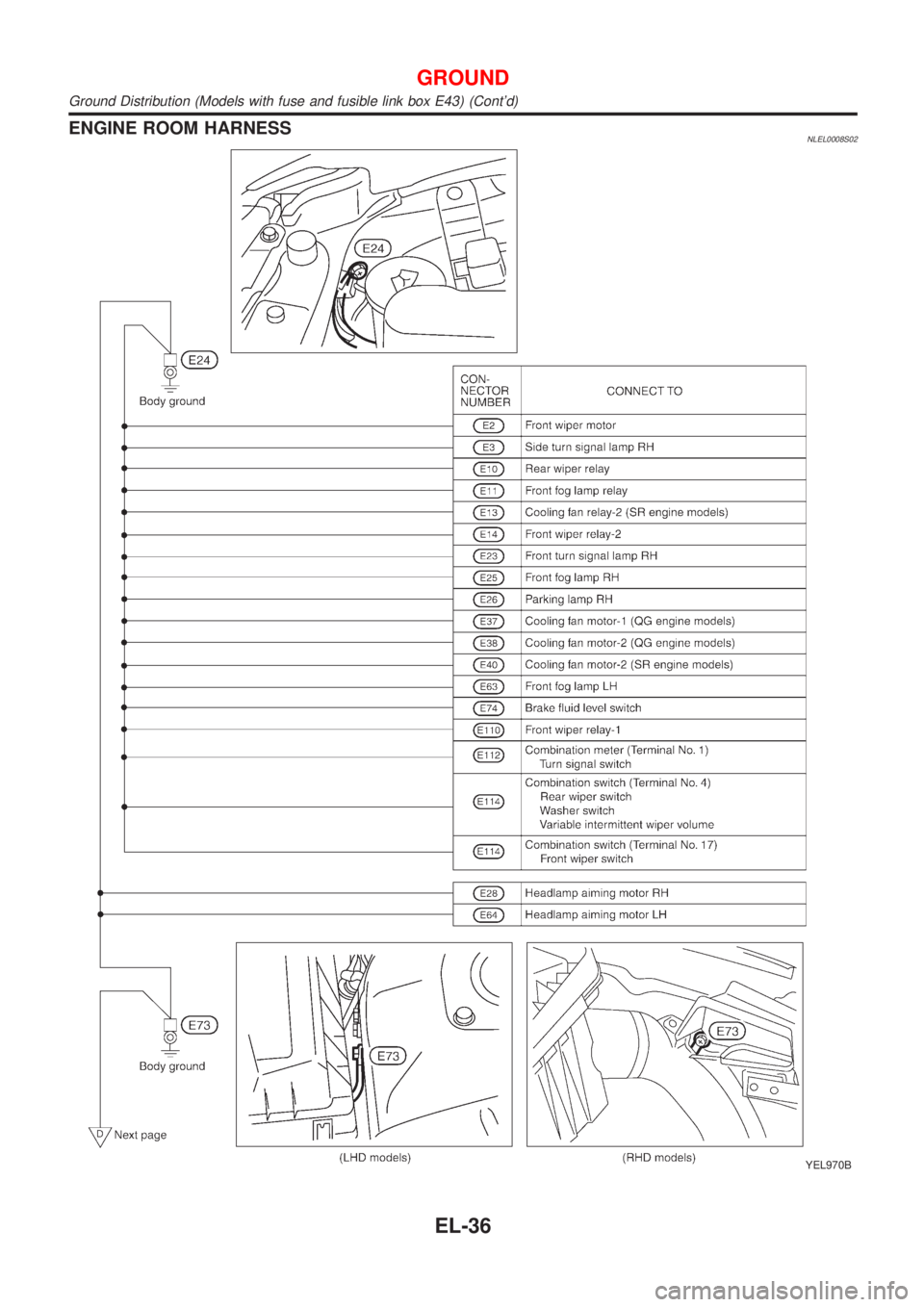

ENGINE ROOM HARNESSNLEL0008S02
YEL970B
GROUND
Ground Distribution (Models with fuse and fusible link box E43) (Cont'd)
EL-36

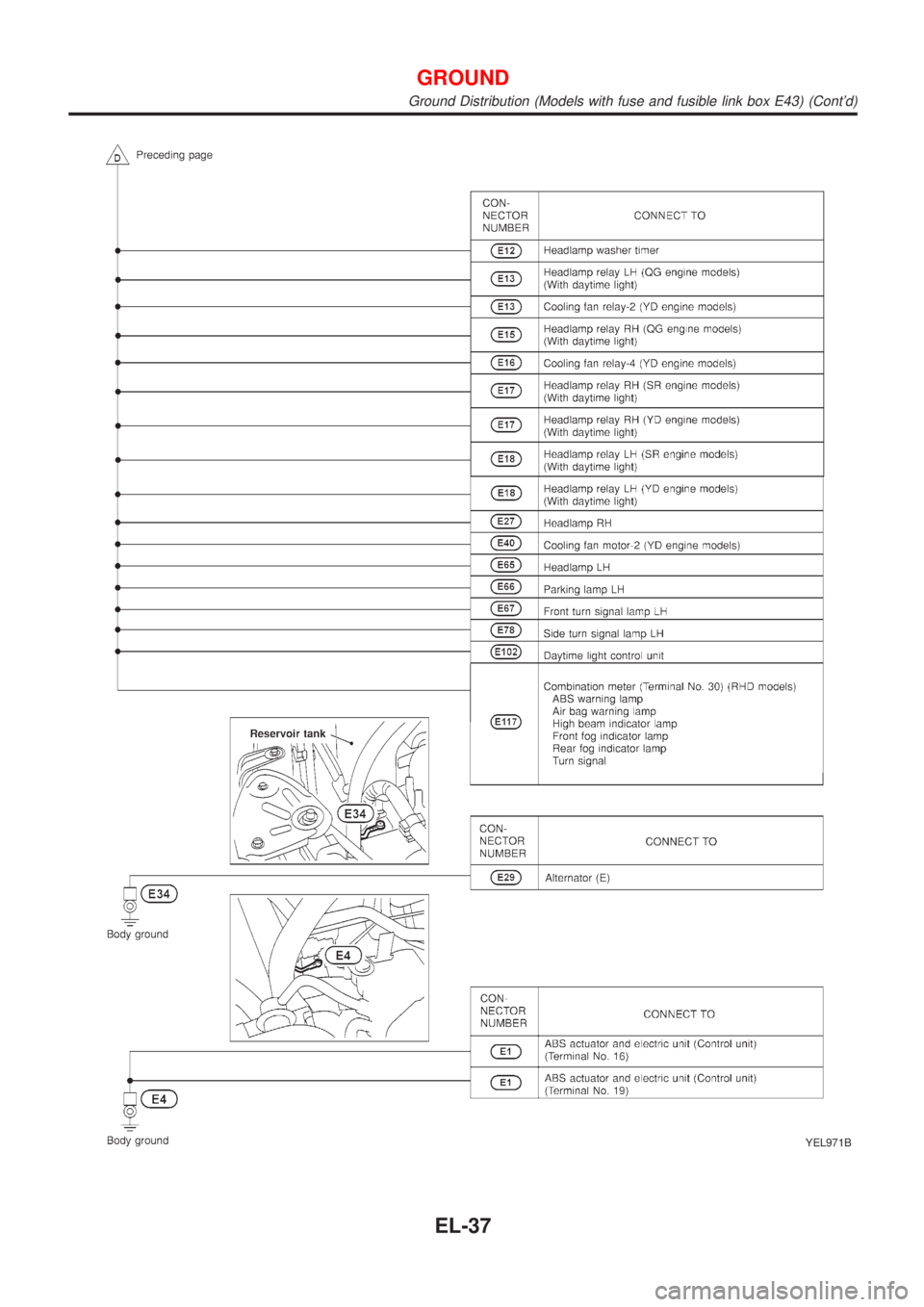

YEL971B
GROUND
Ground Distribution (Models with fuse and fusible link box E43) (Cont'd)
EL-37

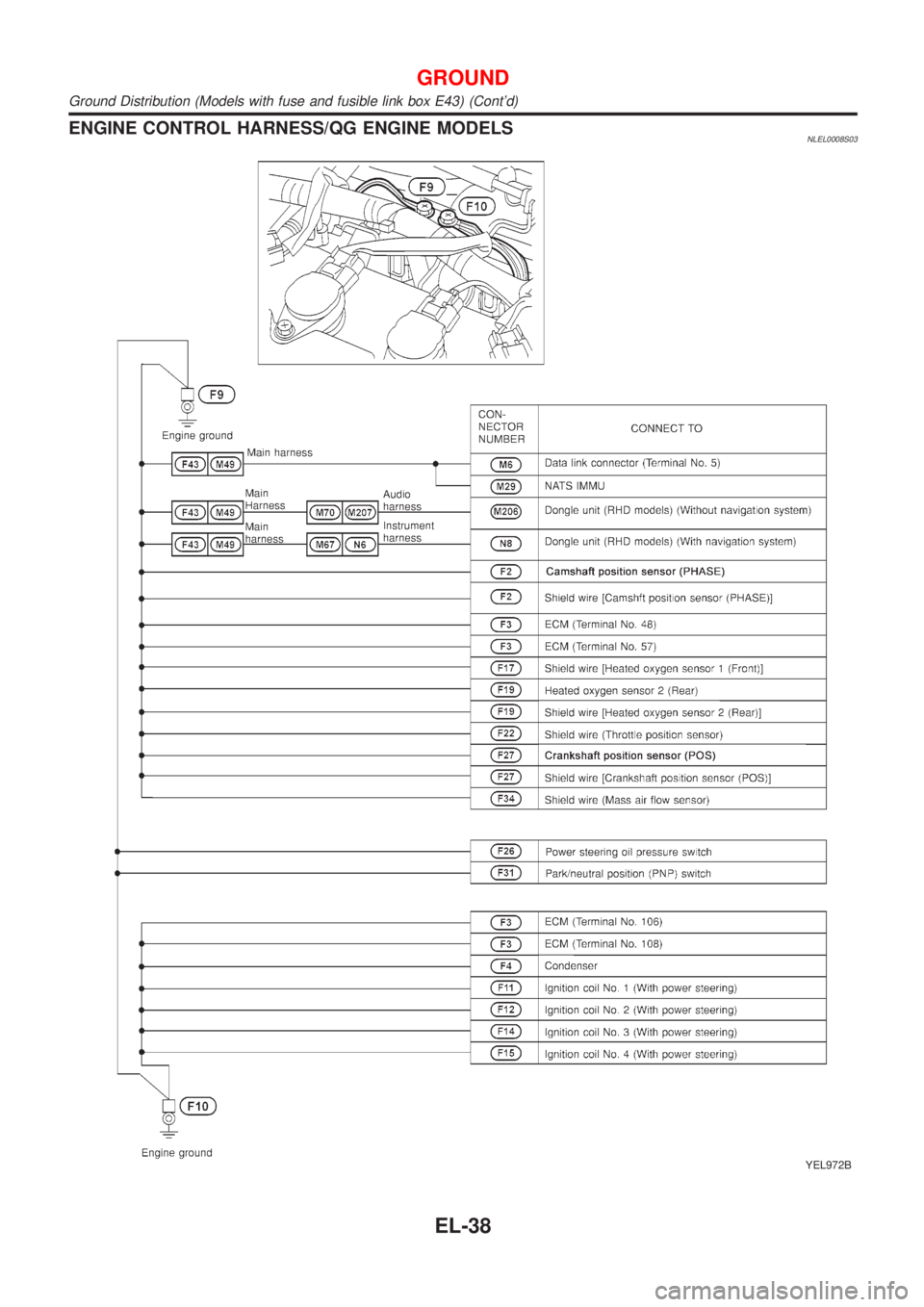

ENGINE CONTROL HARNESS/QG ENGINE MODELSNLEL0008S03
YEL972B
GROUND
Ground Distribution (Models with fuse and fusible link box E43) (Cont'd)
EL-38

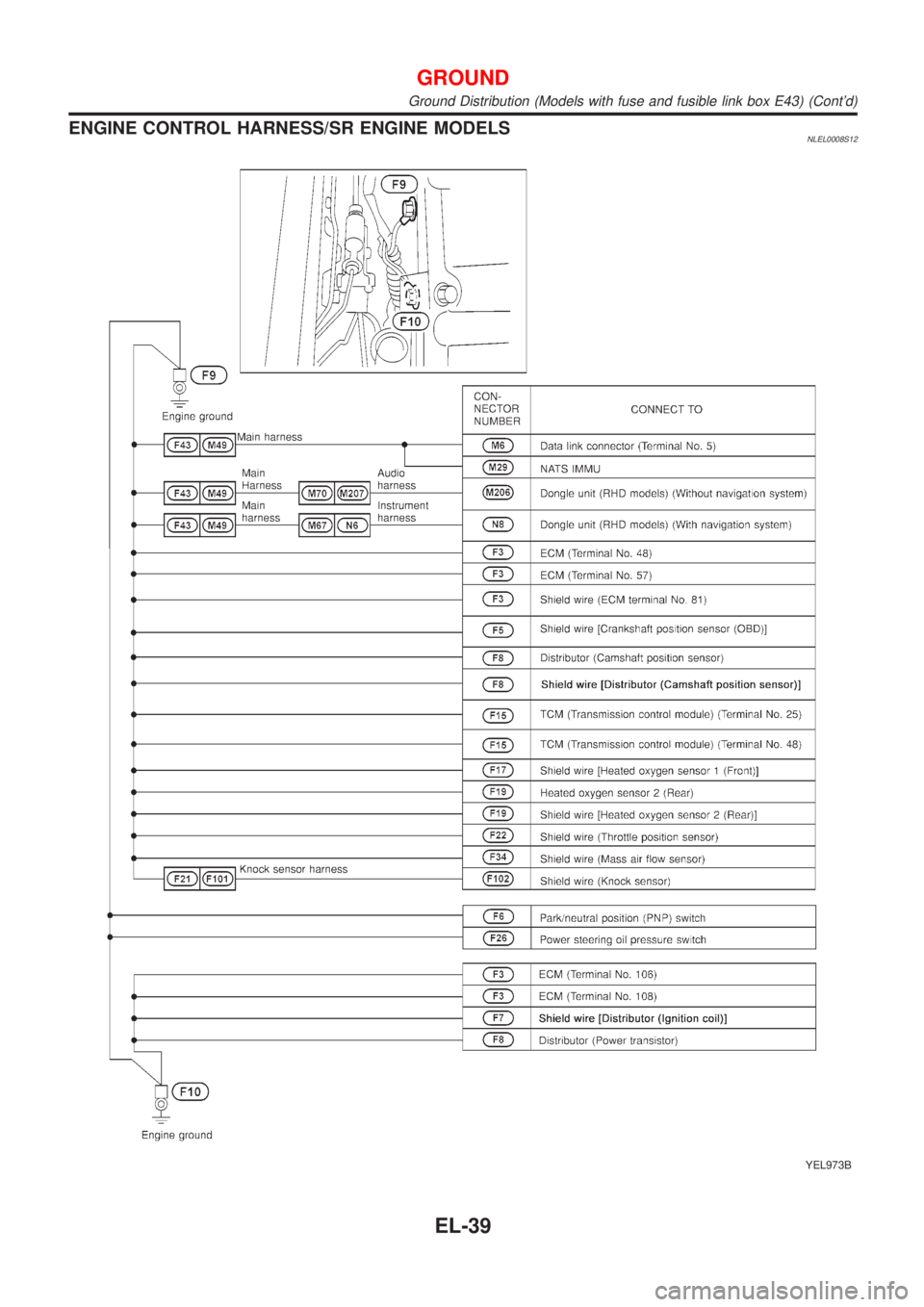

ENGINE CONTROL HARNESS/SR ENGINE MODELSNLEL0008S12
YEL973B
GROUND
Ground Distribution (Models with fuse and fusible link box E43) (Cont'd)
EL-39
