13. To confirm the destination location on themap, speak “Show map”. To calculate a
route, speak “Calculate route”.
Example 2: Placing a call to the phone
number 800-662-6200: 1. Press
located on the steering wheel
switch. 2. The system announces, “Would you like to
access Phone, Navigation, Information, Au-
dio or Help?”.
3. Speak “Phone”. 4. Speak “Dial Number”.
NGT0077NGT0070NGT0079
2-34Getting started

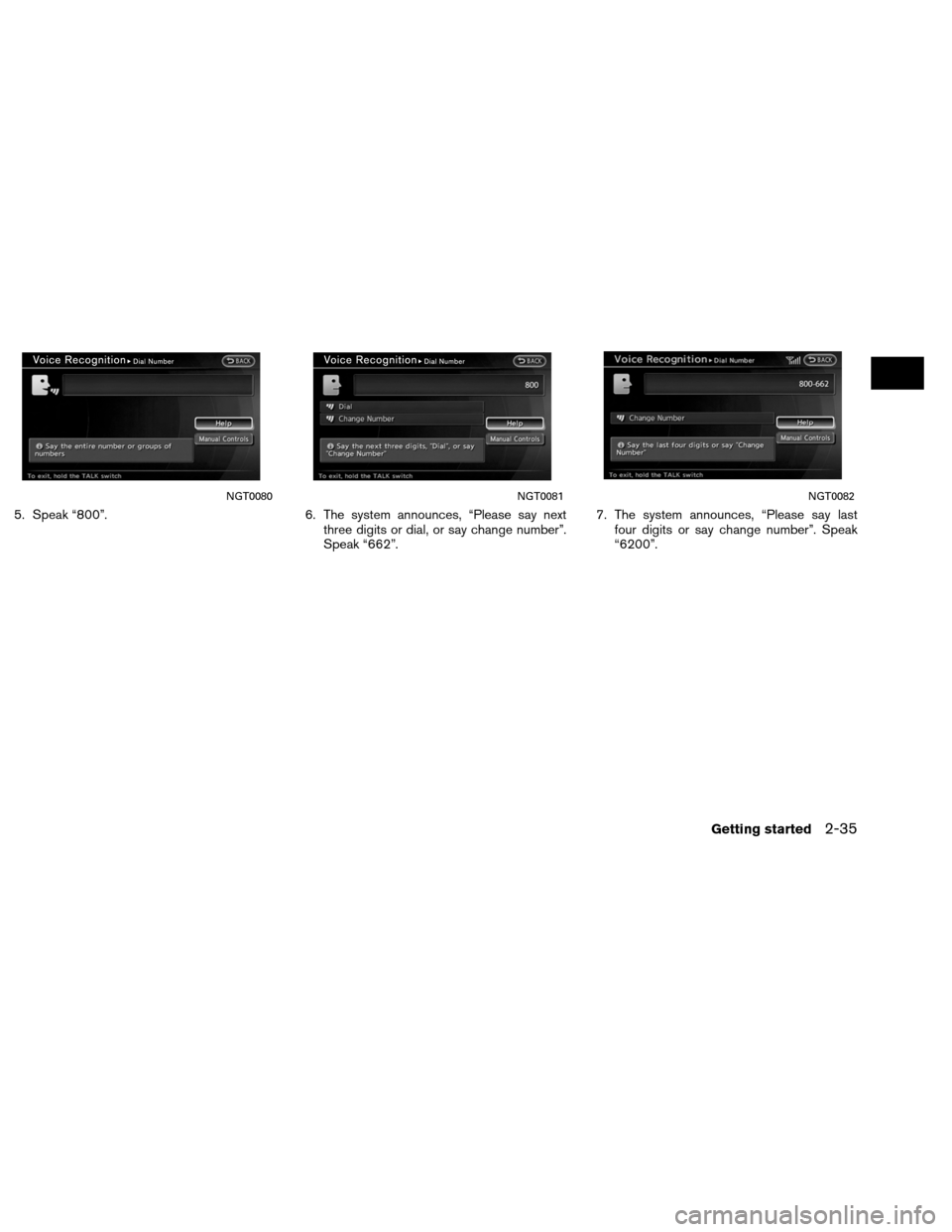

5. Speak “800”.6. The system announces, “Please say next
three digits or dial, or say change number”.
Speak “662”. 7. The system announces, “Please say last
four digits or say change number”. Speak
“6200”.
NGT0080NGT0081NGT0082
Getting started2-35

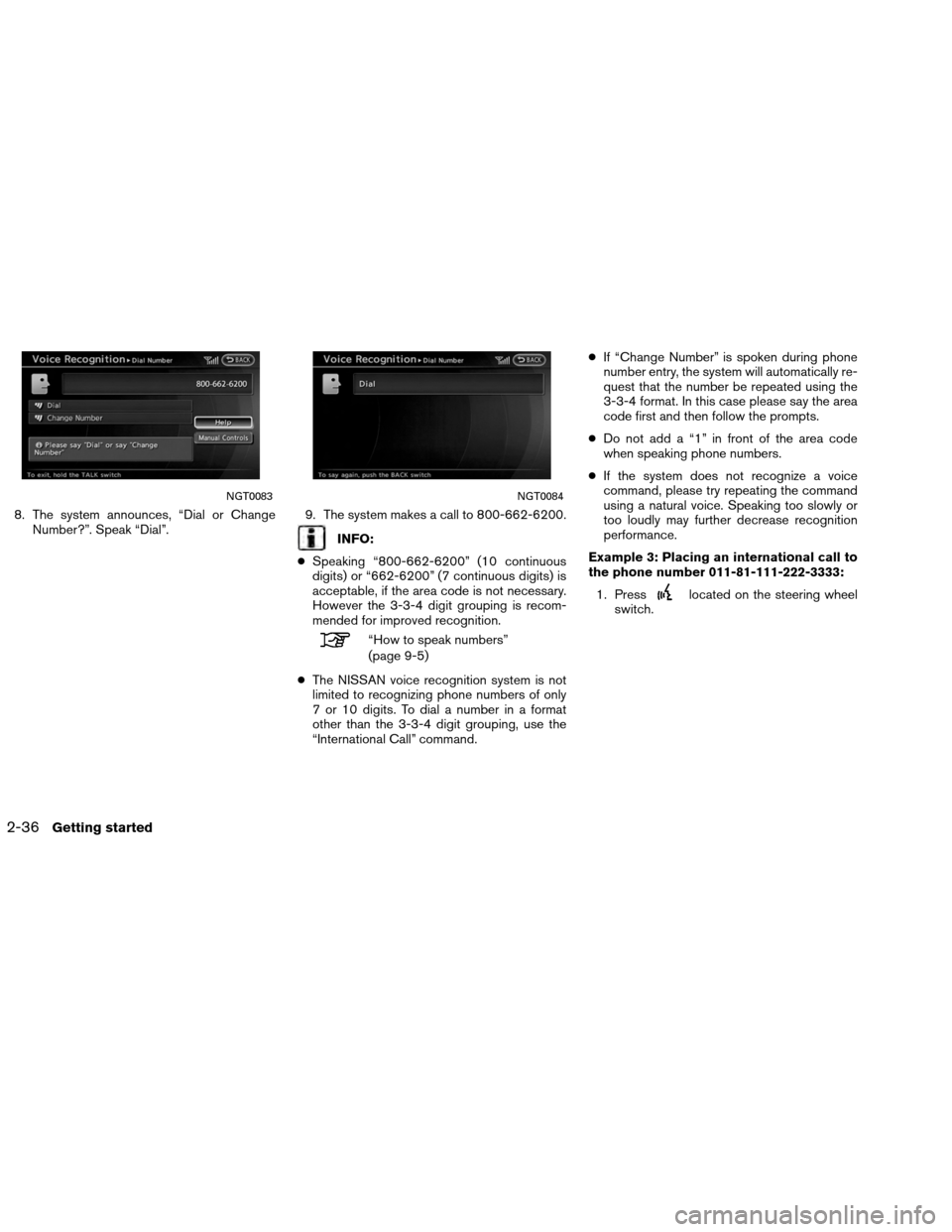

8. The system announces, “Dial or ChangeNumber?”. Speak “Dial”. 9. The system makes a call to 800-662-6200.
INFO:
● Speaking “800-662-6200” (10 continuous
digits) or “662-6200” (7 continuous digits) is
acceptable, if the area code is not necessary.
However the 3-3-4 digit grouping is recom-
mended for improved recognition.
“How to speak numbers”
(page 9-5)
● The NISSAN voice recognition system is not
limited to recognizing phone numbers of only
7 or 10 digits. To dial a number in a format
other than the 3-3-4 digit grouping, use the
“International Call” command. ●
If “Change Number” is spoken during phone
number entry, the system will automatically re-
quest that the number be repeated using the
3-3-4 format. In this case please say the area
code first and then follow the prompts.
● Do not add a “1” in front of the area code
when speaking phone numbers.
● If the system does not recognize a voice
command, please try repeating the command
using a natural voice. Speaking too slowly or
too loudly may further decrease recognition
performance.
Example 3: Placing an international call to
the phone number 011-81-111-222-3333: 1. Press
located on the steering wheel
switch.
NGT0083NGT0084
2-36Getting started

2. The system announces, “Would you like toaccess Phone, Navigation, Information, Au-
dio or Help?”.
3. Speak “Phone”. 4. Speak “International Call”. 5. Speak “011811112223333”.
NGT0070NGT0079NGT0087
Getting started2-37

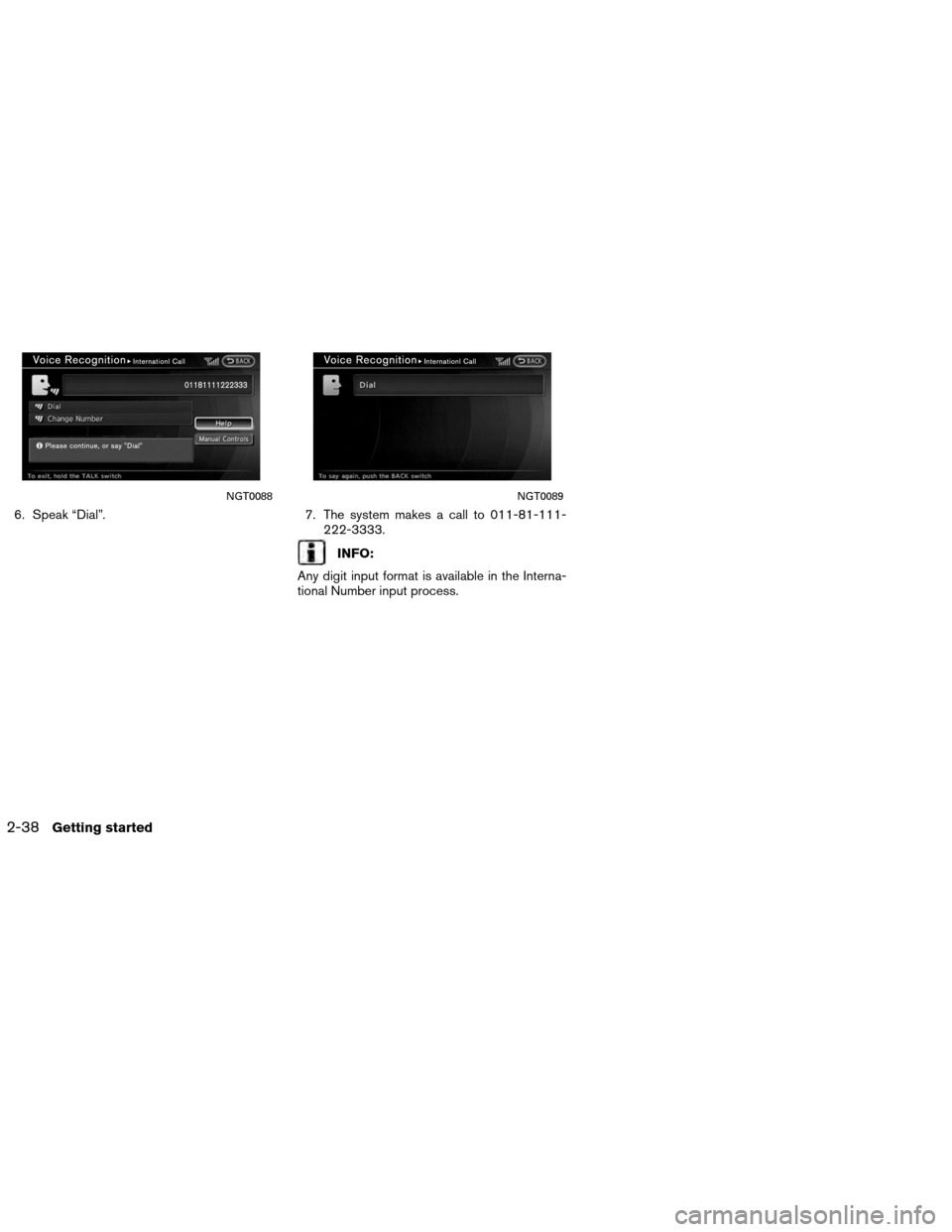

6. Speak “Dial”.7. The system makes a call to 011-81-111-
222-3333.
INFO:
Any digit input format is available in the Interna-
tional Number input process.
NGT0088NGT0089
2-38Getting started

3 Map settings
Map types........................................3-2
2Dmap .......................................3-2
Birdview ™ (3D) map ............................3-3
Building graphics . . . ............................3-3
Displaying the current vehicle location ...............3-5
Operation with buttons on control panel ...........3-5
Operating with the touch operation ...............3-5
Moving a map .....................................3-6
2Dmap .......................................3-6
Birdview™ (3D) map ............................3-7
Changing the scale of a map ........................3-9
Map scale .....................................3-9
Changing the map view ........................... 3-11
Available views ................................ 3-12Other settings
................................. 3-13
Setting the map view .............................. 3-13
Basic operation ............................... 3-14
Setting the map orientation .....................3-15
Setting the long range map view ................3-17
Setting the map color .......................... 3-18
Changing the Birdview™ angle ..................3-19
Setting the left screen display ...................3-20
Looking at information on the map ..................3-21
Displaying map icons .......................... 3-21
Map scrolling information .......................3-23
Map symbols .................................. 3-24
Road color .................................... 3-27
Traffic information on map ......................3-27

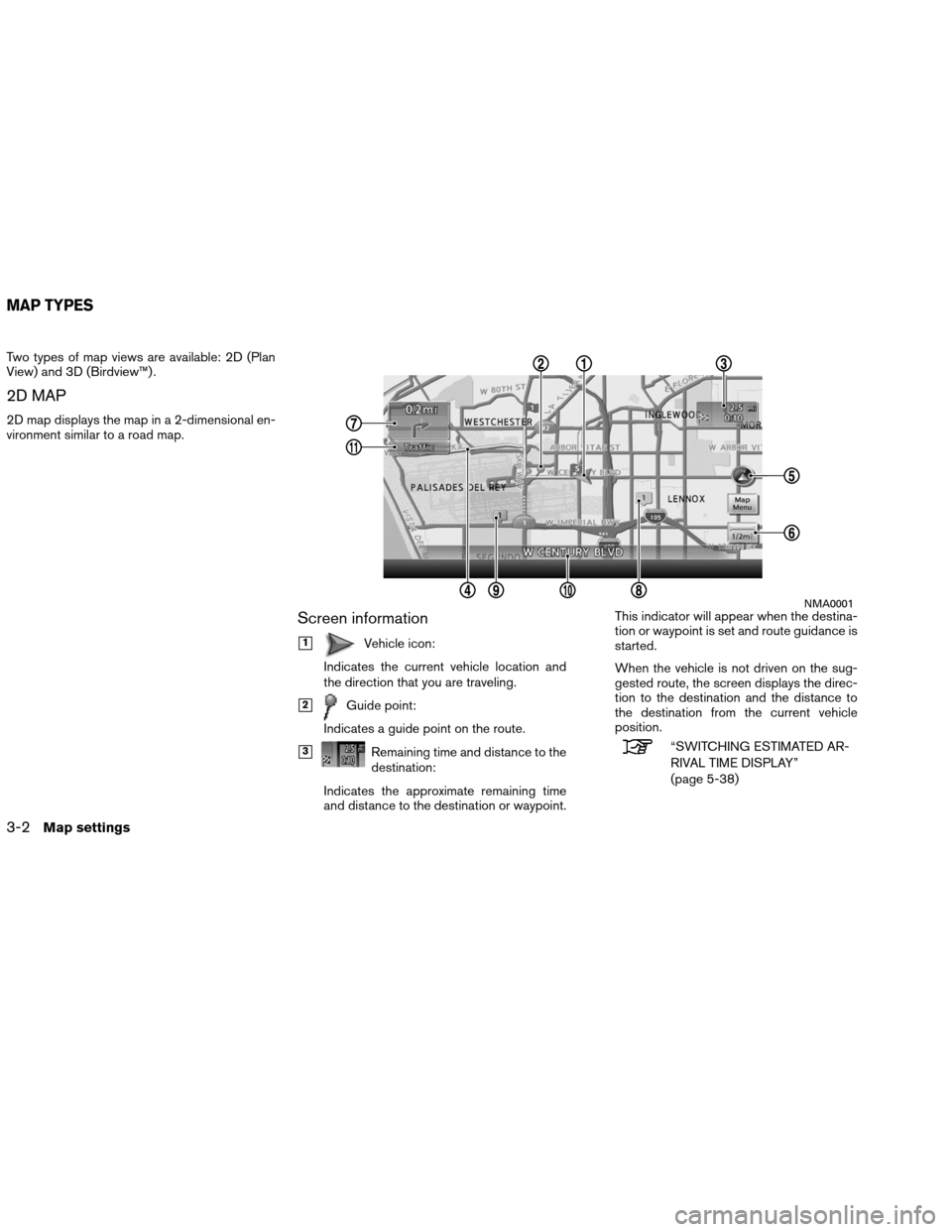

Two types of map views are available: 2D (Plan
View) and 3D (Birdview™) .
2D MAP
2D map displays the map in a 2-dimensional en-
vironment similar to a road map.
Screen information
1Vehicle icon:
Indicates the current vehicle location and
the direction that you are traveling.
2Guide point:
Indicates a guide point on the route.
3Remaining time and distance to the
destination:
Indicates the approximate remaining time
and distance to the destination or waypoint. This indicator will appear when the destina-
tion or waypoint is set and route guidance is
started.
When the vehicle is not driven on the sug-
gested route, the screen displays the direc-
tion to the destination and the distance to
the destination from the current vehicle
position.“SWITCHING ESTIMATED AR-
RIVAL TIME DISPLAY”
(page 5-38)
NMA0001
MAP TYPES
3-2Map settings

4Suggested route:Appears in bold yellow during route
guidance.
5/Direction indicator:
Indicates the setting of the map: north al-
ways pointing up or the vehicle’s direction
always pointing up on the display. Touch the
icon to change this setting.
“SETTING THE MAP ORIENTA-
TION” (page 3-15)
6Scale indicator:
Indicates the scale of the map.
Touch the icon to display the scale bar. This
allows the map scale to be adjusted.
“OPERATING WITH THE
TOUCH OPERATION”
(page 3-5)
7Arrow and distance:
Indicates the distance to the next guide
point and the turning direction at that guide
point.
8Stored Location (orange) :
Displays the locations that are stored in the
Address Book. Icons can be changed ac-
cording to personal preferences.
9Avoid Area (green or blue) :
Displays the areas to avoid that are stored
in the Address Book with green or blue
icons. During the route search, the route
guidance is performed by searching for a
route that avoids those areas.
10Street name: Displays the name of the street the vehicle
is currently driving on.
11Traffic indicator:Displays the reception condition of traffic
information transmitted from the provider.
Green: Reception condition is good.
Gray: Reception condition is not good.
No mark: Subscription to NavTraffic service
is not detected.
Birdview ™ (3D) MAP
Birdview ™ displays the map from an elevated
perspective. In Birdview ™, it is easy to recognize
an image of the route because it provides a pan-
oramic view over a long distance.
INFO:
About the Birdview ™ display
● “Birdview ™” is a registered trademark of
Clarion Co., Ltd.
● The map in Birdview ™ always appears with
the current forward direction facing up.
BUILDING GRAPHICS
In the area where the building graphics are
stored in the map data, the building graphics are
displayed when the map is zoomed in. On the
2D map display, these are called “Building foot-
print graphics”, and on the Birdview™ display,
these are called “3D building graphics”.
The method to look at the map is the same for
the 2D and Birdview™ maps.
NMA0002
Map settings3-3

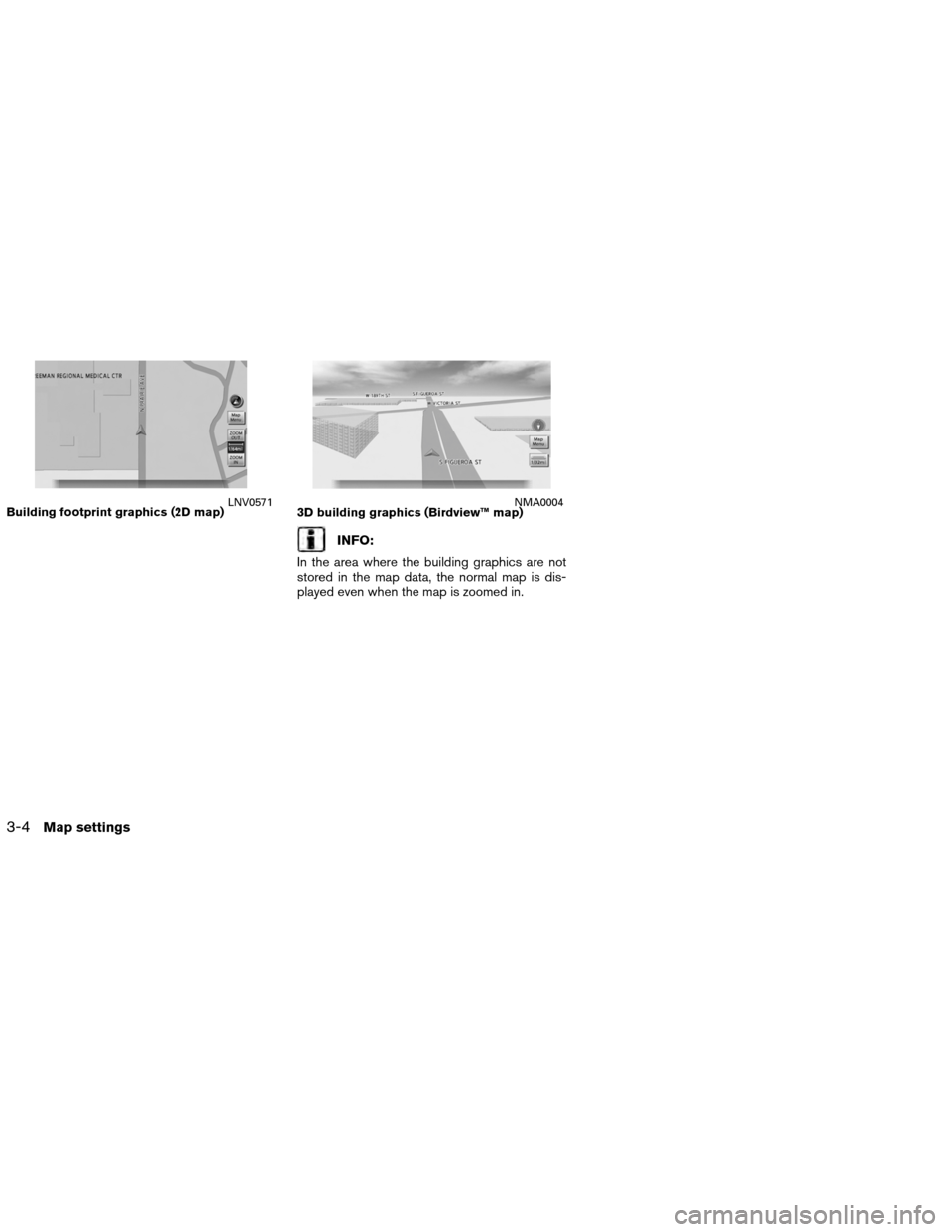

INFO:
In the area where the building graphics are not
stored in the map data, the normal map is dis-
played even when the map is zoomed in.
Building footprint graphics (2D map)LNV05713D building graphics (Birdview™ map)NMA0004
3-4Map settings

OPERATION WITH BUTTONS ON
CONTROL PANEL
The basic map screen displays the current loca-
tion (the position where the vehicle mark is
located) . Press MAP to display the current loca-
tion on the map while on any screen.
INFO:
Depending on the menu selected, pressing MAP
may not return the display to the current location
map screen.
OPERATING WITH THE TOUCH OP-
ERATION
After moving the map, touch “Back” on the map
screen to display the current location map
screen.
NMA0005NMA0006
DISPLAYING THE CURRENT VEHICLE
LOCATION
Map settings3-5
