Page 391 of 422

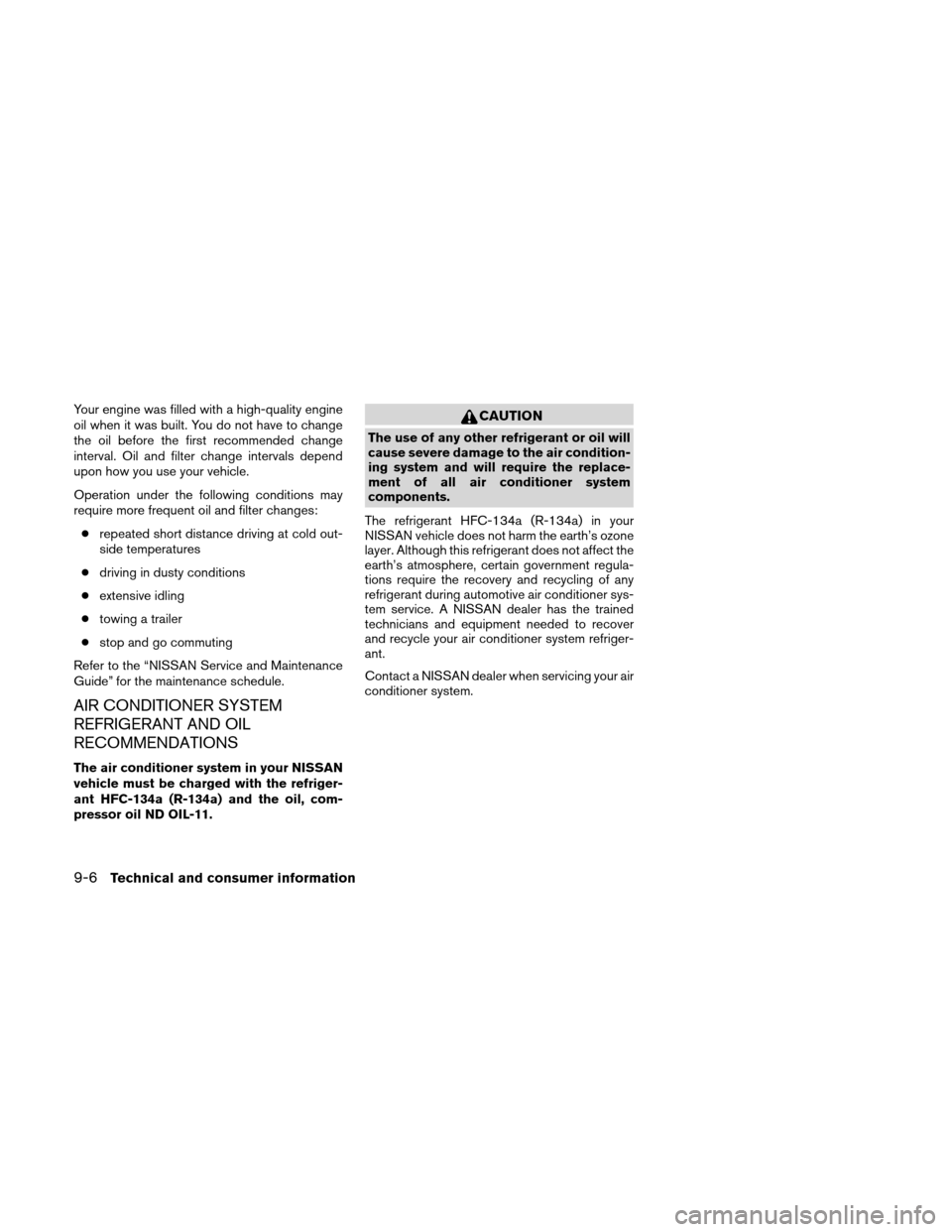

NISSAN ALTIMA HYBRID 2010 L32A / 4.G Owners Manual Your engine was filled with a high-quality engine
oil when it was built. You do not have to change
the oil before the first recommended change
interval. Oil and filter change intervals depend
upon how

Page 392 of 422

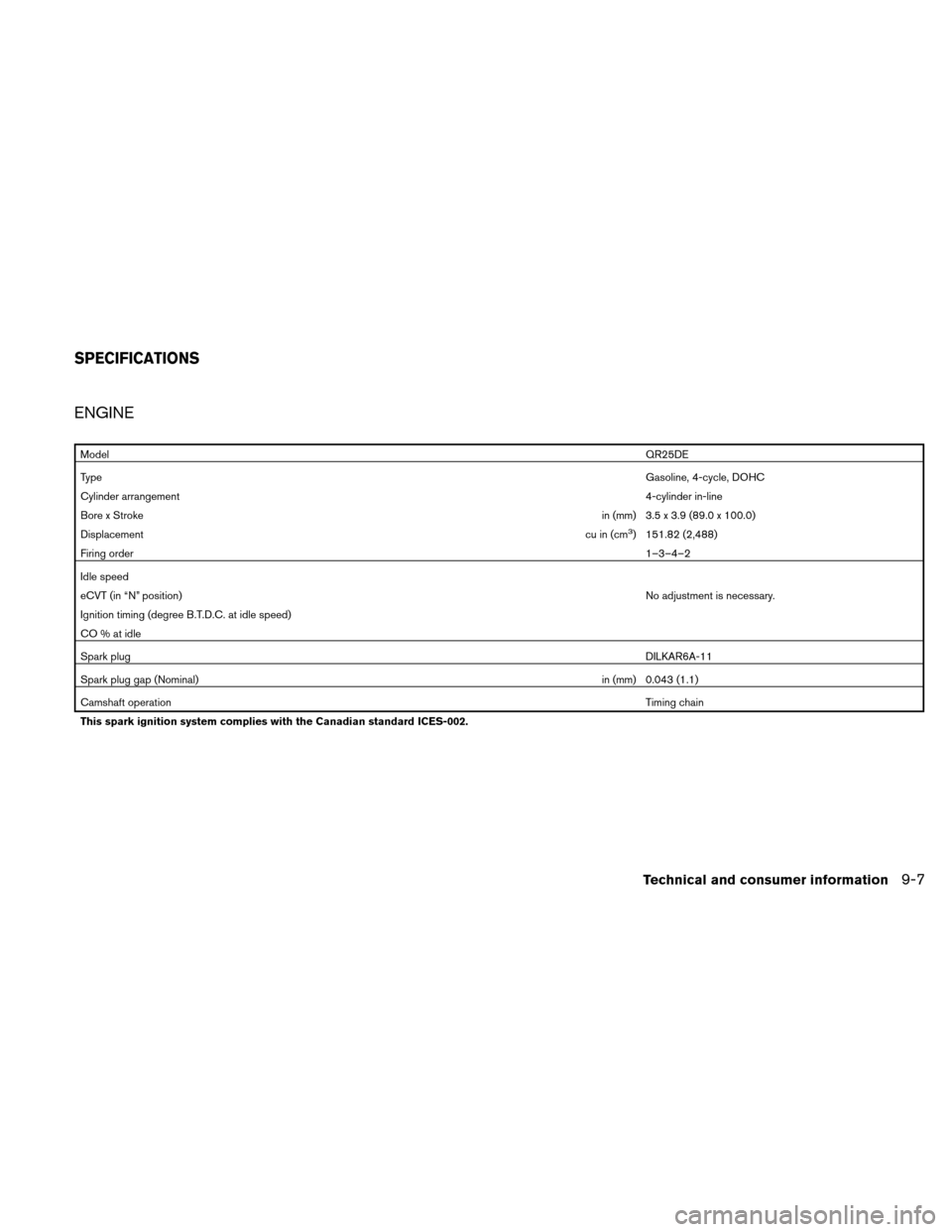

NISSAN ALTIMA HYBRID 2010 L32A / 4.G Owners Manual ENGINE
ModelQR25DE
Type Gasoline, 4-cycle, DOHC
Cylinder arrangement 4-cylinder in-line
Bore x Stroke in (mm) 3.5 x 3.9 (89.0 x 100.0)
Displacement cu in (cm
3) 151.82 (2,488)
Firing order 1–3–4

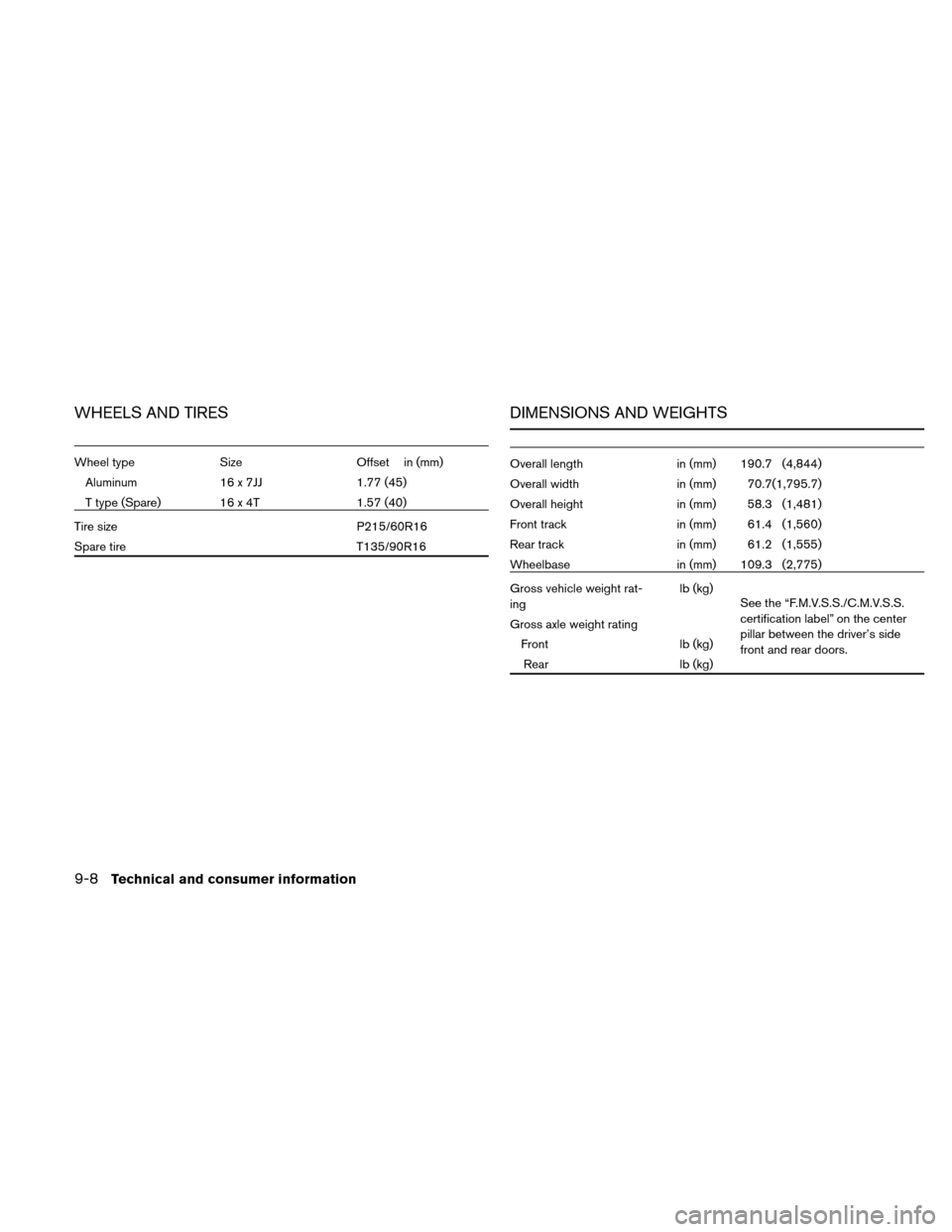

Page 393 of 422

NISSAN ALTIMA HYBRID 2010 L32A / 4.G Owners Manual WHEELS AND TIRES
Wheel typeSizeOffset in (mm)
Aluminum 16 x 7JJ 1.77 (45)
T type (Spare) 16 x 4T 1.57 (40)
Tire size P215/60R16
Spare tire T135/90R16
DIMENSIONS AND WEIGHTS
Overall lengthin (mm) 190.7

Page 394 of 422

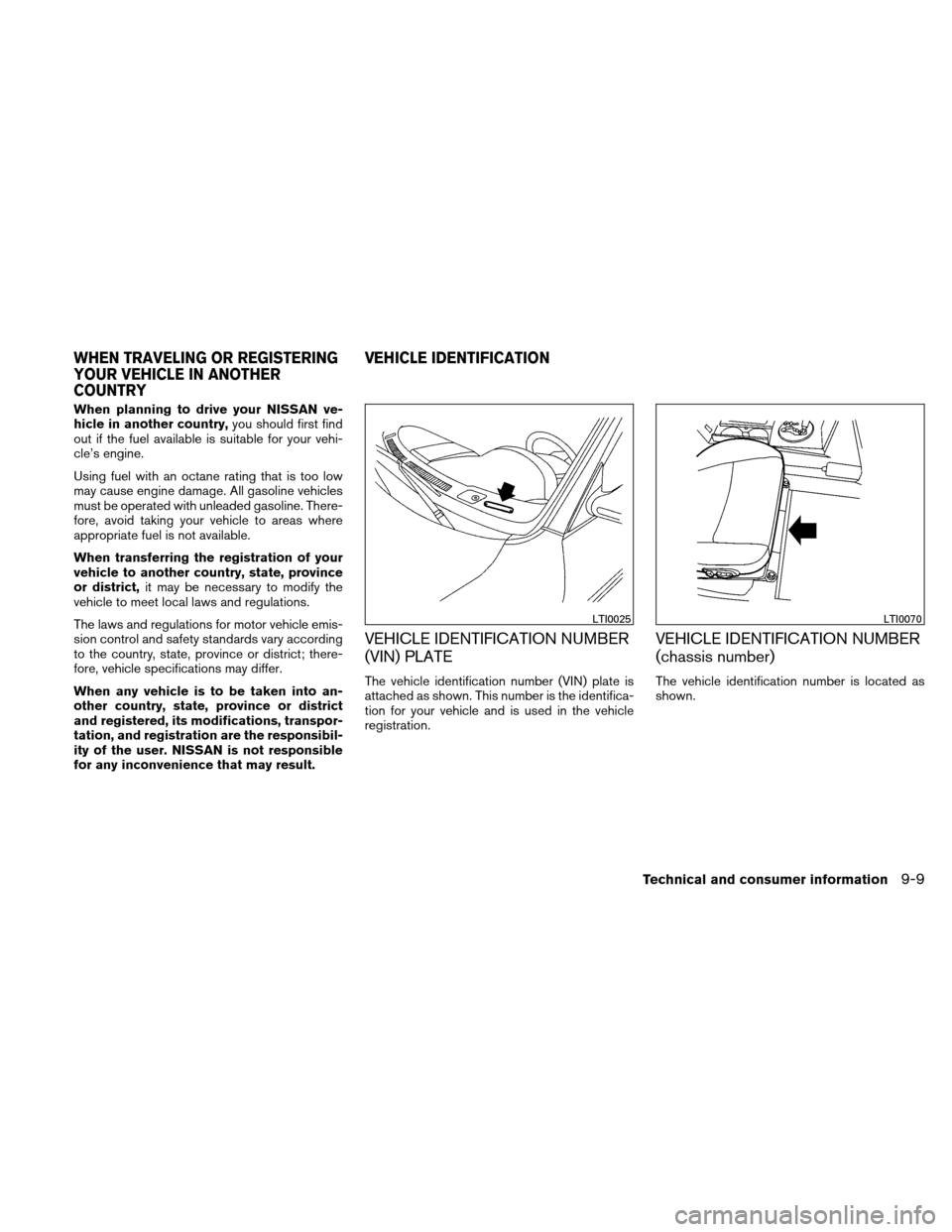

NISSAN ALTIMA HYBRID 2010 L32A / 4.G Owners Manual When planning to drive your NISSAN ve-
hicle in another country,you should first find
out if the fuel available is suitable for your vehi-
cle’s engine.
Using fuel with an octane rating that is too

Page 395 of 422

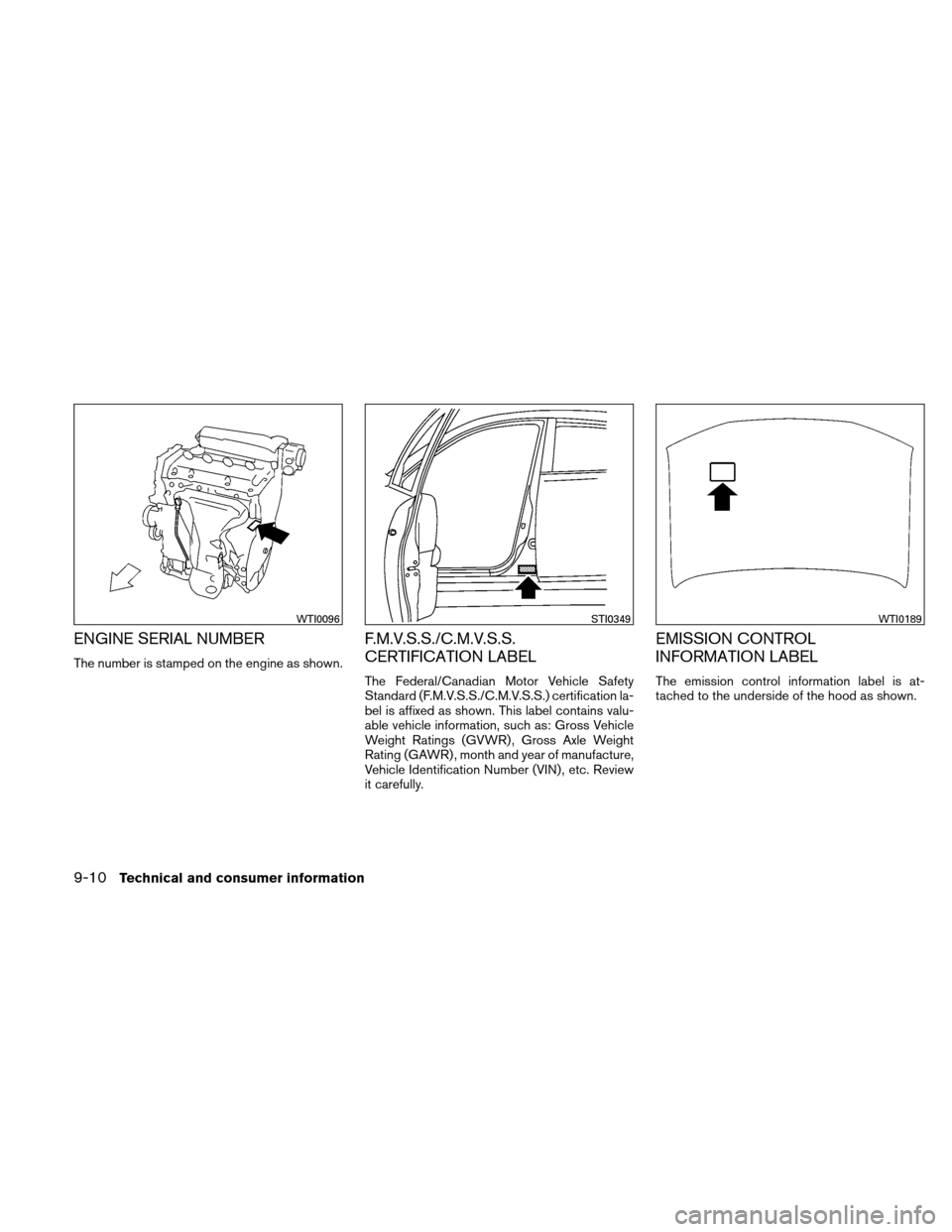

NISSAN ALTIMA HYBRID 2010 L32A / 4.G Owners Manual ENGINE SERIAL NUMBER
The number is stamped on the engine as shown.
F.M.V.S.S./C.M.V.S.S.
CERTIFICATION LABEL
The Federal/Canadian Motor Vehicle Safety
Standard (F.M.V.S.S./C.M.V.S.S.) certification la

Page 396 of 422

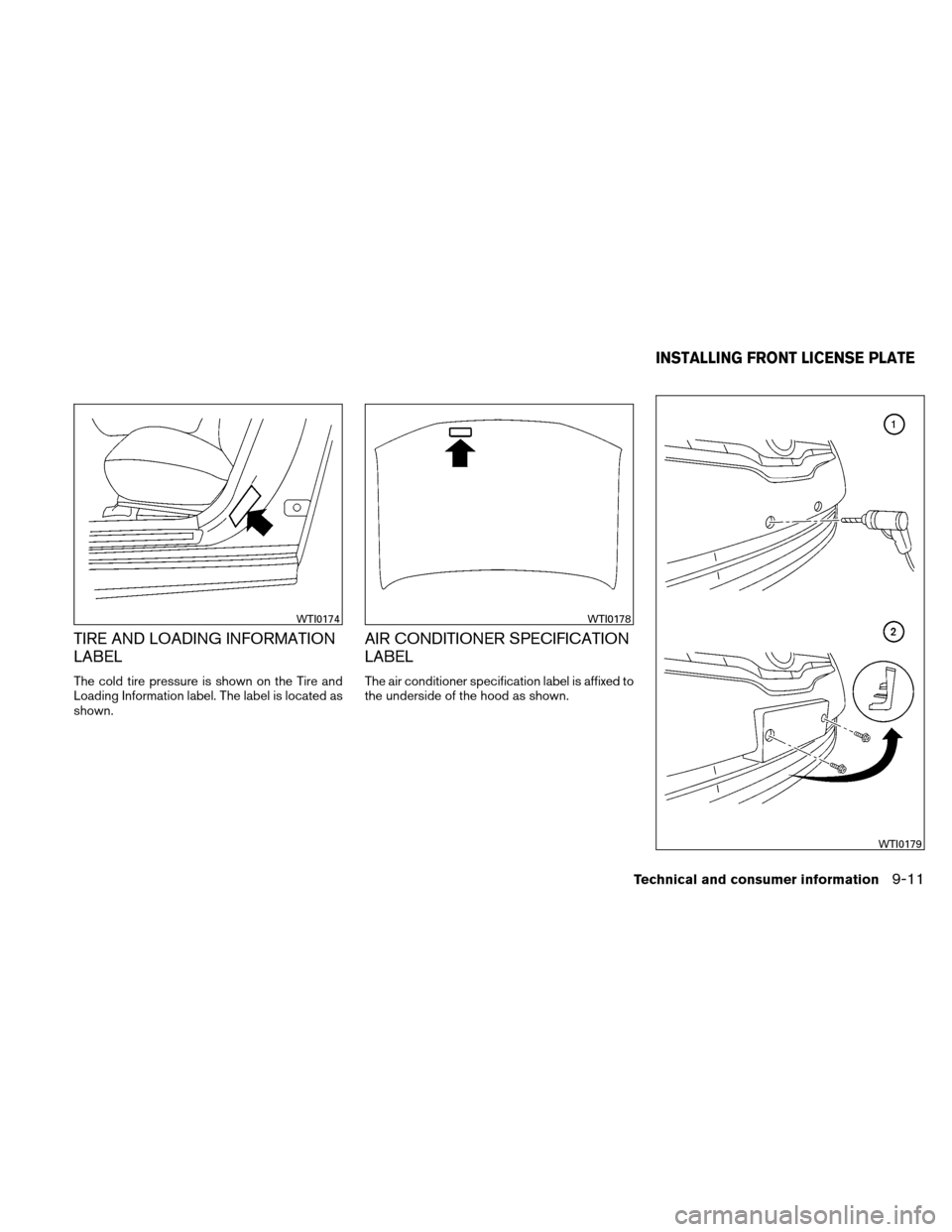

NISSAN ALTIMA HYBRID 2010 L32A / 4.G Owners Manual TIRE AND LOADING INFORMATION
LABEL
The cold tire pressure is shown on the Tire and
Loading Information label. The label is located as
shown.
AIR CONDITIONER SPECIFICATION
LABEL
The air conditioner spe

Page 397 of 422

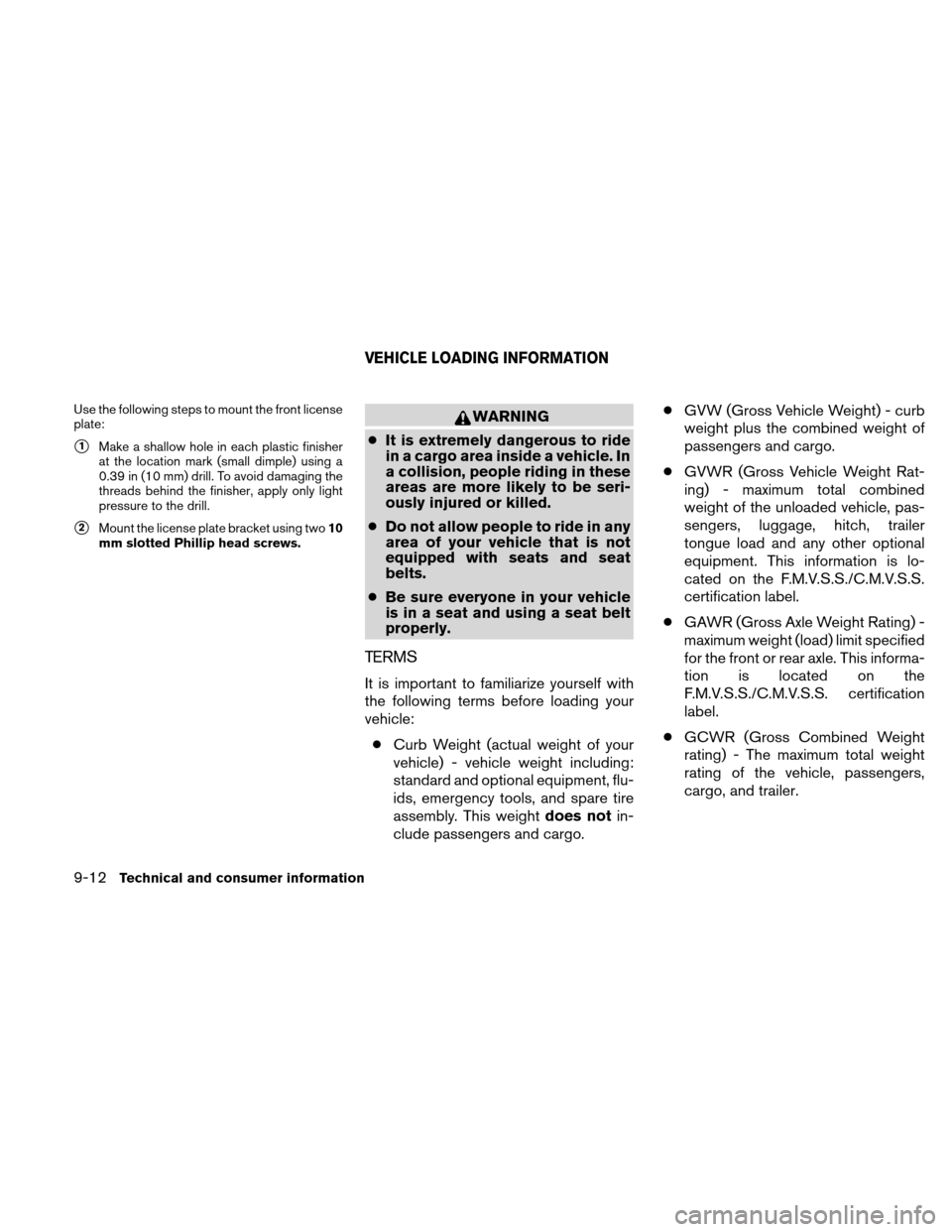

NISSAN ALTIMA HYBRID 2010 L32A / 4.G Owners Manual Use the following steps to mount the front license
plate:
1Make a shallow hole in each plastic finisher
at the location mark (small dimple) using a
0.39 in (10 mm) drill. To avoid damaging the
thread

Page 398 of 422

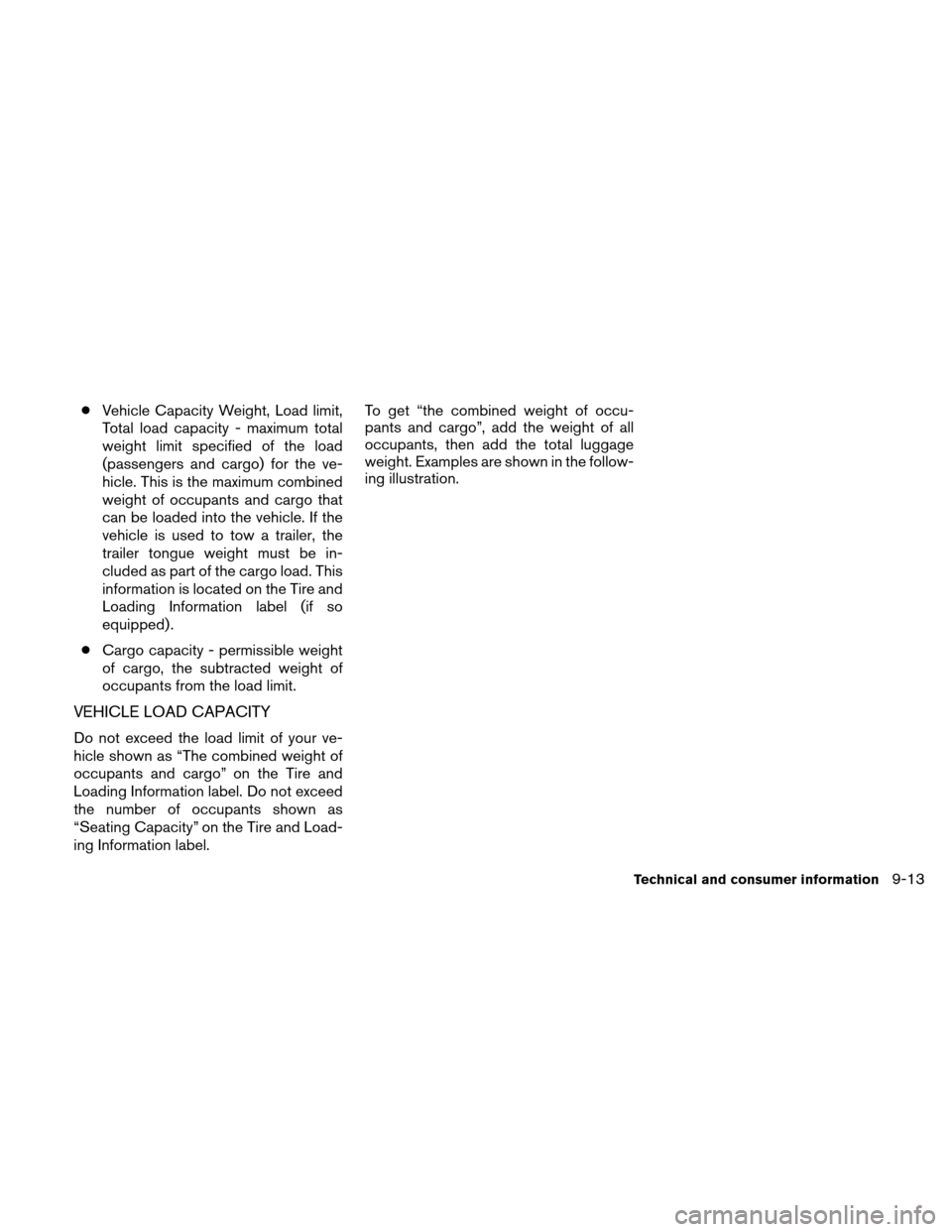

NISSAN ALTIMA HYBRID 2010 L32A / 4.G Owners Manual ●Vehicle Capacity Weight, Load limit,
Total load capacity - maximum total
weight limit specified of the load
(passengers and cargo) for the ve-
hicle. This is the maximum combined
weight of occupant

Page 399 of 422

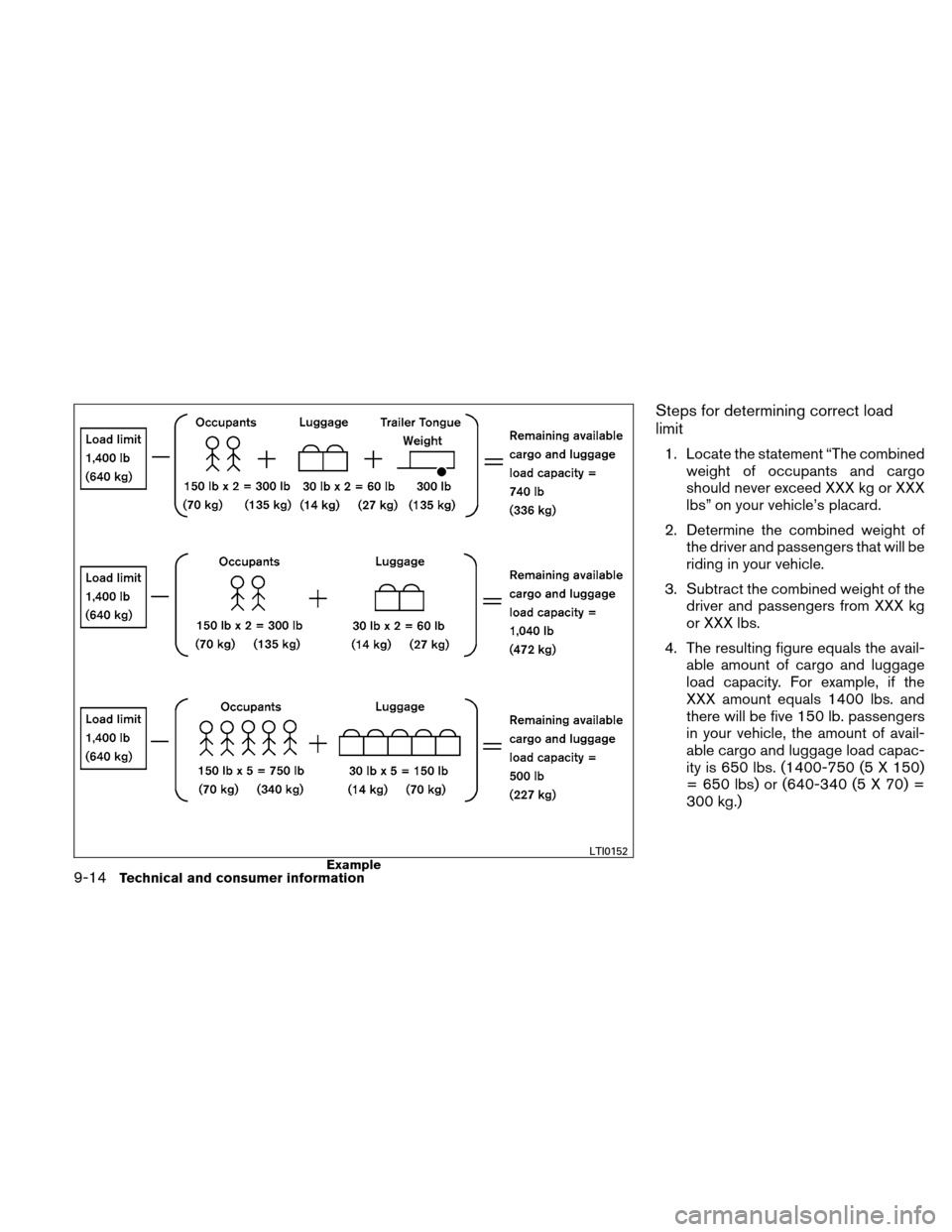

NISSAN ALTIMA HYBRID 2010 L32A / 4.G Owners Manual Steps for determining correct load
limit
1. Locate the statement “The combinedweight of occupants and cargo
should never exceed XXX kg or XXX
lbs” on your vehicle’s placard.
2. Determine the com

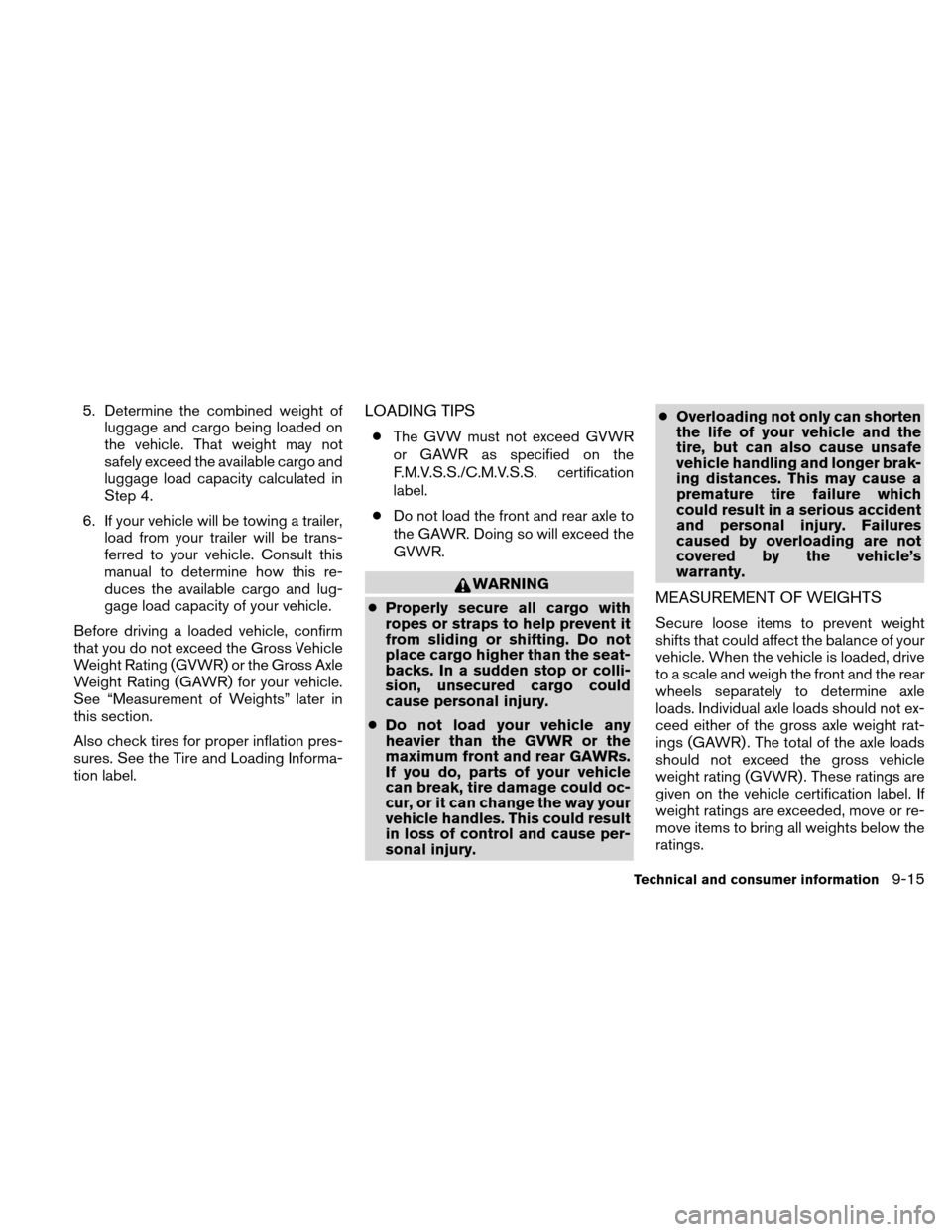

Page 400 of 422

NISSAN ALTIMA HYBRID 2010 L32A / 4.G Owners Manual 5. Determine the combined weight ofluggage and cargo being loaded on
the vehicle. That weight may not
safely exceed the available cargo and
luggage load capacity calculated in
Step 4.
6. If your vehic
