Page 401 of 422

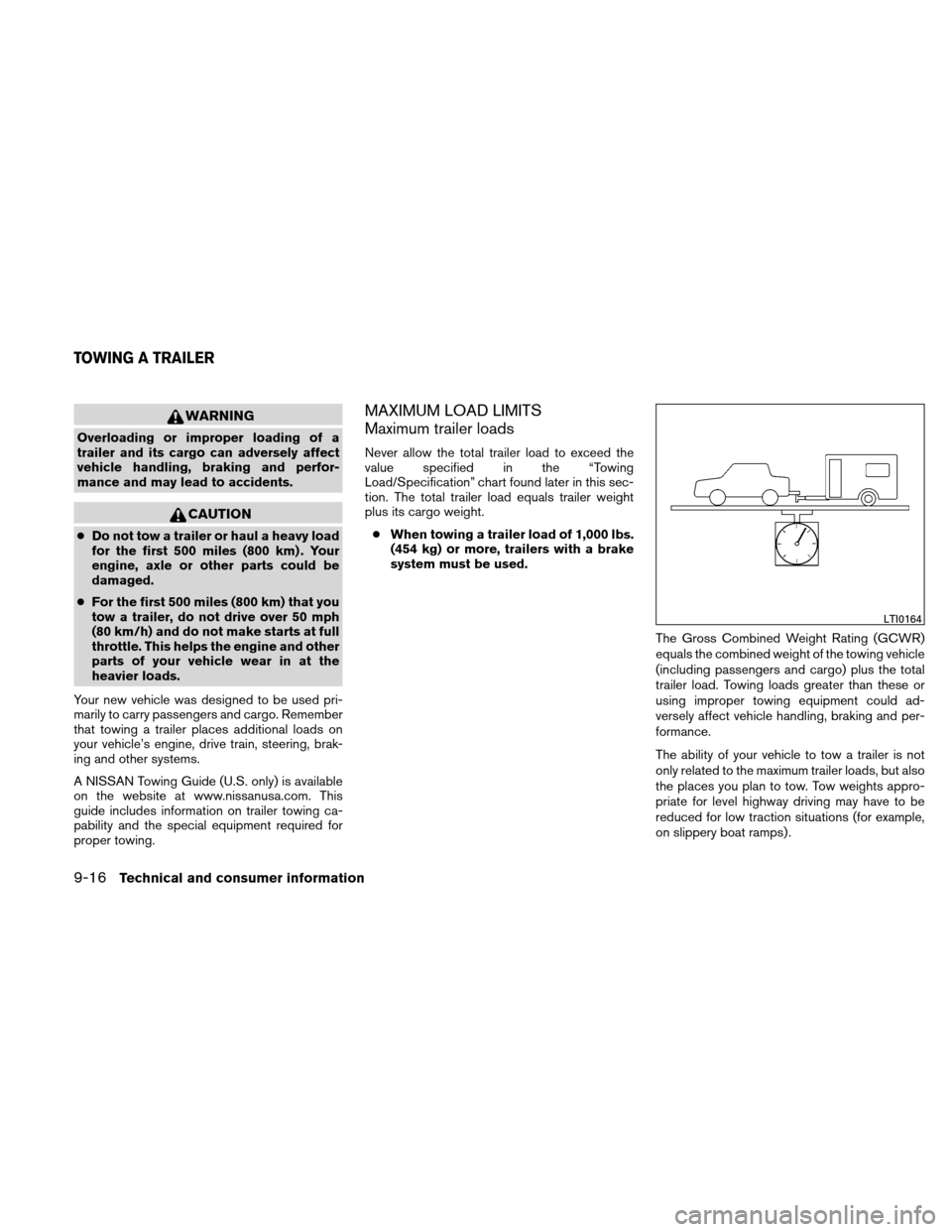

NISSAN ALTIMA HYBRID 2010 L32A / 4.G Owners Manual WARNING
Overloading or improper loading of a
trailer and its cargo can adversely affect
vehicle handling, braking and perfor-
mance and may lead to accidents.
CAUTION
●Do not tow a trailer or haul a

Page 402 of 422

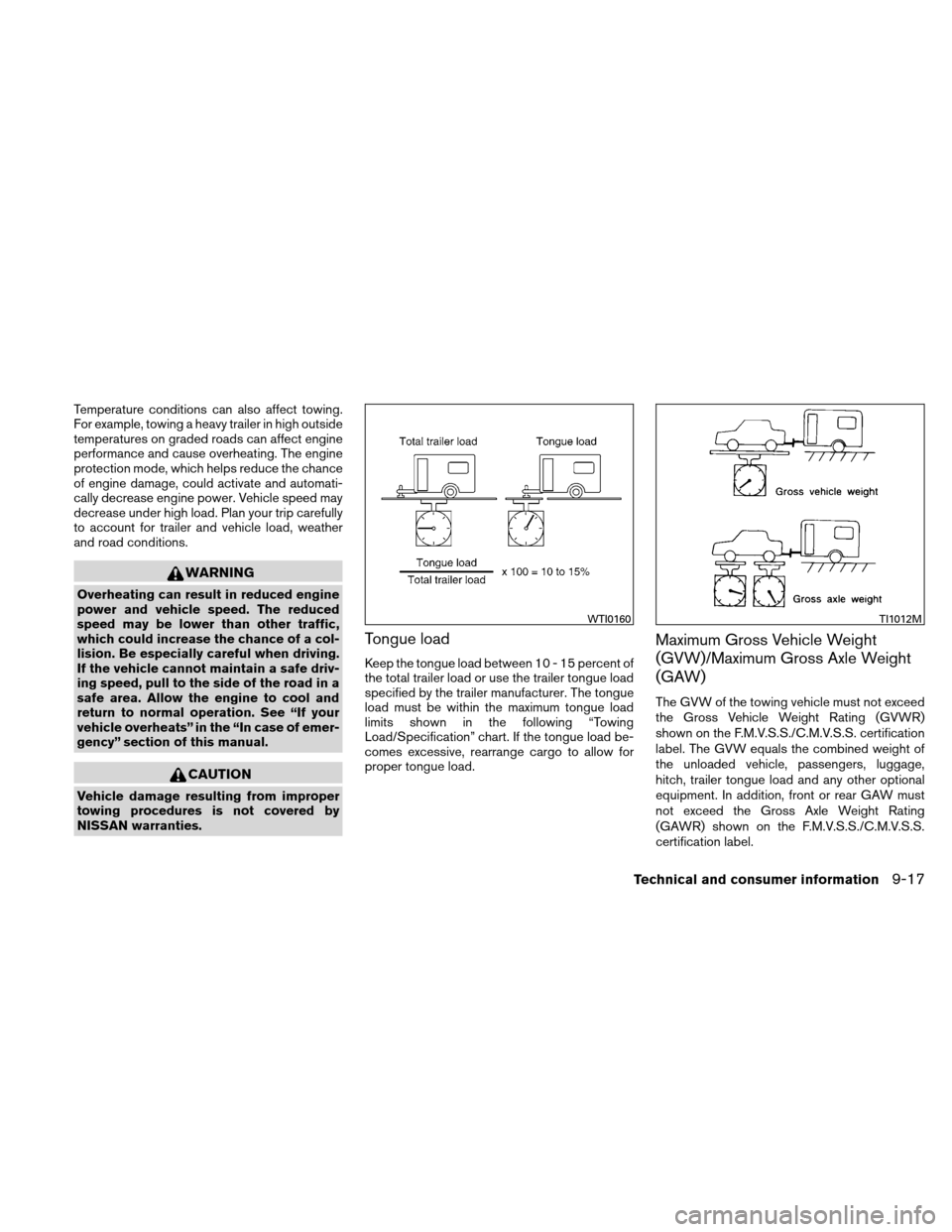

NISSAN ALTIMA HYBRID 2010 L32A / 4.G Owners Manual Temperature conditions can also affect towing.
For example, towing a heavy trailer in high outside
temperatures on graded roads can affect engine
performance and cause overheating. The engine
protecti

Page 403 of 422

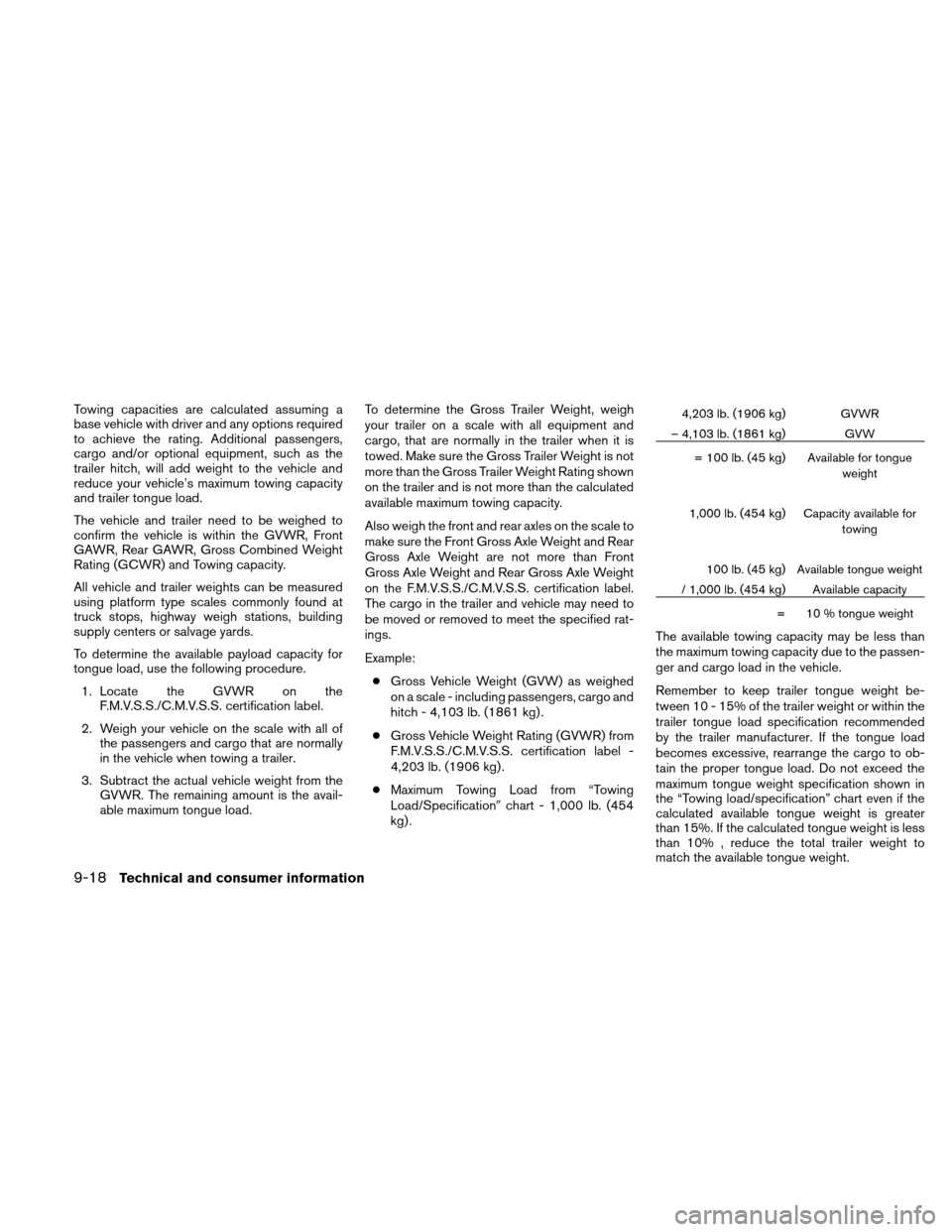

NISSAN ALTIMA HYBRID 2010 L32A / 4.G Owners Manual Towing capacities are calculated assuming a
base vehicle with driver and any options required
to achieve the rating. Additional passengers,
cargo and/or optional equipment, such as the
trailer hitch,

Page 404 of 422

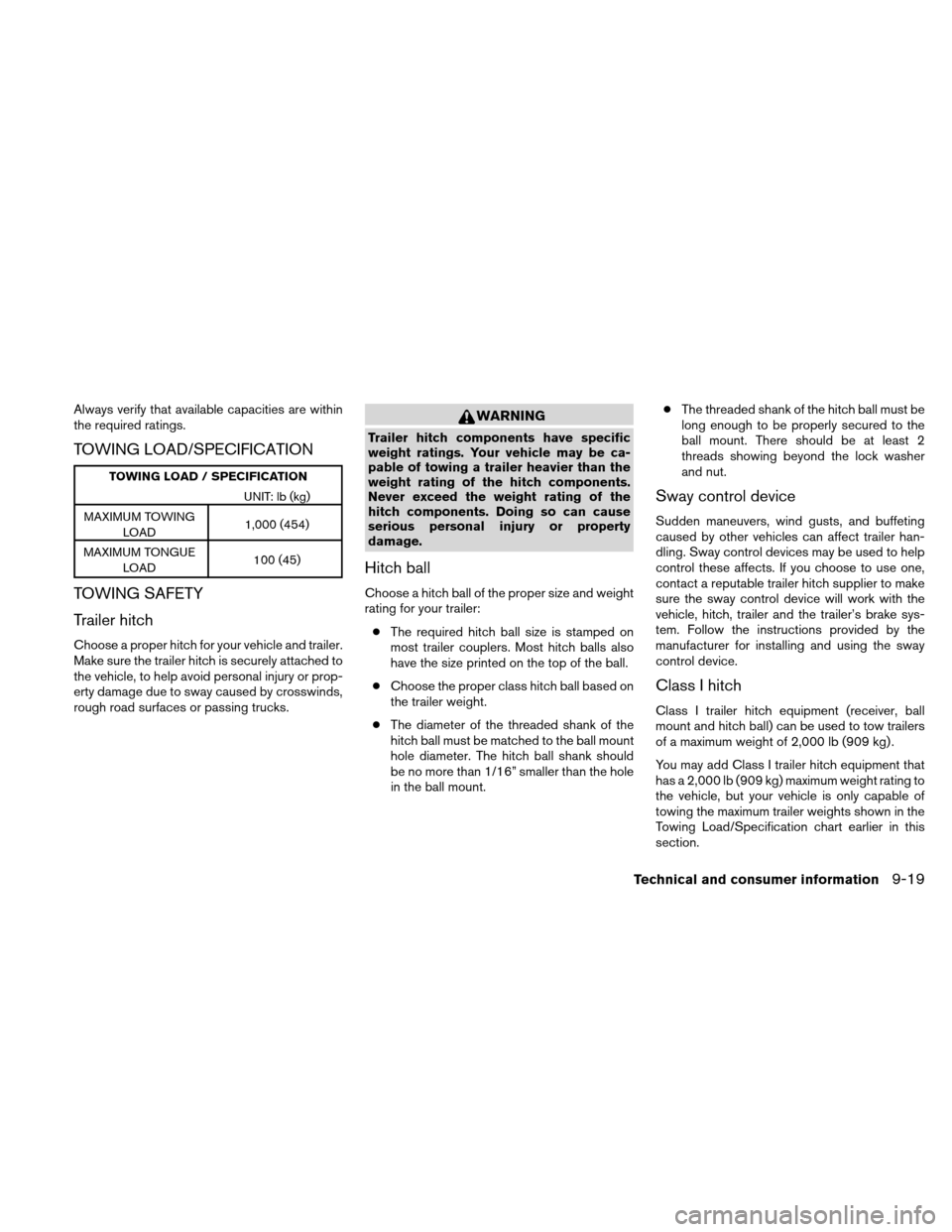

NISSAN ALTIMA HYBRID 2010 L32A / 4.G Owners Manual Always verify that available capacities are within
the required ratings.
TOWING LOAD/SPECIFICATION
TOWING LOAD / SPECIFICATIONUNIT: lb (kg)
MAXIMUM TOWING LOAD 1,000 (454)
MAXIMUM TONGUE LOAD 100 (45)

Page 405 of 422

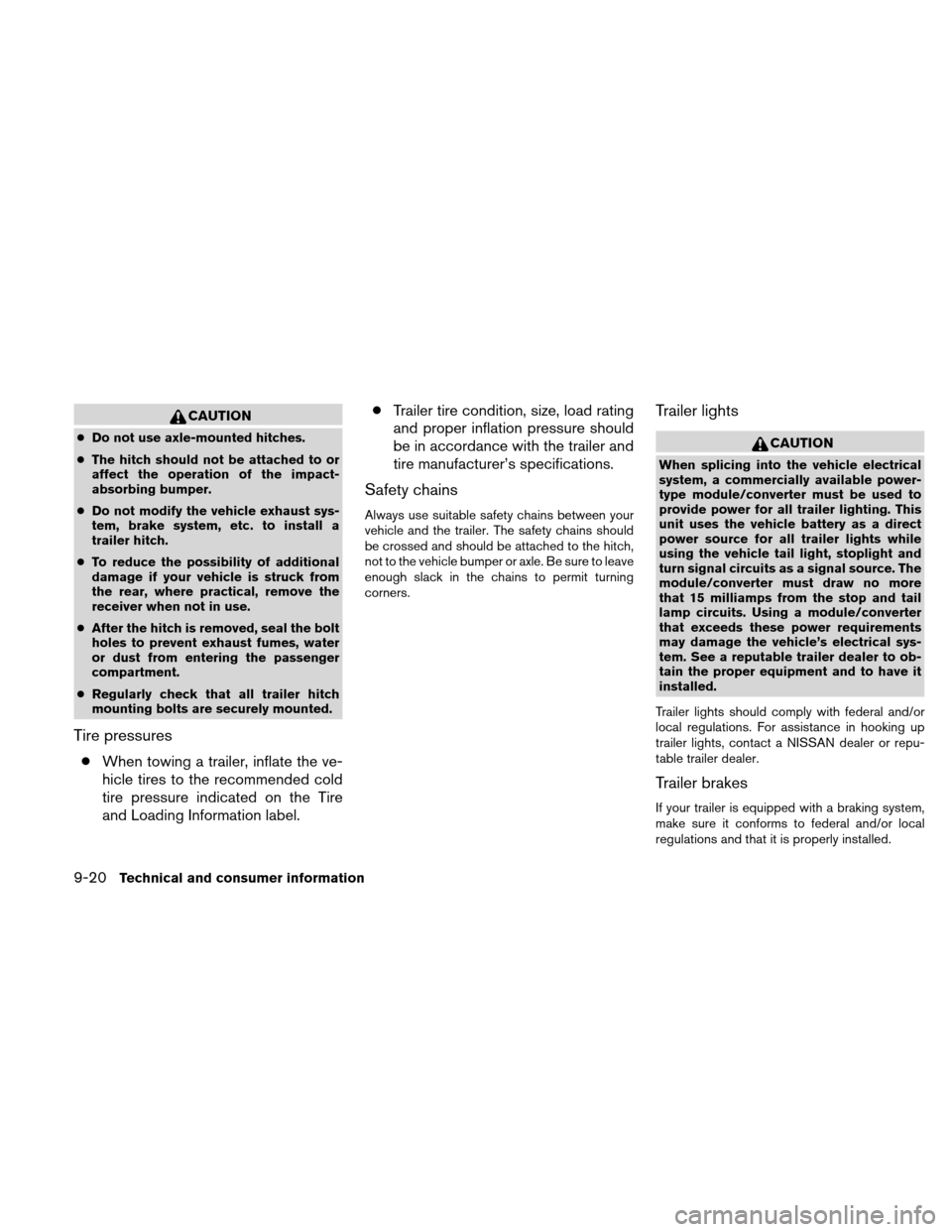

NISSAN ALTIMA HYBRID 2010 L32A / 4.G Owners Manual CAUTION
●Do not use axle-mounted hitches.
● The hitch should not be attached to or
affect the operation of the impact-
absorbing bumper.
● Do not modify the vehicle exhaust sys-
tem, brake syste

Page 406 of 422

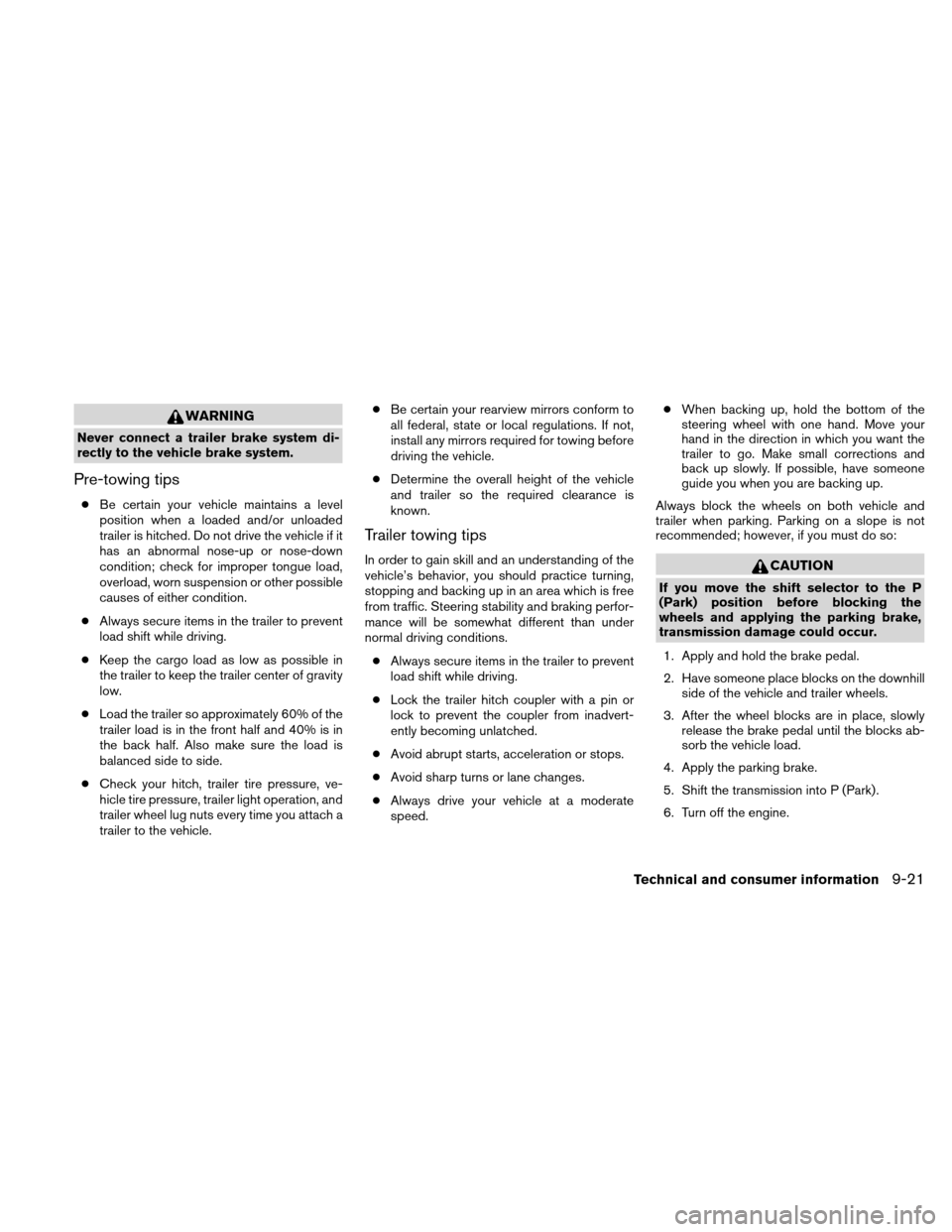

NISSAN ALTIMA HYBRID 2010 L32A / 4.G Owners Manual WARNING
Never connect a trailer brake system di-
rectly to the vehicle brake system.
Pre-towing tips
●Be certain your vehicle maintains a level
position when a loaded and/or unloaded
trailer is hitc

Page 407 of 422

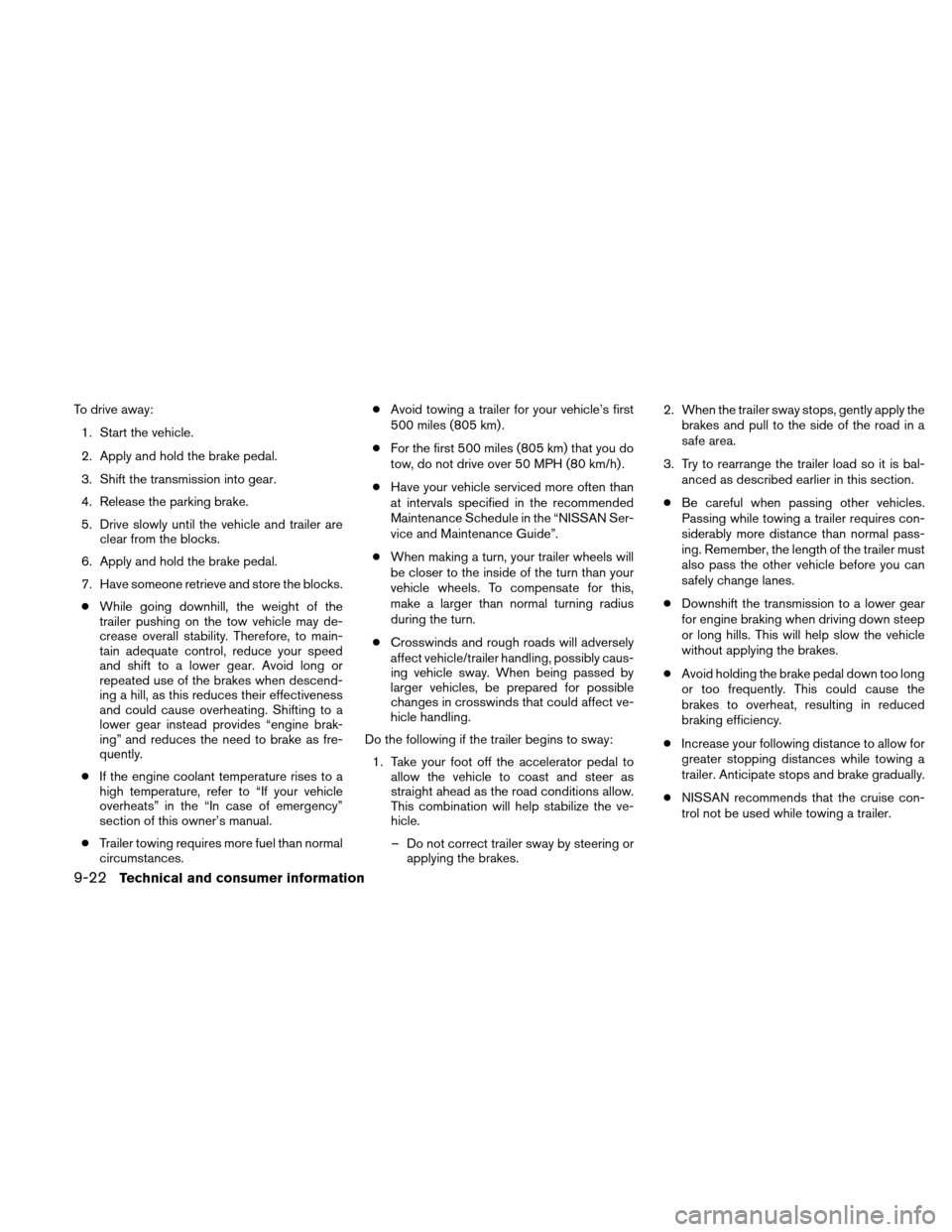

NISSAN ALTIMA HYBRID 2010 L32A / 4.G Owners Manual To drive away:1. Start the vehicle.
2. Apply and hold the brake pedal.
3. Shift the transmission into gear.
4. Release the parking brake.
5. Drive slowly until the vehicle and trailer are clear from t

Page 408 of 422

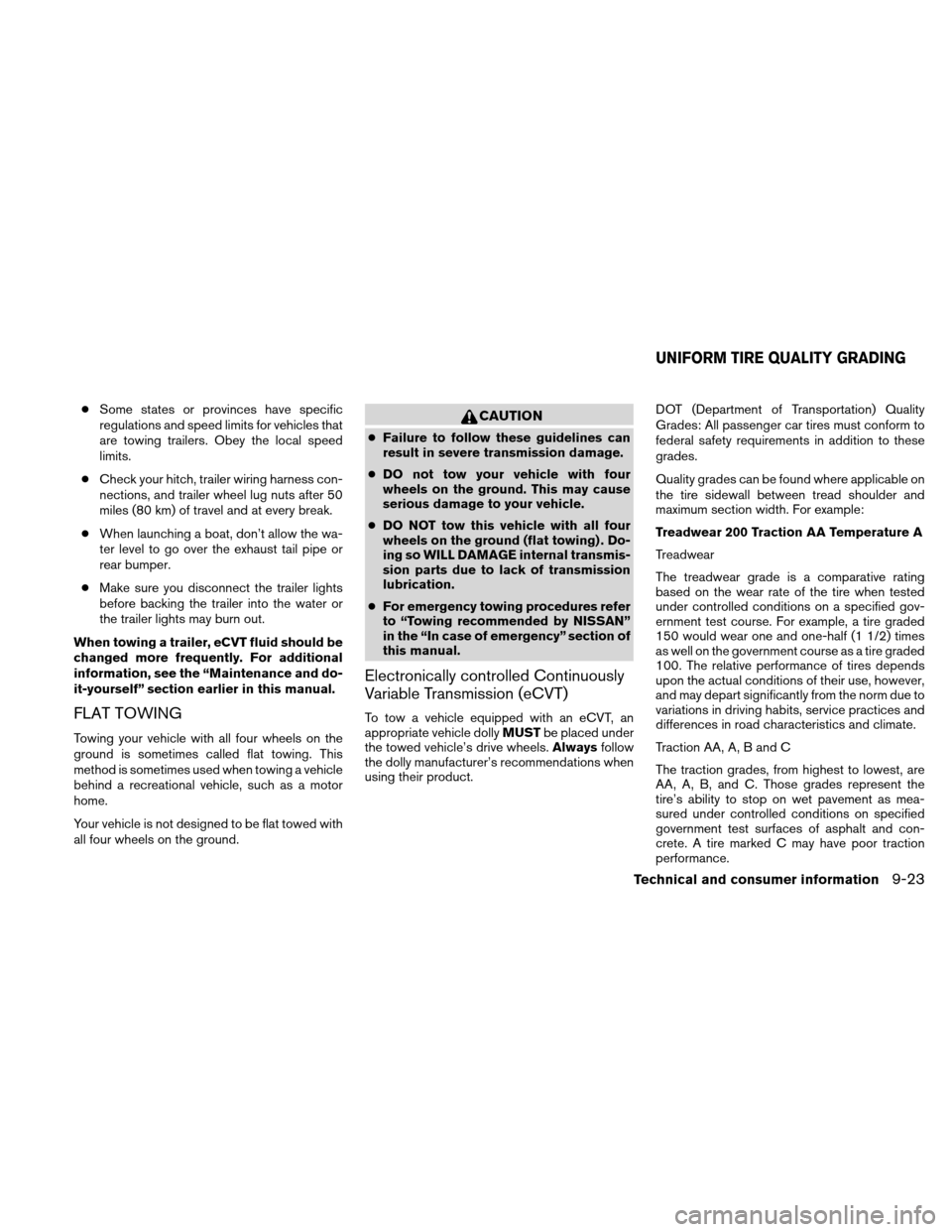

NISSAN ALTIMA HYBRID 2010 L32A / 4.G Owners Manual ●Some states or provinces have specific
regulations and speed limits for vehicles that
are towing trailers. Obey the local speed
limits.
● Check your hitch, trailer wiring harness con-
nections, a

Page 409 of 422

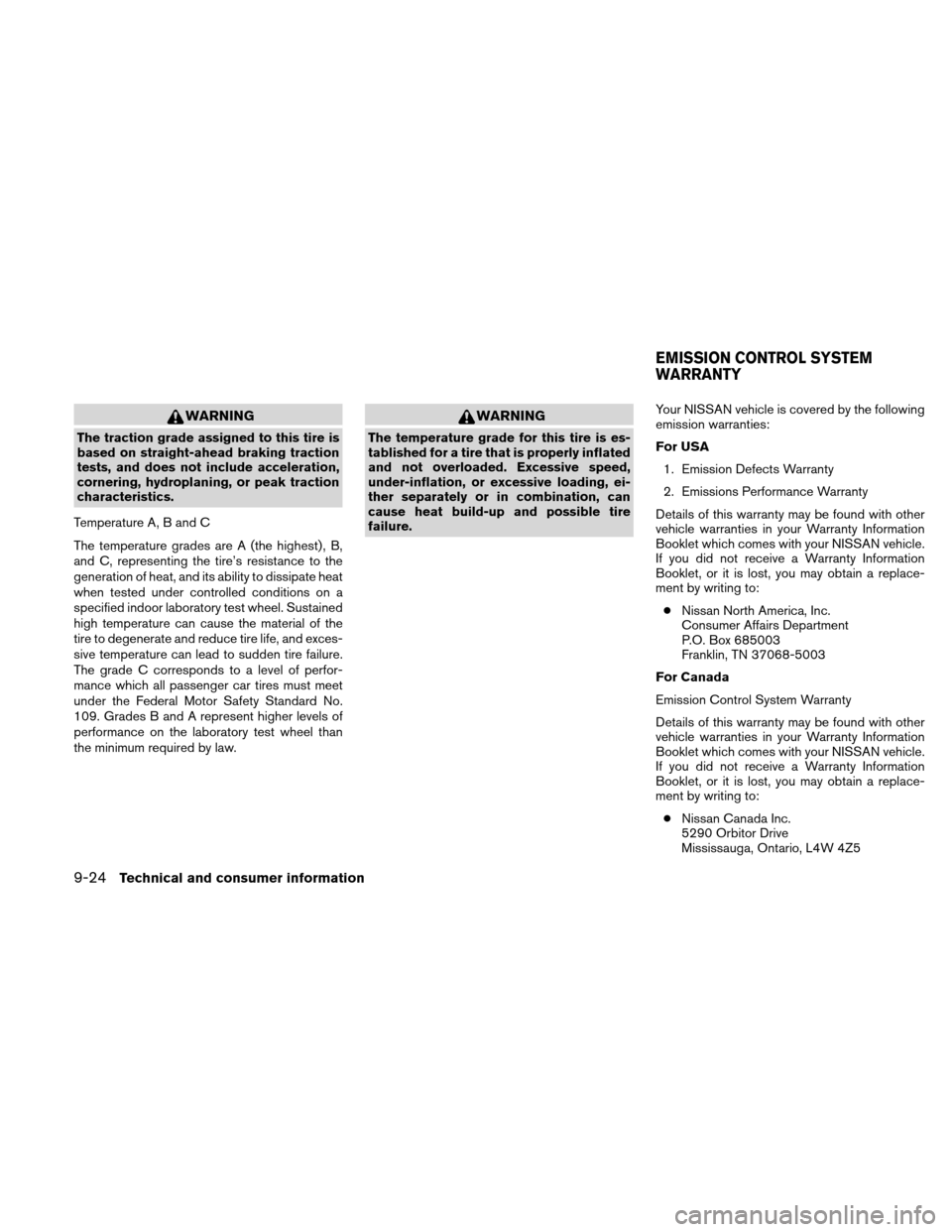

NISSAN ALTIMA HYBRID 2010 L32A / 4.G Owners Manual WARNING
The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not include acceleration,
cornering, hydroplaning, or peak traction
characteristics.
Temper

Page 410 of 422

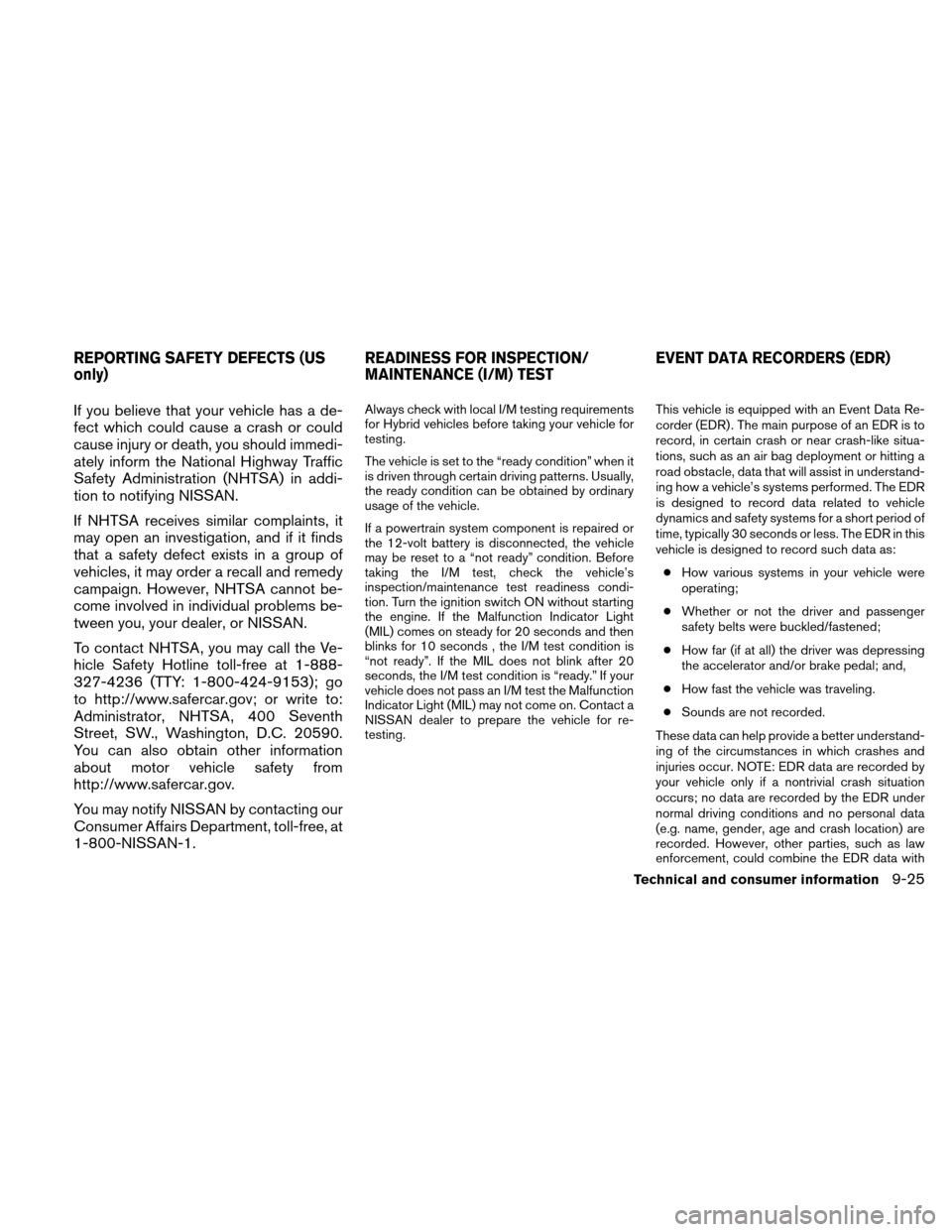

NISSAN ALTIMA HYBRID 2010 L32A / 4.G Owners Manual If you believe that your vehicle has a de-
fect which could cause a crash or could
cause injury or death, you should immedi-
ately inform the National Highway Traffic
Safety Administration (NHTSA) in
