NISSAN GT-R 2016 R35 Owners Manual


> (GLW    0RGHO 5' @

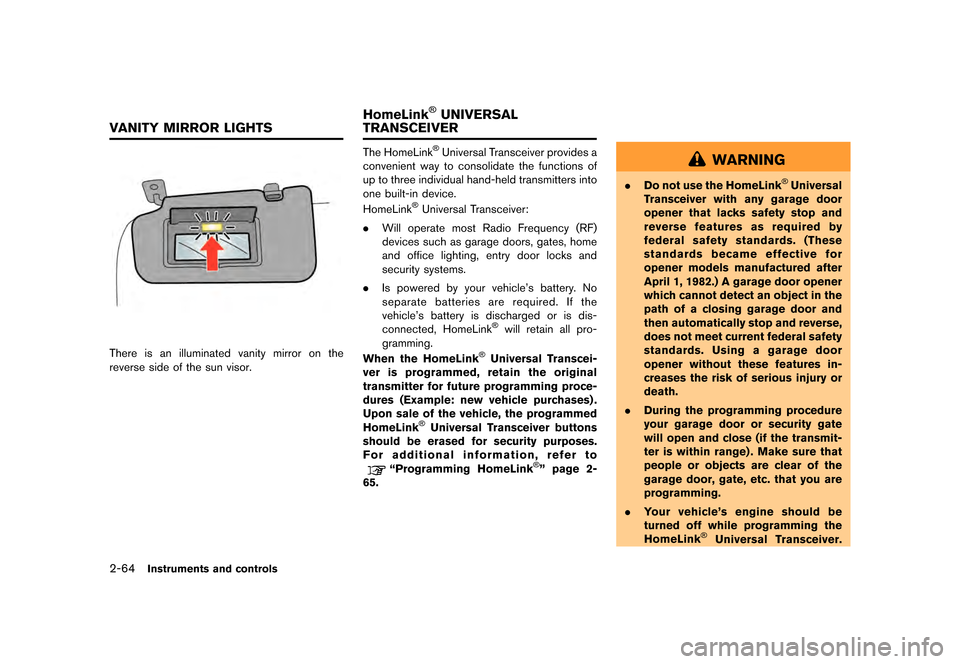

2-64Instruments and controls
There is an illuminated vanity mirror on the
reverse side of the sun visor.
The HomeLink


> (GLW    0RGHO 5' @
Do not breathe exhaust gases; they
contain colorless and odorless car-
bon monoxide. Carbon monoxide is
dangerous. It can cause uncon-
sciousness or death.

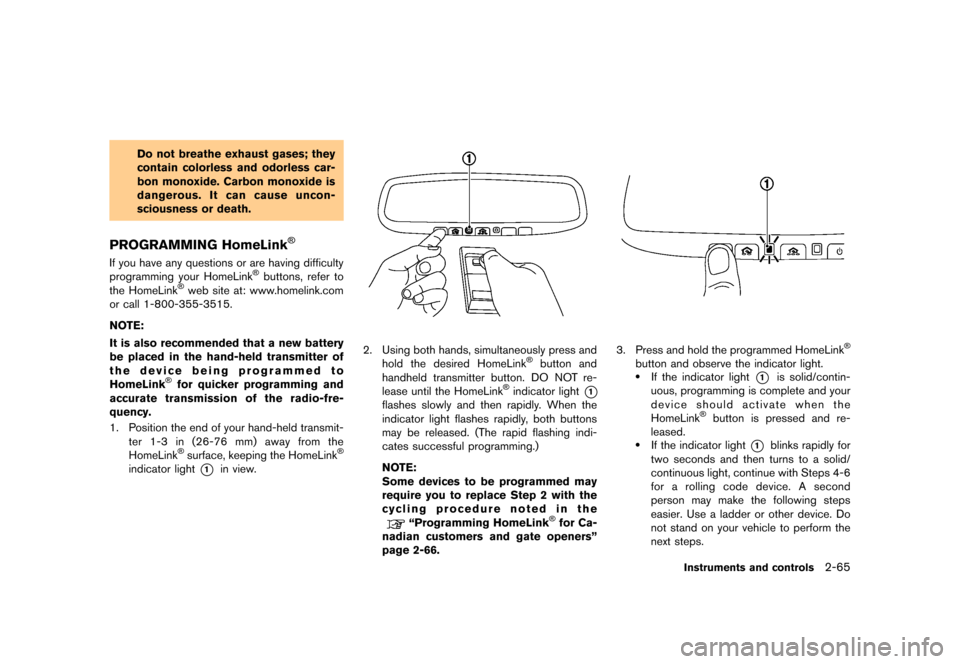

PROGRAMMING HomeLink


> (GLW    0RGHO 5' @

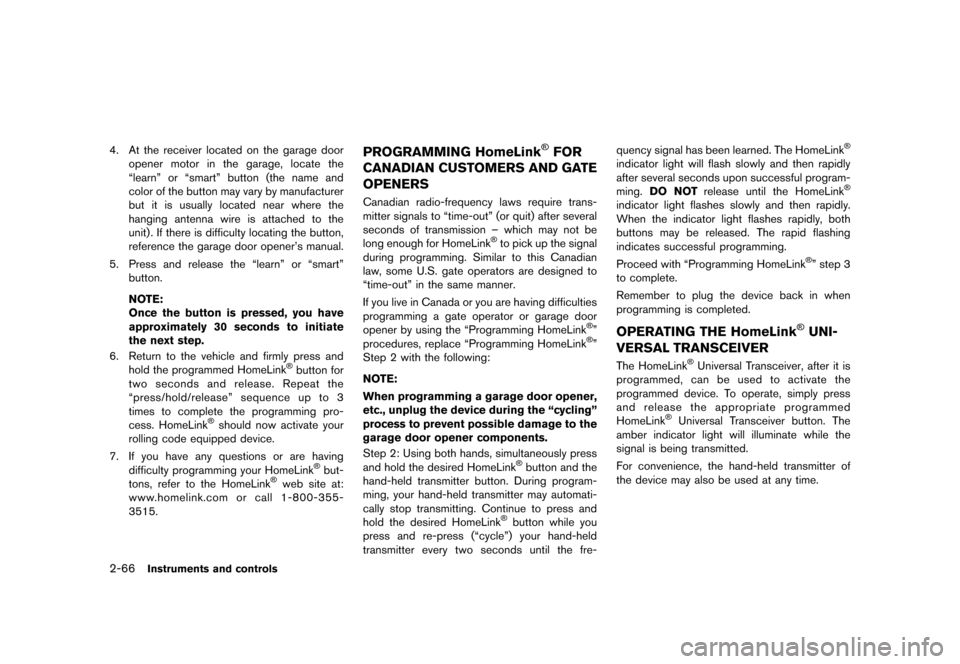

2-66Instruments and controls
4. At the receiver located on the garage dooropener motor in the garage, locate the
ªlearnº or ªsmartº button (the name and
color of the button may vary by manufacturer
but it is usually located near where the
hanging antenna wire is attached to the
unit) . If there is difficulty locating the button,
reference the garage door opener's manual.
5. Press and release the ªlearnº or ªsmartº button.
NOTE:
Once the button is pressed, you have
approximately 30 seconds to initiate
the next step.
6. Return to the vehicle and firmly press and hold the programmed HomeLink


> (GLW    0RGHO 5' @

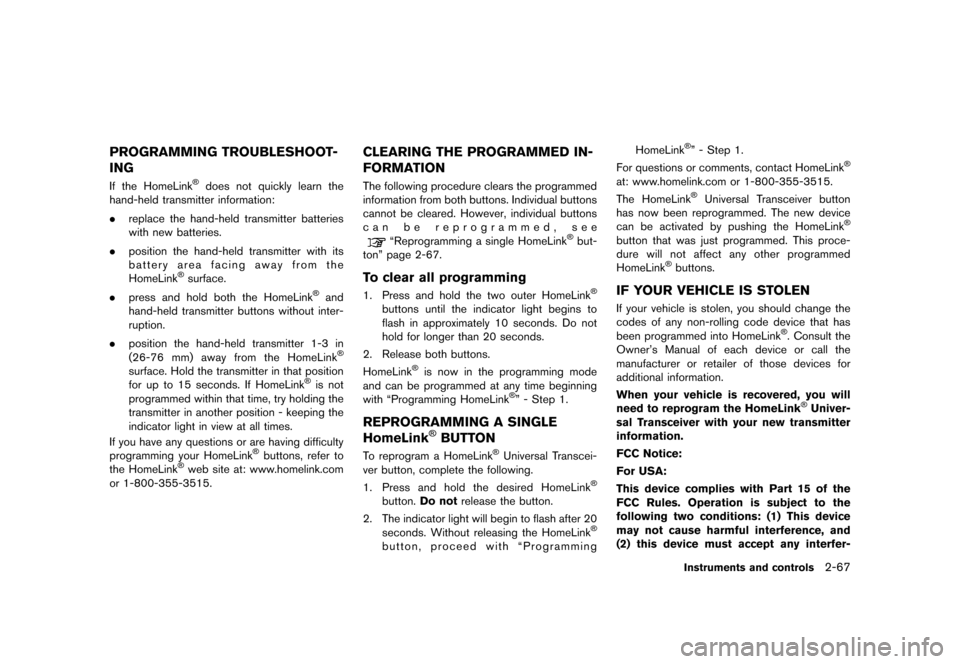

PROGRAMMING TROUBLESHOOT-
ING
If the HomeLink


> (GLW    0RGHO 5' @

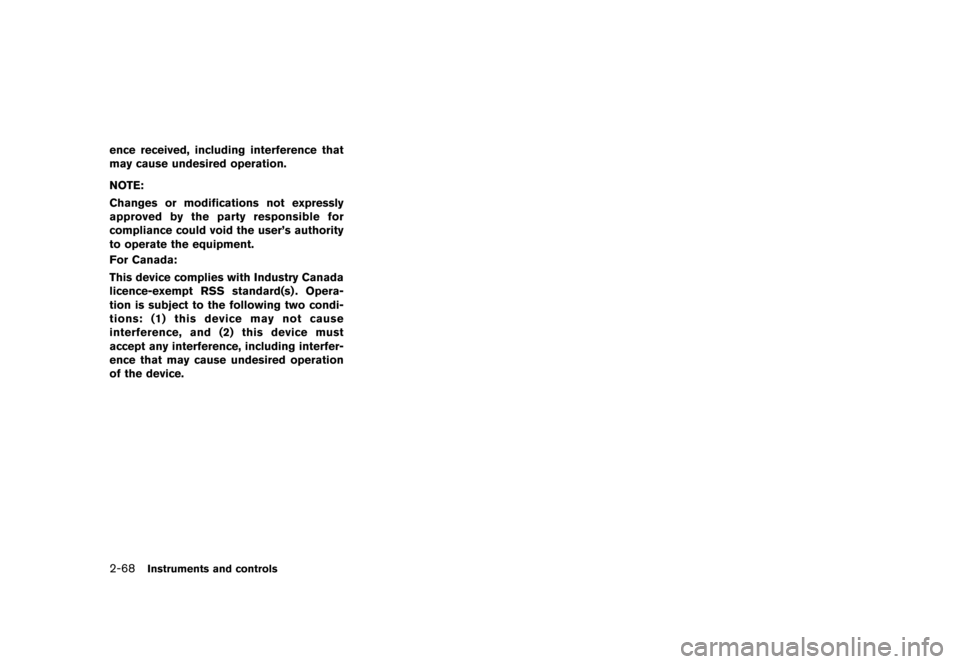

2-68Instruments and controls
ence received, including interference that
may cause undesired operation.
NOTE:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's authority
to operate the equipment.
For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s) . Opera-
tion is subject to the following two condi-
tions: (1) this device may not cause
interference, and (2) this device must
accept any interference, including interfer-
ence that may cause undesired operation
of the device.


> (GLW    0RGHO 5' @

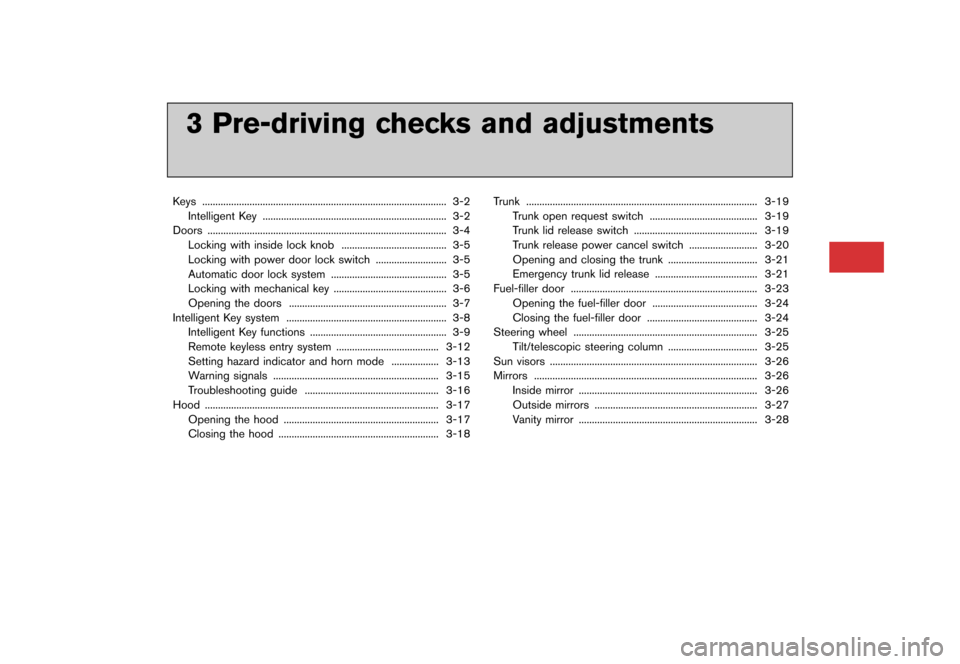

3 Pre-driving checks and adjustments
Keys........................................................................\
..................... 3-2
Intelligent Key ...................................................................... 3-2
Doors ........................................................................\
................... 3-4
Locking with inside lock knob ........................................ 3-5
Locking with power door lock switch ........................... 3-5
Automatic door lock system ............................................ 3-5
Locking with mechanical key ........................................... 3-6
Opening the doors ............................................................ 3-7
Intelligent Key system ............................................................. 3-8 Intelligent Key functions .................................................... 3-9
Remote keyless entry system ....................................... 3-12
Setting hazard indicator and horn mode .................. 3-13
Warning signals ............................................................... 3-15
Troubleshooting guide ................................................... 3-16
Hood ........................................................................\
................. 3-17 Opening the hood ........................................................... 3-17
Closing the hood ............................................................. 3-18 Trunk ........................................................................\
................ 3-19
Trunk open request switch ......................................... 3-19
Trunk lid release switch ............................................... 3-19
Trunk release power cancel switch .......................... 3-20
Opening and closing the trunk .................................. 3-21
Emergency trunk lid release ....................................... 3-21
Fuel-filler door ....................................................................... 3-23 Opening the fuel-filler door ........................................ 3-24
Closing the fuel-filler door .......................................... 3-24
Steering wheel ...................................................................... 3-25
Tilt/telescopic steering column .................................. 3-25
Sun visors ........................................................................\
....... 3-26
Mirrors ........................................................................\
............. 3-26
Inside mirror .................................................................... 3-26
Outside mirrors .............................................................. 3-27
Vanity mirror .................................................................... 3-28


> (GLW    0RGHO 5' @

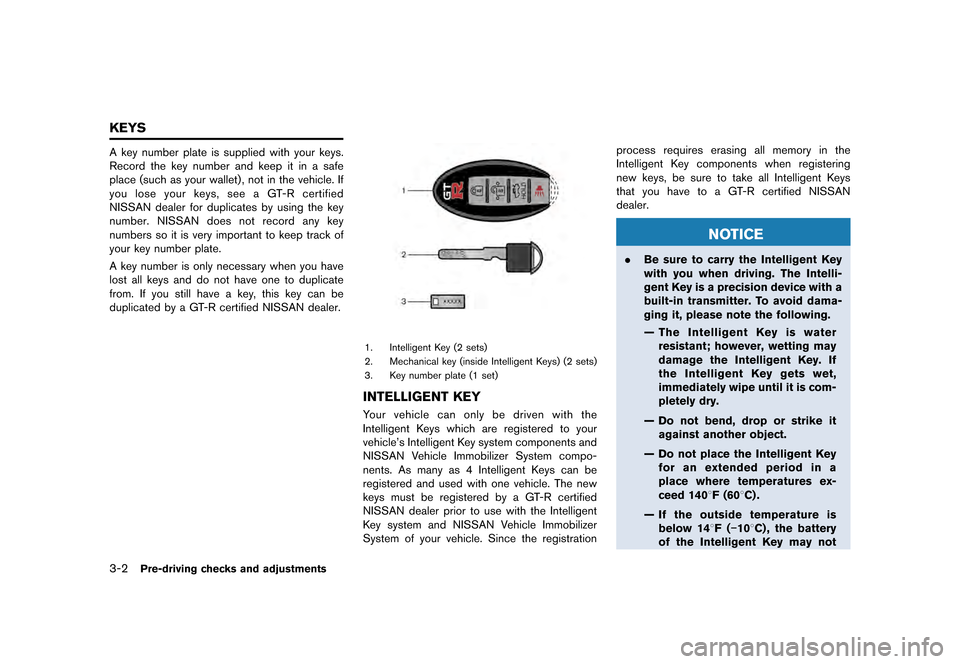

3-2Pre-driving checks and adjustments
A key number plate is supplied with your keys.
Record the key number and keep it in a safe
place (such as your wallet) , not in the vehicle. If
you lose your keys, see a GT-R certified
NISSAN dealer for duplicates by using the key
number. NISSAN does not record any key
numbers so it is very important to keep track of
your key number plate.
A key number is only necessary when you have
lost all keys and do not have one to duplicate
from. If you still have a key, this key can be
duplicated by a GT-R certified NISSAN dealer.
1. Intelligent Key (2 sets)
2. Mechanical key (inside Intelligent Keys) (2 sets)
3. Key number plate (1 set)
INTELLIGENT KEY
Your vehicle can only be driven with the
Intelligent Keys which are registered to your
vehicle's Intelligent Key system components and
NISSAN Vehicle Immobilizer System compo-
nents. As many as 4 Intelligent Keys can be
registered and used with one vehicle. The new
keys must be registered by a GT-R certified
NISSAN dealer prior to use with the Intelligent
Key system and NISSAN Vehicle Immobilizer
System of your vehicle. Since the registrationprocess requires erasing all memory in the
Intelligent Key components when registering
new keys, be sure to take all Intelligent Keys
that you have to a GT-R certified NISSAN
dealer.
NOTICE
.
Be sure to carry the Intelligent Key
with you when driving. The Intelli-
gent Key is a precision device with a
built-in transmitter. To avoid dama-
ging it, please note the following.
Ð The Intelligent Key is water
resistant; however, wetting may
damage the Intelligent Key. If
the Intelligent Key gets wet,
immediately wipe until it is com-
pletely dry.
Ð Do not bend, drop or strike it against another object.
Ð Do not place the Intelligent Key for an extended period in a
place where temperatures ex-
ceed 1408F (608C) .
Ð If the outside temperature is below 148F (


> (GLW    0RGHO 5' @

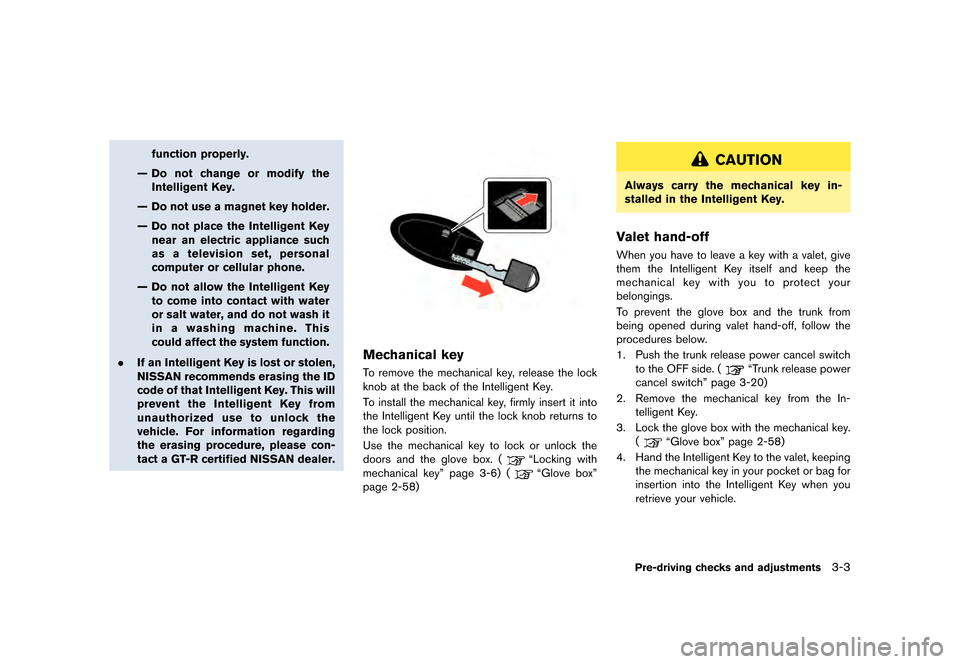

function properly.
Ð Do not change or modify the Intelligent Key.
Ð Do not use a magnet key holder.
Ð Do not place the Intelligent Key near an electric appliance such
as a television set, personal
computer or cellular phone.
Ð Do not allow the Intelligent Key to come into contact with water
or salt water, and do not wash it
in a washing machine. This
could affect the system function.
. If an Intelligent Key is lost or stolen,
NISSAN recommends erasing the ID
code of that Intelligent Key. This will
prevent the Intelligent Key from
unauthorized use to unlock the
vehicle. For information regarding
the erasing procedure, please con-
tact a GT-R certified NISSAN dealer.
Mechanical key
To remove the mechanical key, release the lock
knob at the back of the Intelligent Key.
To install the mechanical key, firmly insert it into
the Intelligent Key until the lock knob returns to
the lock position.
Use the mechanical key to lock or unlock the
doors and the glove box. (
ªLocking with
mechanical keyº page 3-6) (
ªGlove boxº
page 2-58)
CAUTION
Always carry the mechanical key in-
stalled in the Intelligent Key.
Valet hand-off
When you have to leave a key with a valet, give
them the Intelligent Key itself and keep the
mechanical key with you to protect your
belongings.
To prevent the glove box and the trunk from
being opened during valet hand-off, follow the
procedures below.
1. Push the trunk release power cancel switch
to the OFF side. (
ªTrunk release power
cancel switchº page 3-20)
2. Remove the mechanical key from the In- telligent Key.
3. Lock the glove box with the mechanical key. (
ªGlove boxº page 2-58)
4. Hand the Intelligent Key to the valet, keeping the mechanical key in your pocket or bag for
insertion into the Intelligent Key when you
retrieve your vehicle.
Pre-driving checks and adjustments3-3


> (GLW    0RGHO 5' @

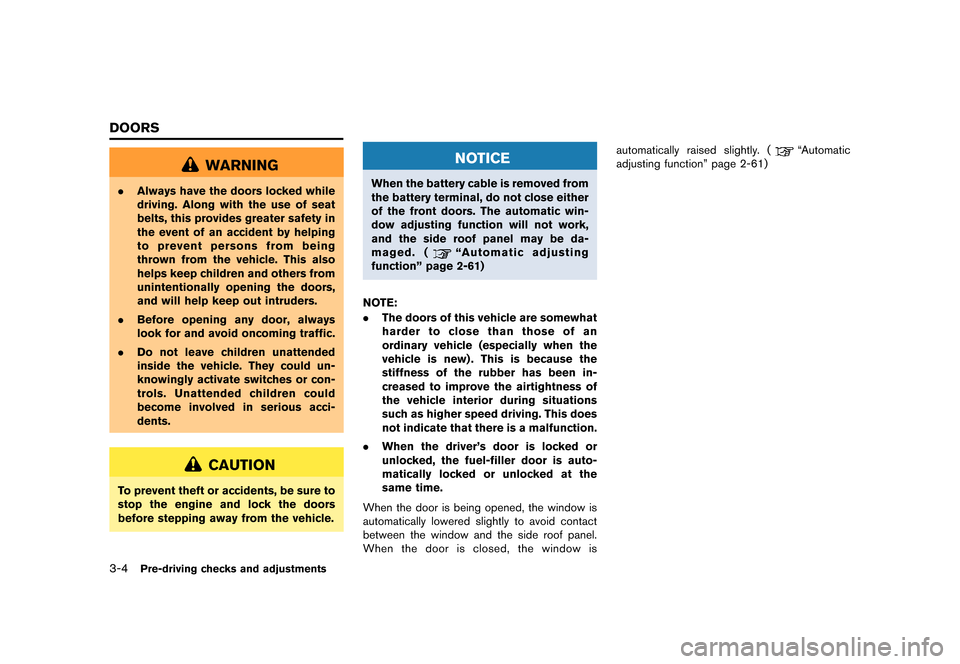

3-4Pre-driving checks and adjustments
WARNING
.Always have the doors locked while
driving. Along with the use of seat
belts, this provides greater safety in
the event of an accident by helping
to prevent persons from being
thrown from the vehicle. This also
helps keep children and others from
unintentionally opening the doors,
and will help keep out intruders.
. Before opening any door, always
look for and avoid oncoming traffic.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents.
CAUTION
To prevent theft or accidents, be sure to
stop the engine and lock the doors
before stepping away from the vehicle.
NOTICE
When the battery cable is removed from
the battery terminal, do not close either
of the front doors. The automatic win-
dow adjusting function will not work,
and the side roof panel may be da-
maged. (
ªAutomatic adjusting
functionº page 2-61)
NOTE:
. The doors of this vehicle are somewhat
harder to close than those of an
ordinary vehicle (especially when the
vehicle is new) . This is because the
stiffness of the rubber has been in-
creased to improve the airtightness of
the vehicle interior during situations
such as higher speed driving. This does
not indicate that there is a malfunction.
. When the driver's door is locked or
unlocked, the fuel-filler door is auto-
matically locked or unlocked at the
same time.
When the door is being opened, the window is
automatically lowered slightly to avoid contact
between the window and the side roof panel.
When the door is closed, the window is automatically raised slightly. (
ªAutomatic
adjusting functionº page 2-61)
DOORS


> (GLW    0RGHO 5' @

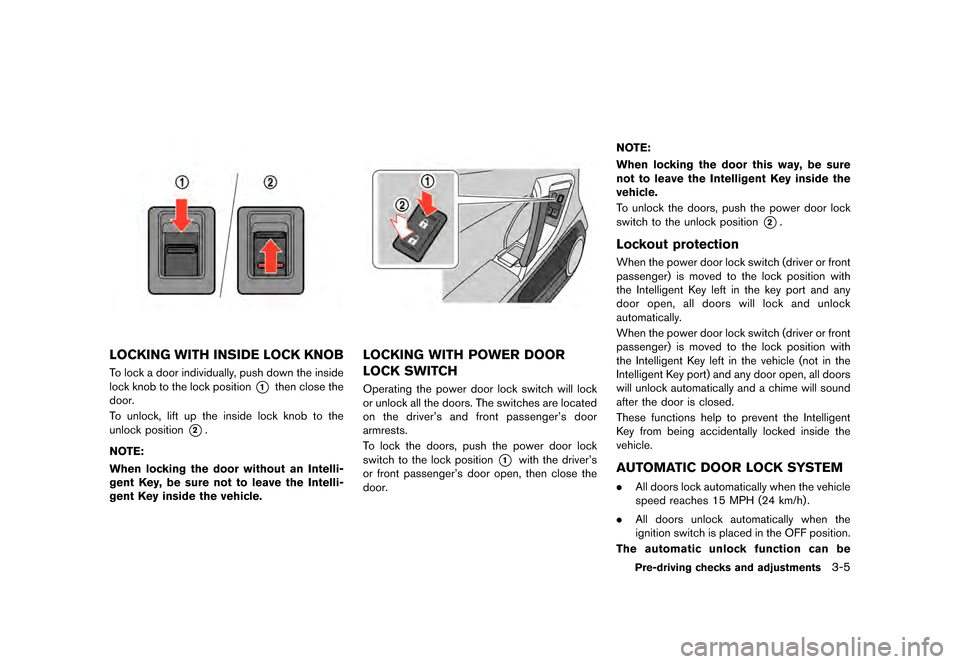

LOCKING WITH INSIDE LOCK KNOB
To lock a door individually, push down the inside
lock knob to the lock position
*1then close the
door.
To unlock, lift up the inside lock knob to the
unlock position
*2.
NOTE:
When locking the door without an Intelli-
gent Key, be sure not to leave the Intelli-
gent Key inside the vehicle.
LOCKING WITH POWER DOOR
LOCK SWITCH
Operating the power door lock switch will lock
or unlock all the doors. The switches are located
on the driver's and front passenger's door
armrests.
To lock the doors, push the power door lock
switch to the lock position
*1with the driver's
or front passenger's door open, then close the
door. NOTE:
When locking the door this way, be sure
not to leave the Intelligent Key inside the
vehicle.
To unlock the doors, push the power door lock
switch to the unlock position
*2.
Lockout protection
When the power door lock switch (driver or front
passenger) is moved to the lock position with
the Intelligent Key left in the key port and any
door open, all doors will lock and unlock
automatically.
When the power door lock switch (driver or front
passenger) is moved to the lock position with
the Intelligent Key left in the vehicle (not in the
Intelligent Key port) and any door open, all doors
will unlock automatically and a chime will sound
after the door is closed.
These functions help to prevent the Intelligent
Key from being accidentally locked inside the
vehicle.
AUTOMATIC DOOR LOCK SYSTEM
.
All doors lock automatically when the vehicle
speed reaches 15 MPH (24 km/h) .
. All doors unlock automatically when the
ignition switch is placed in the OFF position.
The automatic unlock function can be
Pre-driving checks and adjustments3-5
