2-34Instruments and controls

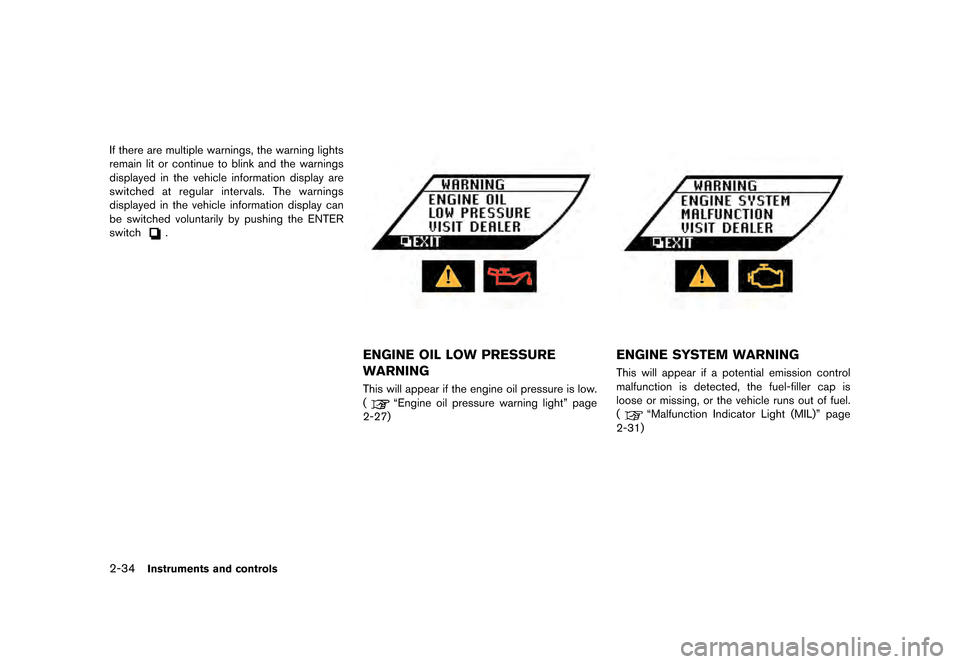

If there are multiple warnings, the warning lights
remain lit or continue to blink and the warnings
displayed in the vehicle information display are
switched at regular intervals. The warnings
displayed in the vehicle information display can
be switched voluntarily by pushing the ENTER
switch
.
ENGINE OIL LOW PRESSURE
WARNING
This will appear if the engine oil pressure is low.
(
ªEngine oil pressure warning lightº page
2-27)
ENGINE SYSTEM WARNING
This will appear if a potential emission control
malfunction is detected, the fuel-filler cap is
loose or missing, or the vehicle runs out of fuel.
(
ªMalfunction Indicator Light (MIL)º page
2-31)
Page 132 of 358
> ( G L W 0 R G H O 5 ' @

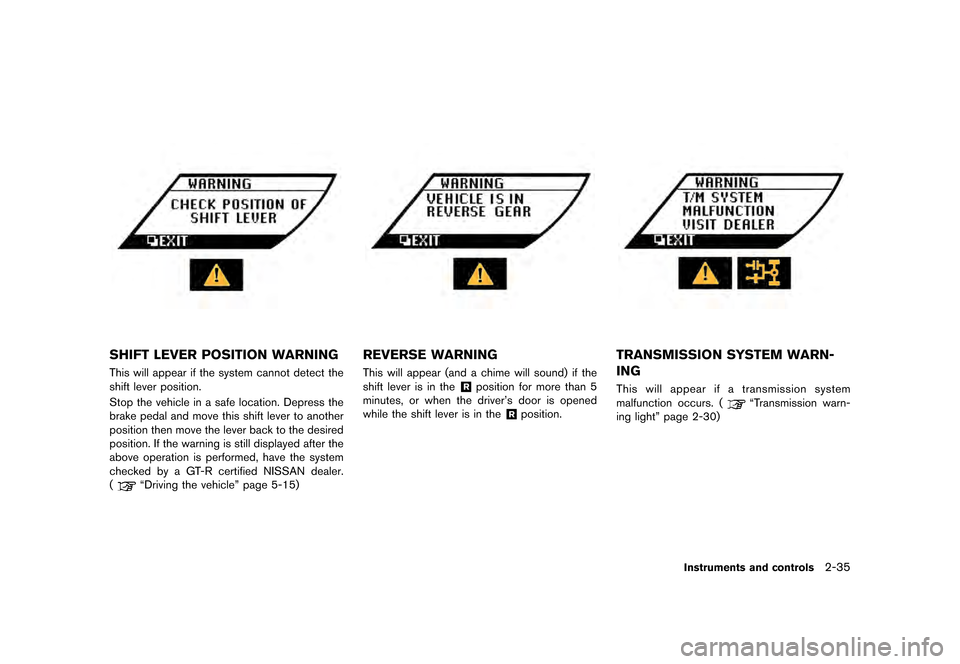

SHIFT LEVER POSITION WARNING
This will appear if the system cannot detect the
shift lever position.
Stop the vehicle in a safe location. Depress the
brake pedal and move this shift lever to another
position then move the lever back to the desired
position. If the warning is still displayed after the
above operation is performed, have the system
checked by a GT-R certified NISSAN dealer.
(
ªDriving the vehicleº page 5-15)
REVERSE WARNING
This will appear (and a chime will sound) if the
shift lever is in the
&Rposition for more than 5
minutes, or when the driver's door is opened
while the shift lever is in the
&Rposition.
TRANSMISSION SYSTEM WARN-
ING
This will appear if a transmission system
malfunction occurs. (
ªTransmission warn-
ing lightº page 2-30)
Instruments and controls2-35
Page 133 of 358
> ( G L W 0 R G H O 5 ' @
2-36Instruments and controls

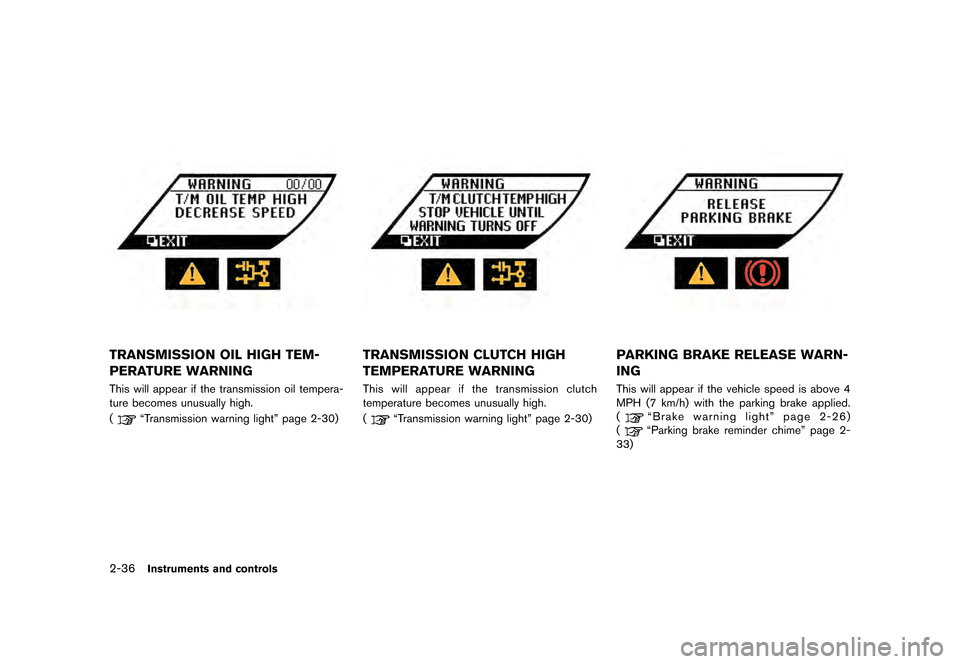

TRANSMISSION OIL HIGH TEM-
PERATURE WARNING
This will appear if the transmission oil tempera-
ture becomes unusually high.
(
ªTransmission warning lightº page 2-30)
TRANSMISSION CLUTCH HIGH
TEMPERATURE WARNING
This will appear if the transmission clutch
temperature becomes unusually high.
(
ªTransmission warning lightº page 2-30)
PARKING BRAKE RELEASE WARN-
ING
This will appear if the vehicle speed is above 4
MPH (7 km/h) with the parking brake applied.
(
ªBrake warning lightº page 2-26)
(
ªParking brake reminder chimeº page 2-
33)
Page 134 of 358
> ( G L W 0 R G H O 5 ' @

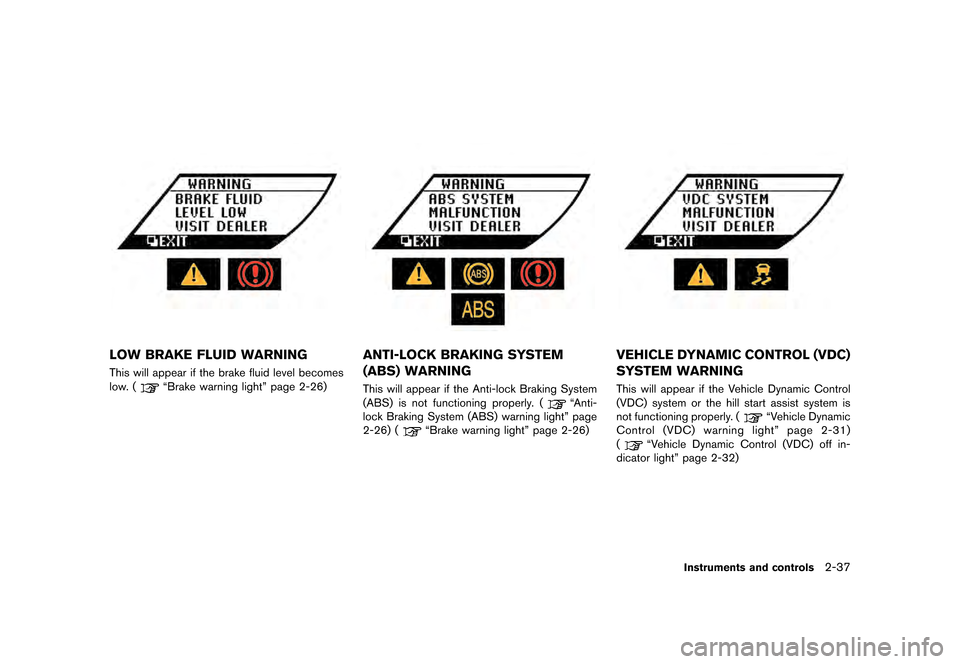

LOW BRAKE FLUID WARNING
This will appear if the brake fluid level becomes
low. (
ªBrake warning lightº page 2-26)
ANTI-LOCK BRAKING SYSTEM
(ABS) WARNING
This will appear if the Anti-lock Braking System
(ABS) is not functioning properly. (
ªAnti-
lock Braking System (ABS) warning lightº page
2-26) (
ªBrake warning lightº page 2-26)
VEHICLE DYNAMIC CONTROL (VDC)
SYSTEM WARNING
This will appear if the Vehicle Dynamic Control
(VDC) system or the hill start assist system is
not functioning properly. (
ªVehicle Dynamic
Control (VDC) warning lightº page 2-31)
(
ªVehicle Dynamic Control (VDC) off in-
dicator lightº page 2-32)
Instruments and controls2-37
Page 135 of 358
> ( G L W 0 R G H O 5 ' @
2-38Instruments and controls

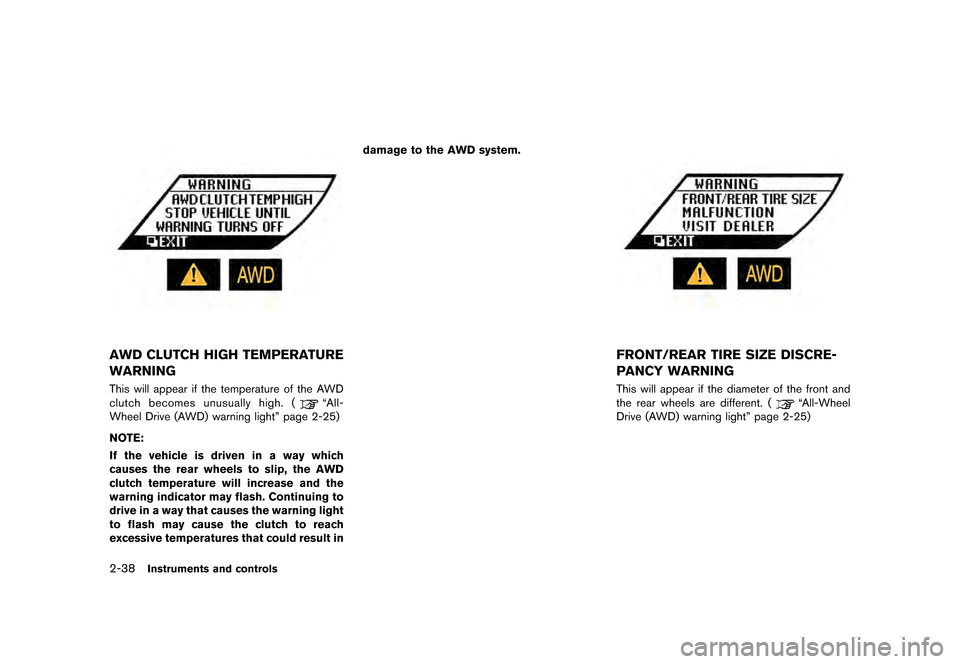

AWD CLUTCH HIGH TEMPERATURE
WARNING
This will appear if the temperature of the AWD
clutch becomes unusually high. (
ªAll-
Wheel Drive (AWD) warning lightº page 2-25)
NOTE:
If the vehicle is driven in a way which
causes the rear wheels to slip, the AWD
clutch temperature will increase and the
warning indicator may flash. Continuing to
drive in a way that causes the warning light
to flash may cause the clutch to reach
excessive temperatures that could result in damage to the AWD system.
FRONT/REAR TIRE SIZE DISCRE-
PANCY WARNING
This will appear if the diameter of the front and
the rear wheels are different. (
ªAll-Wheel
Drive (AWD) warning lightº page 2-25)
Page 136 of 358
> ( G L W 0 R G H O 5 ' @

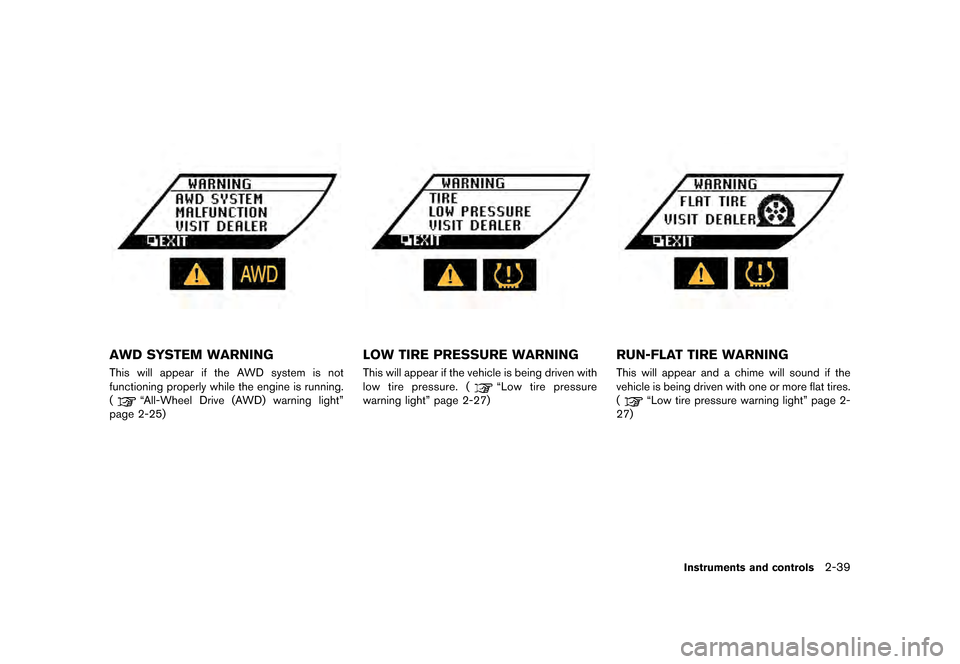

AWD SYSTEM WARNING
This will appear if the AWD system is not
functioning properly while the engine is running.
(
ªAll-Wheel Drive (AWD) warning lightº
page 2-25)
LOW TIRE PRESSURE WARNING
This will appear if the vehicle is being driven with
low tire pressure. (
ªLow tire pressure
warning lightº page 2-27)
RUN-FLAT TIRE WARNING
This will appear and a chime will sound if the
vehicle is being driven with one or more flat tires.
(
ªLow tire pressure warning lightº page 2-
27)
Instruments and controls2-39
Page 137 of 358
> ( G L W 0 R G H O 5 ' @
2-40Instruments and controls

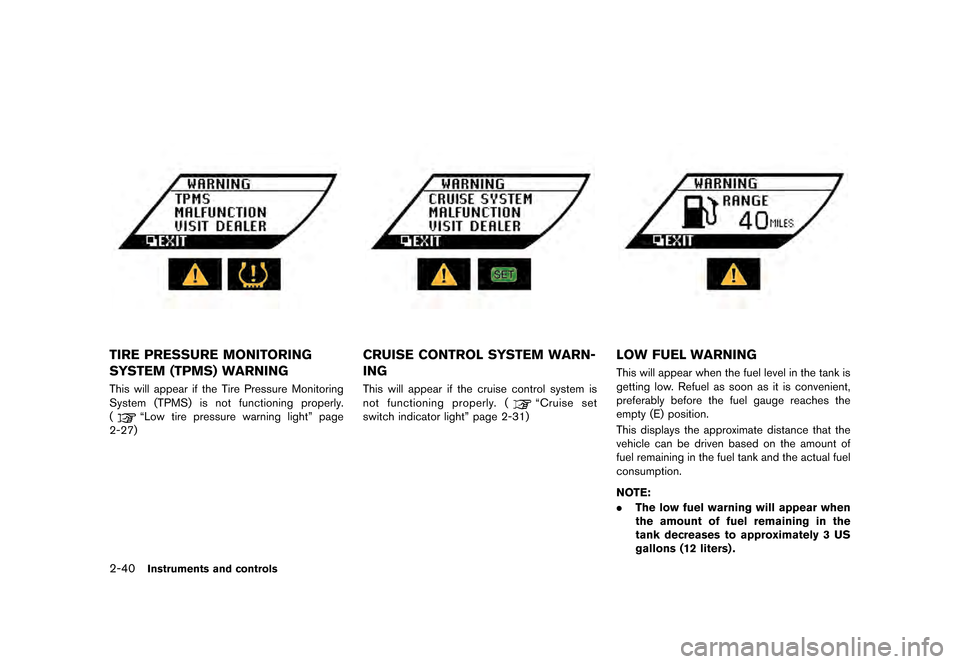

TIRE PRESSURE MONITORING
SYSTEM (TPMS) WARNING
This will appear if the Tire Pressure Monitoring
System (TPMS) is not functioning properly.
(
ªLow tire pressure warning lightº page
2-27)
CRUISE CONTROL SYSTEM WARN-
ING
This will appear if the cruise control system is
not functioning properly. (
ªCruise set
switch indicator lightº page 2-31)
LOW FUEL WARNING
This will appear when the fuel level in the tank is
getting low. Refuel as soon as it is convenient,
preferably before the fuel gauge reaches the
empty (E) position.
This displays the approximate distance that the
vehicle can be driven based on the amount of
fuel remaining in the fuel tank and the actual fuel
consumption.
NOTE:
. The low fuel warning will appear when
the amount of fuel remaining in the
tank decreases to approximately 3 US
gallons (12 liters) .
Page 138 of 358
> ( G L W 0 R G H O 5 ' @

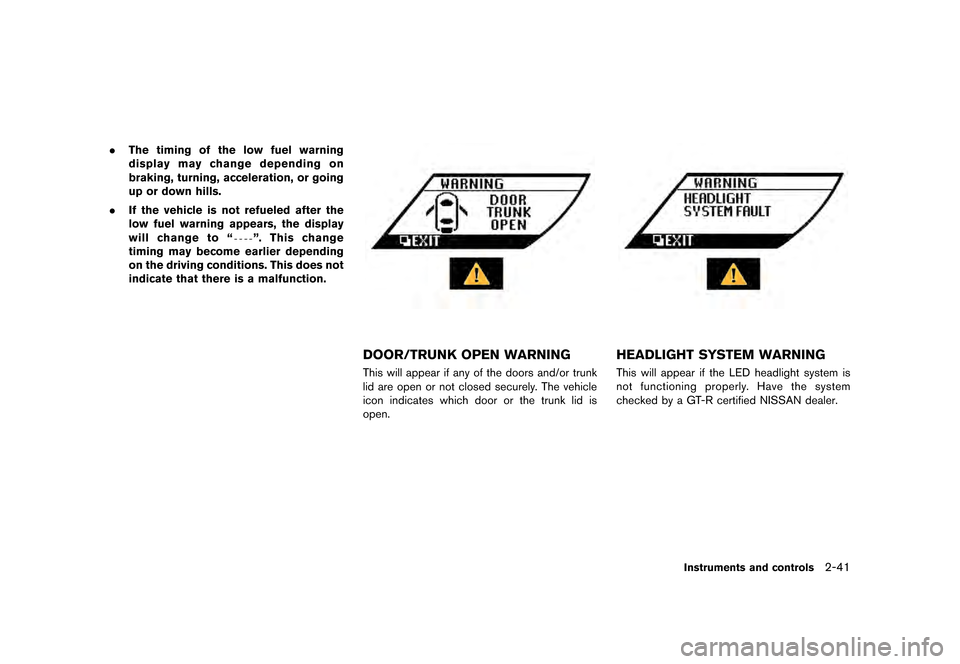

.The timing of the low fuel warning
display may change depending on
braking, turning, acceleration, or going
up or down hills.
. If the vehicle is not refueled after the
low fuel warning appears, the display
will change to ª
º. This change
timing may become earlier depending
on the driving conditions. This does not
indicate that there is a malfunction.
DOOR/TRUNK OPEN WARNING
This will appear if any of the doors and/or trunk
lid are open or not closed securely. The vehicle
icon indicates which door or the trunk lid is
open.
HEADLIGHT SYSTEM WARNING
This will appear if the LED headlight system is
not functioning properly. Have the system
checked by a GT-R certified NISSAN dealer.
Instruments and controls2-41
Page 139 of 358
> ( G L W 0 R G H O 5 ' @
2-42Instruments and controls

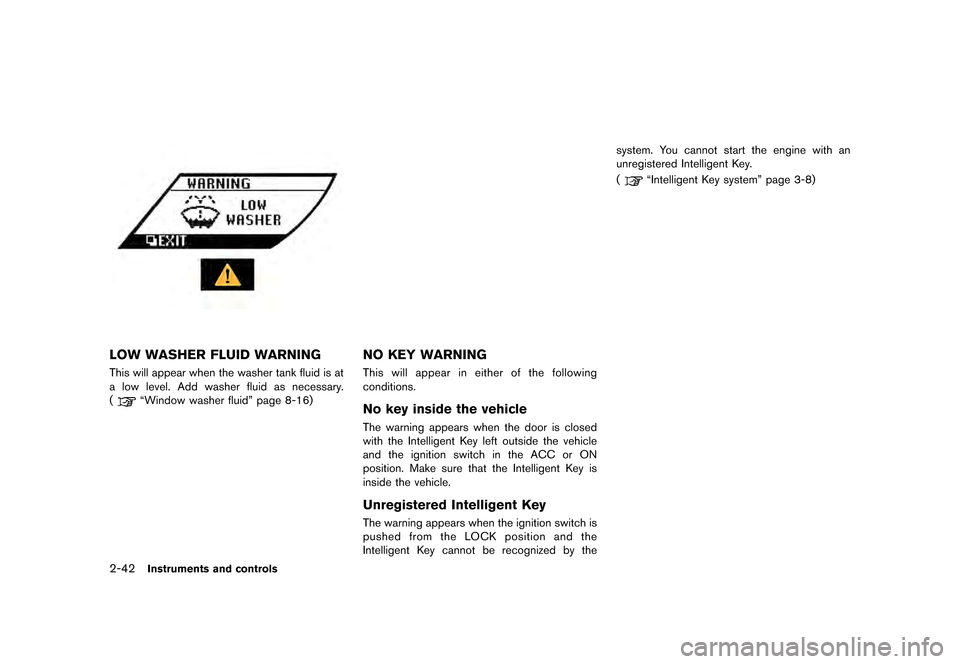

LOW WASHER FLUID WARNING
This will appear when the washer tank fluid is at
a low level. Add washer fluid as necessary.
(
ªWindow washer fluidº page 8-16)
NO KEY WARNING
This will appear in either of the following
conditions.
No key inside the vehicle
The warning appears when the door is closed
with the Intelligent Key left outside the vehicle
and the ignition switch in the ACC or ON
position. Make sure that the Intelligent Key is
inside the vehicle.
Unregistered Intelligent Key
The warning appears when the ignition switch is
pushed from the LOCK position and the
Intelligent Key cannot be recognized by thesystem. You cannot start the engine with an
unregistered Intelligent Key.
(
ªIntelligent Key systemº page 3-8)
Page 140 of 358
> ( G L W 0 R G H O 5 ' @
These displays appear when an appropriate
operation is required in starting or stopping the
engine.
ENGINE START OPERATION INDI-
CATOR
This indicator appears when the shift lever is in
the
&Pposition.
This indicator means that the engine will start by
pushing the ignition switch with the brake pedal
depressed.
SHIFT ªPº WARNING
This warning appears and an inside warning
chime sounds when the ignition switch is
pushed to stop the engine with the shift lever
in any position except the
&Pposition.
If this warning appears, move the shift lever to
the
&Pposition. This warning will also turn off
when pushing the ignition switch to the ON
position.
Instruments and controls2-43
