GTR-4GT-R Overview
sive compounds or other high performance
engine oils may cause internal engine damage.
Engine oil maintenanceGUID-7CDFA496-5639-4F1E-8F03-08DB5D2863B9.When the vehicle is delivered, the engine oil
level is 0.39 in (10 mm) below the H mark on
the engine oil dipstick for optimum high
performance driving. The engine oil can be
filled up to the H mark if not engaging in
performance driving.
. Because of the high performance character-
istics of the GT-R engine, more frequent oil
level inspections are necessary. Check the
oil level every 1,800 miles (3,000 km) and
adjust as necessary. Also, change the
engine oil based on the driving conditions.
For the information regarding oil replace-
ment intervals, refer to the 2017 NISSAN
GT-R Service and Maintenance Guide.
. Some amount of oil is consumed by your
engine under normal operating conditions,
and oil consumption by itself does not
necessarily indicate any malfunction. If your
rate of oil consumption increases suddenly
or without explanation, NISSAN recom-
mends that you have your vehicle inspected
by a GT-R certified NISSAN dealer.
. For information about the oil replacement
intervals for performance driving, refer to the interval for replacing oil after high perfor-
mance driving. (
ªAdditional mainte-
nance itemsº page GTR-12)
Make sure to replace the oil filter when the
engine oil is changed.
TRANSMISSION OILGUID-33530AE7-DE21-4F44-BDD8-78982F22D846Genuine NISSAN Transmission Oil R35
Special (100% synthetic oil)
The GT-R uses a multiple-disc dual wet clutch
transmission. The specially developed transmis-
sion oil maximizes the friction characteristics of
the clutch and the lubrication of the gear
bearings.
The use of additives is not recommended.
The use of additives or other transmission oil
may cause internal transmission or clutch
damage.
DIFFERENTIAL OIL (front and rear)GUID-02DD11D6-4B01-4B02-9F92-7324C1E986B1Differential Oil R35 COMPETITION type
2189E
Use Differential Oil R35 COMPETITION type
2189E or equivalent that can keep the oil
temperature low in order to protect all parts of
the differential and maximize the performance of
the Limited Slip Differential (LSD) . The use of additives is not recommended.
Using additives or any other than the specified
differential oil may cause the oil temperature to
increase and the final drive to be damaged. Also
it may cause vibration and adversely the vehicle
handling characteristics.
BRAKE FLUIDGUID-80CC3CF4-48F5-411D-9F49-53C93F4A64F4Genuine NISSAN Brake Fluid R35 Special
II
Genuine NISSAN Brake Fluid R35 Special II is
the factory fill brake fluid. The Vehicle Dynamic
Control (VDC) unit and other related parts were
specially designed for this brake fluid. NISSAN
cannot ensure proper operation of the vehicle if
other brake fluid is used.
Page 12 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
GUID-15E93393-413A-4D8F-AD78-811CBA4DD77A
TIRES AND ROAD WHEELSGUID-AE89B207-0183-4108-BA70-ACA595E17E48
TiresGUID-833C4A52-FAA4-4966-9FF7-1AFCA79765BAThe GT-R uses specially designed run-flat tires
and matching road wheels. Use of these
specially developed tires and wheels provides
the greatest potential for maximum performance.
.Using non-genuine GT-R tires may cause
powertrain system damage if the vehicle is
driven in a flat tire situation, even if run-flat
tires are used. This may also prevent the
vehicle from being stopped safely.
. Using non-genuine GT-R tires may also
cause tire failure due to excessive heat
buildup caused by tire distortion while
driving.
. Using non-genuine GT-R tires may affect the
operation of the VDC system.
Tire replacement:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9. When tire replacement is required, replacing
tires as a set of four with new tires is
recommended. However, if a tire is punctu-
red or damaged, it may be possible to
replace only the damaged tire. Determining
whether one tire or a complete set of tires
should be replaced is based on a number of
factors including tire wear and condition. Contact your GT-R certified NISSAN dealer.
They can recommend if an individual tire or a
complete set should be replaced.
. The GT-R uses specially designed run-flat
tires which have a rigid side wall. Special
equipment and procedures are required
when replacing these tires. NISSAN recom-
mends that tire replacement be performed at
a GT-R certified NISSAN dealer.
. Specific tire changing equipment must be
used to remove the GT-R tires from the
wheel and to install the GT-R tires onto the
wheel. It is only possible to reuse the tires
when they have no cracks and/or deforma-
tions on the bead portion of the tire. If the
incorrect equipment is used to remove the
GT-R tires from the wheel and to install the
GT-R tires onto the wheel, cracks and
deformation may occur on the bead portion
of the tires meaning that the tires cannot be
reused. Contact a GT-R certified NISSAN
dealer if the tires need to be removed from
the wheels.
. When reusing tires, it is recommended you
contact a GT-R certified NISSAN dealer.
Road wheelsGUID-26621B4F-F1B4-4D33-B4DA-52FC5AF70F6BUsing non-genuine GT-R wheels may cause the
following:
.vehicle vibration
. the tire coming loose from the wheel during
a flat tire
. reduced wheel lug nut tightness
BRAKE PAD AND DISC ROTORGUID-A43FA529-3EE0-40C1-8C7E-F6364A4F99E9This vehicle is equipped with cross-drilled
floating rotors and radial-mounted six-piston
monoblock calipers. This helps to achieve
excellent stopping performance and fade-resis-
tance.
Using non-genuine GT-R brake pads or rotors
can affect vehicle braking performance and the
operation of the ABS and VDC system.
Replacement of brake pads and disc
rotors
GUID-FD4E789E-E241-441D-844F-0CD7945717EBNISSAN generally recommends to replace all
four sets of brake pads and disc rotors at the
same time to maintain maximum brake perfor-
mance.
However, replacing only the brake pads may be
allowed in some cases (four wheels or only front
wheels depending on the conditions) . A GT-R
GT-R OverviewGTR-5
GT-R SPECIAL PRECAUTIONS
Page 13 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
GTR-6GT-R Overview
certified technician must inspect the vehicle and
determine that only the brake pads need to be
replaced. In this case, replacing all brake pads
and disc rotors as a set is not necessary.
Note that the replacement of brake pads and the
disc rotors as a set on all four wheels should be
performed when a GT-R certified technician
determines that this is the correct repair.
If the inside of the disc rotors are cold during the
winter and the surface becomes hot due to a
heavy force being applied repeatedly to the
brakes, cracks may occur near the coolant hole
on the surface of the disc rotor. Cracks may also
occur due to a heavy force being repeatedly
applied to the brakes during high performance
driving. In these cases it may be necessary to
replace the disc rotors or brake pads depending
on the condition of the crack. Contact a GT-R
certified NISSAN dealer for replacement.
EXHAUST MUFFLER AND TRUNK
CARPET
GUID-1B39712B-DA1F-4D3B-8E15-D5736CDB9A92The GT-R exhaust system is designed to provide
the maximum vehicle performance and to
protect the vehicle from high exhaust gas
temperatures.
If non-genuine GT-R exhaust system parts are
used it is possible that the muffler or other
exhaust system parts will deform and causedamage to the underbody. Non-genuine GT-R
exhaust system parts can also affect vehicle
performance and possibly lead to turbocharger,
engine or power train related parts including
transmission, damage.
Also, do not remove the trunk carpet from the
vehicle for any reason. The carpet insulates the
vehicle interior from the heat of the muffler and
from the noise of the transmission.
TITANIUM MUFFLER AND TRUNK
CARPET (if so equipped)
GUID-EF38B38B-3ECD-4D0A-82F0-C813AA77D0B1If a non-genuine titanium muffler is used, the
muffler may become deformed and damage the
underbody due to the high performance engine
reaching high exhaust gas temperatures
(1,8328F (1,0008C) or more) . The highest-class
titanium alloy is used for genuine parts to ensure
the resistance strength and creeping character-
istics against high exhaust gas temperature. In
addition, further cooling effects are secured by
taking in air through the duct on the undercover,
to cool the area around the muffler, and by
applying partial plate thickness reduction. Since
genuine titanium mufflers are made of titanium
alloy, the surface color will change depending on
the driving conditions, which is not unusual.
Prior to shipping from factory, all vehicles
receive balance aligning for engine, transmis-
sion, and clutch, as well as quench driving of
brake pads and rotors. As a result, the muffler
surface color may differ depending on the
vehicle.
Never remove the trunk carpet from the vehicle
for any reason. The carpet insulates the vehicle
interior from the heat of the muffler and from the
noise of the transmission.
Never Allow Oil or Grease to Adhere to the
Titanium Muffler.
If the muffler is heated when oil or grease adhere
to the muffler surface, the color of this area will
be different from that of the surrounding area. To
remove the oil or grease, check that the surface
temperature of the muffler has cooled, wash the
area with a neutral detergent, wipe it with a
brake cleaner-sprayed clean shop cloth and
gently tap it with a dry shop cloth to dry. Be
careful not to allow the brake cleaner to splatter
on rubber parts, bumper, etc.
Page 14 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
DRY CARBON FIBER PARTS (if so
equipped)
GUID-A5D66EC9-0E37-4FF9-8085-2F65570AF800Because of the characteristics of the material,
the dry carbon fiber parts may turn yellow due to
exposure to ultraviolet rays. The surfaces of dry
carbon fiber parts are coated with a special
ultraviolet protection paint. To maintain the
appearance of these parts, it is important to
take proper care of them.
NOTICE
.Do not use compound agents on
clear-coated dry carbon fiber parts
(such as the NISMO model's bum-
per, side sill protector, rear spoiler,
etc.) .
. Do not use any chemical agents
(wax, coating agent, compound
agent, etc.) on matte-painted dry
carbon fiber parts (such as the rear
diffuser, a rear spoiler that is of
specifications other than NISMO,
etc.) .
. When dry carbon fiber parts become
dirty, prepare a dilute cleaning solu-
tion by mixing one capful of mild
detergent in a bucket of water, and use that mixture to clean the parts.
NOTE:
The surfaces of the dry carbon fiber parts
are lightly coated like a race car so that
you can feel the proper texture of real
carbon, which may feel rough. This is
normal.
MATTE PAINT (if so equipped)GUID-BF917B14-61A0-4A17-8901-FD06A89D8180If your vehicle is equipped with matte paint,
special care is necessary to clean your vehicle to
maintain the appearance of the matte paint.
(
ªMatte paint careº page 7-2)
GUID-DECA80D5-2F0D-4E71-9C55-2DBC1BDC8DC9In addition to the regular maintenance recom-
mended by NISSAN, the GT-R requires the
following special inspections:
. Wheel alignment inspection and adjustment
(if necessary) (including tire pressure ad-
justment)
. Transmission settings
These inspections are required at the following
intervals:
. 1,000 miles
. 12 months
. 24 months
. 36 months
NOTE:
. These inspections will be performed
free of charge for labor at a GT-R
certified NISSAN dealer only. Inspec-
tions thereafter are recommended
every 12 months or 12,000 miles
(whichever comes first) at the custo-
mer's expense. See the 2017 NISSAN
GT-R Warranty Information Booklet for
details.
. Repairs and adjustments involving
parts replacement, etc. determined to
be necessary as a result of these
GT-R OverviewGTR-7
GT-R PERFORMANCE
OPTIMIZATION SERVICES
Page 15 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
GTR-8GT-R Overview
inspections are performed at the cus-
tomer's expense.
. See the 2017 NISSAN GT-R Warranty
Information Booklet for significant lim-
itations, exclusions and possible void-
ing of your warranty resulting from
failure to have these necessary inspec-
tions, repairs and/or adjustments per-
formed.
. See the 2017 NISSAN GT-R Service and
Maintenance Guide for a detailed ex-
planation of the GT-R Performance
Optimization Services.
WHEEL ALIGNMENT INSPECTION
AND ADJUSTMENT (if necessary)
(including tire pressure adjustment)
GUID-0CDF0D6E-5F2A-4B1E-B66E-3CB1C85B9A7FThis vehicle is equipped with a high perfor-
mance suspension. The vehicle's wheel align-
ment should be measured and adjusted (if
necessary) by a GT-R certified NISSAN dealer
as necessary as the vehicle is driven and the
suspension parts break-in.
The wheel alignment can be adjusted by a GT-R
certified NISSAN dealer in accordance with
specifications for city driving to high perfor-
mance driving. The tires on the GT-R may have different wear
rates and wear patterns in comparison to
conventional passenger vehicles. It is recom-
mended you contact a GT-R certified NISSAN
dealer to confirm that the alignment is within
specifications.
Preventing toe-out:
Toe-out can cause uneven tire wear or
damage to areas inside the tires due to
high heat. Be sure to have the wheel
alignment toe-in setting checked and ad-
justed by your GT-R certified NISSAN
dealer before any performance driving on
closed circuit tracks. Obey all traffic laws
when on public roads.
Toe-in specification
Front \024
0.059 in (1.5 mm)
Rear \024
0.079 in (2.0 mm)
TRANSMISSION SETTINGSGUID-62FE55B6-F107-48E8-B057-B9C43E33C951The design of the clutch and transmission
requires inspection and adjustment of the clutch
and shift forks by a GT-R certified NISSAN
dealer at the recommended intervals. If the
transmission setting is not complete, excessive
loads may be applied to the transmission and
power train system parts during starting and
shifting, which may result in a malfunction or
damage. Depending on the driving conditions,
more frequent adjustments may be necessary to
help maximize vehicle performance.
Page 16 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
GUID-16738C6C-70CF-44B1-AFCF-2FC869A769A2
NOTICE
Follow these recommendations to ob-
tain maximum engine performance and
ensure the future reliability and econo-
my of your new vehicle. Failure to
follow these recommendations may
result in shortened engine life and
reduced vehicle performance.
Please observe the following types of driving
until the mileage shown below has been
reached.
Until 300 miles (500 km):
. Do not depress the accelerator pedal more
than halfway and avoid rapid acceleration.
. Drive with the engine speed kept at less
than 3,500 RPM.
. Avoid unnecessary quick steering, abrupt
braking and driving on poor roads.
300 to 600 miles (500 to 1,000 km):
. Avoid rapid acceleration in a low gear (1st to
3rd gears) with the accelerator pedal fully
depressed. Depress the pedal slowly.
. Avoid unnecessary quick steering and
abrupt braking. .
Drive with the suspension setup switch in
the COMF mode to allow more suspension
stroke.
600 to 1,200 miles (1,000 to 2,000 km):
. Drive with the engine speed kept relatively
high with the shift lever in the
&Mposition.
Shifting is recommended between 1st and
4th gears.
. Avoid unnecessary quick steering and
abrupt braking.
. Drive with the suspension setup switch in
the COMF mode to allow more suspension
stroke.
Even though the mileage reaches over 1,200
miles (2,000 km) , the clutch may take longer to
properly engage if the vehicle is mainly driven in
town at a low speed. NISSAN recommends
breaking in the clutch at a GT-R certified
NISSAN dealer. Always perform the transmis-
sion setting after breaking in the clutch. If the
transmission setting is not complete, excessive
loads may be applied to the transmission and
power train system parts during starting and
shifting, which may result in a malfunction or
damage.
WHEEL ALIGNMENTGUID-3A4A9631-D406-416A-9181-05D24295E68BDo not adjust the wheel alignment until the
mileage reaches 1,000 miles (1,600 km). Until
then, the suspension may not engage enough
and the height may be higher.
However, make sure to adjust the alignment
after 1,000 miles (1,600 km) .
The wheel alignment can be adjusted by a GT-R
certified NISSAN dealer in accordance with
specifications for city driving to high perfor-
mance driving.
The tires on the GT-R may have different wear
rates and wear patterns in comparison to
conventional passenger vehicles. It is recom-
mended you contact a GT-R certified NISSAN
dealer to confirm that the alignment is within
specifications.
GT-R OverviewGTR-9
BREAK-IN SCHEDULE
Page 17 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
GTR-10GT-R Overview
GUID-5A0487F9-9067-424A-9706-7729D654032F
VEHICLE DYNAMIC CONTROL (VDC)
OFF MODE
GUID-A712B23F-22C8-422B-AAEC-C95B66DCFF94Always make sure the VDC is ON before driving
the vehicle by checking that the VDC OFF
indicator lights on the meter and the VDC set-up
switch are not illuminated. The GT-R is a high
performance vehicle and the VDC must be on/
activated to provide proper powertrain operation
and intended drivability.
WARNING
.The VDC OFF mode should ONLY be
used briefly to help free the vehicle
if stuck in snow or mud by tempora-
rily stopping operation of the VDC
to maintain wheel torque.
. Driving the GT-R with the VDC off
may lead to handling issues related
to steering maneuvers, acceleration,
or deceleration. Moreover, driving
with the VDC off can result in an
inoperative vehicle by causing ser-
ious damage to the powertrain,
including damage to the Transaxle
Assembly including Transfer, Clutch,
Gears, Transaxle case and all of its
components and other drivetrain component(s) by overheating or ex-
cessive force.
. Damage to the powertrain or any
drivetrain component(s) that occurs
when there is a record in the Vehicle
Status Data Recorder (VSDR) that
the vehicle was driven with VDC off
during the period when the damage
was incurred is excluded from war-
ranty coverage.
See your 2016 Warranty Information Booklet for
important related information and warranty
coverage exclusions. See also section 2
(
ªTransmission warning lightº page 2-30)
and section 5 (
ªVehicle Dynamic Control
(VDC) systemº page 5-53) of this Owner's
Manual, ªTransmission Clutch Temperature
Highº and ªVehicle Dynamic Control (VDC)
Systemº for important additional related informa-
tion.
SUMMER TIRESGUID-95CE2054-E324-42E2-8080-D3A2CDC73B95The GT-R summer tires are made from a
specially formulated rubber to maximize the
vehicle's performance capabilities. Performance
of summer tires is substantially reduced when
temperatures are less than 328F (08C) so you
must drive carefully. NISSAN recommends the
use of winter or all-season tires on all four
wheels if you plan to operate your vehicle in
snowy or icy conditions when temperatures are
less than 328F (08C) .
WARNING
Never use summer tires when the
temperature is below
Page 18 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
JVC0928X

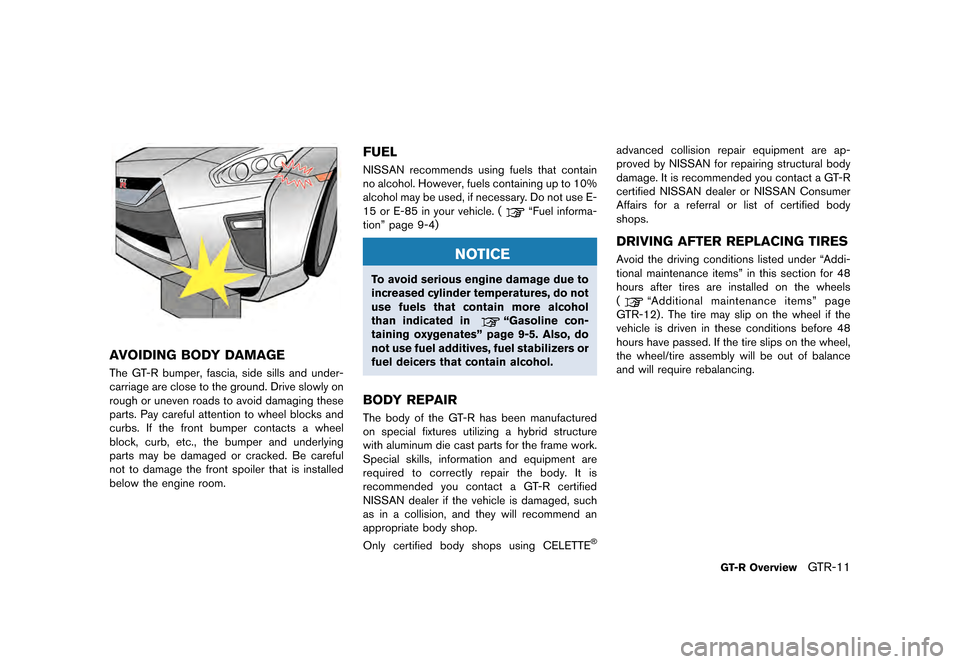

AVOIDING BODY DAMAGEGUID-84F3E8E5-8CE2-4771-AB43-F43103FF9B70The GT-R bumper, fascia, side sills and under-
carriage are close to the ground. Drive slowly on
rough or uneven roads to avoid damaging these
parts. Pay careful attention to wheel blocks and
curbs. If the front bumper contacts a wheel
block, curb, etc., the bumper and underlying
parts may be damaged or cracked. Be careful
not to damage the front spoiler that is installed
below the engine room.
FUELGUID-6476A61D-FD6B-4495-905E-2FDB2FB471D4NISSAN recommends using fuels that contain
no alcohol. However, fuels containing up to 10%
alcohol may be used, if necessary. Do not use E-
15 or E-85 in your vehicle. (
ªFuel informa-
tionº page 9-4)
NOTICE
To avoid serious engine damage due to
increased cylinder temperatures, do not
use fuels that contain more alcohol
than indicated in
ªGasoline con-
taining oxygenatesº page 9-5. Also, do
not use fuel additives, fuel stabilizers or
fuel deicers that contain alcohol.
BODY REPAIRGUID-CCD603FC-4C13-4686-A1B7-7FA23EB20D51The body of the GT-R has been manufactured
on special fixtures utilizing a hybrid structure
with aluminum die cast parts for the frame work.
Special skills, information and equipment are
required to correctly repair the body. It is
recommended you contact a GT-R certified
NISSAN dealer if the vehicle is damaged, such
as in a collision, and they will recommend an
appropriate body shop.
Only certified body shops using CELETTE
Page 19 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
GTR-12GT-R Overview
GUID-60468494-972D-42CF-BC68-F9F6487E35B6The information and specifications in this
section apply only when engaging in
performance driving.
The following information applies only if you
engage in performance driving such as driving
your GT-R for extended periods under the
following conditions.
.Higher-RPM (approaching redline) opera-
tion
. Frequent high pedal force braking from
moderate and higher speeds
. Frequent throttle activation
. Fast revving throughout the RPM range
In such cases, the following additional main-
tenance guidelines apply.
However, you should also carefully read
your 2017 NISSAN GT-R Warranty Informa-
tion Booklet for important information
concerning warranty coverage, limitations
and exclusions.
We recommend that all GT-R maintenance be
performed at a GT-R certified NISSAN dealer.
NISSAN will only pay for GT-R Performance
Optimization Services performed at a GT-R
certified NISSAN dealer.PRECAUTIONS ON PERFORMANCE
DRIVING
GUID-7DBB6523-C5E9-4BBD-8F8A-9C93D55CF703The information and specifications in this
section apply only when engaging in
performance driving.
Checking the temperature of the
coolant and oils on the touch screen
display
GUID-640404D6-C0C4-41B2-903F-7D5E41AC45D1When the temperatures of the engine coolant
and oil, and the oil pressure exceed the normal
range, the color of the multi function meter on
the touch screen display changes to red to warn
the driver. When engaging in high performance
driving, switch the display to the multi function
meter to display the temperature of the engine
coolant and oil, and the oil pressure. When the
color of the meter display changes to red,
perform cool down driving. When the values of
the temperature and pressure return to the
normal range, the color of the multi function
meter will turn back to white.
Warning temperature:
. Engine coolant temperature is 2308F
(1108C) or higher:
If the engine coolant temperature increases
above 2308F (1108C) , the color of the multi
function meter on the touch screen display changes to red to warn of a possible
overheat condition and engine output is
reduced.
. Engine oil temperature is 2758F (1358C) or
higher:
If the engine oil temperature is higher than
2758F (1358C), the meter display changes
to red, maximum engine speed is automati-
cally limited to 4,000 rpm, and the transmis-
sion automatically changes from the&M
position to the&Aposition.
. Transmission oil temperature is 2848F
(1408C) or higher:
If the transmission oil temperature increases
to over 2848F (1408C) , the color of the
meter display changes to red. However, the
vehicle can continue to be driven until the
temperature reaches 2958F (1468C) . If the
oil temperature exceeds 2848F (1408C)
while driving (the color of the meter dis-
played in red) , change both the transmission
oil and the differential oil after driving
because these fluids have deteriorated
because of the heat.
Cool downGUID-F2CE90E5-E743-4E6E-9A1E-040505B03B2AThe information and specifications in this
section apply only when engaging in
performance driving.
ADDITIONAL MAINTENANCE ITEMS
Page 20 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
Cool down the vehicle to help extend the life of
the vehicle if coolant temperatures are extremely
high. Drive the vehicle at 37 to 50 MPH (60 to
80 km/h) , in 5th or 6th gear for 2 to 3 miles (3 to
5 km) and then stop the engine.
Refueling precautionsGUID-6FAF478E-E778-45E1-88B2-3821289F5A5F
WARNING
Do not attempt to top off the fuel tank
after the fuel pump nozzle shuts off
automatically. Continued refueling may
cause fuel overflow, resulting in fuel
spray and possibly a fire. The fuel tank
is full at the first automatic shutoff.
To maximize vehicle performance, the fuel tank is
located as low as possible to lower the vehicle
center of gravity. The tank is also divided into
two parts. This fuel tank design causes higher
pressures inside the tank than other vehicles so
fuel spillage is possible by trying to top off the
fuel tank after automatic shutoff.
The fuel tank pressure is higher when the vehicle
is hot, especially if the tank is more than half full.
If the cap is opened when the vehicle is hot, it
may cause fuel spray and there may be a hissing
noise. Open the cap slowly, releasing the pressure from the tank gradually. Also, if the
vehicle is refueled when the vehicle is hot, the
fuel pump may automatically shut off before the
tank is full. This does not indicate that there is a
malfunction. Refuel slowly or refuel after the
vehicle has cooled.
INSPECTION AND ADJUSTMENTS
BEFORE DRIVING
GUID-649E6E1E-47A8-4D0D-B650-32A80495D4B7The information and specifications in this
section apply only when engaging in
performance driving.
FluidsGUID-7F5C84E9-2A88-45E4-9098-14BC6613E6B5.
Check the engine, transmission, differential
and under vehicle surfaces for oil and
coolant leaks.
. Check the fluid levels and adjust as neces-
sary using the specified fluid as described
under the conditions listed in this section.
(
ªRecommended fluids and mainte-
nance intervalº page GTR-19 ) If you do
not drive under the conditions listed, refer to
the 2017 NISSAN Service and Maintenance
Guide.
SSI0665
. NISSAN recommends to adjust the engine
oil level
*1to be 0.39 in (10 mm) (1/8 gal
(0.5 liters))
*2below the H mark on the
engine oil dipstick. (
*3range is 1.18 in (30
mm) .) Before checking the oil level, run the
engine until it reaches operating tempera-
ture and wait at least 5 minutes after turning
off the engine. Make sure the oil level always
remains above the L mark.
When the vehicle is delivered, the engine oil
is set to ªH- 0.39 in (10 mm)º for optimal
high performance driving.
. Some amount of oil is consumed by your
engine under normal operating conditions,
and oil consumption by itself does not
GT-R OverviewGTR-13
