GTR-24GT-R Overview
1588F (708C) , drive the vehicle until it reaches
normal operating temperature. If the temperature
is higher than 2308F (1108C), perform cool-
down driving procedure. (
ªCool downº
page GTR-12) When the temperature of the
engine coolant is between 1588F (708C) and
2308F (1108C) , the engine output returns to
normal.
UNEVEN WEAR OF TIRESGUID-59A07A50-5E03-47E7-8FC7-CEFC9932C699The GT-R is equipped with high performance,
low profile, run-flat tires that are optimized for
performance and handling. The life of these tires
will be less than those of tires installed on a
typical vehicle, and you are likely to experience
uneven tire wear and tire noise regardless of the
type of tire used.
NOISES ARE HEARD WHILE DRIV-
ING
GUID-0FCF3045-9BA4-4C8F-B6C6-7E56184A22F9. The GT-R brake pads use material that
provides a high amount of braking power
even in high temperatures. This material can
cause an intermittent screeching noise just
before the vehicle comes to a stop when the
brakes are gently applied. The noise de-
creases as the brake pads wear. However,
the additional brake pad break-in or repla-
cing the cross spring may decrease the noise. It is recommended you contact a
GT-R certified NISSAN dealer.
. A screeching noise may be heard when the
brake pedal is depressed:
Ð When driving the vehicle for the first time
in the morning,
Ð After leaving the vehicle parked for extended periods of time, or
Ð When the vehicle is damp following rain showers or washing the vehicle.
These sounds are normal. The noise is
caused when the brake pads absorb moist-
ure, and the noise stops after the brake is
applied several times.
. A screeching noise may also be heard when
the brake pedal is depressed:
Ð When repeatedly applying gentle brak-
ing, especially on a curve at a low speed,
or
Ð When the brake rotors have circular scores with the brake temperature high.
WARNING
Follow the instructions below when
parking the vehicle to help prevent the
brake rotor and brake pads from rust-
ing together. Failure to follow the instructions could cause the rotor and
pads to rust together. If the rotor and
pads rust together, there may be a
popping noise and some vibration
when the vehicle is driven, a wheel
may not roll correctly, or the brake pads
could be damaged. If the pads are
damaged, this may reduce the effec-
tiveness of the brake system which
could cause a collision, serious perso-
nal injury or death.
. The GT-R uses brake pad materials that
have high metallic content. The brake pad
material helps maintain braking performance
in a wide range of weather and driving
conditions.
For the first 3,000-6,000 miles (5,000-
10,000 km) of the vehicle's service life,
and for the first 3,000-6,000 miles (5,000-
10,000 km) after a brake replacement, the
brake pad to brake rotor clearance is very
small. When parking, apply the parking
brake and move the shift lever to the
&P
position. Idle the engine for more than 20
seconds without depressing the brake
pedal. This allows the brake pads to move
away from the rotor so the pad does not
contact the rotor.


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

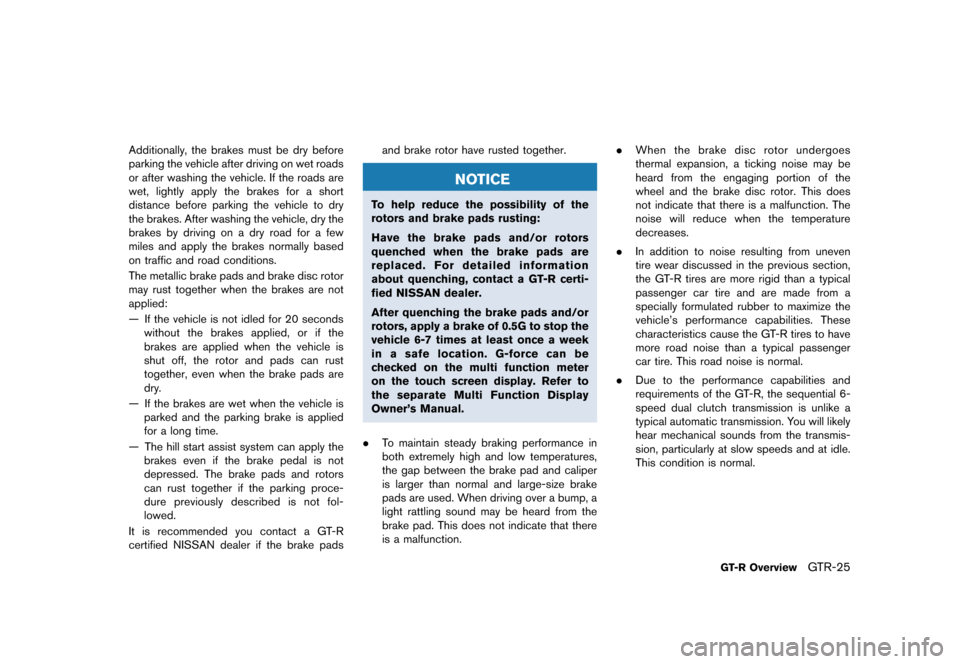

Additionally, the brakes must be dry before
parking the vehicle after driving on wet roads
or after washing the vehicle. If the roads are
wet, lightly apply the brakes for a short
distance before parking the vehicle to dry
the brakes. After washing the vehicle, dry the
brakes by driving on a dry road for a few
miles and apply the brakes normally based
on traffic and road conditions.
The metallic brake pads and brake disc rotor
may rust together when the brakes are not
applied:
Ð If the vehicle is not idled for 20 secondswithout the brakes applied, or if the
brakes are applied when the vehicle is
shut off, the rotor and pads can rust
together, even when the brake pads are
dry.
Ð If the brakes are wet when the vehicle is parked and the parking brake is applied
for a long time.
Ð The hill start assist system can apply the brakes even if the brake pedal is not
depressed. The brake pads and rotors
can rust together if the parking proce-
dure previously described is not fol-
lowed.
It is recommended you contact a GT-R
certified NISSAN dealer if the brake pads and brake rotor have rusted together.
NOTICE
To help reduce the possibility of the
rotors and brake pads rusting:
Have the brake pads and/or rotors
quenched when the brake pads are
replaced. For detailed information
about quenching, contact a GT-R certi-
fied NISSAN dealer.
After quenching the brake pads and/or
rotors, apply a brake of 0.5G to stop the
vehicle 6-7 times at least once a week
in a safe location. G-force can be
checked on the multi function meter
on the touch screen display. Refer to
the separate Multi Function Display
Owner's Manual.
. To maintain steady braking performance in
both extremely high and low temperatures,
the gap between the brake pad and caliper
is larger than normal and large-size brake
pads are used. When driving over a bump, a
light rattling sound may be heard from the
brake pad. This does not indicate that there
is a malfunction. .
When the brake disc rotor undergoes
thermal expansion, a ticking noise may be
heard from the engaging portion of the
wheel and the brake disc rotor. This does
not indicate that there is a malfunction. The
noise will reduce when the temperature
decreases.
. In addition to noise resulting from uneven
tire wear discussed in the previous section,
the GT-R tires are more rigid than a typical
passenger car tire and are made from a
specially formulated rubber to maximize the
vehicle's performance capabilities. These
characteristics cause the GT-R tires to have
more road noise than a typical passenger
car tire. This road noise is normal.
. Due to the performance capabilities and
requirements of the GT-R, the sequential 6-
speed dual clutch transmission is unlike a
typical automatic transmission. You will likely
hear mechanical sounds from the transmis-
sion, particularly at slow speeds and at idle.
This condition is normal.
GT-R OverviewGTR-25


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GTR-26GT-R Overview

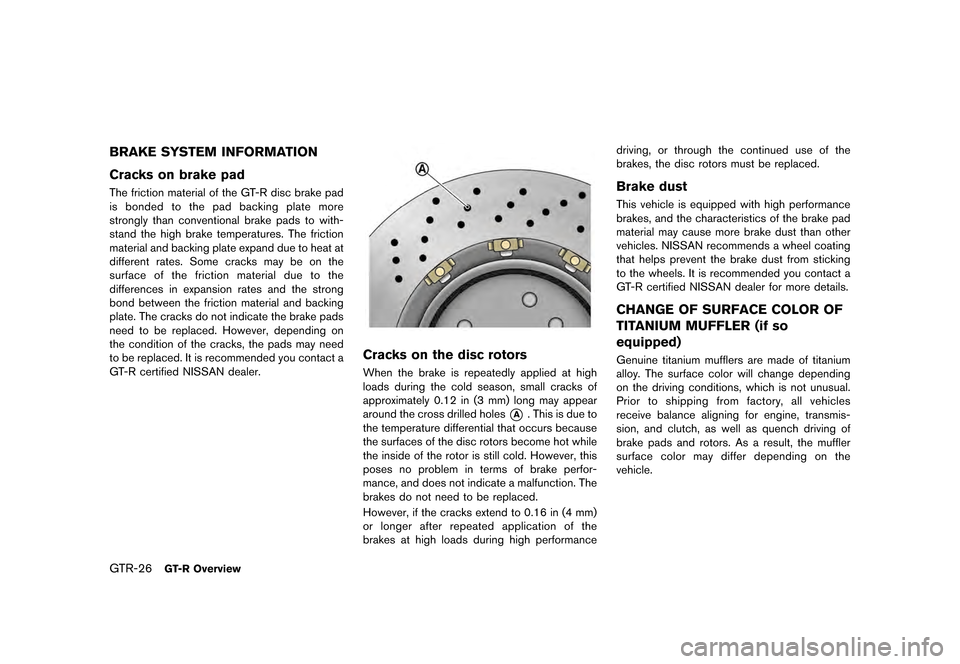

BRAKE SYSTEM INFORMATIONGUID-B79B98DE-81A3-42BD-B90B-1C1E8555F545
Cracks on brake padGUID-BC1FEDEC-F463-4D51-B3F4-6962DD94A963The friction material of the GT-R disc brake pad
is bonded to the pad backing plate more
strongly than conventional brake pads to with-
stand the high brake temperatures. The friction
material and backing plate expand due to heat at
different rates. Some cracks may be on the
surface of the friction material due to the
differences in expansion rates and the strong
bond between the friction material and backing
plate. The cracks do not indicate the brake pads
need to be replaced. However, depending on
the condition of the cracks, the pads may need
to be replaced. It is recommended you contact a
GT-R certified NISSAN dealer.
JVC0136X
Cracks on the disc rotorsGUID-52D20B8E-82A8-463A-9304-CBCD85BCB726When the brake is repeatedly applied at high
loads during the cold season, small cracks of
approximately 0.12 in (3 mm) long may appear
around the cross drilled holes
*A. This is due to
the temperature differential that occurs because
the surfaces of the disc rotors become hot while
the inside of the rotor is still cold. However, this
poses no problem in terms of brake perfor-
mance, and does not indicate a malfunction. The
brakes do not need to be replaced.
However, if the cracks extend to 0.16 in (4 mm)
or longer after repeated application of the
brakes at high loads during high performance driving, or through the continued use of the
brakes, the disc rotors must be replaced.
Brake dustGUID-31C6B056-A0D5-45B1-BD51-4A89044A64F5This vehicle is equipped with high performance
brakes, and the characteristics of the brake pad
material may cause more brake dust than other
vehicles. NISSAN recommends a wheel coating
that helps prevent the brake dust from sticking
to the wheels. It is recommended you contact a
GT-R certified NISSAN dealer for more details.
CHANGE OF SURFACE COLOR OF
TITANIUM MUFFLER (if so
equipped)
GUID-5B721A31-EAA5-4BAB-9A80-F6E9391F6A57Genuine titanium mufflers are made of titanium
alloy. The surface color will change depending
on the driving conditions, which is not unusual.
Prior to shipping from factory, all vehicles
receive balance aligning for engine, transmis-
sion, and clutch, as well as quench driving of
brake pads and rotors. As a result, the muffler
surface color may differ depending on the
vehicle.


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

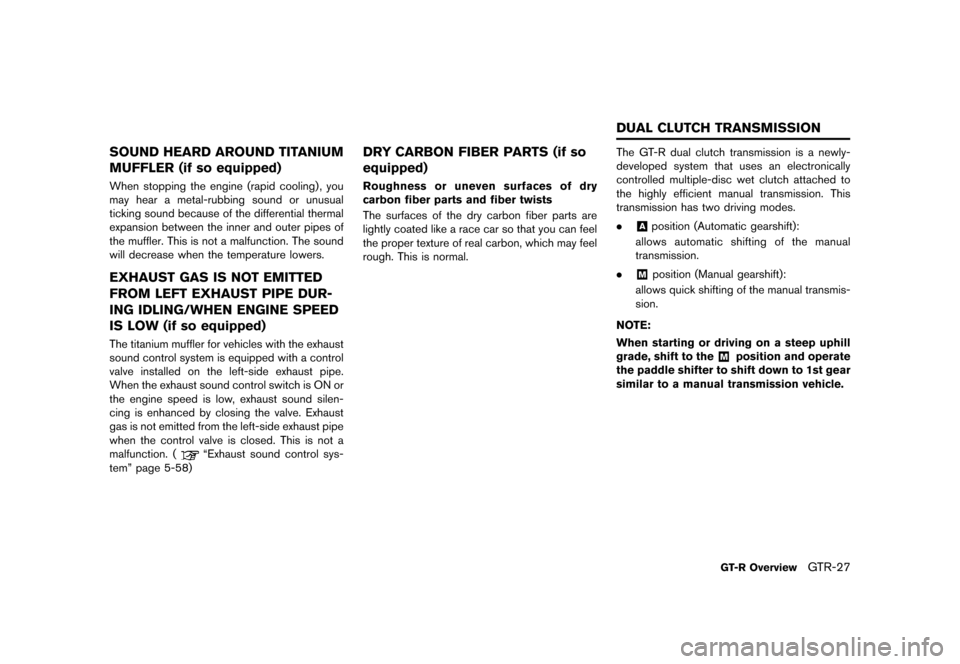

SOUND HEARD AROUND TITANIUM
MUFFLER (if so equipped)
GUID-3D6A36AC-35D0-429E-A25B-64BE52267EDAWhen stopping the engine (rapid cooling) , you
may hear a metal-rubbing sound or unusual
ticking sound because of the differential thermal
expansion between the inner and outer pipes of
the muffler. This is not a malfunction. The sound
will decrease when the temperature lowers.
EXHAUST GAS IS NOT EMITTED
FROM LEFT EXHAUST PIPE DUR-
ING IDLING/WHEN ENGINE SPEED
IS LOW (if so equipped)
GUID-B888B87B-C622-4885-BBEB-1AE26168370BThe titanium muffler for vehicles with the exhaust
sound control system is equipped with a control
valve installed on the left-side exhaust pipe.
When the exhaust sound control switch is ON or
the engine speed is low, exhaust sound silen-
cing is enhanced by closing the valve. Exhaust
gas is not emitted from the left-side exhaust pipe
when the control valve is closed. This is not a
malfunction. (
ªExhaust sound control sys-
temº page 5-58)
DRY CARBON FIBER PARTS (if so
equipped)
GUID-362B4E4E-C187-4858-A8A5-0C4269F48697Roughness or uneven surfaces of dry
carbon fiber parts and fiber twists
The surfaces of the dry carbon fiber parts are
lightly coated like a race car so that you can feel
the proper texture of real carbon, which may feel
rough. This is normal.
GUID-08C4CDAB-367E-4CFA-A36B-ADDE97035C59The GT-R dual clutch transmission is a newly-
developed system that uses an electronically
controlled multiple-disc wet clutch attached to
the highly efficient manual transmission. This
transmission has two driving modes.
.
&Aposition (Automatic gearshift):
allows automatic shifting of the manual
transmission.
.
&Mposition (Manual gearshift):
allows quick shifting of the manual transmis-
sion.
NOTE:
When starting or driving on a steep uphill
grade, shift to the
&Mposition and operate
the paddle shifter to shift down to 1st gear
similar to a manual transmission vehicle.
GT-R OverviewGTR-27
DUAL CLUTCH TRANSMISSION


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GTR-28GT-R Overview

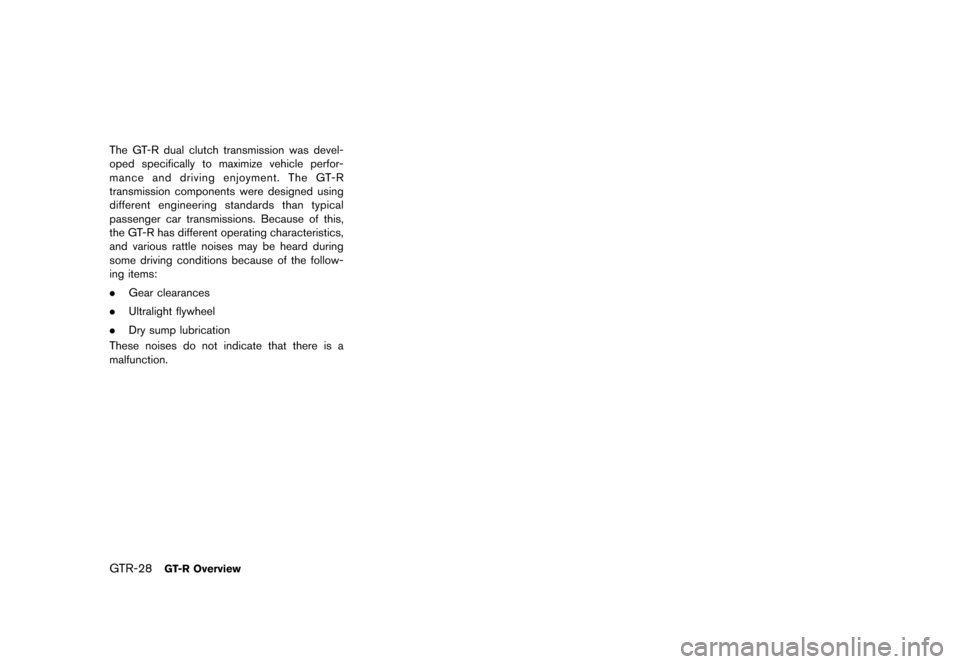

The GT-R dual clutch transmission was devel-
oped specifically to maximize vehicle perfor-
mance and driving enjoyment. The GT-R
transmission components were designed using
different engineering standards than typical
passenger car transmissions. Because of this,
the GT-R has different operating characteristics,
and various rattle noises may be heard during
some driving conditions because of the follow-
ing items:
.Gear clearances
. Ultralight flywheel
. Dry sump lubrication
These noises do not indicate that there is a
malfunction.


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

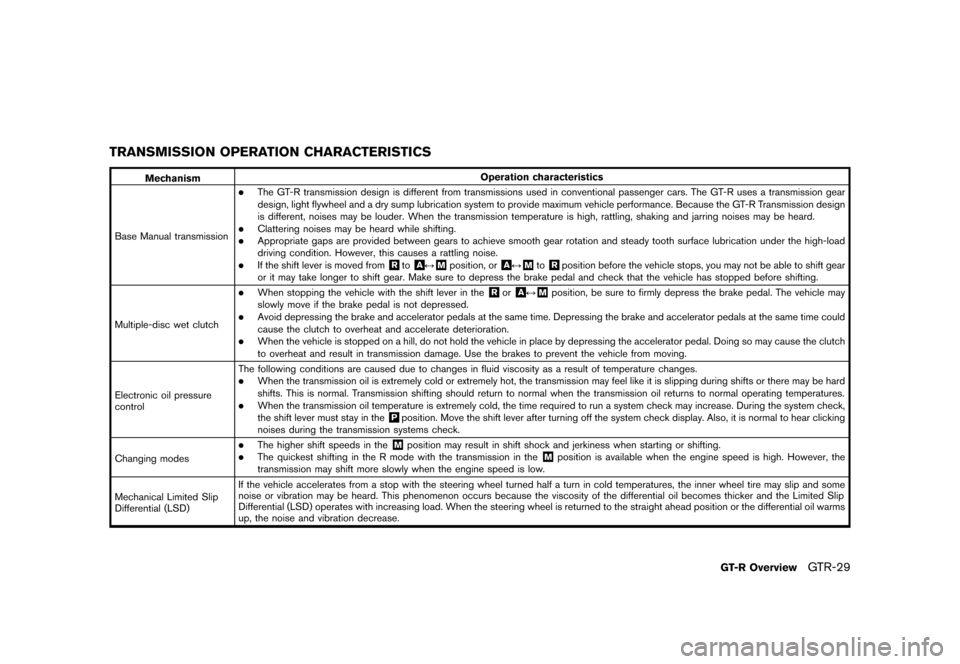

TRANSMISSION OPERATION CHARACTERISTICSGUID-DC9FD7D2-9CD4-46F9-AFB8-A7B5A93B4FE1
MechanismOperation characteristics
Base Manual transmission
.The GT-R transmission design is different from transmissions used in conventional passenger cars. The GT-R uses a transmission gear
design, light flywheel and a dry sump lubrication system to provide maximum vehicle performance. Because the GT-R Transmission design
is different, noises may be louder. When the transmission temperature is high, rattling, shaking and jarring noises may be heard.
.Clattering noises may be heard while shifting..Appropriate gaps are provided between gears to achieve smooth gear rotation and steady tooth surface lubrication under the high-load
driving condition. However, this causes a rattling noise.
.If the shift lever is moved from&Rto&A
F&Mposition, or&A
F&Mto&Rposition before the vehicle stops, you may not be able to shift gear
or it may take longer to shift gear. Make sure to depress the brake pedal and check that the vehicle has stopped before shifting.
Multiple-disc wet clutch
.When stopping the vehicle with the shift lever in the&Ror&A
F&Mposition, be sure to firmly depress the brake pedal. The vehicle may
slowly move if the brake pedal is not depressed.
.Avoid depressing the brake and accelerator pedals at the same time. Depressing the brake and accelerator pedals at the same time could
cause the clutch to overheat and accelerate deterioration.
.When the vehicle is stopped on a hill, do not hold the vehicle in place by depressing the accelerator pedal. Doing so may cause the clutch
to overheat and result in transmission damage. Use the brakes to prevent the vehicle from moving.
Electronic oil pressure
control The following conditions are caused due to changes in fluid viscosity as a result of temperature changes.
.When the transmission oil is extremely cold or extremely hot, the transmission may feel like it is slipping during shifts or there may be hard
shifts. This is normal. Transmission shifting should return to normal when the transmission oil returns to normal operating temperatures.
.When the transmission oil temperature is extremely cold, the time required to run a system check may increase. During the system check,
the shift lever must stay in the&Pposition. Move the shift lever after turning off the system check display. Also, it is normal to hear clicking
noises during the transmission systems check.
Changing modes
.The higher shift speeds in the&Mposition may result in shift shock and jerkiness when starting or shifting..The quickest shifting in the R mode with the transmission in the&Mposition is available when the engine speed is high. However, the
transmission may shift more slowly when the engine speed is low.
Mechanical Limited Slip
Differential (LSD) If the vehicle accelerates from a stop with the steering wheel turned half a turn in cold temperatures, the inner wheel tire may slip and some
noise or vibration may be heard. This phenomenon occurs because the viscosity of the differential oil becomes thicker and the Limited Slip
Differential (LSD) operates with increasing load. When the steering wheel is returned to the straight ahead position or the differential oil warms
up, the noise and vibration decrease.
GT-R OverviewGTR-29


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

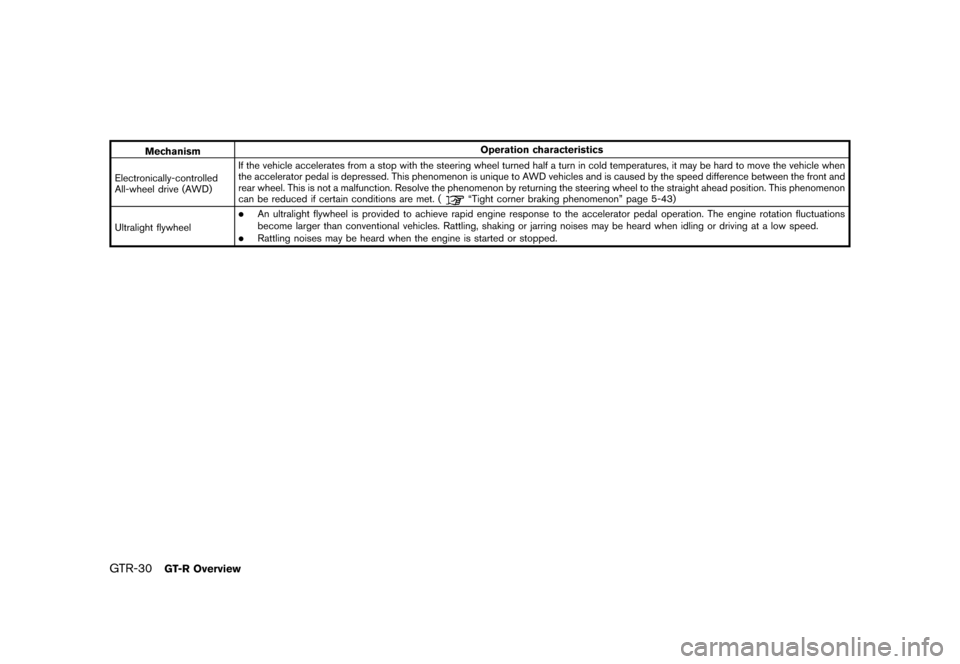

GTR-30GT-R Overview
MechanismOperation characteristics
Electronically-controlled
All-wheel drive (AWD) If the vehicle accelerates from a stop with the steering wheel turned half a turn in cold temperatures, it may be hard to move the vehicle when
the accelerator pedal is depressed. This phenomenon is unique to AWD vehicles and is caused by the speed difference between the front and
rear wheel. This is not a malfunction. Resolve the phenomenon by returning the steering wheel to the straight ahead position. This phenomenon
can be reduced if certain conditions are met. (
ªTight corner braking phenomenonº page 5-43)
Ultralight flywheel
.An ultralight flywheel is provided to achieve rapid engine response to the accelerator pedal operation. The engine rotation fluctuations
become larger than conventional vehicles. Rattling, shaking or jarring noises may be heard when idling or driving at a low speed.
.Rattling noises may be heard when the engine is started or stopped.


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

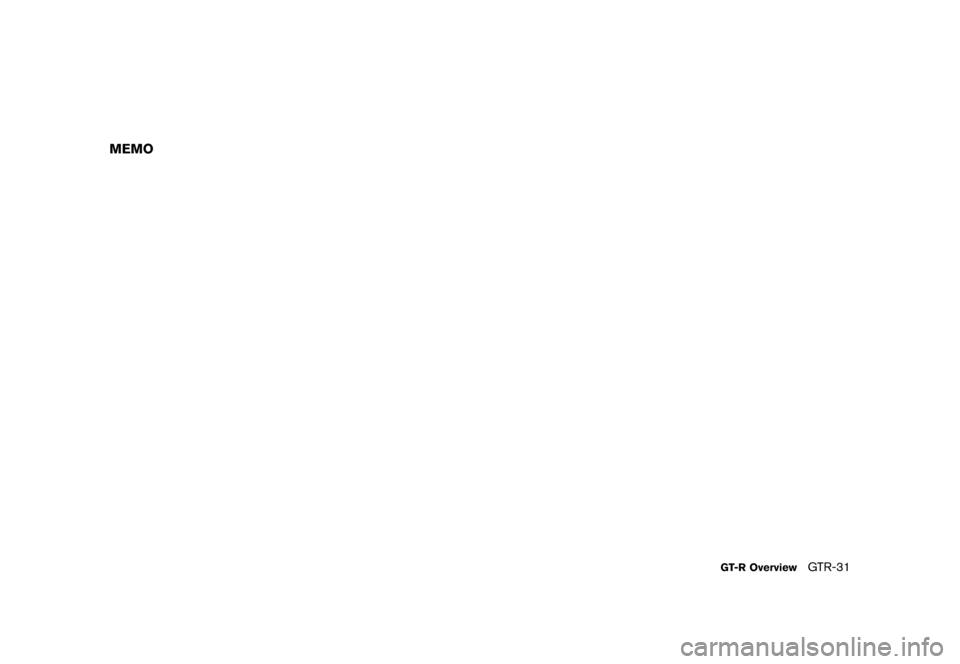

MEMO
GT-R OverviewGTR-31


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GTR-32GT-R Overview

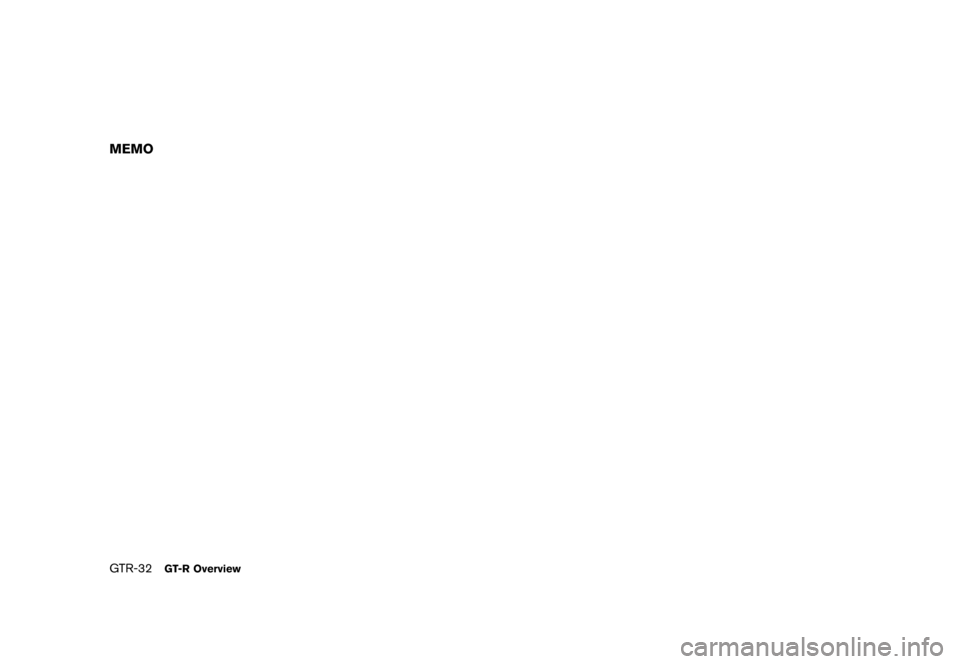

MEMO


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

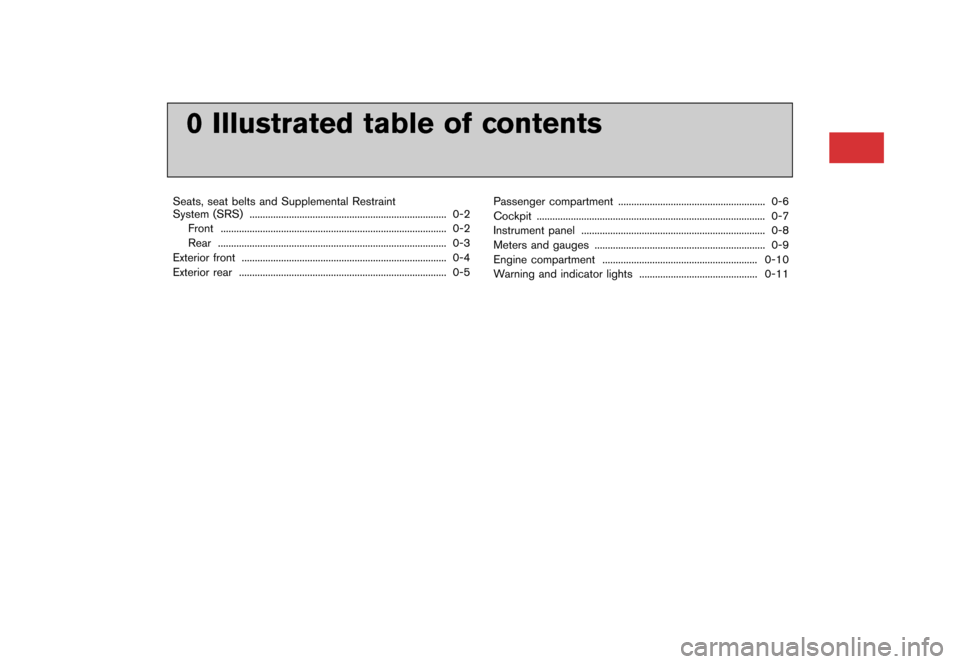

0 Illustrated table of contents
Seats, seat belts and Supplemental Restraint
System (SRS).... ........................................................................\
... 0-2
Front ............................................................................\
.............. 0-2
Rear ............................................................................\
............... 0-3
Exterior front ............................................................................\
...... 0-4
Exterior rear ............................................................................\
....... 0-5 Passenger compartment
....
........................................................ 0-6
Cockpit ....
........................................................................\
............... 0-7
Instrument panel .......................................................................... 0-8
Meters and gauges ....
................................................................. 0-9
Engine compartment ............................................................... 0-10
Warning and indicator lights ................................................. 0-11
