GTR-14GT-R Overview
necessarily indicate any malfunction. If your
rate of oil consumption increases suddenly
or without explanation, NISSAN recom-
mends that you have your vehicle inspected
by a GT-R certified NISSAN dealer.
GMD0020
.Adjust the power steering fluid level to the R
mark
*5on the power steering dipstick
when the fluid temperature is hot or
*6
when the fluid temperature is cold.
Fluid temperature:
Hot: 122 to 1768F (50 to 808C): between
*1and*5
Cold: 32 to 868F (0 to 308C): between*3
and*6
Coolant level and mixture ratioGUID-B8E57B84-06B9-4FB8-99A2-0ADC92A7F15DThe information and specifications in this
section apply only when engaging in
performance driving. Check the coolant level in the pressurized
coolant reservoir. Adjust the level so that the
fluid is between the MAX and MIN markings. For
the coolant, use genuine NISSAN Long Life
coolant. (On delivery of new vehicle, the
reservoir is filled to the MIN level. Be sure to
replenish approximately 3/8 US quart (0.3 to 0.4
liter) of coolant.)
NOTICE
Do not overfill the coolant. This may
increase the pressure in the cooling
system and cause coolant leaks.
To maximize vehicle performance, the coolant
mixture ratio should be a combination of 30%
coolant antifreeze and 70% demineralized or
distilled water for maximum cooling system
performance regardless of ambient tempera-
tures.
If ambient temperatures are anticipated below
58F (


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
performance driving.
.Check the engine, transmission, differential
and under the vehicle for oil and coolant
leaks.
. Inspect the areas surrounding of the cata-
lytic converter for heat deterioration.
. Always perform the transmission setting.
After that, adjust the clutch clearance so
that the clearance is less than the clearance
used for daily driving. Your GT-R certified
NISSAN dealer has the necessary informa-
tion and equipment to set the clutch
clearance to the correct specification. The
clearance used for daily driving increases
clutch heat generated during Performance
Driving. This leads to an increase in tem-
perature of the transmission oil. In addition, a
more direct shifting feel can be obtained by
reducing the clutch clearance for Perfor-
mance Driving. The clutch clearance should
be reset to the daily driving specification
after Performance Driving. It is recom-
mended you see a GT-R certified NISSAN
dealer for information.NOTICE
Failure to have the clutch properly
adjusted before performance driving
may cause the transmission oil tem-
perature to increase which may cause
transmission damage.
. Inspect and confirm the clearance between
the exhaust finisher and rear bumper is more
than 0.24 in (6 mm) (up/down) and more
than 0.20 in (5 mm) (left/right) .
. Inspect the dust boot of the drive shaft
universal joint for cracks or damage.
Suspension and wheel alignmentGUID-54A24DDC-5371-47E4-A29D-23C634F0898DThe information and specifications in this
section apply only when engaging in
performance driving.
.Check the steering and suspension system
and other links for loose and/or damaged
parts.
. Measure and adjust the wheel alignment.
(
ªWheel alignmentº page GTR-9) It is
recommended you contact a GT-R certified
NISSAN dealer to adjust the wheel align-
ment to the recommended setting for high
performance driving. Preventing toe-out:
Toe-out can cause uneven tire wear or
damage to areas inside the tires due to
high heat. Be sure to have the wheel
alignment toe-in setting checked and ad-
justed by your GT-R certified NISSAN
dealer before any performance driving on
closed circuit tracks. Obey all traffic laws
when on public roads.
Toe-in specification
Front \024
0.059 in (1.5 mm)
Rear \024
0.079 in (2.0 mm)
GT-R OverviewGTR-15


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GTR-16GT-R Overview
Wheels and tiresGUID-4DFCB043-2E7B-4A61-BEEF-3F105B41DC54The information and specifications in this
section apply only when engaging in
performance driving.
.Check tire wear and cracking.
. Inspect the tire side wall for damage.
. Check the tire pressure and adjust the
pressure as necessary when the tires are
cold. (
ªWheels and tiresº page 8-32)
The tire pressure changes depending on the
outside temperature or altitude. Check the tire
pressure regularly and when the climate condi-
tions change.
* The following chart indicates how the tire
pressure will decrease as outside air tempera-
ture decreases.
SSI0696
WARNING
Keep your tires inflated to the correct
tire pressure. Driving with low tire
pressure can damage some powertrain
systems and affect the operation of the
ABS and VDC systems. Low Tire pres-
sure may also cause tire failure and
result in serious personal injury or
death.
. Make sure the tire valve stem cap is installed
and that the valve stem is tight. When
installing the cap, make sure to tighten the cap by hand. If a tool is used to tighten the
cap, the cap may be damaged.
. Make sure the wheel nuts are tight.
(
ªWheels and tiresº page 8-32)
. Make sure the drive shaft nuts are tight.
. Make sure to replace the grommet seal, the
valve core and the valve cap of the Tire
Pressure Monitoring System (TPMS) sensor
attached to the wheel every 3 years for
performance driving use. Replace them
every 5 years even when not engaging in
performance driving. A dirty grommet seal
will cause the air leak from the tire.
. Make sure that the nuts and valves that are
attached to the TPMS sensor are tight and
there is no nitrogen leak.
. Use only a NISSAN genuine valve cap or
equivalent.
. Check wheel hub run out and that the wheel
rotates smoothly without any friction. Check
these with the tires removed whenever an
inspection is performed with the vehicle
jacked up.
. Secure road wheel balance weights with
aluminum tape.
. Check that the wheel nuts are not stripped.


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
SSI0578
.Make sure the tire has not slipped on the
wheel causing the assembly to be out of
balance. The reference marks on the tire and
wheel should be aligned. If the reference
marks are not aligned, the tire has slipped on
the wheel. Have the wheels/tires reba-
lanced. Make sure the old reference marks
are erased and new reference marks are
applied to the wheel and tire. When instal-
ling new tires on the wheels, make sure new
reference marks are applied to the wheels
and tires.
. Avoid the driving conditions listed under
ªAdditional maintenance itemsº in this sec-
tion for 48 hours after tires are installed on the wheels. The tire may slip on the wheel if
the vehicle is driven in these conditions
before 48 hours have passed. If the tire slips
on the wheel, the wheel/tire assembly will be
out of balance and will require rebalancing.
BrakesGUID-A8930855-67C4-4640-83D9-8730F21D114EThe information and specifications in this
section apply only when engaging in
performance driving.
.
Check for the heat deterioration of the
brakes and parts around the brakes.
. It is recommended that you remove air from
the brake system after any of the following:
Ð When engaging in high performance
driving for the first time after purchasing
a new vehicle.
Ð After replacing the brake fluid.
Ð When engaging in high performance driving for a sustained period of time. It
is recommended that bleeding the brake
be performed when the brake calipers
are hot (about 2128F (1008C)) .
Brake pad break-in procedure:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9NISSAN recommends that a special brake pad
break-in procedure be performed before enga-
ging in performance driving. It is recommended
you contact a GT-R certified NISSAN dealer for details.
INSPECTION AND ADJUSTMENTS
AFTER DRIVING
GUID-D4ED7991-5C9C-48FF-9139-8588365507B3The information and specifications in this
section apply only when engaging in
performance driving.
NOTICE
At the completion of performance driv-
ing, all fluid and other adjustments
should be returned to the normal fluid
specifications as shown in the ªMain-
tenance and do-it-yourselfº section of
this manual.
FluidsGUID-B6252B1E-9473-4807-99EF-F0B6534BBC6CThe information and specifications in this
section apply only when engaging in
performance driving.
.
Check the engine, transmission, differential
and under the vehicle for oil and coolant
leaks.
. Check the fluid levels and adjust as neces-
sary using the specified fluid as described
under the conditions listed in this section.
(
ªRecommended fluids and mainte-
GT-R OverviewGTR-17


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GTR-18GT-R Overview

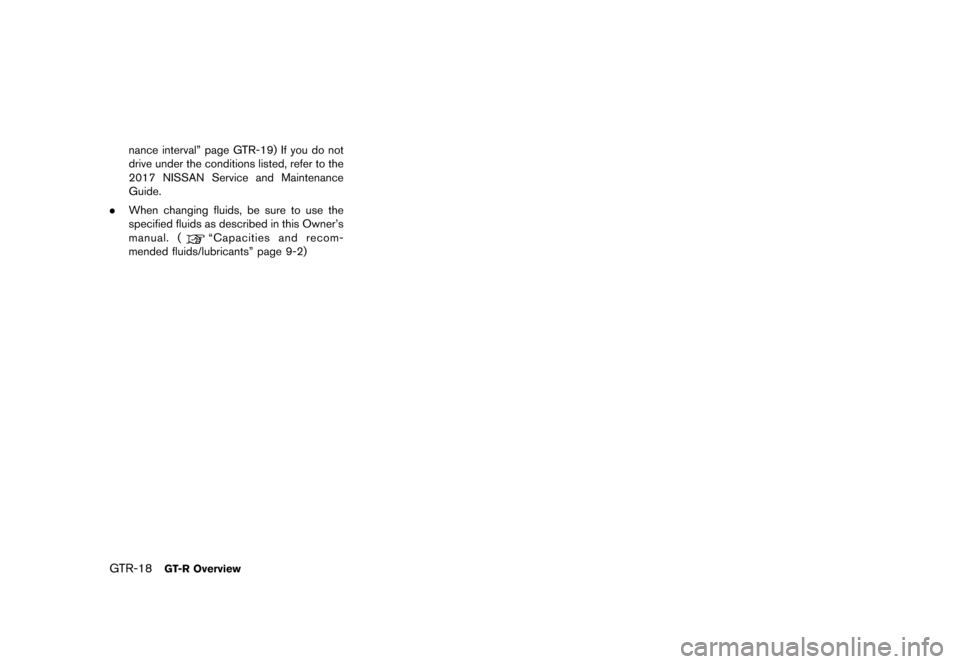

nance intervalº page GTR-19) If you do not
drive under the conditions listed, refer to the
2017 NISSAN Service and Maintenance
Guide.
. When changing fluids, be sure to use the
specified fluids as described in this Owner's
manual. (
ªCapacities and recom-
mended fluids/lubricantsº page 9-2)


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

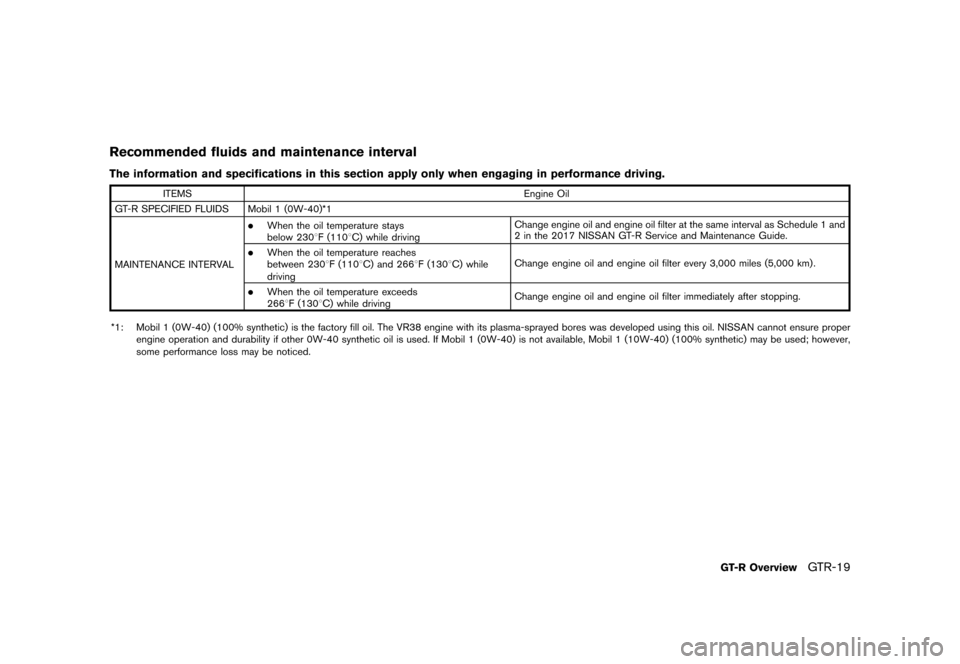

Recommended fluids and maintenance intervalGUID-77C76DE0-E458-4069-8A8D-7AD194241610The information and specifications in this section apply only when engaging in performance driving.
ITEMSEngine Oil
GT-R SPECIFIED FLUIDS Mobil 1 (0W-40)*1
MAINTENANCE INTERVAL
.When the oil temperature stays
below 2308F (1108C) while driving Change engine oil and engine oil filter at the same interval as Schedule 1 and
2 in the 2017 NISSAN GT-R Service and Maintenance Guide.
.When the oil temperature reaches
between 2308F (1108C) and 2668F (1308C) while
drivingChange engine oil and engine oil filter every 3,000 miles (5,000 km) .
.When the oil temperature exceeds
2668F (1308C) while driving
Change engine oil and engine oil filter immediately after stopping.
*1: Mobil 1 (0W-40) (100% synthetic) is the factory fill oil. The VR38 engine with its plasma-sprayed bores was developed using this oil. NISSAN cannot ensure proper engine operation and durability if other 0W-40 synthetic oil is used. If Mobil 1 (0W-40) is not available, Mobil 1 (10W-40) (100% synthetic) may be used; however,
some performance loss may be noticed.
GT-R OverviewGTR-19


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GTR-20GT-R Overview

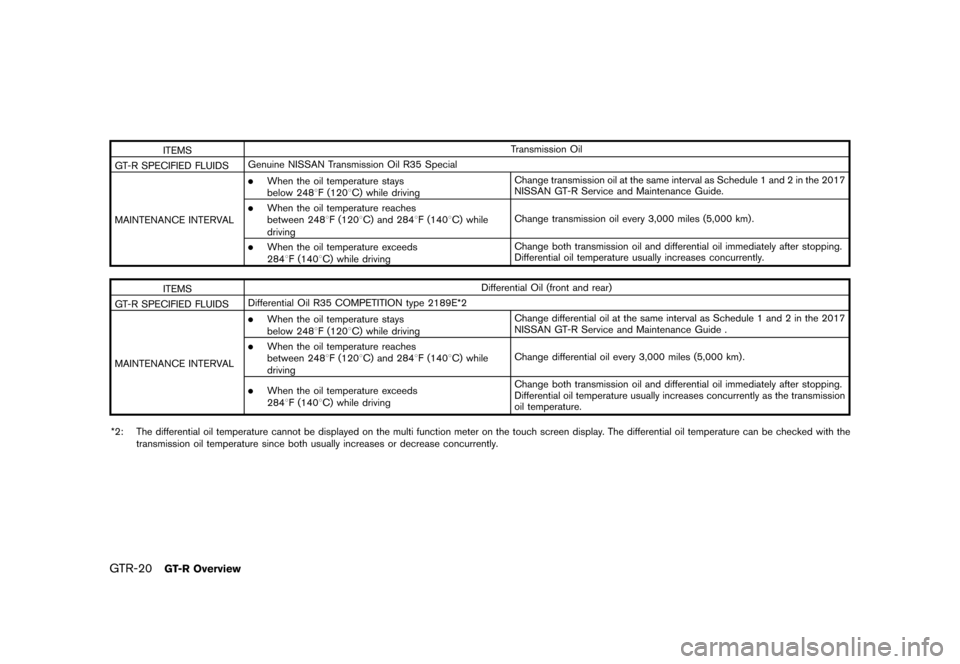

ITEMSTransmission Oil
GT-R SPECIFIED FLUIDS Genuine NISSAN Transmission Oil R35 Special
MAINTENANCE INTERVAL
.When the oil temperature stays
below 2488F (1208C) while driving Change transmission oil at the same interval as Schedule 1 and 2 in the 2017
NISSAN GT-R Service and Maintenance Guide.
.When the oil temperature reaches
between 2488F (1208C) and 2848F (1408C) while
drivingChange transmission oil every 3,000 miles (5,000 km) .
.When the oil temperature exceeds
2848F (1408C) while driving
Change both transmission oil and differential oil immediately after stopping.
Differential oil temperature usually increases concurrently.
ITEMS Differential Oil (front and rear)
GT-R SPECIFIED FLUIDS Differential Oil R35 COMPETITION type 2189E*2
MAINTENANCE INTERVAL
.When the oil temperature stays
below 2488F (1208C) while driving Change differential oil at the same interval as Schedule 1 and 2 in the 2017
NISSAN GT-R Service and Maintenance Guide .
.When the oil temperature reaches
between 2488F (1208C) and 2848F (1408C) while
drivingChange differential oil every 3,000 miles (5,000 km) .
.When the oil temperature exceeds
2848F (1408C) while drivingChange both transmission oil and differential oil immediately after stopping.
Differential oil temperature usually increases concurrently as the transmission
oil temperature.
*2: The differential oil temperature cannot be displayed on the multi function meter on the touch screen display. The differential oil temperature can be checked with the transmission oil temperature since both usually increases or decrease concurrently.


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

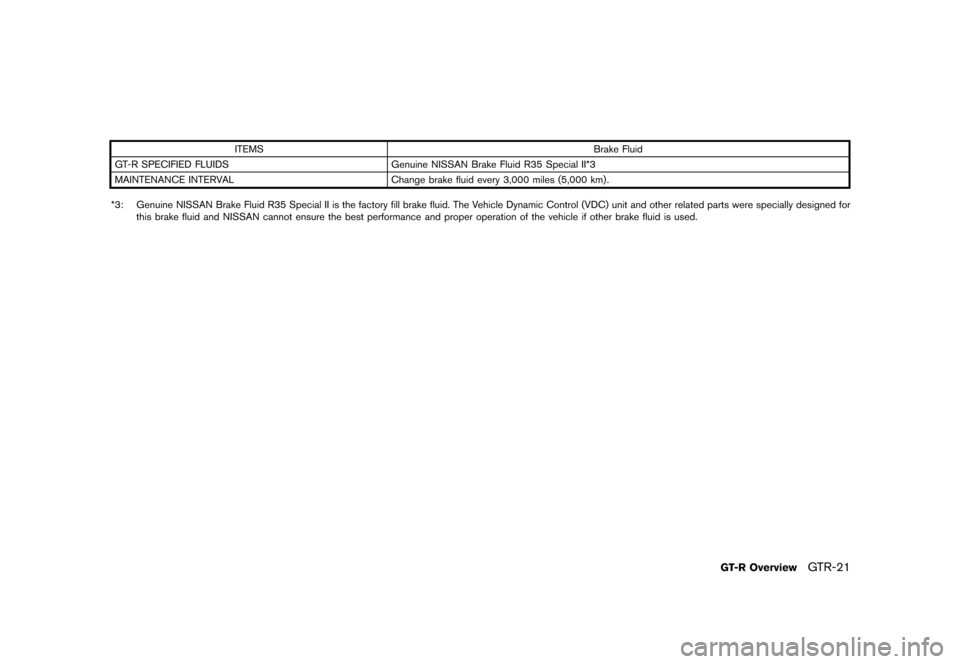

ITEMSBrake Fluid
GT-R SPECIFIED FLUIDS Genuine NISSAN Brake Fluid R35 Special II*3
MAINTENANCE INTERVAL Change brake fluid every 3,000 miles (5,000 km) .
*3: Genuine NISSAN Brake Fluid R35 Special II is the factory fill brake fluid. The Vehicle Dynamic Control (VDC) unit and other related parts were specially designed for this brake fluid and NISSAN cannot ensure the best performance and proper operation of the vehicle if other brake fluid is used.
GT-R OverviewGTR-21


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GTR-22GT-R Overview
Suspension and wheel alignmentGUID-717B8FCC-38D9-49B8-900D-CE3AC60083CD.Check the steering and suspension system
and other links for loose and/or damaged
parts.
. Measure and adjust the wheel alignment. It
is recommended you contact a GT-R
certified NISSAN dealer to adjust the wheel
alignment to the recommended setting for
normal driving.
Wheels and tiresGUID-DF739C54-232F-4D22-8411-3447FCC6AF9E.Check tire wear and cracking.
. Inspect the tire side wall for damage.
. Check the tire pressure and adjust the
pressure as necessary when the tires are
cold. (
ªWheels and tiresº page GTR-
16) If you do not drive under the conditions
listed in this section, see
ªWheels and
tiresº page 8-32.
. Check that the wheel nuts are not stripped.
Check if there is no deformation on the
contact surface of the wheel nuts.
. Make sure the wheel nuts are tight.
(
ªWheels and tiresº page 8-32)
. Make sure the drive shaft nuts are tight.
. Check wheel hub run out and that the wheel
rotates smoothly without any friction. Check these with the tires removed whenever an
inspection is performed with the vehicle
jacked up.
. Make sure the tire has not slipped on the
wheel causing the assembly to be out of
balance. The reference marks on the tire and
wheel should be aligned. If the reference
marks are not aligned, the tire has slipped on
the wheel. Have the wheels/tires reba-
lanced. Make sure the old reference marks
are erased and new reference marks are
applied to the wheel and tire. When instal-
ling new tires on the wheels, make sure new
reference marks are applied to the wheels
and tires. (
ªWheels and tiresº page
GTR-16)
. Make sure that the TPMS sensor installation
nuts and the sensor valve are tight and there
is no nitrogen leak.
BrakesGUID-9F9BF18B-725B-4D67-9B77-FE9C5E2B01AC.Check for the heat deterioration of the
brakes and parts around the brakes.
. Check the condition of the brake pads and
disc rotors and replace them as necessary.
Engine and powertrainGUID-6D6A93B6-167E-482B-B7DB-6E5B685097F5.Check the engine, transmission, differential
and under the vehicle for oil and coolant
leaks.
. Inspect the area surrounding the catalytic
converter for heat deterioration.
. Inspect and confirm the clearance between
the exhaust finisher and rear bumper is more
than 0.24 in (6 mm) (up/down) and more
than 0.20 in (5 mm) (left/right) .
. The clutch clearance and shift fork position
may need to be adjusted.
. Inspect the dust boot of the drive shaft
universal joint for cracks or damage.
. Check that there is no abnormal noise,
vibrations or warning lights illuminated when
making tight turns at slow speed (for tight
corner braking phenomenon) .


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GUID-DD281636-A3DD-49D2-B488-7B6953612CC1
REFUELING PRECAUTIONSGUID-B30F7182-F54D-4636-B6F0-BE4454974C1A
WARNING
Do not attempt to top off the fuel tank
after the fuel pump nozzle shuts off
automatically. Continued refueling may
cause fuel overflow, resulting in fuel
spray and possibly a fire. The fuel tank
is full at the first automatic shutoff.
To maximize vehicle performance, the fuel tank is
located as low as possible to lower the vehicle
center of gravity. The tank is also divided into
two parts. This fuel tank design causes higher
pressures inside the tank than other vehicles so
fuel spillage is possible by trying to top off the
fuel tank after automatic shutoff.
The fuel tank pressure is higher when the vehicle
is hot, especially if the tank is more than half full.
If the cap is opened when the vehicle is hot, it
may cause fuel spray and there may be a hissing
noise. Open the cap slowly, releasing the
pressure from the tank gradually. Also, if the
vehicle is refueled when the vehicle is hot, the
fuel pump may automatically shut off before the
tank is full. This does not indicate that there is a
malfunction. Refuel slowly or refuel after the vehicle has cooled.
GASOLINE SMELLGUID-C4342B46-9E75-40FD-9A7E-8B889C6F3C49The fuel temperature is higher when the vehicle
is hot. This may cause a gasoline smell from the
vehicle. This does not indicate that there is a
malfunction. The smell will go away when the
fuel temperature has cooled.
OUTSIDE TEMPERATURE DISPLAY
INDICATES HIGHER TEMPERATURE
GUID-F95A7E17-06A2-4ED7-B463-A156390578EBHeat from the engine compartment, radiator and
intercoolers can affect the outside temperature
display. The outside temperature display may
indicate a higher than actual temperature while
driving or stopped. This is normal.
IDLE SPEED IS NOT STEADYGUID-7097ABDE-3830-4D7D-A455-813F21F63D62The idle speed may not be steady when the
engine compartment is extremely hot. This is
normal. The engine speed will be steady when
the engine cools down.
In this case, the Malfunction Indicator Light (MIL)
may come on. After a few driving trips, the MIL
should turn off. If the light remains on after a few
driving trips, it is recommended you have the
vehicle inspected by a GT-R certified NISSAN
dealer.
ENGINE SPEED IS RESTRICTEDGUID-587FD63C-797C-46FE-8FC5-922D6B690C2FTo help protect the engine, the maximum engine
speed is automatically controlled in the following
conditions:
.
Revving the engine with the shift lever in the
&Por&Nposition: The maximum engine
speed is 4,300 RPM
. Revving the engine when the engine oil is at
a low (below 328F (08C)) or extremely high
(over 2758F (1358C)) temperature: The
maximum engine speed is 4,000 RPM (The
&Mposition will automatically change to the
&Aposition.)
ENGINE OUTPUTGUID-C14E0C84-C7F0-4B8A-8FEF-2A734F415F94
High altitudeGUID-445B3E98-7529-4F53-8B24-429570722800To protect the engine, engine output is con-
trolled so that it does not increase at altitude of
approximately 3,281 ft (1,000 m) or higher.
Engine output according to the
coolant temperature
GUID-3F169CBB-5E6D-4B26-8539-DAAEBB0E590EThe engine output is controlled at a low level
when the engine coolant temperature is lower
than approximately 1588F (708C) or higher than
2308F (1108C). This is not a malfunction.
If the temperature is lower than approximately
GT-R OverviewGTR-23
GT-R SPECIFIC VEHICLE
CHARACTERISTICS
