NISSAN GT-R 2017 R35 Owners Manual
Manufacturer: NISSAN, Model Year: 2017, Model line: GT-R, Model: NISSAN GT-R 2017 R35Pages: 386, PDF Size: 5.14 MB
Page 221 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
Power steering....
....................................................................... 5-50
Brake system ....
........................................................................\
.. 5-51
Braking precautions ....
........................................................ 5-51
Parking brake break-in ....................................................... 5-51
Brake assist ............................................................................\
.... 5-52
Anti-lock Braking System (ABS) .................................... 5-52
Vehicle Dynamic Control (VDC) system ............................. 5-53
Cold weather driving ....
............................................................ 5-56
Freeing a frozen door lock ....
............................................ 5-56
Anti-freeze ............................................................................\
. 5-56
Battery ............................................................................\
........ 5-56 Draining of coolant water
....
............................................ 5-56
Tire equipment ................................................................... 5-56
Special winter equipment ............................................... 5-56
Driving on snow or ice .................................................... 5-56
Engine block heater (if so equipped) .......................... 5-57
Exhaust sound control system (if so equipped) ....
........... 5-58
Active noise cancellation (if so equipped)/Active
sound enhancement (if so equipped) ....
............................. 5-59
Active noise cancellation ................................................ 5-59
Active sound enhancement ............................................ 5-59
Page 222 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

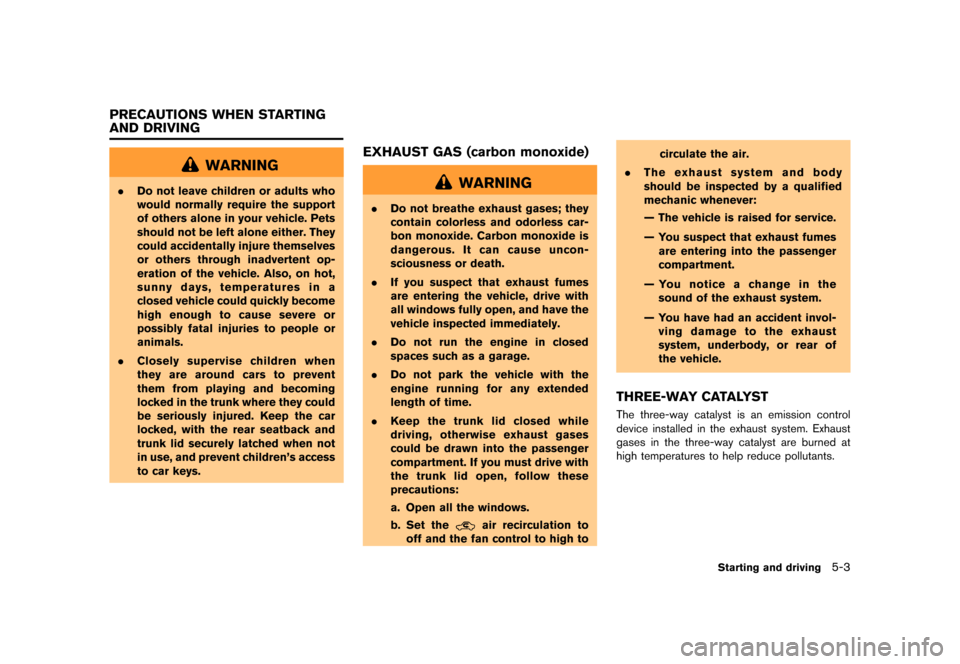

GUID-1CB354FF-CB21-4C73-B70E-AFB9E2916D3E
WARNING
.Do not leave children or adults who
would normally require the support
of others alone in your vehicle. Pets
should not be left alone either. They
could accidentally injure themselves
or others through inadvertent op-
eration of the vehicle. Also, on hot,
sunny days, temperatures in a
closed vehicle could quickly become
high enough to cause severe or
possibly fatal injuries to people or
animals.
. Closely supervise children when
they are around cars to prevent
them from playing and becoming
locked in the trunk where they could
be seriously injured. Keep the car
locked, with the rear seatback and
trunk lid securely latched when not
in use, and prevent children's access
to car keys.
EXHAUST GAS (carbon monoxide)GUID-C4169681-307E-40B5-A630-3CDCBC8979B6
WARNING
.Do not breathe exhaust gases; they
contain colorless and odorless car-
bon monoxide. Carbon monoxide is
dangerous. It can cause uncon-
sciousness or death.
. If you suspect that exhaust fumes
are entering the vehicle, drive with
all windows fully open, and have the
vehicle inspected immediately.
. Do not run the engine in closed
spaces such as a garage.
. Do not park the vehicle with the
engine running for any extended
length of time.
. Keep the trunk lid closed while
driving, otherwise exhaust gases
could be drawn into the passenger
compartment. If you must drive with
the trunk lid open, follow these
precautions:
a. Open all the windows.
b. Set the
air recirculation to
off and the fan control to high to circulate the air.
. The exhaust system and body
should be inspected by a qualified
mechanic whenever:
Ð The vehicle is raised for service.
Ð You suspect that exhaust fumes
are entering into the passenger
compartment.
Ð You notice a change in the sound of the exhaust system.
Ð You have had an accident invol- ving damage to the exhaust
system, underbody, or rear of
the vehicle.
THREE-WAY CATALYSTGUID-C6C2AC5C-58D1-4557-AB2B-17AA4021BD05The three-way catalyst is an emission control
device installed in the exhaust system. Exhaust
gases in the three-way catalyst are burned at
high temperatures to help reduce pollutants.
Starting and driving5-3
PRECAUTIONS WHEN STARTING
AND DRIVING
Page 223 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
5-4Starting and driving
WARNING
.The exhaust gas and the exhaust
system are very hot. Keep people,
animals or flammable materials
away from the exhaust system com-
ponents.
. Do not stop or park the vehicle over
flammable materials such as dry
grass, waste paper or rags. They
may ignite and cause a fire.
NOTICE
.Do not use leaded gasoline. Depos-
its from leaded gasoline seriously
reduce the three-way catalyst's abil-
ity to help reduce exhaust pollu-
tants.
. Keep your engine tuned up. Mal-
functions in the ignition, fuel injec-
tion, or electrical systems can cause
overrich fuel flow into the three-way
catalyst, causing it to overheat. Do
not keep driving if the engine mis-
fires, or if noticeable loss of perfor-
mance or other unusual operating conditions are detected. It is recom-
mended you have the vehicle in-
spected promptly by a GT-R certified
NISSAN dealer.
. Avoid driving with an extremely low
fuel level. Running out of fuel could
cause the engine to misfire, dama-
ging the three-way catalyst.
. Do not race the engine while warm-
ing it up.
. Do not push or tow your vehicle to
start the engine.TIRE PRESSURE MONITORING
SYSTEM (TPMS)
GUID-90024E82-FB34-427B-AB7F-4FE62719A8F1Each tire should be checked monthly when cold
and inflated to the inflation pressure recom-
mended by the vehicle manufacturer on the
vehicle placard or tire inflation pressure label. (If
your vehicle has tires of a different size than the
size indicated on the vehicle placard or tire
inflation pressure label, you should determine
the proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has
been equipped with a Tire Pressure Monitoring
System (TPMS) that illuminates a low tire
pressure telltale when one or more of your tires is significantly under-inflated. Accordingly, when
the low tire pressure telltale illuminates, you
should stop and check your tires as soon as
possible, and inflate them to the proper pres-
sure. Driving on a significantly under-inflated tire
causes the tire to overheat and can lead to tire
failure. Under-inflation also reduces fuel effi-
ciency and tire tread life, and may affect the
vehicle's handling and stopping ability.
If the vehicle is being driven with one or more flat
tires, the low tire pressure warning light will
illuminate continuously and a chime will sound
for 10 seconds. The chime will only sound at the
first indication of a flat tire, and the warning light
will illuminate continuously. When the flat tire
warning is activated, it is recommended you
have the system reset and the tire checked and
replaced if necessary by a GT-R certified
NISSAN dealer. Even if the tire is inflated to
the specified COLD tire pressure, the warning
light will continue to illuminate until the system is
reset by a GT-R certified NISSAN dealer. Your
vehicle can be driven for a limited time on a flat
tire. (
ªRun-flat tiresº page 8-39)
Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver's
responsibility to maintain correct tire pressure,
even if under-inflation has not reached the level
to trigger illumination of the TPMS low tire
Page 224 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

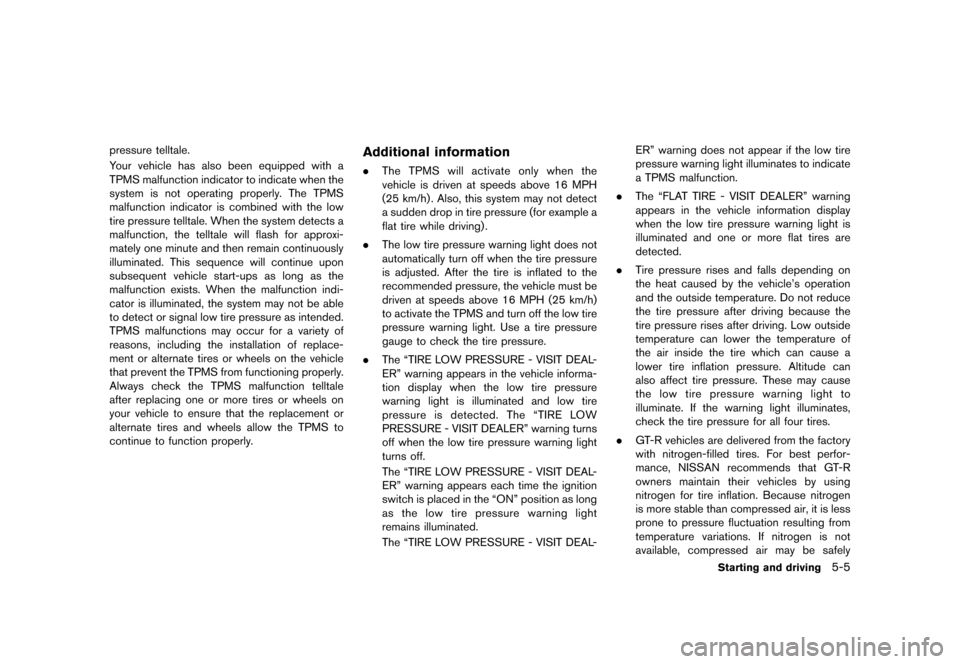

pressure telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate when the
system is not operating properly. The TPMS
malfunction indicator is combined with the low
tire pressure telltale. When the system detects a
malfunction, the telltale will flash for approxi-
mately one minute and then remain continuously
illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the
malfunction exists. When the malfunction indi-
cator is illuminated, the system may not be able
to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of
reasons, including the installation of replace-
ment or alternate tires or wheels on the vehicle
that prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale
after replacing one or more tires or wheels on
your vehicle to ensure that the replacement or
alternate tires and wheels allow the TPMS to
continue to function properly.Additional informationGUID-853D6301-F8DB-4961-A1F9-51FC1CE15E41.The TPMS will activate only when the
vehicle is driven at speeds above 16 MPH
(25 km/h) . Also, this system may not detect
a sudden drop in tire pressure (for example a
flat tire while driving) .
. The low tire pressure warning light does not
automatically turn off when the tire pressure
is adjusted. After the tire is inflated to the
recommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h)
to activate the TPMS and turn off the low tire
pressure warning light. Use a tire pressure
gauge to check the tire pressure.
. The ªTIRE LOW PRESSURE - VISIT DEAL-
ERº warning appears in the vehicle informa-
tion display when the low tire pressure
warning light is illuminated and low tire
pressure is detected. The ªTIRE LOW
PRESSURE - VISIT DEALERº warning turns
off when the low tire pressure warning light
turns off.
The ªTIRE LOW PRESSURE - VISIT DEAL-
ERº warning appears each time the ignition
switch is placed in the ªONº position as long
as the low tire pressure warning light
remains illuminated.
The ªTIRE LOW PRESSURE - VISIT DEAL- ERº warning does not appear if the low tire
pressure warning light illuminates to indicate
a TPMS malfunction.
. The ªFLAT TIRE - VISIT DEALERº warning
appears in the vehicle information display
when the low tire pressure warning light is
illuminated and one or more flat tires are
detected.
. Tire pressure rises and falls depending on
the heat caused by the vehicle's operation
and the outside temperature. Do not reduce
the tire pressure after driving because the
tire pressure rises after driving. Low outside
temperature can lower the temperature of
the air inside the tire which can cause a
lower tire inflation pressure. Altitude can
also affect tire pressure. These may cause
the low tire pressure warning light to
illuminate. If the warning light illuminates,
check the tire pressure for all four tires.
. GT-R vehicles are delivered from the factory
with nitrogen-filled tires. For best perfor-
mance, NISSAN recommends that GT-R
owners maintain their vehicles by using
nitrogen for tire inflation. Because nitrogen
is more stable than compressed air, it is less
prone to pressure fluctuation resulting from
temperature variations. If nitrogen is not
available, compressed air may be safely
Starting and driving5-5
Page 225 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
5-6Starting and driving
used under normal driving conditions. How-
ever, NISSAN recommends refilling with
Nitrogen for maximum tire performance.
. The Tire and Loading Information label (also
referred to as the vehicle placard or tire
inflation pressure label) is located in the
driver's door opening.
. You can also check the pressure of all tires
on the touch screen display. Refer to the
separate Multi Function Display Owner's
Manual.
. The tire pressure sensor should be reset
anytime the wheels or tires are removed or
replaced.
. If the tire is removed in order to replace the
tire pressure sensor battery, it may not be
possible to reuse the removed tire from the
wheel. To replace the tire pressure sensor
battery, it is recommended you contact a
GT-R certified NISSAN dealer.
WARNING
.If the low tire pressure warning light
illuminates while driving, avoid sud-
den steering maneuvers or abrupt
braking, reduce vehicle speed, pull
off the road to a safe location and stop the vehicle as soon as possi-
ble. Driving with under-inflated tires
may permanently damage the tires
and increase the likelihood of tire
failure. Serious vehicle damage
could occur and may lead to an
accident and could result in serious
personal injury. Check the tire pres-
sure for all four tires. Adjust the tire
pressure to the recommended COLD
tire pressure shown on the Tire and
Loading Information label to turn
the low tire pressure warning light
off. If the light still illuminates while
driving after adjusting the tire pres-
sure, a tire may be flat (
ªRun-
flat tiresº page 6-4) or the TPMS
may be malfunctioning. If no tire is
flat and all tires are properly in-
flated, have the vehicle checked by a
GT-R certified NISSAN dealer.
. Although you can continue driving
with a punctured run-flat tire, re-
member that vehicle handling sta-
bility is reduced, which could lead to
an accident and personal injury.
Also, driving a long distance at high
speeds may damage the tires. .
Do not drive at speeds above 50
MPH (80 km/h) and do not drive
more than 50 miles (80 km) with a
punctured run-flat tire. The actual
distance the vehicle can be driven
on a flat tire depends on outside
temperature, vehicle load, road con-
ditions and other factors.
. When a wheel is replaced, the TPMS
will not function and the low tire
pressure warning light will flash for
approximately 1 minute. The light
will remain on after 1 minute. It is
recommended you contact your
GT-R certified NISSAN dealer as
soon as possible for tire replace-
ment and/or system resetting.
. Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
TPMS.
. Do not inject any tire liquid or
aerosol tire sealant into the tires,
as this may cause a malfunction of
the tire pressure sensors.
Page 226 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
NOTICE
.The TPMS may not function properly
when the wheels are equipped with
tire chains or the wheels are buried
in snow.
. The TPMS may not function properly
if the TPMS sensor is not reset and
when wheels/tires from another
GT-R are installed on your vehicle.
. The TPMS will not function properly
if non-GT-R wheels are installed on
the vehicle.
. Do not place metalized film or any
metal parts (antenna, etc.) on the
windows. This may cause poor re-
ception of the signals from the tire
pressure sensors, and the TPMS will
not function properly.
Some devices and transmitters may temporarily
interfere with the operation of the TPMS and
cause the low tire pressure warning light to
illuminate. Some examples are:
. Facilities or electric devices using similar
radio frequencies are near the vehicle.
. If a transmitter set to similar frequencies is being used in or near the vehicle.
. If a computer (or similar equipment) or a DC/
AC converter is being used in or near the
vehicle.
Low tire pressure warning light may illuminate in
the following cases.
. If the vehicle is equipped with a wheel and
tire without TPMS.
. If the TPMS has been replaced and the ID
has not been registered.
. If the wheel is not originally specified by
NISSAN.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.
Note: Changes or modifications not ex-
pressly approved by the party responsible
for compliance could void the user's
authority to operate the equipment.
For Canada:
This device complies with Industry Canada licence-exempt RSS standard(s) . Opera-
tion is subject to the following two condi-
tions: (1) this device may not cause
interference, and (2) this device must
accept any interference, including interfer-
ence that may cause undesired operation
of the device.
AVOIDING COLLISION AND ROLL-
OVER
GUID-913B0D8D-4751-49E4-80B9-76CC94349D67
WARNING
Failure to operate this vehicle in a safe
and prudent manner may result in loss
of control or an accident.
Be alert and drive defensively at all times. Obey
all traffic regulations. Avoid excessive speed,
high speed cornering, or sudden steering
maneuvers, because these driving practices
could cause you to lose control of your vehicle.
As with any vehicle, a loss of control could
result in a collision with other vehicles or
objects, or cause the vehicle to rollover,
particularly if the loss of control causes the
vehicle to slide sideways. Be attentive at all
times, and avoid driving when tired. Never drive
when under the influence of alcohol or drugs
Starting and driving5-7
Page 227 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

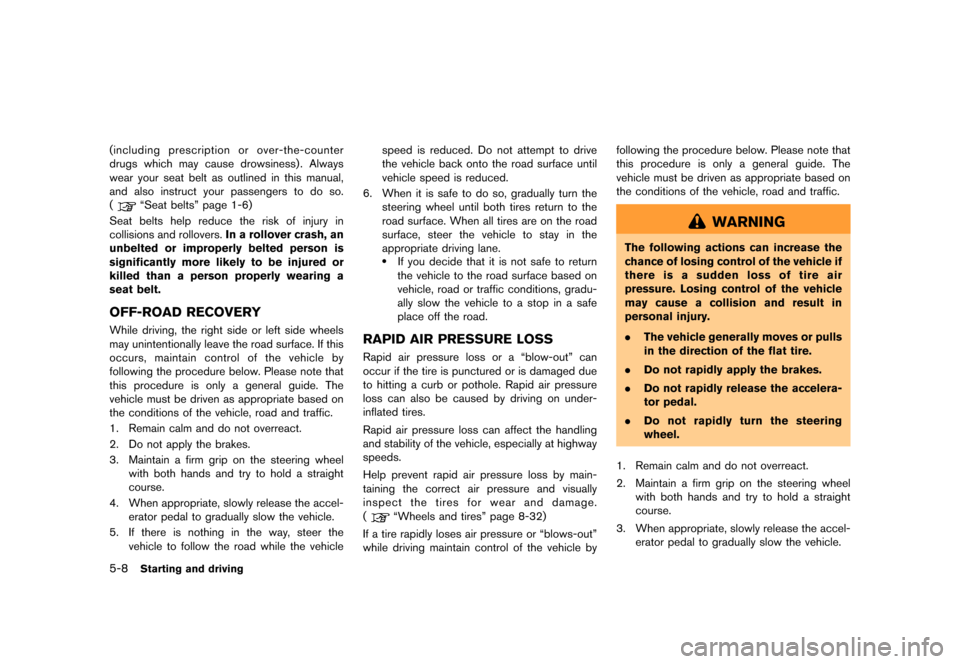

5-8Starting and driving
(including prescription or over-the-counter
drugs which may cause drowsiness) . Always
wear your seat belt as outlined in this manual,
and also instruct your passengers to do so.
(
ªSeat beltsº page 1-6)
Seat belts help reduce the risk of injury in
collisions and rollovers. In a rollover crash, an
unbelted or improperly belted person is
significantly more likely to be injured or
killed than a person properly wearing a
seat belt.
OFF-ROAD RECOVERYGUID-AFBBC024-23B2-4CAC-81A6-62534568AD10While driving, the right side or left side wheels
may unintentionally leave the road surface. If this
occurs, maintain control of the vehicle by
following the procedure below. Please note that
this procedure is only a general guide. The
vehicle must be driven as appropriate based on
the conditions of the vehicle, road and traffic.
1. Remain calm and do not overreact.
2. Do not apply the brakes.
3. Maintain a firm grip on the steering wheel with both hands and try to hold a straight
course.
4. When appropriate, slowly release the accel- erator pedal to gradually slow the vehicle.
5. If there is nothing in the way, steer the vehicle to follow the road while the vehicle speed is reduced. Do not attempt to drive
the vehicle back onto the road surface until
vehicle speed is reduced.
6. When it is safe to do so, gradually turn the steering wheel until both tires return to the
road surface. When all tires are on the road
surface, steer the vehicle to stay in the
appropriate driving lane.
.If you decide that it is not safe to return
the vehicle to the road surface based on
vehicle, road or traffic conditions, gradu-
ally slow the vehicle to a stop in a safe
place off the road.
RAPID AIR PRESSURE LOSSGUID-4539FB86-2F6F-43A9-89F3-E5978DB523C3Rapid air pressure loss or a ªblow-outº can
occur if the tire is punctured or is damaged due
to hitting a curb or pothole. Rapid air pressure
loss can also be caused by driving on under-
inflated tires.
Rapid air pressure loss can affect the handling
and stability of the vehicle, especially at highway
speeds.
Help prevent rapid air pressure loss by main-
taining the correct air pressure and visually
inspect the tires for wear and damage.
(
ªWheels and tiresº page 8-32)
If a tire rapidly loses air pressure or ªblows-outº
while driving maintain control of the vehicle by following the procedure below. Please note that
this procedure is only a general guide. The
vehicle must be driven as appropriate based on
the conditions of the vehicle, road and traffic.
WARNING
The following actions can increase the
chance of losing control of the vehicle if
there is a sudden loss of tire air
pressure. Losing control of the vehicle
may cause a collision and result in
personal injury.
.
The vehicle generally moves or pulls
in the direction of the flat tire.
. Do not rapidly apply the brakes.
. Do not rapidly release the accelera-
tor pedal.
. Do not rapidly turn the steering
wheel.
1. Remain calm and do not overreact.
2. Maintain a firm grip on the steering wheel with both hands and try to hold a straight
course.
3. When appropriate, slowly release the accel- erator pedal to gradually slow the vehicle.
Page 228 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

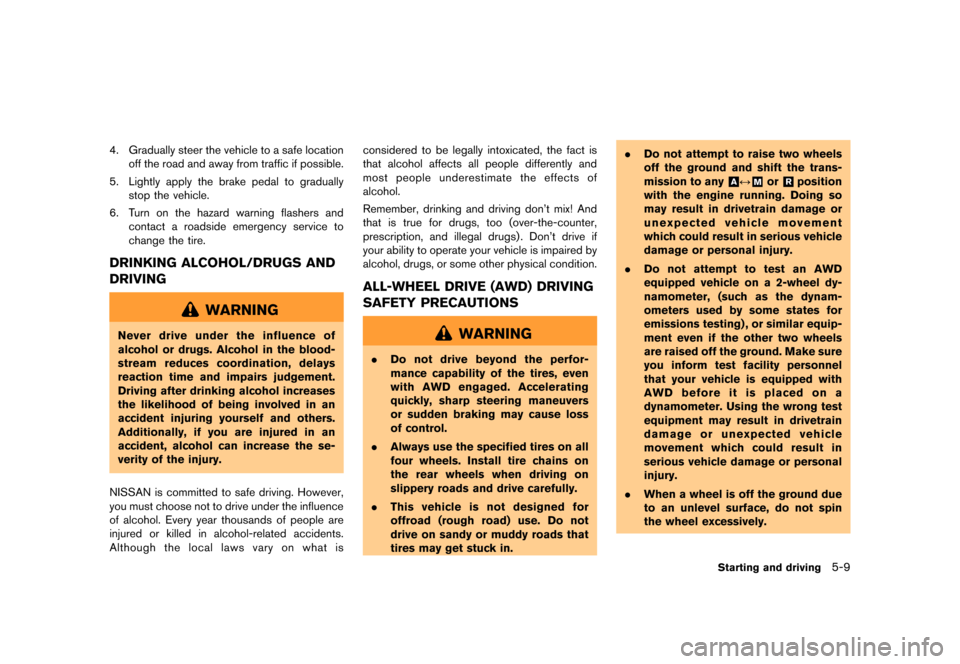

4. Gradually steer the vehicle to a safe locationoff the road and away from traffic if possible.
5. Lightly apply the brake pedal to gradually stop the vehicle.
6. Turn on the hazard warning flashers and contact a roadside emergency service to
change the tire.
DRINKING ALCOHOL/DRUGS AND
DRIVING
GUID-D40A9B53-32EA-4196-9F25-3C6BB46498B3
WARNING
Never drive under the influence of
alcohol or drugs. Alcohol in the blood-
stream reduces coordination, delays
reaction time and impairs judgement.
Driving after drinking alcohol increases
the likelihood of being involved in an
accident injuring yourself and others.
Additionally, if you are injured in an
accident, alcohol can increase the se-
verity of the injury.
NISSAN is committed to safe driving. However,
you must choose not to drive under the influence
of alcohol. Every year thousands of people are
injured or killed in alcohol-related accidents.
Although the local laws vary on what is considered to be legally intoxicated, the fact is
that alcohol affects all people differently and
most people underestimate the effects of
alcohol.
Remember, drinking and driving don't mix! And
that is true for drugs, too (over-the-counter,
prescription, and illegal drugs) . Don't drive if
your ability to operate your vehicle is impaired by
alcohol, drugs, or some other physical condition.
ALL-WHEEL DRIVE (AWD) DRIVING
SAFETY PRECAUTIONS
GUID-1CCF4F08-164B-4A8B-9000-1004F7B3662C
WARNING
.
Do not drive beyond the perfor-
mance capability of the tires, even
with AWD engaged. Accelerating
quickly, sharp steering maneuvers
or sudden braking may cause loss
of control.
. Always use the specified tires on all
four wheels. Install tire chains on
the rear wheels when driving on
slippery roads and drive carefully.
. This vehicle is not designed for
offroad (rough road) use. Do not
drive on sandy or muddy roads that
tires may get stuck in. .
Do not attempt to raise two wheels
off the ground and shift the trans-
mission to any
&AF&Mor&Rposition
with the engine running. Doing so
may result in drivetrain damage or
unexpected vehicle movement
which could result in serious vehicle
damage or personal injury.
. Do not attempt to test an AWD
equipped vehicle on a 2-wheel dy-
namometer, (such as the dynam-
ometers used by some states for
emissions testing) , or similar equip-
ment even if the other two wheels
are raised off the ground. Make sure
you inform test facility personnel
that your vehicle is equipped with
AWD before it is placed on a
dynamometer. Using the wrong test
equipment may result in drivetrain
damage or unexpected vehicle
movement which could result in
serious vehicle damage or personal
injury.
. When a wheel is off the ground due
to an unlevel surface, do not spin
the wheel excessively.
Starting and driving5-9
Page 229 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

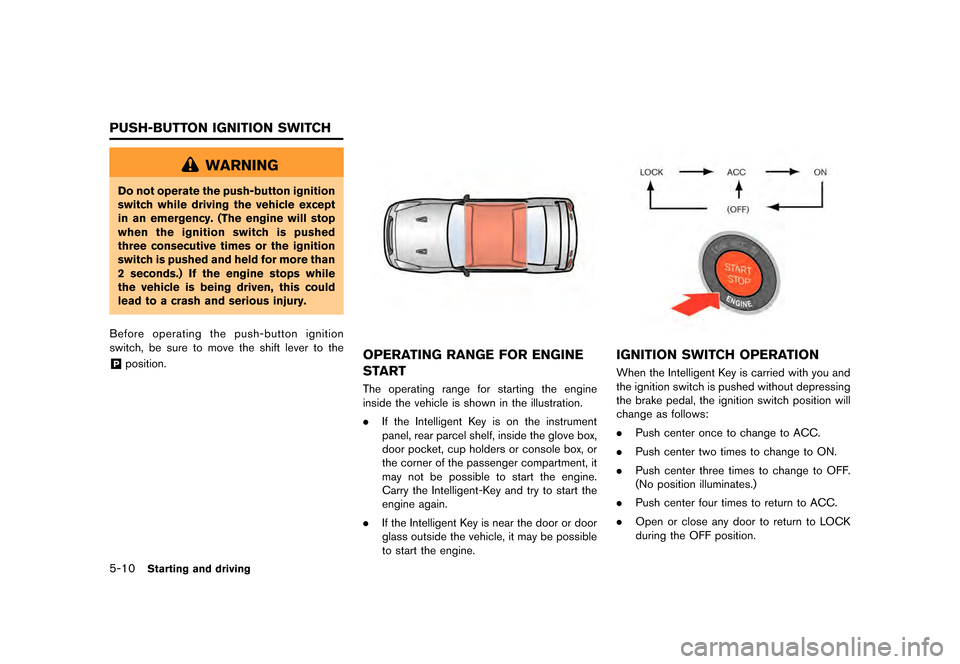

5-10Starting and driving
GUID-032D251F-22C0-4898-A4EE-3D4C82BA6AD0
WARNING
Do not operate the push-button ignition
switch while driving the vehicle except
in an emergency. (The engine will stop
when the ignition switch is pushed
three consecutive times or the ignition
switch is pushed and held for more than
2 seconds.) If the engine stops while
the vehicle is being driven, this could
lead to a crash and serious injury.
Before operating the push-button ignition
switch, be sure to move the shift lever to the
&Pposition.
GPC0003
OPERATING RANGE FOR ENGINE
START
GUID-9693670E-132B-426B-8FCB-A69614F878BFThe operating range for starting the engine
inside the vehicle is shown in the illustration.
. If the Intelligent Key is on the instrument
panel, rear parcel shelf, inside the glove box,
door pocket, cup holders or console box, or
the corner of the passenger compartment, it
may not be possible to start the engine.
Carry the Intelligent-Key and try to start the
engine again.
. If the Intelligent Key is near the door or door
glass outside the vehicle, it may be possible
to start the engine.
GST0074
IGNITION SWITCH OPERATIONGUID-69CE1221-4C70-48A8-B474-02F2187E6ECEWhen the Intelligent Key is carried with you and
the ignition switch is pushed without depressing
the brake pedal, the ignition switch position will
change as follows:
.Push center once to change to ACC.
. Push center two times to change to ON.
. Push center three times to change to OFF.
(No position illuminates.)
. Push center four times to return to ACC.
. Open or close any door to return to LOCK
during the OFF position.
PUSH-BUTTON IGNITION SWITCH
Page 230 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

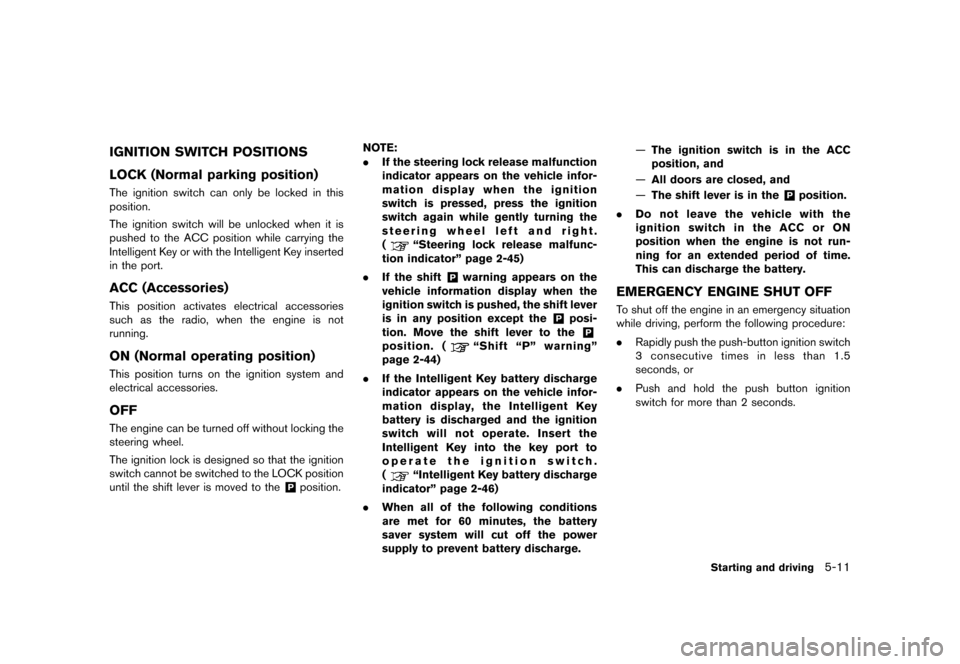

IGNITION SWITCH POSITIONSGUID-3729D39A-D3BB-45D9-AACC-F8012205C82D
LOCK (Normal parking position)GUID-B45A088B-04A2-4B0E-9019-3C55A3B018F5The ignition switch can only be locked in this
position.
The ignition switch will be unlocked when it is
pushed to the ACC position while carrying the
Intelligent Key or with the Intelligent Key inserted
in the port.
ACC (Accessories)GUID-CED34830-E07F-462E-96CB-83E1CE6EB287This position activates electrical accessories
such as the radio, when the engine is not
running.
ON (Normal operating position)GUID-20C0C7F6-565C-4F80-8704-D5AD1B7539FEThis position turns on the ignition system and
electrical accessories.
OFFGUID-772ACD21-8119-45AC-85F2-CCEA46C2D027The engine can be turned off without locking the
steering wheel.
The ignition lock is designed so that the ignition
switch cannot be switched to the LOCK position
until the shift lever is moved to the
&Pposition.NOTE:
.
If the steering lock release malfunction
indicator appears on the vehicle infor-
mation display when the ignition
switch is pressed, press the ignition
switch again while gently turning the
steering wheel left and right.
(
ªSteering lock release malfunc-
tion indicatorº page 2-45)
. If the shift
&Pwarning appears on the
vehicle information display when the
ignition switch is pushed, the shift lever
is in any position except the
&Pposi-
tion. Move the shift lever to the
&P
position. (ªShift ªPº warningº
page 2-44)
. If the Intelligent Key battery discharge
indicator appears on the vehicle infor-
mation display, the Intelligent Key
battery is discharged and the ignition
switch will not operate. Insert the
Intelligent Key into the key port to
operate the ignition switch.
(
ªIntelligent Key battery discharge
indicatorº page 2-46)
. When all of the following conditions
are met for 60 minutes, the battery
saver system will cut off the power
supply to prevent battery discharge. Ð
The ignition switch is in the ACC
position, and
Ð All doors are closed, and
Ð The shift lever is in the
&Pposition.
. Do not leave the vehicle with the
ignition switch in the ACC or ON
position when the engine is not run-
ning for an extended period of time.
This can discharge the battery.
EMERGENCY ENGINE SHUT OFFGUID-B72F2DFA-F7E1-4866-9938-F703E11AD9A5To shut off the engine in an emergency situation
while driving, perform the following procedure:
.Rapidly push the push-button ignition switch
3 consecutive times in less than 1.5
seconds, or
. Push and hold the push button ignition
switch for more than 2 seconds.
Starting and driving5-11
