3-28Pre-driving checks and adjustments
rearview mirror operate normally. The indicator
light will turn off. Push the ªIº switch
*Dto turn
the system on.
NOTICE
Do not allow any object to cover the
sensors
*Eor apply glass cleaner on
them. Doing so will reduce the sensi-
tivity of the sensor, resulting in impro-
per operation.
JVP0443X
OUTSIDE MIRRORSGUID-6AA9C5A5-0B3F-4C43-97E5-0045516FEDFC
WARNING
Objects viewed in the outside mirror on
the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.
The outside mirror will operate only when the
ignition switch is in the ACC or ON position.
Adjusting the outside mirrorsGUID-754A72E5-F112-455D-98B4-C5FAE10895E31. Turn the switch right or left to select the right or left side mirror
*1.
2. Operate the control switch
*2to adjust the
mirror angle.
WARNING
Adjust the mirrors before starting to
drive. Adjusting the mirrors during driv-
ing is dangerous as it reduces the
driver's attention to the forward direc-
tion.
Page 202 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
JVP0444X

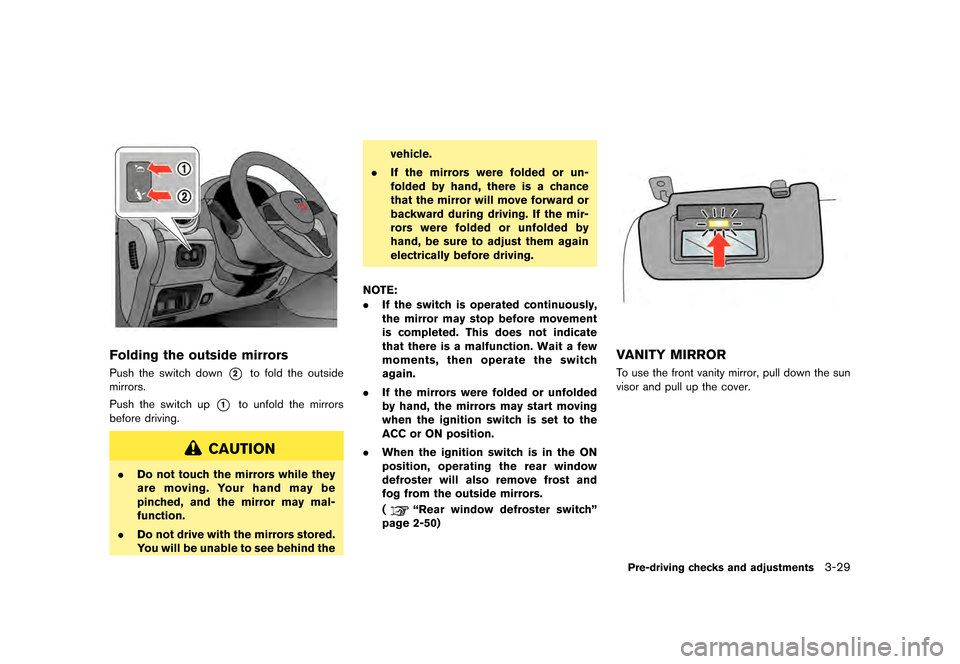

Folding the outside mirrorsGUID-DE998FED-D8CF-4F55-975D-9022F41EA3E9Push the switch down*2to fold the outside
mirrors.
Push the switch up
*1to unfold the mirrors
before driving.
CAUTION
. Do not touch the mirrors while they
are moving. Your hand may be
pinched, and the mirror may mal-
function.
. Do not drive with the mirrors stored.
You will be unable to see behind the vehicle.
. If the mirrors were folded or un-
folded by hand, there is a chance
that the mirror will move forward or
backward during driving. If the mir-
rors were folded or unfolded by
hand, be sure to adjust them again
electrically before driving.
NOTE:
. If the switch is operated continuously,
the mirror may stop before movement
is completed. This does not indicate
that there is a malfunction. Wait a few
moments, then operate the switch
again.
. If the mirrors were folded or unfolded
by hand, the mirrors may start moving
when the ignition switch is set to the
ACC or ON position.
. When the ignition switch is in the ON
position, operating the rear window
defroster will also remove frost and
fog from the outside mirrors.
(
ªRear window defroster switchº
page 2-50)
GEC0002
VANITY MIRRORGUID-0E329438-F2EE-4D36-859A-D982E250C1C4To use the front vanity mirror, pull down the sun
visor and pull up the cover.
Pre-driving checks and adjustments3-29
Page 203 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
3-30Pre-driving checks and adjustments
MEMO
Page 204 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

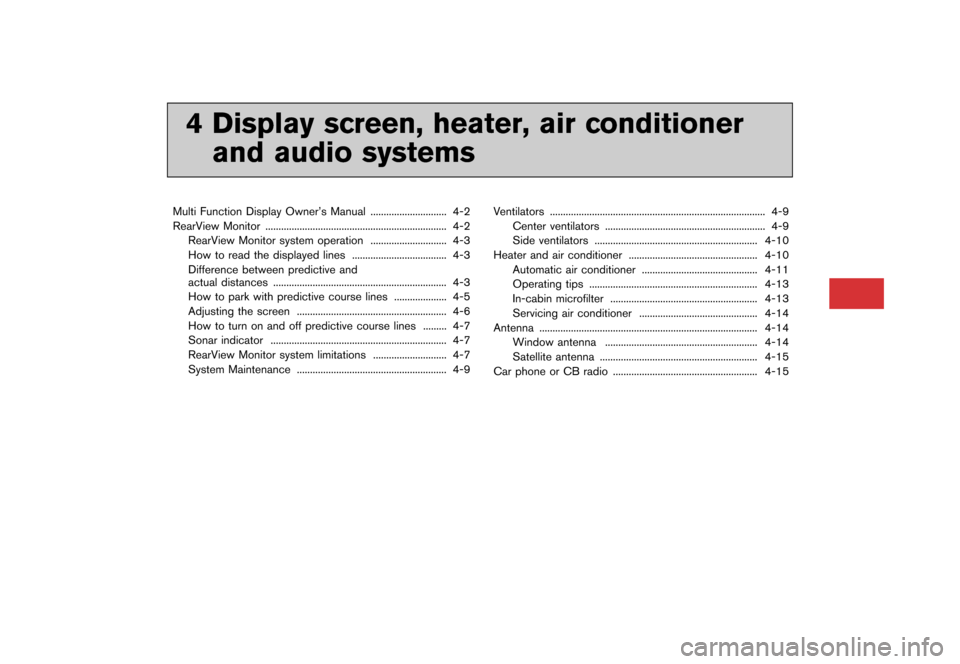

4 Display screen, heater, air conditionerand audio systems
Multi Function Display Owner's Manual ....
............................. 4-2
RearView Monitor ....
..................................................................... 4-2
RearView Monitor system operation ................................. 4-3
How to read the displayed lines ........................................ 4-3
Difference between predictive and
actual distances ....
.................................................................. 4-3
How to park with predictive course lines ........................ 4-5
Adjusting the screen ............................................................. 4-6
How to turn on and off predictive course lines ............. 4-7
Sonar indicator ....................................................................... 4-7
RearView Monitor system limitations ................................ 4-7
System Maintenance ............................................................. 4-9 Ventilators
....
........................................................................\
.......... 4-9
Center ventilators .... ............................................................. 4-9
Side ventilators .................................................................. 4-10
Heater and air conditioner ..................................................... 4-10
Automatic air conditioner ................................................ 4-11
Operating tips .................................................................... 4-13
In-cabin microfilter ............................................................ 4-13
Servicing air conditioner ................................................. 4-14
Antenna ....
........................................................................\
........... 4-14
Window antenna ....
.......................................................... 4-14
Satellite antenna ....
............................................................ 4-15
Car phone or CB radio ....
....................................................... 4-15
Page 205 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

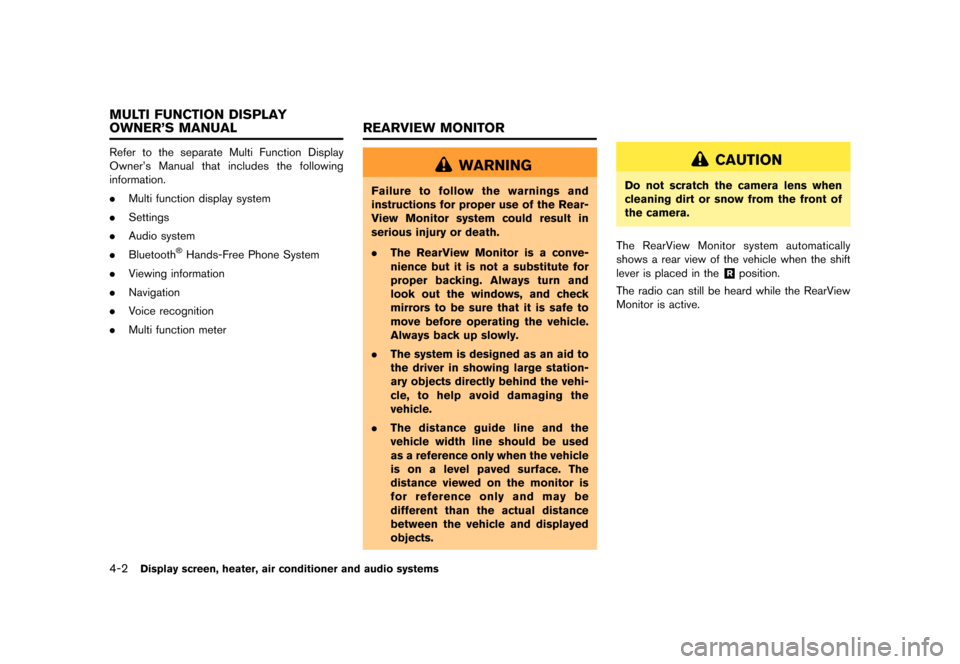

4-2Display screen, heater, air conditioner and audio systems
GUID-30A72A03-E081-4007-821D-9B3D8D910228Refer to the separate Multi Function Display
Owner's Manual that includes the following
information.
.Multi function display system
. Settings
. Audio system
. Bluetooth
Page 206 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
JVH1362X

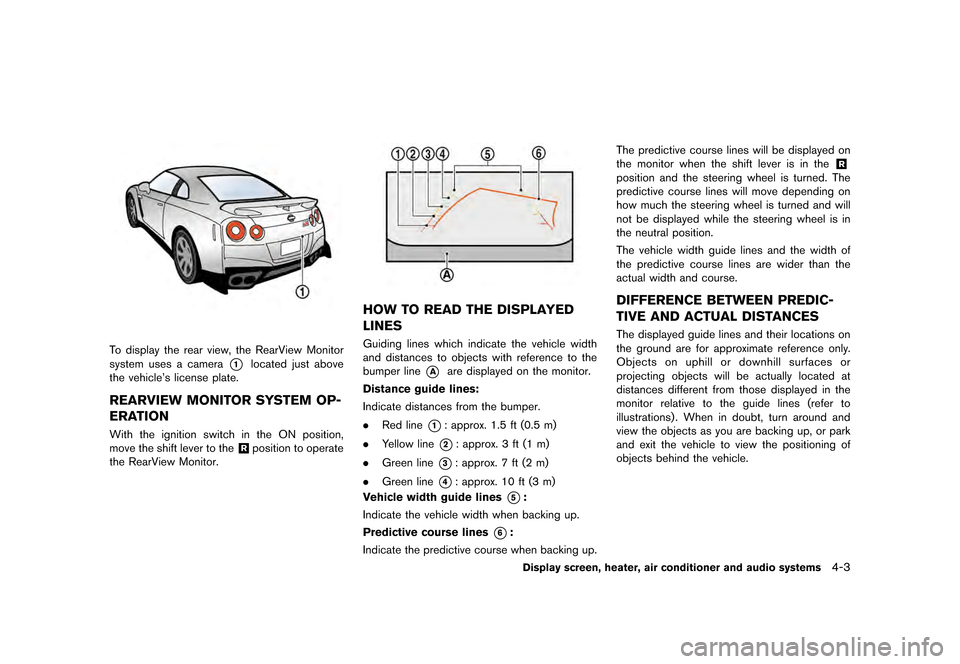

To display the rear view, the RearView Monitor
system uses a camera
*1located just above
the vehicle's license plate.
REARVIEW MONITOR SYSTEM OP-
ERATION
GUID-4BA186D9-4086-4B5B-B3DD-1DFEBBF44429With the ignition switch in the ON position,
move the shift lever to the
&Rposition to operate
the RearView Monitor.
LNL0001X
HOW TO READ THE DISPLAYED
LINES
GUID-6E61F031-88D7-44C4-B598-9E293DCD758EGuiding lines which indicate the vehicle width
and distances to objects with reference to the
bumper line
*Aare displayed on the monitor.
Distance guide lines:
Indicate distances from the bumper.
. Red line
*1: approx. 1.5 ft (0.5 m)
. Yellow line
*2: approx. 3 ft (1 m)
. Green line
*3: approx. 7 ft (2 m)
. Green line
*4: approx. 10 ft (3 m)
Vehicle width guide lines
*5:
Indicate the vehicle width when backing up.
Predictive course lines
*6:
Indicate the predictive course when backing up. The predictive course lines will be displayed on
the monitor when the shift lever is in the
&R
position and the steering wheel is turned. The
predictive course lines will move depending on
how much the steering wheel is turned and will
not be displayed while the steering wheel is in
the neutral position.
The vehicle width guide lines and the width of
the predictive course lines are wider than the
actual width and course.
DIFFERENCE BETWEEN PREDIC-
TIVE AND ACTUAL DISTANCES
GUID-9F0BAE5F-99DD-4531-8DBF-B78BCB8459FCThe displayed guide lines and their locations on
the ground are for approximate reference only.
Objects on uphill or downhill surfaces or
projecting objects will be actually located at
distances different from those displayed in the
monitor relative to the guide lines (refer to
illustrations) . When in doubt, turn around and
view the objects as you are backing up, or park
and exit the vehicle to view the positioning of
objects behind the vehicle.
Display screen, heater, air conditioner and audio systems4-3
Page 207 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
4-4Display screen, heater, air conditioner and audio systems
JVH1363X

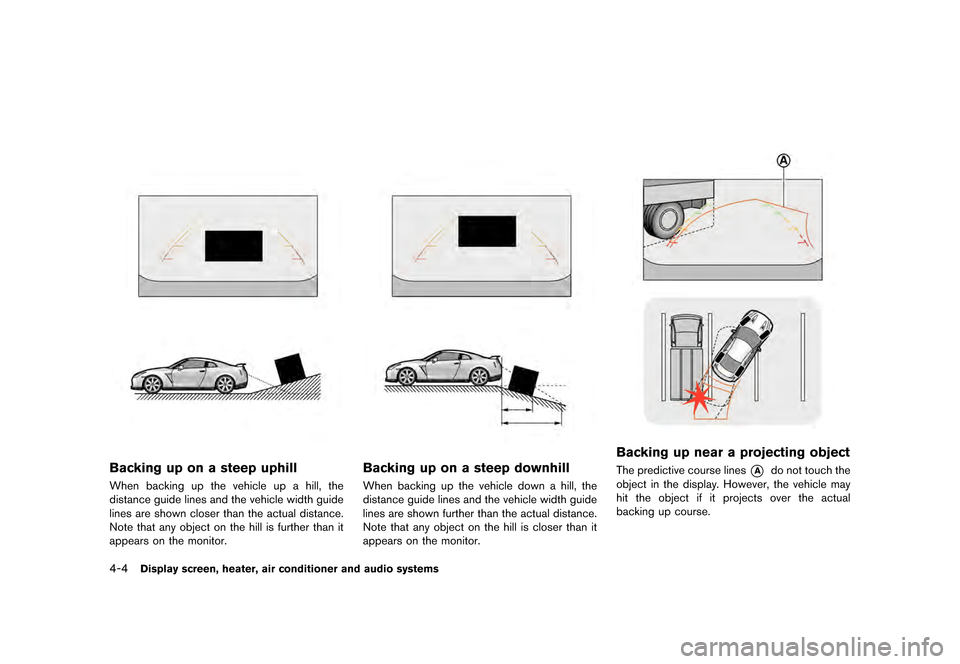

Backing up on a steep uphillGUID-385110DE-5027-48FA-852E-2B2CB3F06CBEWhen backing up the vehicle up a hill, the
distance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
Note that any object on the hill is further than it
appears on the monitor.
JVH1364X
Backing up on a steep downhillGUID-FFB8F59D-437B-4A92-B6EC-5C3CB6DEDCB8When backing up the vehicle down a hill, the
distance guide lines and the vehicle width guide
lines are shown further than the actual distance.
Note that any object on the hill is closer than it
appears on the monitor.
LNL0022X
Backing up near a projecting objectGUID-A02C4F79-F72C-46BA-BB95-ECE7E8C0C402The predictive course lines*Ado not touch the
object in the display. However, the vehicle may
hit the object if it projects over the actual
backing up course.
Page 208 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
LNL0023X
Backing up behind a projecting
object
GUID-53E668D7-7E95-4CB1-B74C-6DDB8F027259The position*Cis shown further than the
position
*Bin the display. However, the
position
*Cis actually at the same distance
as the position
*A. The vehicle may hit the
object when backing up to the position
*Aif the object projects over the actual backing up
course.
HOW TO PARK WITH PREDICTIVE
COURSE LINES
GUID-3D0C158B-6D60-47F8-8784-EAB5BAD3E7DF
WARNING
.
If the tires are replaced with differ-
ent sized tires, the predictive course
line may not be displayed correctly.
. On a snow-covered or slippery road,
there may be a difference between
the predictive course line and the
actual course line.
LNL0024X
1. Visually check that the parking space is safe
before parking your vehicle.
2. The rear view of the vehicle is displayed on the screen
*Awhen the shift lever is moved
to the
&Rposition.
Display screen, heater, air conditioner and audio systems4-5
Page 209 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
4-6Display screen, heater, air conditioner and audio systems
JVO0045X

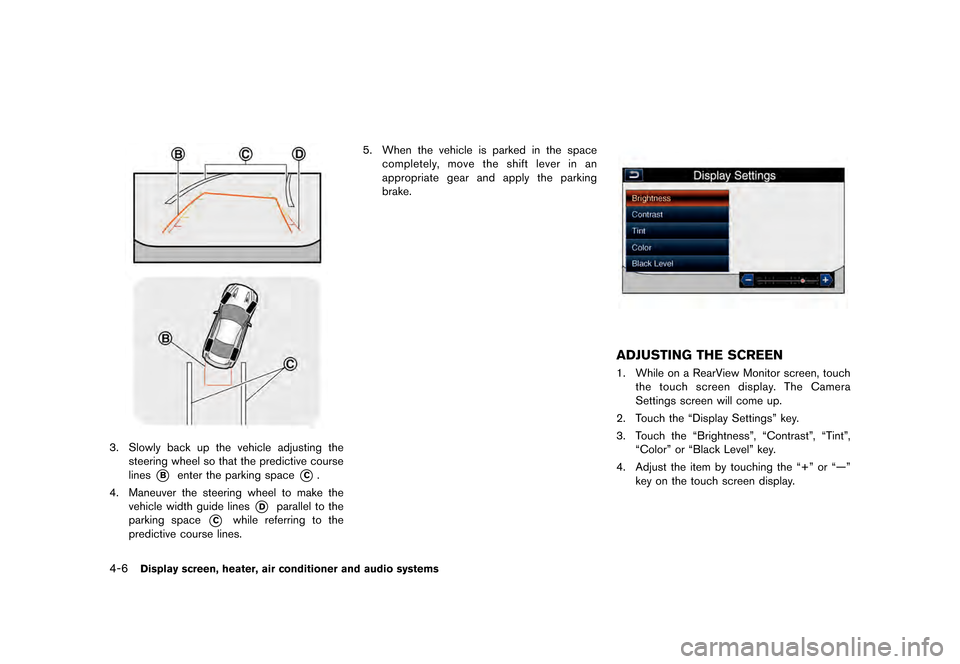

3. Slowly back up the vehicle adjusting thesteering wheel so that the predictive course
lines
*Benter the parking space*C.
4. Maneuver the steering wheel to make the vehicle width guide lines
*Dparallel to the
parking space
*Cwhile referring to the
predictive course lines. 5. When the vehicle is parked in the space
completely, move the shift lever in an
appropriate gear and apply the parking
brake.
JVH1365X
ADJUSTING THE SCREENGUID-1DA67A8C-3E22-4538-B860-29240C9B6E121. While on a RearView Monitor screen, touchthe touch screen display. The Camera
Settings screen will come up.
2. Touch the ªDisplay Settingsº key.
3. Touch the ªBrightnessº, ªContrastº, ªTintº, ªColorº or ªBlack Levelº key.
4. Adjust the item by touching the ª+º or ªÐº key on the touch screen display.
Page 210 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
NOTE:
Do not adjust any of the display settings of
the RearView Monitor while the vehicle is
moving. Make sure the parking brake is
firmly applied.
HOW TO TURN ON AND OFF PRE-
DICTIVE COURSE LINES

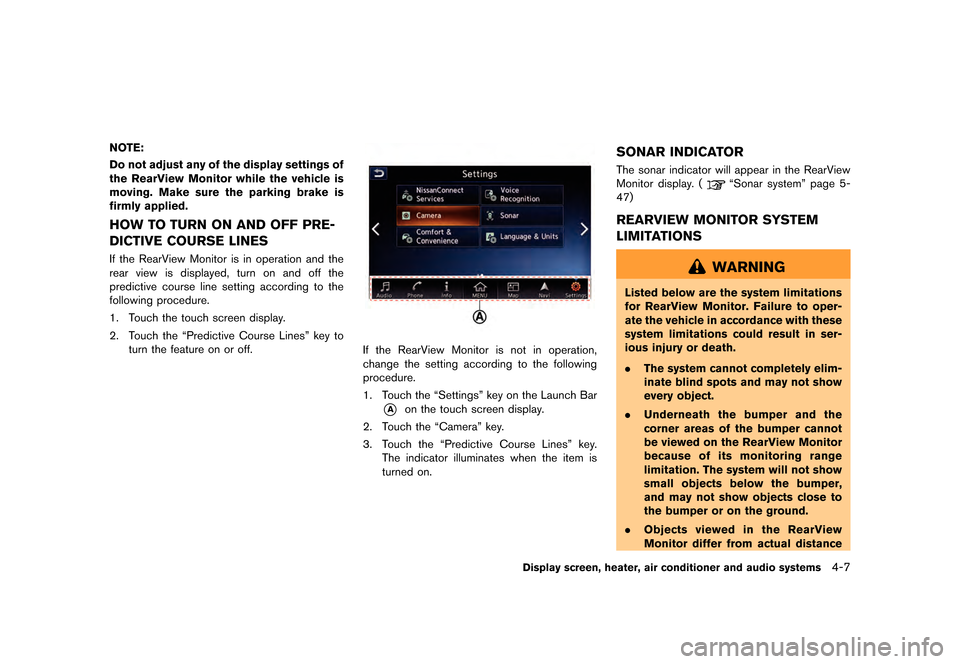

GUID-4F0FD643-416C-4E12-A9B8-82AFCC4E7853If the RearView Monitor is in operation and the
rear view is displayed, turn on and off the
predictive course line setting according to the
following procedure.
1. Touch the touch screen display.
2. Touch the ªPredictive Course Linesº key toturn the feature on or off.
JVH1366X
If the RearView Monitor is not in operation,
change the setting according to the following
procedure.
1. Touch the ªSettingsº key on the Launch Bar
*Aon the touch screen display.
2. Touch the ªCameraº key.
3. Touch the ªPredictive Course Linesº key. The indicator illuminates when the item is
turned on.
SONAR INDICATORGUID-EA99C137-D7C3-497F-9AC9-4DACBB3CA928The sonar indicator will appear in the RearView
Monitor display. (
ªSonar systemº page 5-
47)
REARVIEW MONITOR SYSTEM
LIMITATIONS
GUID-9AA2965F-1AF5-458C-84D0-EC1A9FEFB417
WARNING
Listed below are the system limitations
for RearView Monitor. Failure to oper-
ate the vehicle in accordance with these
system limitations could result in ser-
ious injury or death.
. The system cannot completely elim-
inate blind spots and may not show
every object.
. Underneath the bumper and the
corner areas of the bumper cannot
be viewed on the RearView Monitor
because of its monitoring range
limitation. The system will not show
small objects below the bumper,
and may not show objects close to
the bumper or on the ground.
. Objects viewed in the RearView
Monitor differ from actual distance
Display screen, heater, air conditioner and audio systems4-7
