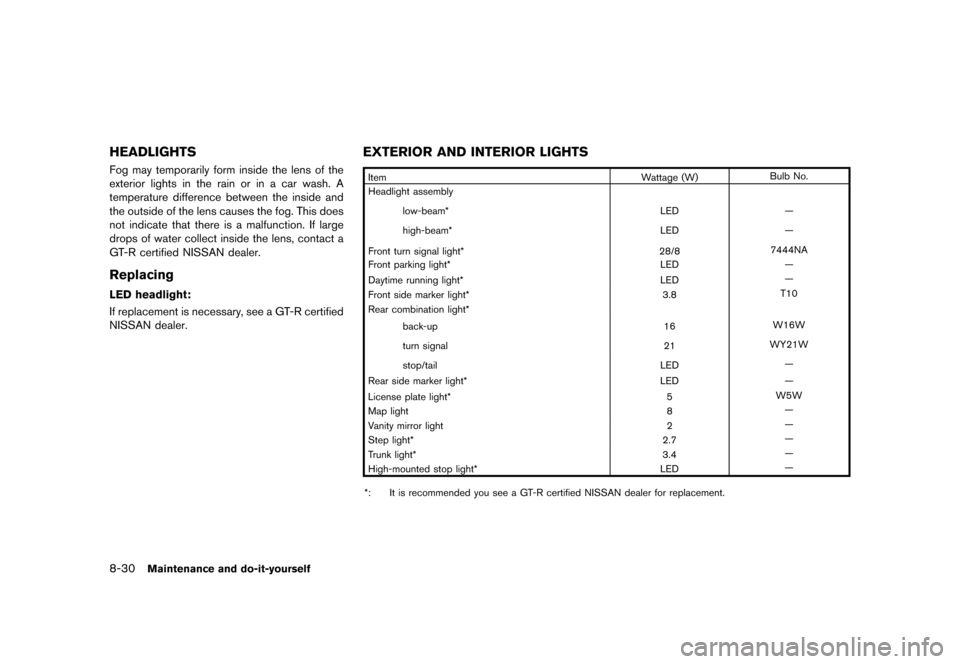

8-30Maintenance and do-it-yourself
HEADLIGHTSGUID-02DF20E9-197E-4198-84C1-8F022CF37578Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside and
the outside of the lens causes the fog. This does
not indicate that there is a malfunction. If large
drops of water collect inside the lens, contact a
GT-R certified NISSAN dealer.
ReplacingGUID-00DF49DB-1667-41BE-B931-A5B723F5290D
LED headlight:GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9If replacement is necessary, see a GT-R certified
NISSAN dealer.
EXTERIOR AND INTERIOR LIGHTSGUID-30C39BC5-0F51-49AB-82BF-6F2132601083
ItemWattage (W)Bulb No.
Headlight assembly
low-beam* LEDÐ
high-beam* LEDÐ
Front turn signal light* 28/87444NA
Front parking light* LEDÐ
Daytime running light* LEDÐ
Front side marker light* 3.8T10
Rear combination light*
back-up 16W16W
turn signal 21WY21W
stop/tail LEDÐ
Rear side marker light* LEDÐ
License plate light* 5W5W
Map light 8Ð
Vanity mirror light 2Ð
Step light* 2.7Ð
Trunk light* 3.4Ð
High-mounted stop light* LEDÐ
*: It is recommended you see a GT-R certified NISSAN dealer for replacement.
Page 332 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

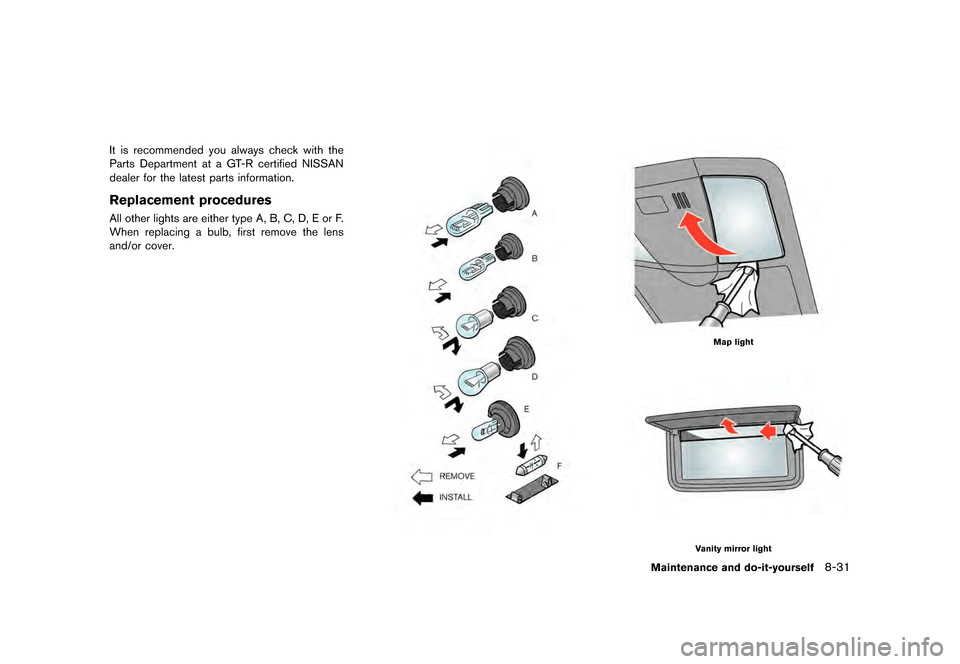

It is recommended you always check with the
Parts Department at a GT-R certified NISSAN
dealer for the latest parts information.
Replacement proceduresGUID-A034FE6D-DE8D-40C1-9B2D-843FBC6CCB18All other lights are either type A, B, C, D, E or F.
When replacing a bulb, first remove the lens
and/or cover.
GMD0013
GMD0014
Map light
GMD0015
Vanity mirror light
Maintenance and do-it-yourself8-31
Page 333 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
8-32Maintenance and do-it-yourself
GUID-FA6175CA-B213-4ECE-863E-635EEF1FE21FIf you have a flat tire, see the following
section. (
ªFlat tireº page 6-3)
CAUTION
A GT-R certified NISSAN dealer should
perform a tire change. It will be neces-
sary to reset the tire pressure sensors.
To change the tires, it is recommended
you contact a GT-R certified NISSAN
dealer.
Be sure to use the tires and wheels together as
a set that are designated for use with this
vehicle.
When tire replacement is required, replacing the
tires as a set of four with new tires is
recommended. However, if a tire is punctured
or damaged, it may be possible to replace only
the damaged tire. Determining whether one tire
or a complete set of tires should be replaced is
based on a number of factors including tire wear
and condition. It is recommended you contact
your GT-R certified NISSAN dealer. They can
recommend if an individual tire or a complete set
should be replaced.
NOTICE
Make sure the tire valve stem cap is
installed and that the valve stem is
tight. When installing the cap, make
sure to tighten the cap by hand. If a tool
is used to tighten the cap, the cap may
be damaged.
TIRE PRESSUREGUID-524F51D3-3740-4280-B73B-13DACCD59EB9
Tire Pressure Monitoring System
(TPMS)
GUID-49C37FD6-6A53-4877-8974-3E290A8057A5This vehicle is equipped with the Tire Pressure
Monitoring System (TPMS) . It monitors tire
pressure of all tires. When the low tire pressure
warning light is lit, one or more of your tires is
significantly under-inflated. The system also
displays pressure of all tires on the touch screen
display by sending a signal from a sensor that is
installed in each wheel.
The TPMS will activate only when the vehicle is
driven at speeds above 16 MPH (25 km/h) .
Also, this system may not detect a sudden drop
in tire pressure. (
ªLow tire pressure warn-
ing lightº page 2-27) (
ªTire Pressure
Monitoring System (TPMS)º page 5-4)
(
ªFlat tireº page 6-3)
Tire inflation pressureGUID-EBF83A20-58CD-45AB-9465-0CC2CBF3A2FD
Check the tire pressure often and always
prior to long distance trips. The recom-
mended tire pressure specifications are
shown on the F.M.V.S.S./C.M.V.S.S. la-
bel or the Tire and Loading Information
label (if so equipped) under the ªCold
Tire Pressureº heading. The Tire and
Loading Information label is affixed to the
driver side door end. Tire pressures
should be checked regularly because:
.Most tires naturally lose air over time.
.Tires can lose air suddenly when
driven over potholes or other objects
or if the vehicle strikes a curb while
parking.
NOTE:
. You can check the pressure of all four
tires on the touch screen display. See
the separate Multi Function Display
Owner's Manual.
. The tires of this vehicle are filled with
nitrogen gas. When the tire pressure is
low, fill the tires with nitrogen. It is
recommended you contact a GT-R cer-
WHEELS AND TIRES
Page 334 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

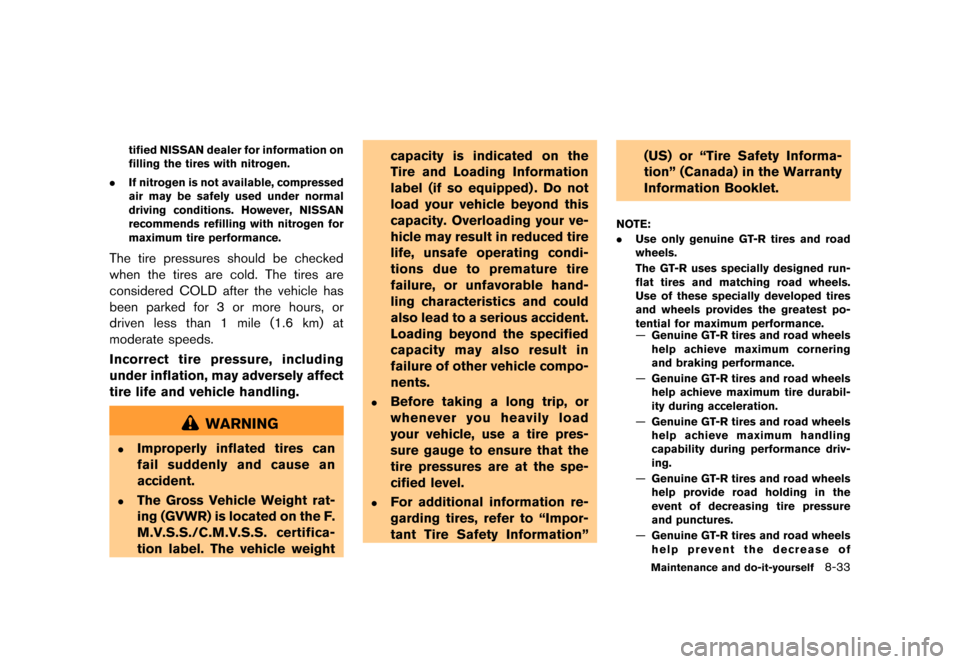

tified NISSAN dealer for information on
filling the tires with nitrogen.
. If nitrogen is not available, compressed
air may be safely used under normal
driving conditions. However, NISSAN
recommends refilling with nitrogen for
maximum tire performance.
The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle has
been parked for 3 or more hours, or
driven less than 1 mile (1.6 km) at
moderate speeds.
Incorrect tire pressure, including
under inflation, may adversely affect
tire life and vehicle handling.
WARNING
.Improperly inflated tires can
fail suddenly and cause an
accident.
.The Gross Vehicle Weight rat-
ing (GVWR) is located on the F.
M.V.S.S./C.M.V.S.S. certifica-
tion label. The vehicle weight capacity is indicated on the
Tire and Loading Information
label (if so equipped) . Do not
load your vehicle beyond this
capacity. Overloading your ve-
hicle may result in reduced tire
life, unsafe operating condi-
tions due to premature tire
failure, or unfavorable hand-
ling characteristics and could
also lead to a serious accident.
Loading beyond the specified
capacity may also result in
failure of other vehicle compo-
nents.
.Before taking a long trip, or
whenever you heavily load
your vehicle, use a tire pres-
sure gauge to ensure that the
tire pressures are at the spe-
cified level.
.For additional information re-
garding tires, refer to ªImpor-
tant Tire Safety Informationº
(US) or ªTire Safety Informa-
tionº (Canada) in the Warranty
Information Booklet.
NOTE:
.
Use only genuine GT-R tires and road
wheels.
The GT-R uses specially designed run-
flat tires and matching road wheels.
Use of these specially developed tires
and wheels provides the greatest po-
tential for maximum performance.
ÐGenuine GT-R tires and road wheels
help achieve maximum cornering
and braking performance.
Ð Genuine GT-R tires and road wheels
help achieve maximum tire durabil-
ity during acceleration.
Ð Genuine GT-R tires and road wheels
help achieve maximum handling
capability during performance driv-
ing.
Ð Genuine GT-R tires and road wheels
help provide road holding in the
event of decreasing tire pressure
and punctures.
Ð Genuine GT-R tires and road wheels
help prevent the decrease of
Maintenance and do-it-yourself8-33
Page 335 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

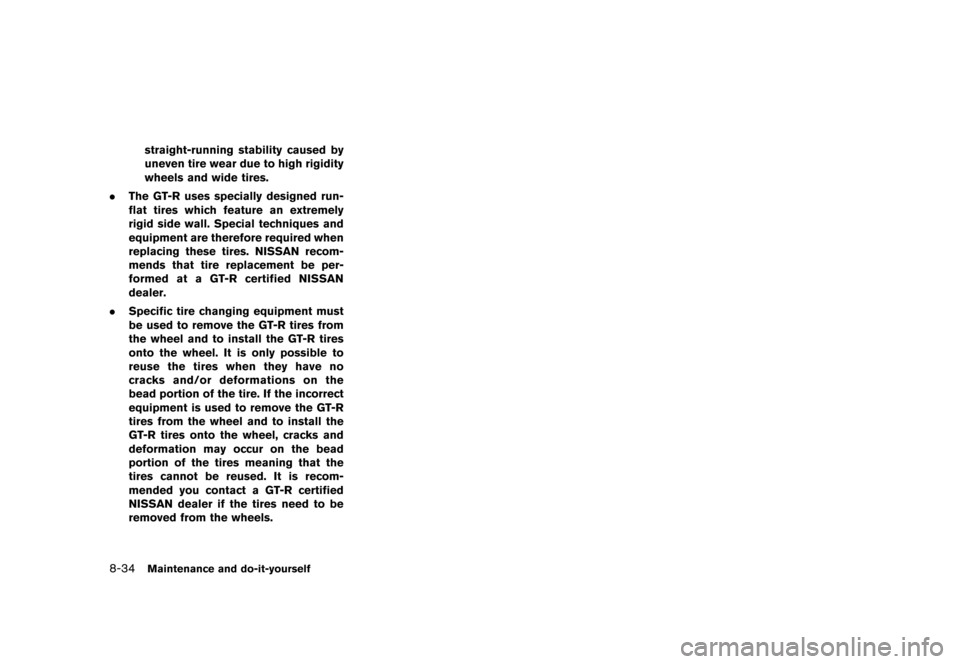

8-34Maintenance and do-it-yourself
straight-running stability caused by
uneven tire wear due to high rigidity
wheels and wide tires.
. The GT-R uses specially designed run-
flat tires which feature an extremely
rigid side wall. Special techniques and
equipment are therefore required when
replacing these tires. NISSAN recom-
mends that tire replacement be per-
formed at a GT-R certified NISSAN
dealer.
. Specific tire changing equipment must
be used to remove the GT-R tires from
the wheel and to install the GT-R tires
onto the wheel. It is only possible to
reuse the tires when they have no
cracks and/or deformations on the
bead portion of the tire. If the incorrect
equipment is used to remove the GT-R
tires from the wheel and to install the
GT-R tires onto the wheel, cracks and
deformation may occur on the bead
portion of the tires meaning that the
tires cannot be reused. It is recom-
mended you contact a GT-R certified
NISSAN dealer if the tires need to be
removed from the wheels.
Page 336 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
GMD0016

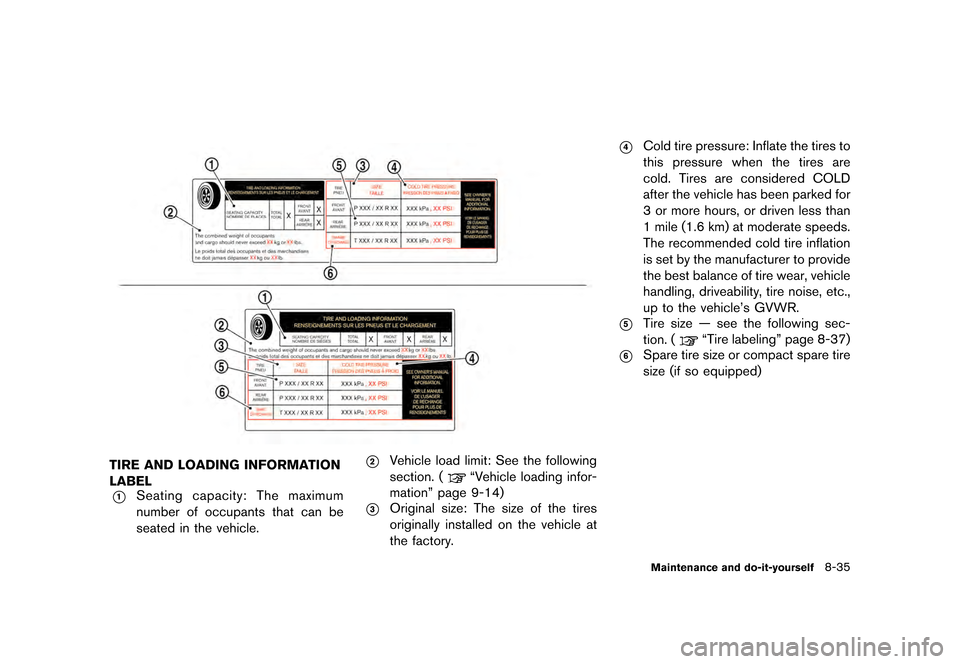

TIRE AND LOADING INFORMATION
LABEL
GUID-398213C0-96FA-4E22-A591-5E1158A8F7C2*1Seating capacity: The maximum
number of occupants that can be
seated in the vehicle.
*2Vehicle load limit: See the following
section. (
ªVehicle loading infor-
mationº page 9-14)
*3Original size: The size of the tires
originally installed on the vehicle at
the factory.
*4Cold tire pressure: Inflate the tires to
this pressure when the tires are
cold. Tires are considered COLD
after the vehicle has been parked for
3 or more hours, or driven less than
1 mile (1.6 km) at moderate speeds.
The recommended cold tire inflation
is set by the manufacturer to provide
the best balance of tire wear, vehicle
handling, driveability, tire noise, etc.,
up to the vehicle's GVWR.
*5Tire size Ð see the following sec-
tion. (
ªTire labelingº page 8-37)
*6Spare tire size or compact spare tire
size (if so equipped)
Maintenance and do-it-yourself8-35
Page 337 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

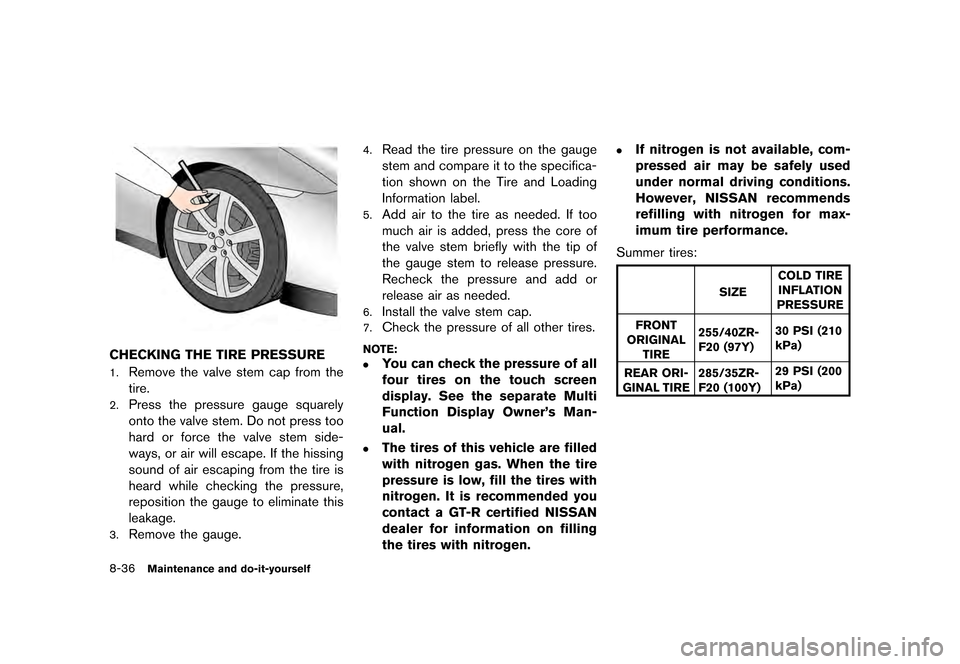

8-36Maintenance and do-it-yourself
GMD0017
CHECKING THE TIRE PRESSUREGUID-9660404A-CCE9-48DF-B05F-387147B1D4CA1.Remove the valve stem cap from the
tire.
2.Press the pressure gauge squarely
onto the valve stem. Do not press too
hard or force the valve stem side-
ways, or air will escape. If the hissing
sound of air escaping from the tire is
heard while checking the pressure,
reposition the gauge to eliminate this
leakage.
3.Remove the gauge.
4.Read the tire pressure on the gauge
stem and compare it to the specifica-
tion shown on the Tire and Loading
Information label.
5.Add air to the tire as needed. If too
much air is added, press the core of
the valve stem briefly with the tip of
the gauge stem to release pressure.
Recheck the pressure and add or
release air as needed.
6.Install the valve stem cap.
7.Check the pressure of all other tires.
NOTE:
.
You can check the pressure of all
four tires on the touch screen
display. See the separate Multi
Function Display Owner's Man-
ual.
.The tires of this vehicle are filled
with nitrogen gas. When the tire
pressure is low, fill the tires with
nitrogen. It is recommended you
contact a GT-R certified NISSAN
dealer for information on filling
the tires with nitrogen.
.If nitrogen is not available, com-
pressed air may be safely used
under normal driving conditions.
However, NISSAN recommends
refilling with nitrogen for max-
imum tire performance.
Summer tires:
SIZE COLD TIRE
INFLATION
PRESSURE
FRONT
ORIGINAL
TIRE 255/40ZR-
F20 (97Y)
30 PSI (210
kPa)
REAR ORI-
GINAL TIRE 285/35ZR-
F20 (100Y) 29 PSI (200
kPa)
Page 338 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

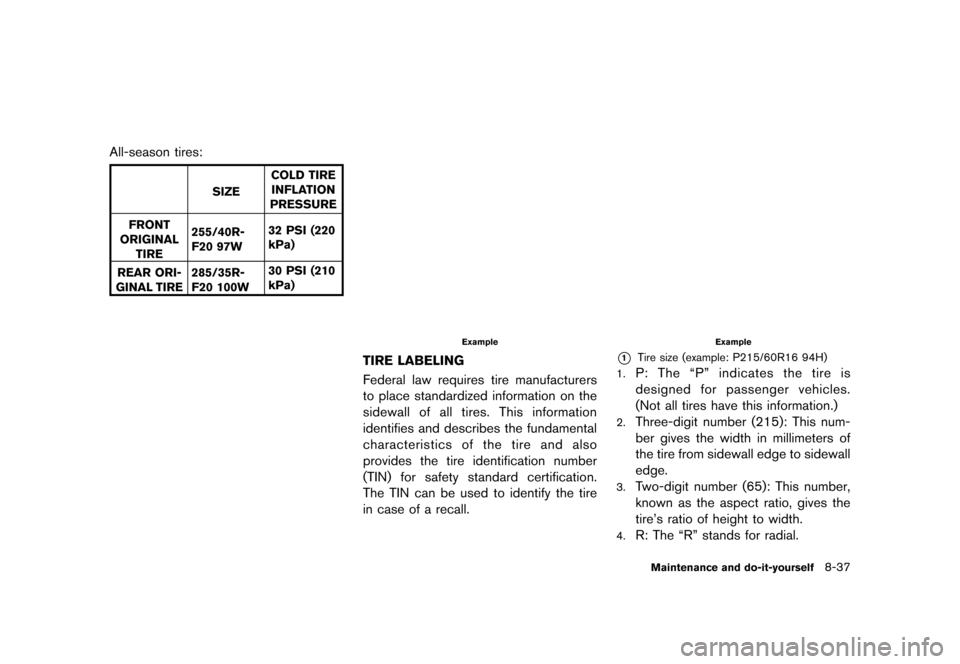

All-season tires:
SIZECOLD TIRE
INFLATION
PRESSURE
FRONT
ORIGINAL TIRE 255/40R-
F20 97W
32 PSI (220
kPa)
REAR ORI-
GINAL TIRE 285/35R-
F20 100W 30 PSI (210
kPa)
GMD0018
Example
TIRE LABELINGGUID-8E9A4B6A-A510-4A34-B395-913A59699343
Federal law requires tire manufacturers
to place standardized information on the
sidewall of all tires. This information
identifies and describes the fundamental
characteristics of the tire and also
provides the tire identification number
(TIN) for safety standard certification.
The TIN can be used to identify the tire
in case of a recall.
GMD0009
Example
*1Tire size (example: P215/60R16 94H)
1.
P: The ªPº indicates the tire is
designed for passenger vehicles.
(Not all tires have this information.)
2.Three-digit number (215): This num-
ber gives the width in millimeters of
the tire from sidewall edge to sidewall
edge.
3.Two-digit number (65): This number,
known as the aspect ratio, gives the
tire's ratio of height to width.
4.R: The ªRº stands for radial.
Maintenance and do-it-yourself8-37
Page 339 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

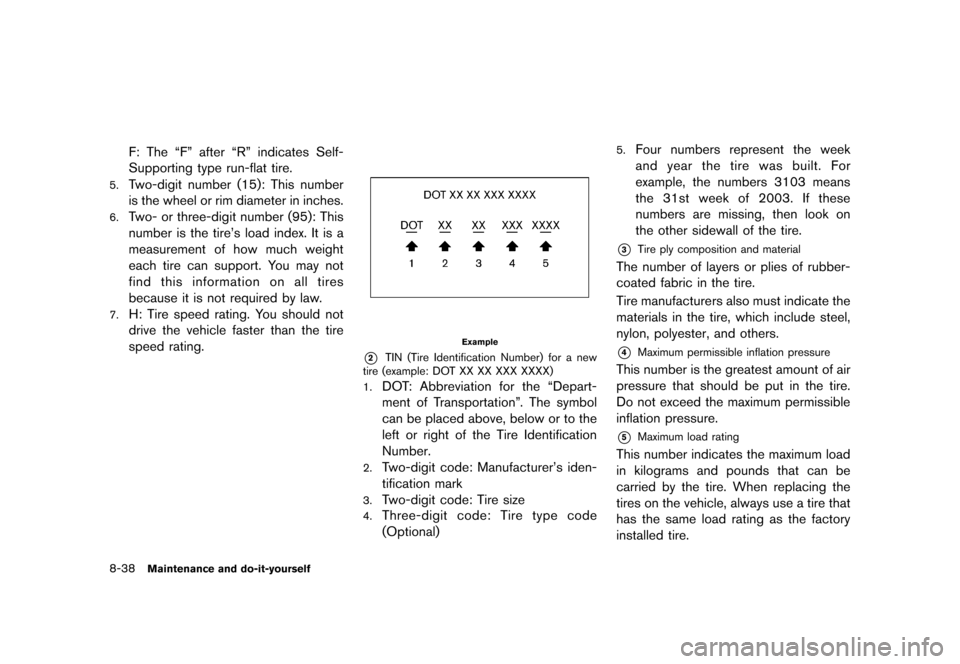

8-38Maintenance and do-it-yourself
F: The ªFº after ªRº indicates Self-
Supporting type run-flat tire.
5.Two-digit number (15): This number
is the wheel or rim diameter in inches.
6.Two- or three-digit number (95): This
number is the tire's load index. It is a
measurement of how much weight
each tire can support. You may not
find this information on all tires
because it is not required by law.
7.H: Tire speed rating. You should not
drive the vehicle faster than the tire
speed rating.JVM0694X
Example
*2TIN (Tire Identification Number) for a new
tire (example: DOT XX XX XXX XXXX)
1.
DOT: Abbreviation for the ªDepart-
ment of Transportationº. The symbol
can be placed above, below or to the
left or right of the Tire Identification
Number.
2.Two-digit code: Manufacturer's iden-
tification mark
3.Two-digit code: Tire size
4.Three-digit code: Tire type code
(Optional)
5.Four numbers represent the week
and year the tire was built. For
example, the numbers 3103 means
the 31st week of 2003. If these
numbers are missing, then look on
the other sidewall of the tire.
*3Tire ply composition and material
The number of layers or plies of rubber-
coated fabric in the tire.
Tire manufacturers also must indicate the
materials in the tire, which include steel,
nylon, polyester, and others.
*4Maximum permissible inflation pressure
This number is the greatest amount of air
pressure that should be put in the tire.
Do not exceed the maximum permissible
inflation pressure.
*5Maximum load rating
This number indicates the maximum load
in kilograms and pounds that can be
carried by the tire. When replacing the
tires on the vehicle, always use a tire that
has the same load rating as the factory
installed tire.
Page 340 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

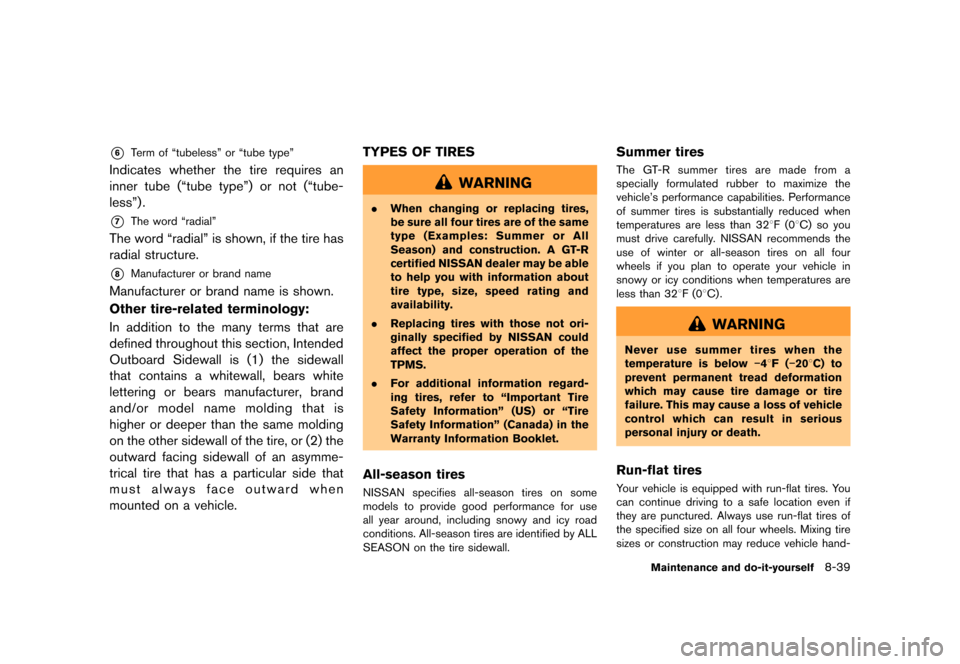

*6Term of ªtubelessº or ªtube typeº
Indicates whether the tire requires an
inner tube (ªtube typeº) or not (ªtube-
lessº) .
*7The word ªradialº
The word ªradialº is shown, if the tire has
radial structure.
*8Manufacturer or brand name
Manufacturer or brand name is shown.
Other tire-related terminology:
In addition to the many terms that are
defined throughout this section, Intended
Outboard Sidewall is (1) the sidewall
that contains a whitewall, bears white
lettering or bears manufacturer, brand
and/or model name molding that is
higher or deeper than the same molding
on the other sidewall of the tire, or (2) the
outward facing sidewall of an asymme-
trical tire that has a particular side that
must always face outward when
mounted on a vehicle.TYPES OF TIRES
GUID-31F64B53-5AF8-4900-BFFB-25E6851AD8EE
WARNING
.
When changing or replacing tires,
be sure all four tires are of the same
type (Examples: Summer or All
Season) and construction. A GT-R
certified NISSAN dealer may be able
to help you with information about
tire type, size, speed rating and
availability.
. Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
TPMS.
. For additional information regard-
ing tires, refer to ªImportant Tire
Safety Informationº (US) or ªTire
Safety Informationº (Canada) in the
Warranty Information Booklet.
All-season tiresGUID-3530878B-21CD-4FB0-834D-8BEEC1E9F857NISSAN specifies all-season tires on some
models to provide good performance for use
all year around, including snowy and icy road
conditions. All-season tires are identified by ALL
SEASON on the tire sidewall.
Summer tiresGUID-ABEF5B55-4350-4EC5-918F-0B7ED6BCE431The GT-R summer tires are made from a
specially formulated rubber to maximize the
vehicle's performance capabilities. Performance
of summer tires is substantially reduced when
temperatures are less than 328F (08C) so you
must drive carefully. NISSAN recommends the
use of winter or all-season tires on all four
wheels if you plan to operate your vehicle in
snowy or icy conditions when temperatures are
less than 328F (08C) .
WARNING
Never use summer tires when the
temperature is below
