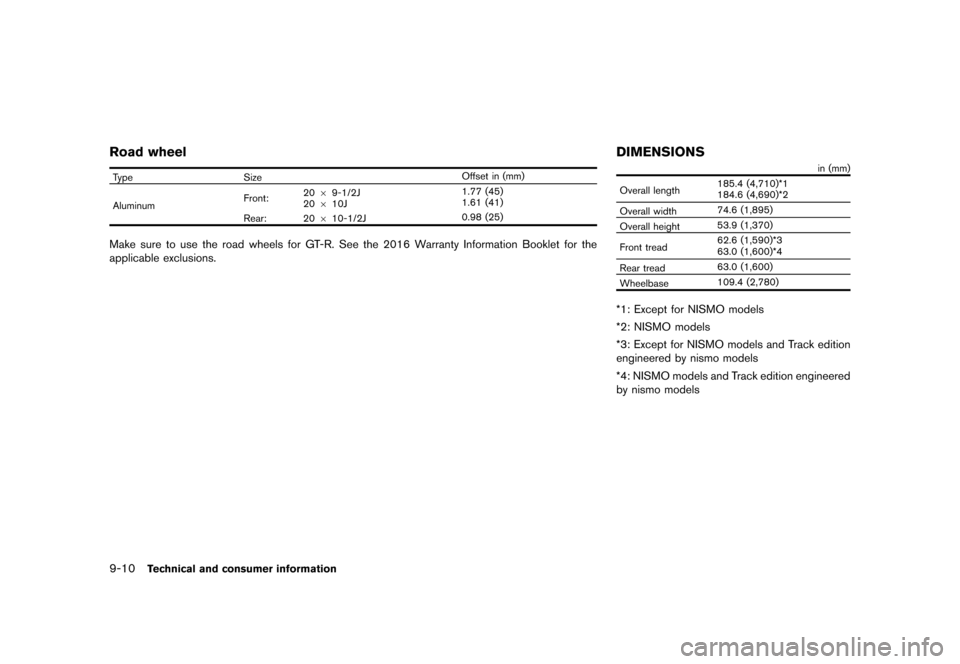

9-10Technical and consumer information
Road wheelGUID-65DD8E2C-FFC4-48E6-823F-7C46CC40E8C9
TypeSize Offset in (mm)
Aluminum Front:
20
69-1/2J
20 610J 1.77 (45)
1.61 (41)
Rear: 20 610-1/2J 0.98 (25)
Make sure to use the road wheels for GT-R. See the 2016 Warranty Information Booklet for the
applicable exclusions.
DIMENSIONSGUID-616A7546-6AA2-4008-A2E4-5CDF09873100in (mm)
Overall length 185.4 (4,710)*1
184.6 (4,690)*2
Overall width 74.6 (1,895)
Overall height 53.9 (1,370)
Front tread 62.6 (1,590)*3
63.0 (1,600)*4
Rear tread 63.0 (1,600)
Wheelbase 109.4 (2,780)
*1: Except for NISMO models
*2: NISMO models
*3: Except for NISMO models and Track edition
engineered by nismo models
*4: NISMO models and Track edition engineered
by nismo models
Page 362 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
GUID-D3CBB553-D938-4B24-8492-830DDEF71EABIf you plan to travel in another country,you
should first find out if the fuel available is suitable
for your vehicle's engine.
Using fuel with too low an octane rating may
cause engine damage. All gasoline vehicles
must be operated with unleaded gasoline.
Therefore, avoid taking your vehicle to areas
where appropriate fuel is not available.
When transferring the registration of your
vehicle to another country, state, province
or district, it may be necessary to modify the
vehicle to meet local laws and regulations.
The laws and regulations for motor vehicle
emission control and safety standards vary
according to the country, state, province or
district; therefore, vehicle specifications may
differ.
When any vehicle is to be taken into
another country, state, province or district
and registered, its modifications, transpor-
tation, and registration are the responsi-
bility of the user. NISSAN is not
responsible for any inconvenience that
may result.GUID-B0892AFD-8234-4354-812A-F84889EEA0CC
GTC0013
VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE
GUID-2D0BF39B-5FBD-4573-B3D6-B6AE2FF151B9The vehicle identification number plate is at-
tached as shown. This number is the identifica-
tion for your vehicle and is used in the vehicle
registration.
JVT0022X
VEHICLE IDENTIFICATION NUMBER
(chassis number)
GUID-039A5BF4-55DD-4B34-81C7-EC4F2EB87BBAThe number is stamped as shown in the engine
compartment.
Technical and consumer information9-11
WHEN TRAVELING OR
REGISTERING IN ANOTHER
COUNTRY VEHICLE IDENTIFICATION
Page 363 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

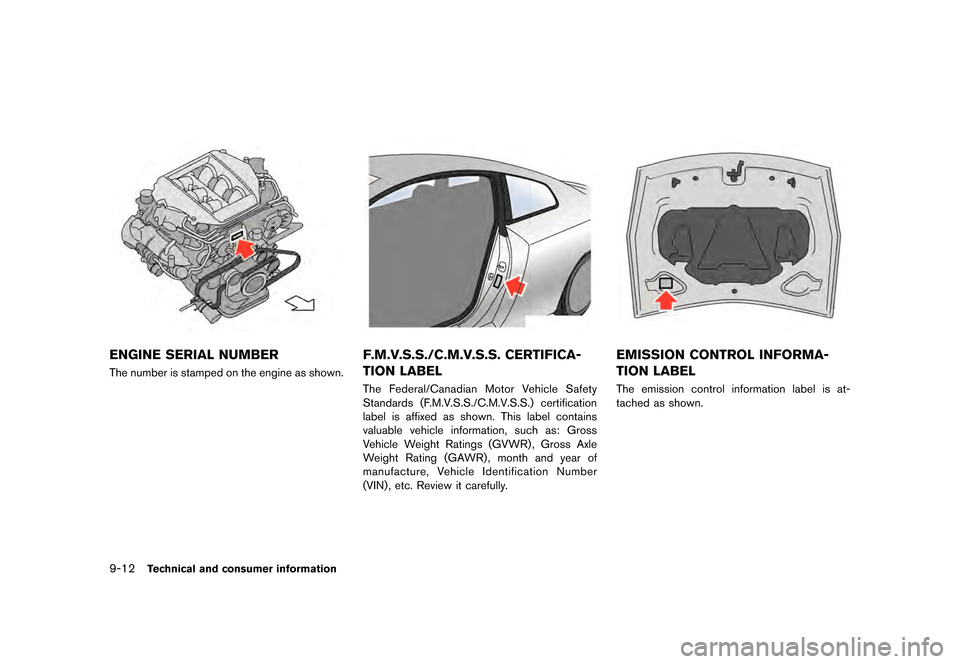

9-12Technical and consumer information
GTC0014
ENGINE SERIAL NUMBERGUID-787275ED-45D0-4A29-B2BD-ED1B1886A14CThe number is stamped on the engine as shown.
GTC0007
F.M.V.S.S./C.M.V.S.S. CERTIFICA-
TION LABEL
GUID-F8369222-C736-4525-99F3-75BD12A5A42BThe Federal/Canadian Motor Vehicle Safety
Standards (F.M.V.S.S./C.M.V.S.S.) certification
label is affixed as shown. This label contains
valuable vehicle information, such as: Gross
Vehicle Weight Ratings (GVWR) , Gross Axle
Weight Rating (GAWR) , month and year of
manufacture, Vehicle Identification Number
(VIN) , etc. Review it carefully.
GTC0008
EMISSION CONTROL INFORMA-
TION LABEL
GUID-184BBDFF-FC7F-43F0-B18E-7336C87874E3The emission control information label is at-
tached as shown.
Page 364 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
GTC0009

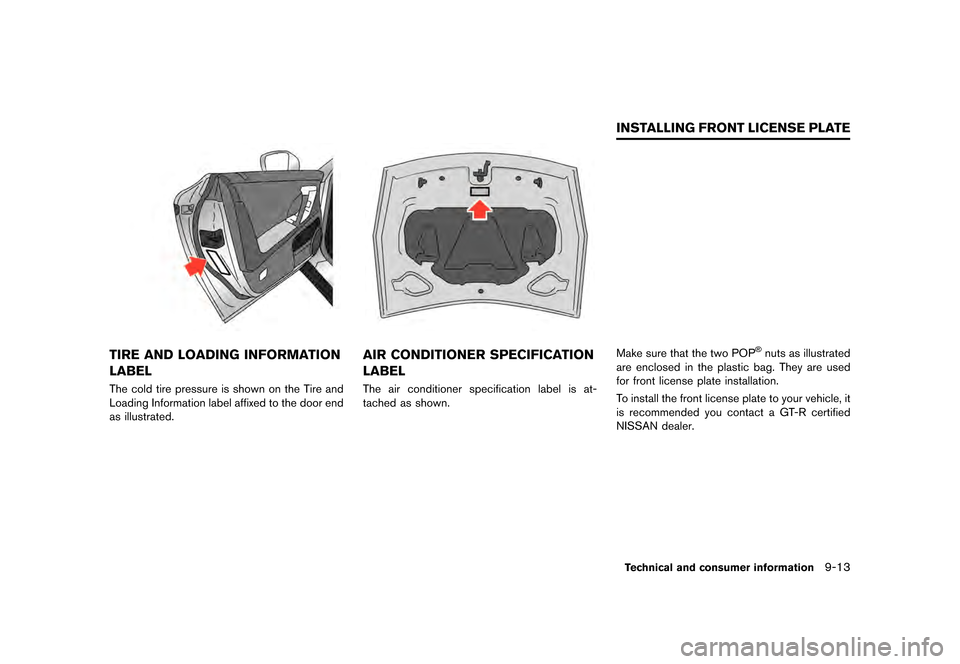

TIRE AND LOADING INFORMATION
LABEL
GUID-B5C48F99-1C0B-4AD2-AC58-D3733FE1DFF1The cold tire pressure is shown on the Tire and
Loading Information label affixed to the door end
as illustrated.
GTC0010
AIR CONDITIONER SPECIFICATION
LABEL
GUID-9703B9C6-10AE-4231-BBC9-6ADBF844AD77The air conditioner specification label is at-
tached as shown.
GUID-BF1E4009-0A09-434C-86C5-4A73A72CE52B
GTC0015
Make sure that the two POP
Page 365 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

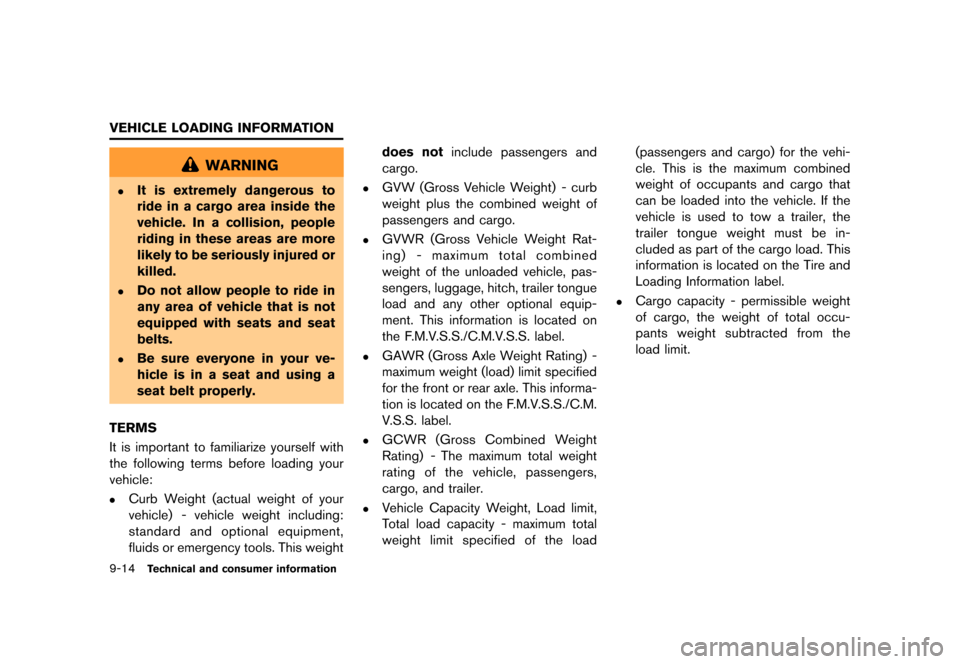

9-14Technical and consumer information
GUID-F245221B-6550-4DE3-B5AD-4420BF151625
WARNING
.It is extremely dangerous to
ride in a cargo area inside the
vehicle. In a collision, people
riding in these areas are more
likely to be seriously injured or
killed.
.Do not allow people to ride in
any area of vehicle that is not
equipped with seats and seat
belts.
.Be sure everyone in your ve-
hicle is in a seat and using a
seat belt properly.
TERMS
GUID-5623D1F9-FCEC-4D97-B7F0-D3FFC4E86E1B
It is important to familiarize yourself with
the following terms before loading your
vehicle:
.Curb Weight (actual weight of your
vehicle) - vehicle weight including:
standard and optional equipment,
fluids or emergency tools. This weight does not
include passengers and
cargo.
.GVW (Gross Vehicle Weight) - curb
weight plus the combined weight of
passengers and cargo.
.GVWR (Gross Vehicle Weight Rat-
ing) - maximum total combined
weight of the unloaded vehicle, pas-
sengers, luggage, hitch, trailer tongue
load and any other optional equip-
ment. This information is located on
the F.M.V.S.S./C.M.V.S.S. label.
.GAWR (Gross Axle Weight Rating) -
maximum weight (load) limit specified
for the front or rear axle. This informa-
tion is located on the F.M.V.S.S./C.M.
V.S.S. label.
.GCWR (Gross Combined Weight
Rating) - The maximum total weight
rating of the vehicle, passengers,
cargo, and trailer.
.Vehicle Capacity Weight, Load limit,
Total load capacity - maximum total
weight limit specified of the load (passengers and cargo) for the vehi-
cle. This is the maximum combined
weight of occupants and cargo that
can be loaded into the vehicle. If the
vehicle is used to tow a trailer, the
trailer tongue weight must be in-
cluded as part of the cargo load. This
information is located on the Tire and
Loading Information label.
.Cargo capacity - permissible weight
of cargo, the weight of total occu-
pants weight subtracted from the
load limit.
VEHICLE LOADING INFORMATION
Page 366 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
STI0365

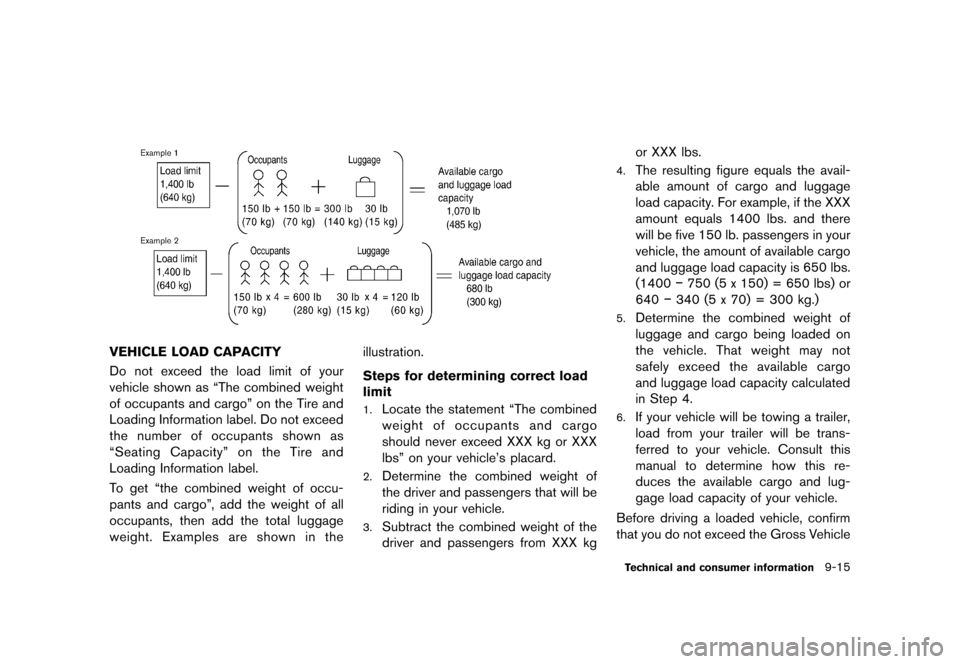

VEHICLE LOAD CAPACITYGUID-261D65BD-43A9-45A3-8F8A-9431242FD21E
Do not exceed the load limit of your
vehicle shown as ªThe combined weight
of occupants and cargoº on the Tire and
Loading Information label. Do not exceed
the number of occupants shown as
ªSeating Capacityº on the Tire and
Loading Information label.
To get ªthe combined weight of occu-
pants and cargoº, add the weight of all
occupants, then add the total luggage
weight. Examples are shown in theillustration.
Steps for determining correct load
limit
GUID-47B5D959-2B4E-4971-A638-8930BF19EFB41.Locate the statement ªThe combined
weight of occupants and cargo
should never exceed XXX kg or XXX
lbsº on your vehicle's placard.
2.Determine the combined weight of
the driver and passengers that will be
riding in your vehicle.
3.Subtract the combined weight of the
driver and passengers from XXX kgor XXX lbs.
4.The resulting figure equals the avail-
able amount of cargo and luggage
load capacity. For example, if the XXX
amount equals 1400 lbs. and there
will be five 150 lb. passengers in your
vehicle, the amount of available cargo
and luggage load capacity is 650 lbs.
(1400
Page 367 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

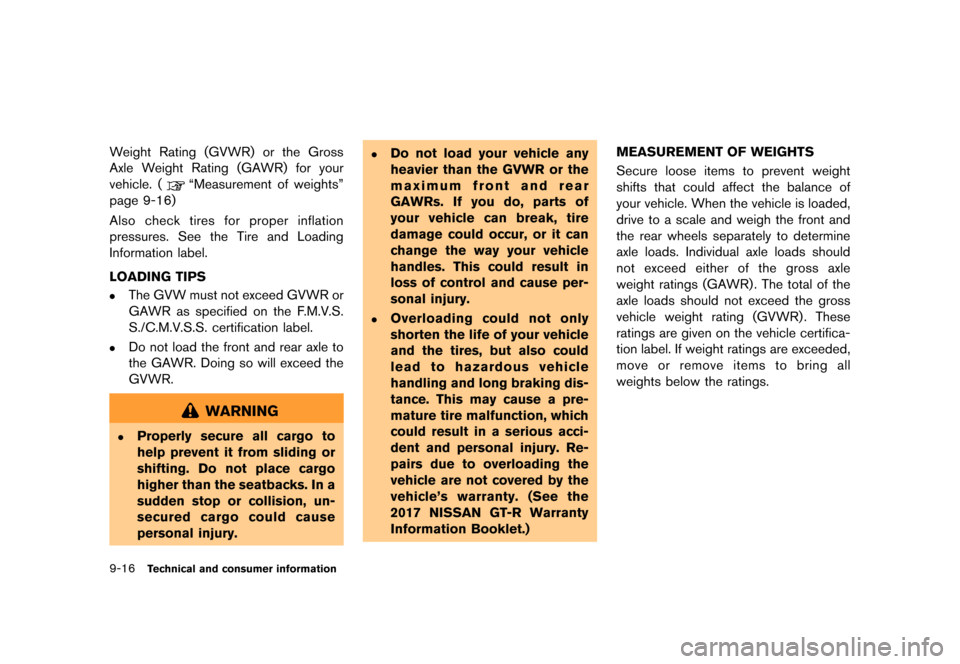

9-16Technical and consumer information
Weight Rating (GVWR) or the Gross
Axle Weight Rating (GAWR) for your
vehicle. (
ªMeasurement of weightsº
page 9-16)
Also check tires for proper inflation
pressures. See the Tire and Loading
Information label.
LOADING TIPS
GUID-13D71221-D915-4A87-ADC2-87049369C8B6.The GVW must not exceed GVWR or
GAWR as specified on the F.M.V.S.
S./C.M.V.S.S. certification label.
.Do not load the front and rear axle to
the GAWR. Doing so will exceed the
GVWR.
WARNING
.Properly secure all cargo to
help prevent it from sliding or
shifting. Do not place cargo
higher than the seatbacks. In a
sudden stop or collision, un-
secured cargo could cause
personal injury.
.Do not load your vehicle any
heavier than the GVWR or the
maximum front and rear
GAWRs. If you do, parts of
your vehicle can break, tire
damage could occur, or it can
change the way your vehicle
handles. This could result in
loss of control and cause per-
sonal injury.
.Overloading could not only
shorten the life of your vehicle
and the tires, but also could
lead to hazardous vehicle
handling and long braking dis-
tance. This may cause a pre-
mature tire malfunction, which
could result in a serious acci-
dent and personal injury. Re-
pairs due to overloading the
vehicle are not covered by the
vehicle's warranty. (See the
2017 NISSAN GT-R Warranty
Information Booklet.) MEASUREMENT OF WEIGHTS
GUID-AC512E09-435D-4A06-9279-37221ACCD343
Secure loose items to prevent weight
shifts that could affect the balance of
your vehicle. When the vehicle is loaded,
drive to a scale and weigh the front and
the rear wheels separately to determine
axle loads. Individual axle loads should
not exceed either of the gross axle
weight ratings (GAWR) . The total of the
axle loads should not exceed the gross
vehicle weight rating (GVWR) . These
ratings are given on the vehicle certifica-
tion label. If weight ratings are exceeded,
move or remove items to bring all
weights below the ratings.
Page 368 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

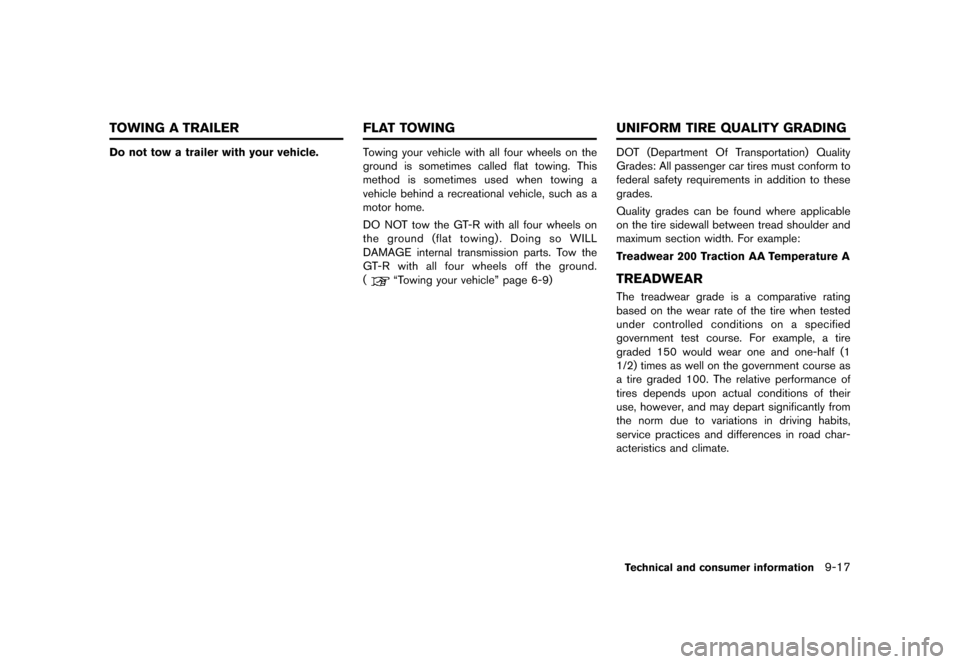

GUID-A7EF52ED-0918-4222-9D88-0C4CBDE8D06BDo not tow a trailer with your vehicle.GUID-A601D60D-D8C8-4262-A40A-D5D62480E756Towing your vehicle with all four wheels on the
ground is sometimes called flat towing. This
method is sometimes used when towing a
vehicle behind a recreational vehicle, such as a
motor home.
DO NOT tow the GT-R with all four wheels on
the ground (flat towing) . Doing so WILL
DAMAGE internal transmission parts. Tow the
GT-R with all four wheels off the ground.
(
ªTowing your vehicleº page 6-9)
GUID-ABF4BAEC-CE23-4E9D-92B0-C19BC42585B1DOT (Department Of Transportation) Quality
Grades: All passenger car tires must conform to
federal safety requirements in addition to these
grades.
Quality grades can be found where applicable
on the tire sidewall between tread shoulder and
maximum section width. For example:
Treadwear 200 Traction AA Temperature A
TREADWEARGUID-F8997A0C-D647-4DBA-B412-AA6947D11FECThe treadwear grade is a comparative rating
based on the wear rate of the tire when tested
under controlled conditions on a specified
government test course. For example, a tire
graded 150 would wear one and one-half (1
1/2) times as well on the government course as
a tire graded 100. The relative performance of
tires depends upon actual conditions of their
use, however, and may depart significantly from
the norm due to variations in driving habits,
service practices and differences in road char-
acteristics and climate.
Technical and consumer information9-17
TOWING A TRAILERFLAT TOWINGUNIFORM TIRE QUALITY GRADING
Page 369 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

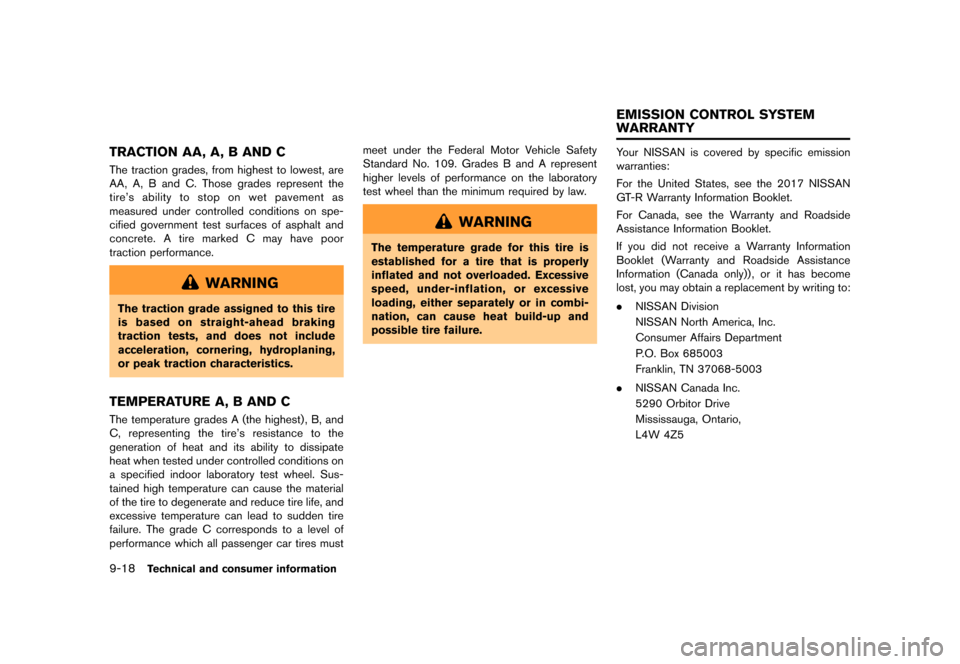

9-18Technical and consumer information
TRACTION AA, A, B AND CGUID-EFF779B5-24A6-4DFF-A60D-C39DCA737D30The traction grades, from highest to lowest, are
AA, A, B and C. Those grades represent the
tire's ability to stop on wet pavement as
measured under controlled conditions on spe-
cified government test surfaces of asphalt and
concrete. A tire marked C may have poor
traction performance.
WARNING
The traction grade assigned to this tire
is based on straight-ahead braking
traction tests, and does not include
acceleration, cornering, hydroplaning,
or peak traction characteristics.
TEMPERATURE A, B AND CGUID-0A15D4F9-FE96-4294-B7FD-9EADDB1774CAThe temperature grades A (the highest) , B, and
C, representing the tire's resistance to the
generation of heat and its ability to dissipate
heat when tested under controlled conditions on
a specified indoor laboratory test wheel. Sus-
tained high temperature can cause the material
of the tire to degenerate and reduce tire life, and
excessive temperature can lead to sudden tire
failure. The grade C corresponds to a level of
performance which all passenger car tires mustmeet under the Federal Motor Vehicle Safety
Standard No. 109. Grades B and A represent
higher levels of performance on the laboratory
test wheel than the minimum required by law.
WARNING
The temperature grade for this tire is
established for a tire that is properly
inflated and not overloaded. Excessive
speed, under-inflation, or excessive
loading, either separately or in combi-
nation, can cause heat build-up and
possible tire failure.
GUID-C949373D-4FD5-4D5B-8C70-1CCAD8B135A7Your NISSAN is covered by specific emission
warranties:
For the United States, see the 2017 NISSAN
GT-R Warranty Information Booklet.
For Canada, see the Warranty and Roadside
Assistance Information Booklet.
If you did not receive a Warranty Information
Booklet (Warranty and Roadside Assistance
Information (Canada only)) , or it has become
lost, you may obtain a replacement by writing to:
.
NISSAN Division
NISSAN North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
. NISSAN Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario,
L4W 4Z5
EMISSION CONTROL SYSTEM
WARRANTY
Page 370 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

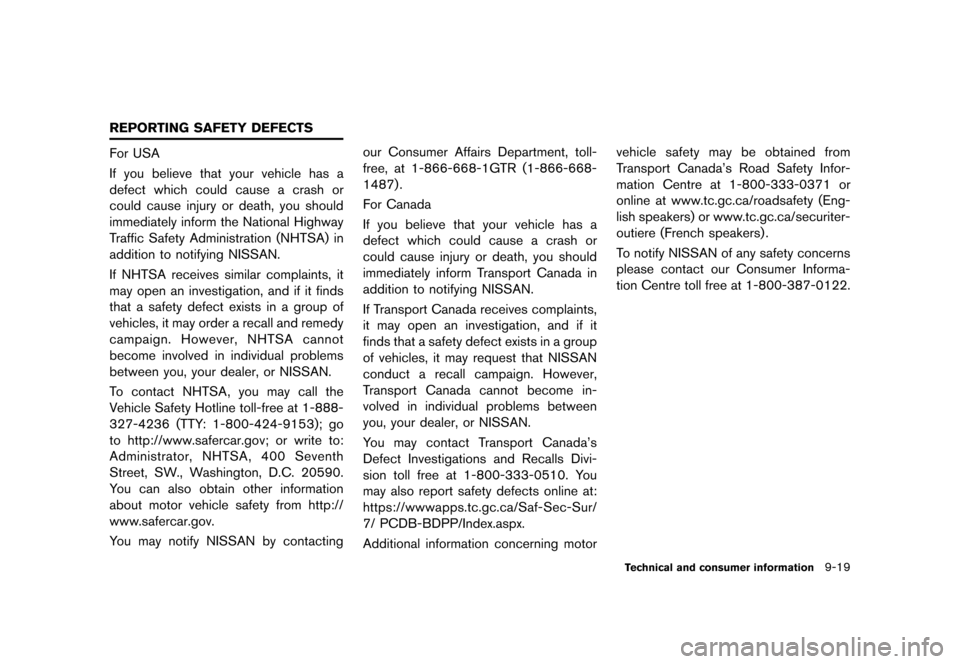

GUID-4596C70B-C2CB-4315-882A-39E107A6EB0D
For USA
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you should
immediately inform the National Highway
Traffic Safety Administration (NHTSA) in
addition to notifying NISSAN.
If NHTSA receives similar complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may order a recall and remedy
campaign. However, NHTSA cannot
become involved in individual problems
between you, your dealer, or NISSAN.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153); go
to http://www.safercar.gov; or write to:
Administrator, NHTSA, 400 Seventh
Street, SW., Washington, D.C. 20590.
You can also obtain other information
about motor vehicle safety from http://
www.safercar.gov.
You may notify NISSAN by contactingour Consumer Affairs Department, toll-
free, at 1-866-668-1GTR (1-866-668-
1487) .
For Canada
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you should
immediately inform Transport Canada in
addition to notifying NISSAN.
If Transport Canada receives complaints,
it may open an investigation, and if it
finds that a safety defect exists in a group
of vehicles, it may request that NISSAN
conduct a recall campaign. However,
Transport Canada cannot become in-
volved in individual problems between
you, your dealer, or NISSAN.
You may contact Transport Canada's
Defect Investigations and Recalls Divi-
sion toll free at 1-800-333-0510. You
may also report safety defects online at:
https://wwwapps.tc.gc.ca/Saf-Sec-Sur/
7/ PCDB-BDPP/Index.aspx.
Additional information concerning motorvehicle safety may be obtained from
Transport Canada's Road Safety Infor-
mation Centre at 1-800-333-0371 or
online at www.tc.gc.ca/roadsafety (Eng-
lish speakers) or www.tc.gc.ca/securiter-
outiere (French speakers) .
To notify NISSAN of any safety concerns
please contact our Consumer Informa-
tion Centre toll free at 1-800-387-0122.
Technical and consumer information9-19
REPORTING SAFETY DEFECTS
