NISSAN JUKE 2015 F15 / 1.G Owners Manual


> (GLW   0RGHO )'@

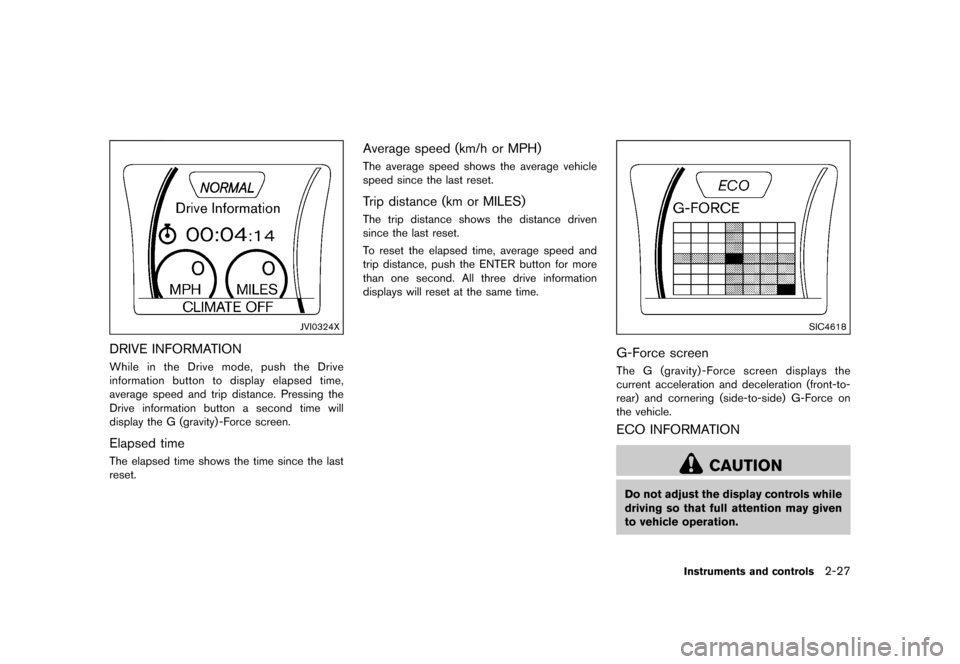

JVI0324X
DRIVE INFORMA TION
GUID-44 3C1D2D-7D 0F-41E4-987B -D7415D0970E8
While inthe Drive mode, pushtheDrive
information buttontodisplay elapsed time,
average speedandtripdistance. Pressingthe
Drive information buttonasecond timewill
display theG(gravity) -Forcescreen.
Elapsed time
GUID-55BB 1392-875D-4CF0-9E85 -7CCFF5D0F10E
The elapsed timeshows thetime since thelast
reset.
Average speed(km/horMPH)
GUID-9C3 C1498-7E0 6-42C4-96D5 -12BCDDAA68EB
The average speedshows theaverage vehicle
speed sincethelast reset.
T rip distance (kmorMILES)
GUID-FE 7A52DC-0 3FE-40C7-8 350-CD409A5 F214F
The tripdistance showsthedistance driven
since thelast reset.
T o reset theelapsed time,average speedand
trip distance, pushtheENTER buttonformore
than onesecond. Allthree driveinformation
displays willreset atthe same
time.
SIC4618
G-Force screen
GUID-7CA54 F31-AFA0-446D -97A9-40A1 CD8D276A
The G(gravity) -Forcescreen displays the
current acceleration anddeceleration (front-to-
rear) andcornering (side-to-side) G-Forceon
the vehicle.
ECO INFORMA TION
GUID-FF86 F9FC-E590-4E56-85D 1-34E86F1F19FD
CAUTION
Do not adjust thedisplay controls while
driving sothat fullattention maygiven
to vehicle operation.
Instrume ntsand controls
2-27
&RQGLWLRQ


> (GLW   0RGHO )'@

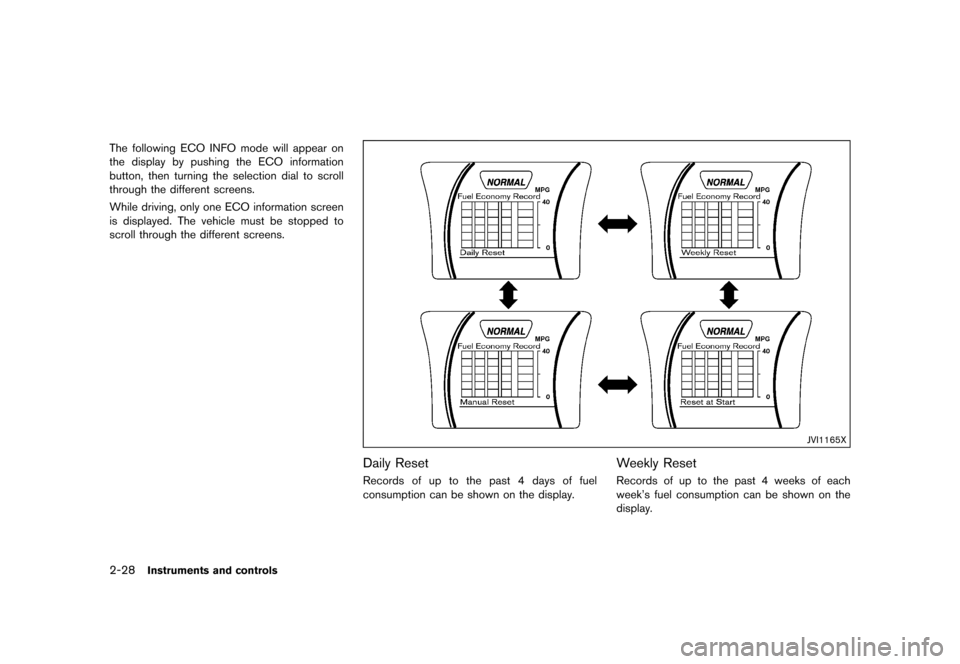

2-28
Instrument sand controls
The following ECOINFO mode willappear on
the display bypushing theECO information
button, thenturning theselection dialtoscroll
through thedifferent screens.
While driving, onlyoneECO information screen
is displayed. Thevehicle mustbestopped to
scroll through thedifferent
screens.
JVI1165X
Daily Reset
GUID-9E85 2481-4855-4C98-AD8 C-A7AF08E 10E28
Records ofup tothe past 4days offuel
consumption canbeshown onthe display .
W eekly Reset
GUID-EB7 B5C4A-19C 8-433E-AFD3-A165E5 C4C2E8
Records ofup tothe past 4weeks ofeach
week's fuelconsumption canbeshown onthe
display .
&RQGLWLRQ


> (GLW   0RGHO )'@
NO TE:
When theclock isnot set, theECO
information (dailyandweekly) cannotbe
used.
Reset atStart
GUID-F8522 59B-B08A-4BC8-BAC5-9ACC5A687 EEB
Records ofup tothe past 4times ofeach timeof
ignition switchONfuelconsumption canbe
shown onthe display .
Manual Reset
GUID-B6A6 2823-AFB2-4ADC-A65B -72B63B1719C0
Records ofup tothe past 4times ofresetting
fuel consumption canbeshown onthe display .
The displayed ECOINFO canbereset by
pushing theENTER buttonforlonger than1
second.
GUID-E521 ED90-7BA2-4 FC3-91C7-F35E3C88D AF5
JVI1163X
Y our vehicle hastwo types ofsecurity systems,
as follows:
. Vehicle security system
. NISSAN Vehicle Immobilizer System
The security condition willbeshown bythe
security indicator light.
VEHICLE SECURITY SYSTEM
GUID-B38A 9882-E3CB-4 884-A546-D9C91260 263B
The vehicle security systemprovides visualand
audio alarmsignals ifsomeone opensthedoors,
or lift gate when thesystem isarmed. Itis not,
however, amotion detection typesystem that
activates whenavehicle ismoved orwhen a
vibration occurs.
The system helpsdetervehicle theftbutcannot prevent
it,nor can itprevent thetheft ofinterior
or exterior vehiclecomponents inall situations.
Always secureyourvehicle evenifparking fora
brief period. Neverleaveyourkeys inthe vehicle,
and always lockitwhen unattended. Beaware
of your surroundings, andpark insecure, well-lit
areas whenever possible.
Many devices offeringadditional protection,
such ascomponent locks,identification markers,
and tracking systems, areavailable atauto
supply storesandspecialty shops.Your
NISSAN dealermayalso offer such equipment.
Check withyour insurance companytosee if
you may beeligible fordiscounts forvarious
theft protection features.
Instrume ntsand controls
2-29
SECURITY SY STEMS
&RQGLWLRQ


> (GLW   0RGHO )'@

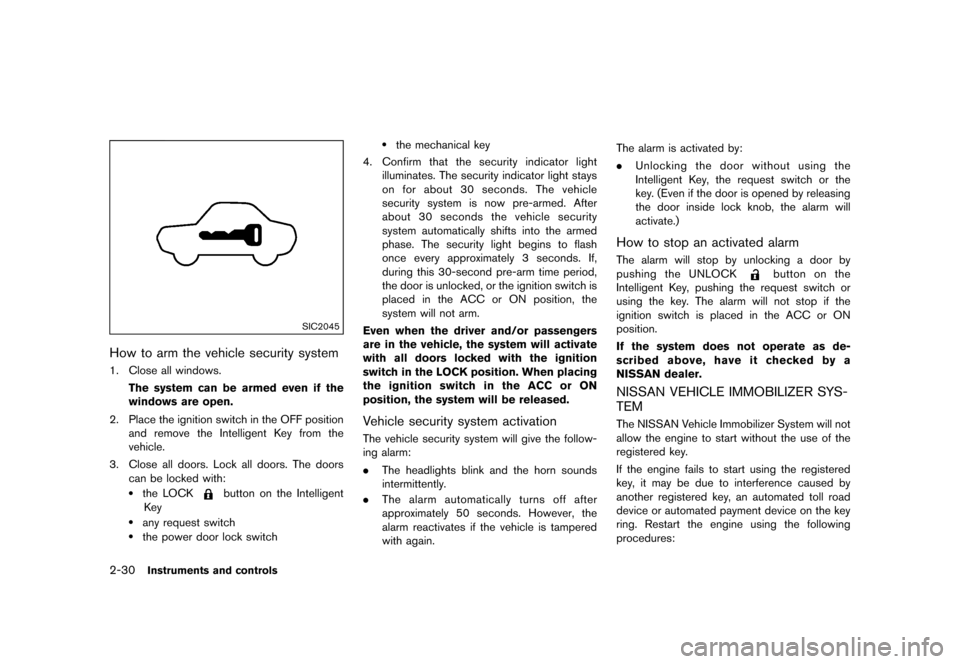

2-30
Instrument sand controls
SIC2045
How toarm thevehicle security system
GUID-0B0D5 4E3-2D2E-4E66-84C2-DB 089A802C9C
1. Close allwindows.
The system canbearmed evenifthe
windows areopen.
2. Place theignition switchinthe OFF position
and remove theIntelligent Key from the
vehicle.
3. Close alldoors. Lockalldoors. Thedoors
can belocked with:
.
the L OCK
button onthe Intelligent
K ey
.
any request switch
.
the power doorlockswitch
.
the mechanical key
4. Confirm thatthesecurity indicator light
illuminates. Thesecurity indicator lightstays
on for about 30seconds. Thevehicle
security systemisnow pre-armed. After
about 30seconds thevehicle security
system automatically shiftsintothearmed
phase. Thesecurity lightbegins toflash
once every approximately 3seconds. If,
during this30-second pre-armtimeperiod,
the door isunlocked, orthe ignition switchis
placed inthe ACC orON position, the
system willnotarm.
Even when thedriver and/or passengers
are inthe vehicle, thesystem willactivate
with alldoors locked withtheignition
switch inthe LOCK position. Whenplacing
the ignition switchinthe ACC orON
position, thesystem willbereleased.
V ehicle security systemactivation
GUID-586 0D76E-23D 8-4381-99F0 -0DD8252DADA1
The vehicle security systemwillgive thefollow-
ing alarm:
. The headlights blinkandthehorn sounds
intermittently .
. The alarm automatically turnsoffafter
approximately 50seconds. However, the
alarm reactivates ifthe vehicle istampered
with again. The
alarm isactivated by:
. Unlocking thedoor without usingthe
Intelligent Key ,the request switchorthe
key .(Even ifthe door isopened byreleasing
the door inside lockknob, thealarm will
activate.)
How tostop anactivated alarm
GUID-C58 BB668-0D8A- 41CA-8C30-D900891AB B1A
The alarm willstop byunlocking adoor by
pushing theUNL
OCK
button onthe
Intelligent Key ,pushing therequest switchor
using thekey.The alarm willnotstop ifthe
ignition switchisplaced inthe ACC orON
position.
If the system doesnotoperate asde-
scribed above,haveitchecked bya
NISSAN dealer.
NISSAN VEHICLE IMMOBILIZE RSYS-
TEM
GUID-82475E C2-840C-467B-A31D-9 7F570513B2F
The NISSAN Vehicle Immobilizer Systemwillnot
allow theengine tostart without theuse ofthe
registered key.
If the engine failstostart using theregistered
key ,it may bedue tointerference causedby
another registered key,an automated tollroad
device orautomated paymentdeviceonthe key
ring. Restart theengine usingthefollowing
procedures:
&RQGLWLRQ


> (GLW   0RGHO )'@

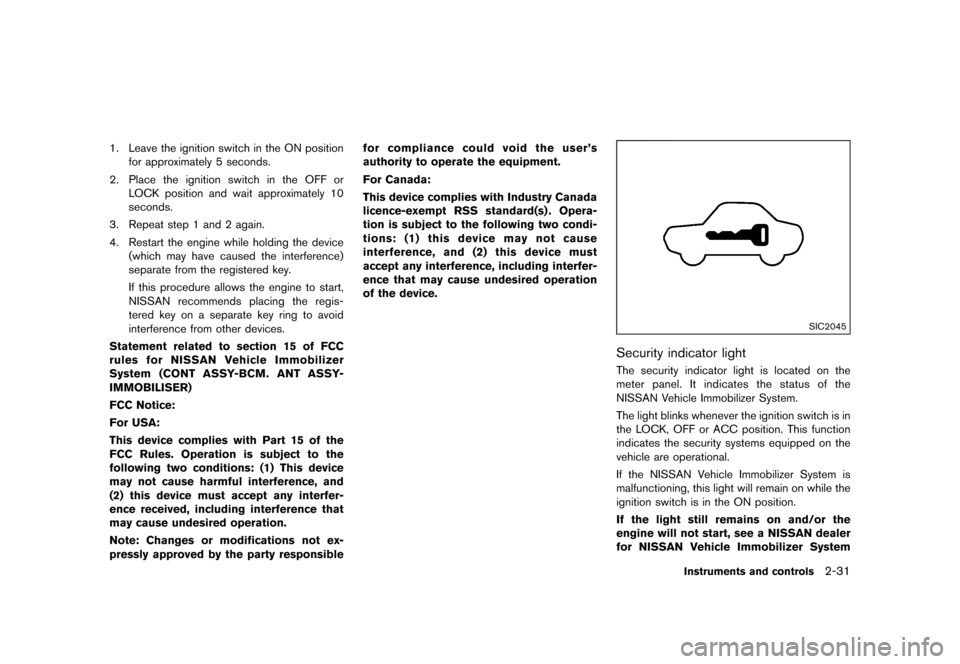

1. Leave theignition switchinthe ON position
for approximately 5seconds.
2. Place theignition switchinthe OFF or
L OCK position andwait approximately 10
seconds.
3. Repeat step1and 2again.
4. Restart theengine whileholding thedevice
(which mayhave caused theinterference)
separate fromtheregistered key.
If this procedure allowstheengine tostart,
NISSAN recommends placingtheregis-
tered keyonaseparate keyring toavoid
interference fromother devices.
Statement relatedtosection 15ofFCC
rules forNISSAN Vehicle Immobilizer
System (CONTASSY-BCM .ANT ASSY-
IMMOBILISER)
FCC Notice:
For USA:
This device complies withPart15ofthe
FCC Rules. Operation issubject tothe
following twoconditions: (1)This device
may notcause harmful interference, and
(2) this device mustaccept anyinterfer-
ence received, including interference that
may cause undesired operation.
Note: Changes ormodifications notex-
pressly approved bythe party responsible for
compliance couldvoidtheuser's
authority tooperate theequipment.
For Canada:
This device complies withIndustry Canada
licence-exempt RSSstandard(s) .Opera-
tion issubject tothe following twocondi-
tions: (1)this device maynotcause
interference, and(2)this device must
accept anyinterference, includinginterfer-
ence thatmay cause undesired operation
of the device.
SIC2045
Security indicator light
GUID-919 36668-A20A-4 8BD-8CB2-340577FB611D
The security indicator lightislocated onthe
meter panel. Itindicates thestatus ofthe
NISSAN Vehicle Immobilizer System.
The light blinks whenever theignition switchisin
the LOCK, OFForACC position. Thisfunction
indicates thesecurity systems equipped onthe
vehicle areoperational.
If the NISSAN Vehicle Immobilizer Systemis
malfunctioning, thislight willremain onwhile the
ignition switchisin the ON position.
If the light stillremains onand/or the
engine willnotstart, seeaNISSAN dealer
for NISSAN Vehicle Immobilizer System
Instrume ntsand controls
2-31
&RQGLWLRQ


> (GLW   0RGHO )'@

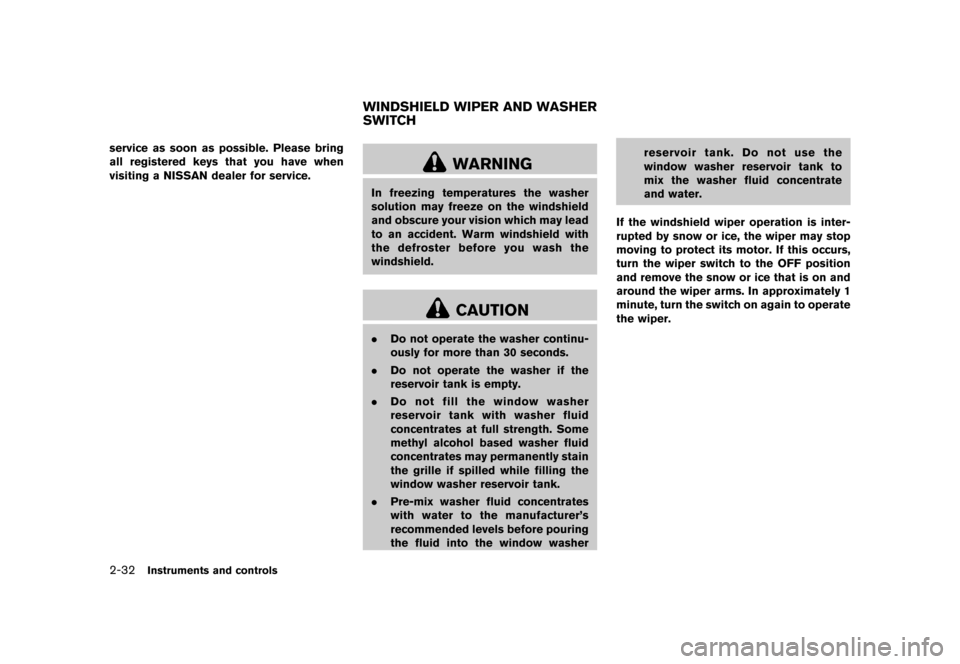

2-32
Instrument sand controls
service assoon aspossible. Pleasebring
all registered keysthatyouhave when
visiting aNISSAN dealerforservice.
GUID-E3E A3376-5066 -42DB-890F-056CE8D 3AF95
WARNING
In freezing temperatures thewasher
solution mayfreeze onthe windshield
and obscure yourvision whichmaylead
to an accident. Warmwindshield with
the defroster beforeyouwash the
windshield.
CAUTION
. Do not operate thewasher continu-
ously formore than30seconds.
. Do not operate thewasher ifthe
reservoir tankisempty.
. Do not fillthe window washer
reservoir tankwithwasher fluid
concentrates atfull strength. Some
methyl alcohol basedwasher fluid
concentrates maypermanently stain
the grille ifspilled whilefilling the
window washerreservoir tank.
. Pre-mix washerfluidconcentrates
with water tothe manufacturer's
recommended levelsbefore pouring
the fluid intothewindow washer reservoir
tank.Donot use the
window washerreservoir tankto
mix thewasher fluidconcentrate
and water.
If the windshield wiperoperation isinter-
rupted bysnow orice, thewiper maystop
moving toprotect itsmotor. Ifthis occurs,
turn thewiper switch tothe OFF position
and remove thesnow orice that ison and
around thewiper arms.Inapproximately 1
minute, turntheswitch onagain tooperate
the wiper.
WINDSHIELD WIPERANDWASHER
SWIT CH
&RQGLWLRQ


> (GLW   0RGHO )'@
SIC3664
T ype A(if so equipped)
JVI1010X
T ype B(if so equipped)
The windshield wiperandwasher operates
when theignition switchisin the ON position.
Push thelever down tooperate thewiper atthe
following speed:
*
1
Intermittent Ðintermittent operationcanbe
adjusted byturning theknob toward
*
A
(Slower) or
*
B
(Faster) .
*
2
Low Ðcontinuous lowspeed operation
*
3
High Ðcontinuous highspeed operation
Push thelever up
*
4
to have onesweep
operation ofthe wiper.
Pull thelever toward you
*
5
to operate the
washer. Thenthewiper willalso operate several
times.
Pulling upthe wiper arm:
The windshield wipersmustbeinthe service
position inorder toreplace thewiper blades.
T o move thewiper blades tothe service position,
follow thisprocedure:
. When theignition switchisin the ªONº
position orwithin 60seconds ofplacing the
ignition switchtothe ªOFFº position, liftthe
lever up
*
4
two times inless than 0.5
seconds. Thewindshield wiperswillmove to
the service position automatically ,and the
wiper blades cannow bereplaced. To
replace thewiper blades, seeªWindshield
wiper bladesº (P.8-18) . T
o move thewiper blades backtothe original
position:
. Liftthe lever up
*
4
or push thelever down
to operate atany wiper speed.
CAUTION
. This function canbeoperated even
if the ignition switchisin the ªONº
position. However, toprevent an
accident ordamage whenpulling
up the wiper arm,besure toobserve
the following precautions.
Ð Make suretheshift lever isin
the P(Park) position (Continu-
ously Variable Transmission
models) .
Ð Make suretheshift lever isin
the N(Neutral) position,withthe
parking brakefullyapplied
(Manual Transmission models).
Ð Never allowthepassengers to
operate thewindshield wiper
switch inadvertently.
. Donot operate thewindshield wiper
while thewiper armispulled up.The
wiper armmay bedamaged.
Instrume ntsand controls
2-33
&RQGLWLRQ


> (GLW   0RGHO )'@
2-34
Instrument sand controls
GUID-001 3655D-0D8 8-4D9F-87A B-B359910F 5671
WARNING

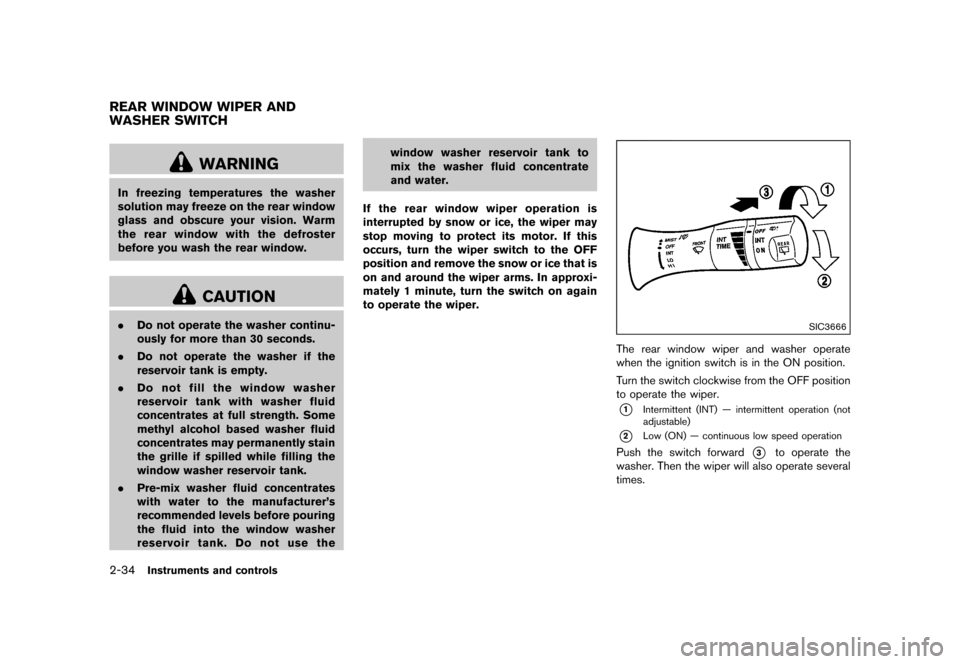

In freezing temperatures thewasher
solution mayfreeze onthe rear window
glass andobscure yourvision. Warm
the rear window withthedefroster
before youwash therear window.
CAUTION
. Do not operate thewasher continu-
ously formore than30seconds.
. Do not operate thewasher ifthe
reservoir tankisempty.
. Do not fillthe window washer
reservoir tankwithwasher fluid
concentrates atfull strength. Some
methyl alcohol basedwasher fluid
concentrates maypermanently stain
the grille ifspilled whilefilling the
window washerreservoir tank.
. Pre-mix washerfluidconcentrates
with water tothe manufacturer's
recommended levelsbefore pouring
the fluid intothewindow washer
reservoir tank.Donot use the window
washerreservoir tankto
mix thewasher fluidconcentrate
and water.
If the rear window wiperoperation is
interrupted bysnow orice, thewiper may
stop moving toprotect itsmotor. Ifthis
occurs, turnthewiper switch tothe OFF
position andremove thesnow orice that is
on and around thewiper arms.Inapproxi-
mately 1minute, turntheswitch onagain
to operate the wiper.
SIC3666
The rear window wiperandwasher operate
when theignition switchisin the ON position.
T urn theswitch clockwise fromtheOFF position
to operate thewiper.
*
1
Intermittent (INT)Ðintermittent operation(not
adjustable)
*
2
Low (ON) Ðcontinuous lowspeed operation
Push theswitch forward
*
3
to operate the
washer. Thenthewiper willalso operate several
times.
REAR WINDOW WIPERAND
WASHER SWITCH
&RQGLWLRQ


> (GLW   0RGHO )'@
GUID-A 6ACEC3D-5 69F-4102-A2B6-4DE76 F74F79B

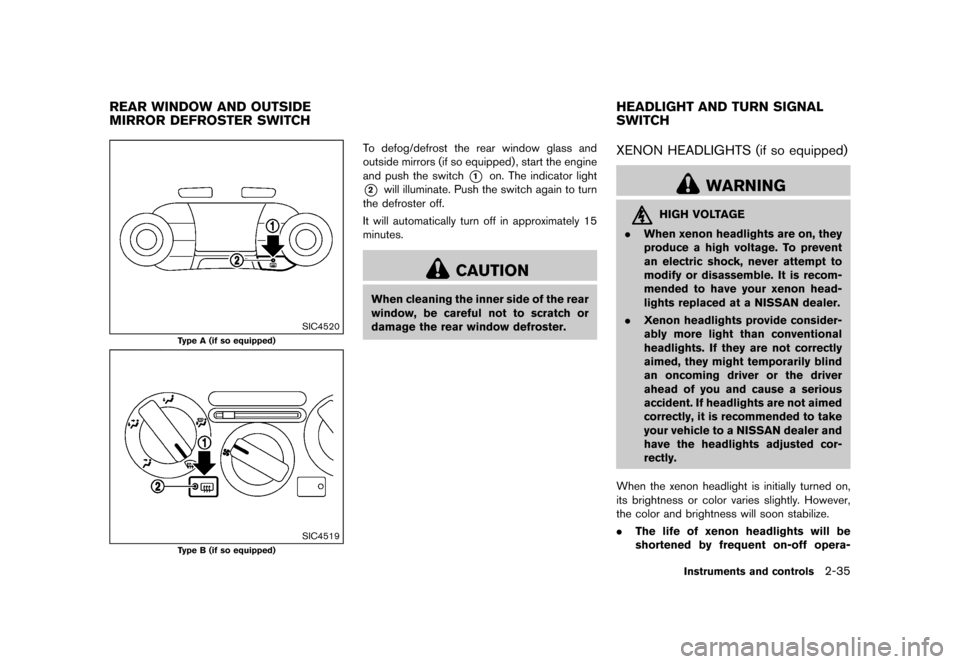

SIC4520
T ype A(if so equipped)
SIC4519
T ype B(if so equipped)
T o defog/defrost therear window glassand
outside mirrors(ifso equipped) ,start theengine
and push theswitch
*
1
on. The indicator light
*
2
will illuminate. Pushtheswitch againtoturn
the defroster off.
It will automatically turnoffinapproximately 15
minutes.
CAUTION
When cleaning theinner sideofthe rear
window, becareful nottoscratch or
damage therear window defroster.
GUID-260 8E54F-A0CB -4CE9-8864-9C61F0 1ED6F7
XENON HEADLIG HTS(ifso equipped)
GUID-C62 86FEB-AC40 -4B02-B2DC-4018531 5008C
WARNING
HIGH VOLTAGE
. When xenon headlights areon,they
produce ahigh voltage. To prevent
an electric shock,neverattempt to
modify ordisassemble. Itis recom-
mended tohave yourxenon head-
lights replaced ataNISSAN dealer.
. Xenon headlights provideconsider-
ably more lightthanconventional
headlights. Ifthey arenot correctly
aimed, theymight temporarily blind
an oncoming driverorthe driver
ahead ofyou and cause aserious
accident. Ifheadlights arenot aimed
correctly, itis recommended totake
your vehicle toaNISSAN dealerand
have theheadlights adjustedcor-
rectly.
When thexenon headlight isinitially turnedon,
its brightness orcolor varies slightly .However,
the color andbrightness willsoon stabilize.
. The lifeofxenon headlights willbe
shortened byfrequent on-offopera-
Instrume ntsand controls
2-35
REAR WINDOW ANDOUTSIDE
MIRROR DEFROSTER SWITCH HEADLIGHT
ANDTURN SIGNAL
SWIT CH
&RQGLWLRQ


> (GLW   0RGHO )'@
2-36
Instrument sand controls

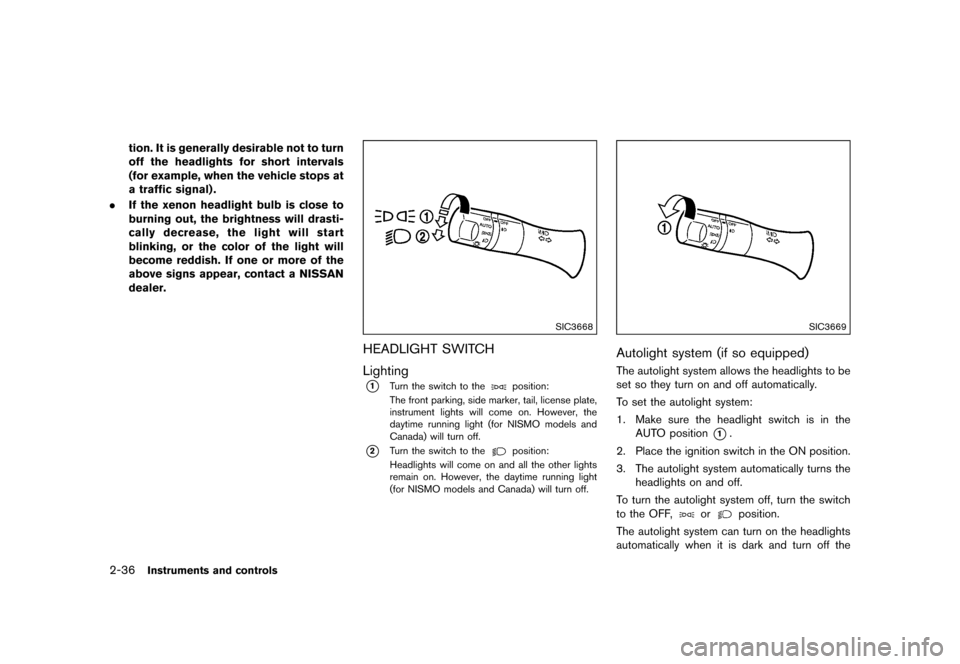

tion. Itis generally desirable nottoturn
off the headlights forshort intervals
(for example, whenthevehicle stopsat
a traffic signal) .
. Ifthe xenon headlight bulbisclose to
burning out,thebrightness willdrasti-
cally decrease, thelight willstart
blinking, orthe color ofthe light will
become reddish. Ifone ormore ofthe
above signsappear, contactaNISSAN
dealer.
SIC3668
HEADLIGH TSWIT CH
GUID-78 F7386F-88AF- 48CA-8EC4-39D87DBF EDF9
Lighting
GUID-C7E4F4 F1-DC4D-4024-8FF6-AC24A3D2B1F5
*
1
T urn theswitch tothe
position:
The front parking, sidemarker, tail,license plate,
instrument lightswillcome on.However, the
daytime runninglight(forNISMO modelsand
Canada) willturn off.
*
2
T urn theswitch tothe
position:
Headlights willcome onand allthe other lights
remain on.However, thedaytime runninglight
(for NISMO modelsandCanada) willturn
off.
SIC3669
Autolight system(ifso equipped)
GUID-2F 769165-63 29-45F4-95D B-2F94DB2FE66C
The autolight systemallowstheheadlights tobe
set sothey turnonand offautomatically .
T o set the autolight system:
1. Make suretheheadlight switchisin the
AUT Oposition
*
1
.
2. Place theignition switchinthe ON position.
3. The autolight systemautomatically turnsthe
headlights onand off.
T o turn theautolight systemoff,turn theswitch
to the OFF ,
or
position.
The autolight systemcanturn onthe headlights
automatically whenitis dark andturn offthe
&RQGLWLRQ
