Page 131 of 383
> ( G L W 0 R G H O ) ' @

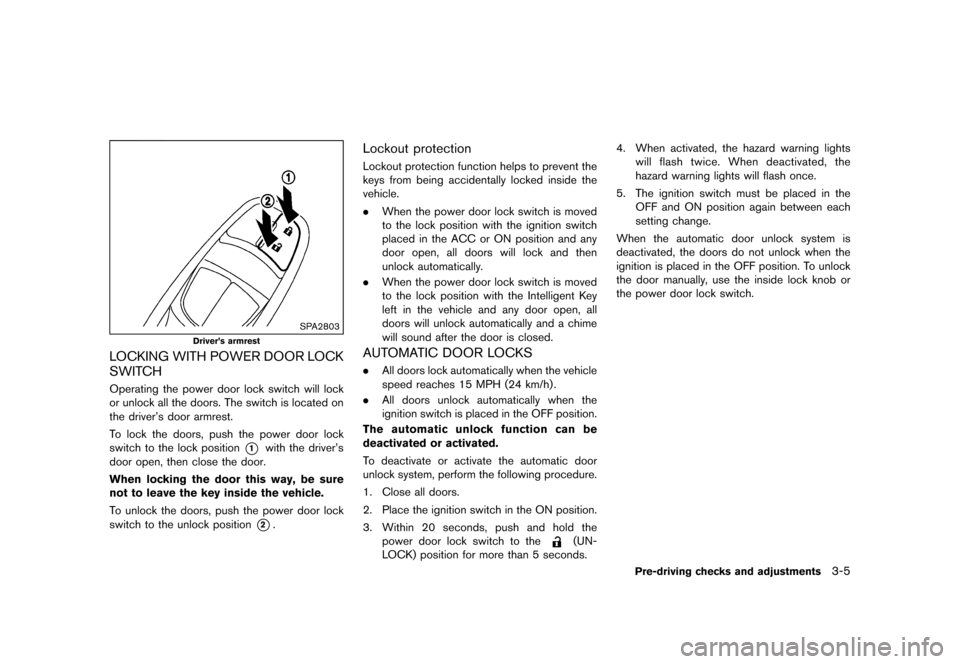

SP A2803
Driver's armrest
L OCKING WITHPOWER DOORLOCK
SWIT CH
GUID-525 6BBAD-C319 -43C6-9C66-55957ADC 778F
Operating thepower doorlockswitch willlock
or unlock allthe doors. Theswitch islocated on
the driver's doorarmrest.
T o lock thedoors, pushthepower doorlock
switch tothe lock position
*
1
with thedriver's
door open, thenclose thedoor.
When locking thedoor thisway, besure
not toleave thekey inside thevehicle.
T o unlock thedoors, pushthepower doorlock
switch tothe unlock position
*
2
.
Lockout protection
GUID-44F7 A60E-83C3 -4161-B6E9-F0CE6E62 B151
Lockout protection functionhelpstoprevent the
keys from being accidentally lockedinsidethe
vehicle.
. When thepower doorlockswitch ismoved
to the lock position withtheignition switch
placed inthe ACC orON position andany
door open, alldoors willlock andthen
unlock automatically .
. When thepower doorlockswitch ismoved
to the lock position withtheIntelligent Key
left inthe vehicle andanydoor open, all
doors willunlock automatically andachime
will sound afterthedoor isclosed.
AUT OMA TICDOOR LOCKS
GUID-FA60553F-2660-4078-8 261-73A9AD2C0495
. Alldoors lockautomatically whenthevehicle
speed reaches 15MPH (24km/h) .
. All doors unlock automatically whenthe
ignition switchisplaced inthe OFF position.
The automatic unlockfunction canbe
deactivated oractivated.
T o deactivate oractivate theautomatic door
unlock system, perform thefollowing procedure.
1. Close alldoors.
2. Place theignition switchinthe ON position.
3. Within 20seconds, pushandhold the
power doorlockswitch tothe
(UN-
L OCK) position formore than5seconds. 4.
When activated, thehazard warning lights
will flash twice. When deactivated, the
hazard warning lightswillflash once.
5. The ignition switchmustbeplaced inthe
OFF andONposition againbetween each
setting change.
When theautomatic doorunlock system is
deactivated, thedoors donot unlock whenthe
ignition isplaced inthe OFF position. To unlock
the door manually ,use theinside lockknob or
the power doorlockswitch.
Pre-driv ingchecks andadjustmen ts
3-5
& R Q G L W L R Q
Page 132 of 383
> ( G L W 0 R G H O ) ' @
3-6
Pre-driv ingchecks andadjustment s
SP A2801
CHILD SAFETY REARDOOR LOCK
GUID-23BE1 446-C8BC-4A1 1-8767-2B460D5530B 1
Child safety reardoor locks helpprevent therear
doors frombeing opened accidentally ,espe-
cially when smallchildren areinthe vehicle.
When thelevers areinthe lock position
*
1
, the rear doors canbeopened only
from theoutside.
T o disengage, movethelevers tothe unlock
position
*
2
.
GUID-469 FCA8B-4CA 7-4AE5-9396 -44D8FD1027E9
WARNING
. Radio waves couldadversely affect
electric medical equipment. Those
who useapacemaker shouldcon-
tact theelectric medical equipment
manufacturer forthe possible influ-
ences before use.
. The Intelligent Keytransmits radio
waves whenthebuttons are
pushed. TheFAAadvises thatthe
radio waves mayaffect aircraft na-
vigation andcommunication sys-
tems. Donot operate the
Intelligent Keywhile onanairplane.
Make surethebuttons arenot
operated unintentionally whenthe
unit isstored during aflight.
The Intelligent Key system canoperate allthe
door locks using theremote controller function
or pushing therequest switchonthe vehicle
without takingthekey outfrom apocket or
purse. Theoperating environment and/orcondi-
tions mayaffect theIntelligent Key system
operation.
Be sure toread thefollowing beforeusingthe
Intelligent Key system.
CAUTION
. Be sure tocarry theIntelligent Key
with youwhen operating thevehi-
cle.
. Never leavetheIntelligent Keyin
the vehicle whenyouleave the
vehicle.
The Intelligent Key isalways communicating with
the vehicle asitreceives radiowaves. The
Intelligent Key system transmits weakradio
waves. Environmental conditionsmayinterfere
with theoperation ofthe Intelligent Key system
under thefollowing operating conditions.
. When operating nearalocation where
strong radiowaves aretransmitted, such
as aTV tower, power station andbroad-
casting station.
. When inpossession ofwireless equipment,
such asacellular phone,transceiver, and
CB radio.
. When theIntelligent Key isin contact withor
covered bymetallic materials.
. When anytype ofradio wave remote control
is used nearby .
. When theIntelligent Key isplaced nearan
electric appliance suchasapersonal
INTELLIGE NTKEY SY STEM
& R Q G L W L R Q
Page 133 of 383
> ( G L W 0 R G H O ) ' @

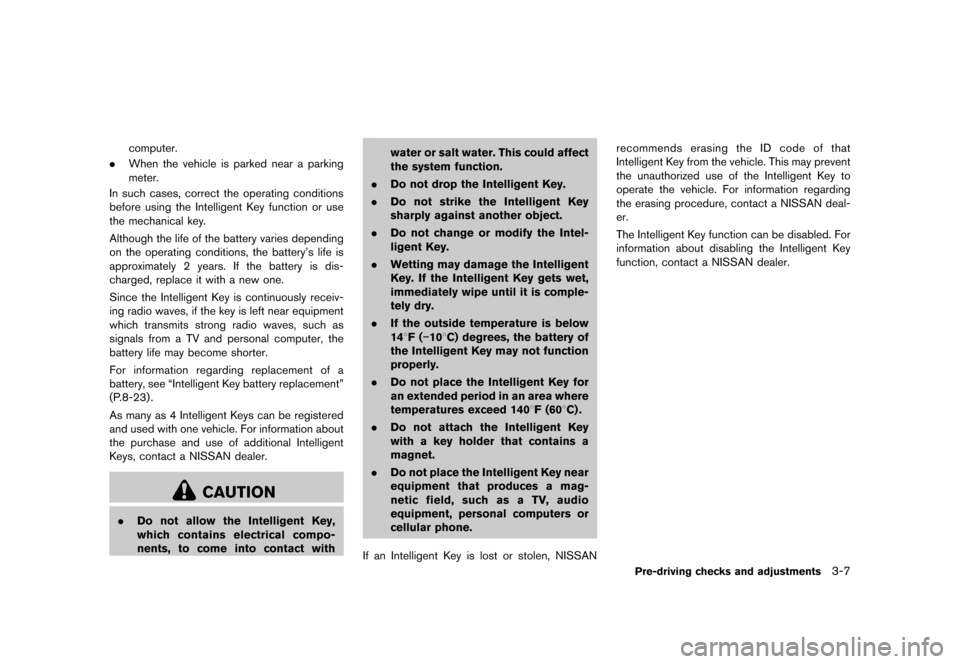

computer.
. When thevehicle isparked nearaparking
meter.
In such cases, correct theoperating conditions
before usingtheIntelligent Key function oruse
the mechanical key.
Although thelifeofthe battery variesdepending
on the operating conditions, thebattery's lifeis
approximately 2years. Ifthe battery isdis-
charged, replaceitwith anew one.
Since theIntelligent Key iscontinuously receiv-
ing radio waves, ifthe key isleft near equipment
which transmits strongradiowaves, suchas
signals fromaTV and personal computer, the
battery lifemay become shorter.
For information regardingreplacement ofa
battery ,see ªIntelligent Key battery replacementº
(P .8-23) .
As many as4Intelligent Keys can beregistered
and used withonevehicle. Forinformation about
the purchase anduseofadditional Intelligent
K eys, contact aNISSAN dealer.
CAUTION
. Do not allow theIntelligent Key,
which contains electrical compo-
nents, tocome intocontact with water
orsalt water. Thiscould affect
the system function.
. Do not drop theIntelligent Key.
. Do not strike theIntelligent Key
sharply against another object.
. Do not change ormodify theIntel-
ligent Key.
. Wetting maydamage theIntelligent
Key. Ifthe Intelligent Keygets wet,
immediately wipeuntilitis comple-
tely dry.
. Ifthe outside temperature isbelow
148F (
Page 134 of 383
> ( G L W 0 R G H O ) ' @
3-8
Pre-driv ingchecks andadjustment s

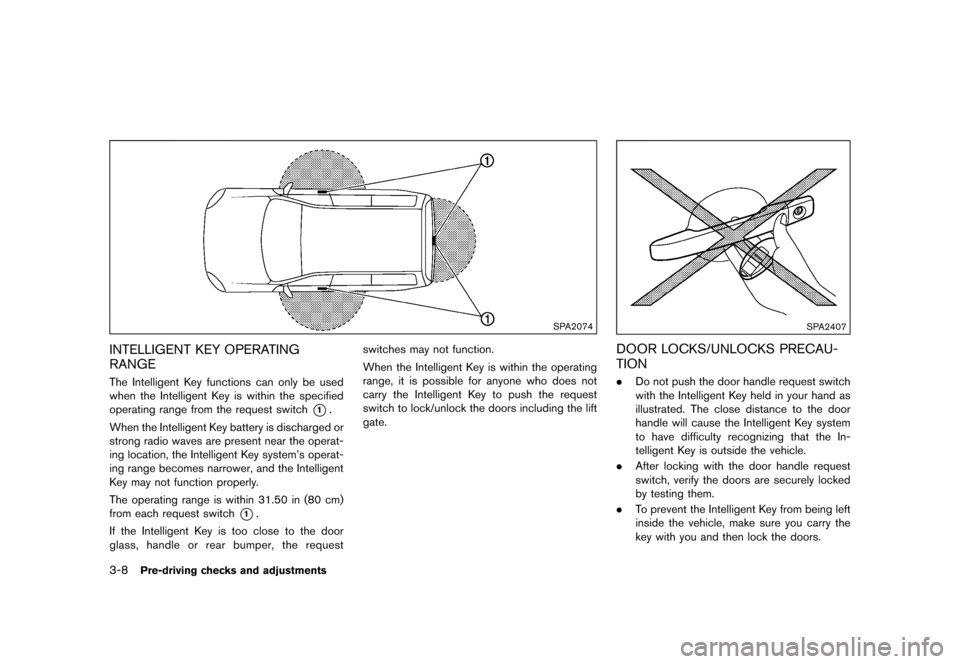

SP A2074
INTELLIGEN TKEY OPERA TING
RANGE
GUID-9C0 1D882-4E2 0-4015-B833-757E7B E7E6C9
The Intelligent Key functions canonly beused
when theIntelligent Key iswithin thespecified
operating rangefromtherequest switch
*
1
.
When theIntelligent Key battery isdischarged or
strong radiowaves arepresent neartheoperat-
ing location, theIntelligent Key system's operat-
ing range becomes narrower, andtheIntelligent
K ey may notfunction properly.
The operating rangeiswithin 31.50 in(80 cm)
from each request switch
*
1
.
If the Intelligent Key istoo close tothe door
glass, handle orrear bumper, therequest switches
maynotfunction.
When theIntelligent Key iswithin theoperating
range, itis possible foranyone whodoes not
carry theIntelligent Key topush therequest
switch tolock/unlock thedoors including thelift gate.
SP A2407
DOOR LOCKS/UNL OCKSPRECAU-
TION
GUID-043 7DDEE-AB1 5-4018-8C58 -38DFFB4446B8
. Donot push thedoor handle request switch
with theIntelligent Key held inyour hand as
illustrated. Theclose distance tothe door
handle willcause theIntelligent Key system
to have difficulty recognizing thattheIn-
telligent Key isoutside thevehicle.
. After locking withthedoor handle request
switch, verifythedoors aresecurely locked
by testing them.
. To prevent theIntelligent Key from being left
inside thevehicle, makesureyoucarry the
key with youand then lockthedoors.
& R Q G L W L R Q
Page 135 of 383
> ( G L W 0 R G H O ) ' @

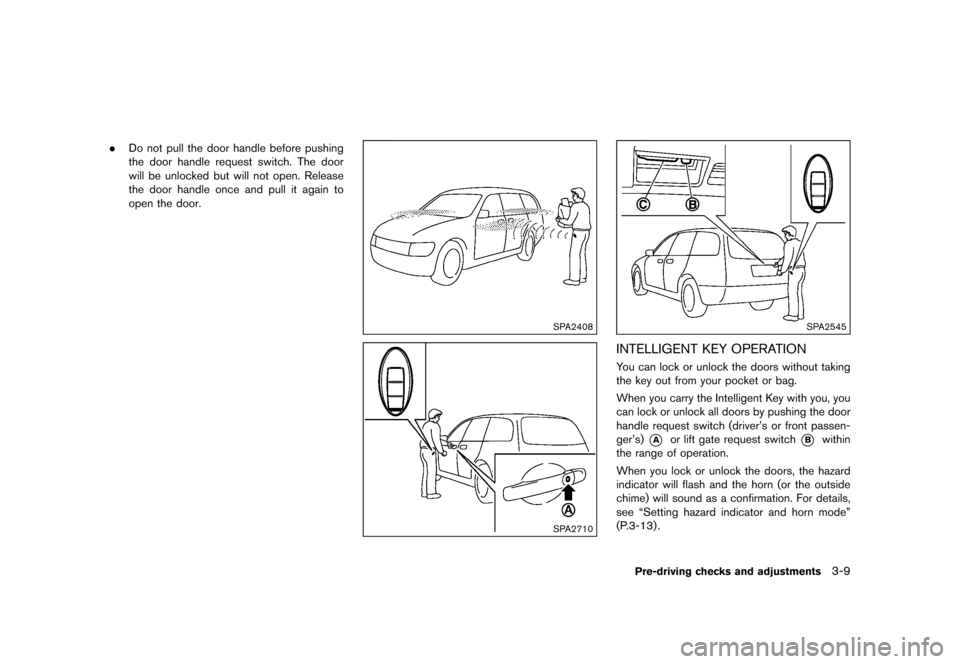

. Donot pull thedoor handle beforepushing
the door handle request switch.Thedoor
will beunlocked butwillnotopen. Release
the door handle onceandpullitagain to
open the
door.
SP A2408
SP A2710
SP A2545
INTELLIGEN TKEY OPERA TION
GUID-BA56 9644-A495-4CE9-924 4-A8ECF1127EA8
Y ou can lock orunlock thedoors without taking
the key outfrom yourpocket orbag.
When youcarry theIntelligent Key with you,you
can lock orunlock alldoors bypushing thedoor
handle request switch(driver's orfront passen-
ger's)
*
A
or lift gate request switch
*
B
within
the range ofoperation.
When youlock orunlock thedoors, thehazard
indicator willflash andthehorn (orthe outside
chime) willsound asaconfirmation. Fordetails,
see ªSetting hazardindicator andhorn modeº
(P .3-13) .
Pre-driv ingchecks andadjustmen ts
3-9
& R Q G L W L R Q
Page 136 of 383
> ( G L W 0 R G H O ) ' @
3-10
Pre-driving checksandadjustment s

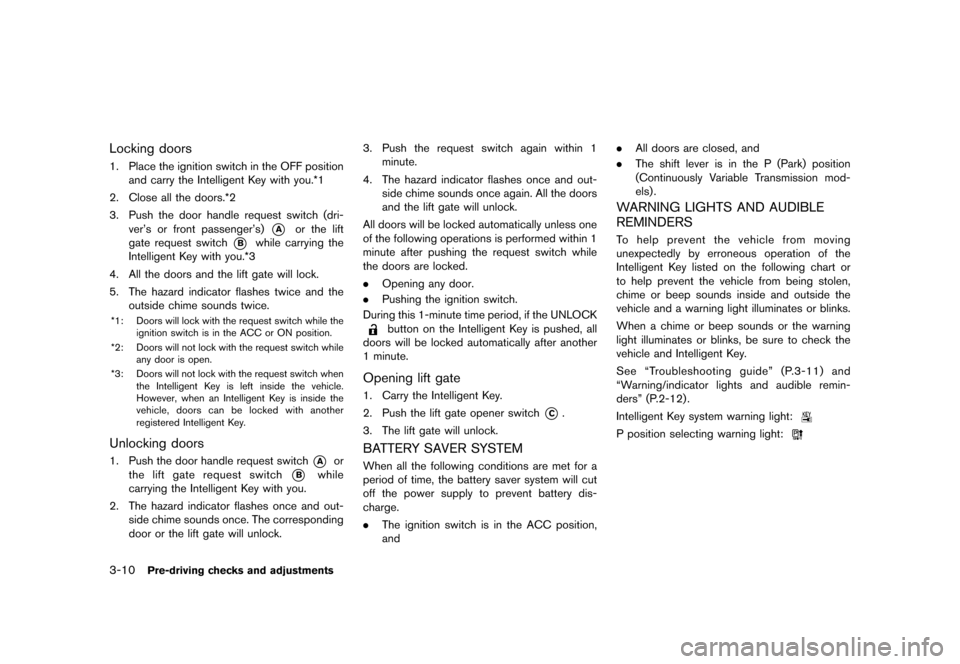

Locking doors
GUID-07C B5A9E-DF8 3-455D-A22C -2FF8A457C4E C
1. Place theignition switchinthe OFF position
and carry theIntelligent Key with you.*1
2. Close allthe doors.*2
3. Push thedoor handle request switch(dri-
ver's orfront passenger's)
*
A
or the lift
gate request switch
*
B
while carrying the
Intelligent Key with you.*3
4. Allthe doors andtheliftgate willlock.
5. The hazard indicator flashestwiceandthe
outside chimesounds twice.
*1: Doors willlock with therequest switchwhilethe
ignition switchisin the ACC orON position.
*2: Doors willnotlock with therequest switchwhile
any door isopen.
*3: Doors willnot lock with therequest switchwhen
the Intelligent Key isleft inside thevehicle.
However, whenanIntelligent Key isinside the
vehicle, doorscanbelocked withanother
registered IntelligentKey .
Unlocking doors
GUID-FEED93 E7-A7E2-406A-BCA7-5 A65AC821C9B
1. Push thedoor handle request switch
*
A
or
the liftgate request switch
*
B
while
carrying theIntelligent Key with you.
2. The hazard indicator flashesonceandout-
side chime sounds once.Thecorresponding
door orthe liftgate willunlock. 3.
Push therequest switchagainwithin 1
minute.
4. The hazard indicator flashesonceandout-
side chime sounds onceagain. Allthe doors
and theliftgate willunlock.
All doors willbelocked automatically unlessone
of the following operations isperformed within1
minute afterpushing therequest switchwhile
the doors arelocked.
. Opening anydoor.
. Pushing theignition switch.
During this1-minute timeperiod, ifthe UNL OCK
button onthe Intelligent Key ispushed, all
doors willbelocked automatically afteranother
1 minute.
Opening liftgate
GUID-90 DFB32E-039 E-44A8-95E5- CAC6DC5E9FFF
1. Carry theIntelligent Key .
2. Push theliftgate opener switch
*
C
.
3. The liftgate willunlock.
BA TTER YSA VER SYSTEM
GUID-817 AD6BA-79 E5-43BC-A0C C-216A5D867A2A
When allthe following conditions aremet fora
period oftime, thebattery saversystem willcut
off the power supply toprevent batterydis-
charge.
. The ignition switchisin the ACC position,
and .
Alldoors areclosed, and
. The shift lever isin the P(Park) position
(Continuously Variable Transmission mod-
els) .
W ARNING LIGHTSANDAUDIBLE
REMINDERS
GUID-9651A 744-FFA0-4CDB-B228-1C2F7 BB0B640
T o help prevent thevehicle frommoving
unexpectedly byerroneous operationofthe
Intelligent Key listed onthe following chartor
to help prevent thevehicle frombeing stolen,
chime orbeep sounds insideandoutside the
vehicle andawarning lightilluminates orblinks.
When achime orbeep sounds orthe warning
light illuminates orblinks, besure tocheck the
vehicle andIntelligent Key .
See ªTroubleshooting guideº(P.3-11) and
ªW arning/indicator lightsandaudible remin-
dersº (P.2-12) .
Intelligent Key system warning
light:
P position selecting warning light:
& R Q G L W L R Q
Page 137 of 383
> ( G L W 0 R G H O ) ' @

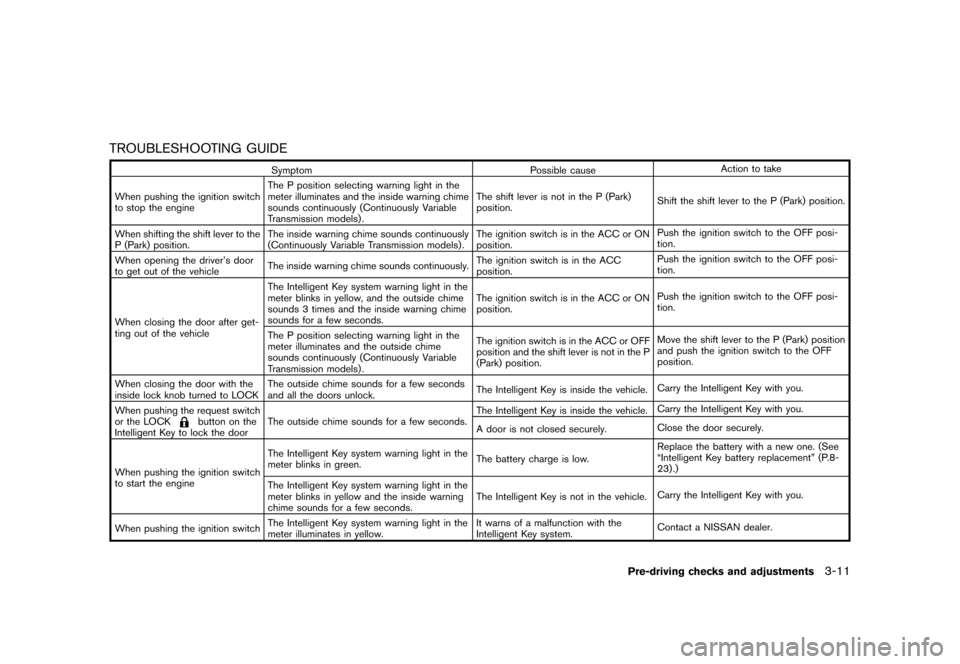

TROUBLESH OOTING GUIDE
GUID-FD 003181-72 3A-472E-84F 6-40154676082B
Symptom Possible cause Action
totake
When pushing theignition switch
to stop theengine The
Pposition selecting warninglightinthe
meter illuminates andtheinside warning chime
sounds continuously (Continuously Variable
T ransmission models). The
shift lever isnot inthe P(Park)
position. Shift
theshift lever tothe P(Park) position.
When shifting theshift lever tothe
P (Park) position. The
inside warning chimesounds continuously
(Continuously Variable Transmission models).The
ignition switchisin the ACC orON
position. Push
theignition switchtothe OFF posi-
tion.
When opening thedriver's door
to get outofthe vehicle The
inside warning chimesounds continuously .The
ignition switchisin the ACC
position. Push
theignition switchtothe OFF posi-
tion.
When closing thedoor afterget-
ting outofthe vehicle The
Intelligent Key system warning lightinthe
meter blinks inyellow ,and theoutside chime
sounds 3times andtheinside warning chime
sounds forafew seconds. The
ignition switchisin the ACC orON
position. Push
theignition switchtothe OFF posi-
tion.
The Pposition selecting warninglightinthe
meter illuminates andtheoutside chime
sounds continuously (Continuously Variable
T ransmission models). The
ignition switchisin the ACC orOFF
position andtheshift lever isnot inthe P
(Park) position. Move
theshift lever tothe P(Park) position
and push theignition switchtothe OFF
position.
When closing thedoor withthe
inside lockknob turned toLOCK The
outside chimesounds forafew seconds
and allthe doors unlock. The
Intelligent Key isinside thevehicle. Carry
theIntelligent Key with you.
When pushing therequest switch
or the LOCK
button onthe
Intelligent Key tolock thedoor The
outside chimesounds forafew seconds. The
Intelligent Key isinside thevehicle. Carry
theIntelligent Key with you.
A door isnot closed securely . Close
thedoor securely .
When pushing theignition switch
to start theengine The
Intelligent Key system warning lightinthe
meter blinks ingreen. The
battery charge islow . Replace
thebattery withanew one. (See
ªIntelligent Key battery replacementº (P.8-
23) .)
The Intelligent Key system warning lightinthe
meter blinks inyellow andtheinside warning
chime sounds forafew seconds. The
Intelligent Key isnot inthe vehicle. Carry
theIntelligent Key with you.
When pushing theignition switch The
Intelligent Key system warning lightinthe
meter illuminates inyellow . It
warns ofamalfunction withthe
Intelligent Key system. Contact
aNISSAN dealer.
Pre-d riving checks andadjustments
3-11
& R Q G L W L R Q
Page 138 of 383
> ( G L W 0 R G H O ) ' @
3-12
Pre-driving checksandadjustment s
HOW TO USE REMO TEKEYLESS
ENTR YFUNCTION
GUID-CF76A 4ED-43D7-44C7-A605-B A799B1A10EE
WARNING
. Radio waves couldadversely affect
electric medical equipment. Those
who useapacemaker shouldcon-
tact theelectric medical equipment
manufacturer forthe possible influ-
ences before use.
. The Intelligent Keytransmits radio
waves whenthebuttons are
pushed. TheFAAadvises thatthe
radio waves mayaffect aircraft na-
vigation andcommunication sys-
tems. Donot operate the
Intelligent Keywhile onanairplane.
Make surethebuttons arenot
operated unintentionally whenthe
unit isstored during aflight.
CAUTION
. Do not allow theIntelligent Key,
which contains electrical compo-
nents, tocome intocontact with
water orsalt water. Thiscould affect the
system function.
. Do not drop theIntelligent Key.
. Do not strike theIntelligent Key
sharply against another object.
. Do not change ormodify theIntel-
ligent Key.
. Wetting maydamage theIntelligent
Key. Ifthe Intelligent Keygets wet,
immediately wipeuntilitis comple-
tely dry.
. Ifthe outside temperature isbelow
148F (-108C) degrees, thebattery of
the intelligent keymay notfunction
properly.
. Do not place theIntelligent Keyfor
an extended periodinan area where
temperatures exceed1408F(608C).
. Do not attach theIntelligent Key
with akey holder thatcontains a
magnet.
. Donot place theIntelligent Keynear
equipment thatproduces amag-
netic field, suchasaTV,audio
equipment, personalcomputers or
cellular phone.
The remote keyless entryfunction canoperate
all door locks using theremote keyless entry function
ofthe Intelligent Key .The remote
keyless entryfunction canoperate atadistance
of approximately 33ft(10 m)from thevehicle.
(The operating distancedepends uponthe
conditions aroundthevehicle.)
The remote keyless entryfunction willnot
operate:
. When theIntelligent Key isnot within the
operational range.
. When thedoors areopen ornot closed
securely .
. When theIntelligent Key battery isdis-
charged.
The remote keyless entryfunction canalso
operate thevehicle alarm.
& R Q G L W L R Q
Page 139 of 383
> ( G L W 0 R G H O ) ' @
SP A2252
*
1
L OCK
button
*
2
UNL OCK
button
*
3
P ANIC
button
When youlock orunlock thedoors, thehazard
indicator willflash andthehorn willsound asa
confirmation. Fordetails, seeªSetting hazard
indicator andhorn modeº (P.3-13) .
Locking doors
GUID-D5 262080-ABD 1-4D76-9C95-01FC9F73DFE8
1. Place theignition switchinthe OFF position
and carry theIntelligent Key with you.*
2. Carry theIntelligent Key with you.
3. Close allthe doors.
4. Push theLOCK
button
*
1
on the
Intelligent Key . 5.
Allthe doors andtheliftgate willlock.
6. The hazard indicator flashestwiceandthe
horn chirps once.
*: Doors willlock with theIntelligent Key while the
ignition switchisin the ACC orON position.
Operate thedoor handles toconfirm thatthe
doors havebeen securely locked.
Unlocking doors
GUID-A 93EF8B5-C 1CC-498F-9 1E8-A405D4 27718F
1. Push theUNL OCK
button
*
2
on the
Intelligent Key once.
2. The hazard indicator flashesonce.The
driver's doorwillunlock.
3. Push theUNL OCK
button againwithin
1 minute.
4. The hazard indicator flashesonce.Allthe
doors andtheliftgate willunlock.
All doors willbelocked automatically unlessone
of the following operations isperformed within1
minute afterpushing theUNL OCK
button
while thedoors arelocked.
. Opening anydoor (including theliftgate) .
. Pushing theignition switch.
During this1-minute timeperiod, ifthe UNL OCK
button ispushed, alldoors willbelocked
automatically afteranother 1minute.
Using panicalarm
GUID-51 3ECE9A-40 D5-44E1-AED9-89539 DD3CB29
If you arenear yourvehicle andfeelthreatened,
you may activate thealarm tocall attention as
follows:
1. Push thePANIC
button
*
3
on the
Intelligent Key for more than1second.
2. The theft warning alarmandheadlights will
stay onfor 25 seconds.
3. The panic alarmstops when:
.
It has runfor25 seconds, or
.
Any ofthe buttons onthe Intelligent Key
is pushed. (Note:thePANIC button must
be pushed formore than1second.)
Setting hazardindicator andhorn mode
GUID-3F B89421-3312 -403E-A809-6994604156A 8
This vehicle isset inhazard indicator andhorn
mode whenyoufirst receive thevehicle.
In hazard indicator andhorn mode, whenthe
L OCK
button
*
1
is pushed, thehazard
indicator flashestwiceandthehorn chirps once.
When theUNL OCK
button
*
2
is pushed,
the hazard indicator flashesonce.
If horns arenot necessary ,the system canbe
switched tothe hazard indicator mode.
In hazard indicator mode,whentheLOCK
button ispushed, thehazard indicator flashes
twice. When theUNLOCK
button is
pushed, neitherthehazard indicator northe
Pre-d riving checks andadjustments
3-13
& R Q G L W L R Q
Page 140 of 383
> ( G L W 0 R G H O ) ' @
3-14
Pre-driving checksandadjustment s
horn operates. Hazardindicator andhorn mode:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
Operation
DOORLOCK DOOR
UNLOCK
Pushing doorhandle request switch
or lift gate request switch HAZARD
-twice
OUTSIDE CHIME-twice HAZARD
-once
OUTSIDE CHIME-once
Pushing
or
button HAZARD
-twice
HORN -once HAZARD
-once
HORN -none
Hazard indicator mode:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
Operation
DOORLOCK DOOR
UNLOCK
Pushing doorhandle request switch
or lift gate request switch HAZARD
-twice
OUTSIDE CHIME-none HAZARD
-none
OUTSIDE CHIME-none
Pushing
or
button HAZARD
-twice
HORN -none HAZARD
-none
HORN -none
& R Q G L W L R Q
